华电技术 ›› 2021, Vol. 43 ›› Issue (1): 24-30.doi: 10.3969/j.issn.1674-1951.2021.01.005

• 物联网与配电智能化 • 上一篇    下一篇

箱式变电站出厂试验智能化测试管理系统设计

郭强1(), 郑丽娟1, 余桂华1, 关山2,*()

  1. 1.杭州电力设备制造有限公司余杭群力成套电气制造分公司,杭州 311100
    2.东北电力大学 机械工程学院,吉林 吉林 132012
  • 收稿日期:2020-09-16 修回日期:2020-12-30 出版日期:2021-01-25 发布日期:2021-02-01
  • 通讯作者: 关山
  • 作者简介:郭强(1988—),男,吉林长春人,工程师,从事电气设计研发方面的工作(E-mail:342981323@qq.com)。
  • 基金资助:
    吉林省发展和改革委员会2020年省预算内基本建设资金创新能力项目(2020C022-6)

Research on intelligent management system of prefabricated substation delivery test

GUO Qiang1(), ZHENG Lijuan1, YU Guihua1, GUAN Shan2,*()

  1. 1. Yuhang Qunli Complete Electrical Manufacturing Branch of Hangzhou Power Equipment Manufacturing Company Limited,Hangzhou 311100,China
    2. School of Mechanical Engineering,Northeast Electric Power University,Jilin 132012,China
  • Received:2020-09-16 Revised:2020-12-30 Online:2021-01-25 Published:2021-02-01
  • Contact: GUAN Shan

摘要:

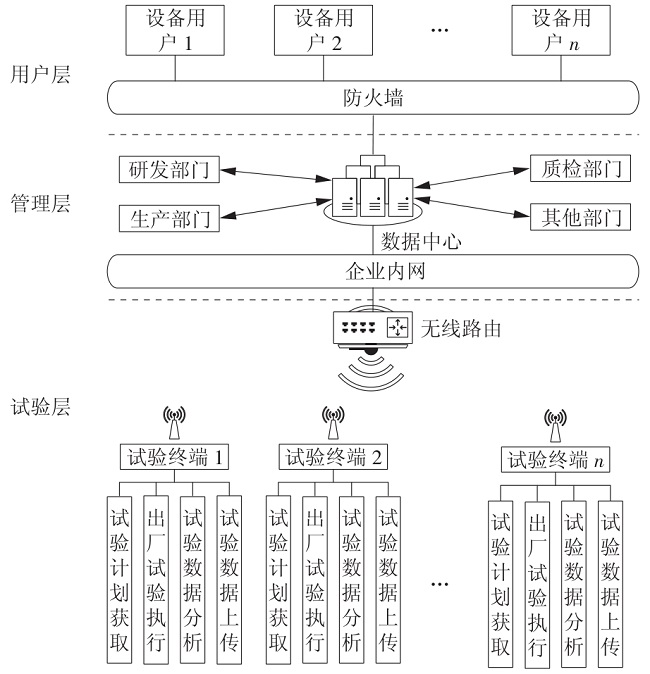

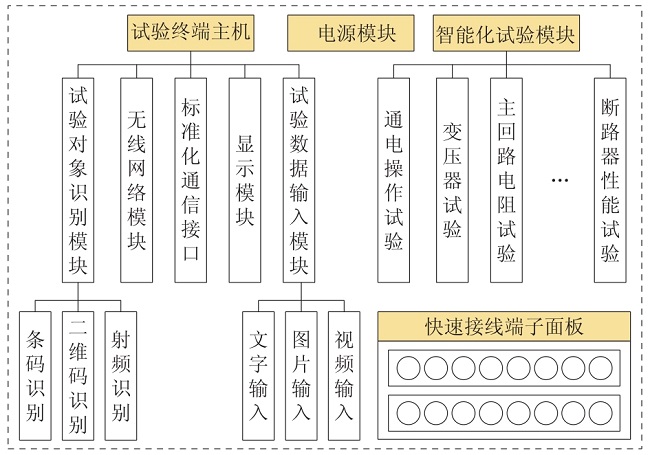

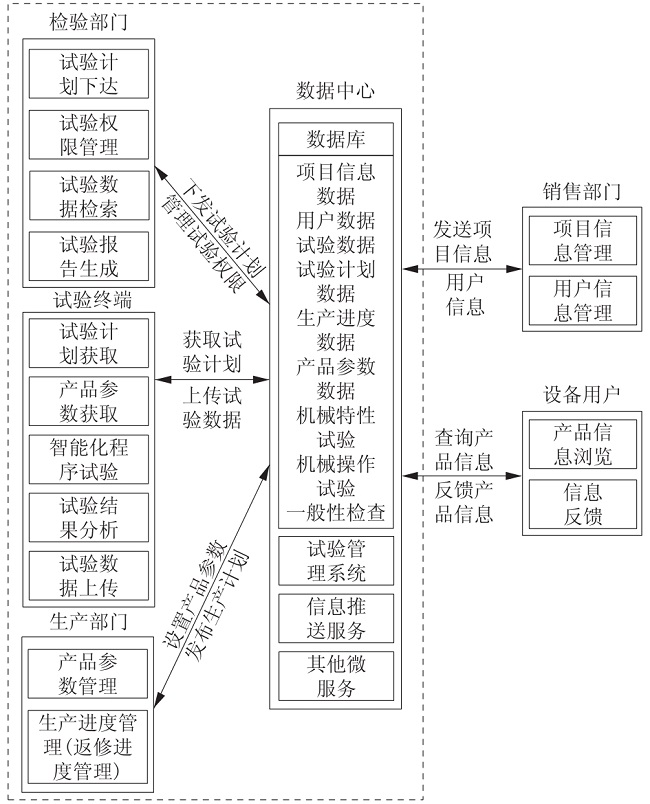

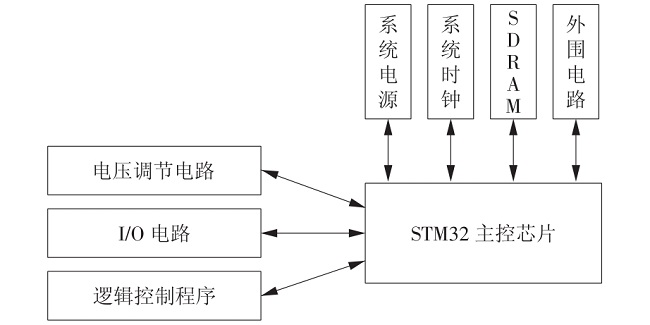

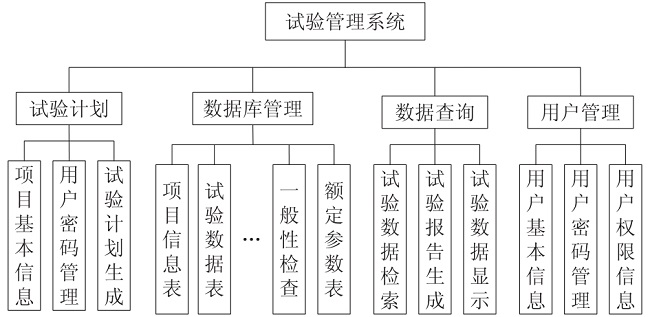

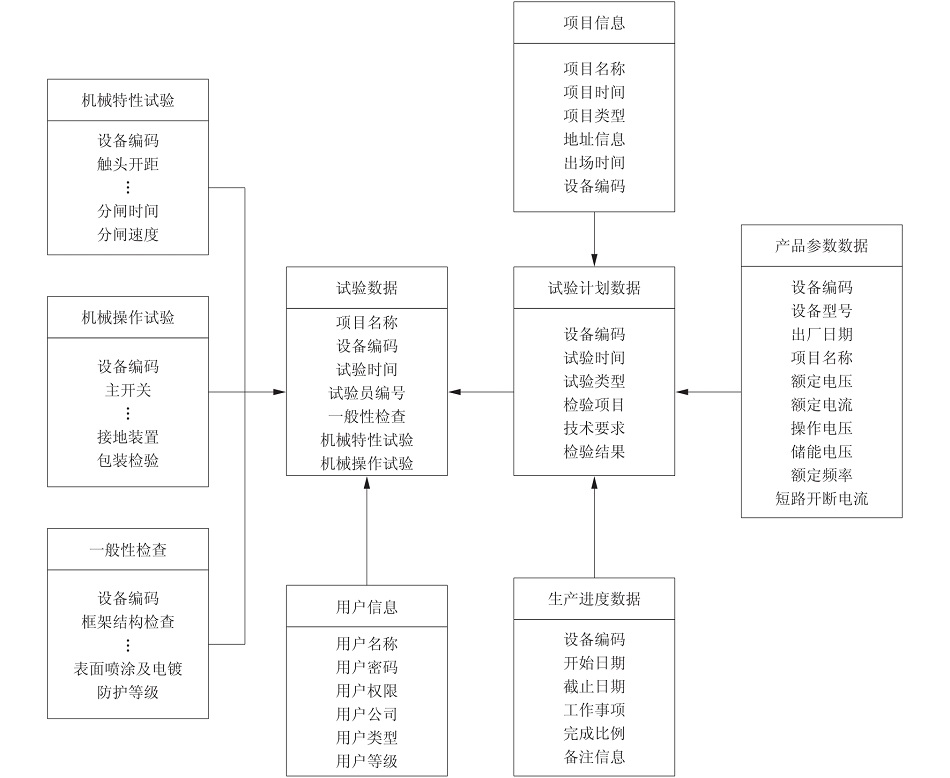

针对箱式变电站出厂试验环节众多,管理体系不科学,智能化和自动化程度低等问题,提出了基于物联网的箱式变电站出厂试验系统。系统包括试验层、管理层和用户层。试验层以试验终端为核心,采用模块化设计思想,实现试验计划获取、出厂试验执行、试验数据分析、试验数据上传等功能。管理层以数据中心为纽带,通过试验管理系统将相关部门连接协作完成出厂试验工作。用户层用于接收设备用户请求,响应数据显示,并向数据中心反馈产品问题。实际应用表明,该系统实现了箱式变电站出厂试验的网络化和智能化管理,简化了试验过程、提高了工作效率,并保证了试验数据的安全性和真实性。

关键词: 物联网, 箱式变电站, 出厂试验, 数据中心

Abstract:

To deal with the complicated test procedure,unreasonable management system and low intelligentization and automation of prefabricated substation delivery test,an intelligent management system for the test was proposed based on Internet of Things.The system is consisted of a testing layer,a management layer and a user layer.The test layer takes test terminals as the core,and realizes test plan acquisition,delivery test execution,test data analysis and test data upload by adopting modular design.The management layer,taking data center as the connecter,links all the departments relevant to the delivery test to complete the test successively through the management system.The user layer can accept users' requests,display respond data and report product problems to the data center.The engineering project shows that the system realizes intelligent and online management on prefabricated substation delivery tests,streamlines the test process,improves work efficiency,and ensures the safety and authenticity of the test data.

Key words: Internet of Things, prefabricated substation, delivery test, data center
