基于拓扑重构与分布式电源调度的配电网灾后恢复策略

doi:10.3969/j.issn.2097-0706.2022.02.005

综合智慧能源 ›› 2022, Vol. 44 ›› Issue (2): 29-34.doi: 10.3969/j.issn.2097-0706.2022.02.005

基于拓扑重构与分布式电源调度的配电网灾后恢复策略

王卓容(), 石庆鑫^*()

华北电力大学电气与电子工程学院,北京 102206

收稿日期:2021-12-20 修回日期:2022-01-15 出版日期:2022-02-25 发布日期:2022-03-07
通讯作者: 石庆鑫
作者简介:王卓容（1999）,女,在读硕士研究生,从事配电网灾后抢修与恢复调度研究, iswangzhr@163.com
基金资助:
华北电力大学中央高校基本科研业务费专项资金资助项目(2021MS008)

Post-disaster restoration strategy of power distribution systems based on topology reconfiguration and distributed generation scheduling

WANG Zhuorong(), SHI Qingxin^*()

School of Electrical and Electronic Engineering,North China Electric Power University,Beijing 102206,China

Received:2021-12-20 Revised:2022-01-15 Online:2022-02-25 Published:2022-03-07
Contact: SHI Qingxin

摘要/Abstract

摘要：

为提升配电系统在极端天气下的弹性,提出一种配电网灾后恢复算法。针对系统发生N-k故障的场景,建立拓扑重构与分布式电源协同调度模型,最小化灾害带来的切负荷损失。在调度模型中,通过混合整数线性方程表征故障场景下的网络保持辐射状拓扑约束、分布式电源约束与系统潮流约束。该方法综合考虑了可调度分布式能源、不可调度分布式能源,以及旁路电容器的运行特性。以IEEE 33节点系统为例,选取相对严重的灾害场景,验证了故障后恢复算法的有效性。

关键词: 极端天气, 灾后恢复, 配电网弹性, 拓扑重构, 分布式电源, 旁路电容器

Abstract:

A post-disaster restoration（PDR）strategy is proposed to enhance the resilience of power system against extreme weather.Under the N-k fault scenarios,a cooperative dispatching model of topological reconfiguration and distributed generators（DGs）is established to minimize the load-shedding cost due to disasters.The PDR strategy model characterizes the radial topological constraints,DG scheduling constraints and system power flow constraints in fault scenarios as a set of mix integer linear equations.The proposed method fully considers the operating characteristics of dispatchable DGs,non-dispatchable DGs and shunt capacitors.Finally,the proposed PDR strategy is validated by an IEEE 33-bus system in serious fault scenarios.

Key words: extreme weather, post-disaster restoration（PDR）, distribution system resilience, topology reconfiguration, distributed generator, shunt capacitor

中图分类号:

TM7：TK514

王卓容, 石庆鑫. 基于拓扑重构与分布式电源调度的配电网灾后恢复策略[J]. 综合智慧能源, 2022, 44(2): 29-34.

WANG Zhuorong, SHI Qingxin. Post-disaster restoration strategy of power distribution systems based on topology reconfiguration and distributed generation scheduling[J]. Integrated Intelligent Energy, 2022, 44(2): 29-34.

图/表 7

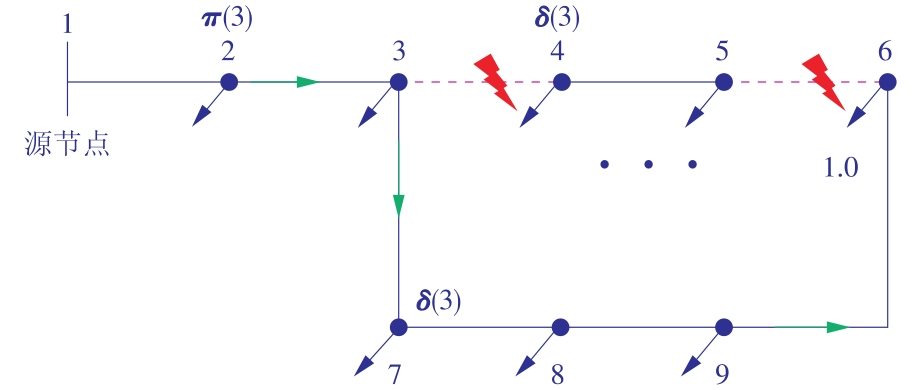

图1

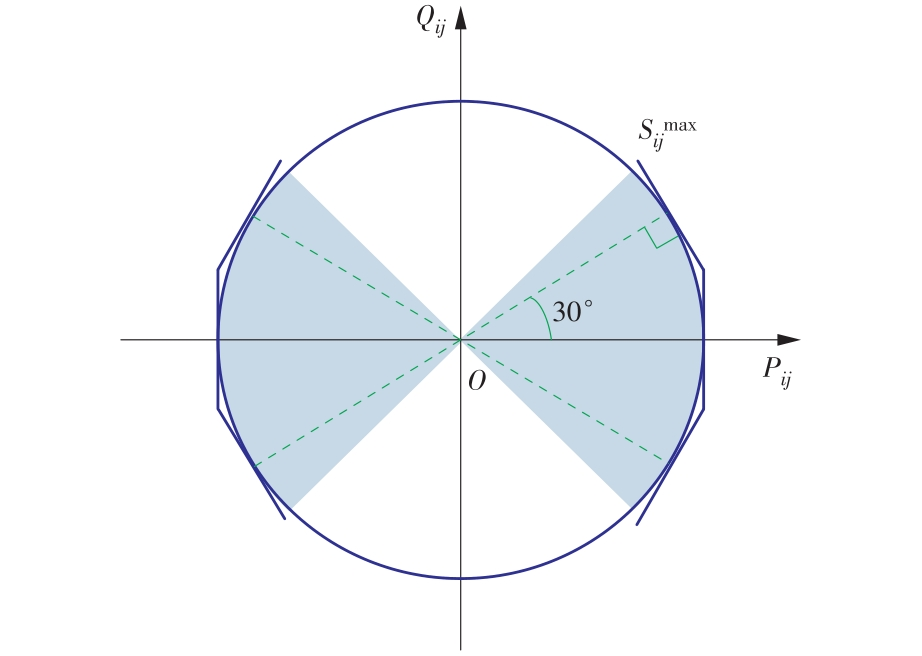

图2

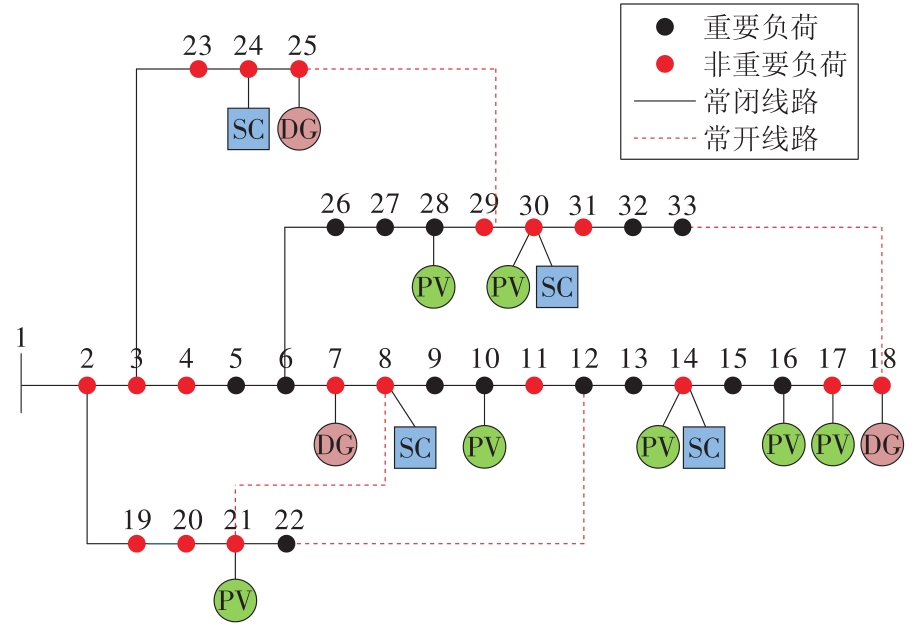

图3

表1

表2

图4

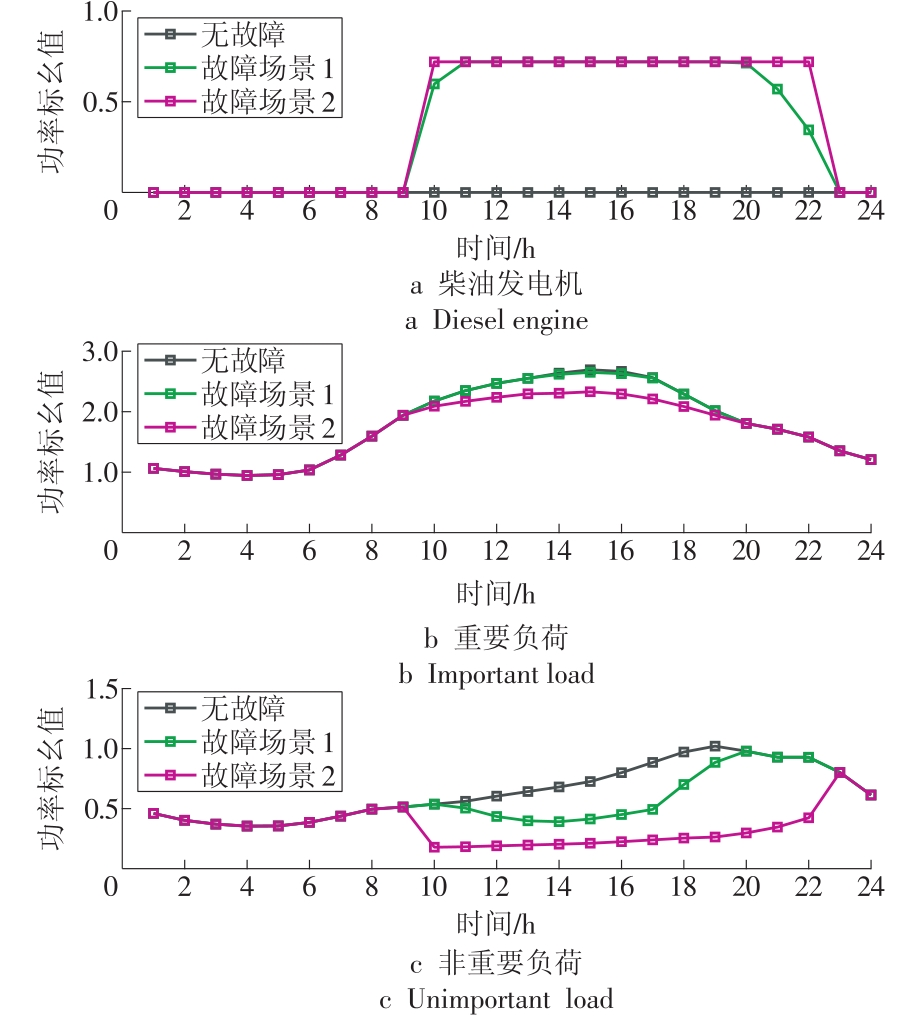

图5

参考文献 21

[1]	WILLIE D. 2017 Hurricane season was the most expensive in U.S.history[EB/OL].(2017-12-01)[2021-11-10]. https://www.nationalgeographic.com/science/article/2017-hurricane-season-most-expensive-us-history-spd.
[2]	科技助力水灾抢修, 郑州供电恢复率达到98％以上[EB/OL].(2021-7-27)[2021-11-10]. https://new.qq.com/omn/20210728/20210728A09CCH00.html.
[3]	许寅, 和敬涵, 王颖, 等. 韧性背景下的配网故障恢复研究综述及展望[J]. 电工技术学报, 2019,34(16):3416-2429.
	XU Yin, HE Jinghan, WANG Ying, et al. A review on distribution system restoration for resilience enhancement[J]. Transactions of China Electrotechnical Society, 2019,34(16):3416-2429.
[4]	VARTANIAN C, BAUER R, CASEY L, et al. Distributed energy resources—Technical considerations for the bulk power system[R]. Federal Energy Regulatory Commission (FERC), 2018.
[5]	TAN Y S, ARINDAM K D, PAYMAN A, et al. Distribution systems hardening against natural disasters[J]. IEEE Transactions on Power Systems, 2018,33(6):6849-6860. doi: 10.1109/TPWRS.59
[6]	CHEN C, WANG J H, TON D. Modernizing distribution system restoration to achieve grid resiliency against extreme weather events:An integrated solution[J]. Proceedings of the IEEE, 2017,105(7):1267-1288. doi: 10.1109/JPROC.2017.2684780
[7]	ADHIKARI S, LI F X, HU Q R, et al. Heuristic optimal restoration based on constructive algorithms for future smart grids[C]//2011 16th International Conference on Intelligent System Applications to Power System.Hersonissos,Greece, 2011.
[8]	刘金豆, 成杰, 俞高伟. 基于低压直流配电网并网的并离网一体光储发电系统研究[J]. 华电技术, 2021,43(4):63-70.
	LIU Jindou, CHENG Jie, YU Gaowei. Research on a PV-energy storage system with integration of grid-connection and disconnection modes based on low-pressure DC distribution network[J]. Huadian Technology, 2021,43(4):63-70.
[9]	李炜, 严川, 盛庆博, 等. 大数据背景下智能配电网运营管理方法研究[J]. 华电技术, 2021,43(8):33-40.
	LI Wei, YAN Chuan, SHENG Qingbo, et al. Study on smart distribution network operation and management methods in the context of big data[J]. Huadian Technology, 2021,43(8):33-40.
[10]	GALVAN E, MANDAL P, SANG Y H. Networked microgrids with roof-top solar PV and battery energy storage to improve distribution grids resilience to natural disasters[J]. Electrical Power & Energy System, 2020,123:1-11.
[11]	WANG Z Y, WANG J H. Self-healing resilient distribution systems based on sectionalization into microgrids[J]. IEEE Transactions on Power Systems, 2015,30(6):3139-3149. doi: 10.1109/TPWRS.2015.2389753
[12]	CHEN Y, MAHESH S I, AMRIT S K. Modified viterbi algorithm based distribution system restoration strategy for grid resiliency[J]. IEEE Transactions on Power Delivery, 2017,32(1):310-319. doi: 10.1109/TPWRD.2016.2613935
[13]	CHEN C, WANG J H, QIU F, et al. Resilient distribution system by microgrids formation after natural disasters[J]. IEEE Transactions on Smart Grid, 2016,7(2):958-966. doi: 10.1109/TSG.2015.2429653
[14]	FARZIN H, FOTUHI-FIRUZABAD M, MOEINI-AGHTAIE M. Role of outage management strategy in reliability performance of multi-microgrid distribution systems[J]. IEEE Transactions on Power Systems, 2018,33(3):2359-2369. doi: 10.1109/TPWRS.59
[15]	DING T, LIN Y L, BIE Z H, et al. A resilient microgrid formation strategy for load restoration considering master-slave distributed generators and topology reconfiguration[J]. Applied Energy, 2017,199:205-216. doi: 10.1016/j.apenergy.2017.05.012
[16]	WANG Y, XU Y, HE J H, et al. Coordinating multiple sources for service restoration to enhance resilience of distribution systems[J]. IEEE Transactions on Smart Grid, 2019,10(5):5781-5793. doi: 10.1109/TSG.5165411
[17]	LIU J C, YU Y X, QIN C. Unified two-stage reconfiguration method for resilience enhancement of distribution systems[J]. IET Generation,Transmission & Distribution, 2019,13(9):1734-1745. doi: 10.1049/gtd2.v13.9
[18]	KIANMEHR E, NIKKHAH S, VAHIDINASAB V, et al. A resilience-based architecture for joint distributed energy resources allocation and hourly network reconfiguration[J]. IEEE Transactions on Industrial Informatics, 2019,15(10):5444-5455. doi: 10.1109/TII.9424
[19]	ZHOU Z C, WU Z, JIN T. Deep reinforcement learning framework for resilience enhancement of distribution systems under extreme weather events[J]. Electrical Power and Energy System, 2021,128:1-12.
[20]	BALAKRISHNAN R, RANGANATHAN K. A textbook of graph theory[M]. Berlin Heidelberg:Springer-Verlag, 2012.
[21]	YEH H, GAYME D F, LOW S H. Adaptive VAR control for distribution circuits with photovoltaic generators[J]. IEEE Transactions on Power Systems, 2012,27(3):1656-1663. doi: 10.1109/TPWRS.2012.2183151

分类	参数	参数值
系统元件	负荷	3 715 kW+j2 300 kV·A
	柴油发电机	3台,600 kW
	光伏系统	8台,640 kW
	并联电容器	4台,1 100 kV·A
费用	c^G	1.5 元/（kW·h）
费用	c^L	9.0 元/（kW·h） (重要负荷) 2.5 元/（kW·h） (非重要负荷)
系统电压标么值	V^min	0.93
	V^max	1.05
	V_sub0	0.99

项目	场景1	场景2
最小节点电压标么值	0.988	0.966
总运行费用/万元	1.521	4.835
