有源电力滤波器直流电压简单模糊比例控制

doi:10.3969/j.issn.2097-0706.2022.04.004

综合智慧能源 ›› 2022, Vol. 44 ›› Issue (4): 28-35.doi: 10.3969/j.issn.2097-0706.2022.04.004

有源电力滤波器直流电压简单模糊比例控制

梁曦文¹(), 王映品¹^,^*(), 李林¹(), 谢运祥²()

1.海南师范大学物理与电子工程学院,海口 571158
2.华南理工大学电力学院,广州 510640

收稿日期:2020-10-19 修回日期:2021-11-09 出版日期:2022-04-25 发布日期:2022-05-05
通讯作者: 王映品
作者简介:梁曦文（2002）,女,从事自动化与电力电子变换器方面的研究, 3293614380@qq.com;
李林（1972）,男,研究员,博士生导师,博士,从事激光技术、光电传感器等方面的研究, 974526627@qq.com;
谢运祥（1965）,男,教授,博士生导师,博士,从事电力电子变换器、电机传动、电能质量治理等方面的研究, yxxie@scut.edu.cn。
基金资助:
国家自然科学基金项目(62064004);海南省自然科学基金项目(119QN204);海南省高等学校科学研究项目(HNKY2020ZD-12)

Simple fuzzy proportional control on DC-link voltage of active power filters

LIANG Xiwen¹(), WANG Yingpin¹^,^*(), LI Lin¹(), XIE Yunxiang²()

1. College of Physics and Electronic Engineering,Hainan Normal University,Haikou 571158,China
2. School of Electric Power Engineering,South China University of Technology,Guangzhou 510640,China

Received:2020-10-19 Revised:2021-11-09 Online:2022-04-25 Published:2022-05-05
Contact: WANG Yingpin

摘要/Abstract

摘要：

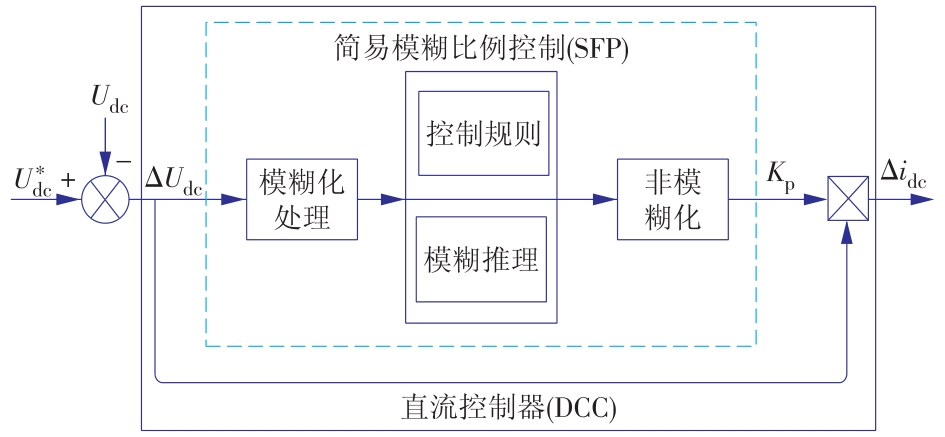

有源电力滤波器（APF）是治理电流谐波最有效的装置。APF的直流侧电压要控制稳定才能很好地补偿电流谐波。目前有很多直流电压控制方面的研究,但没有揭示直流电压的内在机理也没有提出最优的控制算法。分析了直流电压的特性,提出了一种简单模糊比例（SFP）控制算法控制直流电压。该控制器基于模糊逻辑实现对比例增益K_p的调节。K_p在稳态时变小可提高补偿精度,瞬态时变大能快速收敛,因此控制器获得了极好的抑制谐波与快速稳定的性能。另外该控制器结构简单,物理意义明确,通过仿真与试验证明该算法使APF快速稳定且有效抑制谐波。

关键词: 有源电力滤波器, 直流电压, 简单模糊比例控制, 稳态, 瞬态, 电能质量

Abstract:

Active power filter（APF）is the most effective device for mitigating current harmonics.And its DC-link voltage must be sufficiently constant in value so that APF can work properly.There have been literatures about the studies on DC-link voltage regulation,but they haven't released the internal mechanisms of DC-link voltage or presented an optimal control algorithm.Based on the analysis on characteristics of APF,a simple fuzzy proportional（SFP）control algorithm for DC-link voltage is proposed.The SFP controller adjusts proportional gain K_p based on fuzzy logic.Keeping the K_p low in steady state can improve the compensation quality,and increasing the value of K_p in transient state can accelerate the convergence.Thus,the controller performs well in harmonics suppression and stabilizing operation.Besides,the proposed SFP controller is of simple structure and clear physical meaning.Finally,simulation and experiments proved that the proposed method can accelerate the convergence of APF,and suppress the harmonics stably and effectively..

Key words: APF, DC-link voltage, SFP control, steady state, transient state, power quality

中图分类号:

TK01：TM60

梁曦文, 王映品, 李林, 谢运祥. 有源电力滤波器直流电压简单模糊比例控制[J]. 综合智慧能源, 2022, 44(4): 28-35.

LIANG Xiwen, WANG Yingpin, LI Lin, XIE Yunxiang. Simple fuzzy proportional control on DC-link voltage of active power filters[J]. Integrated Intelligent Energy, 2022, 44(4): 28-35.

图/表 20

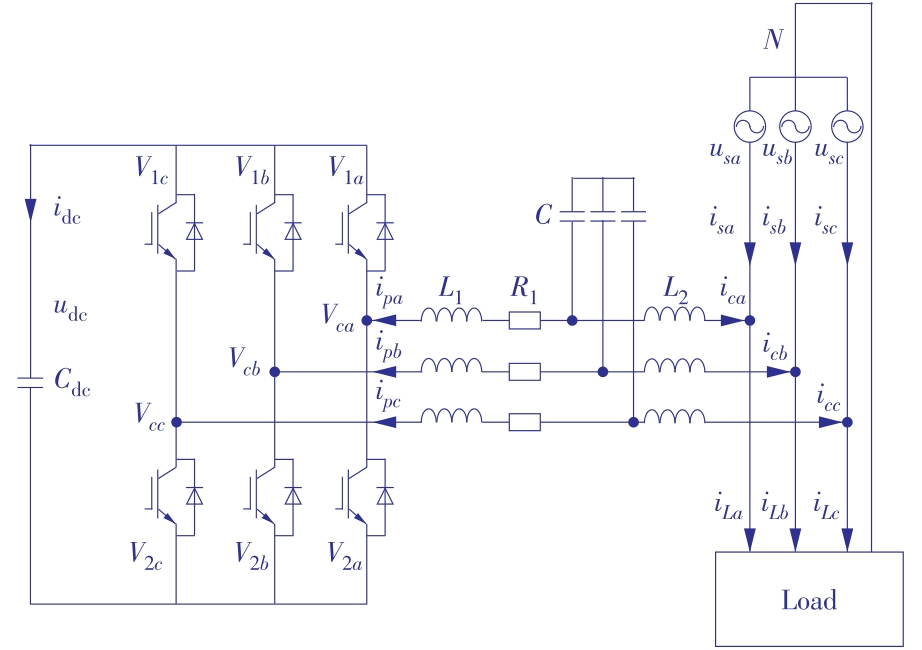

图1

图2

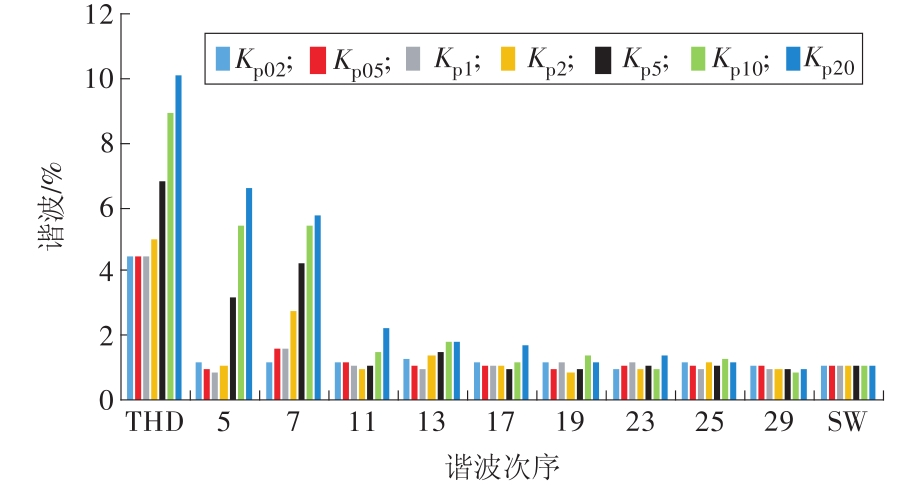

图3

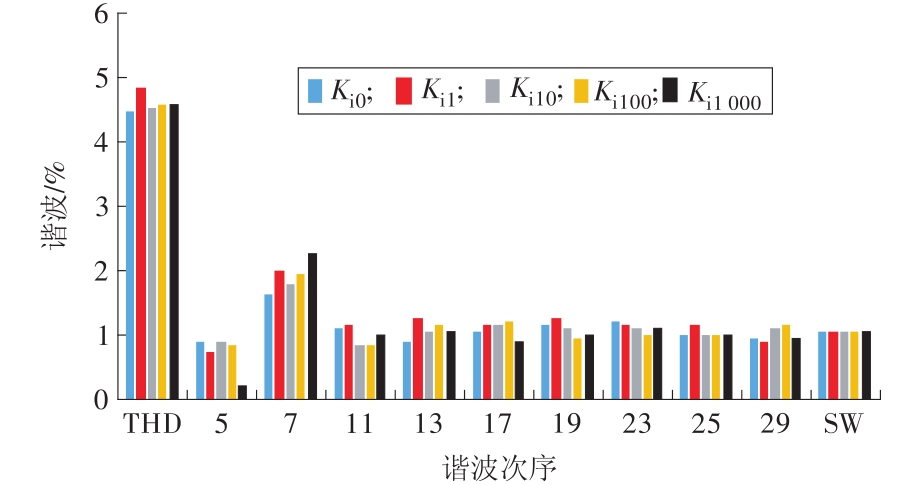

图4

图5

图6

图7

图8

表1

图9

图10

表2

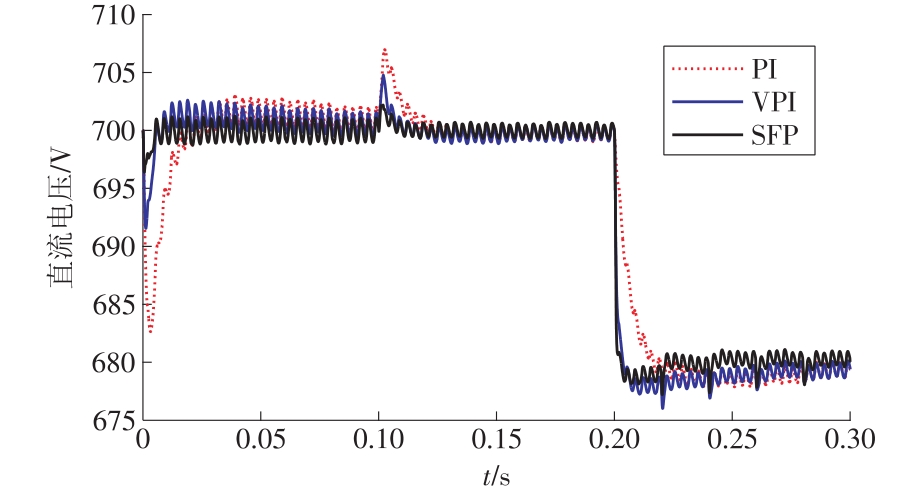

图11

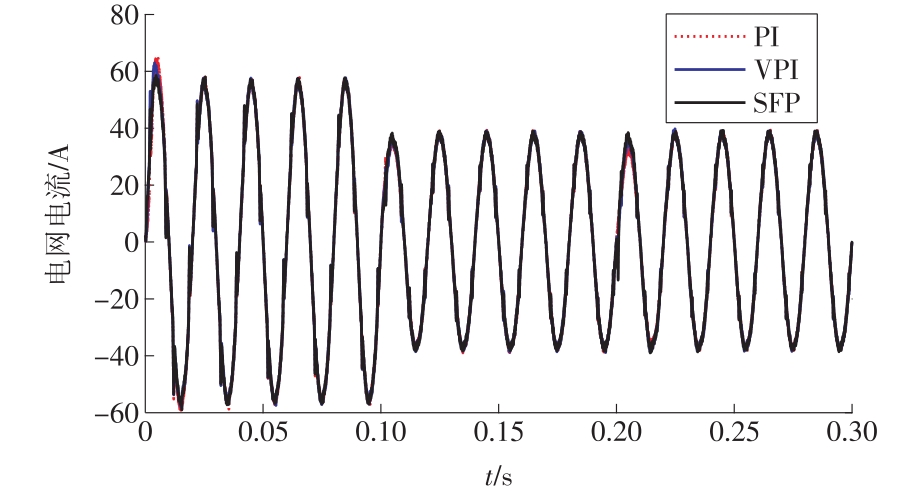

图12

表3

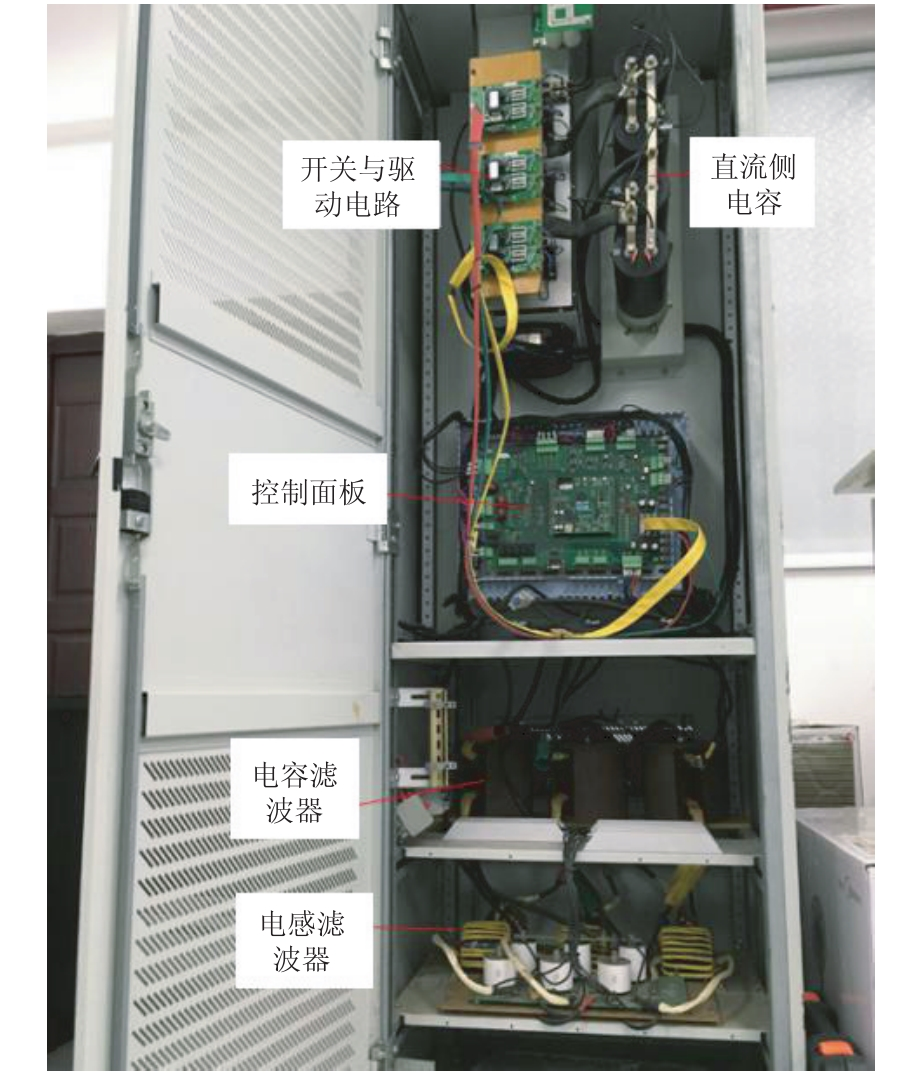

图13

图14

图15

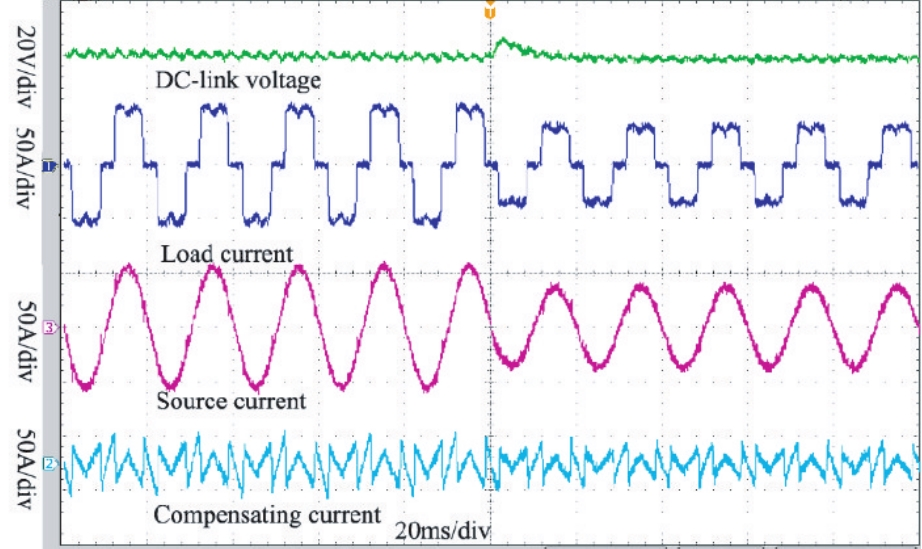

图16

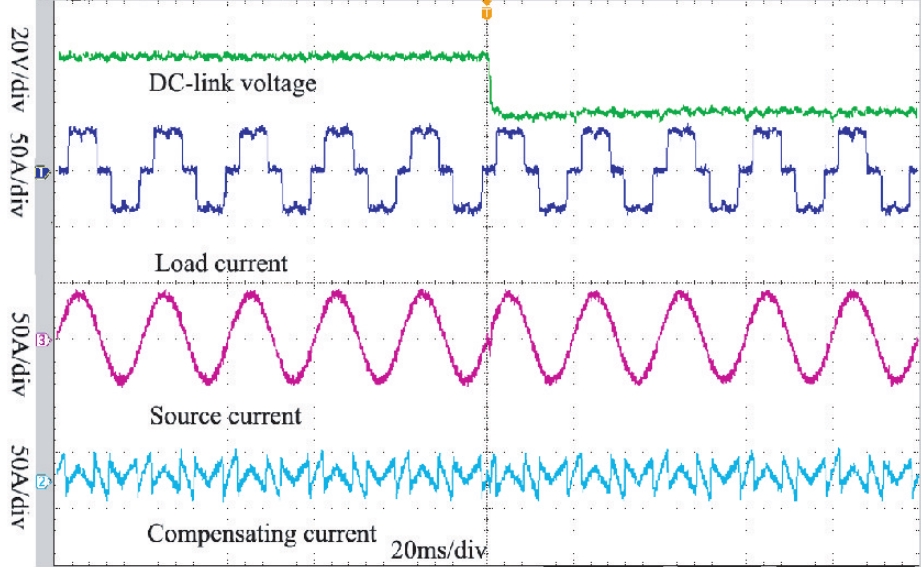

图17

参考文献 21

[1]	HOON Y, RADZI M A M, HASSAN M K, et al. Neutral-point voltage deviation control for three-level inverter-based shunt active power filter with fuzzy-based dwell time allocation[J]. IET Power Electronics, 2017, 10(4):429-441. doi: 10.1049/iet-pel.2016.0240
[2]	ABRANTES V L, DANILO B, ELISABETTA T. Active power filter pre-selection tool to enhance the power quality in oil and gas platforms[J]. Energies, 2021, 14(4):1024-1034. doi: 10.3390/en14041024
[3]	LAM C S, CHOI W H, WONG M C, et al. Adaptive DC-link voltage-controlled hybrid active power filters for reactive power compensation[J]. IEEE Transactions on Power Electronics, 2012, 27(4):1758-1772. doi: 10.1109/TPEL.2011.2169992
[4]	LAM C S, WONG M C, CHOI W H, et al. Design and performance of an adaptive low-DC voltage-controlled LC-hybrid active power filter with a neutral inductor[J]. IEEE Transactions on Industrial Electronics, 2014, 61(6):2635-2647. doi: 10.1109/TIE.2013.2276037
[5]	许晓笛, 李子欣, 楚遵方, 等. 三相四线三电平APF并联运行有源阻尼方法[J]. 电工电能新技术, 2017, 36(7):12-17.
	XU Xiaodi, LI Zixin, CHU Zunfang, et al. Active damping method of three-phase four-wire three-level multi-APF system[J]. Advanced Technology of Electrical Engineering and Energy, 2017, 36(7):12-17.
[6]	李兰芳, 曾志武, 王映品, 等. 基于时域的谐波和无功检测技术的对比研究[J]. 电工电能新技术, 2017, 36(11):79-88.
	LI Lanfang, ZENG Zhiwu, WANG Yingpin, et al. Comparative study of harmonic and reactive power detections based on time domain[J]. Advanced Technology of Electrical Engineering and Energy, 2017, 36(11):79-88.
[7]	WANG Y, GUAN Y P, XIE Y X, et al. DC-Link voltage balance control in three-phase four-wire active power filters[J]. Journal of Power Electronics, 2016, 16(5):1928-1938. doi: 10.6113/JPE.2016.16.5.1928
[8]	徐晓刚, 李兰芳, 吴国兵, 等. 并联型三相三线制有源电力滤波器直流侧电压优化控制策略[J]. 南方电网技术, 2017, 11(1):30-35.
	XU Xiaogang, LI Lanfang, WU Guobing, et al. Optimal DC link voltage control strategy of three-phase three-line shunt active power filter[J]. Southern Power System Technology, 2017, 11(1):30-35.
[9]	李卫东, 李达义, 杨国庆, 等. 一种基于复合控制的通用型有源电力滤波器[J]. 电工电能新技术, 2016, 35(2):13-17,30.
	LI Weidong, LI Dayi, YANG Guoqing, et al. Novel universal active power filter with hybrid control[J]. Advanced Technology of Electrical Engineering and Energy, 2016, 35(2):13-17,30.
[10]	DE ARAUJO RIBEIRO R L, ROCHA T O A, DE SOUSA R M, et al. A robust DC-Link voltage control strategy to enhance the performance of shunt active power filters without harmonic detection schemes[J]. IEEE Transactions on Industrial Electronics, 2015, 62(2):803-813. doi: 10.1109/TIE.2014.2345329
[11]	ZAINURI M A A M, RADZI M A M, SOH A C, et al. DC-link capacitor voltage control for single-phase shunt active power filter with step size error cancellation in self-charging algorithm[J]. IET Power Electron, 2016, 9(2):323-335. doi: 10.1049/iet-pel.2015.0188
[12]	WANG Y, XIE Y X, LIU X. Analysis and design of DC-link voltage controller in shunt active power filter[J]. Journal of Power Electronics, 2015, 15(3):763-774. doi: 10.6113/JPE.2015.15.3.763
[13]	刘金豆, 成杰, 俞高伟. 基于低压直流配电网并网的并离网一体光储发电系统研究[J]. 华电技术, 2021, 43(4):63-70. doi: 10.3969/j.issn.1674-1951.2021.04.010
	LIU Jindou, CHENG Jie, YU Gaowei. Research on a PV-energy storage system with integration of grid-connection and disconnection modes based on low-pressure DC distribution network[J]. Huadian Technology, 2021, 43(4):63-70.
[14]	吴小涛, 谭超, 王国博. 基于自适应PI控制器的直流微电网电压控制策略研究[J]. 华电技术, 2021, 43(9):14-22. doi: 10.3969/j.issn.1674-1951.2021.09.002
	WU Xiaotao, TAN Chao, WANG Guobo. Voltage control strategy for DC microgrid based on adaptive PI controller[J]. Huadian Technology, 2021, 43(9):14-22.
[15]	HOON Y, RADZI M A M, HASSAN M K, et al. DC-link capacitor voltage regulation for three-phase three-level inverter-based shunt active power filter with inverted error deviation control[J]. Energies, 2016, 9(7):533-557. doi: 10.3390/en9070533
[16]	WANG Y, XIE Y X. Adaptive DC-link voltage control for shunt active power filter[J]. Journal of Power Electronics, 2014, 14(4):764-777. doi: 10.6113/JPE.2014.14.4.764
[17]	张浩, 柳成, 孙海东, 等. 基于PWM整流器模糊控制新开关表的DPC[J]. 北华大学学报(自然科学版), 2021, 22(5):677-682.
	ZHANG Hao, LIU Cheng, SUN Haidong, et al. DPC of PWM rectifier based on fuzzy control and novel switch table[J]. Journal of Beihua University(Natural Science), 2021, 22(5):677-682.
[18]	DEY P, MEKHILEF S. Shunt hybrid active power filter under nonideal voltage based on fuzzy logic controller[J]. International Journal of Electronics, 2016, 103(9):1580-1592.
[19]	SURESH M, PANDA A K, SU Y. Fuzzy controller based three-phase four-wire shunt active filter for mitigation of current harmonics with combined p-q and I_d-I_q control strategies[J]. Energy and Power Engineering, 2011, 3:43-52. doi: 10.4236/epe.2011.31007
[20]	MEKRI F, MAZARI B, MACHMOUM M. Control and optimization of shunt active power filter parameters by fuzzy logic[J]. Canadian Journal of Electrical and Computer Engineering, 2006, 31(3):127-134. doi: 10.1109/CJECE.2006.259207
[21]	KIRAWANICH P, ROBERT M. O'connel,fuzzy logic control of an active power line conditioner[J]. IEEE Transactions on Power Electronics, 2004, 19(6):1574-1585. doi: 10.1109/TPEL.2004.836631

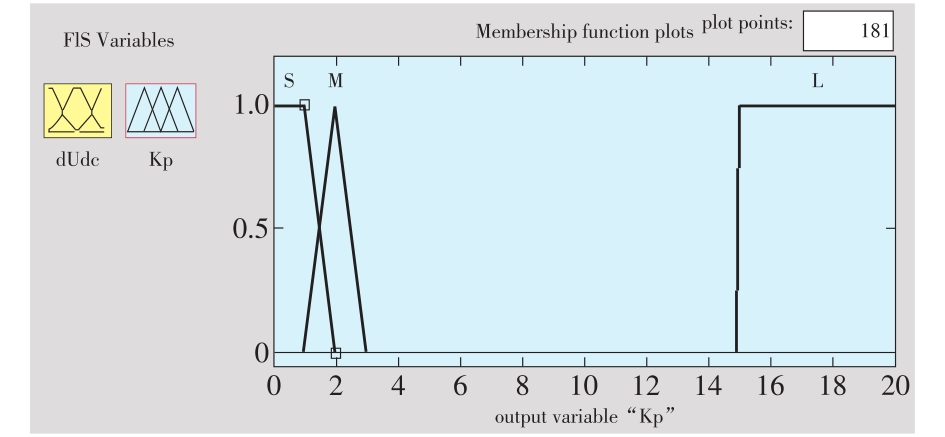

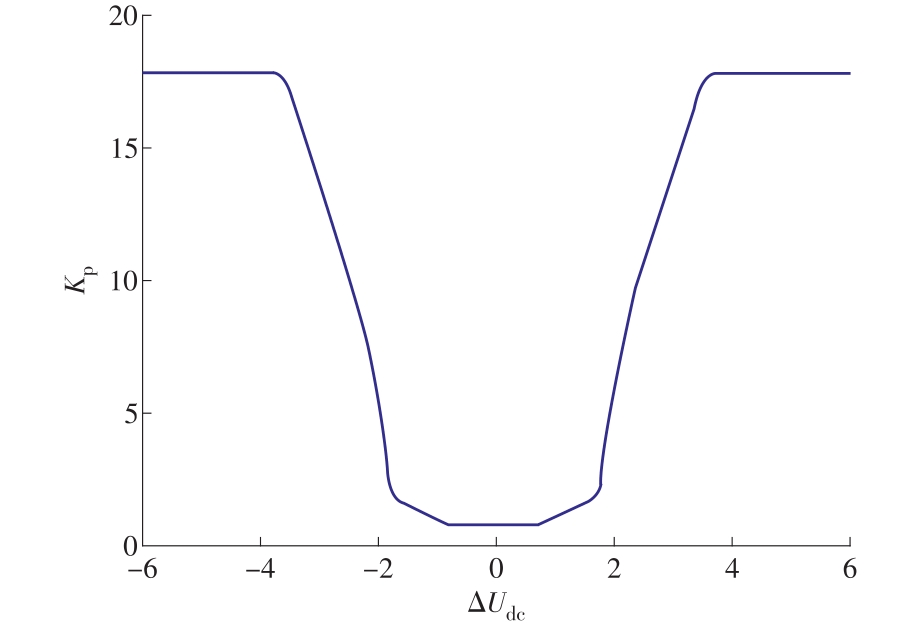

规则	ΔU_dc	K_p
1	NL,PL	L
2	NS,PS	M
3	ZE	S

项目	符号	值
电网电压/V	U_s	220
基波频率/Hz	f	50
开关频率/kHz	f_sw	9.6
变换器侧L滤波器/（mH·Ω^-1）	L₁/R₁	0.45/0.02
C滤波器/μF	C	20
电网侧L滤波器/mH	L₂	0.07
参考直流电压/V	u_dc	700
直流侧电容/μF	C_dc	5 000

控制算法	13 kW负载	9 kW负载	低直流电压
PI	4.62	4.02	3.53
VPI	4.53	3.99	3.46
SFP	4.35	3.89	3.39
