考虑长期负荷概率预测的储能多阶段优化配置

doi:10.3969/j.issn.2097-0706.2024.02.003

综合智慧能源 ›› 2024, Vol. 46 ›› Issue (2): 19-27.doi: 10.3969/j.issn.2097-0706.2024.02.003

考虑长期负荷概率预测的储能多阶段优化配置

李益民¹(), 董海鹰¹^,^*(), 丁坤², 王金岩¹

1.兰州交通大学新能源与动力工程学院，兰州 730070
2.国网甘肃省电力公司电力科学研究院，兰州 730070

收稿日期:2023-05-11 修回日期:2023-06-23 出版日期:2024-02-25 发布日期:2023-08-16
通讯作者: *董海鹰（1966），男，教授，博士，从事新能源电力系统规划、分析、运行与控制技术方面的研究，hydong@mail.lzjtu.cn。
作者简介:李益民（1999），男，硕士生，从事新能源电力系统规划、储能优化配置方面的研究，lym18715160987@163.com。
基金资助:
甘肃省科技重大专项(22ZD6GA032)

Multi-stage optimal allocation of energy storage considering long-term load probability prediction

LI Yimin¹(), DONG Haiying¹^,^*(), DING Kun², WANG Jinyan¹

1. College of New Energy and Power Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
2. Electric Power Research Institute of State Grid Gansu Electric Power Company, Lanzhou 730070, China

Received:2023-05-11 Revised:2023-06-23 Online:2024-02-25 Published:2023-08-16
Contact: DONG Haiying
Supported by:
Major Science and Technology Project of Gansu Province(22ZD6GA032)

摘要/Abstract

摘要：

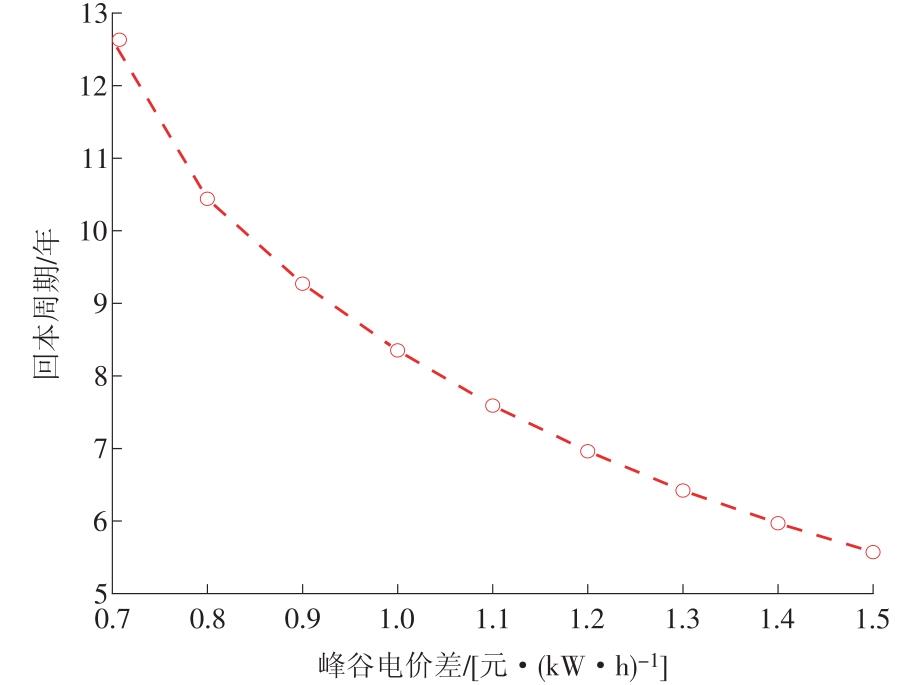

随着高比例新能源对电网的逐渐渗透，其出力的随机性和不确定性对电力系统的安全稳定运行提出了更高的要求。储能的源荷双向特征，可以作为灵活性资源提升电网的调节能力，当应用在电网侧时，储能配置的功率和容量大小影响电力系统的稳定运行和经济规划。提出了一种考虑长期负荷概率预测的储能多阶段优化配置方法，对电网侧的独立大规模储能进行容量配置。首先，分析电网侧独立储能的成本效益，以多阶段经济性最优为目标，采用非参数组合回归的长期负荷概率预测模型，建立优化模型并采用改进粒子群算法求解。最后，用酒泉地区电力系统进行算例分析，验证所提方法和模型的可行性和优越性，并且从峰谷电价差和新能源利用率两个方面对储能经济性进行了灵敏度分析。

关键词: 储能优化配置, 长期负荷预测, 多阶段规划, 灵敏度分析, 高比例新能源

Abstract:

With the gradual penetration of high-proportion new energy into the power grid,the randomness and uncertainty of its output puts forward higher requirements for the safe and stable operation of the power system. An energy storage device can be taken as a power user and a flexibility source, improving the regulation capacity of the power grid. When it is applied on grid side,its power and capacity configuration will affect the stable operation and economic planning of the power system. A multi-stage optimal allocation method of energy storage considering long-term load probability prediction is proposed, to reasonably allocate the capacity of independent large-scale energy storage devices on grid side. Firstly, the cost-effectiveness analysis is conducted on the independent energy storage device on grid side, then the long-term load probability prediction model based on nonparametric combinatorial regression is used to achieve the multi-stage economic optimization. And the optimization model is established and solved by improved particle swarm algorithm. Finally,taking a power system in Jiuquan area as the study case, the sensitivity analysis of energy storage economy is made from the two aspects, peak-valley electricity price difference and new energy utilization rate, and the results verify the feasibility and superiority of the proposed optimal allocation method.

Key words: optimal configuration of energy storage, long-term load forecasting, multi-phase planning, sensitivity analysis, high-proportion new energy

中图分类号:

TK01

李益民, 董海鹰, 丁坤, 王金岩. 考虑长期负荷概率预测的储能多阶段优化配置[J]. 综合智慧能源, 2024, 46(2): 19-27.

LI Yimin, DONG Haiying, DING Kun, WANG Jinyan. Multi-stage optimal allocation of energy storage considering long-term load probability prediction[J]. Integrated Intelligent Energy, 2024, 46(2): 19-27.

图/表 12

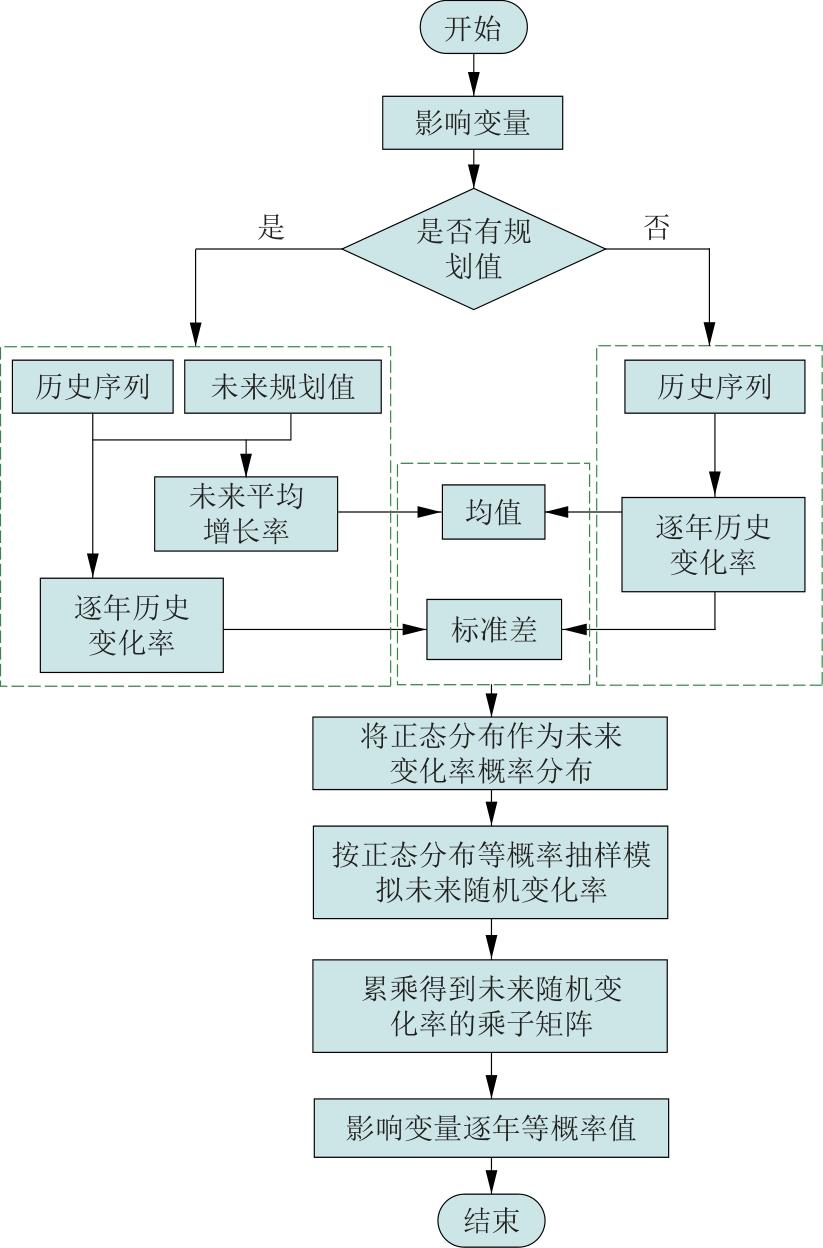

图1

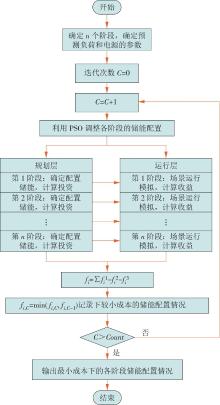

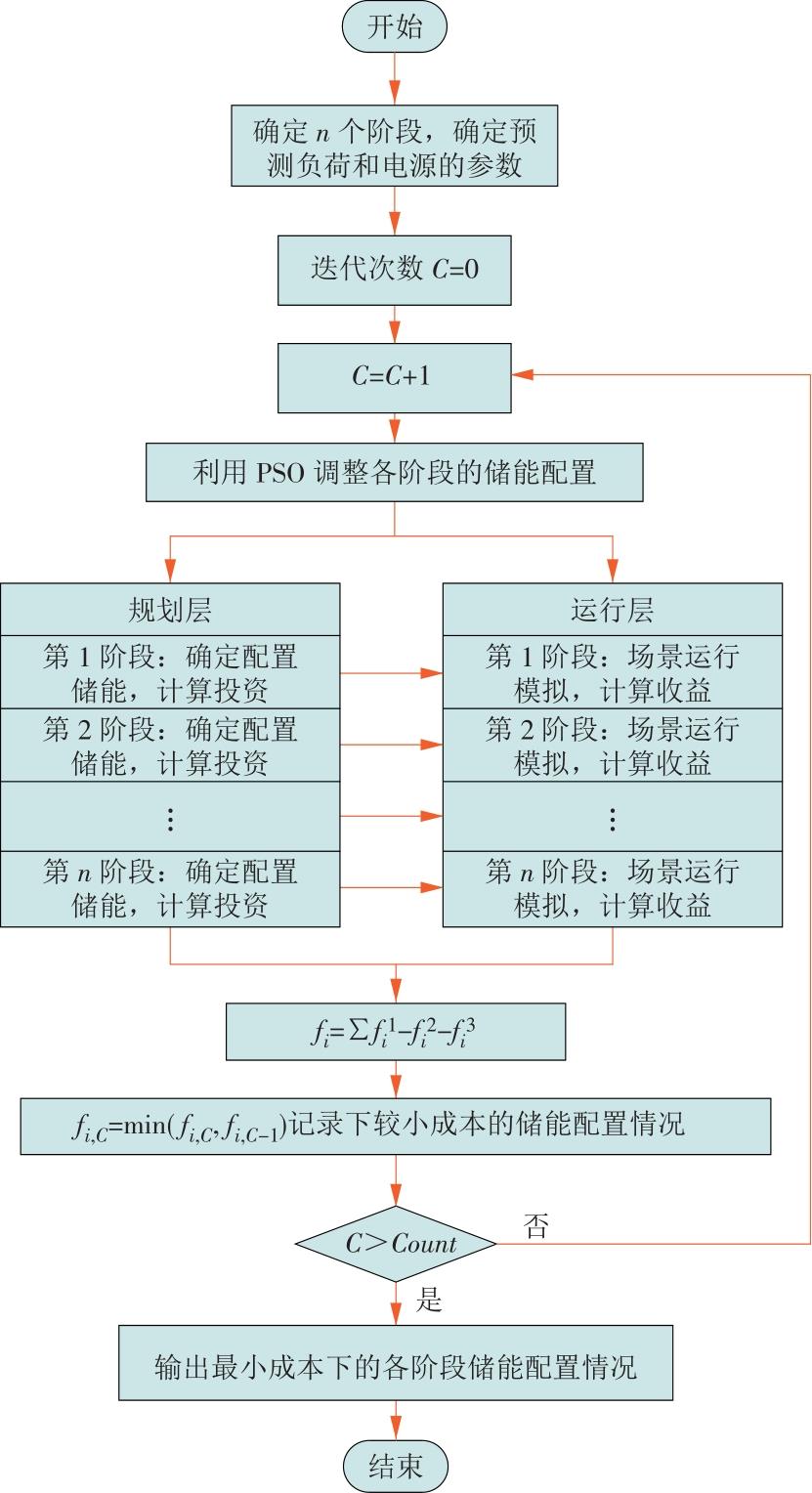

图2

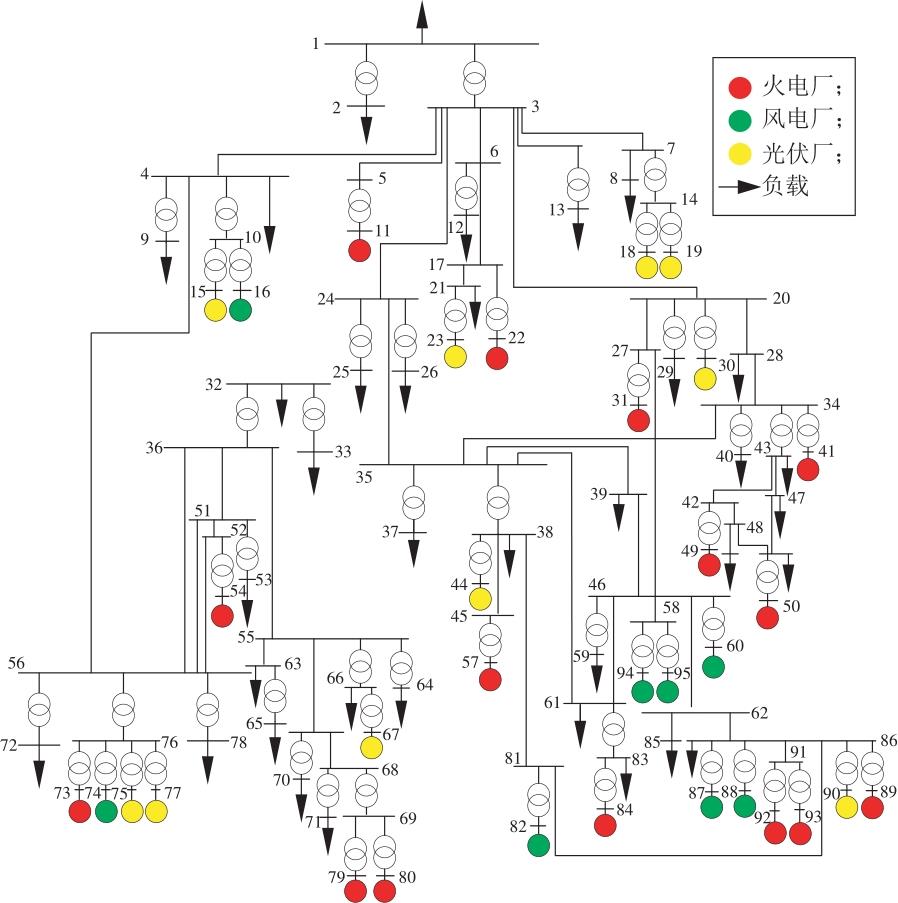

图3

表1

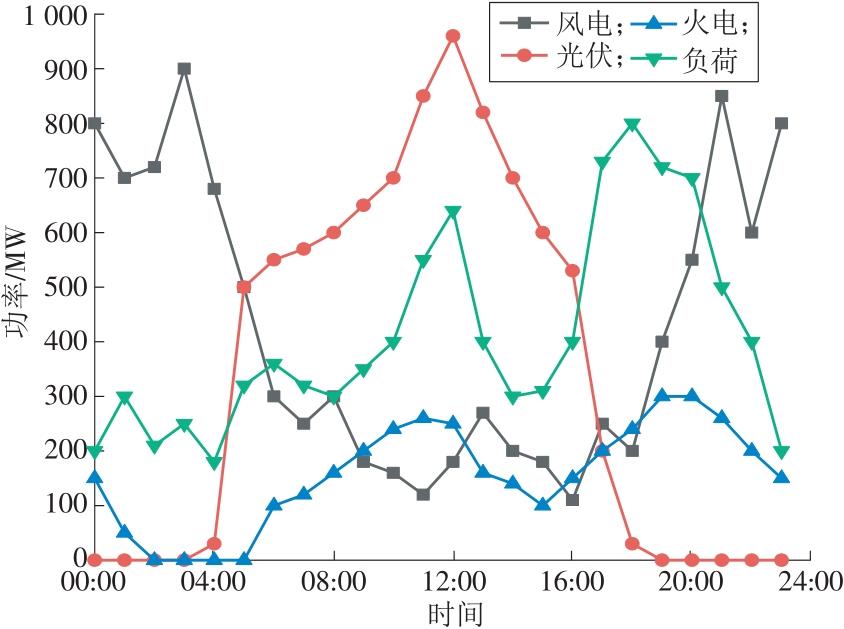

图4

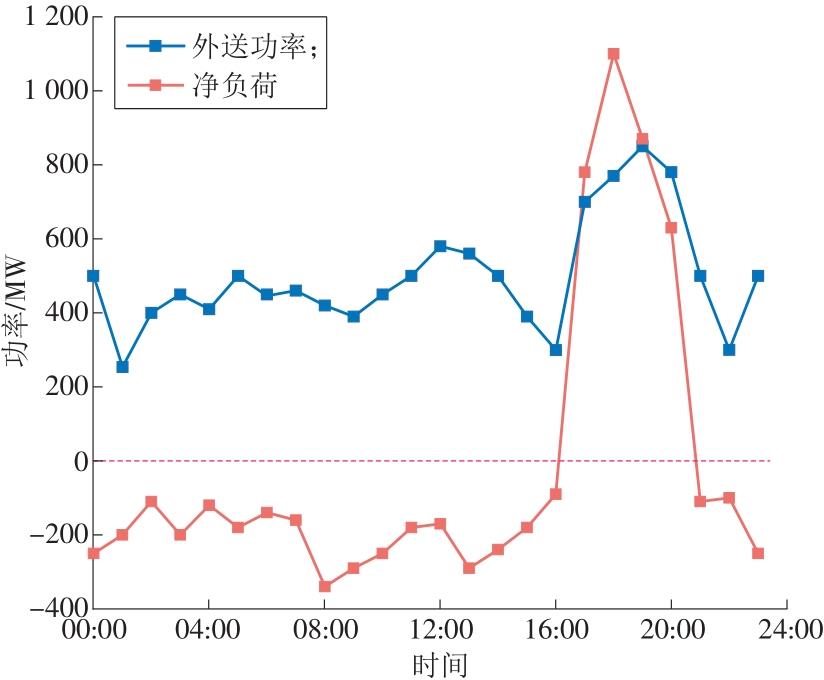

图5

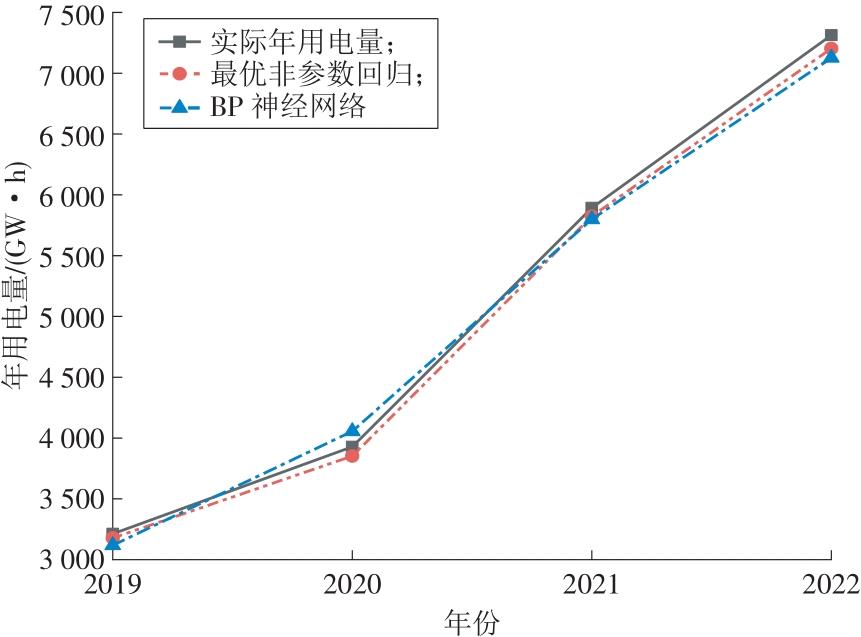

图6

表2

表3

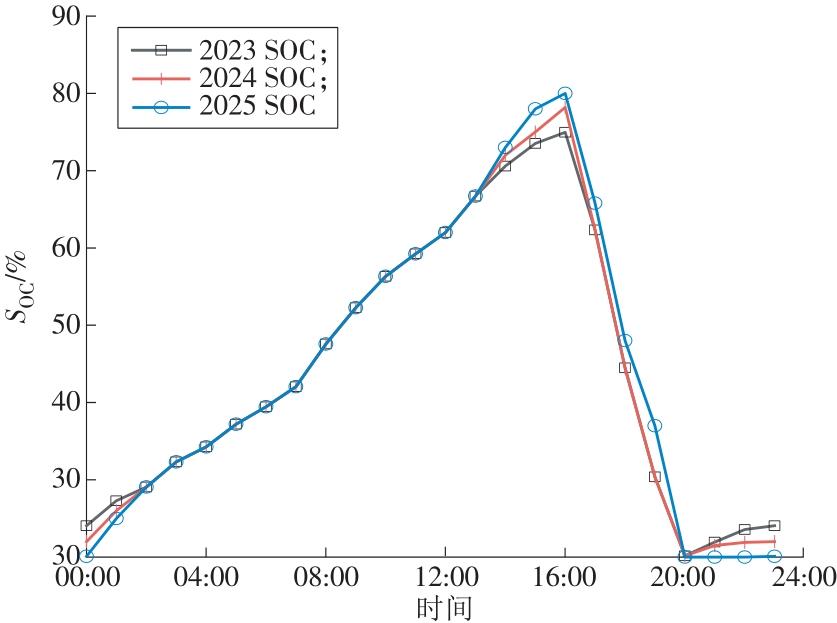

图7

图8

图9

参考文献 27

[1]	张楷, 邱晓燕, 刘梦依, 等. 基于频谱分析和滑动平均滤波的混合储能容量配置方案[J]. 电测与仪表, 2020, 57(19):51-57.
	ZHANG Kai, QIU Xiaoyan, LIU Mengyi, et al. Hybrid energy storage capacity configuration scheme based on spectrum analysis and moving average filtering[J]. Electrical Measurement & Instrumentation, 2020, 57(19):51-57.
[2]	张晓宇, 张建成, 王宁, 等. 基于变分模态分解的混合储能系统协调控制[J]. 中国电力, 2018, 51(9):165-173.
	ZHANG Xiaoyu, ZHANG Jiancheng, WANG Ning, et al. Coordinated control of hybrid energy storage system based on variational mode decomposition[J]. Electric Power, 2018, 51(9):165-173.
[3]	谢应昭, 卢继平, 翁宗林, 等. 改善风电输出功率特性的复合储能系统优化配置[J]. 电网技术, 2016, 40(7):2052-2058.
	XIE Yingzhao, LU Jiping, WENG Zonglin, et al. Optimization configuration of hybrid energy storage system for improving power output characteristics of wind farm[J]. Power System Technology, 2016, 40(7): 2052-2058.
[4]	李彦哲, 郭小嘉, 董海鹰, 等. 风/光/储微电网混合储能系统容量优化配置[J]. 电力系统及其自动化学报, 2020, 32(6):123-128.
	LI Yanzhe, GUO Xiaojia, DONG Haiying, et al. Optimal capacity configuration of wind/PV/storage hybrid energy storage system in microgrid[J]. Proceedings of the CSU-EPSA, 2020, 32(6):123-128.
[5]	钟国彬, 吴涛, 曾杰, 等. 基于离散傅里叶变换的主动配电网混合储能容量优化配置[J]. 电力建设, 2018, 39(8):85-93. doi: 10.3969/j.issn.1000-7229.2018.08.011
	ZHONG Guobin, WU Tao, ZENG Jie, et al. Optimal Capacity planning of hybrid energy storage system in active distribution network on the basis of discrete fourier transform[J]. Electric Power Construction, 2018, 39(8): 85-93 doi: 10.3969/j.issn.1000-7229.2018.08.011
[6]	李建林, 郭斌琪, 牛萌, 等. 风光储系统储能容量优化配置策略[J]. 电工技术学报, 2018, 33(6):1189-1196.
	LI Jianlin, GUO Binqi, NIU Meng, et al. Optimal configuration strategy of energy storage capacity in wind/PV/storage hybrid system[J]. Transactions of China Electrotechnical Society, 2018, 33(6): 1189-1196.
[7]	XING H, LIN Z Y, FU M Y, et al. Distributed algorithm for dynamic economic power dispatch with energy storage in smart grids[J]. IET Control Theory and Applications, 2017, 11(11): 1813-1821. doi: 10.1049/cth2.v11.11
[8]	THALE S S, AGARWAL V. Controller area network assisted grid synchronization of a microgrid with renewable energy sources and storage[J]. IEEE Transactions on Smart Grid, 2015, 7(3):1-3.
[9]	陆立民, 褚国伟, 张涛, 等. 基于改进多目标粒子群算法的微电网储能优化配置[J]. 电力系统保护与控制, 2020, 48(15): 116-124.
	LU Limin, CHU Guowei, ZHANG Tao, et al. Optimal configuration of energy storage in a microgrid based on improved multi-objective particle swarm optimization[J]. Power System Protection and Control, 2020, 48(15): 116-124
[10]	苏浩, 张建成, 冯冬涵, 等. 模块化混合储能系统及其能量管理策略[J]. 电力自动化设备, 2019, 39(1):127-133,140.
	SU Hao, ZHANG Jiancheng, FENG Donghan, et al. Modular hybrid energy storage system and its energy management strategy[J]. Electric Power Automation Equipment, 2019, 39(1): 127-133, 140.
[11]	黄际元, 李欣然, 常敏, 等. 考虑储能电池参与一次调频技术经济模型的容量配置方法[J]. 电工技术学报, 2017, 32(21):112-121.
	HUANG Jiyuan, LI Xinran, CHANG Min, et al. Capacity allocation of BESS in primary frequency regulation considering its technical-economic model[J]. Transactions of China Electrotechnical Society, 2017, 32(21): 112-121
[12]	XIN J, YANG J, ZHENG X Y, et al. Optimal configuration of grid-side battery energy storage system under power marketization[J]. Applied Energy, 2020, 272(6):115-242.
[13]	MAO X M, CHEN S, WU J K, et al. Optimal dispatching of microgrid containing battery under time-of-use price mechanism[J]. Power System Technology, 2015, 39(5):1192-1197.
[14]	肖云鹏, 张兰, 张轩, 等. 包含独立储能的现货电能量与调频辅助服务市场出清协调机制[J]. 中国电机工程学报, 2020, 40(S1): 167-180.
	XIAO Yunpeng, ZHANG Lan, ZHANG Xuan, et al. The coordinated market clearing mechanism for spot electric energy and regulating ancillary service incorporating independent energy storage resources[J]. Proceedings of the CSEE, 2020, 40(S1): 167-180.
[15]	朱永强, 刘康, 张泉, 等. 考虑储能系统调度的交直流混合微电网中互联变流器容量配置[J]. 电力建设, 2019, 40(10):84-93. doi: 10.3969/j.issn.1000-7229.2019.10.010
	ZHU Yongkang, LIU Kang, ZHANG Quan, et al. Capacity configuration of inter-linking converters in AC/DC hybrid micro-grid considering energy storage scheduling[J]. Electric Power Construction, 2019, 40(10): 84-93. doi: 10.3969/j.issn.1000-7229.2019.10.010
[16]	WANG C S, YANG Z G, WANG S X, et al. Analysis of structural characteristics and control approaches of experimental microgrid systems[J]. Automation of Electric Power Systems, 2010, 34(1):99-105.
[17]	李辉, 黄瑶妹, 马飞. 基于荷电状态的混合储能系统协调控制策略[J]. 中国电力, 2017, 50(1):158-160.
	LI Hui, HUANG Yaomei, MA Fei. Coordinated control strategy for hybrid energy storage system based on state of charge[J]. Electric Power, 2017, 50(1): 158-160.
[18]	毛晓明, 陈深, 吴杰康, 等. 分时电价机制下含蓄电池微电网的优化调度[J]. 电网技术, 2015, 39(5):1192-1197.
	MAO Xiaomin, CHEN Shen, WU Kangjie, et al. Optimal dispatching of microgrid containing battery under time-of-use price mechanism[J]. Power System Technology, 2015, 39(5): 1192-1197.
[19]	SHI Q J, JIANG Q Y. Real-time optimal energy dispatch for microgrid with battery storage[J]. Electric Power Automation Equipment, 2013, 33(5):76-82.
[20]	王芸芸, 马志程, 周强, 等. 兼顾公平性的多能源合作博弈优化调度[J]. 太阳能学报, 2022, 43(10): 482-492. doi: 10.19912/j.0254-0096.tynxb.2021-0408
	WANG Yunyun, MA Zhicheng, ZHOU Qiang, et al. Multi energy cooperative game optimal scheduling considering fairness[J]. Acta Energiae Solaris Sinica, 2022, 43(10): 482-492. doi: 10.19912/j.0254-0096.tynxb.2021-0408
[21]	陈昆灿. 电网侧电化学储能电站规模配置研究[J]. 国网技术学院学报, 2019, 22(4):25-28.
	CHEN Kuncan. Study on configuration of scale of electrochemical energy storage station on power grid side[J]. Journal of Shandong Electric Power College, 2019, 22(4): 25-28.
[22]	李建林, 王上行, 袁晓冬, 等. 江苏电网侧电池储能电站建设运行的启示[J]. 电力系统自动化, 2018, 42(21):1-9,103.
	LI Jianlin, WANG Shangxing, YUAN Xiaodong, et al. Enlightenment from construction and operation of battery energy storage station on grid side in jiangsu power grid[J]. Automation of Electric Power Systems, 2018, 42(21):1-9,103.
[23]	彭虹桥, 顾洁, 宋柄兵, 等. 基于多维变量筛选-非参数组合回归的长期负荷概率预测模型[J]. 电网技术, 2018, 42(6):1768-1777.
	PENG Hongqiao, GU Jie, SONG Bingbing, et al. Long term probabilistic load forecasting based on multivariate selection and nonparametric combination regression model[J]. Power System Technology, 2018, 42(6): 1768-1777.
[24]	CETINKAYA N. Long-term electrical load forecasting based on economic and demographic data for Turkey[C]//2013 IEEE International Symposium on Computational Intelligence and Informatics. Singapore:IEEE, 2013:219-223.
[25]	马志程, 李维俊, 周强, 等. 含光热电站的风光联合发电系统互补效益评估[J]. 综合智慧能源, 2023, 45(2): 1-9. doi: 10.3969/j.issn.2097-0706.2023.02.001
	MA Zhicheng, LI Weijun, ZHOU Qiang, et al. Evaluation on the complementary benefit of a wind-solar combined power generation system with a photothermal power station[J]. Integrated Intelligent Energy, 2023, 45(2): 1-9. doi: 10.3969/j.issn.2097-0706.2023.02.001
[26]	王芸芸, 马志程, 周强, 等. 计及公平性的多能合作博弈鲁棒优化调度[J]. 综合智慧能源, 2023, 45(2): 10-21. doi: 10.3969/j.issn.2097-0706.2023.02.002
	WANG Yunyun, MA Zhicheng, ZHOU Qiang, et al. Robust optimal scheduling of multi-energy cooperative game considering fairness[J]. Integrated Intelligent Energy, 2023, 45(2): 10-21. doi: 10.3969/j.issn.2097-0706.2023.02.002
[27]	曾慧, 杜源, 李涛, 等. 考虑碳交易与绿证交易的电-热耦合园区低碳规划[J]. 综合智慧能源, 2023, 45(2): 22-29. doi: 10.3969/j.issn.2097-0706.2023.02.003
	ZENG Hui, DU Yuan, LI Tao, et al. Low-carbon planning of a park-level integrated electric and heating system considering carbon trading and green certificate trading[J]. Integrated Intelligent Energy, 2023, 45(2): 22-29. doi: 10.3969/j.issn.2097-0706.2023.02.003

参数	数值
单位功率成本c_p/（元·kW^-1）	1 270
单位容量成本s_p/[元·(kW·h)^-1]	1 650
折算系数β_j	0.13
通货膨胀率k/%	1.5
贴现率d/%	9
充电效率ηcha	0.9
放电效率ηdis	0.9
最大荷电状态S_{OC max}	0.8
最小荷电状态S_{OC min}	0.2
峰值电价/[元·(kW·h)^-1]	1.0
谷时电价/[元·(kW·h)^-1]	0.3

年份	不同分位点的预测值			规划
年份	20%	50%	80%	规划
2023	8 012	8 377	8 595	8 325
2024	9 158	9 574	9 824	9 491
2025	10 440	10 915	11 120	10 820

阶段	储能功率/MW	储能容量/(MW·h)
2023	1 100.1	6 166.7
2024	691.9	3 459.5
2025	918.5	3 674.0
