基于多尺度融合和改进YOLOv8n的光伏缺陷检测方法

doi:10.3969/j.issn.2097-0706.2024.11.004

综合智慧能源 ›› 2024, Vol. 46 ›› Issue (11): 29-37.doi: 10.3969/j.issn.2097-0706.2024.11.004

• 人工智能赋能的运维与巡检 • 上一篇下一篇

基于多尺度融合和改进YOLOv8n的光伏缺陷检测方法

张文强¹^,²(), 李加树¹^,², 宣洋¹^,²^,^*(), 李辰¹^,², 钱杭¹^,², 张啸宇¹^,²

1.安徽大学人工智能学院，合肥 230601
2.自主无人系统技术教育部工程研究中心，合肥 230601

收稿日期:2024-08-05 修回日期:2024-09-05 出版日期:2024-11-25
通讯作者: * 宣洋（2000），男，硕士生，科研助理，从事基于深度学习的无人机巡检输电线路方面的研究，wa22301056@stu.ahu.edu.cn。
作者简介:张文强（2004），男，科研助理，从事计算机视觉目标检测方面的研究，wa2224079@stu.ahu.edu.cn。
基金资助:
国家自然科学基金项目(62303005);安徽省大学生创新创业训练计划项目(S202410357259);安徽大学校级质量工程项目(2024XJZLGC164);安徽大学校级质量工程项目(2024XJZLGC168)

Defect detection method of PV panels based on multi-scale fusion and improved YOLOv8n

ZHANG Wenqiang¹^,²(), LI Jiashu¹^,², XUAN Yang¹^,²^,^*(), LI Chen¹^,², QIAN Hang¹^,², ZHANG Xiaoyu¹^,²

1. School of Artificial Intelligence，Anhui University，Hefei 230601，China
2. Engineering Research Center of Autonomous Unmanned System Technology， Ministry of Education， Hefei 230601， China

Received:2024-08-05 Revised:2024-09-05 Published:2024-11-25
Supported by:
National Natural Science Foundation of China Project(62303005);Anhui Province College Students Innovation and Entrepreneurship Training Program(S202410357259);Anhui University Quality Engineering Project(2024XJZLGC164);Anhui University Quality Engineering Project(2024XJZLGC168)

摘要/Abstract

摘要：

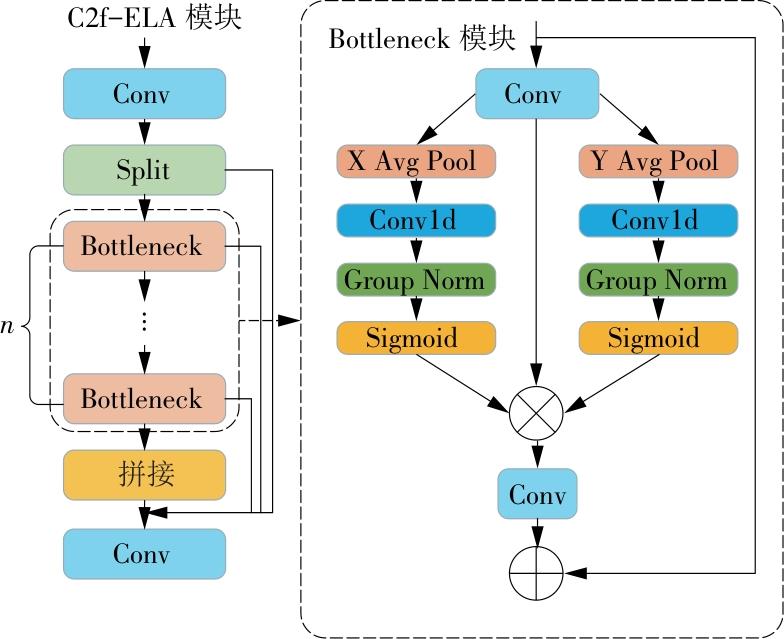

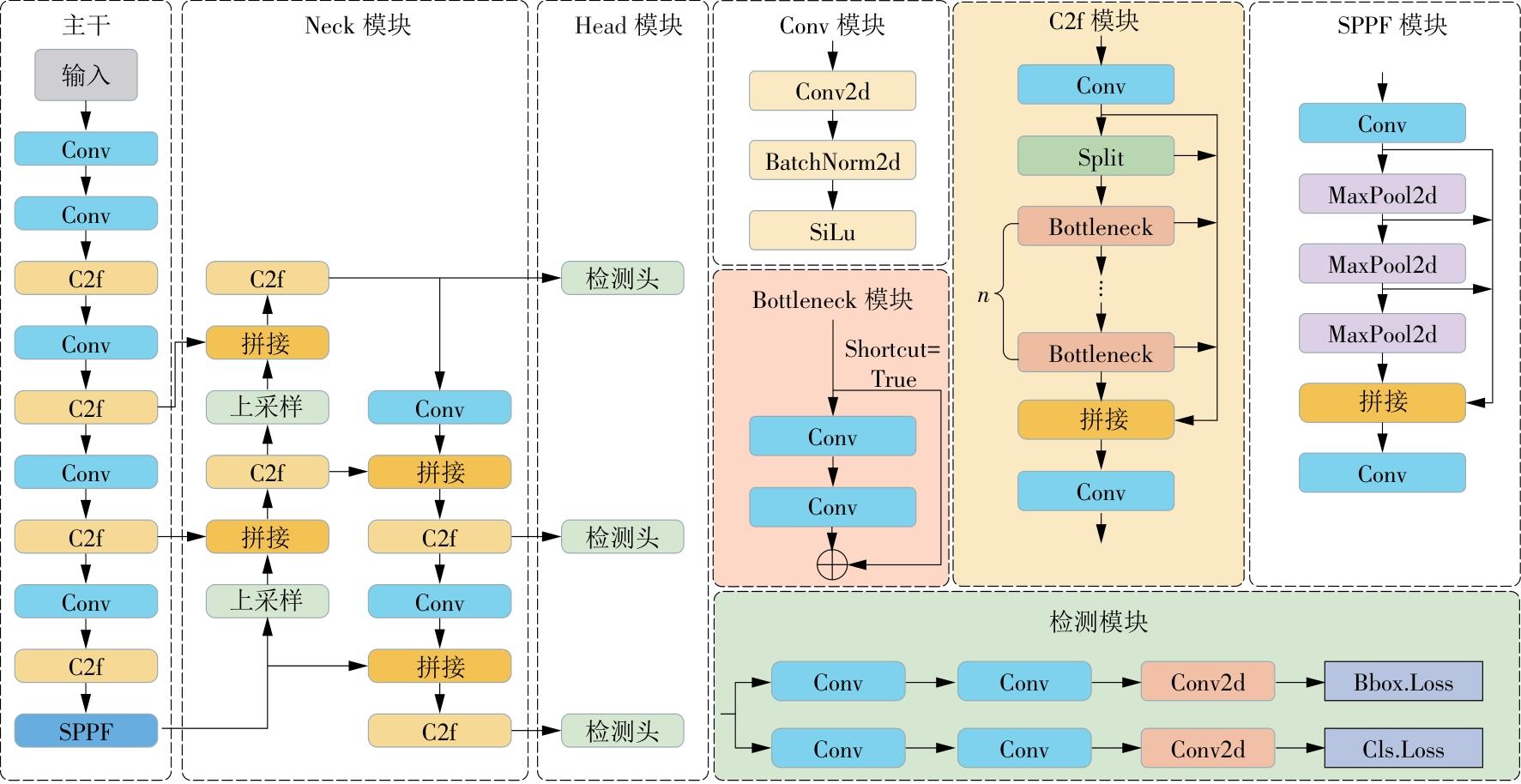

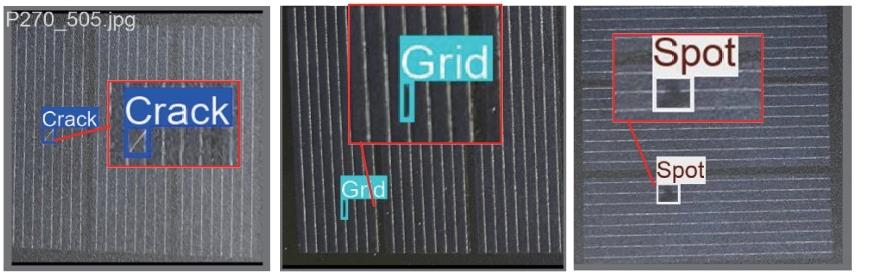

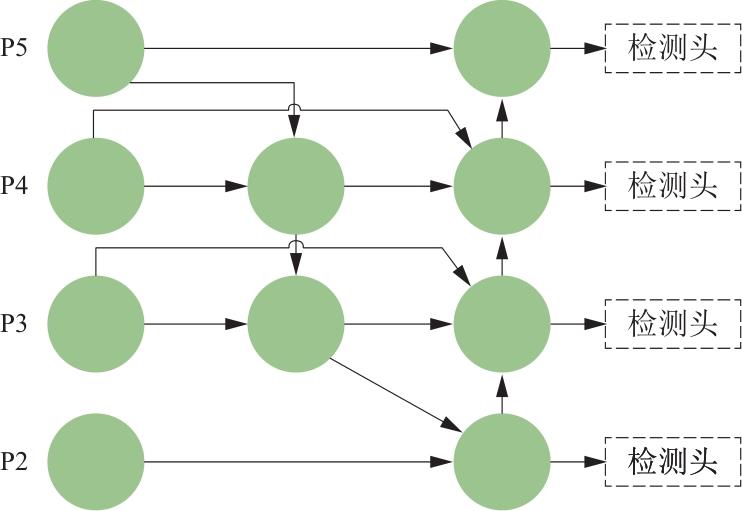

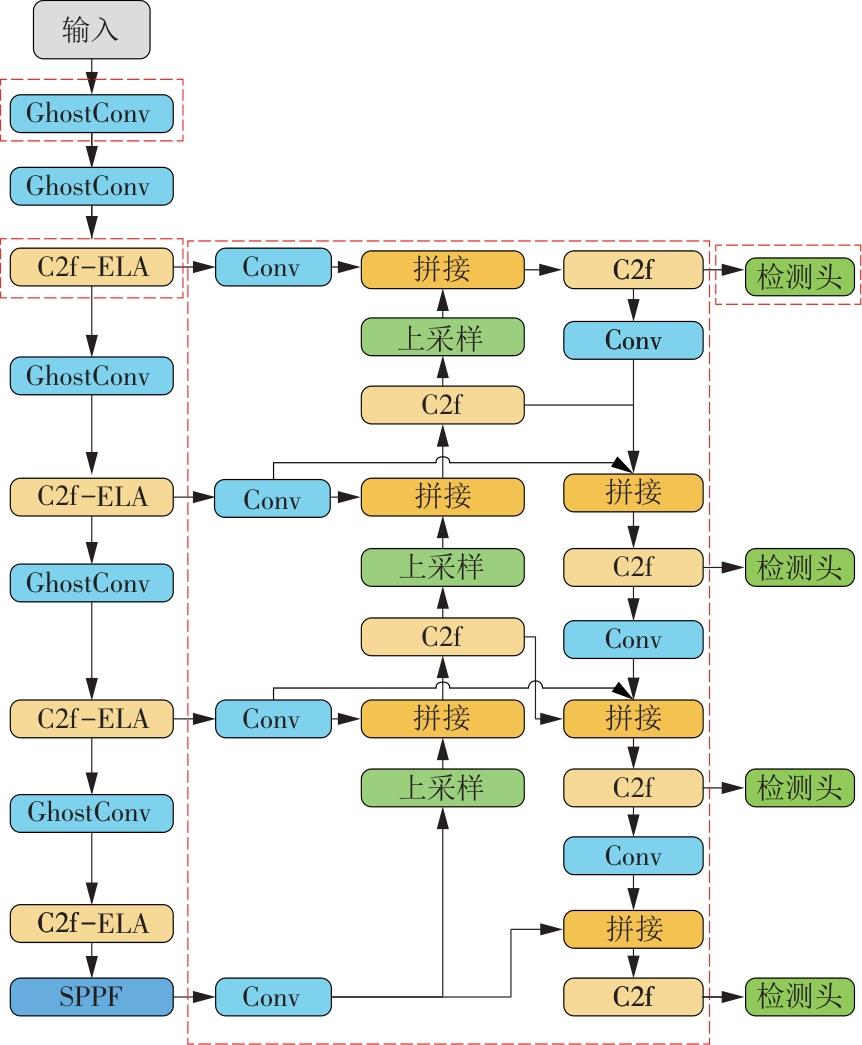

光伏发电在新型能源系统中扮演着重要的角色，其稳定运行对于保障能源供应至关重要。然而，光伏板在实际应用中面临着复杂的外部环境，如紫外线辐射、腐蚀、受潮等，可能会导致光伏板组件出现裂纹、断栅等问题，进而影响其功能。针对目前光伏板缺陷检测算法存在的模型复杂度较高、小目标缺陷检测的精度不高等问题，提出了一种基于改进YOLOv8n的光伏缺陷检测算法。重新设计了一种新的主干网络，减少模型的参数量，提出C2f高效局部注意力（C2f-Efficient Local Attention，C2f-ELA）模块，提高模型对细微特征的定位能力，提出加权双向特征金字塔网络（Weight-Bidirectional Feature Pyramid Network，W-BiFPN）更换原有的网络结构并融合P2小目标检测层，有效提高了模型捕获多尺度特征的能力，同时利用浅层网络的信息来加强局部特征感知，对小目标的识别精度得到显著提升。试验结果表明：该方法相较于基础YOLOv8算法，参数量下降了16.7%，平均精度提升了3.1百分点，验证了改进算法在检测性能上的提升。

关键词: 缺陷检测, 深度学习, YOLOv8n, 轻量化模块, 高效局部注意力, 加权双向特征金字塔网络

Abstract:

Photovoltaic power generation plays a critical role in modern energy systems， and its stable operation is essential for ensuring energy supply. However， photovoltaic panels are exposed to complex environmental factors， such as ultraviolet radiation， corrosion， moisture， which can lead to defects like cracks and broken grids， thereby potentially compromising their functionality. To address the problems of high model complexity and low detection accuracy for small defects in current photovoltaic panel defect detection algorithms， a defect detection algorithm based on improved YOLOv8n was proposed. A new backbone network was designed to reduce the model's parameters and computation； The C2F-Efficient Local Attention （C2F-ELA） module was introduced to enhance the model's capability to precisely localize subtle features. Weight-Bidirectional Feature Pyramid Network （W-BiFPN） was then proposed to replace the original network structure and integrate the P2 small target detection layer. This effectively enhanced the model's ability to capture multi-scale features while leveraging shallow network information to strengthen the local feature perception， boosting the accuracy of small target recognition. Experimental results showed that， compared to the baseline YOLOv8 algorithm， this method reduced the number of parameters by 16.7% and increased the mean average precision by 3.1 percentage points， demonstrating an improvement in detection performance.

Key words: defect detection, deep learning, YOLOv8n, lightweight module, ELA, W-BiFPN

中图分类号:

TK01：TP391.41

张文强, 李加树, 宣洋, 李辰, 钱杭, 张啸宇. 基于多尺度融合和改进YOLOv8n的光伏缺陷检测方法[J]. 综合智慧能源, 2024, 46(11): 29-37.

ZHANG Wenqiang, LI Jiashu, XUAN Yang, LI Chen, QIAN Hang, ZHANG Xiaoyu. Defect detection method of PV panels based on multi-scale fusion and improved YOLOv8n[J]. Integrated Intelligent Energy, 2024, 46(11): 29-37.

图/表 12

图1

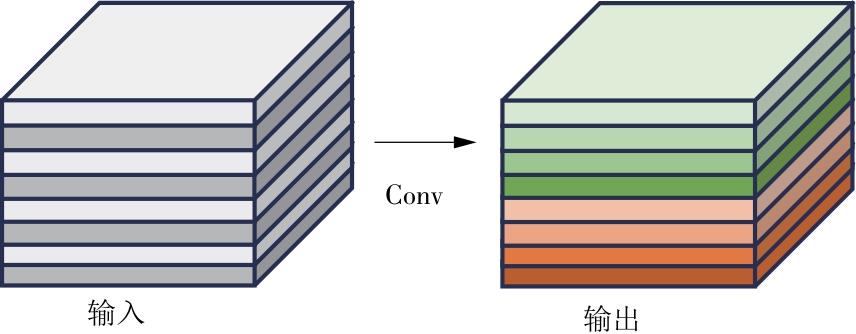

图2

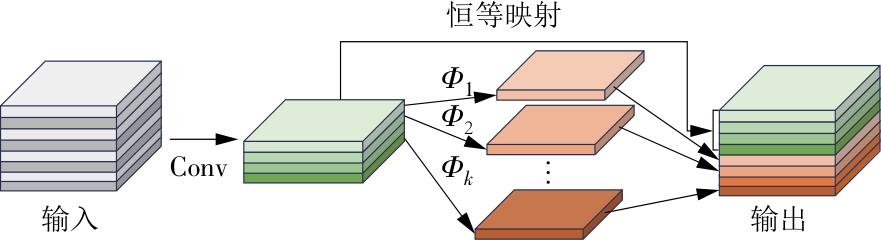

图3

图4

图5

图6

图7

表1

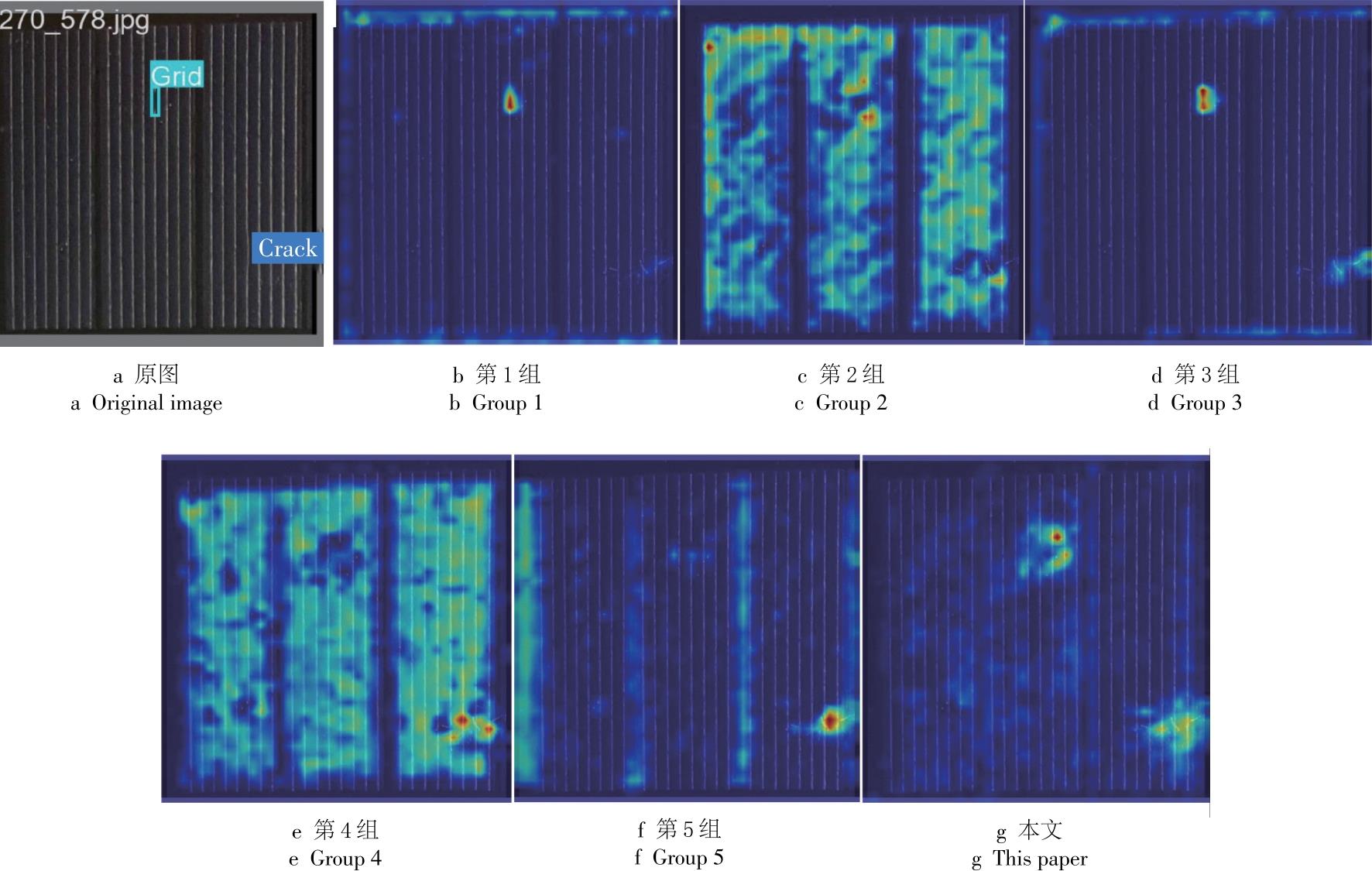

图8

表2

表3

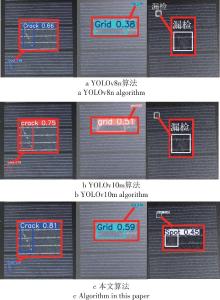

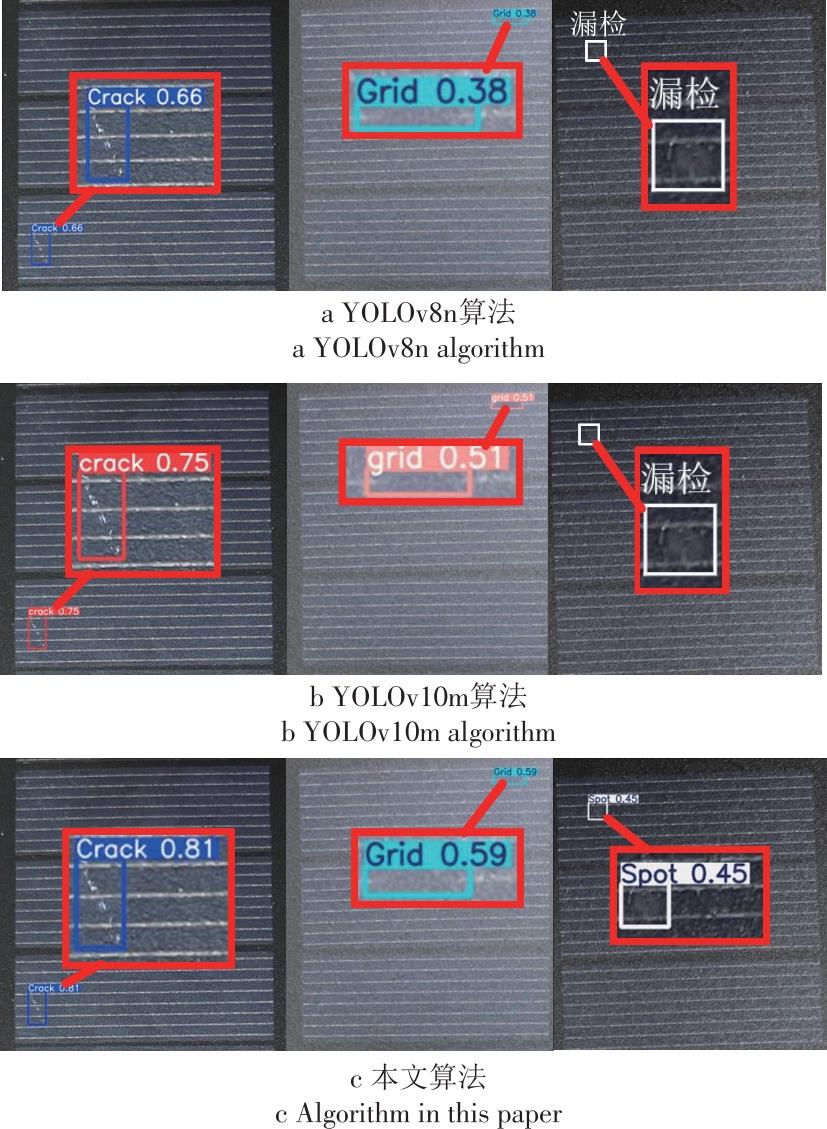

图9

参考文献 26

[1]	舒印彪, 赵勇, 赵良, 等. “双碳”目标下我国能源电力低碳转型路径[J]. 中国电机工程学报, 2023, 43(5):1663-1672.
	SHU Yinbiao, ZHAO Yong, ZHAO Liang, et al. Study on low carbon energy transition path toward carbon peak and carbon neutrality[J]. Proceedings of the CSEE, 2023, 43(5):1663-1672.
[2]	国家能源局. 2024年上半年光伏发电建设情况[J]. 电力科技与环保, 2021, 31(4):46.
	National Energy Administration. Photovoltaic power generation construction in the first half of 2024[J]. Electric Power Technology and Environmental Protection, 2021, 31(4):46.
[3]	AKRAM M W, LI G, JIN Y, et al. Failures of photovoltaic modules and their detection:A review[J]. Applied Energy, 2022, 313:118822.
[4]	KANDEAL A W, ELKADEEM M R, THAKUR A K, et al. Infrared thermography-based condition monitoring of solar photovoltaic systems:A mini review of recent advances[J]. Solar Energy, 2021, 223:33-43.
[5]	ET-TALEBY A, CHAIBI Y, BOUSSETTA M, et al. A novel fault detection technique for PV systems based on the K-means algorithm,coded wireless orthogonal frequency division multiplexing and thermal image processing techniques[J]. Solar Energy, 2022, 237:365-376.
[6]	ALI M U, KHAN H F, MASUD M, et al. A machine learning framework to identify the hotspot in photovoltaic module using infrared thermography[J]. Solar Energy, 2020, 208: 643-651.
[7]	SU B Y, CHEN H Y, CHEN P, et al. Deep learning-based solar-cell manufacturing defect detection with complementary attention network[J]. IEEE Transactions on Industrial informatics, 2020, 17(6):4084-4095.
[8]	HERRAIZ Á H MARUGÁN A P, MÁRQUEZ F P G. Photovoltaic plant condition monitoring using thermal images analysis by convolutional neural network-based structure[J]. Renewable Energy, 2020, 153:334-348.
[9]	季瑞瑞, 梅远, 杨思凡, 等. 基于改进Faster R-CNN的光伏组件红外热斑检测算法[J]. 激光与红外, 2024, 54(4):584-592.
	JI Ruirui, MEI Yuan, YANG Sifan, et al. Infrared hot spot detection in photovoltaic modules based on improved Faster R-CNN[J]. Laser & Infrared, 2024, 54(4):584-592.
[10]	WANG J, ZHANG R Z, ZHENG X. Photovoltaic panel intelligent detection method based on improved Faster-RCNN[C]// 2023 IEEE 3rd International Conference on Electronic Technology,Communication and Information (ICETCI).IEEE, 2023:1565-1569.
[11]	TRIPATHY S, SATPATHY M. SSD internal cache management policies:A survey[J]. Journal of Systems Architecture, 2022, 122:102334.
[12]	HUSSAIN M. YOLOv1 to v8:Unveiling each varianta comprehensive review of YOLO[J]. IEEE Access, 2024, 12:42816-42833.
[13]	XU M. Solar cell defect detection based on improved G-SSD network[J]. International Journal of Energy, 2023, 2(1):68-71.
[14]	艾上美, 周剑峰, 张必朝, 等. 基于改进SSD算法的光伏组件缺陷检测研究[J]. 智慧电力, 2023, 51(12):53-58.
	AI Shangme, ZHOU Jianfeng, ZHANG Bicha, et al. Defect detection of photovoltaic modules based on improved SSD algorithm[J]. Smart Power, 2023, 51(12):53-58.
[15]	DITOMMASO A, BETTI A, FONTANELLI G, et al. A multi-stage model based on YOLOv3 for defect detection in PV panels based on IR and visible imaging by unmanned aerial vehicle[J]. Renewable energy, 2022, 193:941-962.
[16]	LI L L, WANG Z F, ZHANG T T. GBH-YOLOv5:Ghost convolution with bottleneck and tiny target prediction head incorporating YOLOv5 for PV panel defect detection[J]. Electronics, 2023, 12(3):561.
[17]	ZHANG J L, YANG W, CHEN Y, et al. Fast object detection of anomaly photovoltaic (PV) cells using deep neural networks[J]. Applied Energy, 2024, 372:123759.
[18]	CAO Y K, PANG D D, ZHAO Q C, et al. Improved YOLOv8-GD deep learning model for defect detection in electroluminescence images of solar photovoltaic modules[J]. Engineering Applications of Artificial Intelligence, 2024, 131:107866.
[19]	HANG X Y, ZHU X B, GAO X X, et al. Study on crack monitoring method of wind turbine blade based on AI model:Integration of classification,detection,segmentation and fault level evaluation[J]. Renewable Energy, 2024, 224: 120152.
[20]	HAN K, WANG Y H, TIAN Q, et al. Ghostnet:More features from cheap operations[C]// Proceedings of the IEEE/CVF conference on computer vision and pattern recognition. 2020:1580-1589.
[21]	XU W, WAN Y. ELA:Efficient local attention for deep convolutional neural networks[J]. Arxiv Preprint Arxiv, 2024:2403.01123.
[22]	WANG H, LI D, ISSHIKI T. Energy-efficient implementation of YOLOv8,instance segmentation,and pose detection on RISC-V SoC[J]. IEEE Access, 2024, 12:64050-64068.
[23]	TAN M M, PANG R M, LE Q V. Efficientdet:Scalable and efficient object detection[C]// Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. 2020:10781-10790.
[24]	任一鸣, 杜董生, 邓祥帅, 等. 基于Real-ESRGAN和改进YOLOv8n的输电线路绝缘子故障检测[J]. 综合智慧能源, 2024, 46(7):29-39. doi: 10.3969/j.issn.2097-0706.2024.07.004
	REN Yiming, DU Dongsheng, DENG Xiangshuai, et al. Optimal scheduling of virtual power plants integrating electric vehicles based on reinforcement learning[J]. Integrated Intelligent Energy, 2024, 46(7):29-39. doi: 10.3969/j.issn.2097-0706.2024.07.004
[25]	郭岚, 刘正新. 基于改进YOLOv5的光伏组件缺陷检测[J]. 激光与光电子学进展, 2023, 60(20):148-156.
	GUO Lan, LIU Zhengxin. Improved YOLOv5-based defect detection in photovoltaic modules[J]. Laser &Optoelectronics Progress, 2023, 60(20):148-156.
[26]	田浩, 周强, 贺晨龙. 基于多尺度特征融合的光伏组件缺陷检测[J]. 计算机工程与应用, 2024, 60(3):340-347. doi: 10.3778/j.issn.1002-8331.2304-0390
	TIAN Hao,ZHOU Qiang,HE Chenlong. Defect detection of photovoltaic modules based on multi-scale feature fusion[J]. Computer Engineering and Applications, 2024, 60(3):340-347. doi: 10.3778/j.issn.1002-8331.2304-0390

方法	参数量/10⁶	准确率/%	召回率/%	F₂值	mAP_0.5/%
YOLOv8n	3.0	88.4	81.8	0.850	88.8
GhostConv	2.8	82.0	83.0	0.825	88.1
C2f-ELA	3.0	86.0	85.6	0.858	89.1
W-BiFPN	2.7	89.5	84.2	0.868	89.8
GhostConv+C2f-ELA	2.8	85.7	82.8	0.842	90.1
本文	2.5	93.0	83.8	0.882	91.9

模型	F₂值	mAP_0.5/%
C2f-ELA_A	0.838	88.9
C2f-ELA_N	0.836	84.4
C2f-ELA_B	0.858	89.1

模型	参数量/10⁶	计算量/GFLOPs	准确率/%	召回率/%	F₂值	mAP_0.5/%
文献[25]	4.2	18.1	85.9	82.3	0.841	88.1
文献[26]	13.3	31.6	88.6	86.1	0.873	88.4
Faster RCNN	137.1	370.2	39.3	88.3	0.544	65.2
YOLOv3	61.5	155.3	85.6	88.6	0.871	89.7
YOLOv5m	21.1	25.2	86.4	87.2	0.868	89.3
YOLOv7	37.2	150.1	87.8	79.1	0.832	85.7
YOLOv9m	32.6	130.7	85.1	89.2	0.871	90.2
YOLOv10m	16.5	64.0	84.9	85.0	0.849	88.6
本文	2.5	11.7	93.0	83.8	0.882	91.9
