新能源并网电力系统临界惯量线性化计算方法及应用

doi:10.3969/j.issn.2097-0706.2025.09.002

摘要/Abstract

摘要：

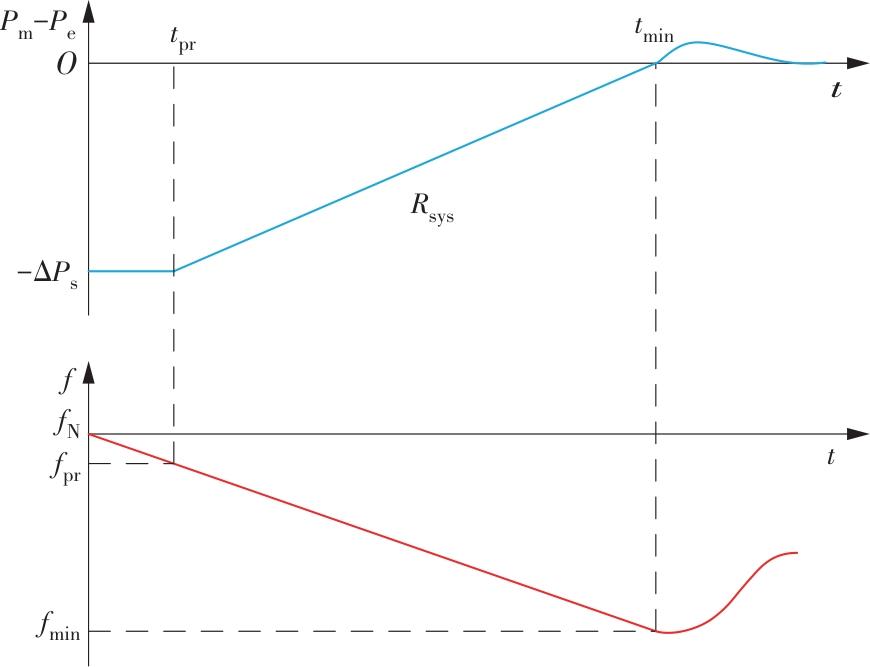

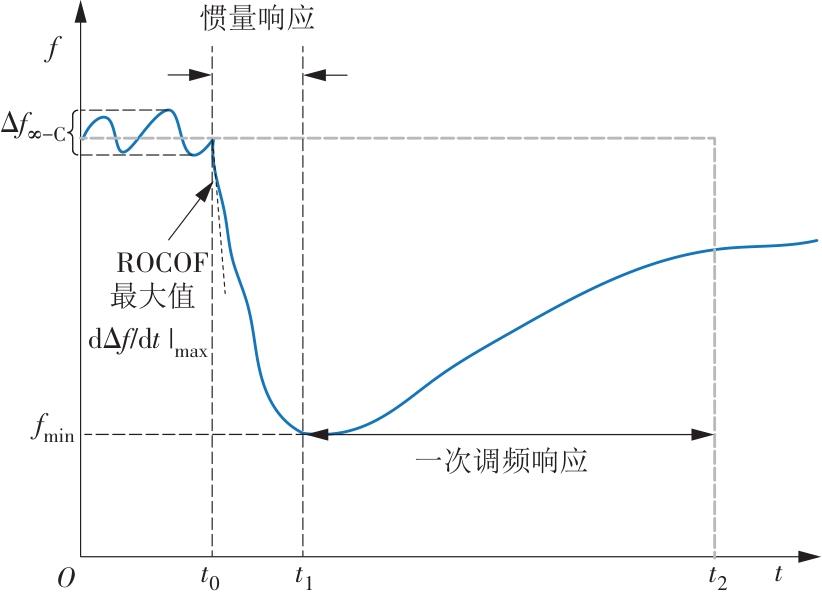

随着新能源-变流器馈入的数量增加，电力系统等效惯量不断降低，导致系统在高比例和大规模电力电子设备接入的情况下面临频率失稳风险。临界惯量是反映电网频率安全边界的最小惯量，是判断电网频率安全状态的关键参数，但求解具有非线性特征，复杂难求。提出一种新能源并网系统的临界惯量线性化计算方法。引入频率最低点和最大频率变化率边界约束指标对应临界惯量，通过建立电网等效转子运动方程，并对同步机组一次调频响应过程线性化处理，实现对临界惯量线性化解析求解。针对某实际电网模型，采用PSASP软件仿真验证了计算结果的精确性。

关键词: 临界惯量, 频率最低点安全约束, 频率变化率安全约束, 新能源并网电力系统

Abstract:

With the increase of new energy sources and converter feed-ins， the equivalent inertia of a power system continuously decreases， leading to instable power systems with high-proportion new energy and massive electronic devices accessed. Critical inertia，the lower limit of the inertia， represents safety boundary of grid frequency，and it is a key parameter in judging the safety of the power grid. However， the solving process is complex since the parameter is nonlinear. In view of this， a linearized calculation method for critical inertia of the energy system with renewable energy is proposed. By introducing the critical inertias corresponding to the two boundary constraints， the lowest frequency and the maximum frequency variation rate， the equivalent rotor motion equation of the grid is established，and the primary frequency response process of a synchronous generator set is linearized， realizing the linearized analytical solution for the critical inertia. Finally， the accuracy of the calculation results is verified through PSASP software simulation executed on an actual power grid model.

Key words: critical inertia, safety constraint of the lowest frequency, safety constraint of the frequency variation rate, renewable energy system

中图分类号:

TK01：TM744

洪鎏, 吕道鑫, 杨忠涛, 马少武, 姜雪. 新能源并网电力系统临界惯量线性化计算方法及应用[J]. 综合智慧能源, 2025, 47(9): 10-17.

HONG Liu, LYU Daoxin, YANG Zhongtao, MA Shaowu, JIANG Xue. Linearized calculation method of critical inertia in energy power systems with renewable energy and its application[J]. Integrated Intelligent Energy, 2025, 47(9): 10-17.

图/表 11

图1

图2

表1

图3

表2

图4

图5

图6

图7

表3

图8

参考文献 22

[1]	国家发展改革委, 国家能源局. 国家发展改革委国家能源局关于印发《“十四五”现代能源体系规划》的通知. [EB/OL]. (2022-03-23)[2024-04-10]. https://www.gov.cn/zhengce/zhengceku/2022-03/23/content_5680759.htm.
[2]	屈涛涛, 綦晓, 蒋文珂, 等. 考虑风电机组虚拟惯量的新型电力系统频率分布式模型预测控制策略[J]. 综合智慧能源, 2022, 44(10): 25-32. doi: 10.3969/j.issn.2097-0706.2022.10.004
	QU Taotao, QI Xaio, JIANG Wenke, et al. Frequency distributed model predictive control strategy for the new power system considering virtual inertia of wind turbines[J]. Integrated Intelligent Energy, 2022, 44(10): 25-32. doi: 10.3969/j.issn.2097-0706.2022.10.004
[3]	余果, 吴军, 夏热, 等. 构网型变流器技术的发展现状与趋势研究[J]. 综合智慧能源, 2022, 44(9): 65-70. doi: 10.3969/j.issn.2097-0706.2022.09.009
	YU Guo, WU Jun, XIA Re, et al. Study on the status quo and development trend of grid‑forming converter technolog[J]. Integrated Intelligent Energy, 2022, 44(9): 65-70. doi: 10.3969/j.issn.2097-0706.2022.09.009
[4]	文云峰, 杨伟峰, 林晓煌. 低惯量电力系统频率稳定分析与控制研究综述及展望[J]. 电力自动化设备, 2020, 40(9):211-222.
	WEN Yunfeng, YANG Weifeng, LIN Xiaohuang. Review and prospect of frequency stability analysis and control of low‑inertia power systems[J]. Electric Power Automation Equipment, 2020, 40(9):211-222.
[5]	李国庆, 刘先超, 辛业春, 等. 含高比例新能源的电力系统频率稳定研究综述[J]. 高电压技术, 2024, 50(3):1165-1181.
	LI Guoqing, LIU Xianchao, XIN Yechun, et al. Research on frequency stability of power system with high penetration renewable energy: A review[J]. High Voltage Engineering, 2024, 50(3):1165-1181.
[6]	王毅, 陈中, 周涛, 等. 计及新能源虚拟惯量的电力系统最低惯量评估[J]. 电气工程学报, 2024, 19(1):254-260.
	WANG Yi, CHENG Zhong, ZHOU Tao, et al. Evaluation of minimum inertia of power system considering virtual inertia of renewable energy[J]. Journal of Electrical Engineering, 2024, 19(1):254-260.
[7]	李明节. 大规模特高压交直流混联电网特性分析与运行控制[J]. 电网技术, 2016, 40(4): 985-991.
	LI Mingjie. Characteristic analysis and operational control of large‑scale hybrid UHVAC/DC power grids[J]. Power System Technology, 2016, 40(4): 985-991.
[8]	申志鹏, 朱介北, 李斌, 等. 基于柔性直流输电系统的双边惯量和阻尼模拟控制方案[J]. 高电压技术, 2021, 47(10): 3505-3519.
	SHEN Zhipeng, ZHU Jiebei, LI Bin, et al. Bilateral inertia and damping emulation control scheme for VSC-HVDC Transmission Systems[J]. High Voltage Engineering, 2021, 47(10):3505-3519.
[9]	丁乐言, 柯松, 杨军, 等. 基于自适应控制参数整定的虚拟同步发电机控制策略[J]. 综合智慧能源, 2024, 46(3): 35-44. doi: 10.3969/j.issn.2097-0706.2024.03.005
	DING Leyan, KE Song, YANG Jun, et al. Control strategy of virtual synchronous generators based on adaptive control parameter setting[J]. Integrated Intelligent Energy, 2024, 46(3): 35-44. doi: 10.3969/j.issn.2097-0706.2024.03.005
[10]	孙亮, 王伟镪, 王奕霏, 等. 计及最小惯量约束的风光火储联合系统优化调度[J]. 电力系统及其自动化学报, 2024, 36(8):30-38.
	SUN Liang, WANG Weiqiang, WANG Yifei, et al. Optimal dispatch of wind-photovoltaic-thermal-storage combined system considering minimum inertia constraints[J]. Proceedings of the CSU-EPSA, 2024, 36(8):30-38.
[11]	李京华, 王德林, 孙浩宁, 等. 双馈风电并网后系统的惯量特性研究及其最小惯量评估方法[J/OL]. 电气工程学报,1-13(2023-07-06)[2024-04-10]. http://kns.cnki.net/kcms/detail/10.1289.TM.20230705.1705.002.html.
	LI Jinghua, WANG Delin, SUN Haoning, et al. Research on inertia characteristics and minimum inertia evaluation method of doubly‑fed wind power system after grid connection[J/OL]. Journal of Electrical Engineering, 1-13(2023-07-06)[2024-04-10]. http://kns.cnki.net/kcms/detail/10.1289.TM.20230705.1705.002.html.
[12]	颜湘武, 张世峥, 贾焦心. 光伏机组虚拟惯量控制下电力系统频率特性分析[J]. 可再生能源, 2023, 41(1): 81-89.
	YAN Xiangwu, ZHANG Shizheng, JIA Jiaoxin. Analysis of frequency characteristics of power system under photovoltaic power plant with virtual inertia control[J]. Renewable Energy Resources, 2023, 41(1): 81-89.
[13]	陈国平, 李明节, 许涛, 等. 我国电网支撑可再生能源发展的实践与挑战[J]. 电网技术, 2017, 41(10):3095-3103.
	CHEN Guoping, LI Mingjie, XU Tao, et al. Practice and challenge of renewable energy development based on interconnected power grids[J]. Power System Technology, 2017, 41(10): 3095-3103.
[14]	蒋小亮, 李元臣, 郝元钊, 等. 计及新能源虚拟惯量的电力系统等效惯量评估[J]. 电力科学与技术学报, 2023, 38(4):169-176.
	JIANG Xiaoliang, LI Yuanchen, HAO Yuanzhao, et al. Evaluation of power system equivalent inertia considering new energy virtual inertia[J]. Journal of Electric Power Science and Technology, 2023, 38(4): 169-176.
[15]	张益岗, 王小君, 孙庆凯, 等. 基于复杂网络演化博弈的可再生能源技术扩散仿真分析[J/OL]. 电网技术,1-14(2023-08-22)[2024-04-10]. https://doi.org/10.13335/j.1000-3673.pst.2023.0886.
	ZHANG Yigang, WANG Xiaojun, SUN Qingkai, et al. Simulation analysis of renewable energy technology diffusion based on complex network evolutionary game[J/OL]. Power System Technology,1-14(2023-08-22)[2024-04-10].https://doi.org/10.13335/j.1000-3673. pst.2023.0886.
[16]	孙华东, 王宝财, 李文锋, 等. 高比例电力电子电力系统频率响应的惯量体系研究[J]. 中国电机工程学报, 2020, 40(16): 5179-5192.
	SUN Huadong, WANG Baocai, LI Wenfeng, et al. Research on inertia system of frequency response for power system with high penetration electronics[J]. Proceedings of the CSEE, 2020, 40(16): 5179-5192.
[17]	洪晗笑, 吴晨曦, 倪索引. 考虑频率-惯量安全约束的新型电力系统优化调度[J]. 电力自动化设备, 2024, 44(8):176-184.
	HONG Hanxiao, WU Chenxi, NI Suoyin. Optimal scheduling of new‑type power system considering frequency-inertia security constraints[J]. Electric Power Automation Equipment, 2024, 44(8):176-184.
[18]	李世春, 田冰杰, 李惠子, 等. 基于频率安全约束与临界惯量计算的分时段限制风电出力方法[J]. 电力系统保护与控制, 2022, 50(15): 60-71.
	LI Shichun, TIAN Bingjie, LI Huizi, et al. Method for limiting wind power output in time periods based on frequency safety constraints and a critical inertia calculation[J]. Power System Protection and Control, 2022, 50(15): 60-71.
[19]	王宝财, 孙华东, 李文锋, 等. 考虑动态频率约束的电力系统最小惯量评估[J]. 中国电机工程学报, 2022, 42(1):114-127.
	WANG Baocai, SUN Huadong, LI Wenfeng, et al. Minimum inertia estimation of power system considering dynamic frequency constraints[J]. Proceedings of the CSEE, 2022, 42(1): 114-127.
[20]	易佩, 景志滨, 徐飞, 等. 考虑频率安全约束的电力系统临界惯量计算[J]. 清华大学学报(自然科学版), 2022, 62(10): 1721-1729.
	YI Pei, JING Zhibin, XU Fei, et al. Calculation of the borderline inertia of a power system considering frequency security constraints[J]. Journal of Tsinghua University(Science and Technology), 2022, 62(10): 1721-1729.
[21]	张桂红, 刘飞, 王世斌, 等. 高比例新能源电力系统频率稳定性的惯量需求分析[J]. 电力系统及其自动化学报, 2022, 34(7):81-87.
	ZHANG Guihong, LIU Fei, WANG Shibin, et al. Inertia requirement analysis of frequency stability of renewable-dominant power system[J]. Proceedings of the CSU-EPSA, 2022, 34(7):81-87.
[22]	李东东, 刘强, 徐波, 等. 考虑频率稳定约束的新能源电力系统临界惯量计算方法[J]. 电力系统保护与控制, 2021, 49(22): 24-33.
	LI Dongdong, LIU Qiang, XU Bo, et al. New energy power system critical inertia estimation method considering frequency stability constraints[J]. Power System Protection and Control, 2021, 49(22): 24-33.

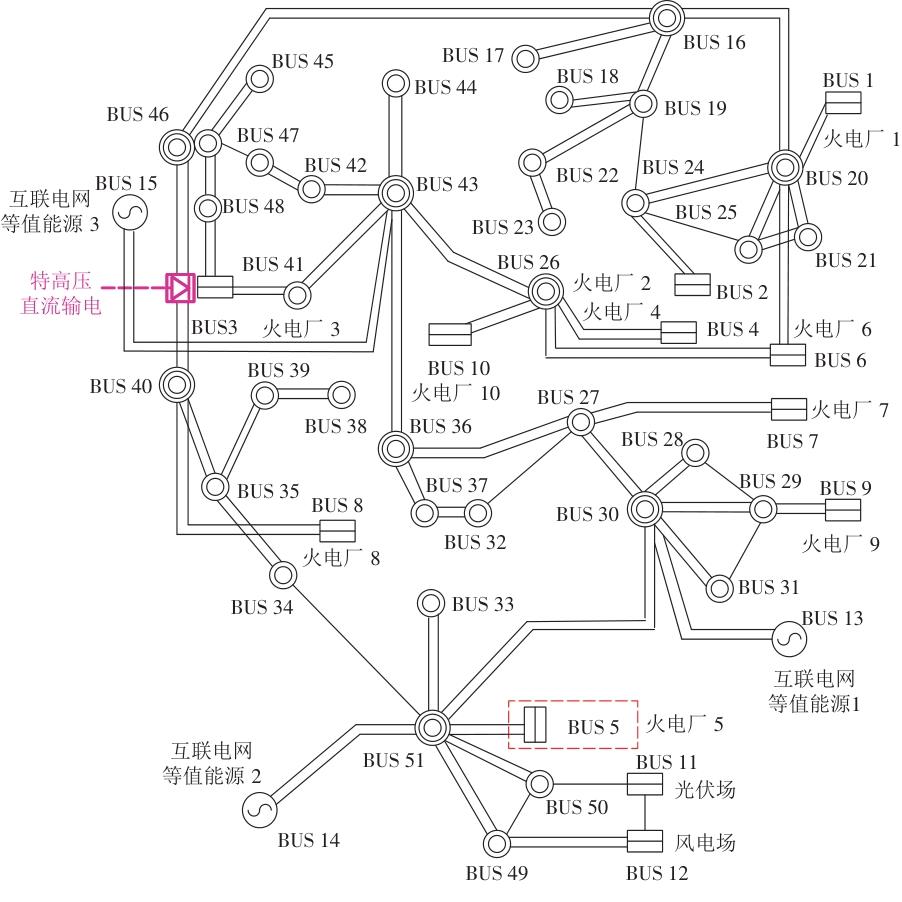

电源	装机容量	电源	装机容量
火电厂1	1 320	火电厂9	450
火电厂2	356	火电厂10	120
火电厂3	768	光伏场	300
火电厂4	600	风电场	554
火电厂5	4 500	互联电网等值电源1	510
火电厂6	2 370	互联电网等值电源2	2 510
火电厂7	1 980	互联电网等值电源3	1 560
火电厂8	2 430

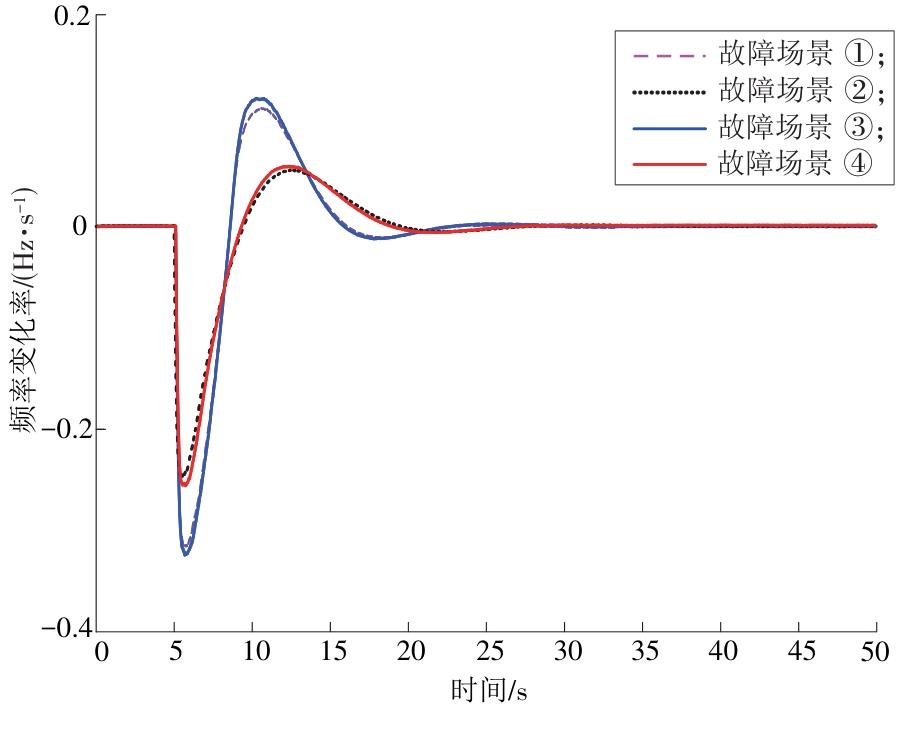

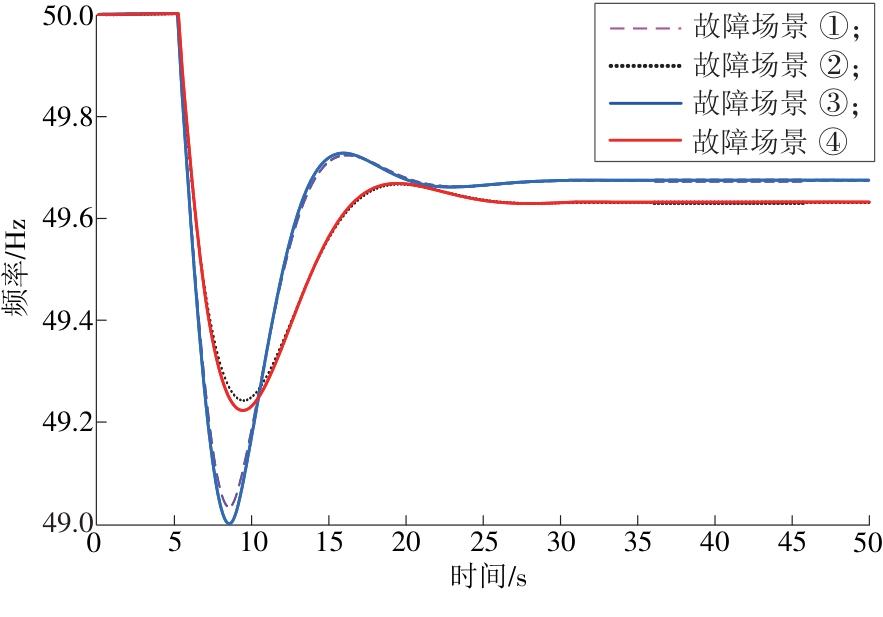

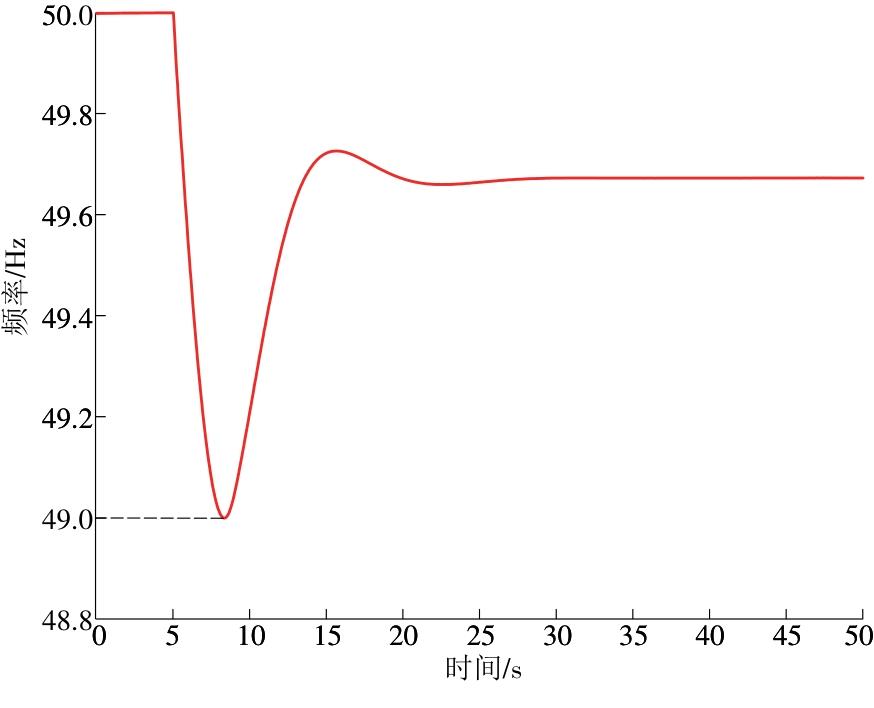

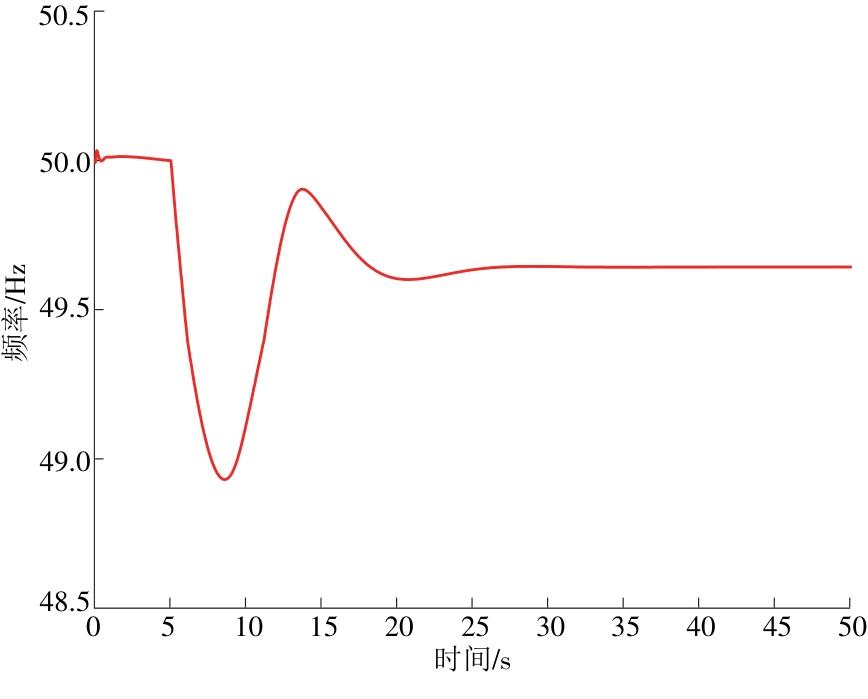

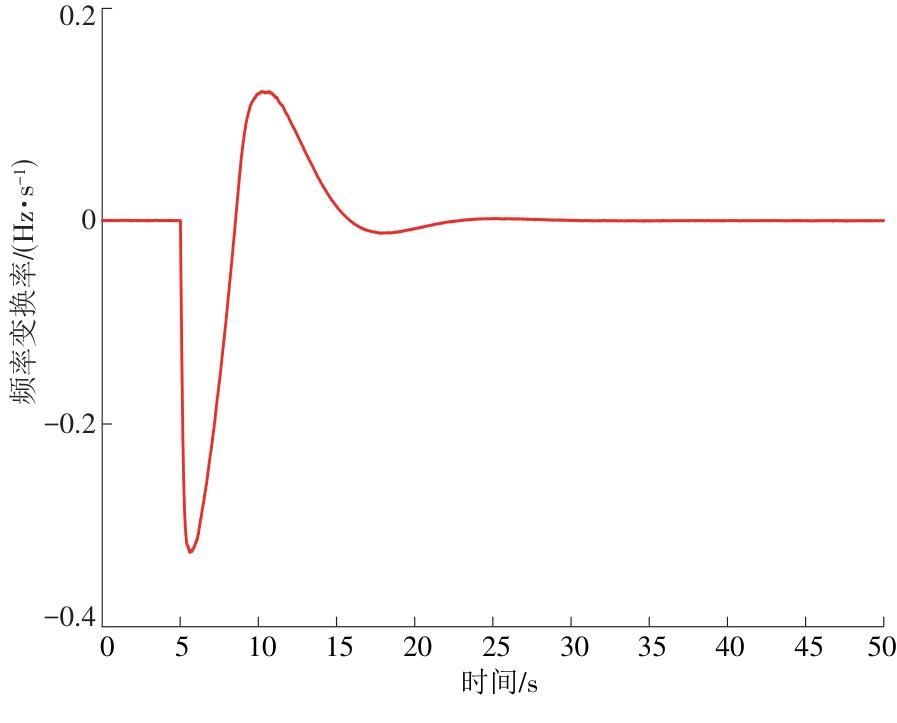

故障场景		临界惯量H_min
新能源低渗透率	①特高压直流闭锁	2.03
新能源低渗透率	②大机组脱网	0.93
新能源高渗透率	③特高压直流闭锁	2.22
新能源高渗透率	④大机组脱网	1.03

故障场景	临界惯量H_min/s	新能源可新增并网容量/GW
特高压直流闭锁	2.22	13.225
大机组脱网	1.03	49.442
