1 000 MW塔式炉燃烧系统建模及低氮高效燃烧策略研究

doi:10.3969/j.issn.2097-0706.2024.12.005

摘要/Abstract

摘要：

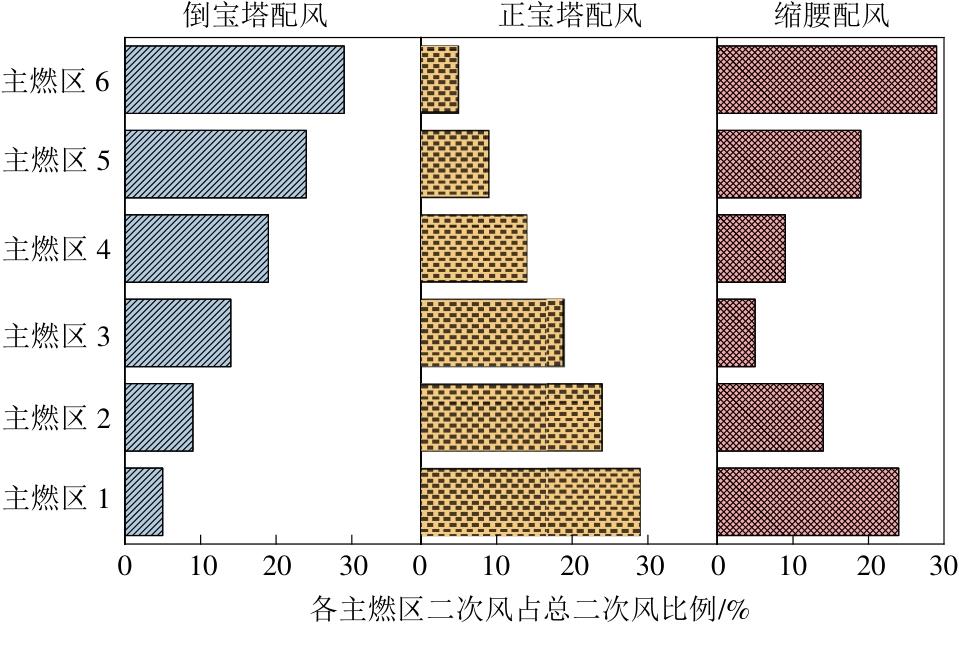

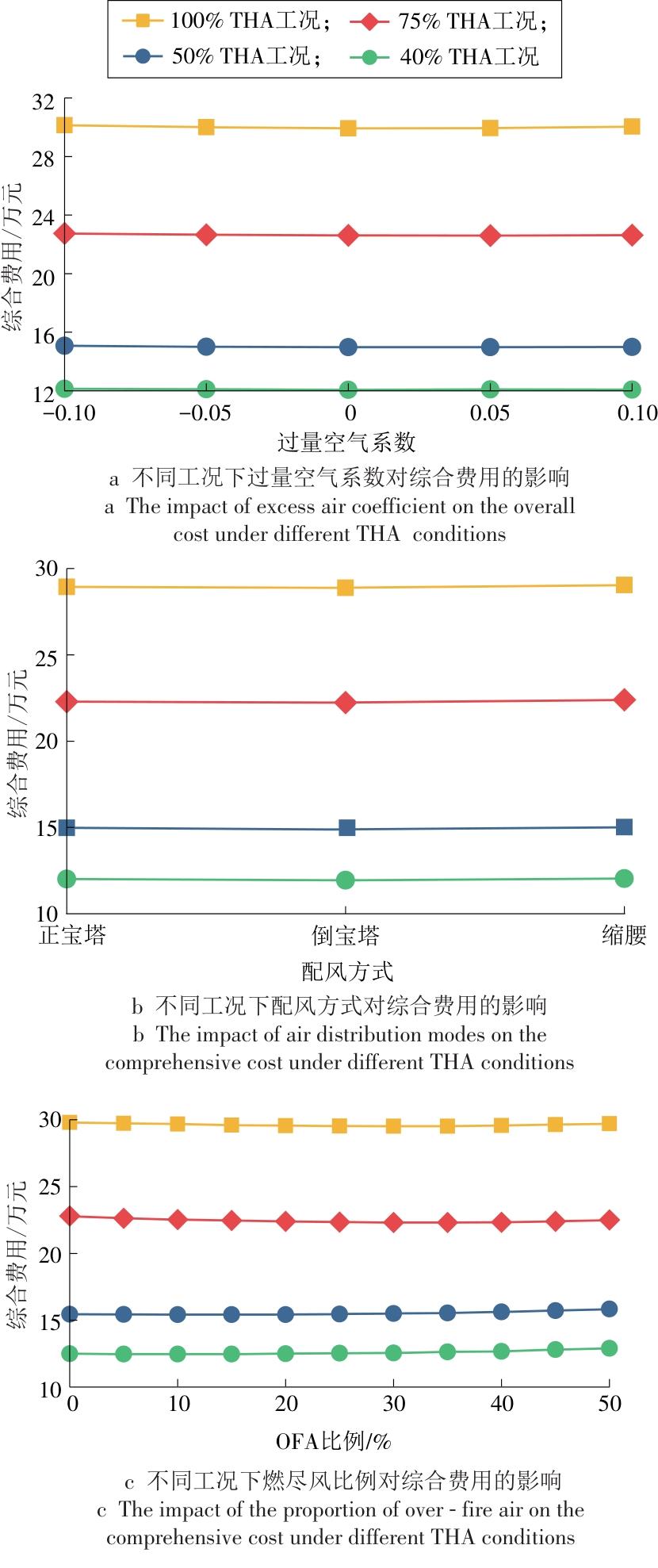

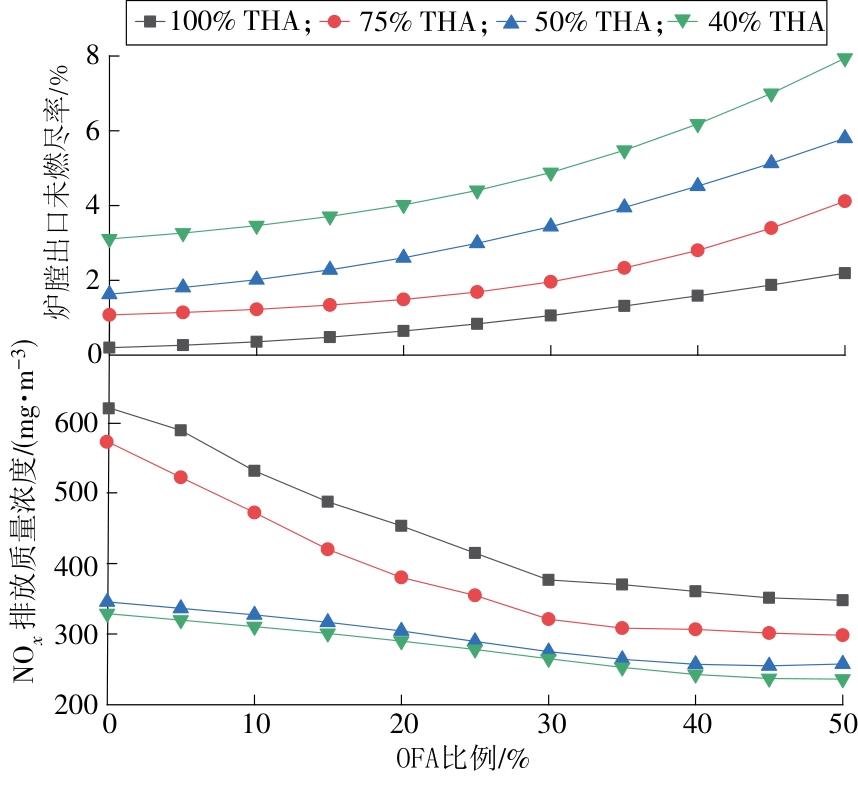

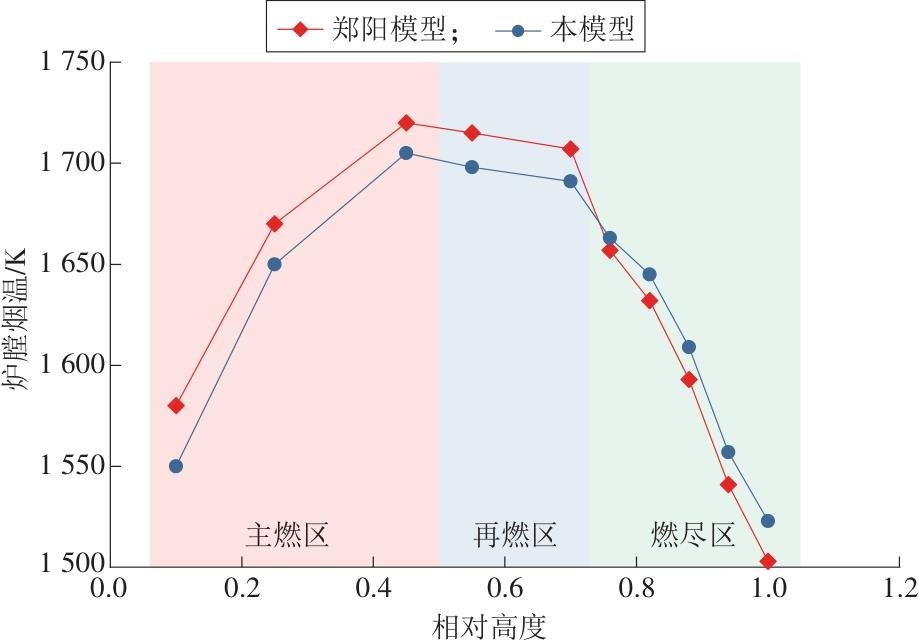

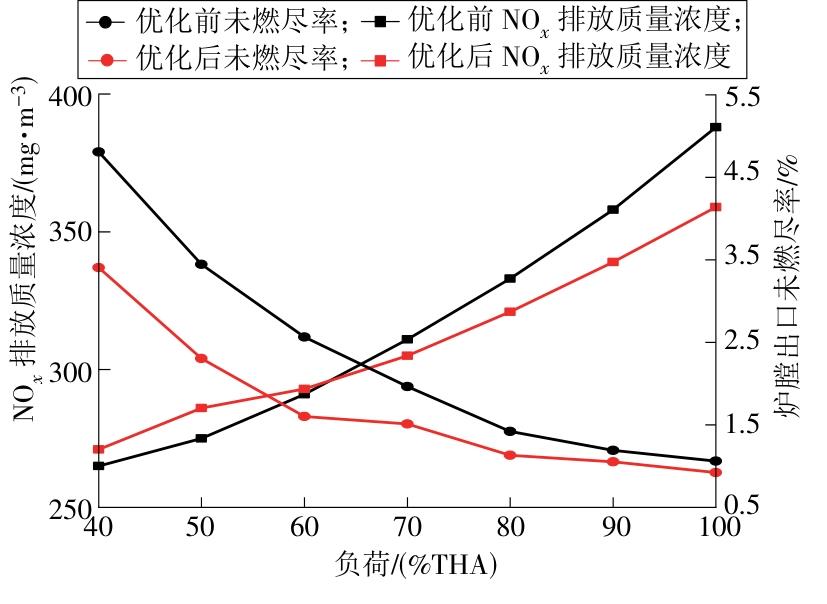

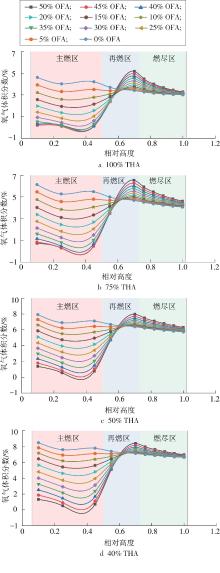

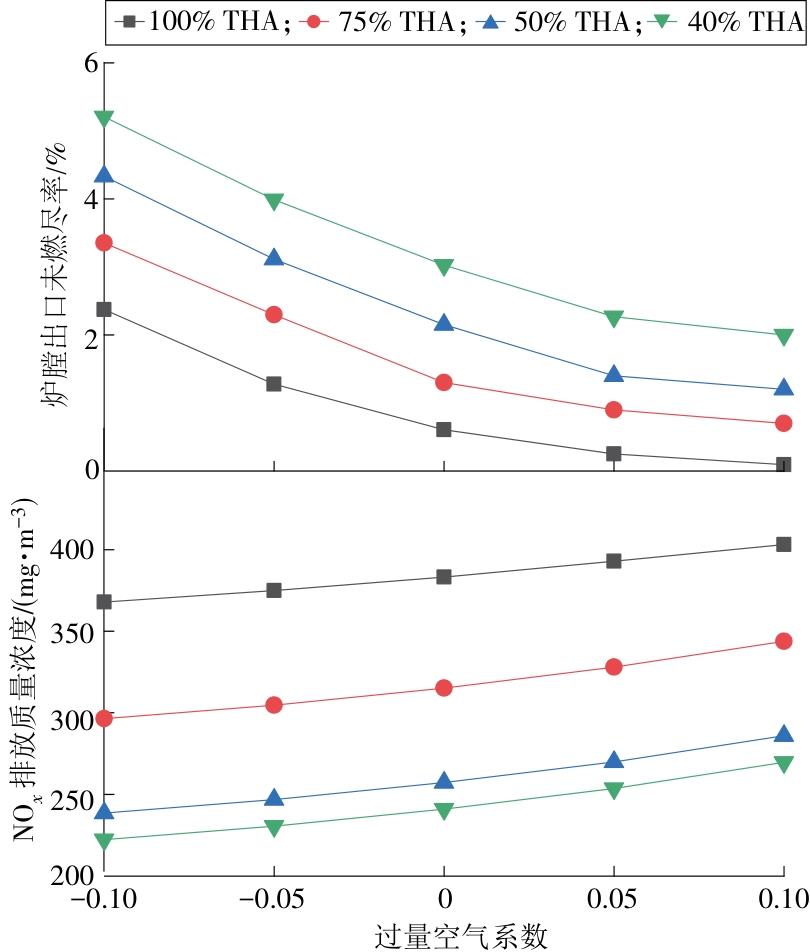

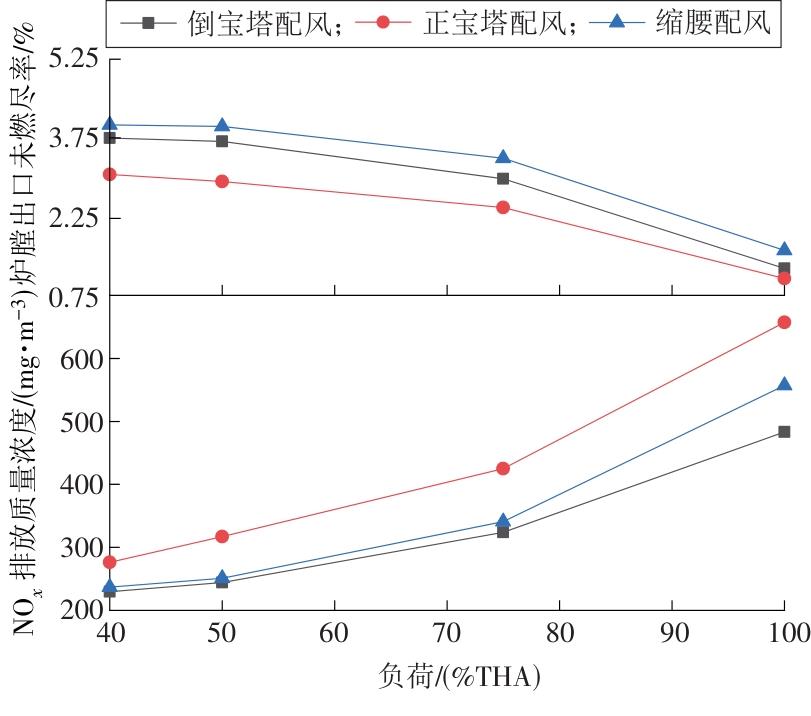

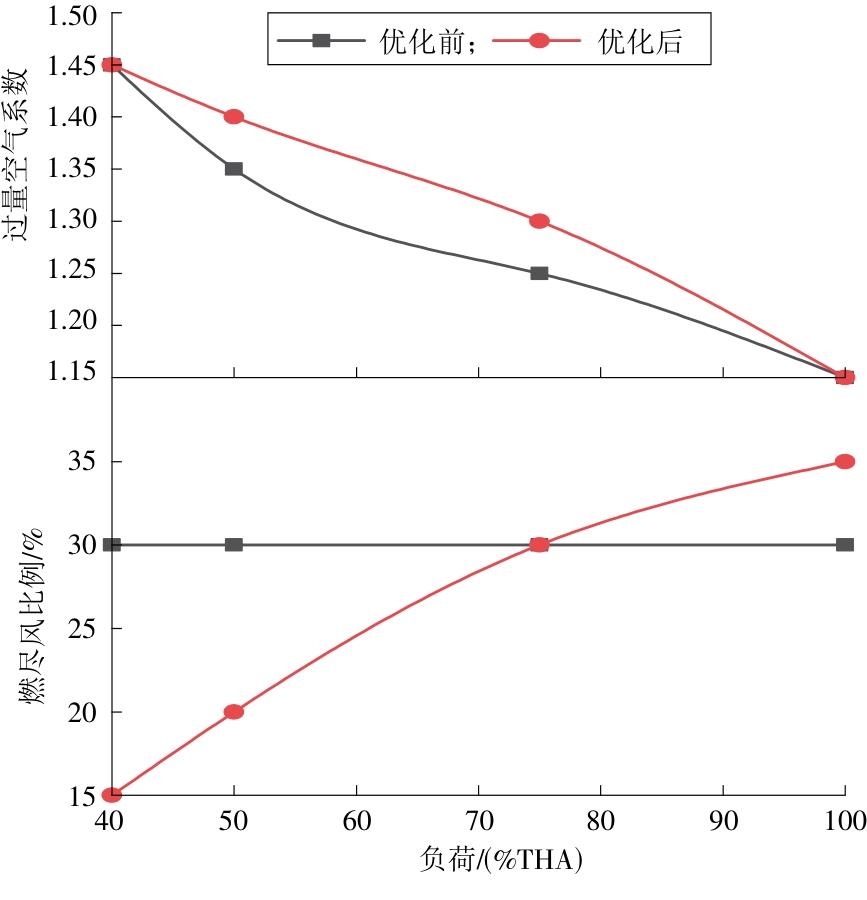

塔式炉由于炉膛高度高、燃烧器层数多，传统控制难以在锅炉宽负荷运行时，实现效率与NO_x排放的最佳匹配。为解决这一问题，基于Simulink软件建立了某1 000 MW塔式炉炉膛燃烧的一维动态模型并进行了稳态验证。通过分析锅炉在改变燃尽风（OFA）比例、过量空气系数及主燃区配风方式时的燃烧特性，制定了覆盖100%~40% 汽轮机热耗率验收（THA）工况范围的低氮高效燃烧策略。以10%THA为间隔，对比了燃烧优化前后锅炉在稳态工况下的NO_x质量浓度和未燃尽率。结果表明，优化后煤粉燃尽率最高提升了1.14%，NO_x质量浓度在高负荷（≥70%THA）工况下显著降低，最大降幅达到29 mg/m³。此外，计算显示优化后的锅炉平均综合经济收益增加了577元/h，显著提高了锅炉的经济效益，优化效果明显，为后续建立锅炉燃烧闭环控制系统提供了理论支撑和模型。

关键词: 燃烧优化, NO_x排放, 塔式锅炉, 超超临界锅炉, 一维燃烧模型, 低氮高效燃烧

Abstract:

Due to the high boiler height and multiple burner layers in tower boilers， traditional control methods struggle to achieve an optimal balance between efficiency and NO_x emissions across a wide load range. To address this issue， a one-dimensional dynamic combustion model of a 1 000 MW tower boiler was developed using Simulink software and validated under steady-state conditions. By analyzing the combustion characteristics under varying burnout air ratios， excess air coefficients， and air distribution modes in main combustion zones， a low-NO_x， high-efficiency combustion strategy was devised for loads ranging from 100% THA to 40% THA. At intervals of 10% THA， the NO_x concentration and unburned carbon rate of the boiler under steady-state conditions were compared before and after combustion optimization.Results showed that after optimization， the coal burnout rate improved by up to 1.14%， and NO_x concentrations significantly decreased at high loads （≥70% THA）， with a maximum reduction of 29 mg/m³. Additionally， the optimized boiler demonstrated an average overall economic gain of 577 yuan/hour， significantly enhancing its economic efficiency. This optimization provides a theoretical foundation and model for establishing a closed-loop combustion control system for boilers.

Key words: combustion optimization, NO_x emissions, tower boiler, ultra-supercritical boiler, one-dimensional combustion model, low-NO_x high-efficiency combustion

中图分类号:

TK123

丁旭, 付康康, 康博士, 李旭辉, 王进仕, 邱斌斌. 1 000 MW塔式炉燃烧系统建模及低氮高效燃烧策略研究[J]. 综合智慧能源, 2024, 46(12): 36-44.

DING Xu, FU Kangkang, KANG Boshi, LI Xuhui, WANG Jinshi, QIU Binbin. Modeling of 1 000 MW tower boiler combustion system and study on low-NO_x high-efficiency combustion strategy[J]. Integrated Intelligent Energy, 2024, 46(12): 36-44.

图/表 13

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 18

[1]	过琦. 基于智能算法的锅炉减温水量预测及其燃烧优化控制[D]. 杭州: 浙江大学, 2024.
	GUO Qi. Prediction of boiler desuperheating water quantity and its combustion optimization control based on intelligent algorithm[D]. Hangzhou: Zhejiang University, 2024.
[2]	陈华锋. 基于近端策略优化算法的煤粉锅炉燃烧优化研究[D]. 杭州: 浙江大学, 2022.
	CHEN Huafeng. Study on combustion optimization of pulverized coal boiler based on near-end strategy optimization algorithm[D]. Hangzhou: Zhejiang University, 2022.
[3]	闫新春, 曹欢, 华云鹏. 基于人工智能的锅炉受热面管壁温度预测[J]. 综合智慧能源, 2022, 44(3): 58-62. doi: 10.3969/j.issn.2097-0706.2022.03.009
	YAN Xinchun, CAO Huan, HUA Yunpeng. Prediction on tube wall temperatures of boiler heating surfaces based on artificial intelligence[J]. Integrated Intelligent Energy, 2022, 44(3): 58-62. doi: 10.3969/j.issn.2097-0706.2022.03.009
[4]	魏伟, 高赐威, 宋梦, 等. 基于HHO-SVM的电力线路故障检测分类系统[J]. 综合智慧能源, 2023, 45(3): 1-8. doi: 10.3969/j.issn.2097-0706.2023.03.001
	WEI Wei, GAO Ciwei, SONG Meng, et al. Power line fault detection and classification system based on HHO-SVM[J]. Integrated Intelligent Energy, 2023, 45(3): 1-8. doi: 10.3969/j.issn.2097-0706.2023.03.001
[5]	杨泽鑫, 李耀楠. 燃煤机组智慧燃烧优化控制研究及应用[J]. 价值工程, 2024, 43(19): 12-16.
	YANG Zexin, LI Yaonan. Research and application of intelligence combustion optimization system in a coal-fired boiler[J]. Value Engineering, 2024, 43(19): 12-16.
[6]	YAO Z, ROMERO C, BALTRUSAITIS J. Combustion optimization of a coal-fired power plant boiler using artificial intelligence neural networks[J]. Fuel, 2023.
[7]	WU X C, ZHANG H N, CHEN H F, et al. Combustion optimization study of pulverized coal boiler based on proximal policy optimization algorithm[J]. Applied Thermal Engineering, 2024: 123857.
[8]	XU W T, HUANG Y J, SONG S H, et al. On-line combustion optimization framework for coal-fired boiler combining improved cultural algorithm, deep learning, multi-objective evolutionary algorithm with improved case-based reasoning technology[J]. Fuel, 2024, 358: 130225.
[9]	XU WENTAO, HUANG YAJI, et al. A new on-line combustion optimization approach for ultra-supercritical emission and enhance operating safety[J]. Energy, 2023, 282.
[10]	袁来运, 钟文琪, 陈曦, 等. 面向深度调峰的超临界煤粉锅炉变负荷燃烧三维数值模拟[J]. 东南大学学报(自然科学版), 2019, 49(3): 535-541.
	YUAN Laiyun, ZHONG Wenqi, CHEN Xi, et al. Three-dimensional numerical simulation of variable load combustion of supercritical coal-fired boiler for deep peak load regulation[J]. Journal of Southeast University (Natural Science Edition), 2019, 49(3): 535-541.
[11]	袁来运. 超临界煤粉锅炉变负荷燃烧的数值模拟及配风优化[D]. 南京: 东南大学, 2019.
	YUAN Laiyun. Numerical simulation and air distribution optimization of variable load combustion in supercritical pulverized coal boiler[D]. Nanjing: Southeast University, 2019.
[12]	LIU Y, ZHAO Y C, ZHANG L, et al. Experiment and numerical study on combustion characteristics of low-nitrogen burners[J]. Fuel, 2023, 351: 128814.
[13]	ZHANG W J, ZHANG F, ZHANG J X, et al. One-dimensional mathematical model of coal combustion in furnace and its simulation[C]// IOP Conference Series: Earth and Environmental Science. IOP Publishing, 2019, 252(3): 032115.
[14]	樊永岳. 基于一维燃烧模型的600 MW燃煤锅炉宽负荷运行特性模拟[D]. 西安: 西安交通大学, 2023.
	FAN Yongyue. Simulation of wide load operation characteristics of 600 MW coal-fired boiler based on a one-dimensional combustion Model[D]. Xi'an: Xi'an Jiaotong University, 2023.
[15]	ZHAO H R, SHEN J, LI Y G, et al. Coal-fired utility boiler modelling for advanced economical low-NO_x combustion controller design[J]. Control Engineering Practice, 2017, 58:127-141.
[16]	傅维标, 张百立. 煤焦燃烧反应动力学参数与煤种的通用关系[J]. 燃烧科学与技术, 1997, 3(1): 1-14.
	FU Weibiao, ZHANG Baili. A generalized relationship between the kinetic parameters of char combustion and coal properties[J]. Journal of Combustion Science and Technology, 1997, 3(1): 1-14.
[17]	DE SOETE G. G. Overall reaction rates of NO and N₂ formation from fuel nitrogen[C]// Symposium (international) on combustion. Elsevier, 1975, 15(1): 1093-1102.
[18]	郑阳. 大型煤粉燃烧锅炉NO_x排放控制系统的运行特性及其优化[D]. 南京: 东南大学, 2017.
	ZHENG Yang. Operation characteristics and optimization of NO_x emission control system of large pulverized coal-fired boiler[D]. Nanjing: Southeast University, 2017.

名称	设计煤质	校核煤质
收到基碳/%	58.71	56.39
收到基氢/%	3.23	3.14
收到基氧/%	0.66	0.63
收到基氮/%	6.57	6.40
全硫/%	0.79	0.90
全水分/%	14.80	17.00
空气干燥基水分/%	2.53	2.45
收到基灰分/%	15.24	15.54
干燥无灰基挥发分/%	29.59	29.48
收到基低位发热量/（MJ·kg^-1）	22.50	21.50
