纳米锗-锡/碳复合材料的合成与电化学性能研究

doi:10.3969/j.issn.1674-1951.2021.07.004

华电技术 ›› 2021, Vol. 43 ›› Issue (7): 24-29.doi: 10.3969/j.issn.1674-1951.2021.07.004

纳米锗-锡/碳复合材料的合成与电化学性能研究

乔雪, 杨雪彪, 黄婷婷, 王新月, 贾子辰, 王红强^*()

河北大学化学与环境科学学院,河北保定071002

收稿日期:2021-04-26 修回日期:2021-06-01 出版日期:2021-07-25 发布日期:2021-07-27
通讯作者: 王红强
作者简介:乔雪（1995—）,女,河北邯郸人,在读硕士研究生,从事新型储能材料和储能技术的研究工作。
杨雪彪（1995—）,男,河北张家口人,在读硕士研究生,从事负极电极材料的设计及合成研究工作。
黄婷婷（1996—）,女,河北承德人,在读硕士研究生,从事锂硫电池正极材料的合成研究工作。
王新月（1996—）,女,河北定州人,在读硕士研究生,从事无机纳米材料的合成研究工作。
贾子辰（1998—）,男,河北石家庄人,在读硕士研究生,从事电极材料电化学性能测试研究工作。
基金资助:
国家自然科学基金项目(51702079);河北大学研究生创新基金项目(hbu2020ss066)

Synthesis and electrochemical performance of nano-Ge-Sn/C composite material

QIAO Xue, YANG Xuebiao, HUANG Tingting, WANG Xinyue, JIA Zichen, WANG Hongqiang^*()

School of Chemistry and Environmental Sciences,Hebei University,Baoding 071002,China

Received:2021-04-26 Revised:2021-06-01 Online:2021-07-25 Published:2021-07-27
Contact: WANG Hongqiang

摘要/Abstract

摘要：

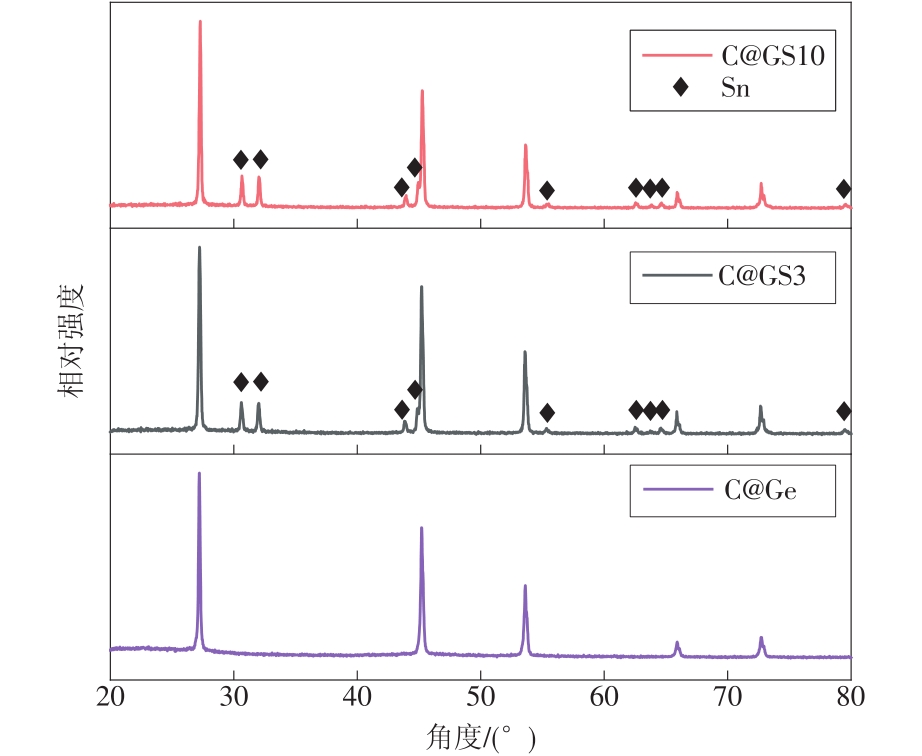

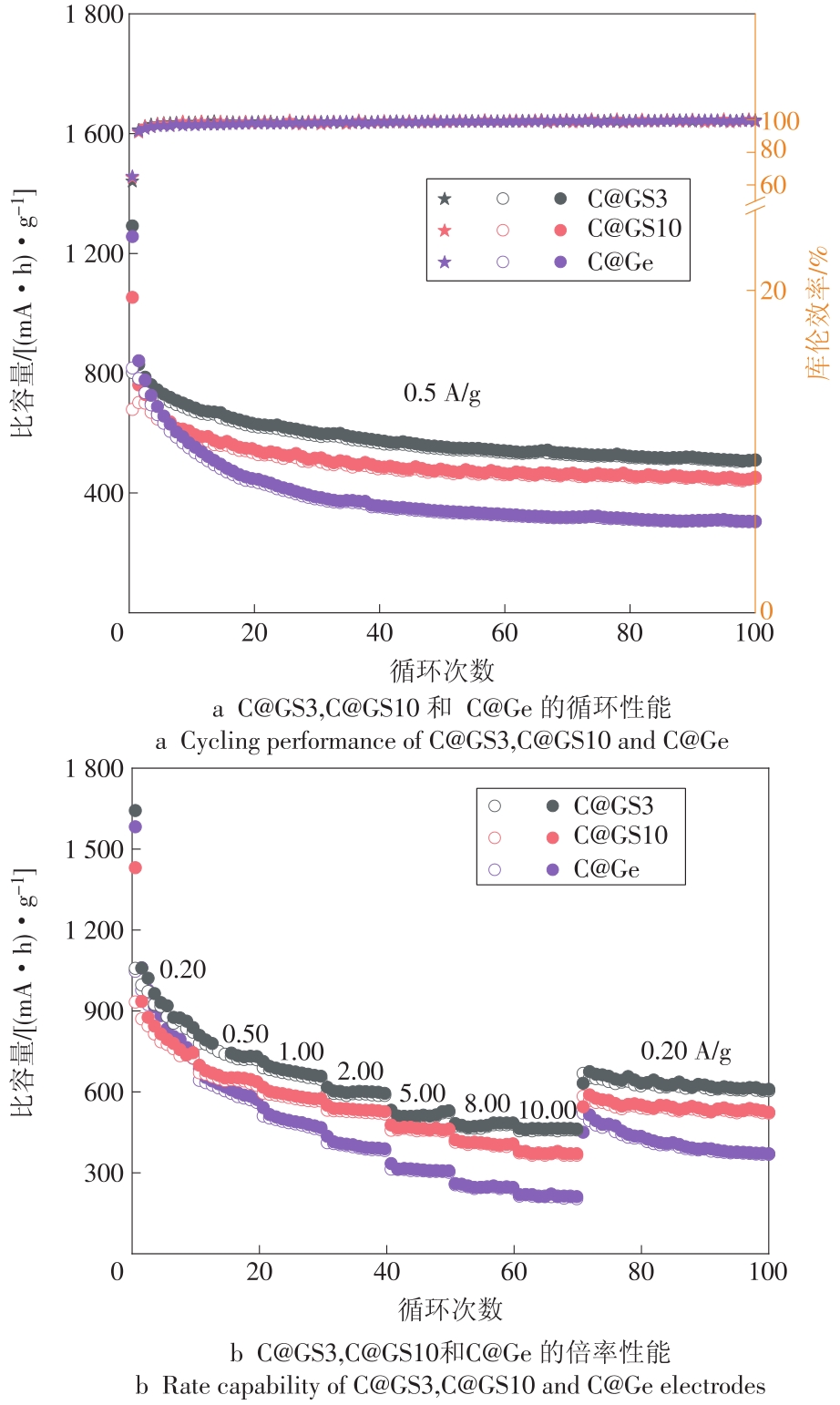

锗因其较高的理论容量成为最具应用前景的锂离子电池负极材料。设计制备了一种纳米锗-锡/碳复合材料,碳材料可以在提高锗导电性的同时适应其体积变化,锡的加入可以进一步提高材料导电性,并且锗和锡2种组分脱/嵌锂的电位不同,未参与反应的组分可以作为基体缓冲另一组分在充放电过程中的体积变化,提高负极的结构稳定性。通过扫描电子显微镜（SEM）、能量分散光谱仪（EDS）和X射线衍射（XRD）方法对材料进行形貌表征,并对结构和组分进行分析。将该材料作为锂离子电池负极材料,在0.50 A/g的电流密度下,首次放电容量达到1 292 （mA·h）/g,充放电100次后容量保持在510 （mA·h）/g。当电流密度提高至10.00 A/g时,仍具有460 （mA·h）/g的放电容量,说明材料具有循环稳定性的同时还有较好的倍率性能。

关键词: 锂离子电池, 锗-锡/碳负极材料, 比容量, 电流密度, 锂化反应, 倍率性能

Abstract:

Ge has become the most promising anode material for lithium-ion batteries due to its high theoretical capacity.Our team has prepared a nano-Ge-Sn/C composite material：carbon can improve the conductivity of Ge and adapt to the change in its volume,and Sn can further improve the conductivity of the material.Since the electric potentials of Ge and Sn to deintercalate/intercalate lithium ion are different,the component that does not participate in the reaction can be used as a matrix to buffer the volume change led by the other component in charge and discharge processes,which can improve the structural stability of the electrode.The morphology,structure and composition of the material were analyzed by SEM,EDS and XRD.The capacity of the lithium-ion battery taking this composite as its anode material was 1 292 （mA·h）/g in the first cycle discharge at a current density of 0.5 A/g,and remained at 510 （mA·h）/g after 100 cycles’ discharge.When the current density was increased to 10 A/g,the battery kept a capacity of 460 （mA·h）/g.It indicates a good cyclical stability and rate performance of this composite.

Key words: lithium-ion battery, Ge-Sn/C anode material, specific capacity, current density, lithiumation reaction, rate performance

中图分类号:

TK02

乔雪, 杨雪彪, 黄婷婷, 王新月, 贾子辰, 王红强. 纳米锗-锡/碳复合材料的合成与电化学性能研究[J]. 华电技术, 2021, 43(7): 24-29.

QIAO Xue, YANG Xuebiao, HUANG Tingting, WANG Xinyue, JIA Zichen, WANG Hongqiang. Synthesis and electrochemical performance of nano-Ge-Sn/C composite material[J]. Huadian Technology, 2021, 43(7): 24-29.

图/表 10

图1

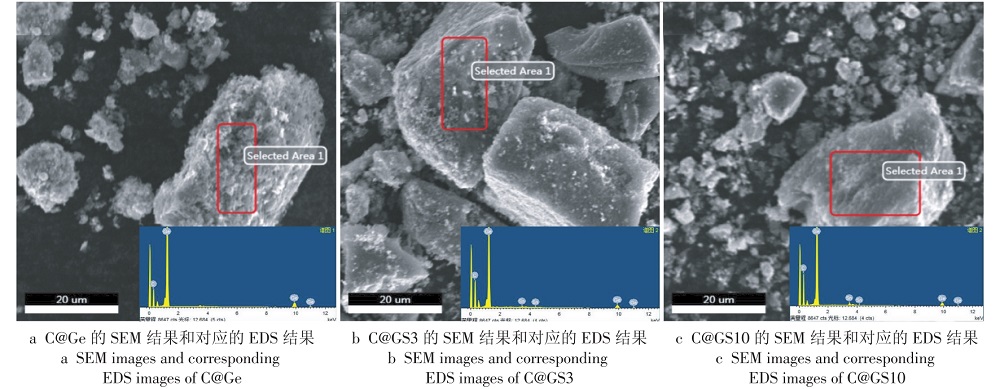

图2

表1

图3

图4

图5

表2

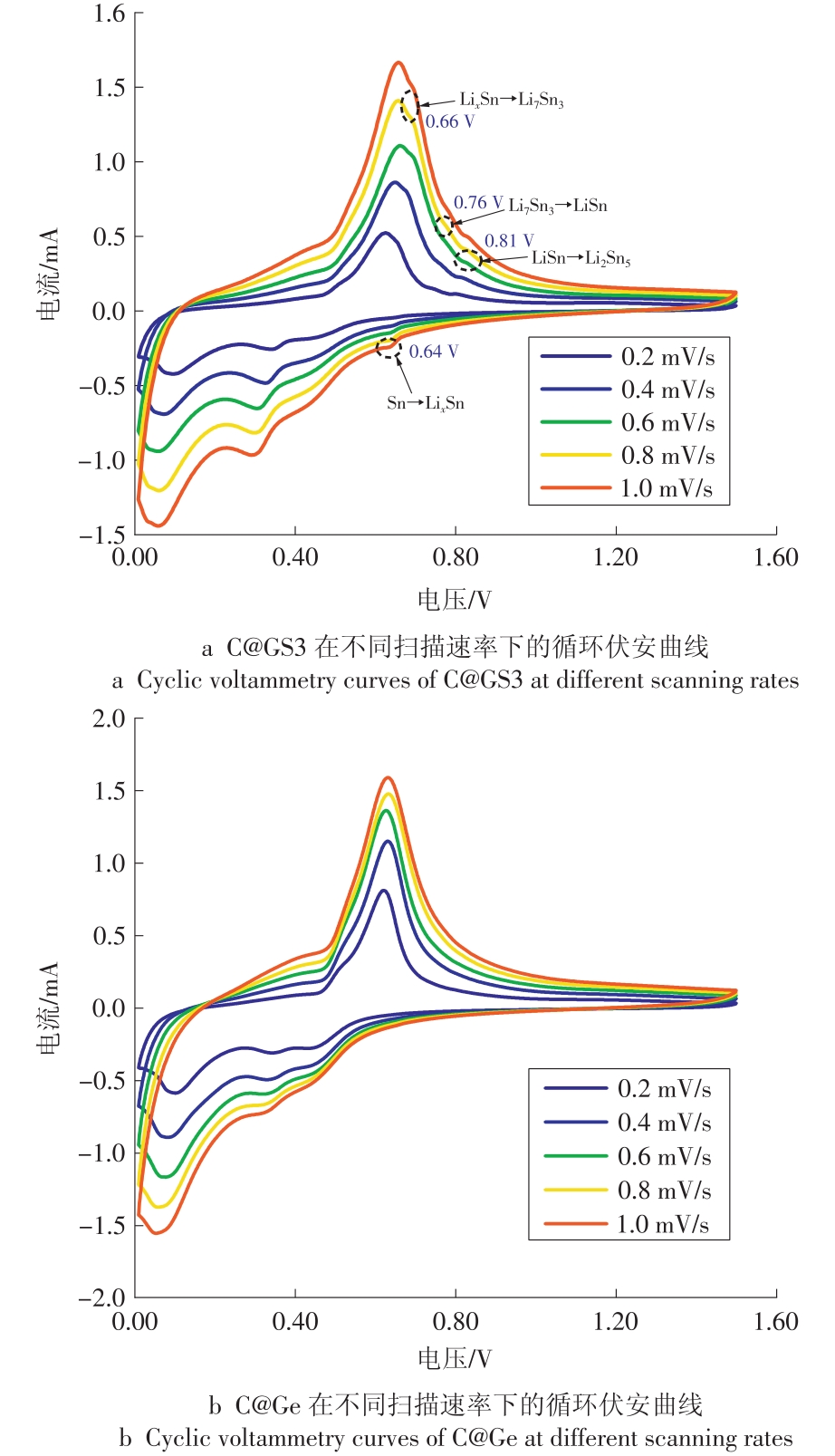

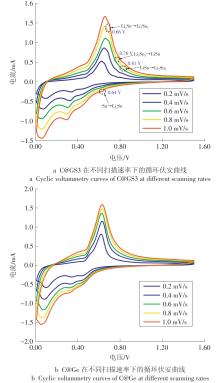

图6

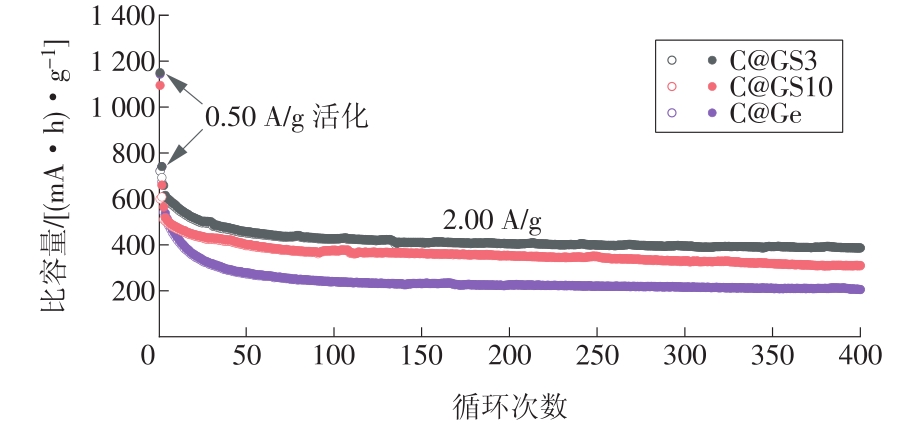

图7

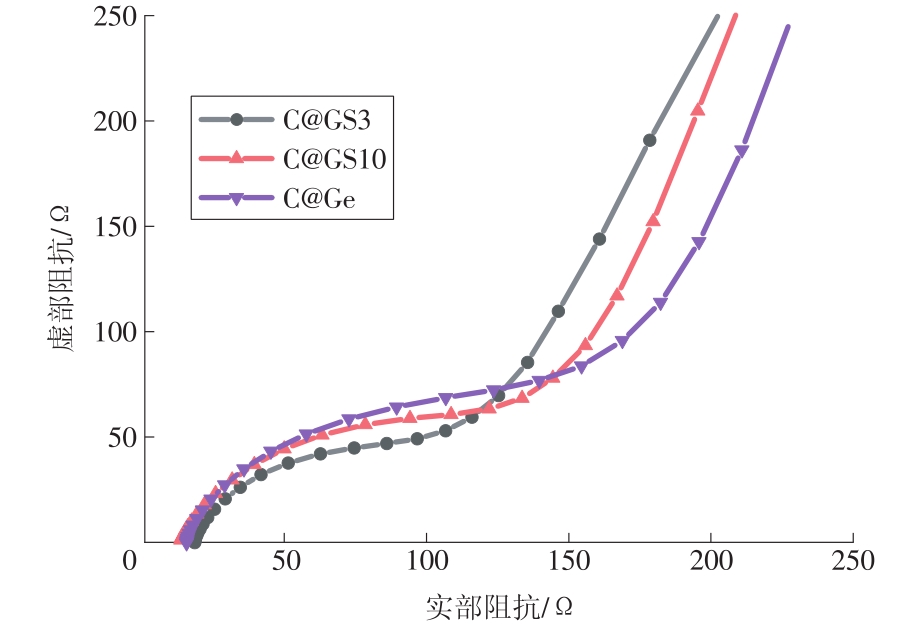

图8

参考文献 24

[1]	李小强, 陈欣, 李洪波, 等. 碳包覆CaSnO₃纳米纤维作为高性能锂离子电池负极材料[J]. 无机化学学报, 2021, 37(4):700-708.
	LI Xiaoqiang, CHEN Xin, LI Hongbo, et al. Carbon-coated CaSnO₃ nanofibers as high performance anode materials for lithium ion batteries [J]. Chinese Journal of Inorganic Chemistry, 2021, 37(4):700-708.
[2]	WANG Hongqiang, ZHANG Na, LI Ying, et al. Unique flexible NiFe₂O₄@S/rGO-CNT electrode via the synergistic adsorption/electrocatalysis effect toward high-performance lithium-sulfur batteries[J]. Journal of Physical Chemistry Letters, 2019, 10(21):6518-6524. doi: 10.1021/acs.jpclett.9b02649 pmid: 31596089
[3]	张林森, 郭春朵, 宋延华, 等. 原位合成Ni₃N/g-C₃N₄复合材料的储锂性能[J]. 电池, 2021, 51(1):13-16.
	ZHANG Linsen, GUO Chunduo, SONG Yanhua, et al. Lithium storage performance of in-situ synthesized Ni₃N/g-C₃N₄ composite [J]. Battery Bimonthly, 2021, 51(1):13-16.
[4]	CHEN Z, YANG X B, QIAO X, et al. Lithium-ion-engineered interlayers of V₂C MXene as advanced host for flexible sulfur cathode with enhanced rate performance[J]. Journal of Physical Chemistry Letters, 2020, 11(3):885-890. doi: 10.1021/acs.jpclett.9b03827
[5]	惠康龙, 傅继澎, 高湉, 等. 金属硫化物在可充电电池中的研究进展[J]. 应用化学, 2020, 37(12):1384-1402. doi: 10.11944/j.issn.1000-0518.2020.12.200190
	HUI Kanglong, FU Jipeng, GAO Tian, et al. Research progress of metal sulfides in rechargeable batteries[J]. Chinese Journal of Applied Chemistry, 2020, 37(12):1384-1402.
[6]	HU Zhenglin, ZHANG Shu, ZHANG Chuanjian, et al. High performance germanium-based anode materials[J]. Coordination Chemistry Reviews, 2016, 326:34-85. doi: 10.1016/j.ccr.2016.08.002
[7]	方华, 丰小华, 张林森, 等. 锂离子电池硅/碳复合负极材料的研究现状[J]. 电池, 2020, 50(6):580-584.
	FANG Hua, FENG Xiaohua, ZHANG Linsen, et al. Research status quo of silicon/carbon composite anode material for Li-ion battery[J]. Battery Bimonthly, 2020, 50(6):580-584.
[8]	XI Xiaoli, CHEN Guanglei, NIE Zuoren, et al. Preparation and performance of LiFePO₄ and LiFePO₄/C cathodes by freeze-drying[J]. Journal of Alloys and Compounds, 2010, 497(1-2):377-379. doi: 10.1016/j.jallcom.2010.03.078
[9]	KWON D, RYU J, SHIN M, et al. Synjournal of dual porous structured germanium anodes with exceptional lithium-ion storage performance[J]. Journal of Power Sources, 2018, 374:217-224. doi: 10.1016/j.jpowsour.2017.11.044
[10]	LIN N, LI T Q, HAN Y, et al. Mesoporous hollow Ge microspheres prepared via molten-salt metallothermic reaction for high-Pperformance Li-storage anode[J]. ACS Applied Materials & Interfaces, 2018, 10(10):8399-8404.
[11]	WANG Y, LUO S N, CHEN M, et al. Uniformly confined germanium quantum dots in 3D ordered porous carbon framework for high-performance Li-ion battery[J]. Advanced Functional Materials, 2020, 30(16):2000373. doi: 10.1002/adfm.v30.16
[12]	LIU Xin, LIU Yusi, HARRIS M M, et al. Germanium nanoparticles supported by 3D ordered macroporous nickel frameworks as high-performance free-standing anodes for Li-ion batteries[J]. Chemical Engineering Journal, 2018, 354:616-622. doi: 10.1016/j.cej.2018.08.056
[13]	MULLANE E, KENNEDY T, GEANEY H, et al. A rapid,solvent-free protocol for the synjournal of germanium nanowire lithium-ion anodes with a long cycle life and high rate capability[J]. Acs Applied Materials & Interfaces, 2014, 6(21):18800-18807.
[14]	KWON D, RYU J, SHIN M, et al. Synjournal of dual porous structured germanium anodes with exceptional lithium-ion storage performance[J]. Journal of Power Sources, 2018, 374:217-224. doi: 10.1016/j.jpowsour.2017.11.044
[15]	LI Dan, WANG Hongqiang, LIU Huakun, et al. A new strategy for achieving a high performance anode for lithium ion batteries encapsulating germanium nanoparticles in carbon nanoboxes[J]. Advanced Energy Materials, 2016, 6(5):1501666. doi: 10.1002/aenm.201501666
[16]	杨丽杰. 锂离子电池石墨类碳负极的容量衰减机制研究[D]. 哈尔滨:哈尔滨工业大学, 2014.
[17]	任永欢. 锂离子电池低温/高电压电解液研究[D]. 北京:北京理工大学, 2015.
[18]	QU J, YIN Y X, WANG Y Q, et al. Layer structured alpha-Fe₂O₃ nanodisk/reduced graphene oxide composites as high-performance anode materials for lithium-ion batteries[J]. Acs Applied Materials & Interfaces, 2013, 5(9):3932-3936.
[19]	许康力. 锂-硫电池电极材料制备及电化学反应动力学研究[D]. 合肥:中国科学技术大学, 2020.
[20]	张孝华. 层状P2型Na_2/3Ni_1/3Mn_5/9Al_1/9O₂钠离子电池正极材料的性能提升与电极动力学研究[D]. 长春:东北师范大学, 2017.
[21]	YE Xucun, LIN Zhihua, LIANG Shujie, et al. Upcycling of electroplating sludge into ultrafine Sn@C nanorods with highly stable lithium storage performance[J]. Nano Letters, 2019, 19(3):1860-1866. doi: 10.1021/acs.nanolett.8b04944 pmid: 30676748
[22]	QIAO X, YANG X B, ZHANG N, et al. One-step in situ encapsulation of Ge nanoparticles into porous carbon network with enhanced electron/ion conductivity for lithium storage[J]. Rare Metals, 2021, 40:2432-2439. doi: 10.1007/s12598-020-01662-4
[23]	于敬学. 硅和锗基纳米材料的合成及作为锂离子电池负极材料的研究[D]. 杭州:浙江大学, 2014.
[24]	王帮润. 高比能量锂离子电池硅/锗基负极材料的制备及其电化学性能研究[D]. 合肥:中国科学院大学(中国科学院上海硅酸盐研究所), 2019.

材料	x（C)	x（Ge）	x（Sn）
C@Ge	83.2	16.8	0
C@GS3	86.8	13.0	0.2
C@GS10	88.7	10.7	0.6

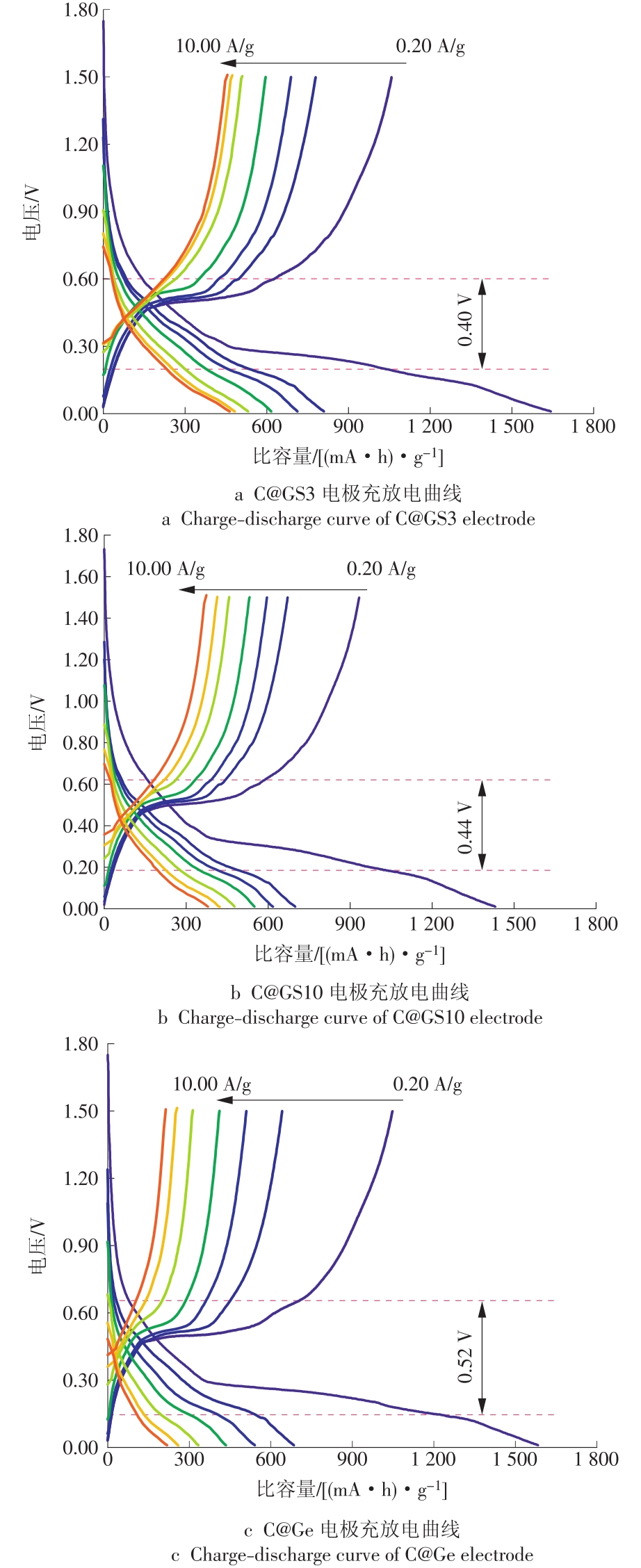

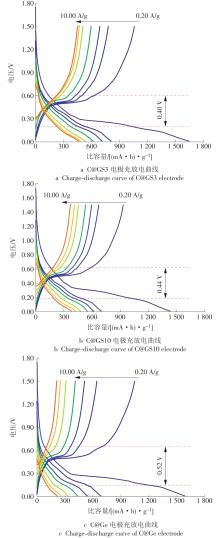

材料	电流密度/(mA⋅g^-1)
材料	0.20	0.50	1.00	2.00	5.00	8.00	10.00
C@GS3	0.25	0.24	0.26	0.29	0.35	0.39	0.40
C@GS10	0.26	0.25	0.26	0.30	0.36	0.40	0.44
C@Ge	0.26	0.28	0.31	0.35	0.41	0.48	0.52
