基于分离预处理的城镇污泥原位资源化技术分析

doi:10.3969/j.issn.1674-1951.2021.12.004

华电技术 ›› 2021, Vol. 43 ›› Issue (12): 23-28.doi: 10.3969/j.issn.1674-1951.2021.12.004

基于分离预处理的城镇污泥原位资源化技术分析

王学科¹, 陈北洋², 周保卫², 穆童³, 张春苗³, 杨再威², 汪诚文

收稿日期:2021-05-07 修回日期:2021-10-11 出版日期:2021-12-25 发布日期:2021-12-10
作者简介:王学科（1975—）,男,天津人,高级工程师,从事市政污水处理技术研究和管理工作。
周保卫（1968—）,男,安徽泗县人,正高级工程师,从事发电厂和市政水处理研究和管理工作。
穆童（1987—）,男,天津人,助理工程师,从事污泥资源化研究和管理工作。
张春苗（1989—）,女,河北唐山人,从事污泥资源化研究和管理工作。
杨再威（1998—）,女,黑龙江齐齐哈尔人,助理工程师,从事市政污水处理技术研究和管理工作。
基金资助:
中国华电集团科技项目(CHDKJ21-01-52)

Analysis of in-situ municipal sludge resource utilization technology based on separation pretreatment

WANG Xueke¹, CHEN Beiyang², ZHOU Baowei², MU Tong³, ZHANG Chunmiao³, YANG Zaiwei², WANG Chengwen

Received:2021-05-07 Revised:2021-10-11 Online:2021-12-25 Published:2021-12-10

摘要/Abstract

摘要：

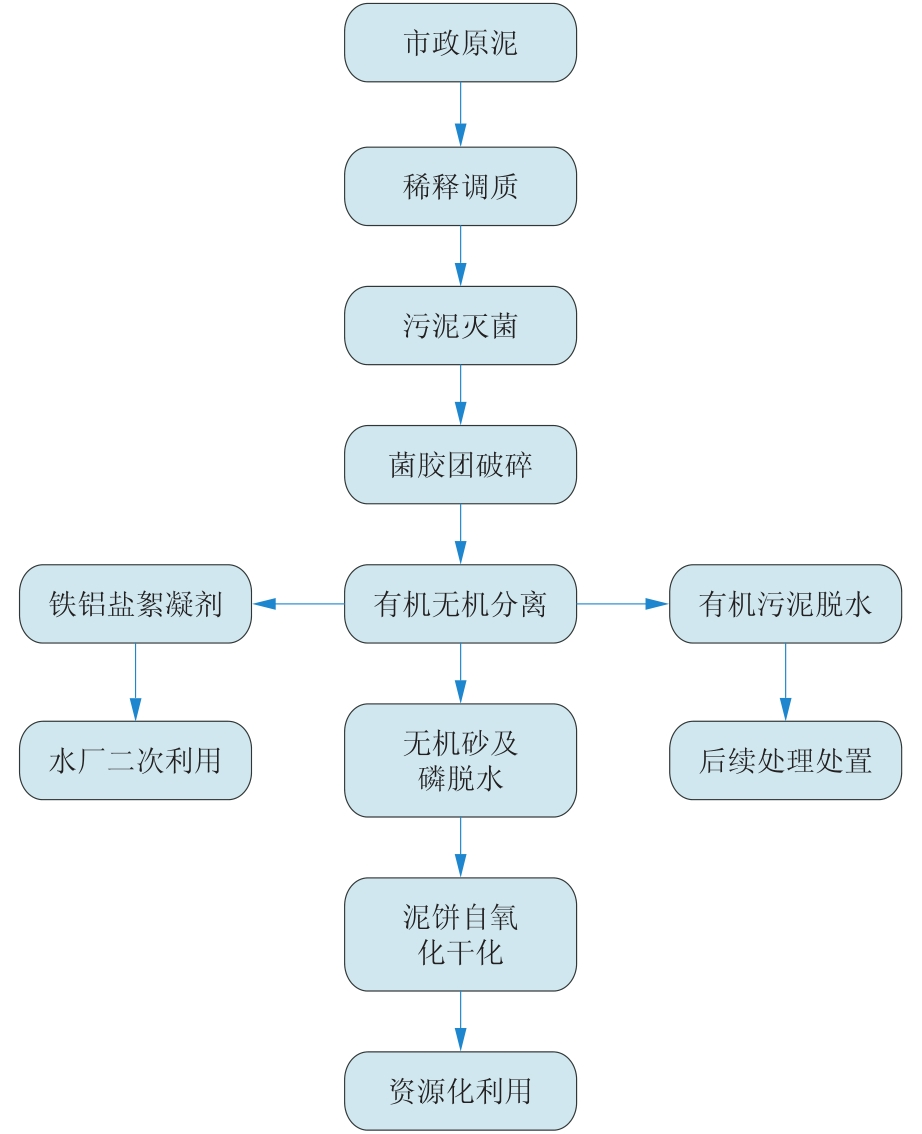

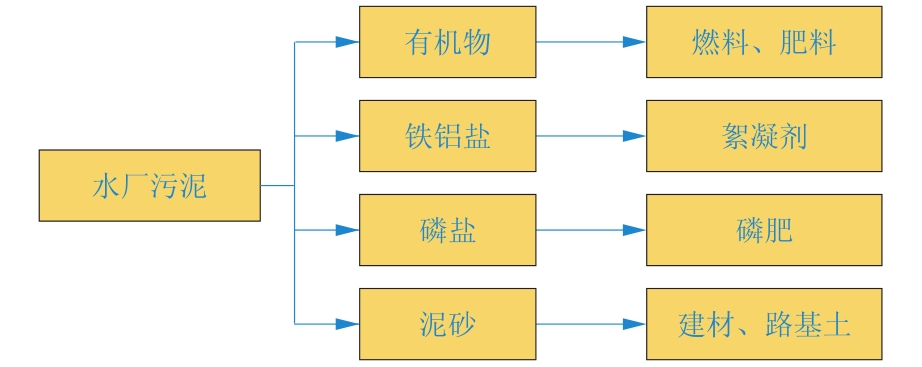

结合污水处理厂生产运行情况,增加污泥分离预处理工序段,并耦合国内主流污泥处理技术,可补足现有工艺短板,实现污泥的高效精准资源化利用。通过破坏污泥中的胞外聚合物（Extracellular Polymeric Substances,EPS）降低污泥黏性,实现对污泥有机物、无机盐类和砂组分的分离。分离后污泥有机物质量分数高于75%,热值稳定在12 MJ/kg以上,用作生物质燃料可自持燃烧;或无需添加辅料即可符合污泥堆肥的要求;或用作厌氧发酵沼气产量可提升至96.0 mL/g,且沼液浓度低,处理相对简单。分离出的铝铁盐可用作污水处理厂絮凝剂进行化学除磷,磷盐可回收作为园林绿化用磷肥原料,砂组分经脱水及自氧化干化后可用作建筑基材。

关键词: 污泥, 分离预处理, 胞外聚合物, 有机组分, 无机金属盐, 原位资源化

Abstract:

Sludge separation was added into pretreatment process of sewage treatment plants considering their operation status.Coupled with domestic mainstream sludge treatment technology,sludge separation can make up the existing shortcomings and realize the efficient and accurate resource utilization of sludge.Destroying the extracellular polymeric substance （EPS） in sludge can reduce the viscosity of sludge and separate organic matter,inorganic salts and sand out of sludge.After separation,the content of organic matter in sludge is more than 75%,and the calorific value is more than 12 MJ/kg.The treated sludge can be used as biomass fuel for self-sustaining combustion or sludge composting without adding auxiliary materials.And it can increase the biogas production in anaerobic fermentation to 96.0 mL/g,and lower the concentration of biogas slurry and the treatment difficulty.The separated aluminum and ferric salt are used as flocculants for chemical phosphorus removal in wastewater treatment plants.The phosphorus salt can be recycled as raw material of phosphorus fertilizer for landscaping.The sand component can be used as building material after dehydration and self oxidation drying.

Key words: sludge, separation in pretreatment, extracellular polymeric substance, organic component, inorganic metal salt, in situ resource utilization

中图分类号:

TK09

王学科, 陈北洋, 周保卫, 穆童, 张春苗, 杨再威, 汪诚文. 基于分离预处理的城镇污泥原位资源化技术分析[J]. 华电技术, 2021, 43(12): 23-28.

WANG Xueke, CHEN Beiyang, ZHOU Baowei, MU Tong, ZHANG Chunmiao, YANG Zaiwei, WANG Chengwen. Analysis of in-situ municipal sludge resource utilization technology based on separation pretreatment[J]. Huadian Technology, 2021, 43(12): 23-28.

图/表 12

图1

图2

图3

图4

图5

图6

表1

表2

图7

图8

图9

图10

参考文献 17

[1]	郝晓地. 污水处理碳中和运行技术[M]. 北京: 科学出版社, 2015.
[2]	郝晓地, 方晓敏, 李季, 等. 污水碳中和运行潜能分析[J]. 中国给水排水, 2018, 34(10):11-16.
	HAO Xiaodi, FANG Xiaomin, LI Ji, et al. Analysis of potential in carbon‑netural operation of WWTPs[J]. China Water & Wastewater, 2018, 34(10):11-16.
[3]	梁远, 付岩峰, 方小锋, 等. 碳中和背景下基于AB工艺的污水处理厂能量自持分析[J]. 华电技术, 2021, 43(6):55-60.
	LIANG Yuan, FU Yanfeng, FANG Xiaofeng, et al. Energy neutral analysis of sewage treatment plant based on AB method under the background of carbon neutrality[J]. Huadian Technology, 2021, 43(6):55-60.
[4]	戴晓虎. 我国污泥处理处置现状及发展趋势[J]. 科学, 2020, 72(6):30-34,4.
	DAI Xiaohu. Applications and perspectives of sludge treatment and disposal in China[J]. Science, 2020, 72(6):30-34,4. doi: 10.1126/science.72.1854.30.b
[5]	杭世珺. 《全国城镇生活污水处理设施补短板强弱项实施方案》解读[J]. 给水排水2020, 46(9):1-3.
	HANG Shijun. Interpretation of Implementation plan for strengthening the weak points of national urban domestic sewage treatment facilities[J]. Water & Wastewater Engineering, 2020. 46(9):1-3.
[6]	LIU C, XU Y P, MA M, et al. Evaluation of endocrine disruption and dioxin‑like effects of organic extracts from sewage sludge in autumn in Beijing,China[J]. Frontiers of Environmental Science & Engineering, 2013, 8(3):433-440.
[7]	王建伟, 廖足良, 毕学军, 等. 典型城市污水处理厂污泥无机质含量及含砂率分析[J]. 环境工程, 2013, 31(S1):321-324.
	WANG Jianwei, LIAO Zuliang, BI Xuejun, et al. The analysis of the inorganic content and sand content in sludge from typical municipal wastewater treatment plant[J]. Environmental Engineering, 2013, 31(S1):321-324.
[8]	蒋心茹, 姬高升, 刘杨, 等. 市政污泥胞外聚合物(EPS)的形成过程与解聚方法研究进展[J]. 应用与环境生物学报, 2020, 26(5):1282-1289.
	JIANG Xinru, JI Gaosheng, LIU Yang, et al. Overview of extracellular polymeric substance(EPS)generation and disaggregation in municipal sewage sludge[J]. Chinese Journal of Applied and Environmental Biology, 2020, 26(5):1282-1289.
[9]	黎文威, 张晓云. 城市污泥脱水技术及脱水污泥资源化利用的研究进展[J]. 环境, 2011(S1):52-54,73.
[10]	PIRINGER M, SCHAUBERGER G. Environmental odour:Emission,dispersion,and the assessment of annoyance[J]. Atmosphere, 2020, 11(9):896. doi: 10.3390/atmos11090896
[11]	GOSTELOW P, PARSONS S A, STUETZ R M. Odour measurements for sewage treatment works[J]. Water Research, 2001, 35(3):579-597. doi: 10.1016/S0043-1354(00)00313-4
[12]	张冉, 韩博, 任健, 等. 铝对植物毒害及草本植物耐铝毒机制研究进展[J]. 云南农业大学学报(自然科学), 2020, 35(2):353-360.
	ZHANG Ran, HAN Bo, REN Jian, et al. Research progress on aluminum toxicity to plants and mechanisms of aluminum tolerance in herbaceous[J]. Journal of Yunnan Agricultural University (Natural Science), 2020, 35(2):353-360.
[13]	戴晓虎, 赵玉欣, 沙超, 等. 我国污水处理厂污泥含砂特征及成因调研[J]. 给水排水, 2014, 40(S1):75-79.
	DAI Xiaohu, ZHAO Yuxin, SHA Chao, et al. Investigation on the status and causes of sludge sand content of wastewater treatment plants in China[J]. Water & Wastewater Engineering, 2014, 40(S1):75-79.
[14]	陈全喜, 付江涛. 市政污泥耦合燃煤电厂发电关键因素分析与展望[J]. 华电技术, 2021, 43(10):50-60.
	CHEN Quanxi, FU Jiangtao. Analysis and prospect of key factors affecting the coupling of municipal sludge combustion and coal‑fired power plants[J]. Huadian Technology, 2021, 43(10):50-60.
[15]	邓易芳, 吴俊奇, 刘昌强, 等. 城市污泥资源化与源头减量化方法[J]. 应用化工, 2019, 48(5):1202-1207.
	DENG Yifang, WU Junqi, LIU Changqiang, et al. Urban sludge resource utilization and source reduction methods[J]. Applied Chemical Industry, 2019, 48(5):1202-1207.
[16]	宋艳会, 李兵, 杨培君. 污水处理厂污泥减量化技术的探讨[J]. 当代化工, 2020, 49(11):2570-2573,2578.
	SONG Yanhui, LI Bing, YANG Peijun. Discussion on sludge reduction technology for sewage treatment plant[J]. Contemporary Chemical Industry, 2020, 49(11):2570-2573,2578.
[17]	胡维杰, 赵由才, 甄广印. 德国污水污泥处理处置政策及磷回收技术解析与启示[J]. 给水排水, 2020, 46(6):15-20.
	HU Weijie, ZHAO Youcai, ZHEN Guangyin. Analysis and inspiration of sewage sludge treatment & disposal policy and phosphorus recovery technology in Germany[J]. Water & Wastewater Engineering, 2020, 46(6):15-20.

采样批次	原泥平均热值	分离后污泥热值
1	5.263	12.449
2	5.678	13.196
3	5.573	12.957
4	6.258	12.310
5	7.211	14.062
6	7.820	13.058

项目	收到基	空气干燥基	干燥基	干燥无灰基
全水分	5.70
煤样水分		6.44
灰分	26.97	26.76	28.61
挥发分	54.67	54.24	57.97	81.20
固定碳	12.66	12.56	13.42	18.80
