燃煤机组深度调峰瓶颈改善及耦合调峰技术研究

doi:10.3969/j.issn.2097-0706.2022.04.006

摘要/Abstract

摘要：

随着“双碳”目标下以新能源为主体新型电力系统的加速构建,燃煤机组深度调峰低负荷运行将成为常态,在40%连续经济出力（ECR）工况下,不存在限制机组稳定运行的制约因素,但在向30%ECR乃至更低负荷调峰时,诸多制约因素不应被忽视。提供多种从机组本体角度可有效改善制约因素的技术手段和改造方向及耦合多形态储能,耦合碳捕获、利用与封存（CCUS）,多能耦合调节等新型耦合调峰技术。结果表明,通过有效技术手段及改造可极大程度改善机组调峰性能,并可拓展超（超）临界锅炉干态区间达6%以上额定负荷,但仅靠自身已很难满足机组继续下调峰的需求,耦合调峰是未来火电机组进一步增强调峰能力的重要技术手段,且在技术上是可行的。

关键词: 深度调峰, 制约瓶颈, 燃煤机组, 耦合调峰, 额定负荷, 碳中和, 储能, CCUS, 新型电力系统

Abstract:

With the development of the new-energy-oriented power system to pursue carbon peaking and carbon neutrality,low-load operation and participation in deep load regulation has become the ordinary state for coal-fired units.Though there is no constraint on the stable operation of the units running at 40%ECR,the constraints for those units at 30%ECR or a lower load should not be ignored.Many technical approaches and transformation are taken to alleviate the intrinsic constraints of the units,and new peak shaving technologies such as those integrated multi-form energy storage,CCUS and multi-energy coupling regulation are proposed.The results show that efficient technical approaches and transformation can improve the peak load regulating performance of units,and raise the dry-wet state transition point of an ultra-super critical boiler by over 6% rated load.Since it is hard to meet the demand of further peak shaving by exploring the potential in a coal-fired unit,comprehensive peak shaving technologies is feasible and crucial in further peak shaving regulation.

Key words: deep peak regulation, constraint, coal-fired unit, comprehensive peak shaving, rated load, carbon neutrality, energy storage, CCUS, new power system

中图分类号:

TK227.1

童家麟, 吴瑞康, 茅建波, 吕洪坤. 燃煤机组深度调峰瓶颈改善及耦合调峰技术研究[J]. 综合智慧能源, 2022, 44(4): 43-50.

TONG Jialin, WU Ruikang, MAO Jianbo, LYU Hongkun. Improvement of deep peak regulation and comprehensive peak shaving technologies for coal-fired units[J]. Integrated Intelligent Energy, 2022, 44(4): 43-50.

图/表 11

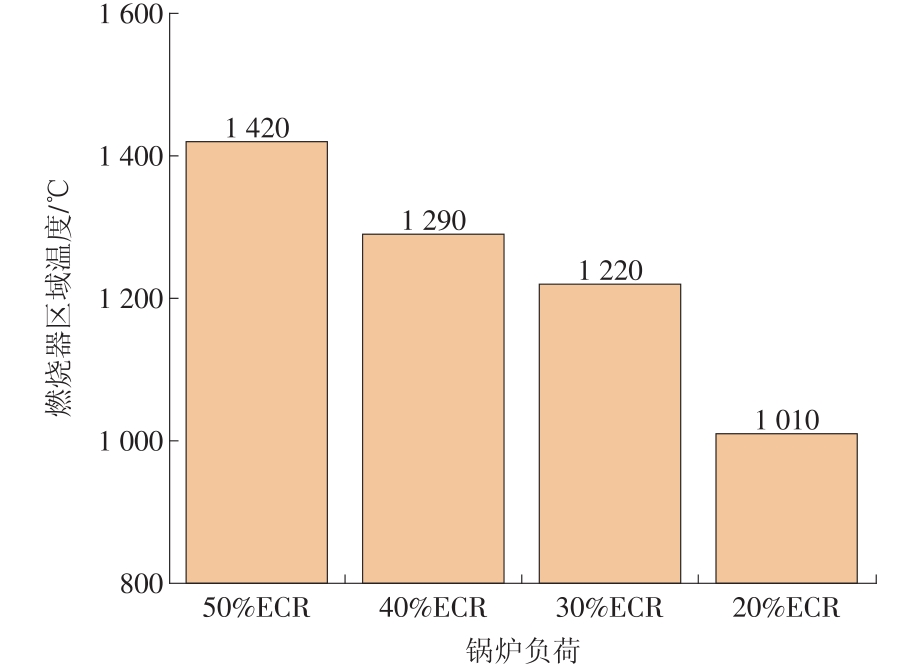

图1

表1

表2

表3

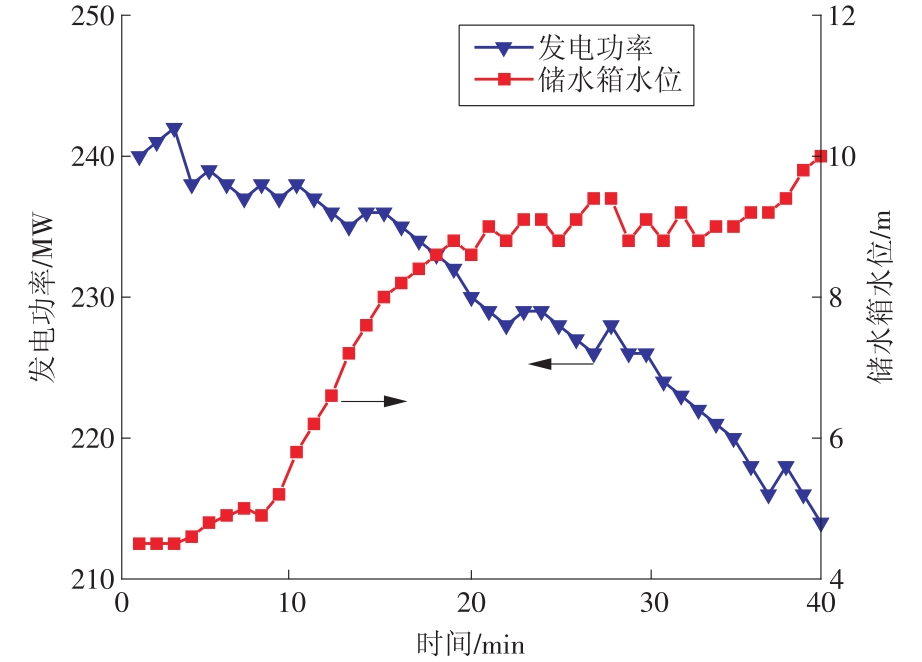

图2

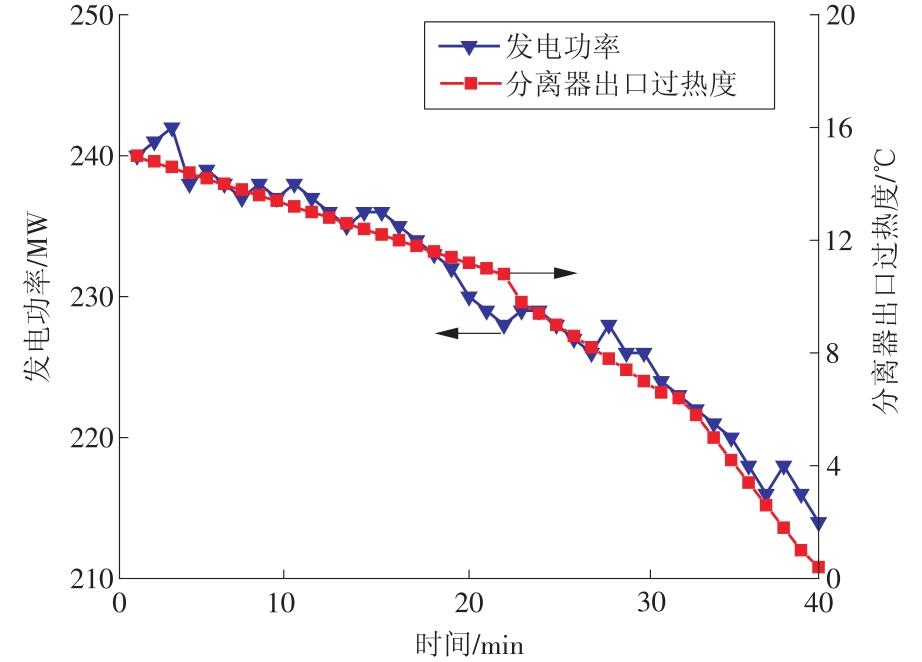

图3

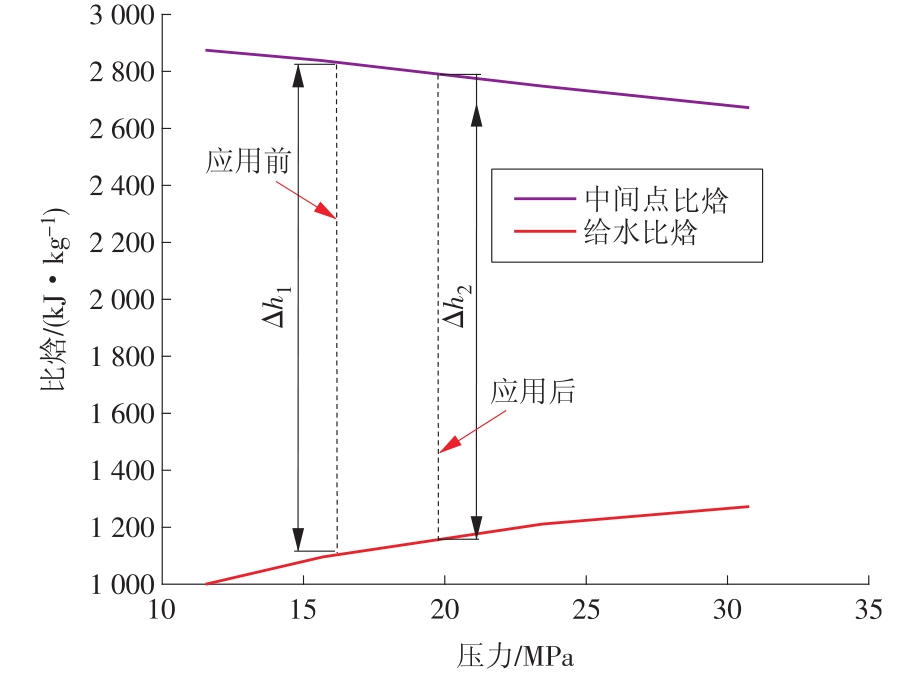

图4

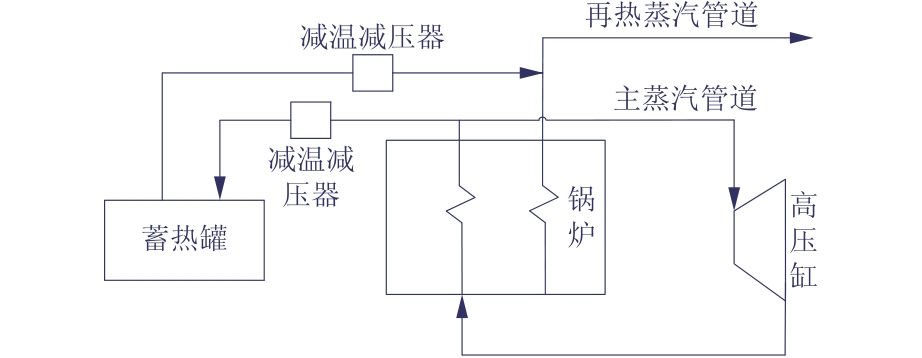

图5

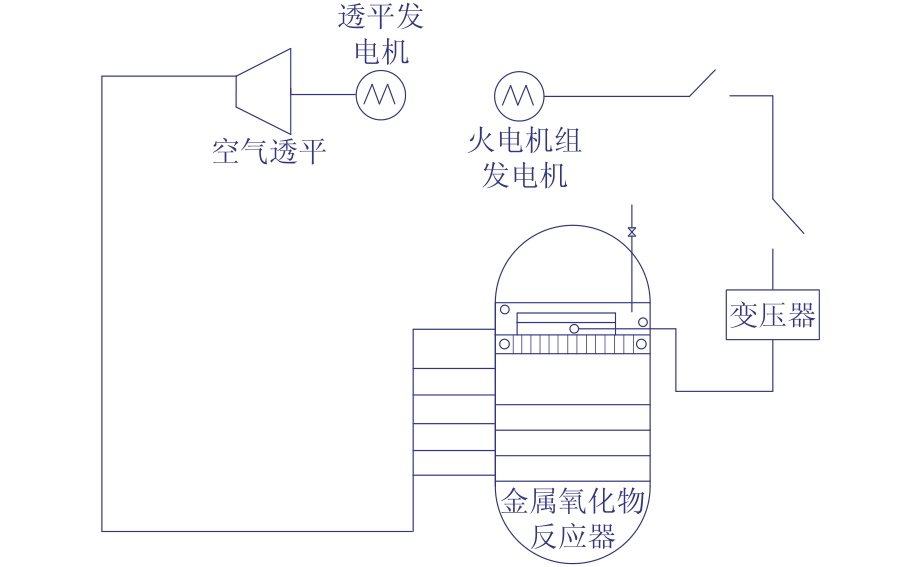

图6

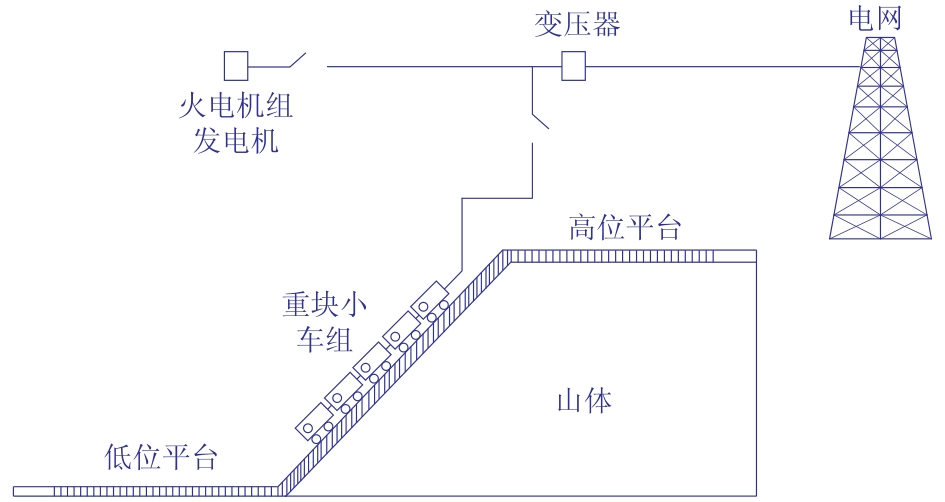

图7

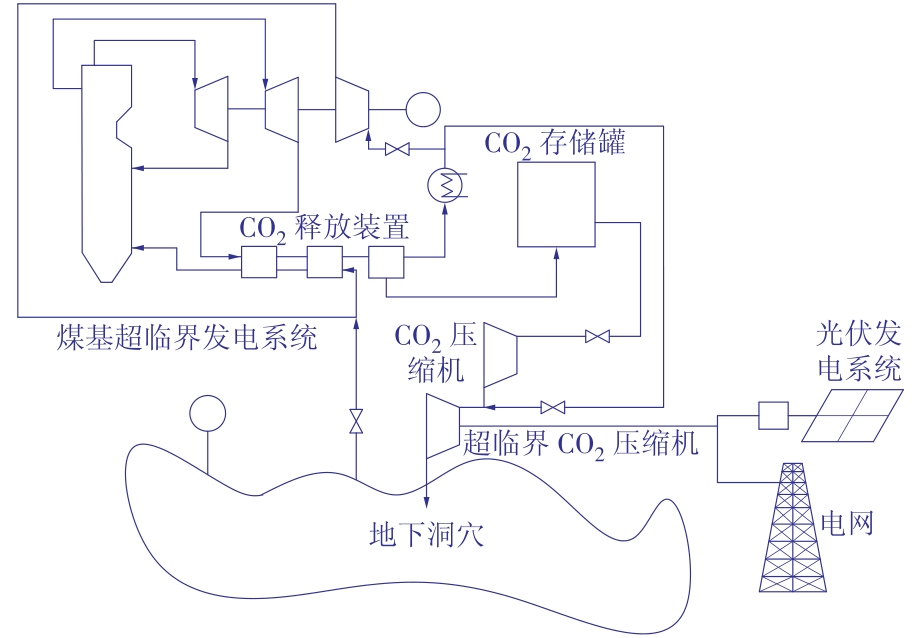

图8

参考文献 24

[1]	童家麟, 洪庆, 吕洪坤, 等. 电源侧储能技术发展现状及应用前景综述[J]. 华电技术, 2021, 43(7):17-23. doi: 10.3969/j.issn.1674-1951.2021.07.003
	TONG Jialin, HONG Qing, LYU Hongkun, et al. Development status and application prospect of power side energy storage technology[J]. Huadian Technology, 2021, 43(7):17-23.
[2]	李瑜, 孙东磊, 王明强, 等. 火电机组灵活性改造与输电网规划多阶段联合决策方法[J]. 全球能源互联网, 2021, 4(4):344-352.
	LI Yu, SUN Donglei, WANG Mingqiang, et al. Multi-stage joint planning decision-making for transmission network and thermal power unit flexibility reformation[J]. Journal of Global Energy Interconnection, 2021, 4(4):344-352.
[3]	赵斌, 王喆, 闫晨帅, 等. 超临界600 MW燃煤机组深度调峰运行热经济性分析[J]. 热力发电, 2022, 51(1):109-114.
	ZHAO Bin, WANG Zhe, YAN Chenshuai, et al. Thermal economy analysis on deep peak regulation operation of supercritical 600 MW coal-fired unit[J]. Thermal Power Generation, 2022, 51(1):109-114.
[4]	陈明, 王晓翠, 杨荣涛. 1 000 MW机组深度调峰期间典型问题分析和解决方法[J]. 锅炉技术, 2021, 52(4):16-18.
	CHEN Min, WANG Xiaocui, YANG Rongtao. Analysis and solution of typical problems during deep peek load regulation of 1 000 MW thermal power unit[J]. Boiler Technology, 2021, 52(4):16-18.
[5]	郭馨, 王婷, 黄莺, 等. 660 MW超超临界锅炉低负荷水动力安全性分析[J]. 电站系统工程, 2021, 37(5):16-18.
	GUO Xing, WANG Ting, HUANG Ying, et al. Low load hydrodynamic safety analysis of 660 MW ultra supercritical boiler[J]. Power System Engineering, 2021, 37(5):16-18.
[6]	童家麟, 齐晓娟, 韩平, 等. 炉底漏风对某600 MW机组锅炉性能的影响[J]. 热力发电, 2021, 50(4):126-131.
	TONG Jialin, QI Xiaojuan, HAN Ping, et al. Influence of boiler bottom air leakage on performance of a 600 MW unit boiler[J]. Thermal Power Generation, 2021, 50(4):126-131.
[7]	胡建根, 童家麟, 茅建波, 等. 典型燃煤锅炉深度调峰能力比较研究[J]. 锅炉技术, 2019, 50(6):59-64.
	HU Jiangen, TONG Jialin, MAO Jianbo, et al. The research of the comparation of deep peak regulation capacity for typical coal-fired boilers[J]. Boiler Technology, 2019, 50(6):59-64.
[8]	吕洪坤, 童家麟, 齐晓娟, 等. 对冲燃烧锅炉低负荷运行优化数值模拟研究[J]. 热能动力工程, 2020, 35(7):89-94.
	LYU Hongkun, TONG Jialin, QI Xiaojuan, et al. Numerical simulation of low-load operation optimization for opposite firing boilers[J]. Journal of Engineering for Thermal Energy and Power, 2020, 35(7):89-94.
[9]	李剑, 熊建国, 童家麟, 等. 深度调峰中锅炉超低负荷稳燃技术的研究[J]. 浙江电力, 2018, 37(2):62-66.
	LI Jian, XIONG Jianguo, TONG Jialin, et al. Study on ultra-low load stable combustion technology of boiler in deep peak shaving[J]. Zhejiang Electric Power, 2018, 37(2):62-66.
[10]	丁建良, 于国强, 罗建裕. 深度调峰下超超临界机组再热汽温控制优化[J]. 中国电力, 2010, 53(5):143-149.
	DING Jianliang, YU Guoqiang, LUO Jianyu. Optimization of reheat steam temperature control for ultra-supercritical units under deep peak shaving[J]. Electric Power, 2020, 53(5):143-149.
[11]	杨辉, 梁仕铓, 杨玉, 等. 某2 030 t/h W火焰锅炉低负荷下再热汽温偏低原因分析及对策[J]. 热力发电, 2020, 49(9):114-120.
	YANG Hui, LIANG Shimang, YANG Yu, et al. Reason analysis and countermeasures for low reheat steam temperature of a 2 030 t/h W-flame boiler at low load[J]. Thermal Power Generation, 2020, 49(9):114-120.
[12]	武捷. 低氮燃烧器锅炉低负荷再热汽温低问题的解决方案[J]. 锅炉技术, 2019, 50(3):47-50.
	WU Jie. Solution of low-load reheat steam temperature insufficiency problem of low-NO_x combustion boiler[J]. Boiler Technology, 2019, 50(3):47-50.
[13]	李汝萍, 樊印龙, 童家麟, 等. 某600 MW锅炉低NO_x燃烧数值模拟研究及优化[J]. 中国电力, 2018, 51(10):164-170.
	LI Ruping, FAN Yinlong, TONG Jialin, et al. Numerical simulation and optimization of low NO_x combustion characteristics for a 600 MW boiler[J]. Electric Power, 2018, 51(10):164-170.
[14]	刘沛奇, 王建峰, 李乾坤, 等. 600 MW级燃煤机组宽负荷脱硝改造方案论证及评价[J]. 锅炉技术, 2021, 52(4):69-73.
	LIU Peiqi, WANG Jianfeng, LI Qiankun, et al. Demonstration and evaluation of wide-load denitration reform scheme for 600 MW coal-fired units[J]. Boiler Technology, 2021, 52(4):69-73.
[15]	刘文胜, 吕洪坤, 蔡洁聪, 等. 600 MW亚临界锅炉30%额定负荷深度调峰试验研究[J]. 锅炉技术, 2019, 50(4):59-65.
	LIU Wensheng, LYU Hongkun, CAI Jiecong, et al. Experimental study on 30% rated depth peak-load for a 600 MW sub-critical boiler[J]. Boiler Technology, 2019, 50(4):59-65.
[16]	童家麟, 齐晓娟, 王文欣, 等. 一种提高燃煤锅炉低负荷SCR入口烟温的方法及系统:CN111561694A[P]2020-08-21.
[17]	SUN P, GUO R T, LIU S M, et al. The enhanced performance of MnO_x catalyst for NH₃-SCR reaction by the modification with Eu[J]. Applied Catalysis A:General, 2017, 531:129-138. doi: 10.1016/j.apcata.2016.10.027
[18]	王亚欧, 陶谦, 肖杰, 等. 1 000 MW双切圆燃烧锅炉干湿态转换过程中水冷壁温度控制[J]. 中国电力, 2019, 52(1):161-165,173.
	WANG Ya'ou, TAO Qian, XIAO Jie, et al. Water-wall temperature control of a 1 000 MW dual circle tangential firing boiler during wet-dry transferring period[J]. Electric Power, 2019, 52(1):161-165,173.
[19]	胡建根, 吴春潮, 赵琦, 等 .一种超超临界火电机组控制分离器温度的预测控制方法:CN107102550A[P]. 2017-08-29.
[20]	童家麟, 洪庆, 吕洪坤, 等. 电源侧储能技术发展现状及应用前景综述[J]. 华电技术, 2021, 43(7):17-23. doi: 10.3969/j.issn.1674-1951.2021.07.003
	TONG Jialin, HONG Qing, LYU Hongkun, et al. Development status and application prospect of power side energy storage technology[J]. Huadian Technology, 2021, 43(7):17-23.
[21]	肖刚, 邵娜, 向铎, 等. 用于高温储能的CuO/Cu₂O反应特性与改性优化[J]. 太阳能学报, 2021, 42(4):293-298.
	XIAO Gang, SHAO Na, XIANG Duo, et al. Reaction characteristics and modification optimization of CuO/Cu₂O for high temperature energy storage[J]. Acta Energiae Solaris Sinica, 2021, 42(4):293-298.
[22]	王金星, 张少强, 张瀚文, 等. 燃煤电厂调峰调频储能技术的研究进展[J]. 华电技术, 2020, 42(4):64-71.
	WANG Jinxing, ZHANG Shaoqiang, ZHANG Hanwen, et al. Progress on the peak load regulation,frequency regulation and energy storage technologies for coal-fired power plants[J]. Huadian Technology, 2020, 42(4):64-71.
[23]	刘牧心, 梁希, 林千果, 等. 碳中和驱动下CCUS项目衔接碳交易市场的关键问题和对策分析[J]. 中国电机工程学报, 2021, 41(14):4731-4739.
	LIU Muxin, LIANG Xi, LIN Qianguo, et al. Key issues and countermeasures of CCUS projects linking carbon emission trading market under the target of carbon neutrality[J]. Proceedings of the CSEE, 2021, 41(14):4731-4739.
[24]	朱燕梅, 陈仕军, 马光文, 等. 计及发电量和出力波动的水光互补短期调度[J]. 电工技术学报, 2020, 35(13):2769-2779.
	ZHU Yanmei, CHEN Shijun, MA Guangwen, et al. Short-term complementary operation of hydro-photovoltaic integrated system considering power generation and output fluctuation[J]. Transactions of China Electrotechnical Society, 2020, 35(13):2769-2779.

机组类型	额定过热蒸汽温度	实际过热蒸汽温度	偏差	额定再热蒸汽温度	实际再热蒸汽温度	偏差
超超临界1 000 MW	605	597	8	603	586	17
超超临界660 MW	605	582	23	613	596	17
超临界600 MW	571	563	8	569	563	6
超临界350 MW	571	558	13	569	555	14
亚临界600 MW	538	510	28	538	500	38
亚临界300 MW	541	538	3	541	523	18

机组类型	实际值	保证值	裕量值
超超临界1 000 MW	330	300	30
超超临界660 MW	325	305	20
超临界600 MW	340	300	40
超临界350 MW	300	291	9
亚临界600 MW	345	305	40
亚临界300 MW	330	300	30

项目	分级省煤器		省煤器烟气旁路		^#0高压加热器
项目	40%ECR	30%ECR	40%ECR	30%ECR	40%ECR	30%ECR
SCR入口烟气温度/℃	304~310	304~308	311~318	302~308	326~332	321~325
空气预热器入口烟气温度/℃	287~291	285~288	304~308	298~303	325~327	313~317
SCR入口烟气NO_x质量浓度/（mg·m^-3）	138.0~196.0	261.0~293.0	437.0~439.0	487.0~500.0	284.0~352.0	361.0~441.0
SCR出口烟气NO_x质量浓度/（mg·m^-3）	13.6~35.5	14.8~20.0	36.1~46.2	40.6~45.4	19.2~23.8	46.2~52.1
技术特点	调节不灵活,需兼顾高低负荷		调节灵活,防挡板卡涩		调节不灵活,需兼顾高低负荷
影响锅炉效率	不影响		影响		影响
