考虑断面负载率的县域内部新能源电力自平衡交易调度策略研究

doi:10.3969/j.issn.2097-0706.2022.07.008

摘要/Abstract

摘要：

“双碳”目标下,随着新能源并网规模逐渐增大,新能源出力的随机性和波动性将会进一步影响系统安全稳定运行。针对县域对外联络线断面负载率频繁波动的问题,提出一种考虑断面负载率的县域内部新能源电力自平衡交易调度策略,建立考虑断面负载率的日前-实时双层交易联合优化模型。仿真计算表明,该策略相比于仅运用储能技术的单纯物理方法来说,可以显著提升新能源就地消纳率,减少联络线潮流波动,优化断面负载率,维护电网稳定。

关键词: 碳中和, 新能源并网, 断面负载率, 县域, 电力自平衡, 调度策略, 新型电力系统

Abstract:

The grid-connected new energy is expanding in the context of "dual carbon" targets. But the random and volatile outputs of new energy will affect the safe and stable operation of power systems. In view of the frequent fluctuation of tie lines' section load rates in rural areas,a county-level self-balance transaction scheduling strategy for new energy considering section load rate is proposed. Taking the section load rate into consideration,a joint optimization bi-level transaction model of day-ahead and real-time market is made. The simulation calculation shows that the strategy can significantly improve the local consumption rate of new energy. Compared with the simple physical method taking energy storage technology only, the proposed strategy can relieve the tie line power flow fluctuation, optimize the section load rate and maintain the stability of power grid.

Key words: carbon neutrality, new energy grid connection, section load rate, county, self balance of power, scheduling strategy, new power system

中图分类号:

TK01：TM614

路尧, 顾晓希, 尹硕, 陈兴, 金曼. 考虑断面负载率的县域内部新能源电力自平衡交易调度策略研究[J]. 综合智慧能源, 2022, 44(7): 66-72.

LU Yao, GU Xiaoxi, YIN Shuo, CHEN Xing, JIN Man. Research on county-level self-balance transaction scheduling strategy for new energy considering section load rate[J]. Integrated Intelligent Energy, 2022, 44(7): 66-72.

图/表 10

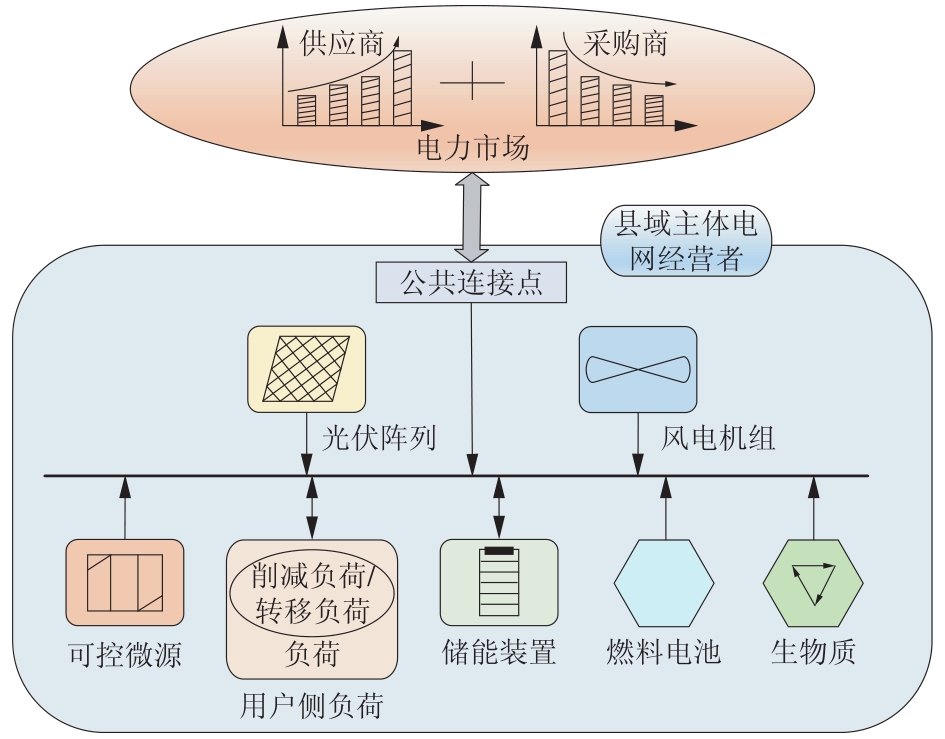

图1

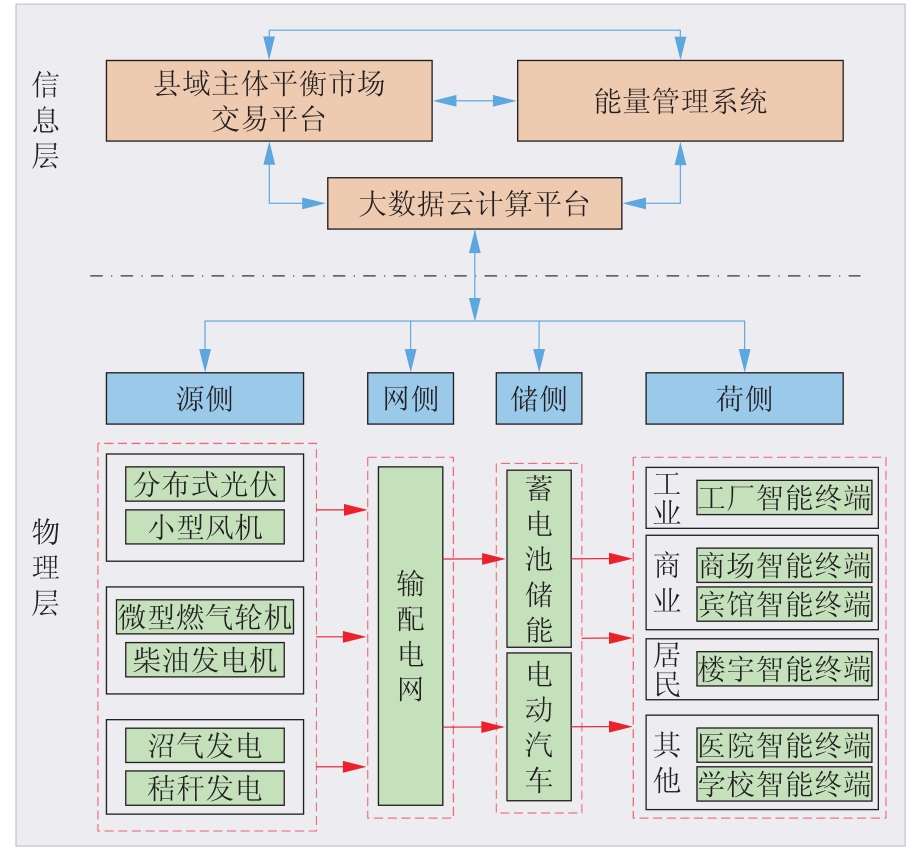

图2

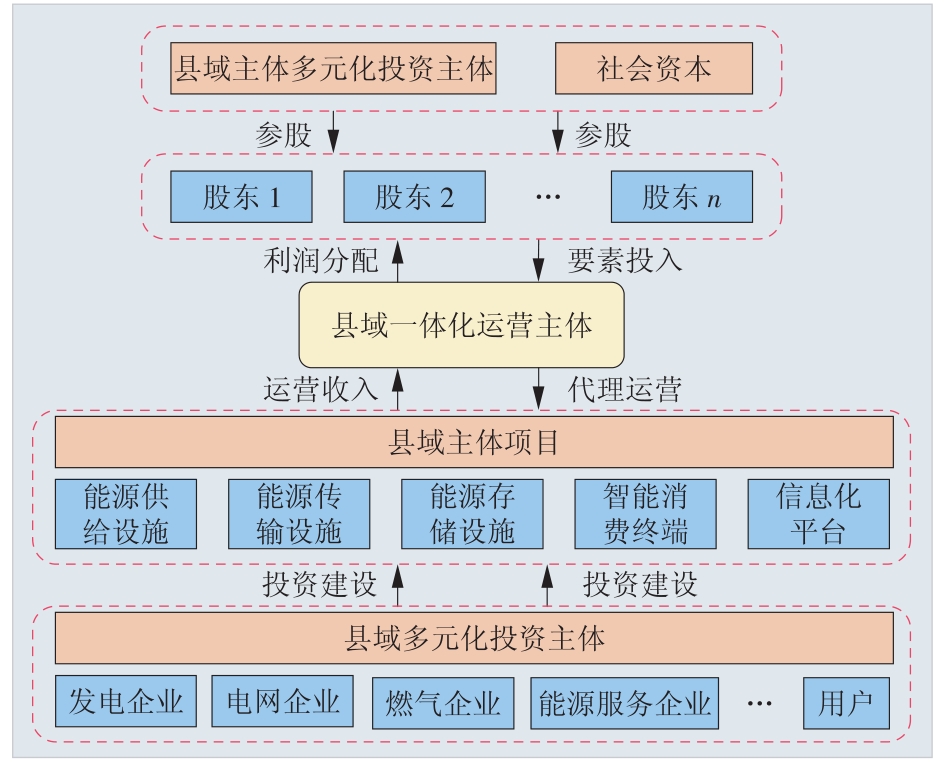

图3

表1

表2

表3

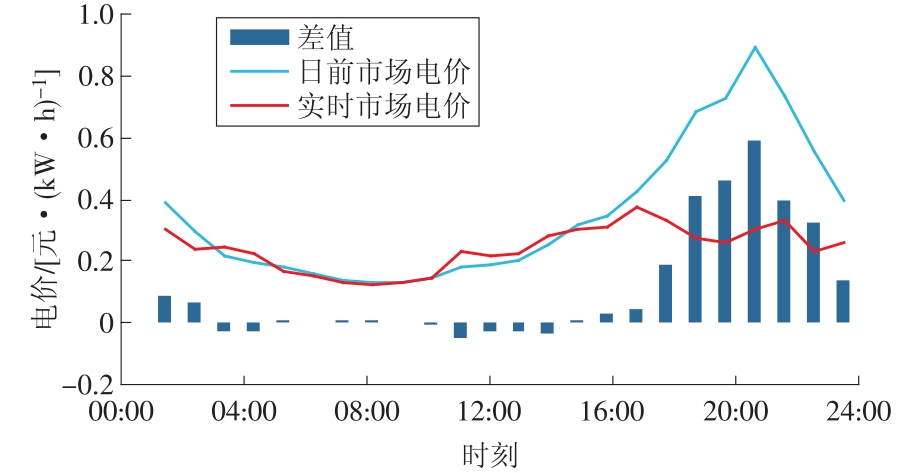

图4

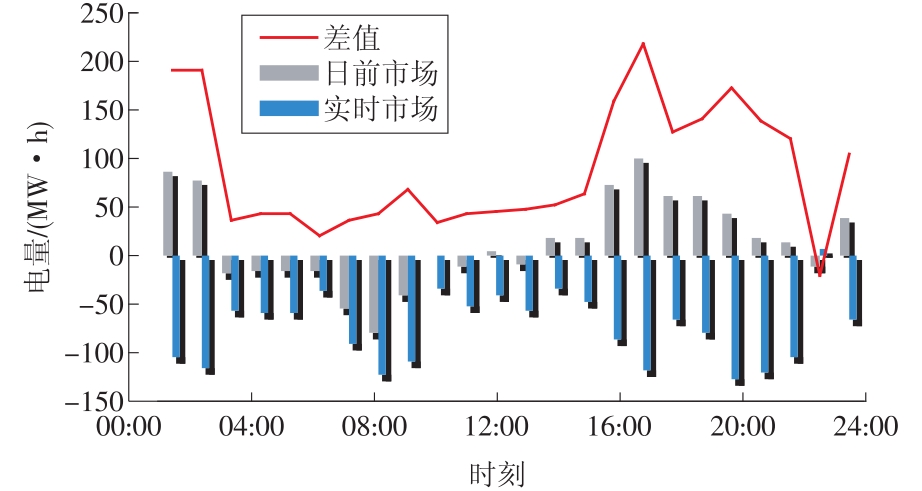

图5

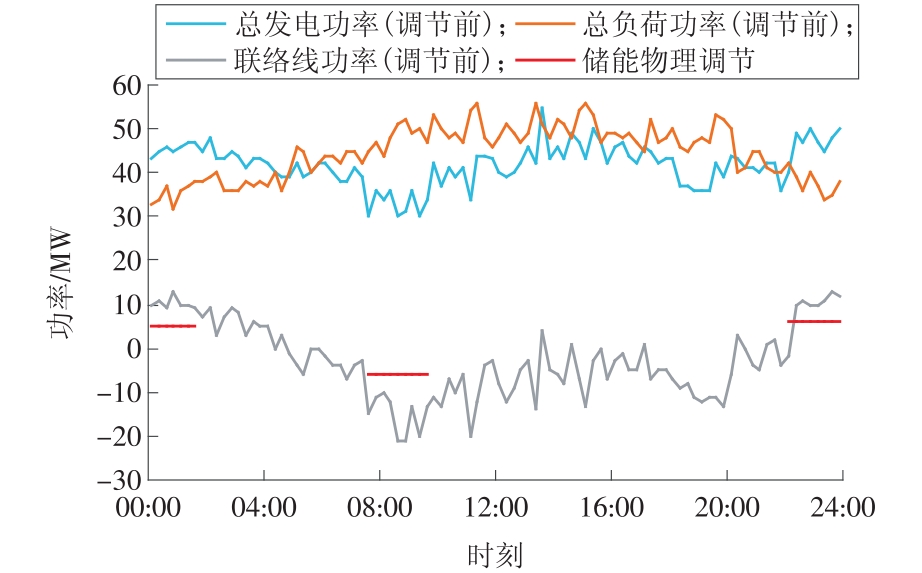

图6

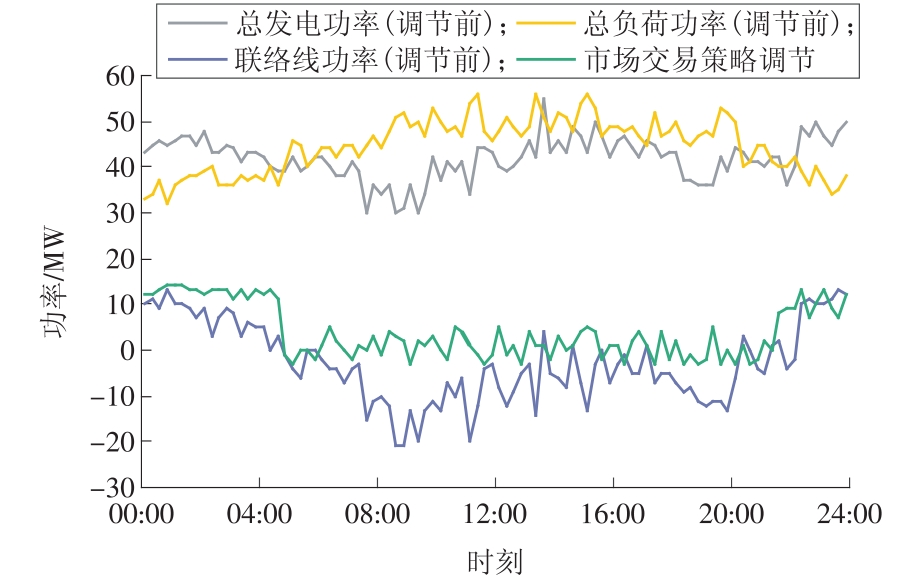

图7

参考文献 23

[1]	任智君, 郭红霞, 杨苹, 等. 含高比例可再生能源配电网灵活资源双层优化配置[J]. 太阳能学报, 2021, 42(9): 33-38.
	REN Zhijun, GUO Hongxia, YANG Ping, et al. Double-layer optimal configuration of flexible resources with high proportion of renewable energy distribution network[J]. Acta Energiae Solaris Sinica, 2021, 42(9):33-38.
[2]	刘志鹏, 林顺富, 钱亮, 等. 考虑金融输电权的配电网阻塞管理[J]. 电力系统保护与控制, 2022, 50(2):86-94.
	LIU Zhipeng, LIN Shunfu, QIAN Liang, et al. Congestion management of a distribution network considering financial transmission rights[J]. Power System Protection and Control, 2022, 50(2):86-94.
[3]	余洋, 贾浩, 陈启维, 等. 基于改进模型预测控制的电气系统新能源功率波动平滑策略[J]. 电力建设, 2021, 42(9):65-73.
	YU Yang, JIA Hao, CHEN Qiwei, et al. Fluctuation smoothing strategy of new energy power for electricity-gas interconnected system based on improved model predictive control[J]. Electric Power Construction, 2021, 42(9):65-73.
[4]	刘志成, 刘阳, 徐浩, 等. 大电网交流联络线功率协调控制考核方法[J]. 高电压技术, 2019, 45(11):3620-3626.
	LIU Zhicheng, LIU Yang, XU Hao, et al. Examination method for coordinated power control of AC tie-line[J]. High Voltage Engineering, 2019, 45(11):3620-3626.
[5]	肖朝霞, 贾双, 朱建国, 等. 风光储微电网并网联络线功率控制策略[J]. 电工技术学报, 2017, 32(15):169-179.
	XIAO Zhaoxia, JIA Shuang, ZHU Jianguo, et al. Tie-line power flow control strategy for a grid-connected microgrid containing wind,photovoltaic and battery[J]. Transactions of China Electrotechnical Society, 2017, 32(15):169-179.
[6]	王萧博, 黄文焘, 邰能灵, 等. 一种源-荷-储协同的电热微网联络线功率平滑策略[J]. 电工技术学报, 2020, 35(13):2817-2829.
	WANG Xiaobo, HUANG Wentao, TAI Nengling, et al. A tie-line power smoothing strategy for microgrid with heat and power system using source-load-storage coordination control[J]. Transactions of China Electrotechnical Society, 2020, 35(13):2817-2829.
[7]	郑云飞, 熊志, 王博, 等. 考虑最优消纳区间的区域能源聚合商博弈策略[J]. 现代电力, 2022, 39(1):64-71.
	ZHENG Yunfei, XIONG Zhi, WANG Bo, et al. Game strategy of regional energy aggregators considering optimal accommodation interval[J]. Modern Electric Power, 2022, 39(1):64-71.
[8]	王若谷, 陈果, 王秀丽, 等. 计及风电与电动汽车随机性的两阶段机组组合研究[J]. 电力建设, 2021, 42(8):63-70.
	WANG Ruogu, CHEN Guo, WANG Xiuli, et al. Two-stage stochastic unit commitment considering the uncertainty of wind power and electric vehicle travel patterns[J]. Electric Power Construction, 2021, 42(8):63-70.
[9]	李轩, 董永乐, 海鸿业, 等. 基于跨平台多源数据融合的复杂低压台区拓扑识别方法研究[J]. 电气传动, 2022, 52(8):55-59.
	LI Xuan, DONG Yongle, HAI Hongye, et al. Research on Topology identification method of complex low-voltage platform based on cross platform multi-source data fusion[J]. Electric Drive, 2022, 52(8):55-59.
[10]	郝建华, 索龙, 李红艳, 等. 数据中心网络基于路径关键度的拥塞避免重路由方法[J]. 电力信息与通信技术, 2021, 19(5):6-13.
	HAO Jianhua, SUO Long, LI Hongyan, et al. Path criticality based congestion avoidance rerouting method for data center networks[J]. Electric Power Information and Communication Technology, 2021, 19(5):6-13.
[11]	郑若楠, 李志浩, 唐雅洁, 等. 考虑居民用户参与度不确定性的激励型需求响应模型与评估[J]. 电力系统自动化, 2022, 46(8):154-162.
	ZHENG Ruonan, LI Zhihao, TANG Yajie, et al. Incentive demand response model and evaluation considering uncertainty of residential customer participation degree[J]. Automation of Electric Power Systems, 2022, 46(8):154-162.
[12]	赵玲霞, 王兴贵, 丁颖杰, 等. 考虑分时电价及光热电站参与的多能源虚拟电厂优化调度[J]. 电力建设, 2022, 43(4):119-129.
	ZHAO Lingxia, WANG Xinggui, DING Yingjie, et al. Optimal dispatch of multi-energy virtual power plant considering time-of-use electricity price and CSP plant[J]. Electric Power Construction, 2022, 43(4):119-129.
[13]	程基峰, 严正, 李明节, 等. 基于条件风险价值与出力预测的富余新能源电力跨省交易计划优化方法[J]. 高电压技术, 2022, 48(2):467-476.
	CHENG Jifeng, YAN Zheng, LI Mingjie, et al. Optimization method of interprovincial trading plan for surplus renewable energy power based on CVaR and output prediction[J]. High Voltage Engineering, 2022, 48(2):467-476.
[14]	任曦骏, 朱刘柱, 谢道清, 等. 可再生能源参与电力现货市场关键问题的研究[J]. 现代电力, 2022, 39(2):203-211.
	REN Xijun, ZHU Liuzhu, XIE Daoqing, et al. Discussion on key issues of renewable energy participation in the electricity spot market and its application on a case study[J]. Modern Electric Power, 2022, 39(2):203-211.
[15]	闫群民, 穆佳豪, 马永翔, 等. 分布式储能应用模式及优化配置综述[J]. 电力工程技术, 2022, 41(2):67-74.
	YAN Qunmin, MU Jiahao, MA Yongxiang, et al. Review of distributed energy storage application mode and optimal configuration[J]. Jiangsu Electrical Engineering, 2022, 41(2):67-74.
[16]	汪希玥, 徐箭, 廖思阳, 等. 考虑虚拟储能特性的柔性负荷调控裕度评估方法[J]. 华电技术, 2021, 43(9):37-45.
	WANG Xiyue, XU Jian, LIAO Siyang, et al. Flexible load regulation margin evaluation method considering virtual energy storage characteristics[J]. Huadian Technology, 2021, 43(9): 37-45.
[17]	兰强, 周宇晴, 邱燕军, 等. 可调负荷参与多级电网实时调控:关键技术与工程应用[J]. 电力系统保护与控制, 2022, 50(6):141-148.
	LAN Qiang, ZHOU Yuqing, QIU Yanjun, et al. Adjustable load participating in real-time dispatching and control of a multi-lever power grid:Key technology and engineering application[J]. Power System Protection and Control, 2022, 50(6):141-148.
[18]	葛少云, 李俊锴, 刘洪, 等. 计及弹性响应的需求侧资源与软开关联合规划[J]. 天津大学学报, 2022, 55(5):462-470.
	GE Shaoyun, LI Junkai, LIU Hong, et al. Coordinated planning of soft open points and demand-side resources considering an elastic response[J]. Journal of Tianjin University, 2022, 55(5):462-470.
[19]	赵建立, 汤卓凡, 王桂林, 等. 具有储能作用的用户侧资源运行特性[J]. 综合智慧能源, 2022, 44(2): 8-14. doi: 10.3969/j.issn.2097-0706.2022.02.002
	ZHAO Jianli, TANG Zhuofan, WANG Guilin, et al. Operation characteristics of user-side resources with energy storage function[J]. Integrated Intelligent Energy, 2022, 44(2): 8-14. doi: 10.3969/j.issn.2097-0706.2022.02.002
[20]	周玮, 蓝嘉豪, 麦瑞坤, 等. 无线充电电动汽车V2G模式下光储直流微电网能量管理策略[J]. 电工技术学报, 2022, 37(1):82-91.
	ZHOU Wei, LAN Jiahao, MAI Ruikun, et al. Research on power management strategy of DC microgrid with photovoltaic,energy storage and EV-wireless power transfer in V2G mode[J]. Transactions of China Electrotechnical Society, 2022, 37(1):82-91.
[21]	冯力勇, 张云. 考虑电池能效的电网侧电化学储能电站最优功率控制策略研究[J]. 华电技术, 2020, 42(4): 37-41.
	FENG Liyong, ZHANG Yun. Optimal power control strategy of grid-side electrochemical energy storage stations considering battery energy efficiency[J]. Huadian Technology, 2020, 42(4): 37-41.
[22]	杨帆, 王维庆, 程静, 等. 基于误差分配原则的发电侧共享储能容量规划研究[J]. 电力系统保护与控制, 2022, 50(7):91-102.
	YANG Fan, WANG Weiqing, CHENG Jing, et al. Capacity planning of shared energy storage on the generation side based on the error distribution principle[J]. Power System Protection and Control, 2022, 50(7):91-102.
[23]	王晗雯, 鲁胜, 周照宇. 光伏-混合储能微电网协调控制及经济性分析[J]. 华电技术, 2020, 42(4): 31-36.
	WANG Hanwen, LU Sheng, ZHOU Zhaoyu. Coordinated control and economic analysis on a PV-hybrid energy storage micro-grid system[J]. Huadian Technology, 2020, 42(4): 31-36.

类型	额定功率/kW	维护成本/ [美元·(kW·h)^-1]	出力上限/kW	出力下限/kW	爬坡率/（kW·min^-1）
风电机组	140	0.050 0	140	10	5
光伏阵列	180	0.001 6	180	0	—

额定功率/kW	排量/L	压缩比	燃气消耗/ [m³·（kW·h)^-1]	尺寸（长×宽×高）/mm
200	14.0	10.5∶1.0	<0.50	3 000×1 150×1 780
250	18.9	9.5∶1.0	<0.50	3 440×1 550×2 200
300	18.9	9.5∶1.0	<0.50	3 440×1 550×2 200
350	37.8	9.5∶1.0	<0.50	3 440×1 550×2 200
400	37.8	9.5∶1.0	<0.50	4 300×2 300×2 400
450	37.8	9.5∶1.0	<0.50	4 300×2 300×2 400
500	37.8	9.5∶1.0	<0.50	4 300×2 300×2 400
600	50.3	9.5∶1.0	<0.50	5 652×2 286×2 441
