压缩空气储能技术研究进展及未来展望

doi:10.3969/j.issn.2097-0706.2023.09.004

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (9): 26-31.doi: 10.3969/j.issn.2097-0706.2023.09.004

压缩空气储能技术研究进展及未来展望

万明忠¹(), 王元媛², 李峻¹, 鹿院卫²^,^*(), 赵甜², 吴玉庭²

1.中能建数字科技集团有限公司，北京 100022
2.北京工业大学传热强化与过程节能教育部重点实验室暨传热与能源利用北京市重点实验室，北京 100124

收稿日期:2023-06-05 修回日期:2023-07-01 出版日期:2023-09-25 发布日期:2023-07-25
通讯作者: * 鹿院卫（1971），女，教授，博士，从事中高温传热储热技术研究，luyuanwei@bjut.edu.cn。
作者简介:万明忠（1964），男，正高级工程师，从事压缩空气储能技术研究，mzwan2732@ceec.net.cn。
基金资助:
国家重点研发计划项目(2022YFB4202402);中能建数字科技集团有限公司科技项目(CEECSK-2022-KJ01)

Research progress and prospect of compressed air energy storage technology

WAN Mingzhong¹(), WANG Yuanyuan², LI Jun¹, LU Yuanwei²^,^*(), ZHAO Tian², WU Yuting²

1. China Energy Digital Technology Group Company Limited，Beijing 100022，China
2. Key Laboratory of Enhanced Heat Transfer and Energy Conservation/Beijing Key Laboratory of Heat Transfer and Energy Conversion，Beijing University of Technology，Beijing 100124，China

Received:2023-06-05 Revised:2023-07-01 Online:2023-09-25 Published:2023-07-25
Supported by:
National Key R&D Program of ChinaFoundation(2022YFB4202402);Technology Project of China Energy Digital Technology Group Corporation Limited(CEECSK-2022-KJ01)

摘要/Abstract

摘要：

储能是实现“2030年碳达峰、2060年碳中和”的关键技术，压缩空气储能具有储能容量大、系统效率高和运行寿命长等优点，是一种适合大范围推广的规模化电力储能技术，也是电网侧规模化消纳可再生能源发电的重要手段。通过对压缩空气储能技术的发展过程进行综述，全面阐述不同形式压缩空气储能系统的工作原理、研究现状以及目前所面临的挑战，从压缩热储存角度分析压缩空气储能未来发展趋势，为压缩空气储能系统的设计提供参考。研究结果显示，随着高温储热技术的发展，高温绝热压缩空气储能技术因其效率优势成为未来压缩空气储能技术发展的热门方向。使用低熔点熔盐作为压缩空气储能系统中储存高温压缩机压缩热的储热介质，可以将压力水的储存温度降低，显著降低压缩空气储能系统的初投资成本。

关键词: 碳中和, 压缩空气储能, 可再生能源, 电力系统, 储热技术

Abstract:

Energy storage is the key technology to achieve the initiative of "reaching carbon peak in 2030 and carbon neutrality in 2060".Since compressed air energy storage has the advantages of large energy storage capacity， high system efficiency， and long operating life，it is a technology suitable for promotion in large-scale electric energy storage projects， and also an important means of large-scale renewable energy consumption on grid side. The development process， working principles， research statuses and challenges of compressed air energy storage systems in different forms are comprehensively expounded， and the development trend of compressed air energy storage technology is analysed from the perspective of compressed heat storage， providing references for the design for the future systems. The research results show that with the development of high-temperature heat storage technologies， high temperature adiabatic compressed air energy storage technology has become a research hotspot in this field because of its extraordinary working efficiency. Taking the molten salt with low melting point as the heat storage medium of a compressed air energy storage system to store the heat from the high-temperature compressor， can reduce the storage temperature of compressed water and the initial investment cost of the compressed air energy storage system significantly.

Key words: carbon neutrality, compressed air energy storage, renewable energy, electrical power system, thermal storage technology

中图分类号:

TK02

万明忠, 王元媛, 李峻, 鹿院卫, 赵甜, 吴玉庭. 压缩空气储能技术研究进展及未来展望[J]. 综合智慧能源, 2023, 45(9): 26-31.

WAN Mingzhong, WANG Yuanyuan, LI Jun, LU Yuanwei, ZHAO Tian, WU Yuting. Research progress and prospect of compressed air energy storage technology[J]. Integrated Intelligent Energy, 2023, 45(9): 26-31.

图/表 8

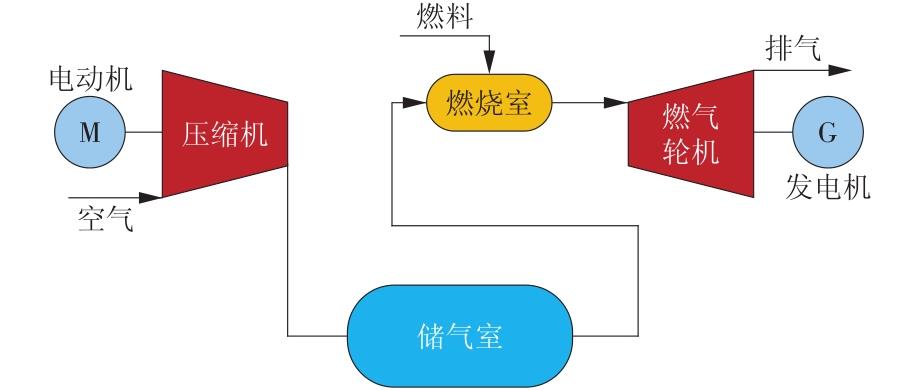

图1

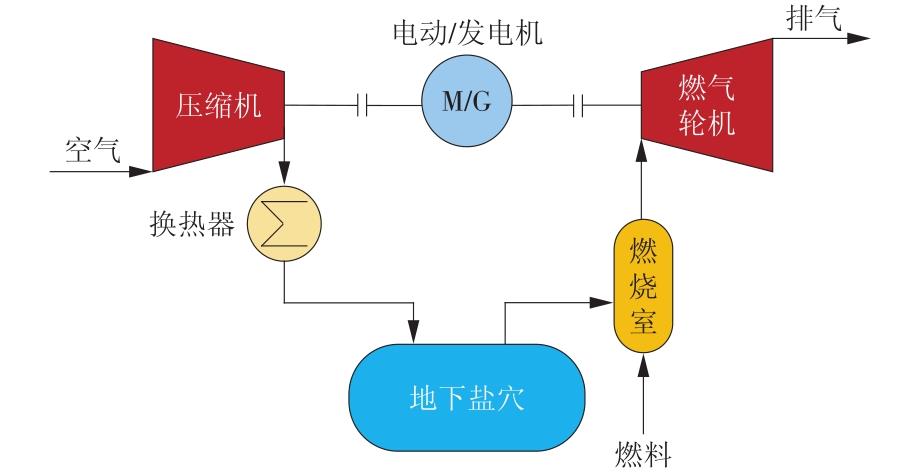

图2

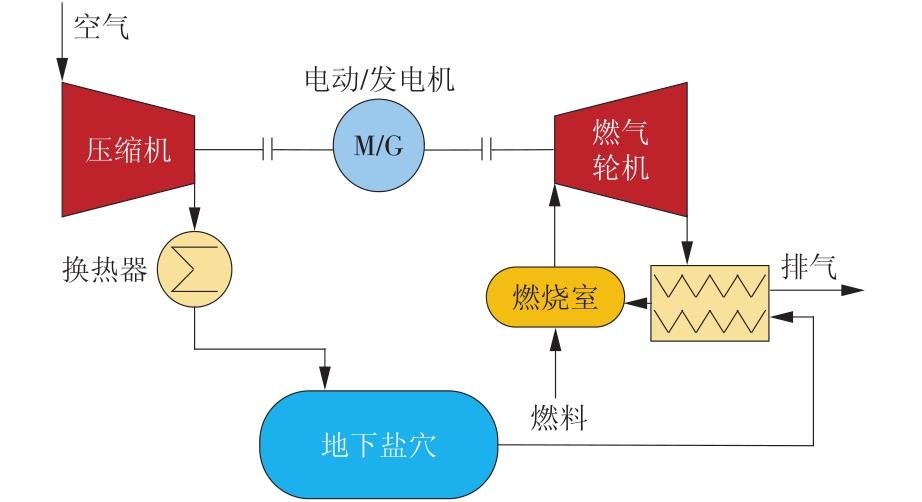

图3

表1

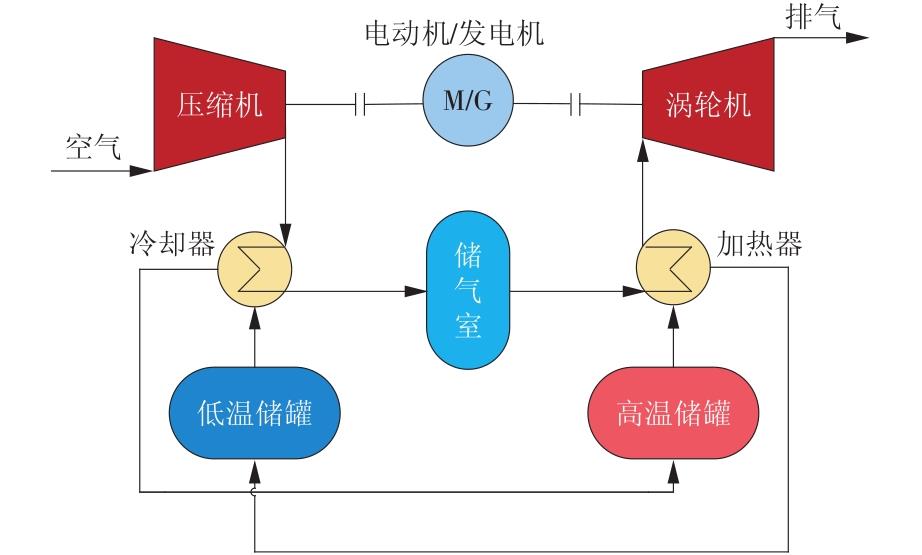

图4

表2

表3

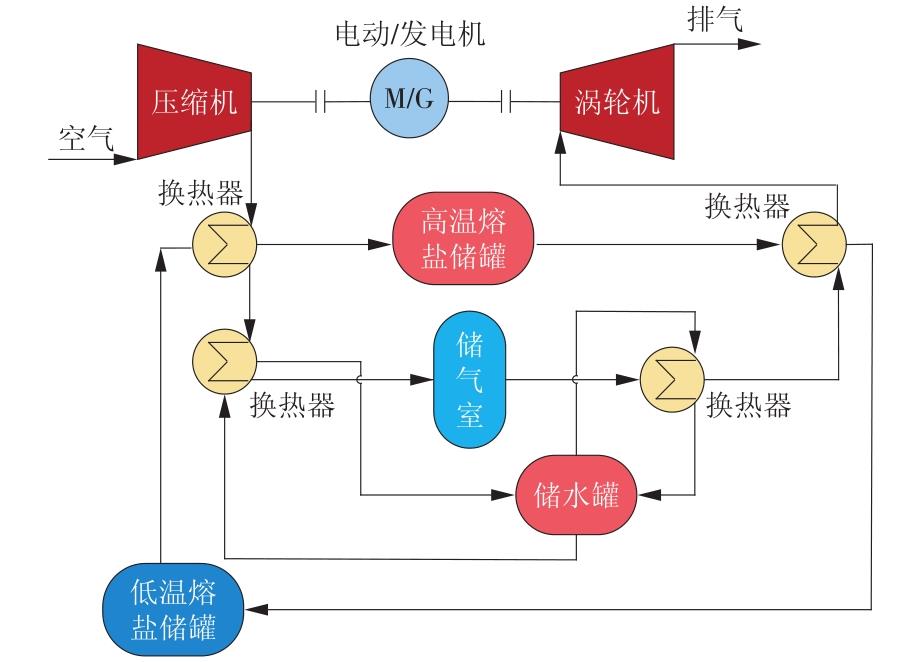

图5

参考文献 30

[1]	胡鞍钢. 中国实现2030年前碳达峰目标及主要途径[J]. 北京工业大学学报(社会科版), 2021, 21(3):1-15.
	HU Angang. China's goal of achieving carbon peak by 2030 and its main approaches[J]. Journal of Beijing University of Technology(Social Sciences Edition), 2021, 21(3):1-15.
[2]	滕佳伦, 李宏仲. 碳中和背景下综合智慧能源的发展现状及关键技术分析[J/OL]. 综合智慧能源:1-11.(2023-06-15)[2023-07-01]. http://kns.cnki.net/kcms/detail/41.1461.TK.20230615.1036.002.html.
	TENG Jialun, LI Hongzhong. Analysis on development and key technologies of integrated intelligent energy in the context of carbon neutrality[J/OL]. 综合智慧能源:1-11.(2023-06-15)[2023-07-01]. http://kns.cnki.net/kcms/detail/41.1461.TK.20230615.1036.002.html.
[3]	谢彦祥, 肖汉, 夏雪, 等. 碳中和目标下中国碳减排路径及建议[J]. 电工电气, 2022(5):1-7.
	XIE Yanxiang, XIAO Han, XIA Xue, et al. China's carbon emission reduction paths and suggestions under the carbon neutrality target[J]. Electrotechnics Electric, 2022(5): 1-7.
[4]	电力规划设计总院. 中国能源发展报告2020[M]. 北京: 人民日报出版社, 2021.
[5]	李华, 郑洪纬, 周博文, 等. 综合智慧能源系统中抽水蓄能电站两部制电价研究[J]. 综合智慧能源, 2022, 44(7):10-18. doi: 10.3969/j.issn.2097-0706.2022.07.002
	LI Hua, ZHENG Hongwei, ZHOU Bowen, et al. Two-part tariff for pumped storage power plants in an integrated intelligent energy system[J]. Integrated Intelligent Energy, 2022, 44(7):10-18. doi: 10.3969/j.issn.2097-0706.2022.07.002
[6]	衣传宝, 杨黎明, 罗艳, 等. 基于抽水蓄能的新型电力系统惯量优化控制方法[J]. 可再生能源, 2023, 41(4):530-537.
	YI Chuanbao, YANG Liming, LUO Yan, et al. Lnertia optimization control method of new power system based on pumped storage[J]. Renewable Energy Resources, 2023, 41(4):530-537.
[7]	陈海生, 李泓, 马文涛, 等. 2021年中国储能技术研究进展[J]. 储能科学与技术, 2022, 11(3):1052-1076.
	CHEN Haisheng, LI Hong, MA Wentao, et al. Research progress of energy storage technology in China in 2021[J]. Energy Storage Science and Technology, 2022, 11(3):1052-1076.
[8]	梁银林, 刘庆, 钱勇, 等. 压缩空气储能系统研究概述[J]. 东方电气评论, 2020, 34(3):82-88.
	LIANG Yinlin, LIU Qing, QIAN Yong, et al. Research overview of compressed air energy storage system[J]. Dongfang Electric Review, 2020, 34(3):82-88.
[9]	张玮灵, 古含, 章超, 等. 压缩空气储能技术经济特点及发展趋势[J]. 储能科学与技术, 2023, 12(4):1-7.
	ZHANG Weiling, GU Han, ZHANG Chao, et al. Technical economic characteristics and development trends of compressed air energy storage[J]. Energy Storage Science and Technology, 2023, 12(4):1-7.
[10]	郭丁彰, 尹钊, 周学志, 等. 压缩空气储能系统储气装置研究现状与发展趋势[J]. 储能科学与技术, 2021, 10(5):1486-1493.
	GUO Dingzhang, YIN Zhao, ZHOU Xuezhi, et al. Status and prospect of gas storage device in compressed air energy storage system[J]. Energy Storage Science and Technology, 2021, 10(5):1486-1493.
[11]	LIU J L, WANG J H. A comparative research of two adiabatic compressed air energy storage systems[J]. Energy Conversion and Management, 2016, 108:566-578. doi: 10.1016/j.enconman.2015.11.049
[12]	SCIACOVELLI A, LI Y L, CHEN H S, et al. Dynamic simulation of Adiabatic Compressed Air Energy Storage (A-CAES) plant with integrated thermal storage-link between components performance and plant performance[J]. Applied Energy, 2017, 185:16-28. doi: 10.1016/j.apenergy.2016.10.058
[13]	CHEN L X, HU P, ZHAO P P, et al. A novel throttling strategy for adiabatic compressed air energy storage system based on an ejector[J]. Energy Conversion and Management, 2018, 158:50-59. doi: 10.1016/j.enconman.2017.12.055
[14]	LUO X, WANG J H, MARK D, et al. Overview of current development in electrical energy storage technologies and the application potential in power system operation[J]. Applied Energy, 2015, 137:511-536. doi: 10.1016/j.apenergy.2014.09.081
[15]	MAHLIA T M I, SAKTISAHDAN T J, JANNIFAR A, et al. A review of available methods and development on energy storage;technology update[J]. Renewable and Sustainable Energy Reviews, 2014, 33:532-545.
[16]	梅生伟, 薛小代. 压缩空气储能与可再生能源的综合利用[J]. 系统与控制纵横, 2016(1):54-63.
	MEI Shengwei, XUE Xiaodai. Comprehensive utilization of compressed air energy storage and renewable energy[J]. All About Systems and Control, 2016(1):54-63.
[17]	梅生伟, 薛小代, 陈来军. 压缩空气储能技术及其应用探讨[J]. 南方电网技术, 2016, 10(3):11-15.
	MEI Shengwei, XUE Xiaodai, CHEN Laijun. Discussion on compressed air energy storage technology and lts application[J]. Southern Power System Technology, 2016, 10(3):11-15.
[18]	WANG J D, MA L, LN K P, et al. Current research and development trend of compressed air energy storage[J]. Systems Science & Control Engineering, 2017, 5(1):434-448.
[19]	梅生伟, 张通, 张学林, 等. 非补燃压缩空气储能研究及工程实践——以金坛国家示范项目为例[J]. 实验技术与管理, 2022, 39(5):1-8,14.
	MEI Shengwei, ZHANG Tong, ZHANG Xuelin, et al. Research and engineering practice of non-supplementary combustion compressed air energy storage—Taking Jintan national demonstration project as an example[J]. Experimental Technology and Management, 2022, 39(5):1-8,14.
[20]	BUDT M, WOLF D, SPAN R, et al. Compressed air energy storage—An option for medium to large scale electrical-energy storage[J]. Energy Procedia, 2016, 88:698-702. doi: 10.1016/j.egypro.2016.06.046
[21]	BAI J Y, WEI W, CHEN L J, et al. Modeling and dispatch of advanced adiabatic compressed air energy storage under wide operating range in distribution systems with renewable generation[J]. Energy, 2020, 206:118051. doi: 10.1016/j.energy.2020.118051
[22]	MEI S W, WANG J J, TIAN F, et al. Design and engineering implementation of non-supplementary fired compressed air energy storage system:TICC-500[J]. Science China(Technological Sciences), 2015, 58(4):600-611.
[23]	GUO H, XU Y J, CHEN H S, et al. Thermodynamic analytical solution and exergy analysis for supercritical compressed air energy storage system[J]. Applied Energy, 2017, 199:96-106. doi: 10.1016/j.apenergy.2017.04.068
[24]	GUO H, XU Y J, CHEN H S, et al. Corresponding-point methodology for physical energy storage system analysis and application to compressed air energy storage system[J]. Energy, 2018, 143:772-784. doi: 10.1016/j.energy.2017.10.132
[25]	薛小代, 陈晓弢, 梅生伟, 等. 采用熔融盐蓄热的非补燃压缩空气储能发电系统性能[J]. 电工技术学报, 2016, 31(14):11-20.
	XUE Xiaodai, CHEN Xiaotao, MEI Shengwei, et al. Performance of non-supplementary fired compressed air energy storage with molten salt heat storage[J]. Transactions of China Electrotechnical Society, 2016, 31(14):11-20.
[26]	NA H Y, ZHANG C C, WU Y T, et al. Investigation on thermal performance of eutectic binary nitrate-carbonate molten salt under thermal shock condition[J]. Solar Energy Materials and Solar Cells, 2023, 255:112314. doi: 10.1016/j.solmat.2023.112314
[27]	SANG L X, LV X Y, WU Y T. NaNO₃-KNO₃-KCl/K₂CO₃ with the elevated working temperature for CSP application:Phase diagram calculation and machine learning[J]. Solar Energy, 2023, 252:322-329. doi: 10.1016/j.solener.2023.02.009
[28]	万明忠, 纪文栋, 商浩亮, 等. 压缩空气储能地下盐穴物探关键问题及处理技术[J]. 南方能源建设, 2023, 10(2):26-31.
	WAN Mingzhong, JI Wendong, SHANG Haoliang, et al. Key problems and techniques of geophysical exploration in underground salt cavern for compressed air energy storage[J]. Southern Energy Construction, 2023, 10(2):26-31.
[29]	万明忠, 王辉, 纪文栋, 等. 压缩空气储能电站盐穴选址关键流程及控制因素[J]. 电力勘测设计, 2022(12):1-4,41.
	WAN Mingzhong, WANG Hui, JI Wendong, et al. Critical process and controlling factor of salt cavern site selection in compressed air energy storage power station[J]. Electric Power Survey & Design, 2022(12):1-4,41.
[30]	央广网. 总投资超200亿中国能建辽甘两地重点项目集中开工[EB/OL].(2022-12-21)[2023-06-05]. https://www.sohu.com/a/619585957_362042.
	NewsCNR. Concentrated construction of key projects in Liaoning and Gansu provinces with a total investment of over 20 billion yuan by China Energy Construction Corporation[EB/OL].(2022-12-21)[2023-06-05]. https://www.sohu.com/a/619585957_362042.

项目名称	投运或建设时间	功率/MW	储气装置	效率/%
德国Huntorf电站	1978年	290	地下600 m盐穴	44~46
美国Alabama州 McIntosh电站	1991年	110	地下450 m盐穴	52~54
美国Ohio州压缩空气储能电站	2001年	2 700	地下670 m洞穴	—
日本上砂川町电站	2001年	2	地下450 m废弃煤矿坑	<40

技术特点	补燃式压缩空气储能技术	非补燃式压缩空气储能技术
是否需要燃烧装置	是	否
是否排放温室气体	是	否
是否回收压缩热	否	是

项目地点	功率/MW	储存容量/（MW·h）	储气装置	效率/%	投运或建设时间
德国Adele电站	90	—	地下盐穴	60.0~70.0	2010年
安徽芜湖	0.5	0.5	储罐	33.3	2014年
河北廊坊	1.5	—	储罐	52.1	2013年
贵州毕节	10	40	储罐	60.2	2016年
江苏金坛	60	300	地下盐穴	61.2	2021年
河北张家口	100	400	储罐	70.5	2022年
湖北应城	300	1 500	盐穴	—	建设中
山东泰安	350	1 400	盐穴	—	已开工
甘肃酒泉	300	1 800	人工硐室	—	已开工
辽宁朝阳	300	1 200	人工硐室	—	完成可研
