基于信息物理双侧数据的配电网CPS窃电检测方法

doi:10.3969/j.issn.2097-0706.2024.05.003

综合智慧能源 ›› 2024, Vol. 46 ›› Issue (5): 20-29.doi: 10.3969/j.issn.2097-0706.2024.05.003

• 5G通信环境及数据检测 • 上一篇下一篇

基于信息物理双侧数据的配电网CPS窃电检测方法

杜龙¹(), 沙建秀¹(), 樊贝¹(), 胡静威²^,^*(), 刘增稷²()

1.国网江苏省电力有限公司宿迁供电分公司，江苏宿迁 223800
2.南京邮电大学自动化学院人工智能学院，南京 210023

收稿日期:2024-04-01 修回日期:2024-05-15 出版日期:2024-05-25
通讯作者: *胡静威（2000），女，硕士生，从事电力系统网络安全方面的研究，1628552013@qq.com。
*胡静威（2000），女，硕士生，从事电力系统网络安全方面的研究，1628552013@qq.com。
作者简介:杜龙（1995），男，工程师，硕士，从事电网调度运行工作，1260041171@qq.com；
沙建秀（1988），女，工程师，从事电网调度运行工作，shajianxiu@163.com；
樊贝（1985），男，高级工程师，硕士，从事电网调度运行工作，fanbei0703@163.com；
刘增稷（1993），男，博士生，从事电力系统网络安全方面的研究，liuzengji_njupt@163.com
基金资助:
国家自然科学基金项目(62302234)

Electricity theft detection method for distribution network CPS based on cyber and physical data

DU Long¹(), SHA Jianxiu¹(), FAN Bei¹(), HU Jingwei²^,^*(), LIU Zengji²()

1. Suqian Power Supply Branch of State Grid Jiangsu Electric Power Company Limited， Suqian 223800， China
2. College of Automation & College of Artificial Intelligence， Nanjing University of Posts and Telecommunications， Nanjing 210023， China

Received:2024-04-01 Revised:2024-05-15 Published:2024-05-25
Supported by:
National Natural Science Foundation of China(62302234)

摘要/Abstract

摘要：

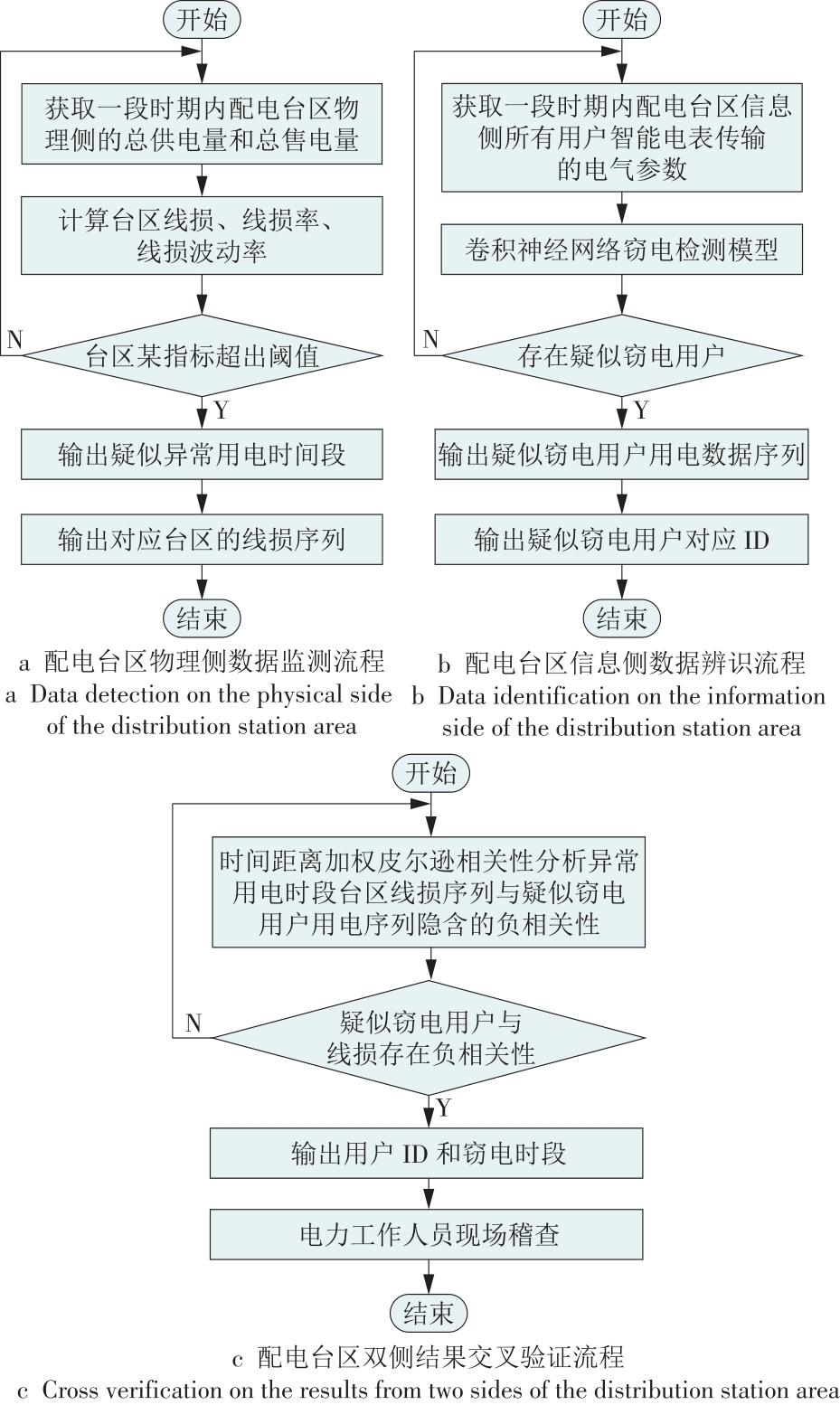

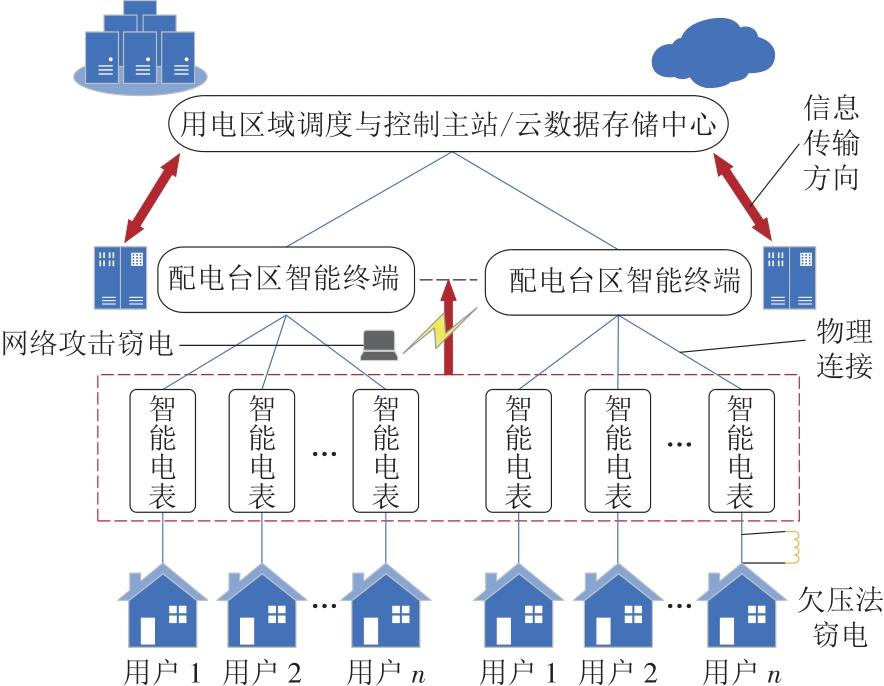

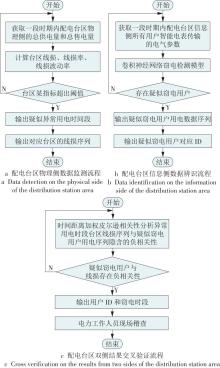

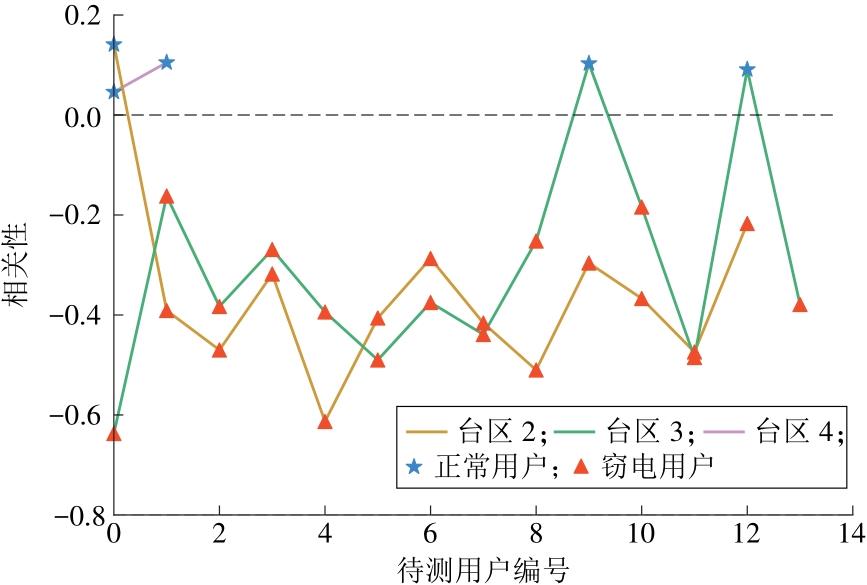

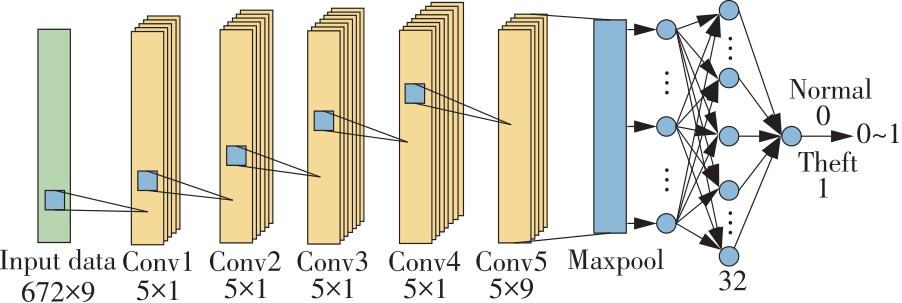

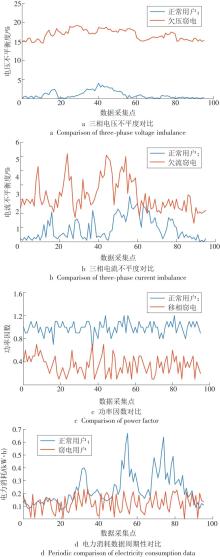

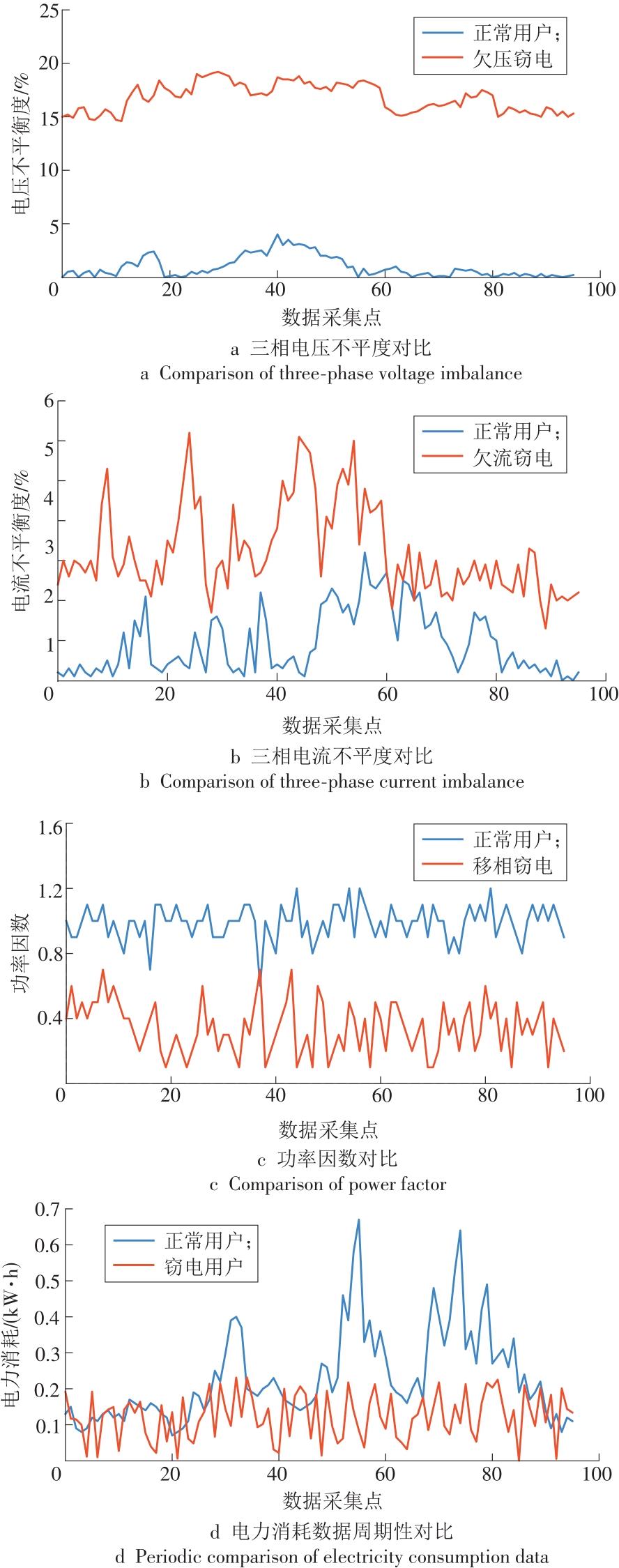

高比例量测设备的广泛应用为配电网信息物理系统（CPS）带来了大量信息侧网络攻击风险，其中以获取经济利益为目的的窃电攻击严重危害了电力公司的应得利益。现有窃电检测方法中，数据驱动方法与模型驱动方法单独应用时都存在一定的局限性，无法有效降低输出结果的误报率。提出了一种基于信息物理双侧数据的配电网CPS窃电检测方法。首先对配电台区物理侧量测的线损序列进行监测，确定异常用电行为的时段；其次将配电台区信息侧用户传输的多参数用电数据以周为单位送入卷积神经网络进行疑似窃电用户排查；最后利用时间距离加权皮尔逊相关性算法，根据窃电时段内的台区线损序列和窃电用户电力消耗数据序列之间存在的负相关性，对窃电检测模型的输出结果进行窃电嫌疑二次筛查。基于IEEE 33节点系统对配电网运行过程进行仿真，输出用于分析和构建检测方法的正异常用户电力消耗多参数数据。对比试验结果表明，与其他方法相比，该检测方法具有可靠性更高、可解释性更强的窃电判据，能够在提高准确率的同时进一步降低数据驱动模型检测结果的误报率。

关键词: 配电网信息物理系统, 窃电检测, 网络安全, 卷积神经网络, 二次筛查, 误报率

Abstract:

Widespread applications of massive measurement equipment have raised frequent cyber attacks to the information side of a distribution network cyber and physical system（CPS）. The attacks aiming at encroaching on power companies' economic benefits through electricity thefts seriously endanger their interests. However， existing methods for detecting electricity theft including both data-driven algorithms and model-driven algorithms show limitations in their standalone applications， incapable of reducing false alarm rates of output results effectively. Therefore， an electricity theft detection method based on bilateral data of a distribution network CPS is proposed. Firstly， the method monitors the abnormal fluctuations of the line loss sequence measured on the physical side of the distribution station area， determining the time periods with abnormal electricity consumptions. Secondly， various electricity consumption data from users on the information side of the distribution station area are sent to the convolutional neural network on a weekly basis to investigate suspected electricity thieves. Finally， a second screening on electricity thefts is carried out on the outputs of the electricity stealing detection model based on the negative correlation between the line loss sequence in the station area and the electricity consumption data sequence of the electricity thieves obtained by the time distance weighted Pearson correlation algorithm. The operation process of this method is performed on an IEEE 33 bus system， obtaining normal and abnormal electricity consumption data for following analyses and detection model construction. The results of the comparative experiments verify that， compared to other methods， the proposed electricity theft detection method has a higher reliability and more solid criterion， which can further reduce the false alarm rate of data-driven model detection results while improving accuracy.

Key words: CPS for distribution network, electricity theft detection, cyber security, convolutional neural network, second screening, false alarm rate

中图分类号:

TK012：TM727

杜龙, 沙建秀, 樊贝, 胡静威, 刘增稷. 基于信息物理双侧数据的配电网CPS窃电检测方法[J]. 综合智慧能源, 2024, 46(5): 20-29.

DU Long, SHA Jianxiu, FAN Bei, HU Jingwei, LIU Zengji. Electricity theft detection method for distribution network CPS based on cyber and physical data[J]. Integrated Intelligent Energy, 2024, 46(5): 20-29.

图/表 12

图1

表1

图2

图3

表2

图4

表3

表4

表5

表6

表7

图5

参考文献 27

[1]	刘晟源, 章天晗, 林振智, 等. 数据赋能低压配用电系统精益化运行的关键技术与算法[J]. 电力系统自动化, 2023, 47(3):187-199.
	LIU Shengyuan, ZHANG Tianhan, LIN Zhenzhi, et al. Key technologies and algorithms of data empowerment for lean operation of low-voltage power distribution and consumption system[J]. Automation of Electric Power System, 2023, 47(3):187-199.
[2]	易俊, 林伟芳, 任萱, 等. 新型电力系统发展水平指标体系构建及综合评价方法研究[J/OL]. 电网技术:1- 12 (2024-03-14)[2024-03-25]. https://doi.org/10.13335/j.1000-3673.pst.2023.2291.
	YI Jun, LIN Weifang, REN Xuan, et al. Research on construction of index system and comprehensive evaluation method of development level of new power system[J/OL]. Power System Technology:1-12(2024-03-14)[2024-03-25]. https://doi.org/10.13335/j.1000-3673.pst.2023.2291.
[3]	刘涛, 李伟华, 汤熠. 综合智慧能源系统典型构架网络安全防护研究[J/OL]. 综合智慧能源:1-11(2023-08-22)[2024-03-25]. http://kns.cnki.net/kcms/detail/41.1461.TK.20230821.1109.006.html.
	LIU Tao, LI Weihua, TANG Yi. Research on network security protection of typical architecture of integrated smart energy[J/OL]. Integrated Intelligent Energy:1-11(2023-08-22)[2024-03-25]. http://kns.cnki.net/kcms/detail/41.1461.TK.20230821.1109.006.html.
[4]	丁茂生, 王洪儒, 王超, 等. 信息物理视角下能源互联网可靠性评估方法综述[J]. 电网技术, 2021, 45(2):425-436.
	DING Maosheng, WANG Hongru, WANG Chao, et al. Review of reliability assessments for energy internet based on cyber physical integration[J]. Power System Technology, 2021, 45(2):425-436.
[5]	樊强, 刘东, 王宇飞, 等. 电力信息物理系统形态演进关键技术及其进展[J/OL]. 中国电机工程学报:1-13(2023-09-19)[2024-03-25]. http://kns.cnki.net/kcms/detail/11.2107.TM.20230918.1450.004.html.
	FAN Qiang, LIU Dong, WANG Yufei, et al. Key technologies and trends of cyber physical power system morphology evolution[J/OL]. Proceedings of the CSEE:1-13(2023-09-19)[2024-03-25]. http://kns.cnki.net/kcms/detail/11.2107.TM.20230918.1450.004.html.
[6]	郭少勇, 刘岩, 邵苏杰, 等. 新型电力系统数据跨域流通泛安全边界防护技术[J]. 电力系统自动化, 2024, 48(6):96-111.
	GUO Shaoyong, LIU Yan, SHAO Sujie, et al. Ubiquitous security boundary protection technology for cross-domain data circulation in new power system[J]. Automation of Electric Power System, 2024, 48(6):96-111.
[7]	伍志韬, 杜伟, 刘蕾蕾, 等. 恶意攻击下的电力耦合网络风险传播模型研究[J]. 电网技术, 2020, 44(6):2045-2052.
	WU Zhitao, DU Wei, LIU Leilei, et al. Risk propagation model of power coupled networks under malicious attack[J]. Power System Technology, 2020, 44(6):2045-2052
[8]	苏盛, 吴长江, 马钧, 等. 基于攻击方视角的电力CPS网络攻击模式分析[J]. 电网技术, 2014, 38(11):3115-3120.
	SU Sheng, WU Changjiang, MA Jun, et al. Attacker's perspective based analysis on cyber attack mode to cyber-physical system[J]. Power System Technology, 2014, 38(11):3115-3120.
[9]	殷涛, 苏盛, 刘爱国, 等. 基于向前逐步回归的高损线路窃电检测[J]. 电网技术, 2022, 46(7):2742-2749.
	YIN Tao, SU Sheng, LIU Aiguo, et al. Electricity theft detection of high-loss line with forward stepwise regression[J]. Power System Technology, 2022, 46(7):2742-2749.
[10]	Northeast Group LLC. Emerging market smart grid: Outlook 2017[EB/OL].(2017-02-22) [2024-03-25] https://www.prnewswire.com/news-releases/emerging-markets-smart-grid-outlook-2017-300411871.html.
[11]	林振智, 崔雪原, 金伟超, 等. 用户侧窃电检测关键技术[J]. 电力系统自动化, 2022, 46(5):188-199.
	LIN Zhenzhi, CUI Xueyuan, JIN Weichao, et al. Key technologies of electricity theft detection at consumer side[J]. Automation of Electric Power System, 2022, 46(5):188-199.
[12]	ISMAIL M, SHAABAN M F, NAIDU M, et al. Deep learning detection of electricity theft cyber-attacks in renewable distributed generation[J]. IEEE Transactions on Smart Grid, 2020, 11(4): 3428-3437.
[13]	邝萌. 基于Stacking集成学习的窃电检测方法研究[D]. 昆明: 昆明理工大学, 2021.
	KUANG Meng. Research on electricity theft detection method based on stacking ensemble learning[D]. Kunming: Kunming University of Science and Technology, 2021.
[14]	唐冬来, 刘友波, 熊智临, 等. 基于时空关联矩阵的配电台区反窃电预警方法[J]. 电力系统自动化, 2020, 44(19): 168-181.
	TANG Donglai, LIU Youbo, XIONG Zhilin, et al. Early warning method of electricity anti-theft in distribution station area based on spatiotemporal correlation matrix[J]. Automation of Electric Power System, 2020, 44(19): 168-181.
[15]	金晟, 苏盛, 曹一家, 等. 基于格兰杰归因分析的高损台区窃电检测[J]. 电力系统自动化, 2020, 44(23):82-89.
	JIN Sheng, SU Sheng, CAO Yijia, et al. Electricity-theft detection for high-loss distribution area based on granger causality analysis[J]. Automation of Electric Power System, 2020, 44(23):82-89.
[16]	黄刚. 数据-模型融合驱动的中低压配网窃电辨识方法[D]. 重庆: 重庆大学, 2021.
	HUANG Gang. A data model fusion driven identification method for stealing electricity in medium and low voltage distribution networks[D]. Chongqing: Chongqing University, 2021.
[17]	金晟, 苏盛, 薛阳, 等. 数据驱动窃电检测方法综述与低误率研究展望[J]. 电力系统自动化, 2022, 46(1):3-14.
	JIN Sheng, SU Sheng, XUE Yang, et al. Review on data-driven based electricity theft detection method and research prospect for low false positive rate[J]. Automation of Electric Power System, 2022, 46(1):3-14.
[18]	ZHENG Z B, YANG Y T, NIU X D, et al. Wide and deep convolutional neural networks for electricity-theft detection to secure smart grids[J]. IEEE Transactions on Industrial Informatics, 2017, 14(4): 1606-1615.
[19]	王德文, 杨凯华. 基于生成式对抗网络的窃电检测数据生成方法[J]. 电网技术, 2020, 44(2):775-782.
	WANG Dewen, YANG Kaihua. A data generation method for electricity theft detection using generative adversarial network[J]. Power System Technology, 2020, 44(2):775-782.
[20]	CUI L, GUO L, GAO L X, et al. A covert electricity-theft cyber-attack against machine learning-based detection models[J]. IEEE Transactions on Industrial Informatics, 2021, 18(11): 7824-7833.
[21]	杜章华, 苏盛, 刘正谊, 等. 基于生产经营状态识别的低误报率窃电检测二次筛查方法[J]. 电力系统自动化, 2021, 45(2):97-104.
	DU Zhanghua, SU Sheng, LIU Zhengyi, et al. Second inspection method for electricity theft detection with low false alarm rate based on identification of production and operation status[J]. Automation of Electric Power Systems, 2021, 45(2):97-104.
[22]	窦健, 刘宣, 卢继哲, 等. 基于用电信息采集大数据的防窃电方法研究[J]. 电测与仪表, 2018, 55(21):43-49.
	DOU Jian, LIU Xuan, LU Jizhe, et al. Research on electricity anti-stealing method based on power consumption information acquisition and big data[J]. Electrical Measurement ＆ Instrumentation, 2018, 55(21):43-49.
[23]	郑应俊, 杨艺宁, 舒一飞, 等. 基于边缘计算的低压用户窃电检测[J]. 电力系统自动化, 2022, 46(11):111-120.
	ZHENG Yingjun, YANG Yining, SHU Yifei, et al. Electricity theft detection for low-voltage users based on edge computing[J]. Automation of Electric Power Systems, 2022, 46(11):111-120.
[24]	JOKAR P, ARIANPOO N, LEUNG V C M. Electricity theft detection in AMI using customers' consumption patterns[J]. IEEE Transactions on Smart Grid, 2015, 7(1): 216-226.
[25]	孔祥玉, 马玉莹, 赵鑫, 等. 基于多阶段递推数据分析的低压台区窃电检测方法[J/OL]. 中国电机工程学报:1-19(2023-05-06)[2024-03-25]. https://doi.org/10.13334/j.0258-8013.pcsee.230325.
	KONG Xiangyu, MA Yuying, ZHAO Xin, et al. Detection Method of Electric Theft in Low Voltage Station Area Based on Multi-Stage Recursive Data Analysis[J/OL]. Proceedings of the CSEE:1-19(2023-05-06)[2024-03-25]. https://doi.org/10.13334/j.0258-8013.pcsee.230325.
[26]	MASSAFERRO P, DI MARTINO J M, FERNÁNDEZ A. Fraud detection on power grids while transitioning to smart meters by leveraging multi-resolution consumption data[J]. IEEE Transactions on Smart Grid, 2022, 13(3): 2381-2389.
[27]	UCI Machine Learning Repository. Electricity load diagrams[EB/OL].(2015-03-12)[2024-03-25]. https://archive.ics.uci.edu/dataset/321/electricityloaddiagrams2011201.

计量设备	采集变量
配电台区智能终端	A/B/C相电压幅值 A/B/C相电流幅值 A/B/C相及总有功、无功功率 A/B/C相及总功率因数正向、反向有功、无功总电量示值
用户智能电表	A/B/C相电压幅值 A/B/C相电流幅值 A/B/C相及总有功、无功功率 A/B/C相及总功率因数正向有功总电量示值

用户类别	判断为正常的用户	判断为窃电的用户
标签为正常的用户	TN	FP
标签为窃电的用户	FN	TP

窃电检测模型	R_A	R_recall	A_UC	R_FA
LR	0.712	0.758	0.689	0.319
RF	0.768	0.784	0.728	0.302
SVM	0.735	0.761	0.716	0.311
本文模型	0.834	0.863	0.793	0.240

窃电检测模型	R_A	R_recall	A_UC	R_FA
LR	0.748	0.769	0.705	0.251
RF	0.774	0.786	0.742	0.217
SVM	0.785	0.794	0.751	0.210
本文模型	0.896	0.917	0.874	0.132

台区	总用户	正常用户	窃电用户
1	128	128	0
2	128	116	12
3	128	116	12
4	128	128	0

基于信息物理双侧数据的配电网CPS窃电检测方法

Electricity theft detection method for distribution network CPS based on cyber and physical data

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 27

相关文章 8

编辑推荐

Metrics

本文评价

台区	总用户数量	实际正/异常数量	窃电检测模型下正/异常数量
1	128	128/0	128/0
2	128	116/12	115/13
3	128	116/12	114/14
4	128	128/0	126/2

[1]	殷林飞, 蒙雨洁. 基于DenseNet卷积神经网络的短期风电预测方法[J]. 综合智慧能源, 2024, 46(7): 12-20.
[2]	刘涛, 李伟华, 汤熠. 综合智慧能源系统典型构架网络安全防护研究[J]. 综合智慧能源, 2024, 46(5): 81-90.
[3]	王永林, 白永峰, 孔祥山, 郝正, 杨彭飞, 孔德伟. 基于CNN-LSTM算法的脱硝优化控制模型研究[J]. 综合智慧能源, 2023, 45(6): 25-33.
[4]	李炜, 严川, 盛庆博, 王建平, 王晓东, 谭嘉. 大数据背景下智能配电网运营管理方法研究[J]. 华电技术, 2021, 43(8): 33-40.
[5]	杨明明. 基于卷积神经网络的机舱风速修正[J]. 华电技术, 2021, 43(5): 75-79.
[6]	吕政权, 李朝阳, 王海峰, 陈怡君, 彭道刚. 基于GRU-CNN的综合能源网络安全攻击检测方法[J]. 华电技术, 2021, 43(2): 9-14.
[7]	刘超, 张鹏, 强仁, 赵毓鹏, 鞠伟, 夏永欣, 袁琳琳. 数字新基建下的电力网络安全防护体系研究[J]. 华电技术, 2021, 43(2): 60-65.
[8]	黄建. 西塘河引水工程监控系统网络的实现与管理[J]. 华电技术, 2010, 32(1): 29-31.

台区	线损/kW	最高线损率/%	最高线损波动率/%	异常数据点
1	378	4	2
2	1 209	13	9	863—1 151
3	1 396	15	11	1 179—1 467
4	425	5	3
