风储联合参与电能量与快速调频市场的优化投标策略

doi:10.3969/j.issn.1674-1951.2021.09.006

摘要/Abstract

摘要：

“双碳”目标下需要构建以新能源为主体的新型电力系统,针对风储联合参与电能量与快速调频市场的优化投标问题,提出了一种基于近似动态规划的风储联合优化投标策略。首先,在最大化风储收益的基础上,考虑了风电的随机性和储能系统的寿命损耗特性,建立风储联合参与电能量与快速调频市场的优化投标模型;其次,为处理风储联合参与电能量与快速调频市场投标模型的非凸性和随机性,采用近似动态规划将原问题分成多个子问题,逐一求解后得到原问题的近似最优解;最后,将所提方法用于广东电力市场和宾夕法尼亚州-新泽西州-马里兰州（PJM）的快速调频市场,所得结果证明了其有效性。

关键词: 风电, 储能, 近似动态规划, 快速调频, 投标策略, 风储联合, 可再生能源, 新型电力系统, 碳中和

Abstract:

To solve the problems in the bidding of wind power and energy storage in energy market and fast frequency modulation market,a coordinated optimization bidding strategy for wind power and energy storage based on approximate dynamic programming is proposed.Firstly,to maximize the income,the optimization bidding model for wind power and energy storage participating in energy market and fast frequency modulation that has taken the randomness of wind power and life degradation of energy storage into consideration is established.Secondly,to deal with the non-convexity and randomness of the bidding model,the approximate optimal solution of the original problem is obtained after being divided into multiple sub-problems by approximate dynamic programming and solved individually.Finally,the proposed method is applied to the power market in Guangzhou and the fast frequency modulation market in Maryland,New Jersey,Pennsylvania（PJM）,and its effectiveness has been proven.

Key words: wind power, energy storage, approximate dynamic programming, fast frequency modulation, bidding strategy, hybrid of wind power and energy storage, renewable energy, new electric power system, carbon neutrality

中图分类号:

TK02

刘林鹏, 陈嘉俊, 朱建全, 胡文霞, 罗涛. 风储联合参与电能量与快速调频市场的优化投标策略[J]. 华电技术, 2021, 43(9): 46-53.

LIU Linpeng, CHEN Jiajun, ZHU Jianquan, HU Wenxia, LUO Tao. Optimization bidding strategy for wind power and energy storage participating in energy market[J]. Huadian Technology, 2021, 43(9): 46-53.

图/表 9

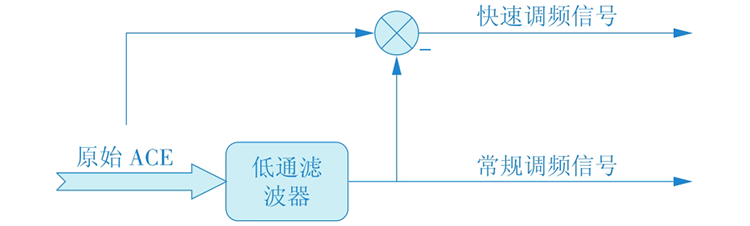

图1

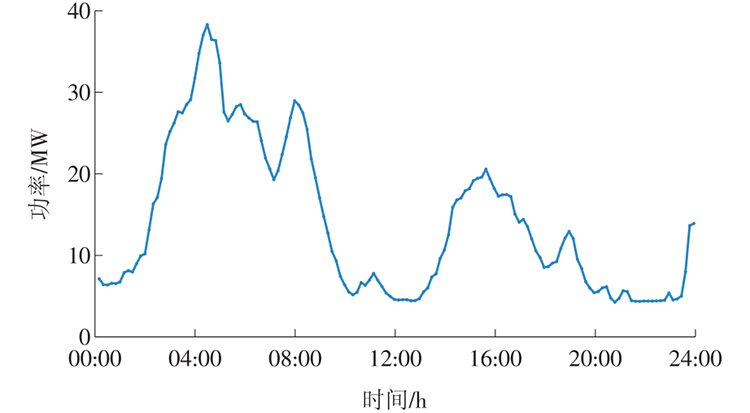

图2

表1

储能参数

参数	$P max bat$ /MW	$E max bat$ /（MW·h）	$η$	$α$	$N fail$	$C invest$ /万元
值	6	36	0.9	0	1 500	6 480

表1

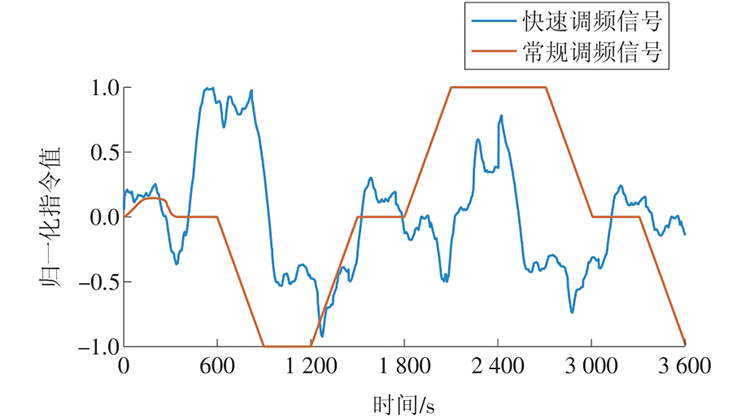

图3

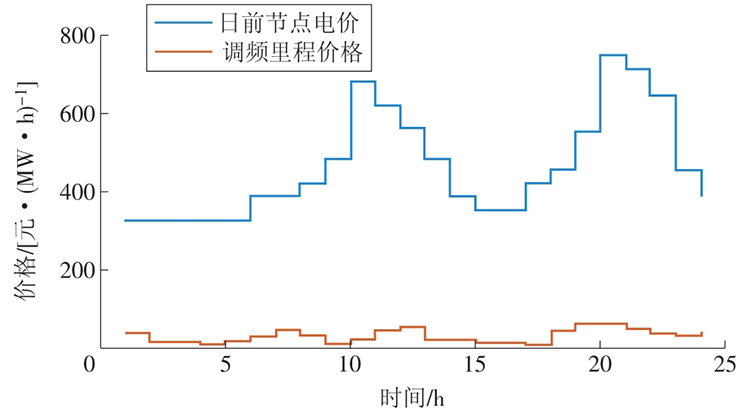

图4

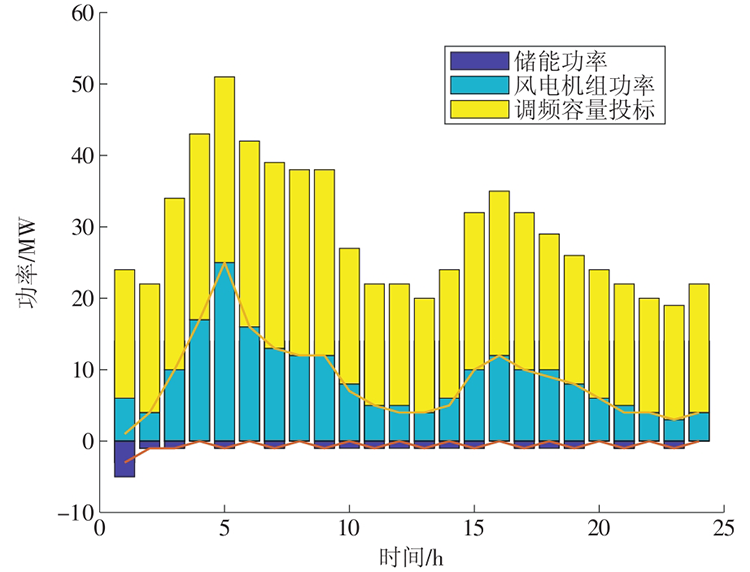

图5

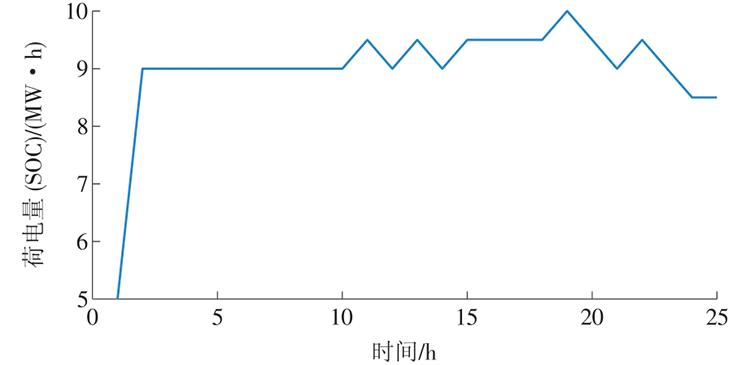

图6

表2

表3

参考文献 25

[1]	谢丽蓉, 郑浩, 魏成伟, 等. 兼顾补偿预测误差和平抑波动的光伏混合储能协调控制策略[J]. 电力系统自动化, 2021, 45(3):130-138.
	XIE Lirong, ZHENG Hao, WEI Chengwei, et al. Coordinated control strategy of photovoltaic hybrid energy storage considering prediction error compensation and fluctuation suppression[J]. Automation of Electric Power Systems, 2021, 45(3):130-138.
[2]	王晗雯, 鲁胜, 周照宇. 光伏-混合储能微电网协调控制及经济性分析[J]. 华电技术, 2020, 42(4):31-36.
	WANG Hanwen, LU Sheng, ZHOU Zhaoyu. Coordinated control and economic analysis on a PV-hybrid energy storage micro-grid system[J]. Huadian Technology, 2020, 42(4):31-36.
[3]	王育飞, 郑云平, 薛花, 等. 基于增强烟花算法的移动式储能削峰填谷优化调度[J]. 电力系统自动化, 2021, 45(5):48-56.
	WANG Yufei, ZHENG Yunping, XUE Hua, et al. Optimal dispatch of mobile energy storage for peak load shifting based on enhanced firework algorithm[J]. Automation of Electric Power Systems, 2021, 45(5):48-56.
[4]	吕刚. 能源互联网背景下的储能应用模式研究[D]. 北京:华北电力大学, 2019.
[5]	KHANI H, VARMA R K, ZADEH M R D, et al. A real-time multistep optimization-based model for scheduling of storage-based large-scale electricity consumers in a wholesale market[J]. IEEE Transactions on Sustainable Energy, 2017, 8(2):836-845. doi: 10.1109/TSTE.2016.2622003
[6]	HE G N, CHEN Q X, KANG C Q, et al. Cooperation of wind power and battery storage to provide frequency regulation in power markets[J]. IEEE Transactions on Power System, 2017, 32(5):3559-3568. doi: 10.1109/TPWRS.2016.2644642
[7]	DING H J, PINSON P, HU Z C, et al. Integrated bidding and operating strategies for wind-storage systems[J]. IEEE Transactions on Sustainable Energy, 2016, 7(1):163-172. doi: 10.1109/TSTE.2015.2472576
[8]	HE G N, CHEN Q X, KANG C Q, et al. Optimal offering strategy for concentrating solar power plants in joint energy,reserve and regulation markets[J]. IEEE Transactions on Sustainable Energy, 2016, 7(3):1245-1254. doi: 10.1109/TSTE.5165391
[9]	HE G N, CHEN Q X, KANG C Q, et al. Optimal bidding strategy of battery storage in power markets considering performance-based regulation and battery cycle life[J]. IEEE Transactions on Smart Grid, 2016, 7(5):2359-2367. doi: 10.1109/TSG.2015.2424314
[10]	KAZEMI M, ZAREIPOUR H. Long-term scheduling of battery storage systems in energy and regulation markets considering battery's lifespan[J]. IEEE Transactions on Smart Grid, 2018, 9(6):6840-6849. doi: 10.1109/TSG.2017.2724919
[11]	伍俊, 鲁宗相, 乔颖, 等. 考虑储能动态充放电效率特性的风储电站运行优化[J]. 电力系统自动化, 2018, 42(11):41-47,101.
	WU Jun, LU Zongxiang, QIAO Ying, et al. Optimal operation of wind farm with hybrid storage devices considering efficiency characteristics of dynamic charging and discharging[J]. Automation of Electric Power Systems, 2018, 42(11):41-47,101.
[12]	冯力勇, 张云. 考虑电池能效的电网侧电化学储能电站最优功率控制策略研究[J]. 华电技术, 2020, 42(4):37-41.
	FENG Liyong, ZHANG Yun. Optimal power control strategy of grid-side electrochemical energy storage stations considering battery energy efficiency[J]. Huadian Technology, 2020, 42(4):37-41.
[13]	胡泽春, 夏睿, 吴林林, 等. 考虑储能参与调频的风储联合运行优化策略[J]. 电网技术, 2016, 40(8):2251-2257.
	HU Zechun, XIA Rui, WU Linlin, et al. Joint operation optimization of wind-storage union with energy storage participating frequency regulation[J]. Power System Technology, 2016, 40(8):2251-2257.
[14]	HE G N, CHEN Q X, KANG C Q, et al. Optimal bidding strategy of battery storage in power markets considering performance-based regulation and battery cycle life[J]. IEEE Transactions on Smart Grid, 2016, 7(5):2359-2367. doi: 10.1109/TSG.2015.2424314
[15]	HE G N, CHEN Q X, KANG C Q, et al. Cooperation of wind power and battery storage to provide frequency regulation in power markets[J]. IEEE Transactions on Power Systems, 2017, 32(5):3559-3568. doi: 10.1109/TPWRS.2016.2644642
[16]	沈玉明, 胡博, 谢开贵, 等. 计及储能寿命损耗的孤立微电网最优经济运行[J]. 电网技术, 2014, 38(9):2371-2378.
	SHEN Yuming, HU Bo, XIE Kaigui, et al. Optimal economic operation of isolated microgrid considering battery life loss[J]. Power System Technology, 2014, 38(9):2371-2378.
[17]	朱青, 曾利华, 寇凤海, 等. 考虑储能并网运营模式的工业园区风光燃储优化配置方法研究[J]. 电力系统保护与控制, 2019, 47(17):23-31.
	ZHU Qing, ZENG Lihua, KOU Fenghai, et al. Research on optimal allocation method of wind,photovoltaic,gas turbine and energy storage in industrial parks considering energy storage's grid-connected operation modes[J]. Power System Protection and Control, 2019, 47(17):23-31.
[18]	刘金豆, 成杰, 俞高伟. 基于低压直流配电网并网的并离网一体光储发电系统研究[J]. 华电技术, 2021, 43(4):63-70.
	LIU Jindou, CHENG Jie, YU Gaowei. Research on a PV-energy storage system with integration of grid-connection and disconnection modes based on low-pressure DC distribution network[J]. Huadian Technology, 2021, 43(4):63-70.
[19]	GOLSHANNAVAZ S, AFSHARNIA S, AMINIFAR F. Smart distribution grid:Optimal day-ahead scheduling with reconfigurable topology[J]. IEEE Transactions on Smart Grid, 2014, 5(5):2402-2411. doi: 10.1109/TSG.2014.2335815
[20]	ZHAO B, ZHANG X S, CHEN J, et al. Operation optimization of standalone microgrids considering lifetime characteristics of battery energy storage system[J]. IEEE Transactions on Sustainable Energy, 2013, 4(4):934-943. doi: 10.1109/TSTE.2013.2248400
[21]	南方能源监管局,广东省经济和信息化委,广东省发展改革委. 广东电力市场交易基本规则(试行):南方监能市场〔2017〕20号[EB/OL].(2017-01-19)[2021-06-30]. http://nfj.nea.gov.cn/adminContent/initViewContent.do?pk=402881e55992395f0159b57e91820035 .
[22]	PJM. PJM manual 12:Balancing operations[EB/OL].(2016-08-07)[2021-06-30]. http://www.pjm.com/media/documents/manuals/m12.ashx .
[23]	王浩浩, 陈嘉俊, 朱涛, 等. 计及储能寿命与调频性能的风储联合投标模型及算法[J]. 电网技术, 2021, 45(1):208-217.
	WANG Haohao, CHEN Jiajun, ZHU Tao, et al. Joint bidding model and algorithm of wind-storage system considering energy storage life and frequency regulation performance[J]. Power System Technology, 2021, 45(1):208-217.
[24]	朱涛, 陈嘉俊, 段秦刚, 等. 基于近似动态规划的工业园区源-网-荷-储联合运行在线优化算法[J]. 电网技术, 2020, 44(10):3744-3752.
	ZHU Tao, CHEN Jiajun, DUAN Qingang, et al. Approximate dynamic programming-based online algorithm for combination operation of source-network-load-storage in the industrial park[J]. Power System Technology, 2020, 44(10):3744-3752.
[25]	帅航. 基于近似动态规划(ADP)的微电网日内在线优化运行方法研究[D]. 武汉:华中科技大学, 2019.

项目	快速调频RegD	常规调频RegA
日收益/元	282 388.950 2	165 264.454 9
日前能量收益/元	36 377.407 6	28 528.073 8
调频容量补偿/元	148 850.379 7	141 107.217 6
调频里程补偿/元	124 514.430 0	39 978.020 9
平均调频性能指标	0.950 0	0.950 0
储能系统寿命成本/元	27 353.267 0	44 348.857 4
储能系统等效日循环/次	0.994 6	1.612 6
储能系统运行年限/a	11.017 6	6.795 4

项目	夸大系数1.25		夸大系数1.10		夸大系数1.00
项目	广东	PJM	广东	PJM	广东、PJM
日总收益/元	454 568.086 2	449 007.762 8	447 786.138 1	447 619.115 4	429 337.389 0
能量市场收益/元	32 174.678 0	33 952.616 5	33 730.283 6	33 952.616 5	35 652.622 8
调频容量收益/元	276 625.570 0	272 395.873 3	271 677.810 1	271 269.222 9	255 929.790 9
调频里程收益/元	226 165.807 0	222 863.849 4	222 360.959 7	222 105.828 8	209 386.144 2
平均调频性能指标	0.934 8	0.943 4	0.948 8	0.946 2	0.950 0
储能系统运行成本/元	80 397.968 8	80 204.576 3	79 982.915 2	79 708.552 7	71 631.168 8
储能系统等效日循环/次	2.923 5	2.916 5	2.908 46	2.898 4	2.604 7
储能系统运行年限/a	3.748 4	3.757 5	3.767 9	3.780 8	4.207 2
