计及高比例分布式光伏能源接入的配电网状态估计

doi:10.3969/j.issn.2097-0706.2022.10.002

摘要/Abstract

摘要：

分布式能源具有节能环保、资源丰富、建设简单等优势，被广泛引入到传统配电网中。为保证含分布式能源配电网的安全运行，亟须建立适应分布式能源接入的配电网状态估计方法，以提高状态估计结果的精确度和可靠性。以接入光伏发电（PV）系统的配电网为研究对象。首先，对接入光伏电源的配电网进行数学建模，基于PV较少或不发出无功功率的特点，将PV处理为PQ节点；其次，结合PV系统的特性，提出基于改进加权最小二乘法的配电网状态估计方法。最后，通过IEEE 33节点系统算例分析验证了所提出的计及光伏电源接入的配电网状态估计方法的可行性和有效性。

关键词: 配电网, 状态估计, 分布式能源, 基本加权最小二乘法, 光伏发电系统

Abstract:

Being of energy conservation，environmental protection，rich reservoir，simple construction and other advantages，distributed energy has been widely connected to the power grid.It is urgent to establish a state estimation method with high accuracy and reliability for the power grid with distributed energy，in order to secure the safe operation of the grid.Taking a distribution network connected PV power generation systems as the research object，the model of the network is established.The PV nodes is switched to PQ nodes since PV has less or no reactive power.Then，a state estimation method for the distribution network connected PV systems is proposed based on an improved weighted least square method.Finally，the feasibility and effectiveness of the proposed state estimation method for the distribution network with photovoltaic energy is verified by an IEEE 33-bus system.

Key words: distribution network, state estimation, distributed energy, basic weighted least square method, photovoltaic power generation system

中图分类号:

TK9：TM711X

王义, 杨志伟, 吴坡, 刘明洋, 裴杰才, 李春蕾. 计及高比例分布式光伏能源接入的配电网状态估计[J]. 综合智慧能源, 2022, 44(10): 12-18.

WANG Yi, YANG Zhiwei, WU Po, LIU Mingyang, PEI Jiecai, LI Chunlei. State estimation for the distribution network with high-proportion distributed photovoltaic energy[J]. Integrated Intelligent Energy, 2022, 44(10): 12-18.

图/表 8

表1

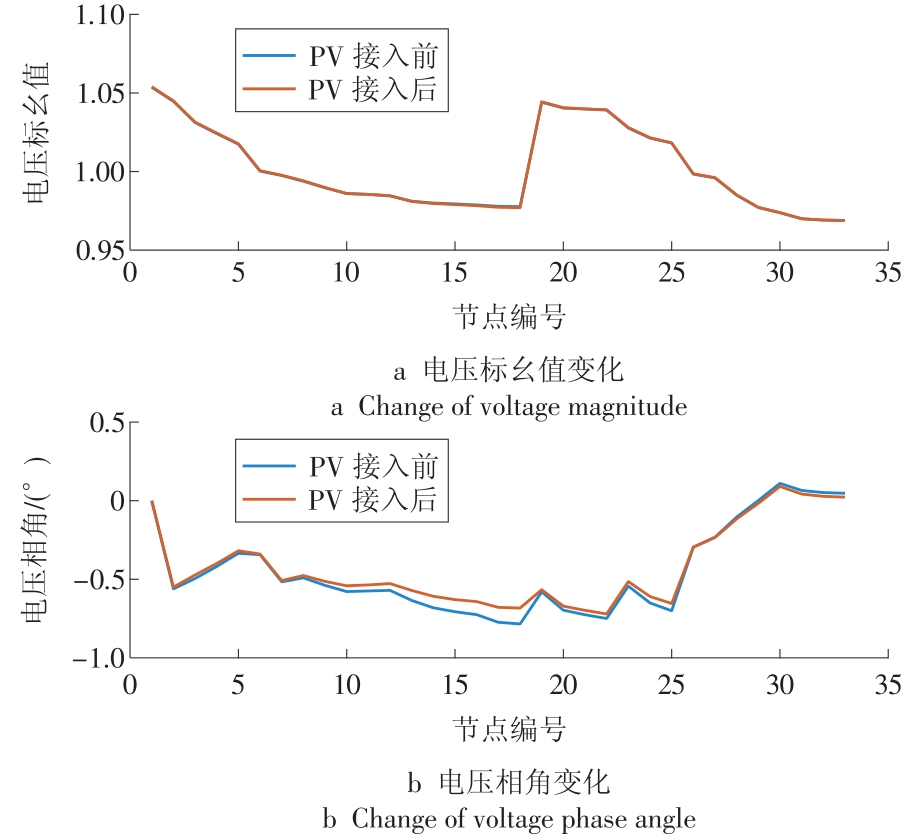

图1

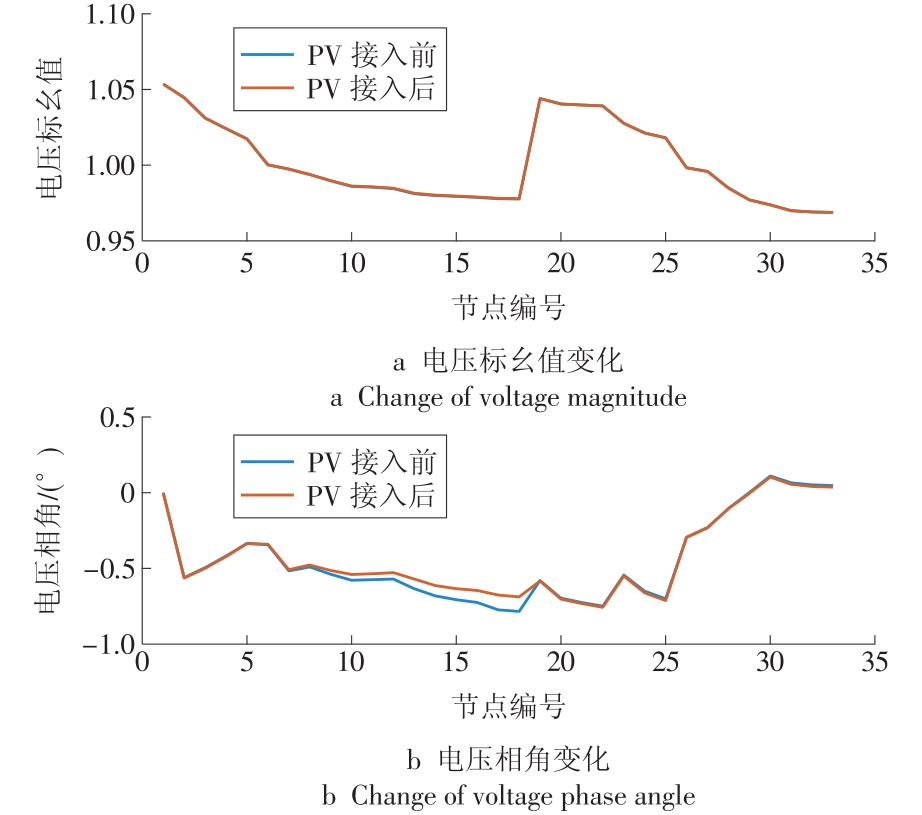

图2

表2

表3

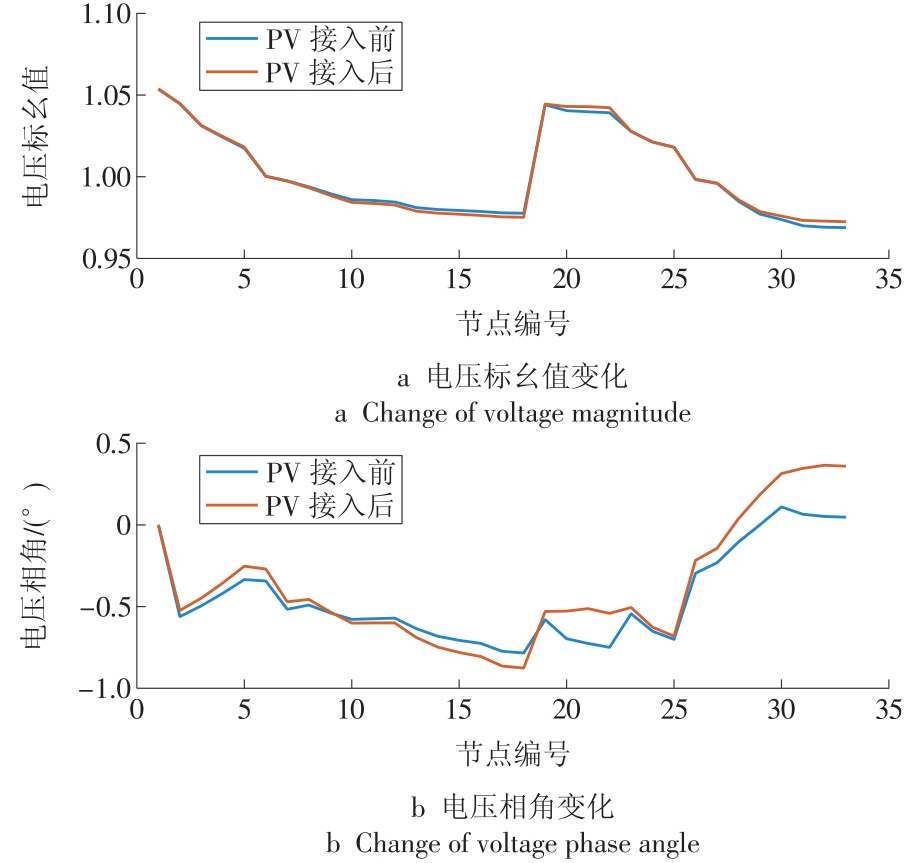

图3

表4

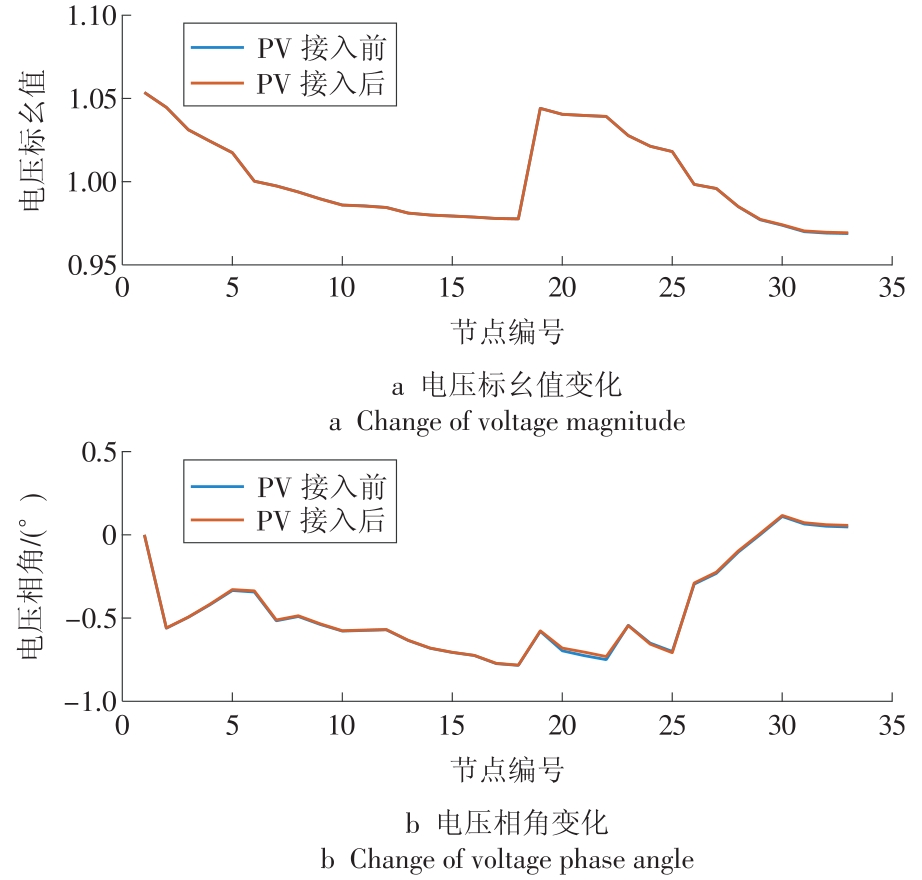

图4

参考文献 22

[1]	詹天津, 谢玉荣. 国内分布式光伏发展形势分析及思考[J]. 华电技术, 2021, 43(12):60-65.
	ZHAN Tianjin, XIE Yurong. Development status analysis and consideration on domestic distributed PV energy[J]. Huadian Technology, 2021, 43(12):60-65.
[2]	徐俊俊, 吴在军, 胡秦然, 等. 考虑多类型分布式电源和负荷不确定性的主动配电网区间状态估计[J]. 中国电机工程学报, 2018, 38(11):3255-3266.
	XU Junjun, WU Zaijun, HU Qinran, et al. Interval state estimation for active distribution networks considering uncertainties of multiple types of DGs and loads[J]. Proceedings of the CSEE, 2018, 38(11):3255-3266.
[3]	韩峰, 张衍国, 严矫平, 等. 综合能源服务业务和合作模式[J]. 华电技术, 2019, 41(11):1-4.
	HAN Feng, ZHANG Yanguo, YAN Jiaoping, et al. Integrated energy service and cooperation modes[J]. Huadian Technology, 2019, 41(11):1-4.
[4]	陈建国, 张国民. 分布式电站光伏汇流箱布置优化策略[J]. 华电技术, 2019, 41(3):18-22.
	CHEN Jianguo, ZHANG Guomin. Optimization strategy for locating of combiner box for distributed photovoltaic power station[J]. Huadian Technology, 2019, 41(3):18-22.
[5]	唐成虹, 李淑锋, 陈永华, 等. 计及分布式电源的主动配电系统状态估计[J]. 广东电力, 2021, 34(3):60-67.
	TANG Chenghong, LI Shufeng, CHEN Yonghua, et al. State estimation of active distribution system considering DGs[J]. Guangdong Electric Power, 2021, 34(3):60-67.
[6]	方治, 宋绍剑, 林予彰, 等. 含光伏电站和蓄电池储能系统的主动配电系统状态估计[J]. 电力系统自动化, 2019, 43(13):71-79.
	FANG Zhi, SONG Shaojian, LIN Yuzhang, et al. State estimation for active distribution systems incorporating photovoltaic plant and battery energy storage system[J]. Automation of Electric Power Systems, 2019, 43(13):71-79.
[7]	怀全, 候小虎, 何良策, 等. 一种含分布式电源的中低压配电网状态估计方法研究[J]. 电力系统保护与控制, 2018, 46(21):69-77.
	HUAI Quan, HOU Xiaohu, HE Liangce, et al. A method of state estimation for middle voltage and low voltage distribution network with distributed generations[J]. Power System Protection and Control, 2018, 46(21):69-77.
[8]	申定辉, 于晓蕾, 赵海洋. 含风光发电的配电网状态估计研究[J]. 黑龙江电力, 2016, 38(5):466-470.
	SHEN Dinghui, YU Xiaolei, ZHAO Haiyang. Research on distribution system state estimation with wind and photovoltaic power generation[J]. Heilongjiang Electric Power, 2016, 38(5):466-470.
[9]	于尔铿. 电力系统状态估计[M]. 北京: 水利电力出版社,1985.
[10]	彭彬, 刘宁, 吴迪. 配电网潮流计算中的分布式电源建模[J]. 电力系统及其自动化学报, 2011, 23(2):152-156.
	PENG Bin, LIU Ning, WU Di. Modeling of distributed generation for distribution system power flow calculation[J]. Proceedings of the CSU-EPSA, 2011, 23(2):152-156.
[11]	FANG Z, LIN Y Z, SONG S J, et al. Active distribution system state estimation incorporating photovoltaic generation system model[J]. Electric Power Systems Research, 2020, 182:106247. doi: 10.1016/j.epsr.2020.106247
[12]	巨云涛, 林毅, 王晶, 等. 考虑分布式电源详细模型的配电网多相状态估计[J]. 电力系统保护与控制, 2016, 44(23):147-152.
	JU Yuntao, LIN Yi, WANG Jing, et al. Multi‑phase distribution state estimation considering detailed models of distributed generators[J]. Power System Protection and Control, 2016, 44(23):147-152.
[13]	李静, 李幸芝, 韩蓓, 等. 考虑分布式电源不确定性与相关性的配电网状态估计[J]. 全球能源互联网, 2020, 3(3):231-237.
	LI Jing, LI Xingzhi, HAN Bei, et al. State estimation in distribution systems considering distributed generation uncertainties with correlations[J]. Journal of Global Energy Interconnection, 2020, 3(3):231-237.
[14]	金月, 王致杰, 张灵杰, 等. 含分布式能源的主动配电网状态估计[J]. 上海电机学院学报, 2020, 23(1):17-22.
	JIN Yue, WANG Zhijie, ZHANG Lingjie et al. State estimation of active distribution network with distributed energy[J]. Journal of Shanghai Dianji University, 2020, 23(1):17-22.
[15]	KHORSHIDI R, SHABANINIA F, NIKNAM T. A new smart approach for state estimation of distribution grids considering renewable energy sources[J]. Energy, 2016, 94:29-37. doi: 10.1016/j.energy.2015.10.096
[16]	王韶, 江卓翰, 朱姜峰, 等. 计及分布式电源接入的配电网状态估计[J]. 电力系统保护与控制, 2013, 41(13):82-87.
	WANG Shao, JIANG Zhuohan, ZHU Jiangfeng, et al. State estimation of distribution network involving distributed generation[J]. Power System Protection and Control, 2013, 41(13):82-87.
[17]	陈宏岩, 唐治国, 陈琦, 等. 基于区间潮流算法的低压配电网分散无功补偿优化方法[J]. 华电技术, 2020, 42(6):1-5.
	CHEN Hongyan, TANG Zhiguo, CHEN Qi, et al. Optimized method on distributed reactive power compensation in low‑voltage distribution network based on interval power flow calculation[J]. Huadian Technology, 2020, 42(6):1-5.
[18]	CHENG G, SONG S J, LIN Y Z, et al. Enhanced state estimation and bad data identification in active power distribution networks using photovoltaic power forecasting[J]. Electric Power Systems Research, 2019, 177:105974. doi: 10.1016/j.epsr.2019.105974
[19]	WU S T, LI Y. State estimation of distribution network considering data compatibility[J]. Energy and Power Engineering, 2020, 12(4):73-83.
[20]	MOTOVILOV S I. Quality of the state estimation of an electric power system and its numerical measurement[J]. Power technology and engineering, 2019, 53(2):248-251. doi: 10.1007/s10749-019-01067-z
[21]	黎津池. 基于短期负荷预测含分布式发电配电网状态估计[J]. 四川电力技术, 2016, 39(3):1-6,16.
	LI Jinchi. State estimation of distribution network with distributed generation based on short‑term load forecasting[J]. Sichuan Electric Power Technology, 2016, 39(3):1-6,16.
[22]	姚哲豪, 郑莆燕, 袁言周. 基于两级策略的双源分布式供能系统运行优化研究[J]. 综合智慧能源, 2022, 44(1):56-62. doi: 10.3969/j.issn.2097-0706.2022.01.008
	YAO Zhehao, ZHENG Puyan, YUAN Yanzhou. Operation optimization of dual‑source distributed energy supply systems based on two‑level strategy[J]. Integrated Intelligent Energy, 2022, 44(1):56-62. doi: 10.3969/j.issn.2097-0706.2022.01.008

节点编号	PV接入后		PV接入前
节点编号	电压标幺值	电压相角/（°）	电压标幺值	电压相角/（°）
1	1.053 6	0.000 0	1.053 7	0.000 0
2	1.044 6	-0.558 8	1.044 7	-0.560 8
3	1.031 2	-0.493 5	1.031 2	-0.495 0
4	1.024 2	-0.414 9	1.024 3	-0.418 4
5	1.017 5	-0.328 3	1.017 4	-0.334 2
6	1.000 3	-0.336 5	1.000 3	-0.343 2
7	0.997 5	-0.510 8	0.997 5	-0.515 9
8	0.993 8	-0.485 6	0.993 9	-0.490 4
9	0.989 6	-0.534 6	0.989 7	-0.538 2
10	0.986 0	-0.575 4	0.986 0	-0.577 7
11	0.985 4	-0.572 0	0.985 5	-0.574 1
12	0.984 5	-0.568 3	0.984 6	-0.570 3
13	0.981 1	-0.633 0	0.981 2	-0.634 4
14	1.040 5	-0.680 0	1.040 5	-0.696 2
15	1.039 8	-0.704 2	1.039 8	-0.725 2
16	1.039 3	-0.730 8	1.039 2	-0.749 2

节点编号	PV接入后		PV接入前
节点编号	电压标幺值	电压相角/（°）	电压标幺值	电压相角/（°）
1	1.053 8	0.000 0	1.053 7	0.000 0
2	1.044 9	-0.523 1	1.044 7	-0.560 8
3	1.031 5	-0.447 8	1.031 2	-0.495 0
4	1.024 7	-0.355 5	1.024 3	-0.418 4
5	1.018 2	-0.251 8	1.017 4	-0.334 2
6	1.000 3	-0.269 6	1.000 3	-0.343 2
7	0.997 4	-0.470 0	0.997 5	-0.515 9
8	0.993 3	-0.455 8	0.993 9	-0.490 4
9	0.988 6	-0.532 9	0.989 7	-0.538 2
10	0.984 4	-0.600 6	0.986 0	-0.577 7
11	0.983 7	-0.599 6	0.985 5	-0.574 1
12	0.982 7	-0.599 7	0.984 6	-0.570 3
13	0.979 0	-0.688 4	0.981 2	-0.634 4
14	0.977 7	-0.747 6	0.980 0	-0.681 3
15	0.977 1	-0.780 4	0.979 4	-0.706 2
16	0.976 4	-0.804 8	0.978 8	-0.724 8

节点编号	PV接入后		PV接入前
节点编号	电压标幺值	电压相角/（°）	电压标幺值	电压相角/（°）
1	1.054 0	0.000 0	1.053 7	0.000 0
2	1.045 0	-0.549 4	1.044 7	-0.560 8
3	1.031 5	-0.472 6	1.031 2	-0.495 0
4	1.024 5	-0.399 1	1.024 3	-0.418 4
5	1.017 7	-0.318 4	1.017 4	-0.334 2
6	1.000 6	-0.338 9	1.000 3	-0.343 2
7	0.997 7	-0.507 3	0.997 5	-0.515 9
8	0.994 1	-0.475 6	0.993 9	-0.490 4
9	0.989 9	-0.513 0	0.989 7	-0.538 2
10	0.986 1	-0.541 2	0.986 0	-0.577 7
11	0.985 5	-0.535 4	0.985 5	-0.574 1
12	0.984 6	-0.527 0	0.984 6	-0.570 3
13	0.981 0	-0.570 9	0.981 2	-0.634 4
14	0.979 7	-0.607 8	0.980 0	-0.681 3
15	0.979 0	-0.629 2	0.979 4	-0.706 2
16	0.978 3	-0.641 5	0.978 8	-0.724 8

节点编号	PV接入后		PV接入前
节点编号	电压标幺值	电压相角/（°）	电压标幺值	电压相角/（°）
1	1.053 5	0.000 0	1.053 7	0.000 0
2	1.044 6	-0.563 2	1.044 7	-0.560 8
3	1.031 1	-0.498 9	1.031 2	-0.495 0
4	1.024 2	-0.421 5	1.024 3	-0.418 4
5	1.017 4	-0.336 1	1.017 4	-0.334 2
6	1.000 2	-0.340 2	1.000 3	-0.343 2
7	0.997 4	-0.508 4	0.997 5	-0.515 9
8	0.993 9	-0.477 6	0.993 9	-0.490 4
9	0.989 8	-0.513 3	0.989 7	-0.538 2
10	0.986 2	-0.540 1	0.986 0	-0.577 7
11	0.985 7	-0.534 9	0.985 5	-0.574 1
12	0.984 9	-0.527 5	0.984 6	-0.570 3
13	0.981 5	-0.570 0	0.981 2	-0.634 4
14	0.980 3	-0.613 2	0.980 0	-0.681 3
15	0.979 7	-0.633 4	0.979 4	-0.706 2
16	0.979 1	-0.645 3	0.978 8	-0.724 8
