考虑风电机组虚拟惯量的新型电力系统频率分布式模型预测控制策略

doi:10.3969/j.issn.2097-0706.2022.10.004

综合智慧能源 ›› 2022, Vol. 44 ›› Issue (10): 25-32.doi: 10.3969/j.issn.2097-0706.2022.10.004

考虑风电机组虚拟惯量的新型电力系统频率分布式模型预测控制策略

屈涛涛¹(), 綦晓¹^,^*(), 蒋文珂¹(), 杜鸣²(), 潘岩³()

1. 暨南大学能源电力研究中心，广东珠海 519070
2. 华北电力大学国家能源发展战略研究院，北京 102206
3. 长沙有色冶金设计研究院有限公司研发中心，长沙 410019

收稿日期:2022-05-05 修回日期:2022-07-26 出版日期:2022-10-25 发布日期:2022-12-03
通讯作者: 綦晓
作者简介:屈涛涛（1998），男，在读硕士研究生，从事分布式风储协同控制方面的研究，qutaotao@stu2020.jnu.edu.cn
蒋文珂（1997），男，在读硕士研究生，从事电力系统调频控制与优化方面的研究，chiang@stu2021.jnu.edu.cn
杜鸣（1992），男，博士，从事电力系统调频控制技术方面的研究，zjajdming@163.com
潘岩（1990），男，工程师，博士，从事自动控制应用方面的研究，panyan_cinf@163.com
基金资助:
国家重点研发计划项目(2020YFB1713800);广东省基础与应用基础研究基金项目(2021A1515110016);中国能源建设集团广东省电力设计研究院有限公司科技项目(ZCNF00314-S-CT0016);中央高校基本科研业务费青年项目(21620336)

Frequency distributed model predictive control strategy for the new power system considering virtual inertia of wind turbines

QU Taotao¹(), QI Xiao¹^,^*(), JIANG Wenke¹(), DU Ming²(), PAN Yan³()

1. Electricity Research Center， Jinan University， Zhuhai 519070，China
2. National Institute of Energy Development Strategy，North China Electric Power University，Beijing 102206，China
3. Research and Development Center， Changsha Nonferrous Metallurgy Design and Research Institute Company Limited， Changsha 410019，China

Received:2022-05-05 Revised:2022-07-26 Online:2022-10-25 Published:2022-12-03
Contact: QI Xiao

摘要/Abstract

摘要：

“双碳”目标下，大规模风电并网对新型电力系统频率安全造成严重威胁。风机虚拟惯量控制和模型预测频率控制是解决上述问题的主要研究方向，但当前模型预测频率控制研究中的预测模型往往未考虑虚拟惯量控制过程，致使预测精度不足，频率控制受到干扰。为此，提出了一种考虑风机虚拟惯量的频率分布式模型预测控制策略。首先，设计虚拟惯量控制环节以发挥风电机组自身的调频能力；其次，为解决风机虚拟惯量控制导致系统等效惯量变化的问题，重构了考虑风机虚拟惯量的调频预测模型；最后，根据重构模型设计频率分布式模型预测控制器，并在Matlab/Simulink中建立四区域互联电力系统模型验证其有效性。

关键词: “双碳”目标, 虚拟惯量, 分布式模型预测控制, 新型电力系统, 负荷频率控制, 风电功率

Abstract:

Under the "dual carbon" target，large-scale wind power grid connection poses a serious threat to frequency safety of new power systems. Virtual inertia control and model predictive frequency control are the main research directions to solve the problem above. However， in the current research on model prediction frequency control，the virtual inertia control process is seldom taken into account in the prediction model， resulting in insufficient prediction accuracy and interference in frequency control. Thus，a frequency distributed model predictive control strategy considering virtual inertia control of wind turbines is proposed.Virtual inertia control is designed to give play to the frequency modulation capability of wind turbines. To deal with the variation of system equivalent inertia led by virtual inertia control， the frequency control prediction model considering virtual inertia of wind turbines is reconstructed. Finally， a frequency distributed model predictive controller is designed according to the reconstructed model， and its effectiveness is verified by the model of a four-area interconnected power system established in Matlab/Simulink.

Key words: "dual carbon" target, virtual inertia, distributed model predictive control, new power system, load frequency control, wind power

中图分类号:

TK89：TP274

屈涛涛, 綦晓, 蒋文珂, 杜鸣, 潘岩. 考虑风电机组虚拟惯量的新型电力系统频率分布式模型预测控制策略[J]. 综合智慧能源, 2022, 44(10): 25-32.

QU Taotao, QI Xiao, JIANG Wenke, DU Ming, PAN Yan. Frequency distributed model predictive control strategy for the new power system considering virtual inertia of wind turbines[J]. Integrated Intelligent Energy, 2022, 44(10): 25-32.

图/表 14

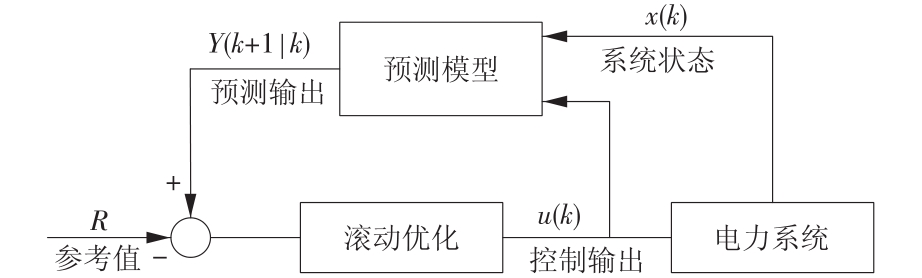

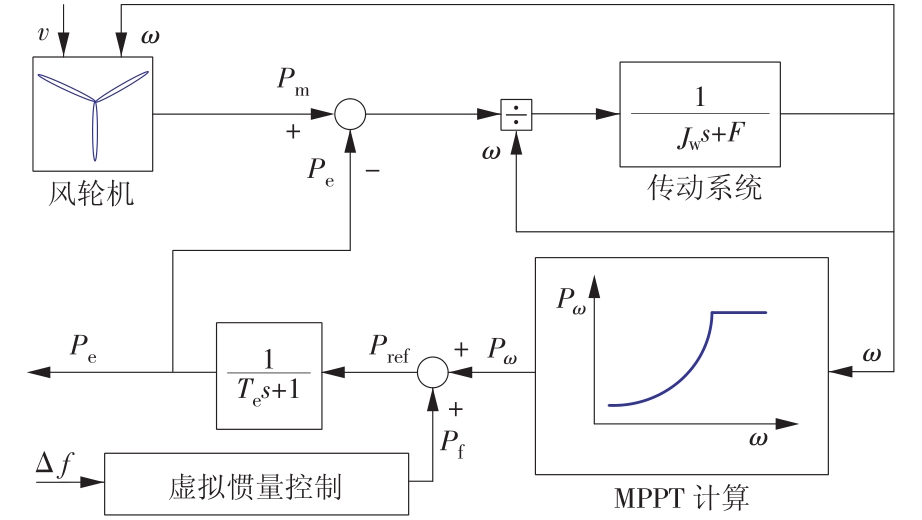

图1

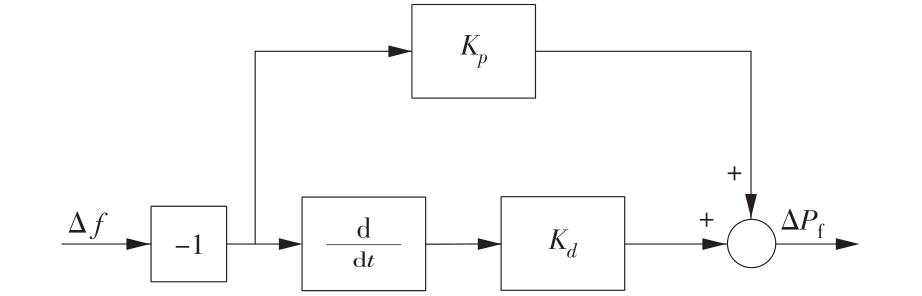

图2

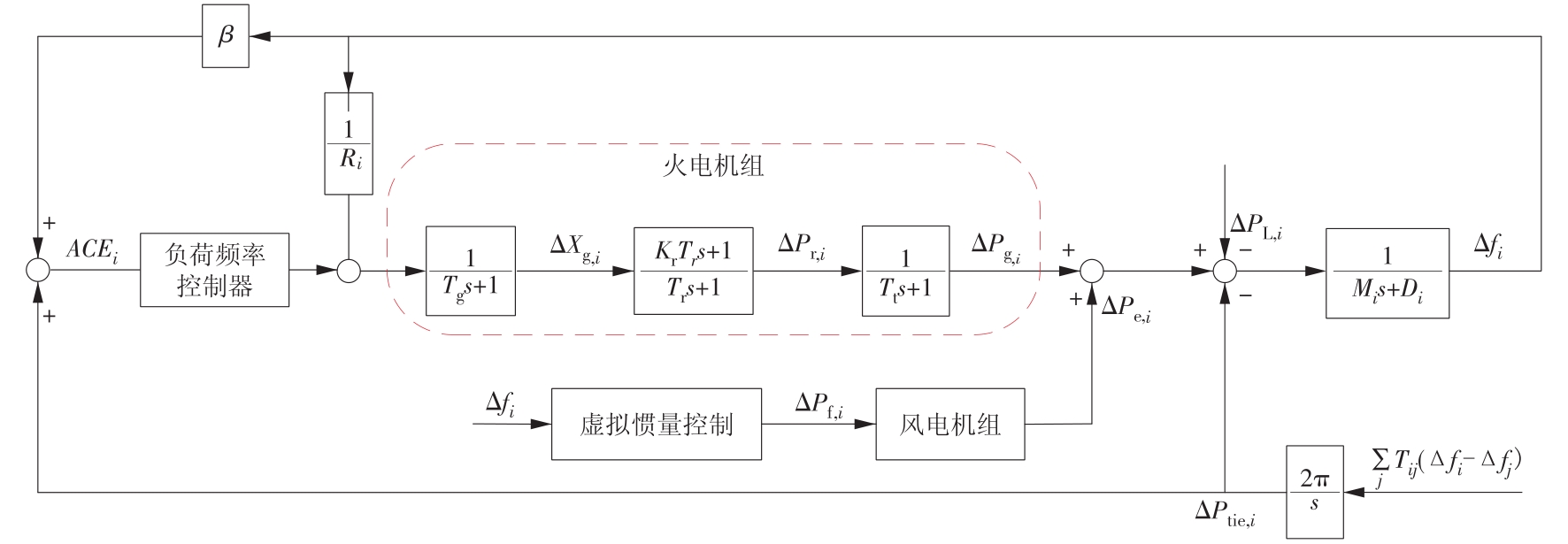

图3

图4

表1

仿真参数

系统	参数
风电机组模型	$v n$ =12 m/s; $v 0$ =11 m/s; $ω n$ =1.091（标幺值）； $λ n$ =8.1; $J w$ =10.38; $F$ =0.01; $T e$ =0.02; $C p, n$ =0.44; $K c$ =0.578 7; $K p$ =4; $K d$ =1
电力系统调频模型	$T r$ =7 s; $T t$ =0.3 s; $T g$ =0.2 s; $K r$ =0.3; $R$ =0.02; $M$ =25 ; $D$ =0.5; $T 12$ =0.2; $T 23$ =0.15; $T 34$ =0.25; $T 41$ =0.21

表1

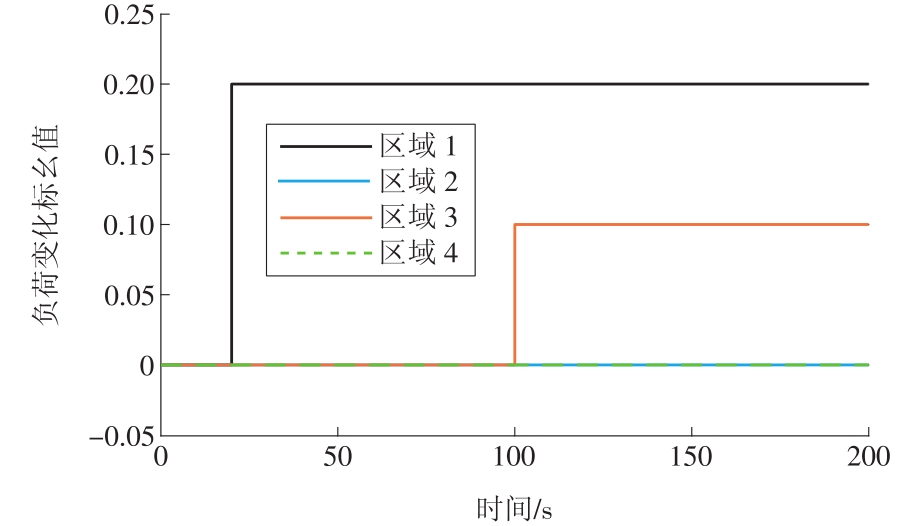

图5

图6

表2

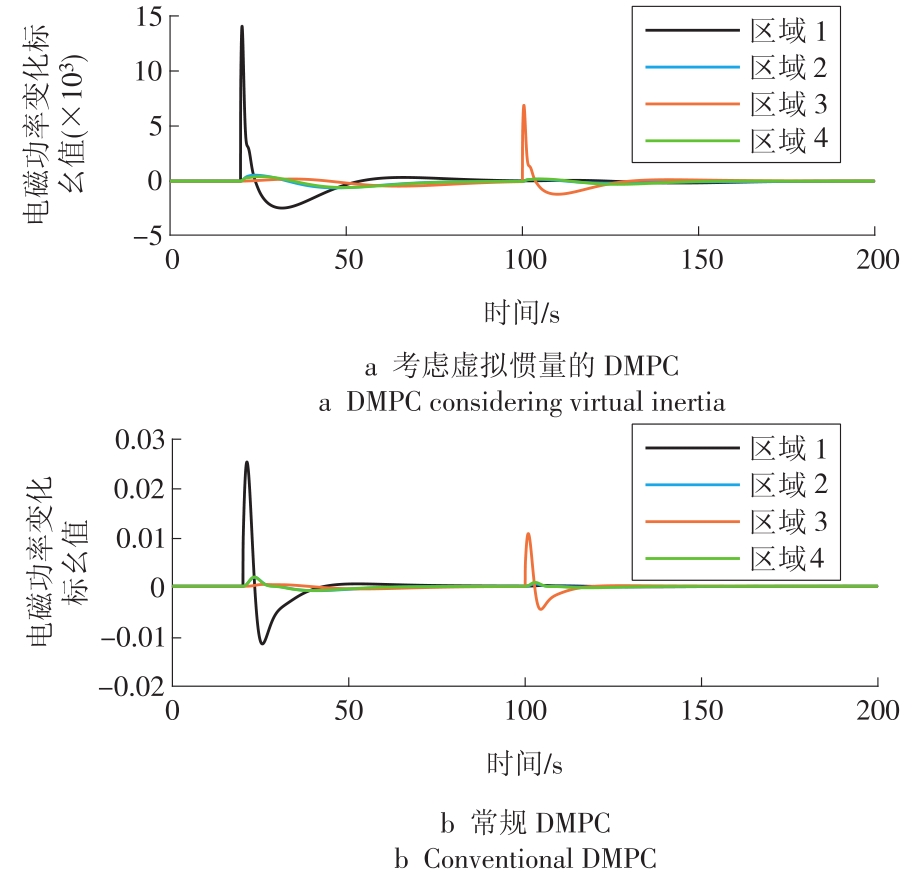

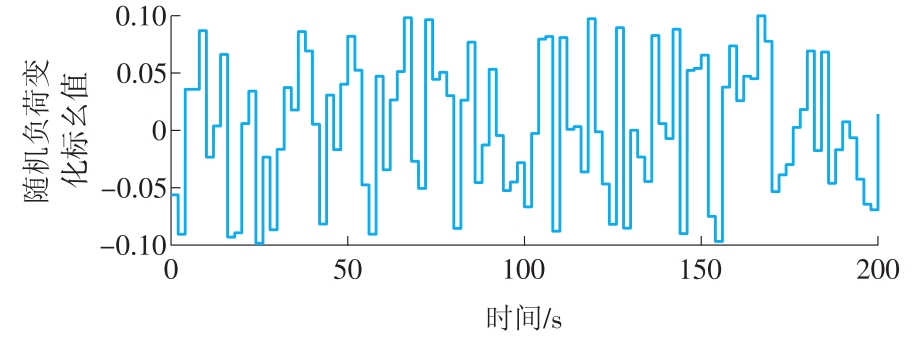

图7

图8

图9

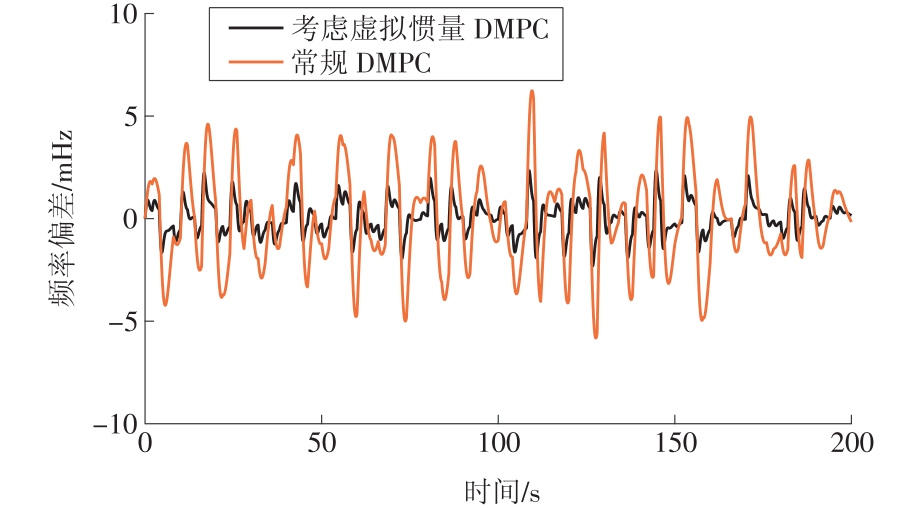

图10

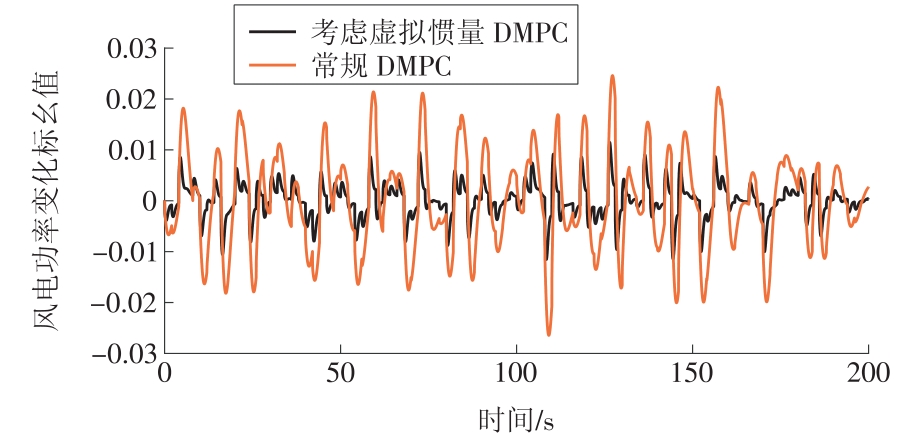

图11

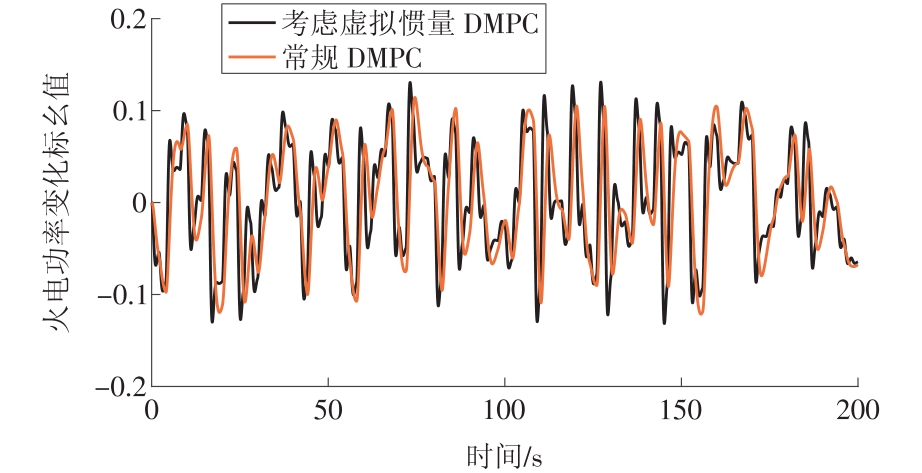

图12

参考文献 26

[1]	国家能源局. 国家能源局发布2021年全国电力工业统计数据[R/OL].(2022-01-26)[2022-05-01]. .
[2]	张旭, 陈云龙, 岳帅, 等. 风电参与电力系统调频技术研究的回顾与展望[J]. 电网技术, 2018, 42(6):1793-1803.
	ZHANG Xu, CHEN Yunlong, YUE Shuai, et al. Retrospect and prospect of research on frequency regulation technology of power system by wind power[J]. Power System Technology, 2018, 42(6):1793-1803.
[3]	王康平, 张兴科, 刘财华, 等. 基于自适应下垂控制的风电场无功电压控制策略[J]. 综合智慧能源, 2022, 44(4): 12-19. doi: 10.3969/j.issn.2097-0706.2022.04.002
	WANG Kangping, ZHANG Xingke, LIU Caihua, et al. Reactive power and voltage control strategy based on adaptive droop control for wind power plants[J]. Integrated Intelligent Energy, 2022, 44(4): 12-19. doi: 10.3969/j.issn.2097-0706.2022.04.002
[4]	文云峰, 杨伟峰, 林晓煌. 低惯量电力系统频率稳定分析与控制研究综述及展望[J]. 电力自动化设备, 2020, 40(9): 211-222.
	WEN Yunfeng, YANG Weifeng, LIN Xiaohuang. Review and prospect of frequency stability analysis and control of low-inertia power systems[J]. Electric Power Automation Equipment, 2020, 40(9):211-222.
[5]	王同森, 张峰, 丁磊. 考虑最优运行点的超速风电机组调频控制策略[J]. 电力自动化设备, 2021, 41(6): 22-28.
	WANG Tongsen, ZHANG Feng, DING Lei. Frequency regulation control strategy of over-speed wind turbines considering optimal operation point[J]. Electric Power Automation Equipment, 2021, 41(6):22-28.
[6]	胥国毅, 胡家欣, 郭树锋, 等. 超速风电机组的改进频率控制方法[J]. 电力系统自动化, 2018, 42(8):39-44.
	XU Guoyi, HU Jiaxin, GUO Shufeng, et al. Improved frequency control strategy for over-speed wind turbines[J]. Automation of Electric Power Systems, 2018, 42(8):39-44.
[7]	李生虎, 朱国伟. 基于特征结构分析的风电机组调频控制桨距角参数选择[J]. 太阳能学报, 2017, 38(3):662-668.
	LI Shenghu, ZHU Guowei. Pitch angle adjustment to wind turbine generators for frequency regulation based on eigenvalue analysis[J]. Acta Energiae Solaris Sinica, 2017, 38(3):662-668.
[8]	郑黎明, 林宇, 陈严, 等. 大型风力机恒功率桨距非线性PID控制方法研究[J]. 太阳能学报, 2012, 33(5):727-731.
	ZHENG Liming, LIN Yu, CHEN Yan, et al. Research on blade pitch nonlinear PID control for a large-scale wind turbine under constant power[J]. Acta Energiae Solaris Sinica, 2012, 33(5):727-731.
[9]	张骏, 苏阳, 李勇, 等. 大型风力机叶片涡流发生器流动控制的数值研究[J]. 华电技术, 2021, 43(12): 66-71.
	ZHANG Jun, SU Yang, LI Yong, CONG Xingliang. Numerical study on the flow control of vortex generators on large wind turbine blades[J]. Huadian Technology, 2021, 43(12): 66-71.
[10]	邢鹏翔, 侍乔明, 王刚, 等. 风电机组虚拟惯量控制的响应特性及机理分析[J]. 高电压技术, 2018, 44(4):1302-1310.
	XING Pengxiang, SHI Qiaoming, WANG Gang, et al. Response characteristics and mechanism analysis about virtual inertia control of wind generators[J]. High Voltage Engineering, 2018, 44(4):1302-1310.
[11]	侍乔明, 王刚, 李海英, 等. 考虑调频能力的风电场虚拟惯量多机协同控制策略[J]. 电网技术, 2019, 43(11):4005-4017.
	SHI Qiaoming, WANG Gang, LI Haiying, et al. Coordinated virtual inertia control strategy of multiple wind turbines in wind farms considering frequency regulation capability[J]. Power System Technology, 2019, 43(11):4005-4017.
[12]	ULLAH N R, THIRINGER T, KARLSSON D. Temporary primary frequency control support by variable speed wind turbines—Potential and applications[J]. IEEE Transactions on Power Systems, 2008, 23(2):601-612. doi: 10.1109/TPWRS.2008.920076
[13]	任凯. 基于自抗扰控制的含风电互联电网的负荷频率控制[D]. 西安: 西安理工大学, 2018.
[14]	韩云昊, 马超, 朱银珠, 等. 考虑风能渗透的电力系统的负荷频率控制研究[J]. 控制工程, 2018, 25(11):2046-2051.
	HAN Yunhao, MA Chao, ZHU Yinzhu, et al. Load frequency control for power systems with wind energy[J]. Control Engineering of China, 2018, 25(11):2046-2051.
[15]	邵泰衡. 区域互联电网频率控制策略研究[D]. 淄博: 山东理工大学, 2020.
[16]	LIU J, YAO Q, HU Y. Model predictive control for load frequency of hybrid power system with wind power and thermal power[J]. Energy, 2019, 172:555-565. doi: 10.1016/j.energy.2019.01.071
[17]	ALI A, KHAN B, MEHMOOD C A, et al. Decentralized MPC based frequency control for smart grid[C]//2017 International Conference on Energy Conservation and Efficiency (ICECE), 2017.
[18]	ZHANG C, WANG S, ZHAO Q. Distributed economic MPC for LFC of multi-area power system with wind power plants in power market environment[J]. International Journal of Electrical Power & Energy Systems, 2021, 126(4):106548. doi: 10.1016/j.ijepes.2020.106548
[19]	MA M, CHEN H, LIU X, et al. Distributed model predictive load frequency control of multi-area interconnected power system[J]. International Journal of Electrical Power & Energy Systems, 2014, 62:289-298. doi: 10.1016/j.ijepes.2014.04.050
[20]	YAN Y, ZHANG Y, LIU X. Distributed MPC strategy with application to AGC in the presence of variable speed wind turbine[C]// 34th Chinese Control Conference (CCC), 2015:4151-4155.
[21]	LEE J, MULJADI E, SRENSEN P, et al. Releasable kinetic energy-based inertial control of a DFIG wind power plant[J]. IEEE Transactions on Sustainable Energy, 2016, 7(1):279-288. doi: 10.1109/TSTE.2015.2493165
[22]	YAN W, CHENG L, YAN S, et al. Enabling and evaluation of inertial control for PMSG-WTG using synchronverter with multiple virtual rotating masses in microgrid[J]. IEEE Transactions on Sustainable Energy, 2020, 11(2):1078-1088. doi: 10.1109/TSTE.2019.2918744
[23]	SANG S, ZHANG C, CAI X, et al. Control of a type-IV wind turbine with the capability of robust grid-synchronization and inertial response for weak grid stable operation[J]. IEEE Access, 2019(7):58553-58569.
[24]	姚琦, 刘吉臻, 胡阳, 等. 含异步变速风机的风电场一次调频等值建模与仿真[J]. 电力系统自动化, 2019, 43(23):185-192.
	YAO Qi, LIU Jizhen, HU Yang, et al. Equivalent modeling and simulation for primary frequency regulation of wind farm with asynchronous variable speed wind turbines[J]. Automation of Electric Power Systems, 2019, 43(23):185-192.
[25]	VRDOLJAK K, PERI N, PETROVI I. Sliding mode based load-frequency control in power systems[J]. Electric Power Systems Research, 2010, 80(5):514-527. doi: 10.1016/j.epsr.2009.10.026
[26]	SOCKEEL N, GAFFORD J, PAPARI B, et al. Virtual inertia emulator-based model predictive control for grid frequency regulation considering high penetration of inverter-based energy storage system[J]. IEEE Transactions on Sustainable Energy, 2020(99).DOI:10.1109/TSTE.2020.2982348. doi: 10.1109/TSTE.2020.2982348

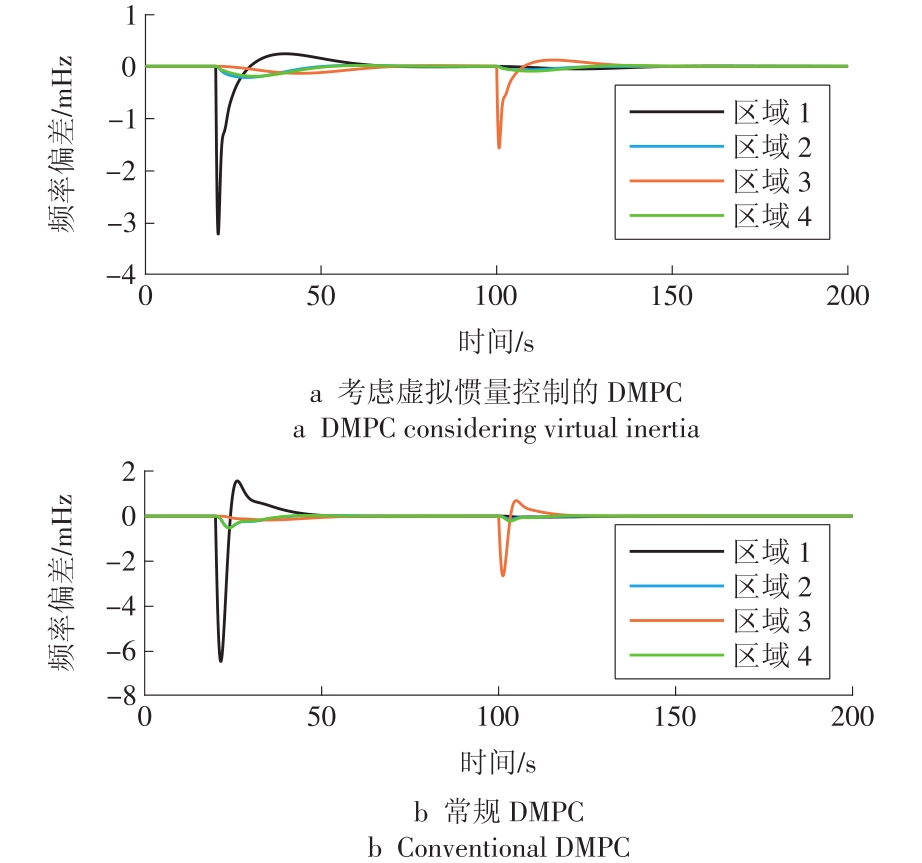

控制策略	最大频率偏差/Hz	调节时间/s
考虑VIC的DMPC	-0.003 2	6
常规DMPC	-0.006 4	14
