基于纳什均衡理论电网需求侧共享储能定价策略

doi:10.3969/j.issn.2097-0706.2023.11.007

摘要/Abstract

摘要：

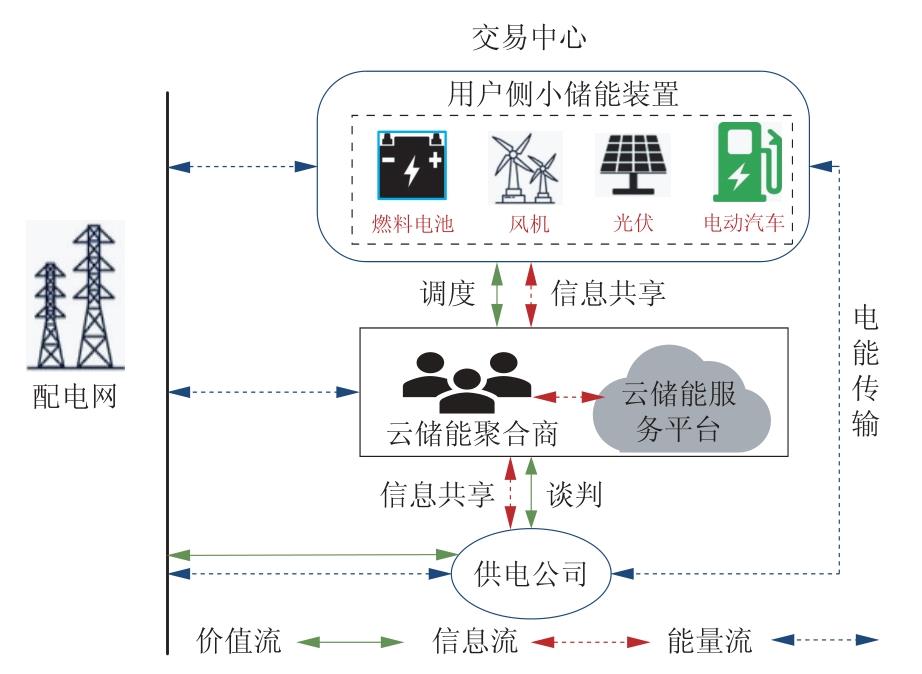

随着新型电力系统建设的推进，用户侧小型储能装置愈发受到重视。然而无序的充放电管理模式既给电网带来安全运行隐患，又造成资源浪费。基于此，提出一种通过储能聚合商云服务平台实现用户侧小储能装置联合调度的运行模式。建立综合考虑储能运营商、储能装置投资者和电网等各参与主体的最优运行模型，然后基于纳什均衡理论建立各参与主体在约束条件下的合作博弈模型。通过算例仿真分析，对模型求解得出最优共享储能定价方案。结果表明：多主体合作最优定价方案达到了削峰填谷、节约资源的目的，同时实现了电网、储能聚合商、储能装置投资者的多方共赢。提出的定价机制被验证具有一定的可行性和科学性。

关键词: 新型电力系统, 用户侧小储能, 共享储能, 储能聚合商, 联合调度, “双碳”目标, 削峰填谷, 纳什均衡, 需求侧管理

Abstract:

With the advancement of the construction of new power systems， small energy storage devices on the user side have become increasingly important. However， their disorder charging and discharging behaviors not only pose safety hazards to the power grid， but also cause resource waste. Based on this， a joint scheduling mode for small energy storage devices on the user side is proposes，which are integrated on an energy storage aggregator cloud service platform. The optimal operation models for energy storage operators， energy storage device investors， and the power grid are established. Based on Nash equilibrium theory， a cooperative game model for all participating entities under their constraints is established. In a numerical simulation analysis，the optimal pricing scheme for shared energy storage devices is obtained by model solving. The results indicate that the optimal pricing scheme can not only achieve the goals of peak load regulation and resources saving， but also lead to a win-win situation among the three participating entities. The feasibility and scientificity of the proposed pricing mechanism have been proven.

Key words: new power system, user-side small energy storage device, shared energy storage, energy storage aggregator, joint scheduling, dual carbon target, peak load shifting, Nash equilibrium, demand side management

中图分类号:

TK01

崔金栋, 朱增陈, 李若彤. 基于纳什均衡理论电网需求侧共享储能定价策略[J]. 综合智慧能源, 2023, 45(11): 55-61.

CUI Jindong, ZHU Zengchen, LI Ruotong. Pricing for shared energy storage strategy on the demand side of power grid based on Nash equilibrium theory[J]. Integrated Intelligent Energy, 2023, 45(11): 55-61.

图/表 9

图1

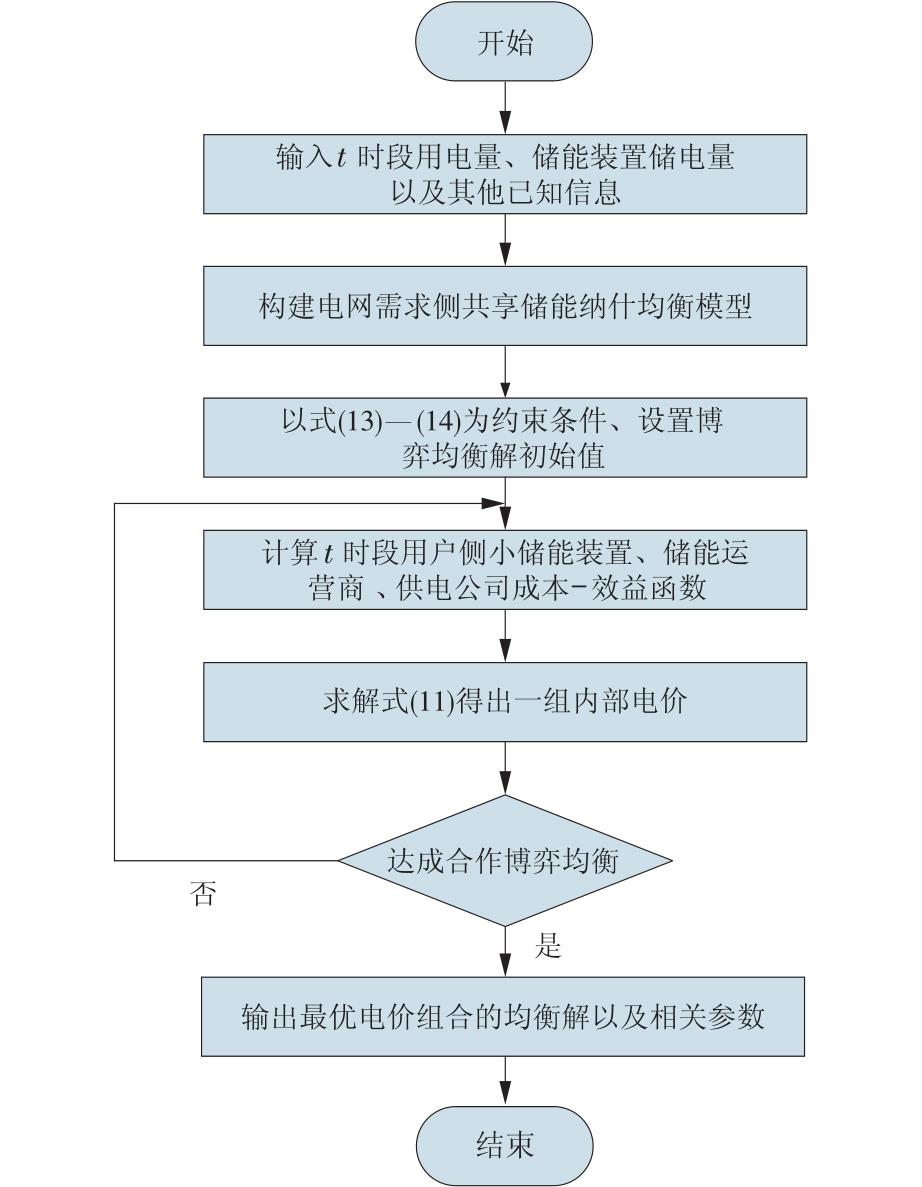

图2

表1

表2

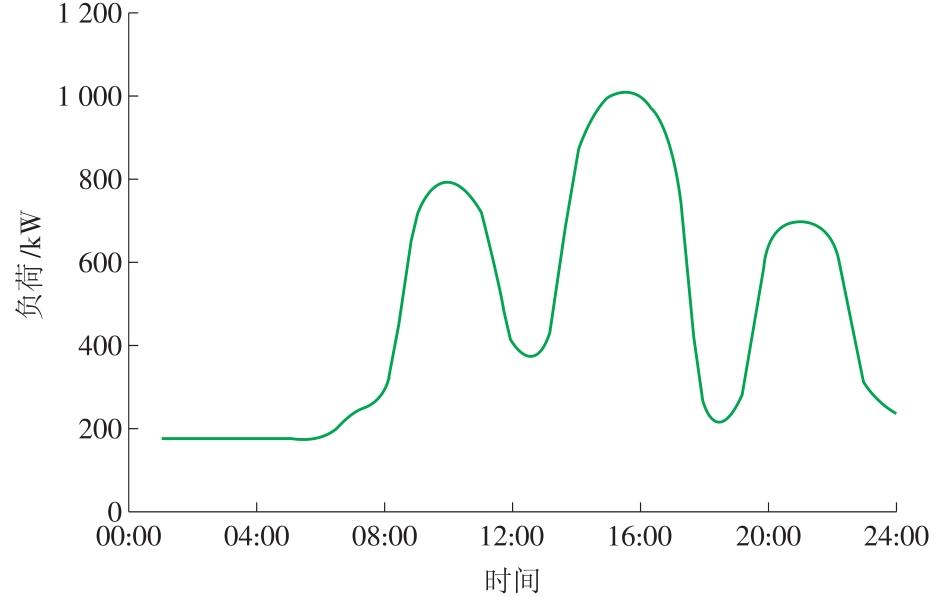

图3

表3

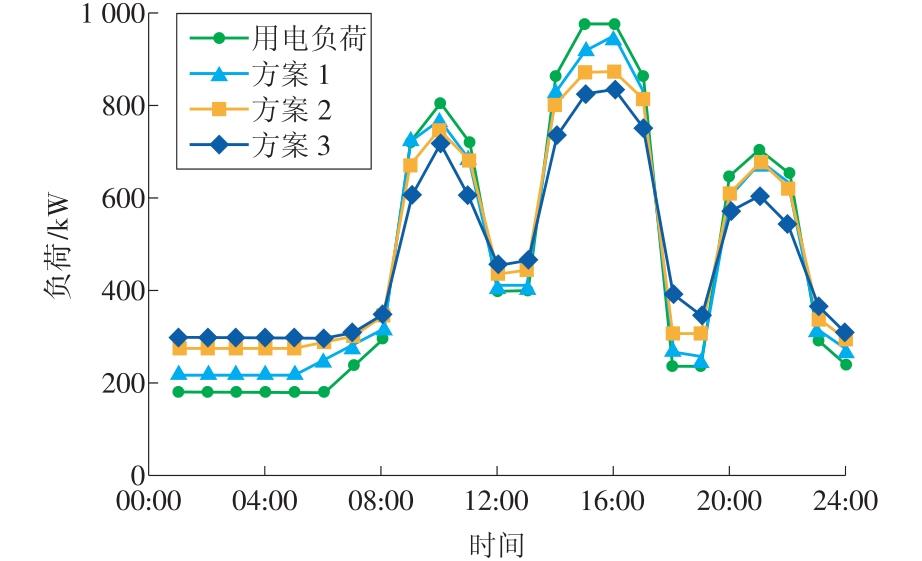

图4

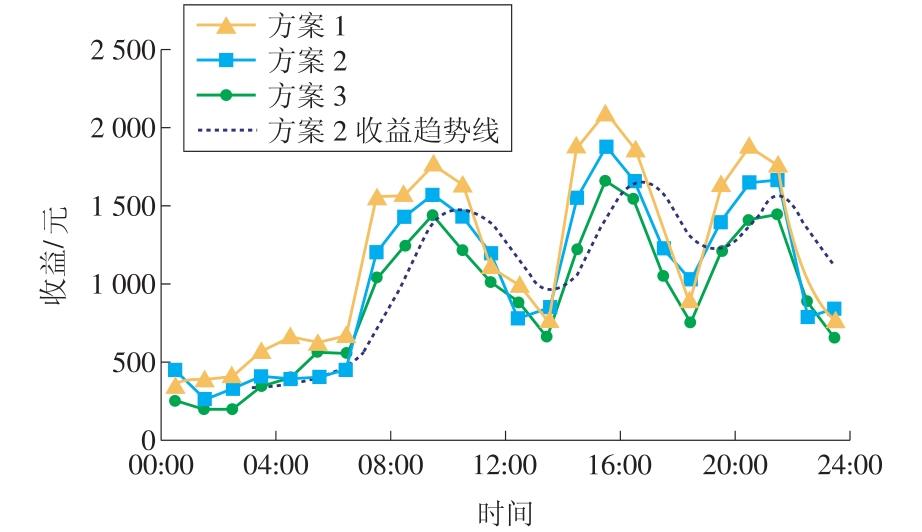

图5

表4

参考文献 21

[1]	张运洲, 张宁, 代红才, 等. 中国电力系统低碳发展分析模型构建与转型路径比较[J]. 中国电力, 2021, 54(3): 1-11.
	ZHANG Yunzhou, ZHANG Ning, DAI Hongcai, et al. Model construction and pathways of low-carbon transition of China's power system[J]. Electric Power, 2021, 54(3): 1-11.
[2]	邱伟强, 王茂春, 林振智, 等. “双碳”目标下面向新能源消纳场景的共享储能综合评价[J]. 电力自动化设备, 2021, 41(10): 244-255.
	QIU Weiqiang, WANG Maochun, LIN Zhenzhi, et al. Comprehensive evaluation of shared energy storage towards new energy accommodation scenario under targets of carbon emission peak and carbon neutrality[J]. Electric Power Automation Equipment, 2021, 41(10): 244-255.
[3]	SINSEL S R, RIEMKE R L, HOFFMANN V H. Challenges and solution technologies for the integration of variable renewable energy sources—A review[J]. Renewable Energy, 2020, 145: 2271-2285. doi: 10.1016/j.renene.2019.06.147
[4]	SONG M, NEJAD R R, SUN W. Robust distribution system load restoration with time-dependent cold load pickup[J]. IEEE Transactions on Power Systems, 2021, 36(4): 3204-3215. doi: 10.1109/TPWRS.2020.3048036
[5]	蓝静, 朱继忠, 李盛林, 等. 考虑碳惩罚的电化学储能消纳风光与调峰研究[J]. 综合智慧能源, 2022, 44(1): 9-17. doi: 10.3969/j.issn.2097-0706.2022.01.002
	LAN Jing, ZHU Jizhong, LI Shenglin, et al. Research on electrochemical energy storage to assist new energy consumption and peak load regulation considering carbon penalty[J]. Integrated Intelligent Energy, 2022, 44(1): 9-17. doi: 10.3969/j.issn.2097-0706.2022.01.002
[6]	冶兆年, 赵长禄, 王永真, 等. 基于纳什议价的共享储能能源互联网络双目标优化[J]. 综合智慧能源, 2022, 44(7): 40-48. doi: 10.3969/j.issn.2097-0706.2022.07.005
	YE Zhaonian, ZHAO Changlu, WANG Yongzhen, et al. Dual-objective optimization of energy networks with shared energy storage based on Nash bargaining[J]. Integrated Intelligent Energy, 2022, 44(7): 40-48. doi: 10.3969/j.issn.2097-0706.2022.07.005
[7]	TUSHAR W, CHAI B, YUEN C, et al. Energy storage sharing in smart grid: A modified auction-based approach[J]. IEEE Transactions on Smart Grid, 2016, 7(3): 1462-1475. doi: 10.1109/TSG.2015.2512267
[8]	WANG Z M, GU C H, LI F R, et al. Active demand response using shared energy storage for household energy management[J]. IEEE Transactions on Smart Grid, 2013, 4(4): 1888-1897. doi: 10.1109/TSG.2013.2258046
[9]	田壁源, 常喜强, 张新燕, 等. 考虑需求响应和共享储能的配电网低碳经济调度[J]. 电力需求侧管理, 2021, 23(5): 52-56.
	TIAN Biyuan, CHANG Xiqiang, ZHANG Xinyan, et al. Low carbon economic dispatch of distribution network considering DR and shared energy storage[J]. Power Demand Side Management, 2021, 23(5): 52-56.
[10]	陈玥, 刘锋, 魏韡, 等. 需求侧能量共享:概念、机制与展望[J]. 电力系统自动化, 2021, 45(2): 1-11.
	CHEN Yue, LIU Feng, WEI Wei, et al. Energy sharing at demand side: Concept, mechanism and prospect[J]. Automation of Electric Power Systems, 2021, 45(2): 1-11.
[11]	梅生伟, 刘锋, 魏韡. 工程博弈论基础及电力系统应用[M]. 北京: 科学出版社, 2016.
[12]	KIM H, LEE J, BAHRAMI S, et al. Direct energy trading of microgrids in distribution energy market[J]. IEEE Transactions on Power Systems, 2019, 35(1): 639-651. doi: 10.1109/TPWRS.59
[13]	LI J Y, ZHANG C R, XU Z, et al. Distributed transactive energy trading framework in distribution networks[J]. IEEE Transactions on Power Systems, 2018, 33(6): 7215-7227. doi: 10.1109/TPWRS.59
[14]	芮涛, 李国丽, 王群京, 等. 配电侧多微电网日前电能交易纳什议价方法[J]. 电网技术, 2019, 43(7): 2576-2585.
	RUI Tao, LI Guoli, WANG Qunjing, et al. Nash bargaining method for multi-microgrid energy trading in distribution network[J]. Power System Technology, 2019, 43(7): 2576-2585.
[15]	SHUAI X Y, WANG X L, GUO H, et al. Cooperative operation mechanism of multi-energy microgrids based on Nash bargaining method[J]. IOP Conference Series: Earth and Environmental Science, 2021, 769(4): 042121. doi: 10.1088/1755-1315/769/4/042121
[16]	马腾飞, 裴玮, 肖浩, 等. 基于纳什谈判理论的风-光-氢多主体能源系统合作运行方法[J]. 中国电机工程学报, 2021, 41(1): 25-39,395.
	MA Tengfei, PEI Wei, XIAO Hao, et al. Cooperative operation method for wind-solar-hydrogen multi-agent energy system based on Nash bargaining theory[J]. Proceedings of the CSEE, 2021, 41(1): 25-39,395.
[17]	张燕, 乔松博, 徐奇锋, 等. 基于纳什议价理论的分布式绿色电力交易优化分析[J]. 中国电力, 2022, 55(12): 168-178.
	ZHANG Yan, QIAO Songbo, XU Qifeng, et al. Analysis of distributed green power transaction optimization based on Nash bargaining theory[J]. Electric Power, 2022, 55(12): 168-178.
[18]	顾欣, 王琦, 胡云龙, 等. 基于纳什议价的多微网综合能源系统分布式低碳优化运行策略[J]. 电网技术, 2022, 46(4): 1464-1482.
	GU Xin, WANG Qi, HU Yunlong, et al. Distributed low-carbon optimal operation strategy of multi-microgrids integrated energy system based on Nash bargaining[J]. Power System Technology, 2022, 46(4): 1464-1482.
[19]	李军祥, 周继儒, 何建佳. 基于区块链的电网实时定价混合博弈研究[J]. 电网技术, 2020, 44(11): 4183-4191.
	LI Junxiang, ZHOU Jiru, HE Jianjia. Mixed game of real-time pricing based on block chain for power grid[J]. Power System Technology, 2020, 44(11): 4183-4191.
[20]	王永真, 张宁, 关永刚, 等. 当前能源互联网与智能电网研究选题的继承与拓展[J]. 电力系统自动化, 2020, 44(4): 1-7.
	WANG Yongzhen, ZHANG Ning, GUAN Yonggang, et al. Inheritance and expansion analysis of research topics between energy internet and smart grid[J]. Automation of Electric Power Systems, 2020, 44(4): 1-7.
[21]	李琦, 王放放, 杨鹏威, 等. 火电厂灵活性改造背景下储能技术应用现状与发展[J]. 综合智慧能源, 2023, 45(3): 66-73. doi: 10.3969/j.issn.2097-0706.2023.03.009
	LI Qi, WANG Fangfang, YANG Pengwei, et al. Application status and development of energy storage technology in the context of flexibility transformation of thermal power plants[J]. Integrated Intelligent Energy, 2023, 45(3): 66-73. doi: 10.3969/j.issn.2097-0706.2023.03.009

参数	数值
额定容量/kW	265.0
充电电压/V	420
充电电流/A	300
充电机功率/kW	126.0
输出功率/kW	58.2

类别	时段	电价
峰时	09:00—12:00, 14:00—18:00, 20:00—22:00	1.308
平时	07:00—09:00, 12:00—14:00, 18:00—20:00, 22:00—24:00	0.872
谷时	0:00—07:00	0.436

方案	峰时电价	平时电价	谷时电价
1	1.279	0.859	0.423
2	1.235	0.843	0.418
3	1.174	0.826	0.401

项目	利润
项目	储能聚合商	储能装置投资者	供电公司
合作前	0	0	14.57
合作后	3.78	5.44	16.63
