电力潮流和㶲流联合驱动的热电联产综合能源系统优化运行方法

doi:10.3969/j.issn.2097-0706.2023.12.001

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (12): 1-9.doi: 10.3969/j.issn.2097-0706.2023.12.001

• 智慧与清洁供热 • 下一篇

电力潮流和㶲流联合驱动的热电联产综合能源系统优化运行方法

葛磊蛟¹(), 李京京¹(), 李鹏²(), 苏航²()

1.天津大学电气自动化与信息工程学院，天津 300072
2.华北电力大学能源动力与机械工程学院，河北保定 071003

收稿日期:2023-04-30 修回日期:2023-05-10 出版日期:2023-12-25 发布日期:2023-06-07
作者简介:葛磊蛟（1984），男，副教授，硕士生导师，博士，从事智能配电网态势感知、云计算和大数据等方面的研究，legendglj99@tju.edu.cn。
李京京（2000），女，在读硕士研究生，从事综合能源系统研究，huadianljj@163.com。
李鹏（1991），男，副教授，硕士生导师，博士，从事多元储能综合能源系统优化研究，pengli@ncepu.edu.cn。
苏航（1997），男，在读硕士研究生，从事综合能源系统能流耦合研究，arska1210003@163.com。
基金资助:
科技创新2030重大项目(2022ZD0116900);国家自然科学基金项目(52277118)

Optimized operation method for CHP integrated energy systems driven by power flow and exergy flow

GE Leijiao¹(), LI Jingjing¹(), LI Peng²(), SU Hang²()

1. School of Electrical and Information Engineering， Tianjin University， Tianjin 300072， China
2. School of Energy， Power and Mechanical Engineering， North China Electric Power University， Baoding 071003， China

Received:2023-04-30 Revised:2023-05-10 Online:2023-12-25 Published:2023-06-07
Supported by:
Scientific and Technological Innovation 2030 Major Project(2022ZD0116900);National Natural Science Foundation of China(52277118)

摘要/Abstract

摘要：

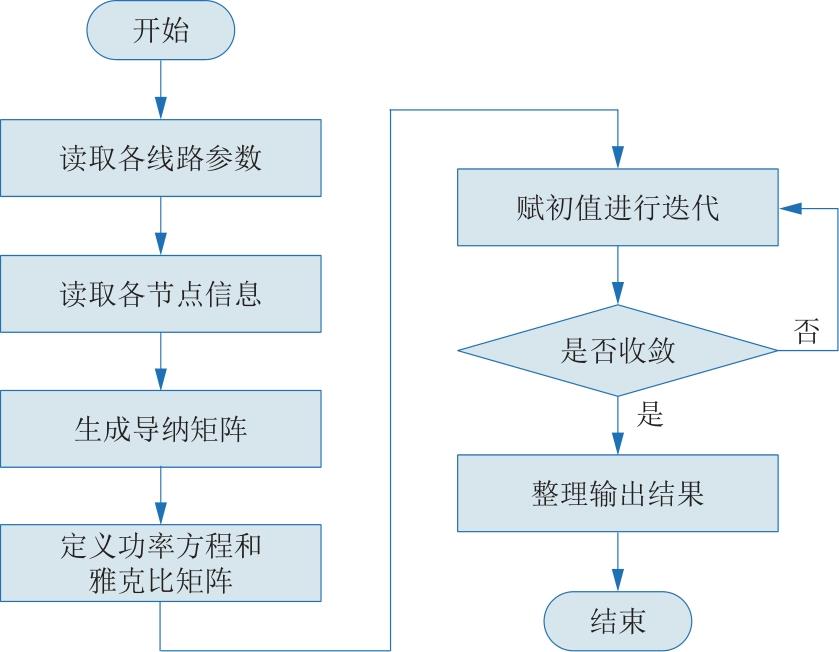

为实现电力系统和热力系统的联合优化，提高能源的利用效率和经济效益，提出电力潮流和㶲流联合驱动的热电联产综合能源系统（CHP-IES）优化运行方法。利用极坐标形式下的牛顿-拉夫逊法进行潮流计算，经迭代后得到电力网络各节点电气量及功率、热力网络各节点温度及流量等重要参数；探究电力网络、热力网络、热电联产机组等耦合元件的㶲流计算机理，以4节点电-6节点热构成的CHP-IES为对象，分析㶲流分布和各个环节的㶲损情况，实现电力系统和热力系统的联合优化。算例证明系统满足局部和整体㶲平衡关系，其中热力系统㶲效率为97%左右。

关键词: 综合能源系统, 多能互补, 热电联产, 联合优化, 潮流计算, 牛顿-拉夫逊法, 㶲流, 㶲损, 㶲平衡

Abstract:

To realize the joint optimization of power systems and thermal systems and improve their energy utilization efficiency and economic benefits， an optimized operation method driven by power flow and exergy flow for a combined heat and power integrated energy system（CHP-IES） is proposed. Firstly， the Newton-Raphson method is used to calculate the power flow in polar coordinates. After iteration， important parameters such as electrical quantity and power at each node of the power network， temperature and flow rate at each node of the thermal network are obtained. Then， the exergy flow calculation mechanism of coupling elements such as power network， thermal network and CHP units is explored. Taking the CHP-IES composed of a 4-node electricity system and a 6-node thermal system as the object， the exergy flow distribution and exergy loss at each link are analyzed， and the joint optimization for the power system and thermal system is realized. The example proves that the optimization can keep the local and global exergy balance of the system， and the exergy efficiency of the thermal system is about 97 %.

Key words: integrated energy system, multi-energy complementarity, cogeneration, joint optimization, power flow calculation, Newton-Raphson method, exergy flow, exergy loss, exergy balance

中图分类号:

TK019：TM743

葛磊蛟, 李京京, 李鹏, 苏航. 电力潮流和㶲流联合驱动的热电联产综合能源系统优化运行方法[J]. 综合智慧能源, 2023, 45(12): 1-9.

GE Leijiao, LI Jingjing, LI Peng, SU Hang. Optimized operation method for CHP integrated energy systems driven by power flow and exergy flow[J]. Integrated Intelligent Energy, 2023, 45(12): 1-9.

图/表 11

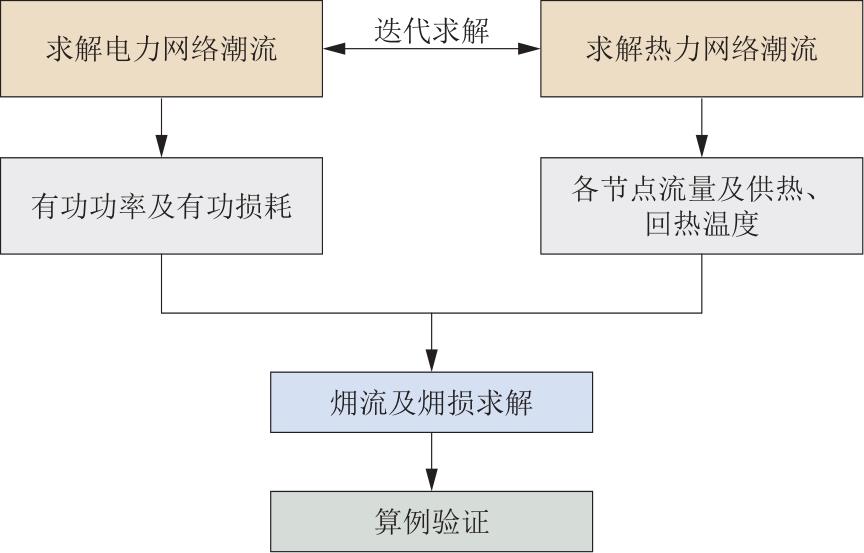

图1

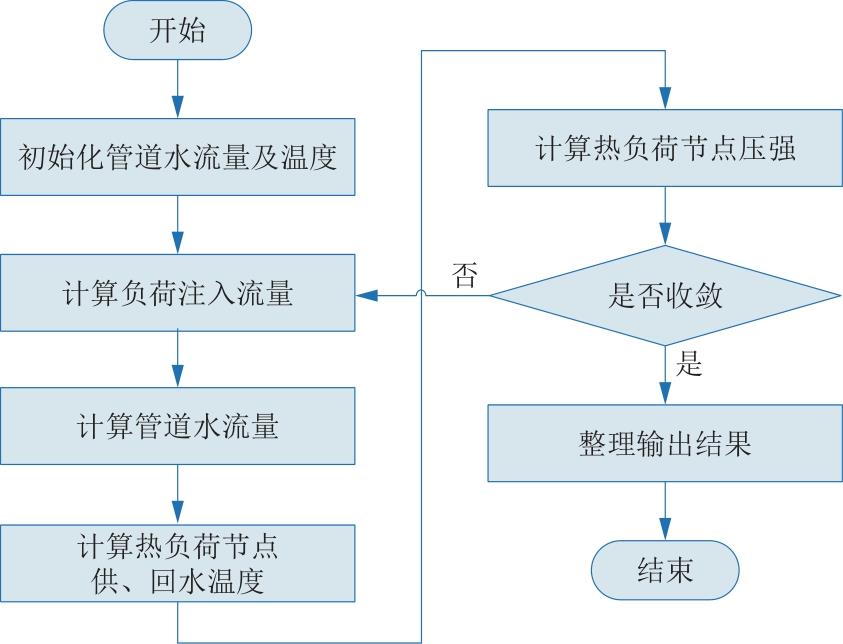

图2

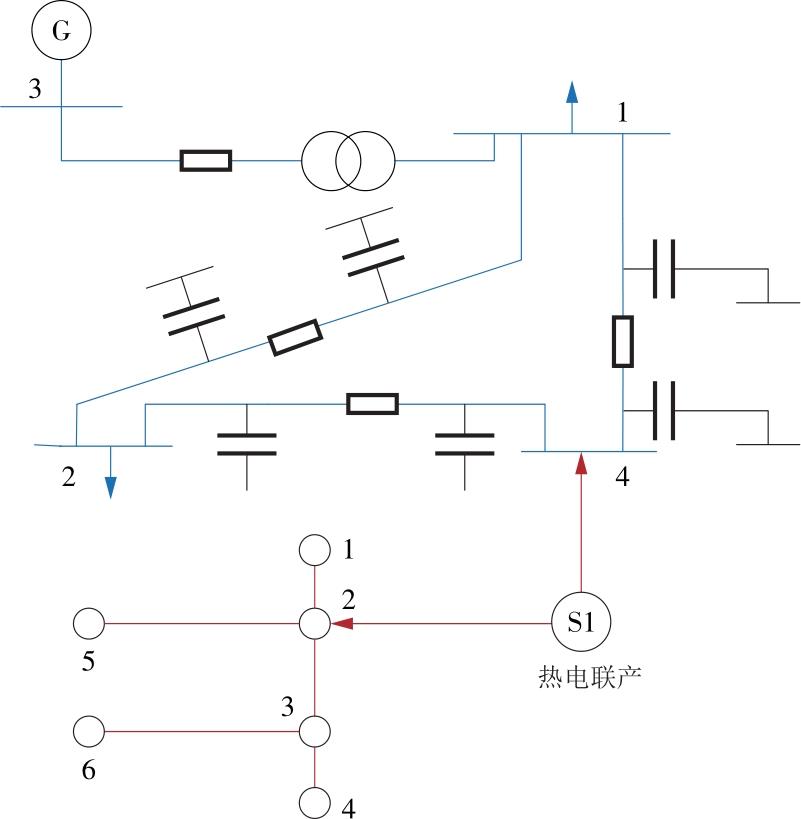

图3

图4

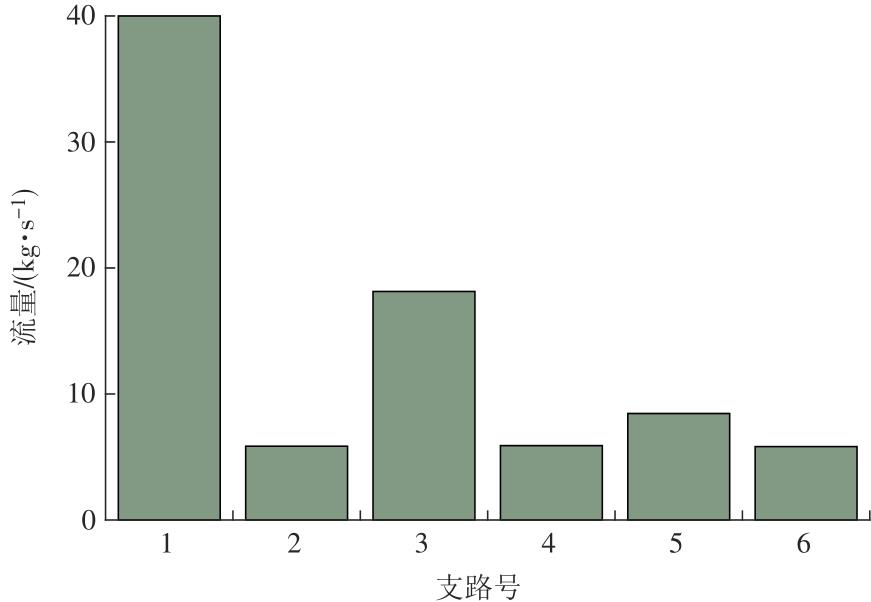

图5

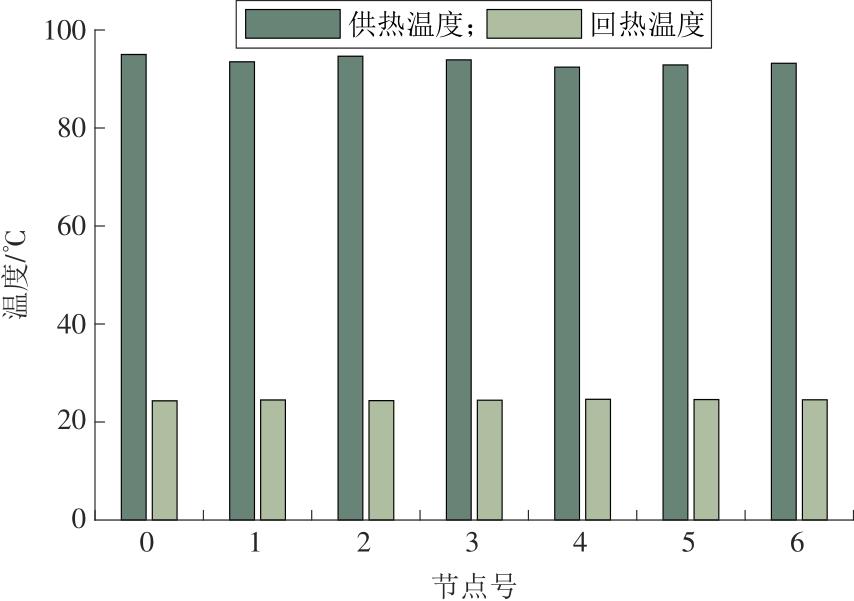

图6

表1

表2

表3

表4

图7

参考文献 32

[1]	李家熙, 王丹, 贾宏杰. 面向综合能源系统的㶲流机理与分析方法[J]. 电力系统自动化, 2022, 46(12):163-173.
	LI Jiaxi, WANG Dan, JIA Hongjie. Exergy flow mechanism and analysis method for integrated energy system[J]. Automation of Electric Power Systems, 2022, 46(12):163-173.
[2]	WU Z X, SHA L, YANG X C, et al. Performance evaluation and working fluid selection of combined heat pump and power generation system(HP-PGs) using multi-objective optimization[J]. Energy Conversion and Management, 2020, 221:113164. doi: 10.1016/j.enconman.2020.113164
[3]	WANG Y L, MA Y Z, SONG F H, et al. Economic and efficient multi-objective operation optimization of integrated energy system considering electro-thermal demand response[J]. Energy, 2020, 205: 118022. doi: 10.1016/j.energy.2020.118022
[4]	LI Y, ZOU Y, TAN Y, et al. Optimal stochastic operation of integrated low-carbon electric power, natural gas, and heat delivery system[J]. IEEE Transactions on Sustainable Energy, 2018, 9(1): 273-283. doi: 10.1109/TSTE.2017.2728098
[5]	宋晨辉. 电-热-气综合能源系统优化运行与潮流分析研究[D]. 沈阳: 东北大学, 2018.
	SONG Chenhui. Optimized operation and trend analysis of electric-heat-gas integrated energy system[D]. Shenyang: Northeastern University, 2018.
[6]	孙国强, 王文学, 吴奕, 等. 辐射型电-热互联综合能源系统快速潮流计算方法[J]. 中国电机工程学报, 2020, 40(13): 4131-4142.
	SUN Guoqiang, WANG Wenxue, WU Yi, et al. Fast power flow calculation method for radiant electric-thermal interconnected integrated energy system[J]. Proceedings of the CSEE, 2020, 40(13): 4131-4142.
[7]	黎静华, 黄玉金, 张鹏. 综合能源系统多能流潮流计算模型与方法综述[J]. 电力建设, 2018, 39(3): 1-11. doi: DOI： 10.3969/j.issn.1000－7229.2018.03.001
	LI Jinghua, HUANG Yujin, ZHANG Peng. Review of multi-energy flow calculation model and method in integrated energy system[J]. Electric Power Construction, 2018, 39(3): 1-11. doi: DOI： 10.3969/j.issn.1000－7229.2018.03.001
[8]	黄玉金. 综合能源系统能流潮流计算模型与方法研究[D]. 南宁: 广西大学, 2020.
	HUANG Yujin. Research on energy flow calculation model and method of integrated energy system[D]. Nanning: Guangxi University, 2020.
[9]	QIAO Z, HUANG S Y, LI R, et al. Unified power flow analysis in natural gas and electricity coupled networks considering the uncertainty of wind power[J]. Energy Procedia, 2016, 103:322-327. doi: 10.1016/j.egypro.2016.11.293
[10]	王一帆, 李娜, 潘崇超, 等. 基于㶲分析的多能互补能源系统模型优化及调度策略研究[J]. 全球能源互联网, 2021, 4(3): 249-263.
	WANG Yifan, LI Na, PAN Chongchao, et al. Research on model optimization and dispatching strategy of multi-energy complementary energy system based on exergy analysis[J]. Journal of Global Energy Interconnection, 2021, 4(3): 249-263.
[11]	HAOYONG C, SIMIN C, MING L, et al. Optimal operation of integrated energy system based on exergy analysis and adaptive genetic algorithm[J]. IEEE Access, 2020, 9:3018587.
[12]	BAGDANAVICIUS A, JENKINS N, HAMMOND G P. Assessment of community energy supply systems using energy,exergy and exergoeconomic analysis[J]. Energy, 2012, 45(1):247-255. doi: 10.1016/j.energy.2012.01.058
[13]	孙娟, 卫志农, 孙国强, 等. 计及P2H的电-热互联综合能源系统概率能量流分析[J]. 电力自动化设备, 2017, 37(6): 62-68.
	SUN Juan, WEI Zhinong, SUN Guoqiang. Analysis of probabilistic energy flow for integrated electricity-heat energy system with P2H[J]. Electric Power Automation Equipment, 2017, 37(6): 62-68.
[14]	MA R, LIU H Z, GENG J L, et al. Fast decomposed method for dynamic energy flow calculation in integrated electricity and heat system[J]. IEEE Access, 2021, 9:168760-168766. doi: 10.1109/ACCESS.2021.3116810
[15]	KOU J T, LI S Q, ZHAO K P, et al. Operational optimization of integrated energy system based on coordinated complementary of cold, heat and electricity loads[C]// IOP Conference Series: Earth and Environmental Science,IOP Publishing, 2020, 546(2):022034.
[16]	LIU X, WU J, JENKINS N, et al. Combined analysis of electricity and heat networks[J]. Applied Energy, 2016, 162:1238-1250. doi: 10.1016/j.apenergy.2015.01.102
[17]	LI J X, WANG D, JIA H J, et al. Mechanism analysis and unified calculation model of exergy flow distribution in regional integrated energy system[J]. Applied Energy, 2022, 324:119725. doi: 10.1016/j.apenergy.2022.119725
[18]	LIU W X, MA T, YANG Y. A Reliability assessment of an integrated energy system based on coupling energy flow and thermal inertia[J]. CSEE Journal of Power and Energy Systems, 2022, 8(6): 1772-1783.
[19]	ZHANG S H, GU W, YAO S, et al. Partitional decoupling method for fast calculation of energy flow in a large-scale heat and electricity integrated energy system[J]. IEEE Transactions on Sustainable Energy, 2021, 12(1):501-513. doi: 10.1109/TSTE.5165391
[20]	LIU X Z, WU J Z, JENKINS N, et al. Combined analysis of electricity and heat networks[J]. Applied Energy, 2016, 162: 1238-1250. doi: 10.1016/j.apenergy.2015.01.102
[21]	徐晶, 徐科, 王世举, 等. 基于分立求解的电气耦合综合能源系统多能流联合计算方法[J]. 电力系统及其自动化学报, 2022, 34(1): 114-120.
	XU Jing, XU Ke, WANG Shiju, et al. A multi-energy flow calculation method based on discrete iteration of electricity-gas integrated energy systems[J]. Proceedings of the CSU-EPSA, 2022, 34(1): 114-120.
[22]	郭祚刚, 袁智勇, 徐敏, 等. 多能互补综合能源系统混合能流计算方法及算例[J]. 综合智慧能源, 2022, 44(7): 58-65. doi: 10.3969/j.issn.2097-0706.2022.07.007
	GUO Zuogang, YUAN Zhiyong, XU Min, et al. Multi-energy flow calculation method for multi-energy complementary integrated energy systems[J]. Integrated Intelligent Energy, 2022, 44(7): 58-65. doi: 10.3969/j.issn.2097-0706.2022.07.007
[23]	ALABDULWAHAB A, ABUSORRAH A, ZHANG X, et al. Stochastic security-constrained scheduling of coordinated electricity and natural gas infrastructures[J]. IEEE Systems Journal, 2017, 11(3):1674-1683. doi: 10.1109/JSYST.2015.2423498
[24]	GU W, WANG J, LU S, et al. Optimal operation for integrated energy system considering thermal inertia of district heating network and buildings[J]. Applied Energy, 2017, 199:234-246. doi: 10.1016/j.apenergy.2017.05.004
[25]	王婉璐, 杨莉, 王蕾, 等. 考虑供热网储热特性的电-热综合能源系统优化调度[J]. 电力系统自动化, 2018, 42(21): 45-52.
	WANG Wanlu, YANG Li, WANG Lei, et al. Optimal dispatch of integrated electricity-heat energy system considering heat storage characteristics of heating network[J]. Automation of Electric Power Systems, 2018, 42(21): 45-52.
[26]	秦羽飞, 葛磊蛟, 王波. 能源互联网群体智能协同控制与优化技术[J]. 华电技术, 2021, 43(9): 1-13.
	QIN Yufei, GE Leijiao, WANG Bo. Swarm intelligence collaborative control and optimization technology of Energy Internet[J]. Huadian Technology, 2021, 43(9): 1-13.
[27]	王舒萍, 张沈习, 程浩忠, 等. 考虑天然气系统初值优化的综合能源系统改进多能流计算方法[J]. 电力自动化设备, 2022, 42(1): 28-36.
	WANG Shuping, ZHANG Shenxi, CHENG Haozhong, et al. Improved multi-energy flow calculation method for integrated energy system considering initial value optimization of natural gas system[J]. Electric Power Automation Equipment, 2022, 42(1): 28-36.
[28]	孔振宇, 李宏仲. 考虑多评估指标的电-气综合能源系统可靠性评估[J]. 综合智慧能源, 2023, 45(2): 37-43. doi: 10.3969/j.issn.2097-0706.2023.02.005
	KONG Zhenyu, LI Hongzhong. Reliability evaluation on an integrated electric-gas system considering multiple evaluation indexes[J]. Integrated Intelligent Energy, 2023, 45(2): 37-43. doi: 10.3969/j.issn.2097-0706.2023.02.005
[29]	陈思宇, 柴庆宣, 李延松, 等. 综合能源系统潮流及最优潮流计算模型与方法综述[J]. 热力发电, 2020, 49(7):1-12.
	CHEN Siyu, CHAI Qingxuan, LI Yansong. Models and methods of power flow and optimal power flow calculation for integrated energy system: A review[J]. Thermal Power Generation, 2020, 49(7):1-12.
[30]	SUN G, WANG W, LU X, et al. Rapid energy flow calculation method for integrated electrical and thermal systems[J]. International Journal of Electrical Power and Energy Systems, 2020, 123:106317. doi: 10.1016/j.ijepes.2020.106317
[31]	WANG J J, YANG K, XU Z L, et al. Energy and exergy analyses of an integrated CCHP system with biomass air gasification[J]. Applied Energy, 2015, 142:317-327. doi: 10.1016/j.apenergy.2014.12.085
[32]	ZHANG L, LIU X, JIANG Y. Exergy analysis of parameter unmatched characteristic in coupled heat and mass transfer between humid air and water[J]. International Journal of Heat and Mass Transfer, 2015, 84:327-338. doi: 10.1016/j.ijheatmasstransfer.2015.01.023

节点号	注入有功/kW	注入无功/kW	节点类型
1	3 000.0	1 800.0	PQ
2	5 500.2	1 300.0	PQ
3	-5 000.0	-934.0	PV
4	-3 679.0	-2 647.0	平衡

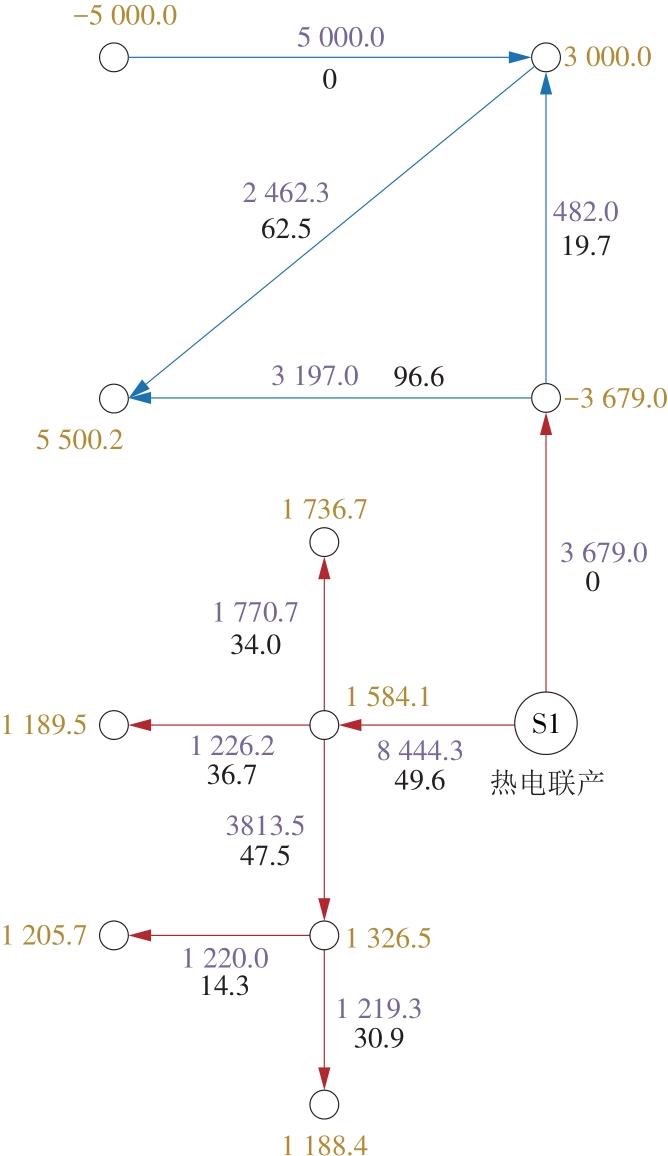

线路	首端	末端	有功潮流㶲流/kW	有功损耗㶲损/kW
1	3	1	5 000.0	0.0
2	1	2	2 462.3	62.5
3	4	1	482.0	19.7
4	4	2	3 197.0	96.6

支路号	首端	末端	㶲流/kW	㶲损/kW
1	S1	2	8 444.3	49.6
2	2	5	1 226.2	36.7
3	2	3	3 813.5	47.5
4	3	4	1 219.3	30.9
5	2	1	1 770.7	34.0
6	3	6	1 220.0	14.3

节点号	负荷消耗的㶲/kW
1	1 736.7
2	1 584.1
3	1 326.5
4	1 188.4
5	1 189.5
6	1 205.7
