固体氧化物电解池时空分布式参数建模

doi:10.3969/j.issn.2097-0706.2024.07.007

摘要/Abstract

摘要：

固体氧化物电解池（SOEC）在高温环境下运行，内部存在复杂的热电相互耦合，温度、电压的控制对电堆平稳、安全运行至关重要。针对电堆复杂非线性、时空分布的特点，基于时空最小二乘支持向量机（ LS-SVM）构建了SOEC温度、电压时空分布模型，采用一个核函数来描述电堆流道方向不同位置的空间相关性，采用动态回归方程描述电堆温度、电压分布的时间特性。通过Simulink构建SOEC机理仿真模型，生成样本数据来对时空分布模型进行训练并测试。仿真结果表明该模型能够准确预测SOEC温度、压力在时间及空间维度的分布，具有较优的泛化能力，可为电解系统优化与控制提供参考。

关键词: 固体氧化物电解池, 温度控制, 时空LS-SVM, 分布式动态预测模型, 电解系统, 电解制氢

Abstract:

There are complex thermoelectric couplings in solid oxide electrolysis cells （SOEC）operating under high temperature environment. Thus， temperature control and voltage control are crucial to the stable and safe operation of SOEC stacks. In view that SOEC stacks are complex， nonlinear and spatiotemporal distributed systems， a spatiotemporal distributed model for the temperature and voltage of an SOEC is constructed based on the spatiotemporal least square support vector machine（LS-SVM）. A kernel function is adopted to represent the spatial correlations at different locations along the flow channel， and dynamic regression equation is used to represent the temporal features of the temperature and voltage of the SOEC stack. A mechanism model of the SOEC stack is established in Simulink to obtain the sample data，which are used for the training and testing of the spatiotemporal distributed model. The simulation results show that the developed model can effectively predict the spatiotemporal distributions of the temperature and voltage in SOEC and has an excellent generalization ability， which can guide the further optimization and control of electrolysis cells.

Key words: solid oxide electrolysis cell, temperature control, spatiotemporal LS-SVM, distributed dynamic prediction model, electrolysis system, water electrolysis for hydrogen production

中图分类号:

TK91:TM911.4

窦真兰, 李佳文, 张春雁, 蔡祯祺, 袁本峰, 郏琨琪, 肖国萍, 王建强. 固体氧化物电解池时空分布式参数建模[J]. 综合智慧能源, 2024, 46(7): 53-62.

DOU Zhenlan, LI Jiawen, ZHANG Chunyan, CAI Zhenqi, YUAN Benfeng, JIA Kunqi, XIAO Guoping, WANG Jianqiang. Spatiotemporal distributed parameter modeling of solid oxide electrolysis cells[J]. Integrated Intelligent Energy, 2024, 46(7): 53-62.

图/表 15

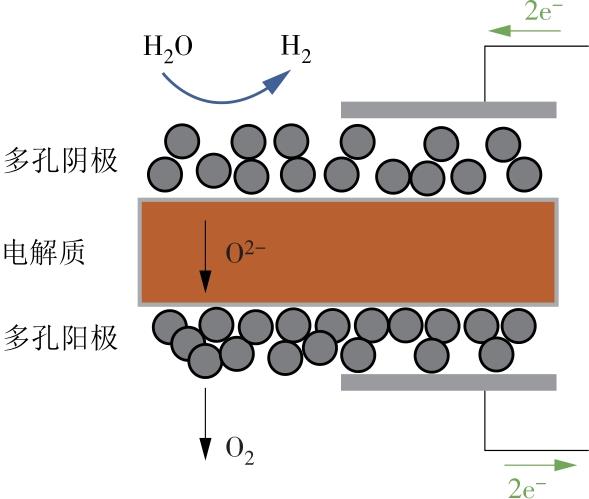

图1

表1

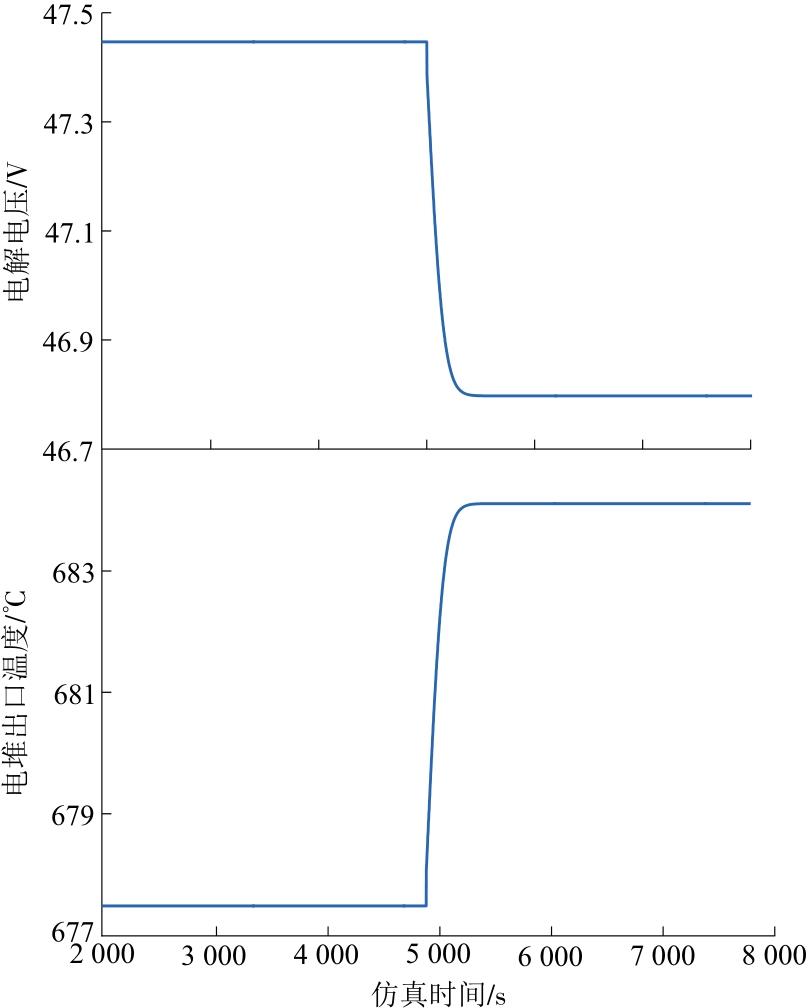

图2

图3

图4

图5

表2

图6

图7

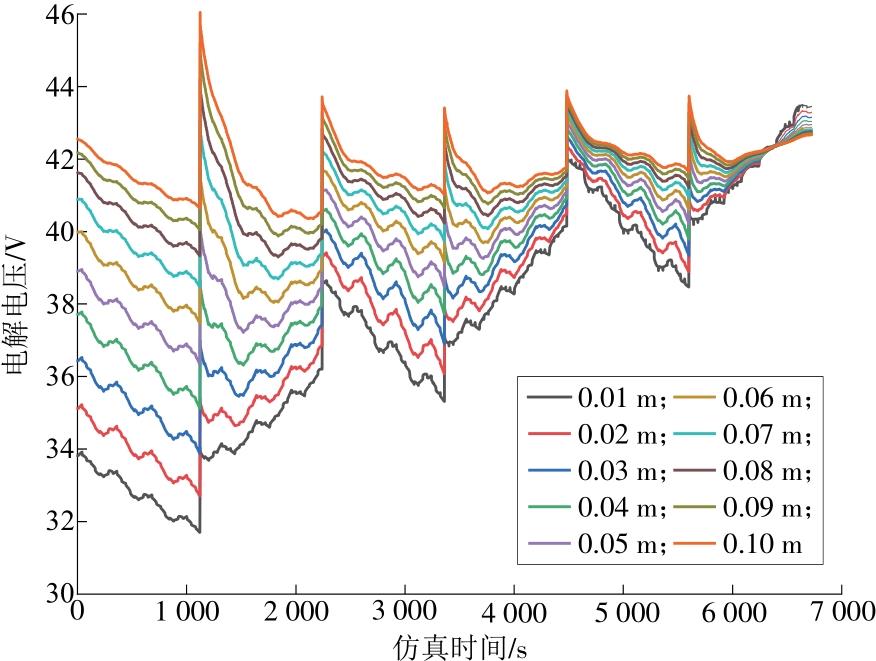

图8

图9

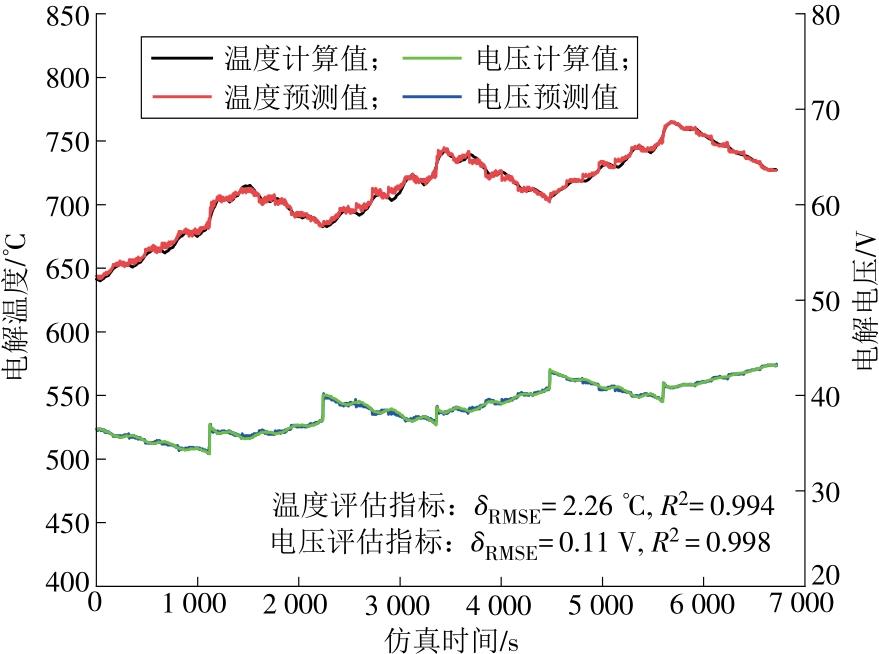

图10

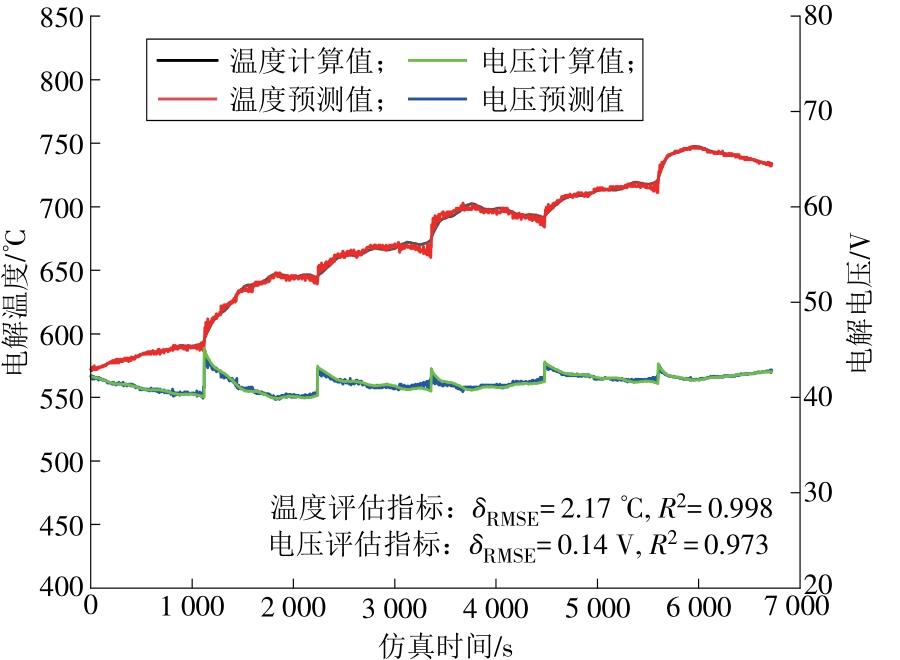

图11

图12

图13

参考文献 29

[1]	CHEN K, LIU S S, AI N, et al. Why the solid oxide cells can be reversibly operated under solid oxide electrolysis cell and fuel cell modes?[J]. Physical Chemistry Chemical Physics, 2015, 17(46): 31308-31315.
[2]	葛磊蛟, 崔庆雪, 李明玮, 等. 风光波动性电源电解水制氢技术综述[J]. 综合智慧能源, 2022, 44(5): 1-14. doi: 10.3969/j.issn.2097-0706.2022.05.001
	GE Leijia, CUI Qingxue, LI Mingwei, et al. Review on water electrolysis for hydrogen production powered by fluctuating wind power and PV[J]. Integrated Intelligent Energy, 2022, 44(5): 1-14. doi: 10.3969/j.issn.2097-0706.2022.05.001
[3]	LI G L, YUAN B F, GE M, et al. Capacity configuration optimization of a hybrid renewable energy system with hydrogen storage[J]. International Journal of Green Energy, 2022: 1-17.
[4]	朱雷杰, 钱彬, 郭凯凯, 等. 核能制氢可再生能源技术研究[J]. 中国资源综合利用, 2023, 41(1):95-98.
	ZHU Leijie, QIAN Bin, GUO Kaikai, et al. Study on renewable energy technology of nuclear hydrogen production[J]. China Resources Comprehensive Utilization, 2023, 41(1): 95-98.
[5]	AKULA P, ESLICK J, BHATTACHARYYA D, et al. Model development, validation, and optimization of an MEA-based post-combustion CO₂ capture process under part-load and variable capture operations[J]. Industrial & Engineering Chemistry Research, 2021, 60(14): 5176-5193.
[6]	韩倩雯, 张琨, 陈晓阳, 等. La/Ni共掺杂SrTi_0.35Fe_0.65O_3-_δ对称电极用于SOEC共电解H₂O/CO₂研究[J]. 综合智慧能源, 2022, 44(8): 43-49. doi: 10.3969/j.issn.2097-0706.2022.08.004
	HAN Qianwen, ZHANG Kun, CHEN Xiaoyang, et al. Study on La/Ni co-doped SrTi_0.35Fe_0.65O_3-_δ symmetric electrode for H₂O/CO₂ co-electrolysis in SOECs[J]. Integrated Intelligent Energy, 2022, 44(8): 43-49. doi: 10.3969/j.issn.2097-0706.2022.08.004
[7]	SHAO X, BUDIMAN R A, SATO T, et al. Review of factors affecting the performance degradation of Ni-YSZ fuel electrodes in solid oxide electrolyzer cells[J]. Journal of Power Sources, 2024, 609: 234651.
[8]	STOOTS C M, O'BRIEN J E, MCKELLAR M G, et al. Engineering process model for high-temperature electrolysis system performance evaluation[C]// AIChE 2005 Annual Meeting, 2005.
[9]	NI M, LEUNG M K H, LEUNG D Y C. Parametric study of solid oxide steam electrolyzer for hydrogen production[J]. International Journal of Hydrogen Energy, 2007, 32(13): 2305-2313.
[10]	NI M, LEUNG M K H, LEUNG D Y C. Mathematical modeling of the coupled transport and electrochemical reactions in solid oxide steam electrolyzer for hydrogen production[J]. Electrochimica Acta, 2007, 52(24): 6707-6718.
[11]	IORA P, TAHER M A A, CHIESA P, et al. A one dimensional solid oxide electrolyzer-fuel cell stack model and its application to the analysis of a high efficiency system for oxygen production[J]. Chemical Engineering Science, 2012, 80: 293-305.
[12]	MENON V, JANARDHANAN V M, DEUTSCHMANN O. A mathematical model to analyze solid oxide electrolyzer cells(SOECs) for hydrogen production[J]. Chemical Engineering Science, 2014, 110: 83-93.
[13]	UDAGAWA J, AGUIAR P, BRANDON N P. Hydrogen production through steam electrolysis: Model-based dynamic behaviour of a cathode-supported intermediate temperature solid oxide electrolysis cell[J]. Journal of Power Sources, 2008, 180(1): 46-55.
[14]	HAWKES G L, O'BRIEN J E, STOOTS C M, et al. CFD model of a planar solid oxide electrolysis cell for hydrogen production from nuclear energy[J]. Nuclear Technology, 2005, 158(2): 132-144.
[15]	NAVASA M, YUAN J L, SUNDÉN B. Computational fluid dynamics approach for performance evaluation of a solid oxide electrolysis cell for hydrogen production[J]. Applied Energy, 2015, 137: 867-876.
[16]	KANG J, PARK J, BAE J. Three-dimensional numerical analysis of solid oxide electrolysis cells steam electrolysis operation for hydrogen production[J]. Journal of Fuel Cell Science Technology, 2015, 12(5): 51006.
[17]	YAN P Y, CEHNG C H, SU A, et al. Simulation study of hydrogen production through solid oxide electrolysis cell[C]// 2011 International Conference on Electrical and Control Engineering. ICECE, 2011:4075-4078.
[18]	NAPOLI G, FERRARO M, BRUNACCINI G, et al. Data Driven model for a fuel cell stack development in a complex multi-source hybrid renewable energy system[C]// International Conference on Renewable Energies and Power Quality. ICREPQ, 2010:983-988.
[19]	NAPOLI G, FERRARO M, SERGI F, et al. Data driven models for a PEM fuel cell stack performance prediction[J]. International Journal of Hydrogen Energy, 2013, 38(26): 11628-11638.
[20]	WU Y M, BREAZ E, GAO F, et al. A Modified relevance vector machine for PEM fuel-cell stack aging prediction[J]. IEEE Transactions on Industry Applications, 2016, 52(3): 2573-2581.
[21]	HAN I S, CHUNG C B. Performance prediction and analysis of a PEM fuel cell operating on pure oxygen using data-driven models: A comparison of artificial neural network and support vector machine[J]. International Journal of Hydrogen Energy, 2016, 41(24):10202-10211.
[22]	DENG H W, HU W H, CAO D, et al. Degradation trajectories prognosis for PEM fuel cell systems based on Gaussian process regression[J]. Energy, 2022, 244:122569.
[23]	DOLENC B, BOSKOSKI P, STEPANCIC M, et al. State of health estimation and remaining useful life prediction of solid oxide fuel cell stack[J]. Energy Conversion and Management, 2017, 148: 993-1002.
[24]	MARRA D, SORRENTINO M, PIANESE C, et al. A neural network estimator of solid oxide fuel cell performance for on-field diagnostics and prognostics applications[J]. Journal of Power Sources, 2013, 241(1): 320-329.
[25]	WU X J, YE Q W. Fault diagnosis and prognostic of solid oxide fuel cells[J]. Journal of Power Sources, 2016, 321(30): 47-56.
[26]	GRONDIN D, DESEURE J, OZIL P, et al. Solid oxide electrolysis cell 3D simulation using artificial neural network for cathodic process description[J]. Chemical Engineering Research and Design, 2013, 91(1): 134-140.
[27]	CHI Y, YOKOO K, NAKAJIMA H, et al. Optimizing the homogeneity and efficiency of a solid oxide electrolysis cell based on multiphysics simulation and data-driven surrogate model[J]. Journal of Power Sources, 2023, 562: 232760.
[28]	LU X J, ZOU W, HUANG M H. A novel spatiotemporal LS-SVM method for complex distributed parameter systems with applications to curing thermal process[J]. IEEE Transactions on Industrial Informatics, 2017, 12(3): 1156-1165.
[29]	CAI Q, ADJIMAN C S, BRANDON N P. Optimal control strategies for hydrogen production when coupling solid oxide electrolysers with intermittent renewable energies[J]. Journal of Power Sources, 2014, 268: 212-224.

参数	数值
电池长度L/cm	10
电池宽度b/cm	10
电池片厚度h_s/um	215
连接体厚度h_l/mm	1
阴极流道高度h_c/mm	1
阳极流道高度h_a/mm	1
电池片辐射系数σ_s/m	0.8
电池片比定压热容c_p_,s/[J·(kg·K)^-1]	500
电池片密度ρ_s/(kg·m^-3)	5 900
连接体辐射系数σ_l	0.1
连接体比定压热容c_p_,l/[J·(kg·K)^-1]	500
连接体密度ρ_l/(kg·m^-3)	8 000
阴极入口温度/℃	750
阴极气体组分	y(H₂)=10%，y(H₂O)=90%
阴极入口压力p_c,in/kPa	100
阳极入口温度/℃	750
阳极气体组分	y(N₂)=79%，y(O₂)=21%
阳极入口压力p_a,in/kPa	100

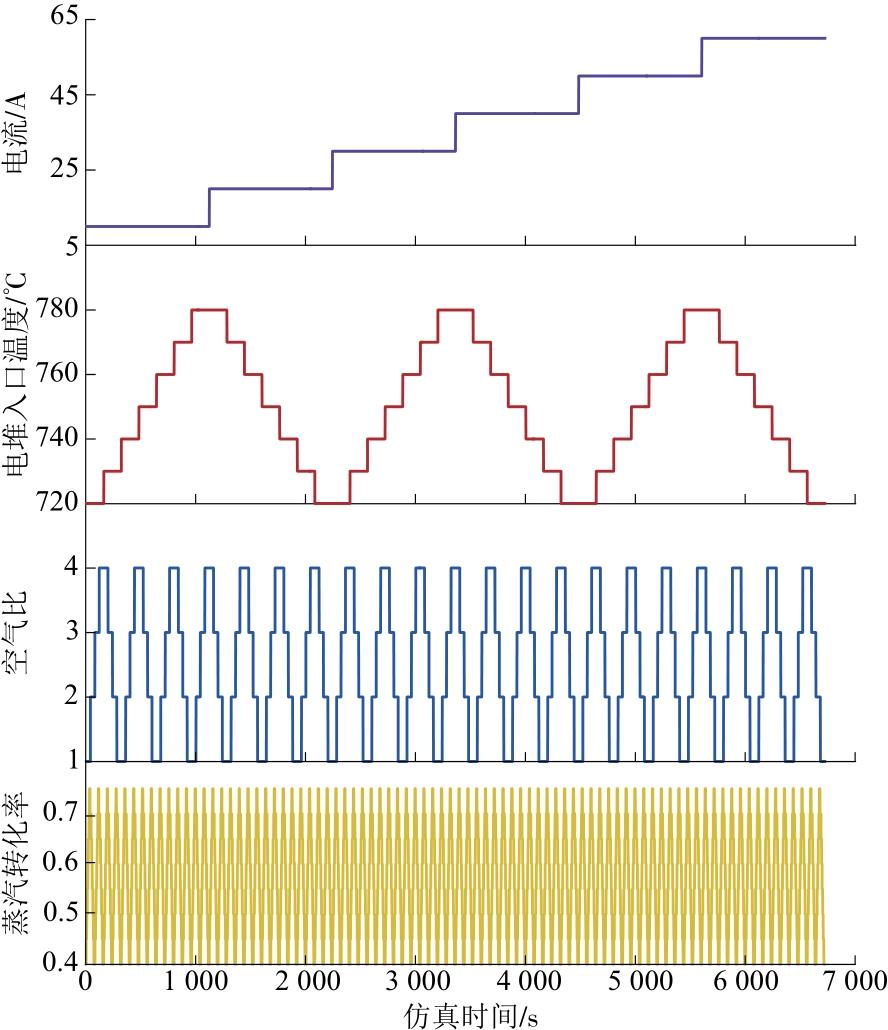

操作参数	变动范围	阶跃幅度	阶跃周期/s	阶跃间隔/s
电流	20~80 A	10 A	6 720	1 120
电堆入口温度	650~740 ℃	10 ℃	1 120	160
蒸汽转化率	0.40~0.80	0.05	40	5
空气比	1~4	1	160	40
