基于盐穴的压缩空气储能充放气过程仿真研究

doi:10.3969/j.issn.2097-0706.2024.10.010

摘要/Abstract

摘要：

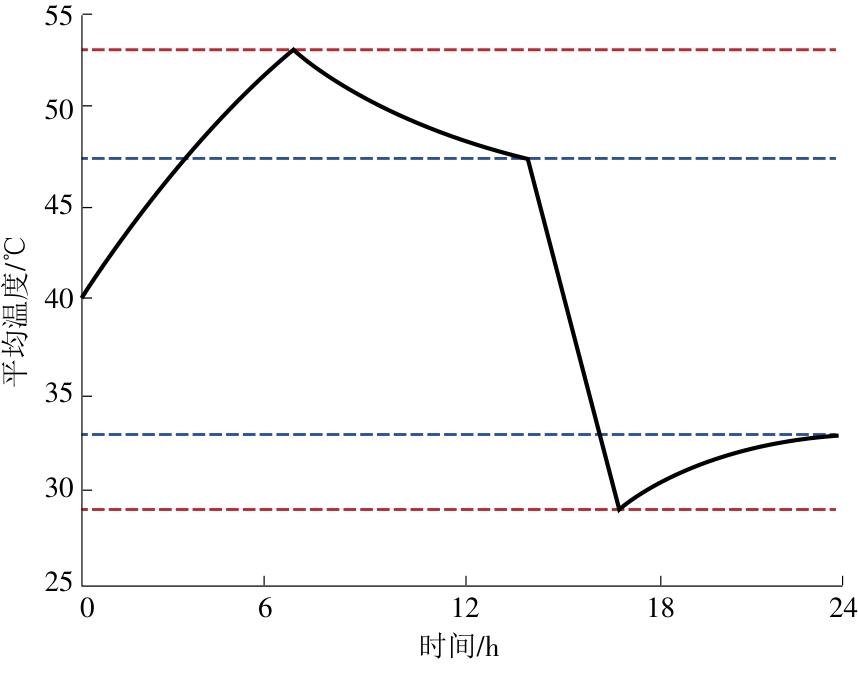

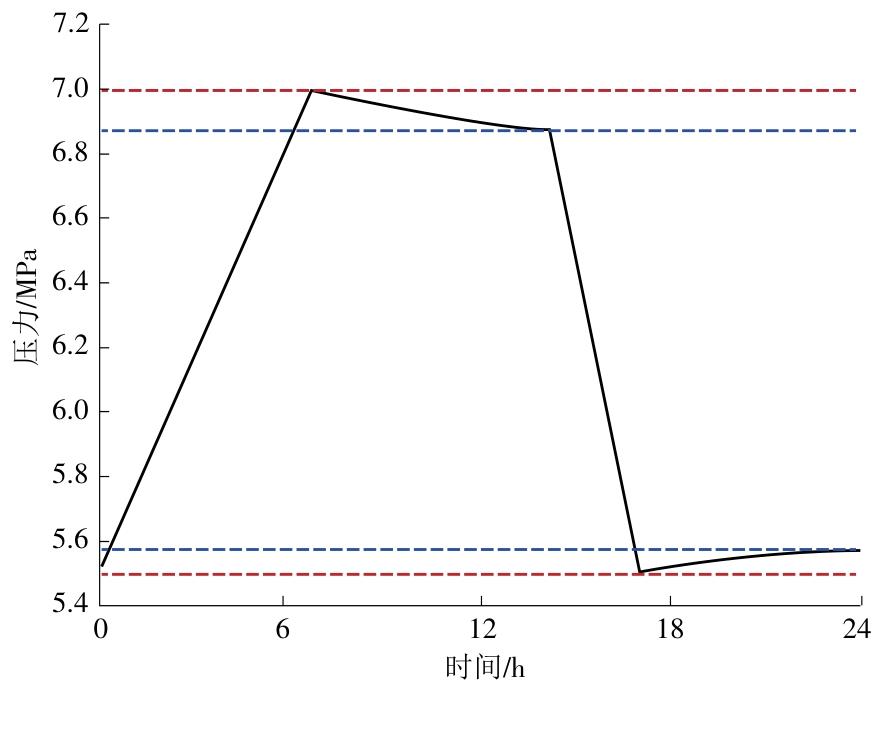

为了定量分析地下盐穴储气库在充放气过程中的热力学行为，构建盐穴充放气热力学模型并进行仿真计算，系统分析盐穴储气系统在整个“充气—储气—放气—储气”连续过程内的动态变化。结果显示，在时间维度上，盐穴内部的气体压力和温度表现出“升—降—降—升”的规律性变化；在空间维度上，由于重力效应，盐穴内部的压力从上至下逐渐增大，而盐穴内部温度分布则因自然对流呈上高下低的分布特点。此外，若首次静置储气后未及时进行放气操作，系统将持续损失能量，进而对能量存储产生负面影响，并且随着长时间的静置储气，盐穴内压缩空气的温度最终降低至未充气前的初始温度。

关键词: 压缩空气储能, 盐穴, 充放气过程, 热力学模型, 仿真计算

Abstract:

In order to quantitatively analyse the thermodynamic behaviour of underground salt cavern gas storage during charging and discharging process， a thermodynamic model of salt cavern charging and discharging was constructed and simulation calculations were conducted. A comprehensive analysis was performed on the dynamic changes of salt cavern gas storage system throughout the continuous process of "charging-storage-discharging-storage". The results showed that， the gas pressure and temperature inside the salt cavern exhibited a regular pattern of "rise-fall-fall-rise"over time. In the spatial dimension， the pressure inside the salt cavern gradually increased from top to bottom due to the gravity effect， while the temperature inside the cavern showed a decreases pattern from the top to the bottom due to natural convection. In addition， if the system was not discharged promptly after the initial static gas storage period， the system would continuously lose energy，negatively impacting energy storage. Moreover，as the static gas storage period extended，the temperature of the compressed air inside the salt cavern dropped to the initial temperature before charging.

Key words: compressed air energy storage, salt cavern, charging and discharging process, thermodynamic model, simulation calculation

中图分类号:

TK02

郝宁, 李振亚, 王宇轩, 边文杰. 基于盐穴的压缩空气储能充放气过程仿真研究[J]. 综合智慧能源, 2024, 46(10): 73-81.

HAO Ning, LI Zhenya, WANG Yuxuan, BIAN Wenjie. Simulation research of charging and discharging processes of compressed air storage based on salt caverns[J]. Integrated Intelligent Energy, 2024, 46(10): 73-81.

图/表 15

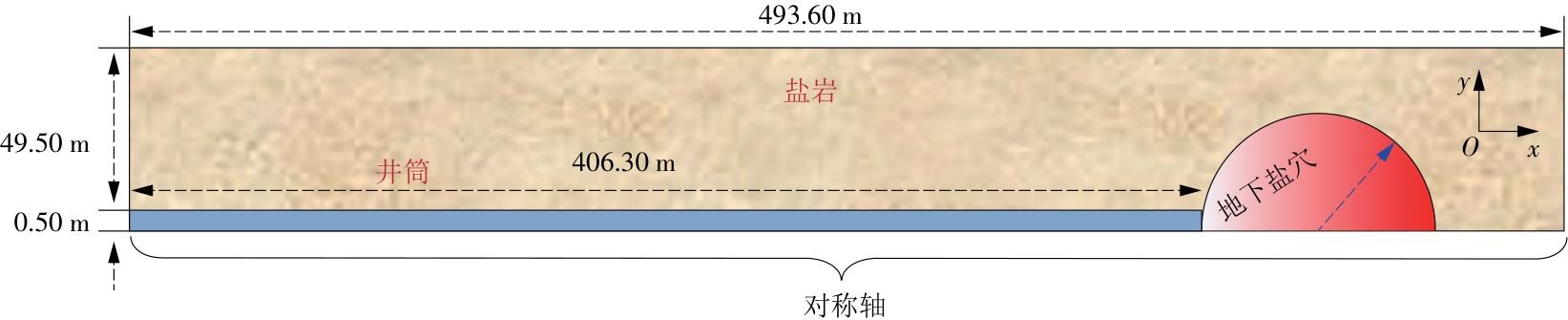

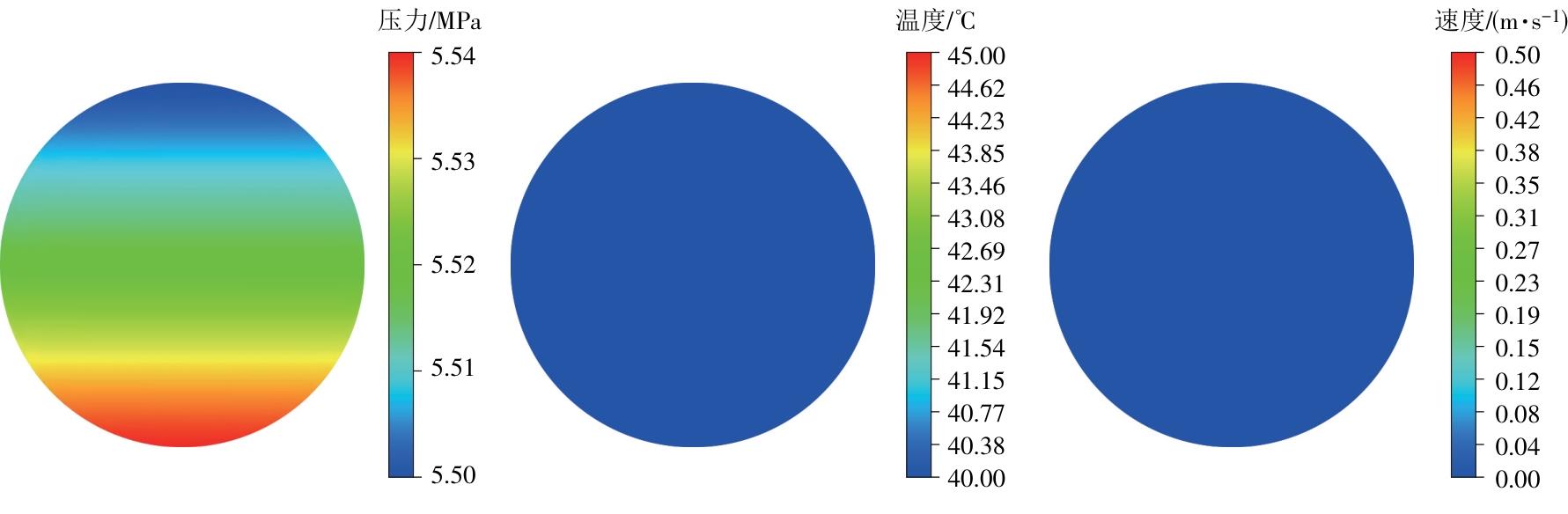

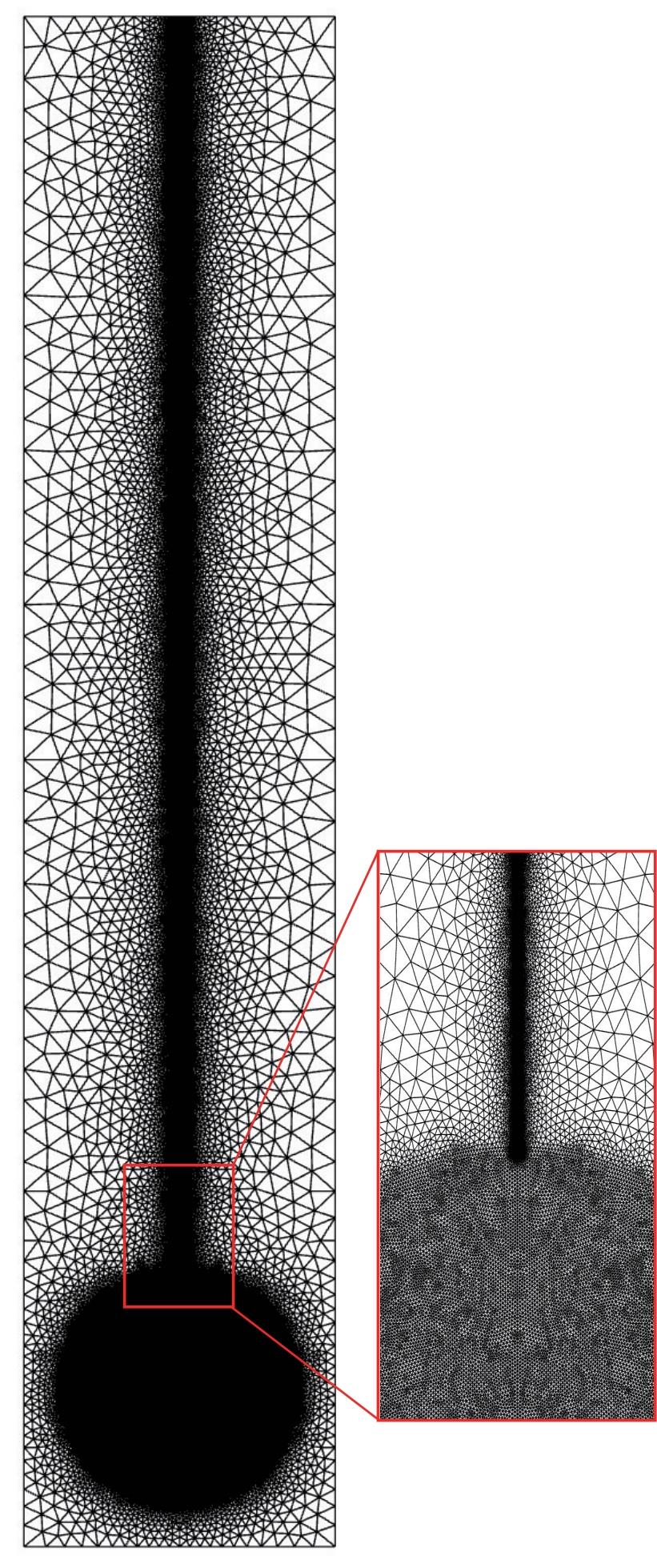

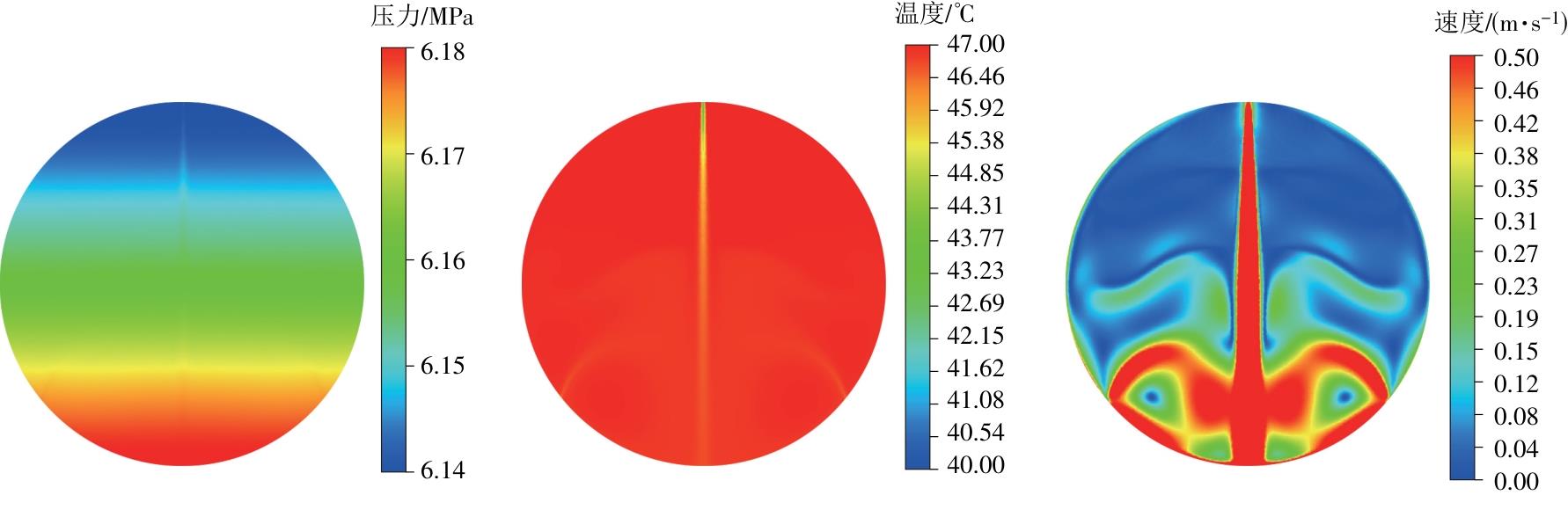

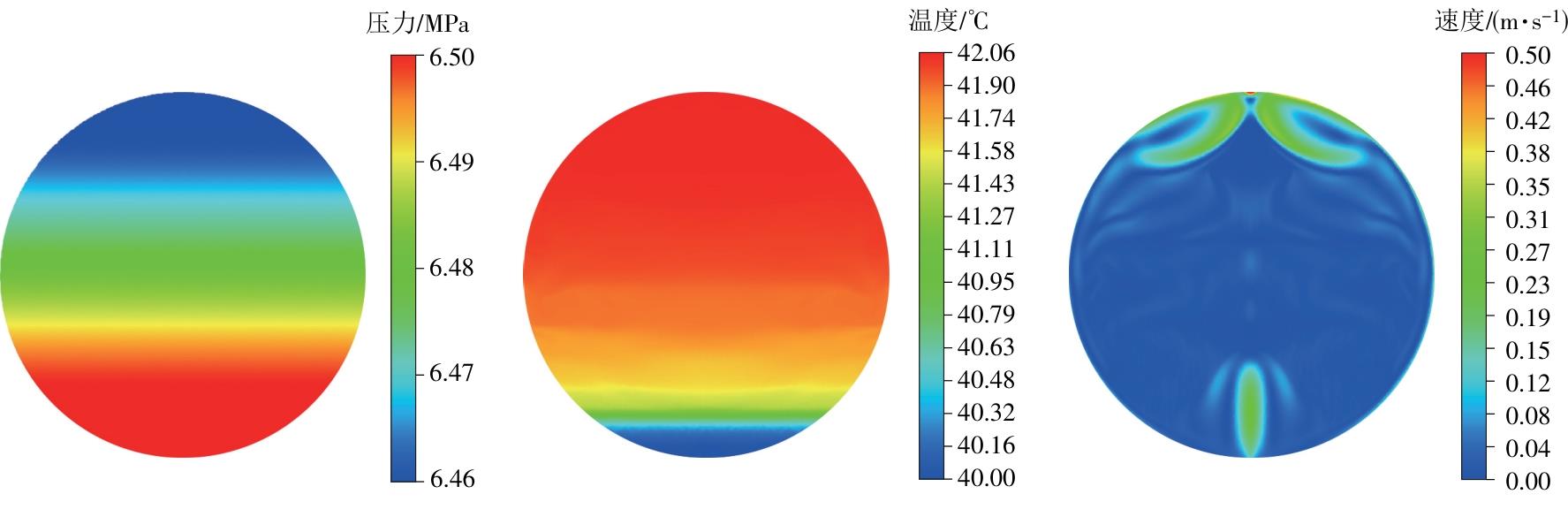

图1

表1

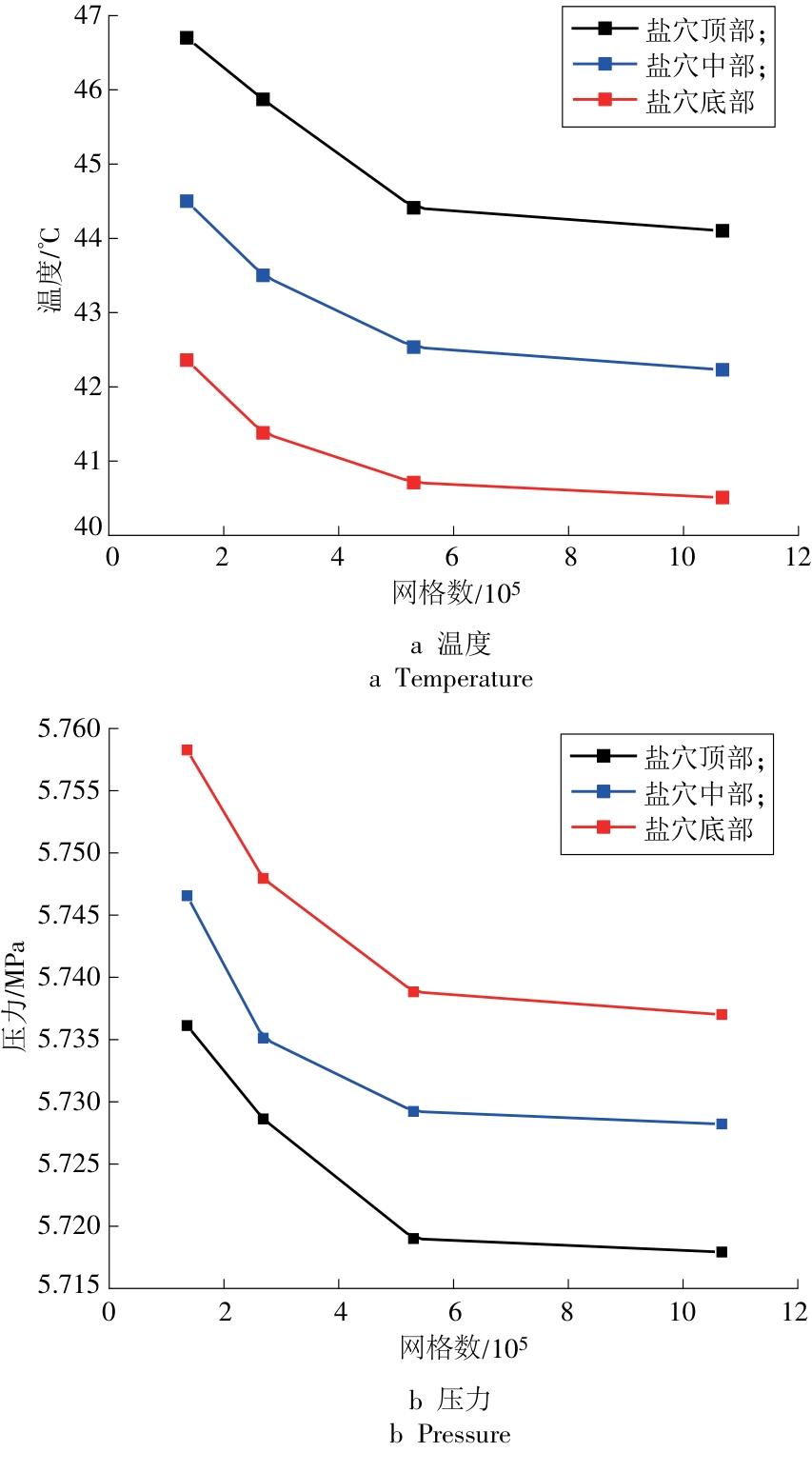

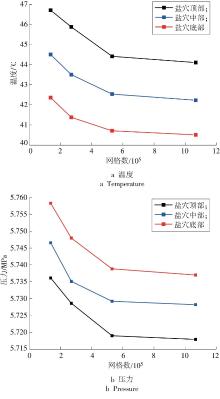

图2

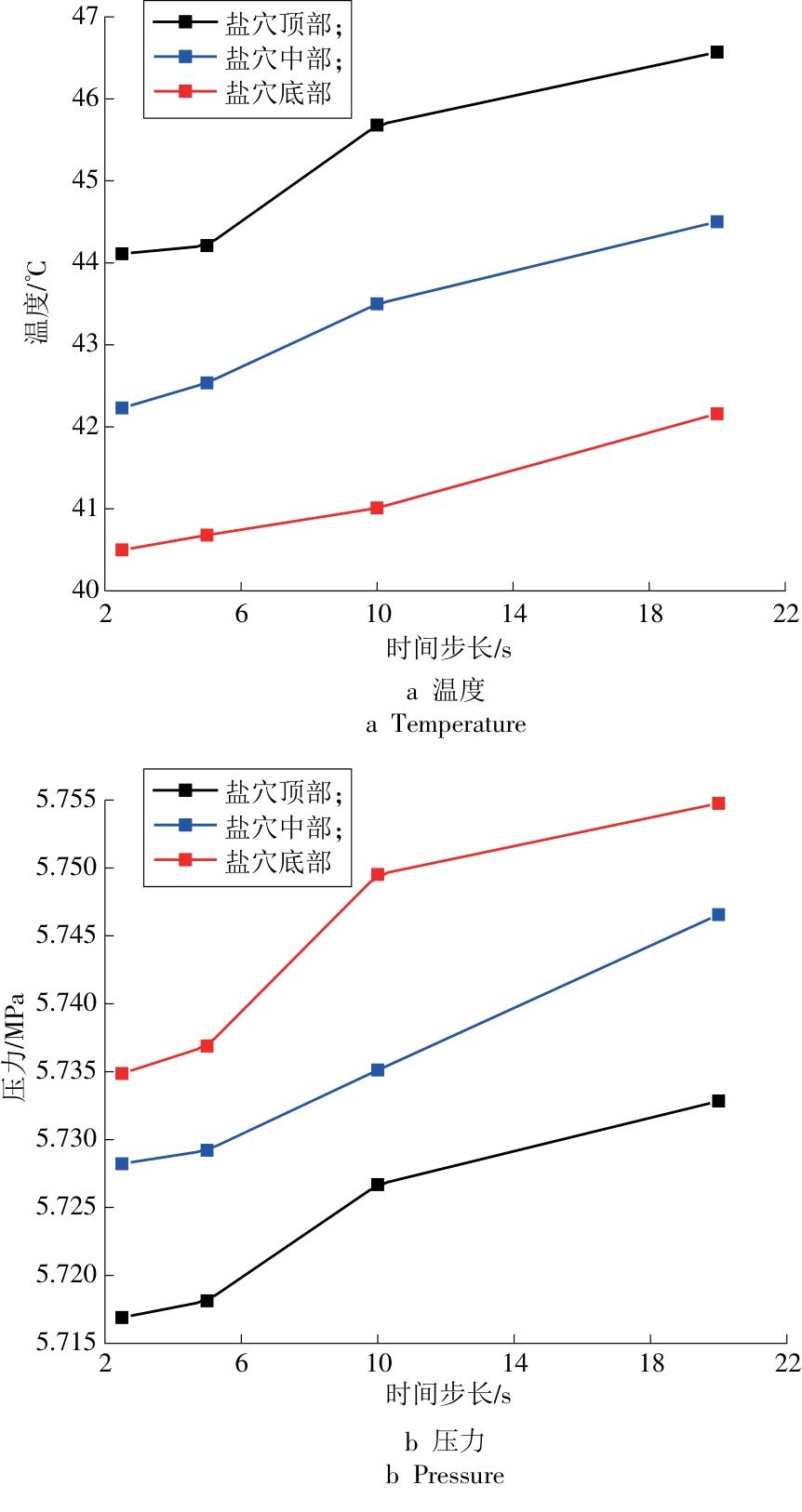

图3

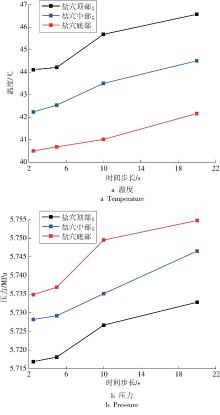

图4

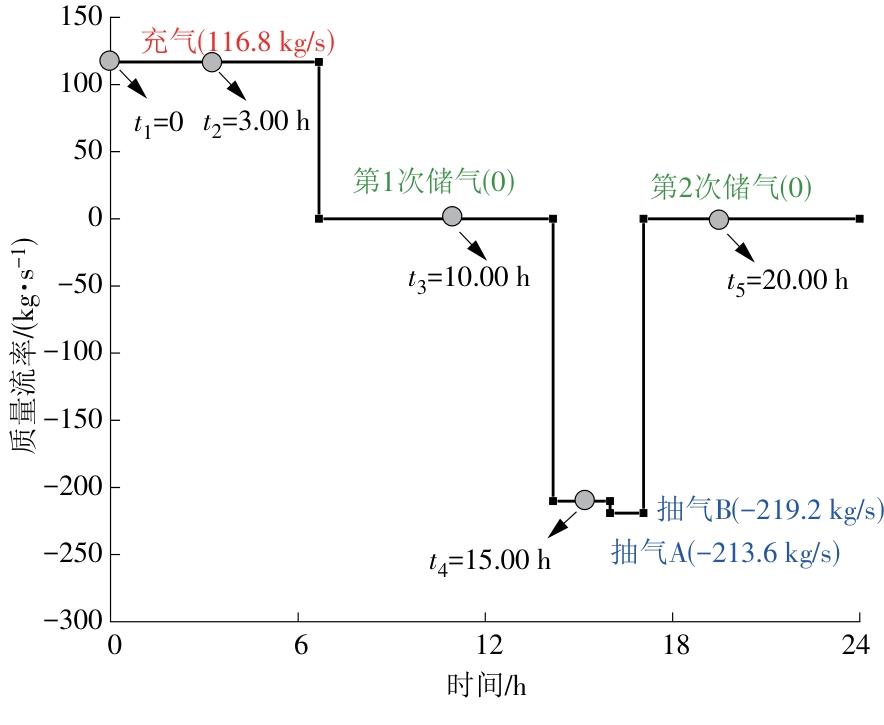

图5

图6

图7

图8

图9

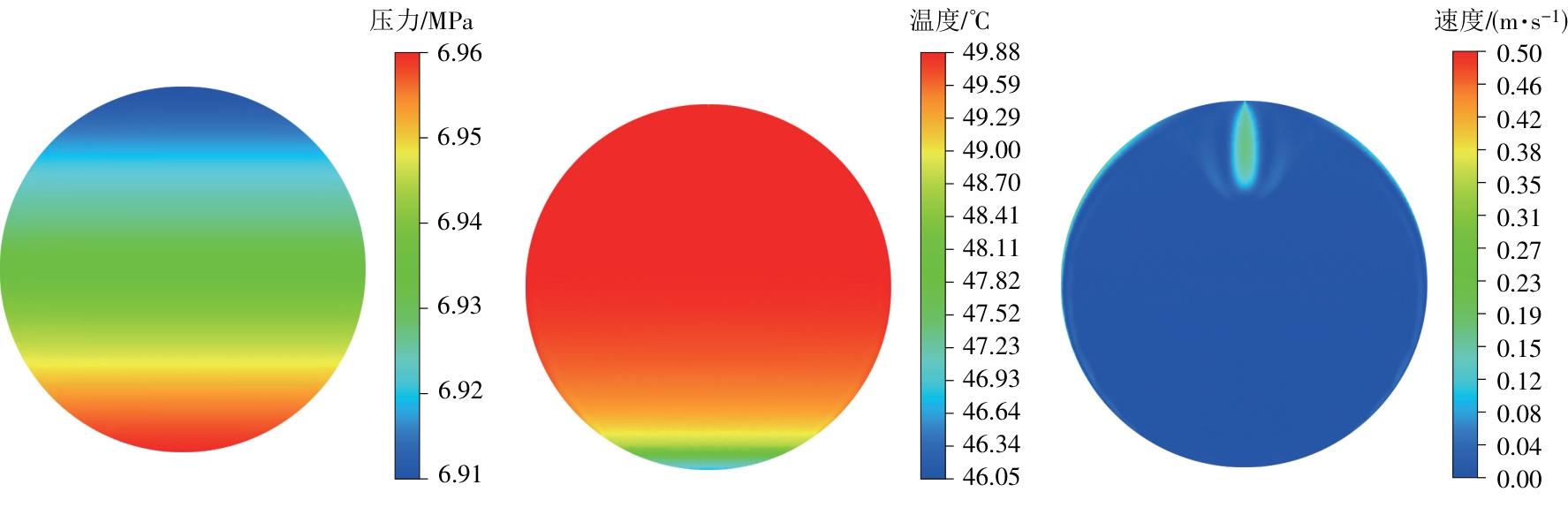

图10

图11

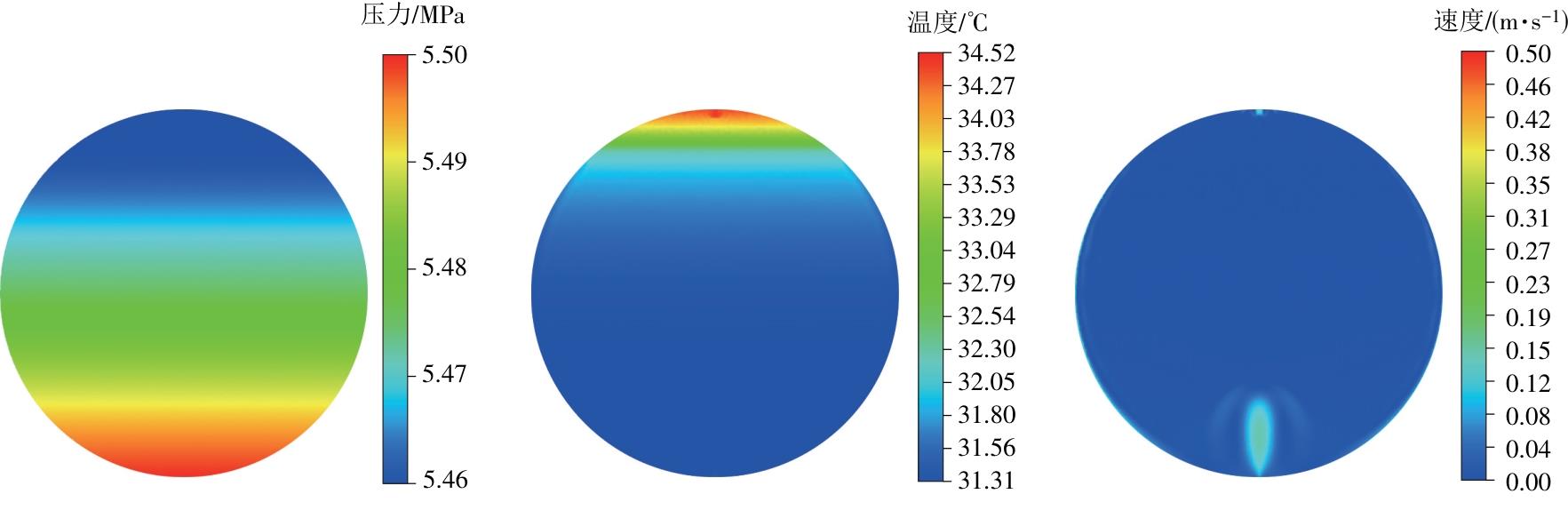

图12

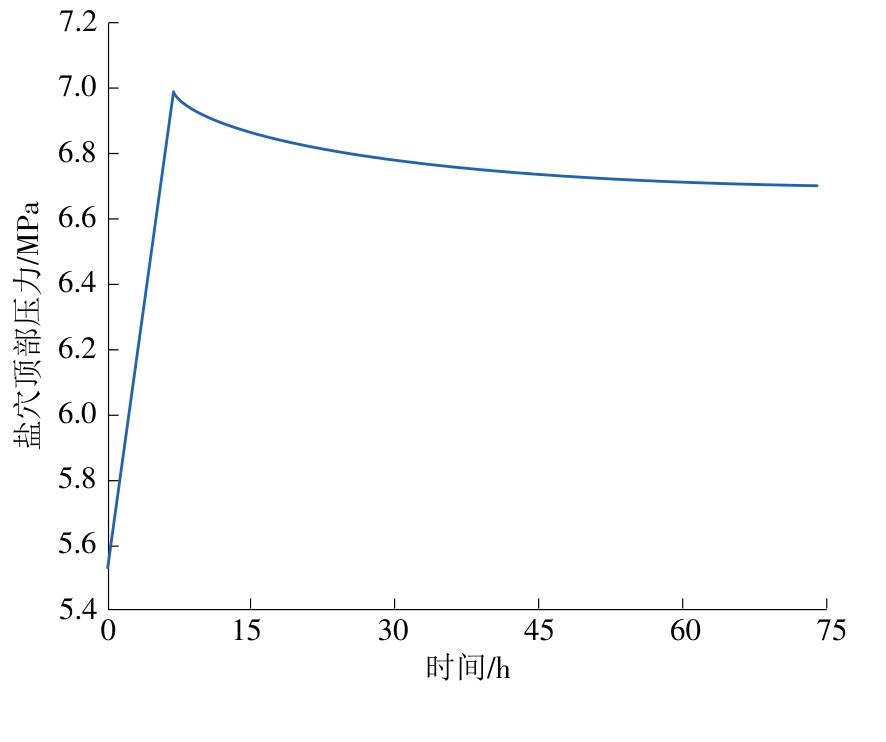

图13

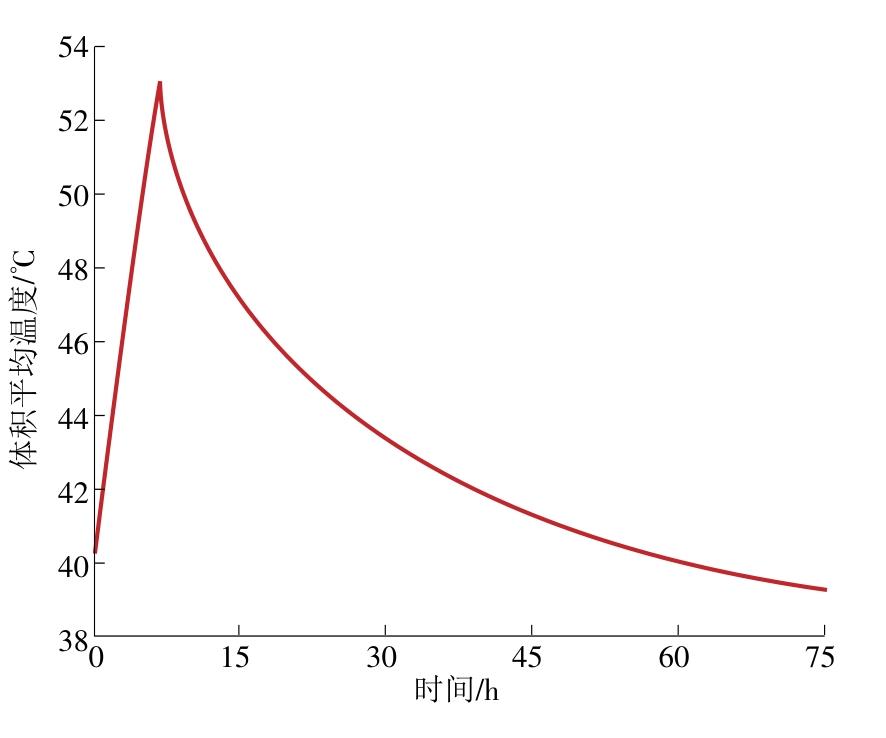

图14

参考文献 20

[1]	陈晓英, 楼继开, 邱亚鸣, 等. 光储协同综合智慧能源站自动功率控制系统研究[J]. 综合智慧能源, 2023, 45 (9): 77-85. doi: 10.3969/j.issn.2097-0706.2023.09.010
	CHEN Xiaoying, LOU Jikai, QIU Yaming, et al. Research on the automatic power control system of the photovoltaic-storage collaborative integrated smart energy station[J]. Integrated Intelligent Energy, 2023, 45(9): 77-85. doi: 10.3969/j.issn.2097-0706.2023.09.010
[2]	张文, 王龙轩, 丛晓明, 等. 新型压缩空气储能及其技术发展[J]. 科学技术与工程, 2023, 23(36): 15335-15347.
	ZHANG Wen, WANG Longxuan, CONG Xiaoming, et al. New type of compressed air energy storage and its technological development[J]. Science Technology and Engineering, 2023, 23(36): 15335-15347.
[3]	薛福, 马晓明, 游焰军. 储能技术类型及其应用发展综述[J]. 综合智慧能源, 2023, 45(9):48-58. doi: 10.3969/j.issn.2097-0706.2023.09.007
	XUE Fu, MA Xiaoming, YOU Yanjun. Energy storage technologies and their applications and development[J]. Integrated Intelligent Energy, 2023, 45(9):48-58. doi: 10.3969/j.issn.2097-0706.2023.09.007
[4]	FAN J Y, LIU W, JIANG D Y, et al. Thermodynamic and applicability analysis of a hybrid CAES system using abandoned coal mine in China[J]. Energy, 2018, 157:31-44.
[5]	CHEN J, LIU W, JIANG D Y, et al. Preliminary investigation on the feasibility of a clean CAES system coupled with wind and solar energy in China[J]. Energy, 2017, 127:462-478.
[6]	VENKATARAMANI G, RAMAKRISHNAN E, SHARMA M R, et al. Experimental investigation on small capacity compressed air energy storage towards efficient utilization of renewable sources[J]. Journal of Energy Storage, 2018, 20:364-370.
[7]	LIU S C, WU S C, HU Y K, et al. Comparative analysis of air and CO₂ as working fluids for compressed and liquefied gas energy storage technologies[J]. Energy Conversion and Management, 2019, 181:608-620.
[8]	梁骁男. 盐穴储气库运行及注采优化研究方法概述[J]. 化工设计通讯, 2023, 49(10): 11-13.
	LIANG Xiaonan. Overview of research methods for gas storage operation and injection-production optimization[J]. Chemical Engineering Design Communications, 2023, 49(10):11-13.
[9]	谭羽非, 陈家新, 余其铮. 国外盐穴地下储气库的建设及研究进展[J]. 油气储运, 2001, 20(1): 6-8.
	TAN Yufei, CHEN Jiaxin, YU Qizheng. The construction and development of foreign underground gas storage caverns in salt formations[J]. Oil & Gas Storage and Transportation, 2001, 20(1): 6-8.
[10]	严铭卿, 赵梦涛, 李军, 等. 洞穴型地下储气库热力分析[J]. 煤气与热力, 2015, 35(2): 59-65.
	YAN Mingqing, ZHAO Mengtao, LI Jun, et al. Thermodynamic analysis of cavern‑type underground gas storage[J]. Gas ＆ Heat, 2015, 35(2):59-65.
[11]	罗宁, 何青, 刘文毅. 压缩空气储能系统储气装置研究现状与分析[J]. 储能科学与技术, 2018, 7(3): 489-494.
	LUO Ning, HE Qing, LIU Wenyi. The development status and energy storage characteristic of gas storage device of compressed air energy storage system[J]. Energy Storage Science and Technology, 2018, 7(3):489-494.
[12]	俞宵轩. 盐穴综合利用发展现状及对策建议[J]. 工程经济, 2024, 34(4): 74-80.
	YU Xiaoxuan. Analysis of the comprehensive utilization and development of salt caverns[J]. Engineering Economy, 2024, 34(4): 74-80.
[13]	中盐金坛盐化有限公司. 金坛盐穴压缩空气储能国家试验示范项目并网试验成功[J]. 中国盐业, 2021(19): 6-7.
	China Salt Jintan Co., Ltd. Successful grid‑connection test of Jintan salt cavern compressed air energy storage national pilot demonstration project[J]. China Salt Industry, 2021(19):6-7.
[14]	KUSHNIR R, DAYAN A, ULLMANN A. Temperature and pressure variations within compressed air energy storage caverns[J]. International Journal of Heat and Mass Transfer, 2012, 55(21/22): 5616-5630.
[15]	ZHOU S W, XIA C C, DU S G, et al. An analytical solution for mechanical responses induced by temperature and air pressure in a lined rock cavern for underground compressed air energy storage[J]. Rock Mechanics and Rock Engineering, 2015, 48(2): 749-770.
[16]	XIA C C, ZHOU Y, ZHOU S W, et al. A simplified and unified analytical solution for temperature and pressure variations in compressed air energy storage caverns[J]. Renewable Energy, 2015, 74: 718-726.
[17]	周瑜, 夏才初, 赵海斌, 等. 压气储能内衬洞室的空气泄漏率及围岩力学响应估算方法[J]. 岩石力学与工程学报, 2017, 36(2): 297-309.
	ZHOU Yu, XIA Caichu, ZHAO Haibin, et al. A method for estimating air leakage through inner seals and mechanical responses of the surrounding rock of lined rock caverns for compressed air energy storage[J]. Chinese Journal of Rock Mechanics and Engineering, 2017, 36(2): 297-309.
[18]	丁国生. 盐穴地下储气库建库技术[J]. 天然气工业, 2003(2):106-108.
	DING Guosheng. Underground gas storage in salt caverns[J]. Natural Gas Industry, 2003, 23(2): 106-108.
[19]	李文婧, 姜源, 单保东, 等. 盐穴储气库注采运行时温效应对腔体稳定性的影响[J]. 石油学报, 2020, 41(6): 762-776. doi: 10.7623/syxb202006011
	LI Wenjing, JIANG Yuan, SHAN Baodong, et al. Time-temperature effect on cavity stability during gas injection and production in gas storage with salt caves[J]. Acta Petrolei Sinica, 2020, 41(6): 762-776. doi: 10.7623/syxb202006011
[20]	RAJU M, KUMAR KHAITAN S. Modeling and simulation of compressed air storage in caverns: A case study of the Huntorf Plant[J]. Applied Energy, 2012, 89(1): 474-481.

材料	密度ρ/ (kg·m^-3)	导热系数k/ [W·(J·K)^-1]	比定压热容c_p/ [J·(kg·K)^-1]	黏度μ/(10^-5Pa·s)
盐岩	2 700	3.000 0	900.00
空气	理想气体	0.024 2	1 006.43	1.789
