压缩空气储能技术及其耦合发电机组研究进展

doi:10.3969/j.issn.1674-1951.2021.07.002

华电技术 ›› 2021, Vol. 43 ›› Issue (7): 9-16.doi: 10.3969/j.issn.1674-1951.2021.07.002

压缩空气储能技术及其耦合发电机组研究进展

魏书洲¹^,²(), 李兵发³(), 孙晨阳³(), 周兴³(), 王亚龙³(), 邹一帆³(), 邓靖敏³(), 王金星⁴^,^*()

1.三河发电有限责任公司,河北廊坊 065201
2.河北省燃煤电站污染防治技术创新中心,河北廊坊 065201
3.河北师范大学中燃工学院,石家庄 050024
4.华北电力大学能源动力与机械工程学院,北京 102206

收稿日期:2021-05-11 修回日期:2021-06-22 出版日期:2021-07-25 发布日期:2021-07-27
通讯作者: 王金星
作者简介:魏书洲（1981—）,男,湖北十堰人,高级工程师,博士,从事燃煤机组烟气余热利用方案设计及储能参数优化研究（E-mail： shuzhou.wei@chnenergy.com.cn）。
李兵发（2000 —）,男,河北邯郸人,从事多级压缩空气储能运行优化研究（E-mail： 786088185@qq.com）。
孙晨阳（2000 —）,女,河南南阳人,从事压缩空气储能运行特性研究（E-mail： 1102567189@qq.com）。
周兴（1987 —）,男,河北石家庄人,讲师,工学博士,从事煤、生物质制氢研究（E-mail： zhoux@hebtu.edu.cn）。
王亚龙（2000 —）,男,河南许昌人,从事耦合储能装置的功率分布设计研究（E-mail： 269496271@qq.com）。
邹一帆（2000 —）,男,江苏常州人,从事压缩空气储能优化设计研究（E-mail： 821418824@qq.com）。
邓靖敏（2000 —）,女,广东佛山人,从事压缩空气储能运行优化研究（E-mail： 834692507@qq.com）。
基金资助:
河北省自然科学基金项目(E2020502007);河北省高等学校科学技术研究项目(QN2021090)

Research progress of compressed air energy storage and its coupling power generation

WEI Shuzhou¹^,²(), LI Bingfa³(), SUN Chenyang³(), ZHOU Xing³(), WANG Yalong³(), ZOU Yifan³(), DENG Jingmin³(), WANG Jinxing⁴^,^*()

1. Sanhe Power Generation Company Limited,CHN Energy,Langfang 065201,China
2. Hebei Innovation Center for Coal-fired power station Pollution Control,Langfang 065201,China
3. College of Zhongran,Hebei Normal University,Shijiazhuang 050024,China
4. School of Energy,Power and Mechanical Engineering,North China Electric Power University,Beijing 102206,China

Received:2021-05-11 Revised:2021-06-22 Online:2021-07-25 Published:2021-07-27
Contact: WANG Jinxing

摘要/Abstract

摘要：

压缩空气储能技术是利用压气机-燃气轮机装置,实现空气势能与热能之间转化的储能技术。由于压缩空气储能技术具有跨时空调节“源-荷”匹配性的优势,在高比例间歇性可再生能源发电并网的背景下更为重要。从储能系统有无热源、绝热、储热3个方面进行了评述;压缩空气储能工作形式主要包括无热源的非绝热空气压缩储能、带热源的非绝热压缩空气储能、带储热的空气绝热压缩储能系统。从多能源耦合的角度,分别介绍了压缩空气储能与燃气轮机、内燃机和可再生能源系统的耦合形式。最后从多种压缩空气储能形式与耦合火电机组应用现状方面进行了分析,并对比了传统压缩空气储能、绝热压缩空气储能、等温压缩空气储能、蓄热式压缩空气储能等技术的储能规模、优缺点等,为压缩空气储能的应用提供了借鉴。

关键词: 压缩空气储能, 可再生能源, 发电机组, 耦合形式, 燃气轮机, CO₂减排, 空气压缩机, “双碳”目标

Abstract:

Compressed air energy storage（CAES） is an energy storage technology that uses compressors and gas turbines to realize the conversion between air potential energy and heat energy.Since CAES can regulate and distribute the"source"and "load"across time and space,the technology has become increasingly important as high-proportion intermittent renewable energy is connected to the power grid.Energy storage systems are classified from three aspects：configuration of heat sources,adiabaticity and configuration of heat storage devices.Among them,CAES has three main application modes, diabatic CAES without heat source,diabatic CAES with heat source and adiabatic CAES with heat storage system.Analyzed from multi-energy coupling modes,CAES systems’coupling with gas turbines,internal combustion engines and renewable energy systems are introduced,respectively. Furthermore,various integration forms of CAES technology and its coupling with coal-fired power plants are analyzed,which are compared with traditional CAES,adiabatic CAES,isothermal CAES and heat storage CAES technology from the energy storage scale,advantages and disadvantages.The study is expected to provide reference for the application of CAES technology.

Key words: compressed air energy storage, renewable energy, generator, coupling mode, gas turbine, CO₂ emission reduction, air compressor, carbon peak and carbon neutrality

中图分类号:

X783：TK02

魏书洲, 李兵发, 孙晨阳, 周兴, 王亚龙, 邹一帆, 邓靖敏, 王金星. 压缩空气储能技术及其耦合发电机组研究进展[J]. 华电技术, 2021, 43(7): 9-16.

WEI Shuzhou, LI Bingfa, SUN Chenyang, ZHOU Xing, WANG Yalong, ZOU Yifan, DENG Jingmin, WANG Jinxing. Research progress of compressed air energy storage and its coupling power generation[J]. Huadian Technology, 2021, 43(7): 9-16.

图/表 15

表1

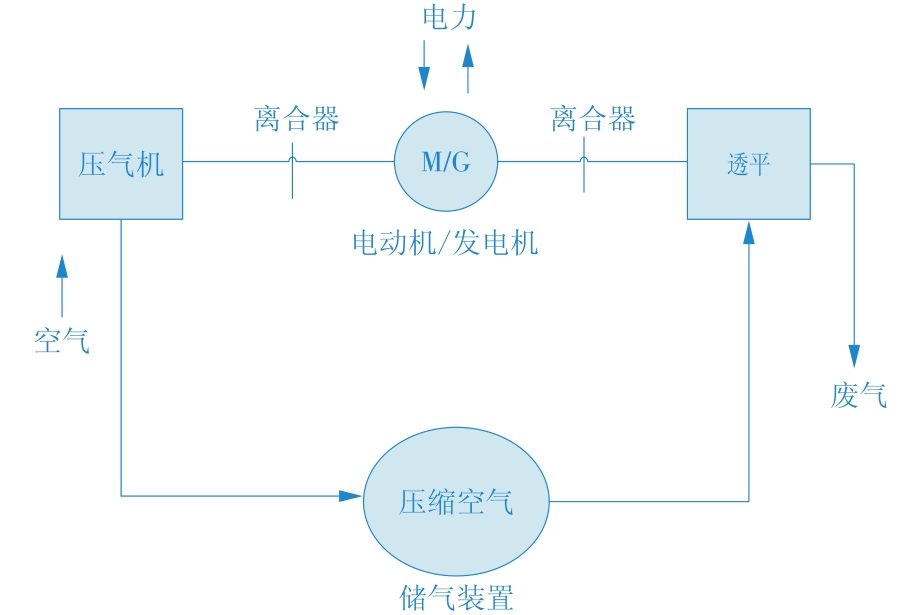

图1

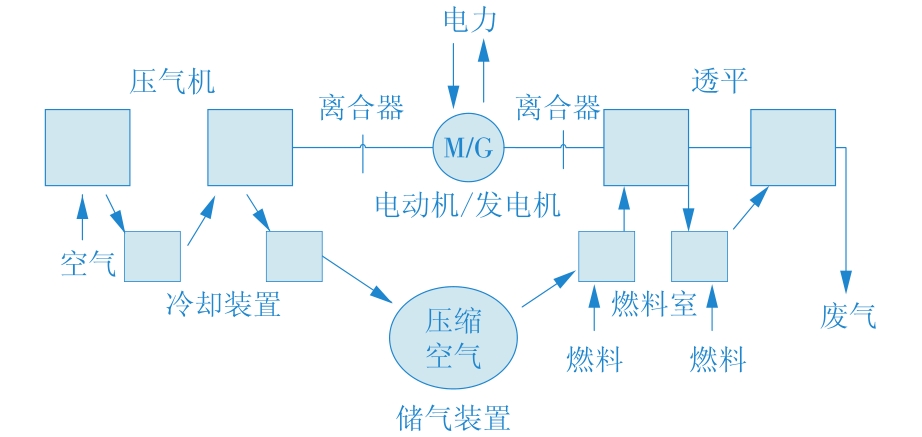

图2

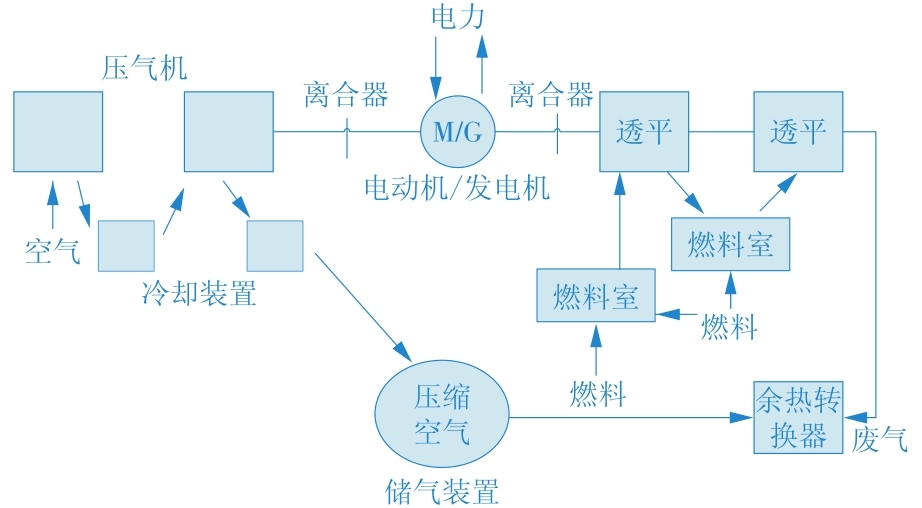

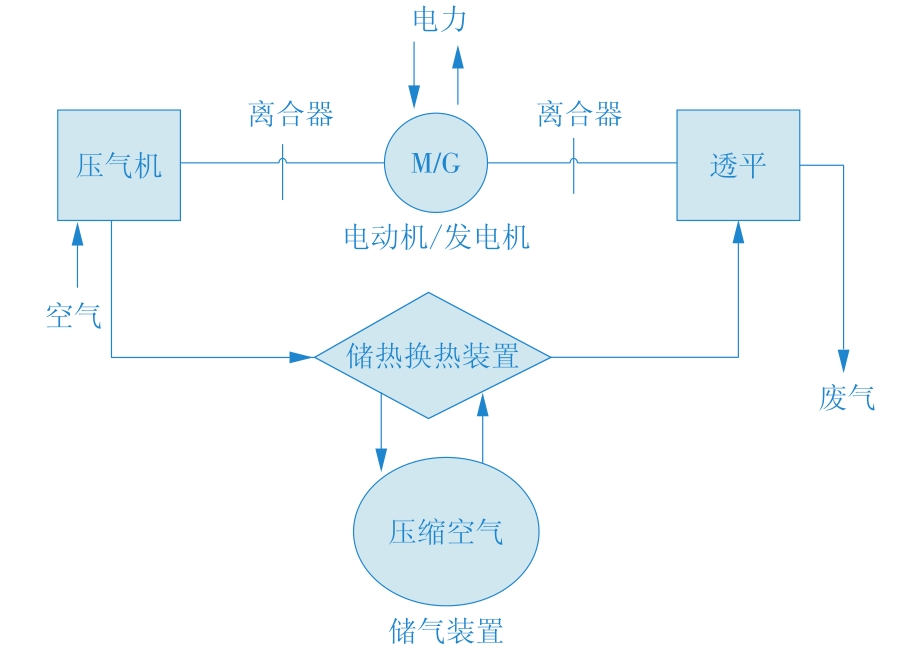

图3

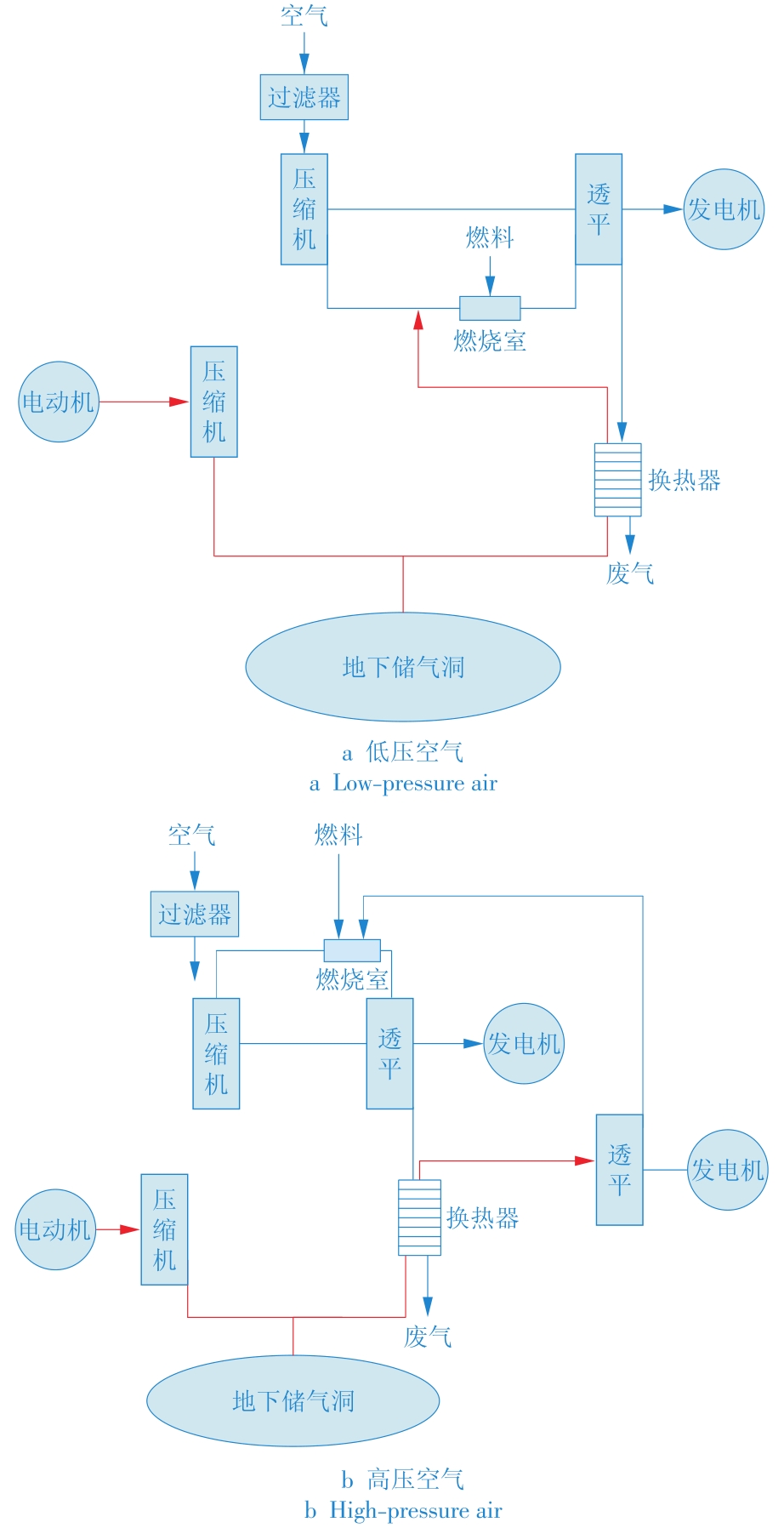

图4

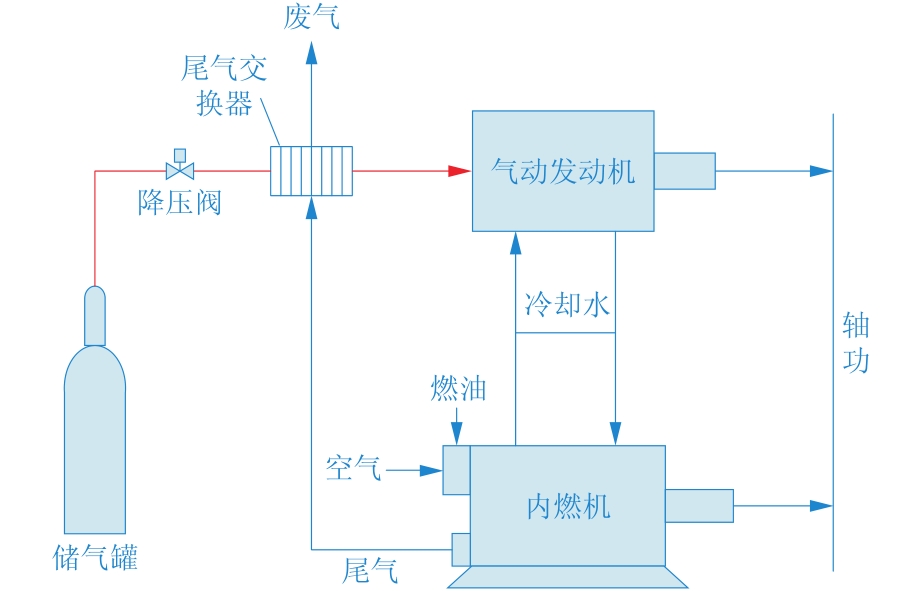

图5

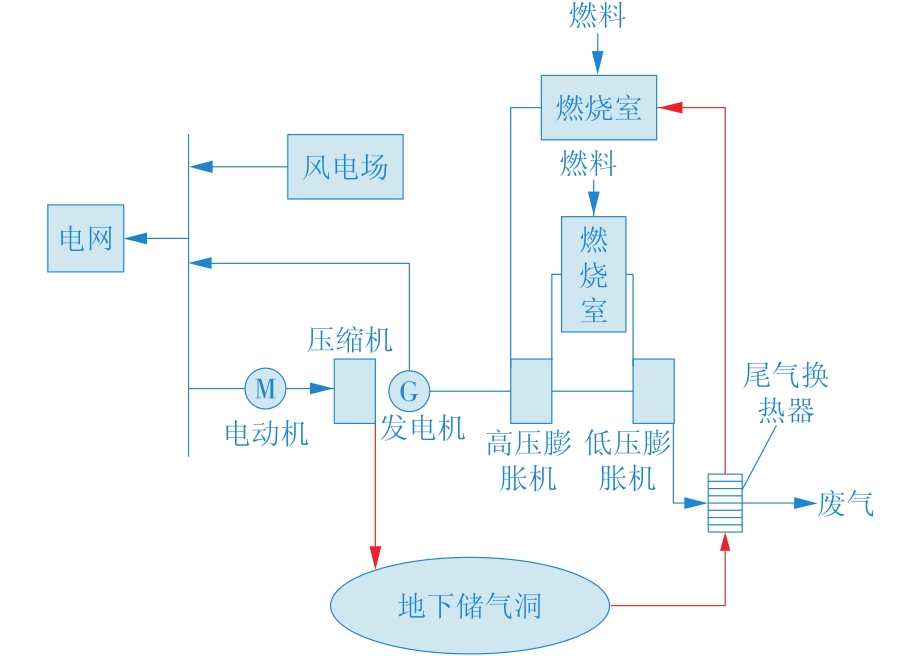

图6

图7

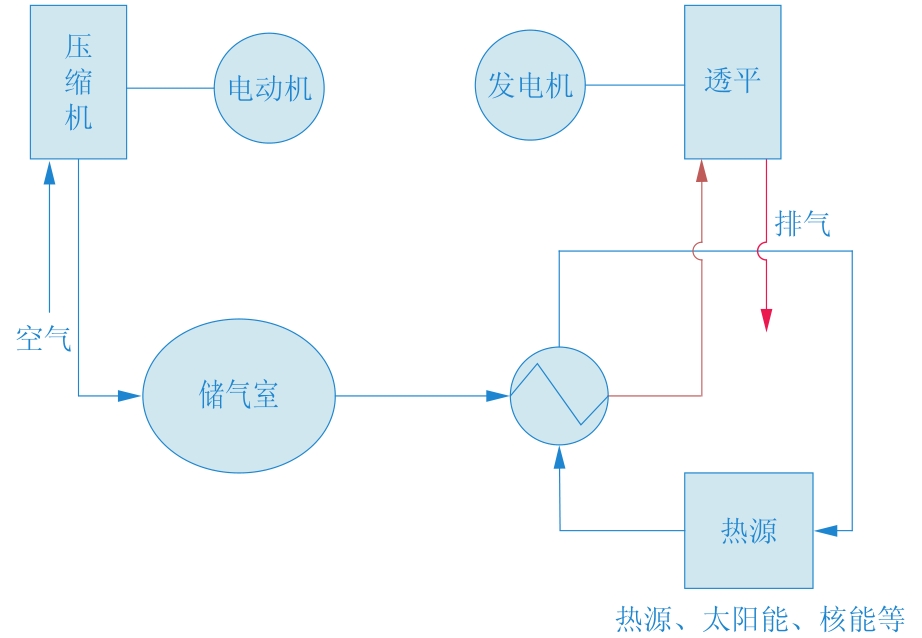

图8

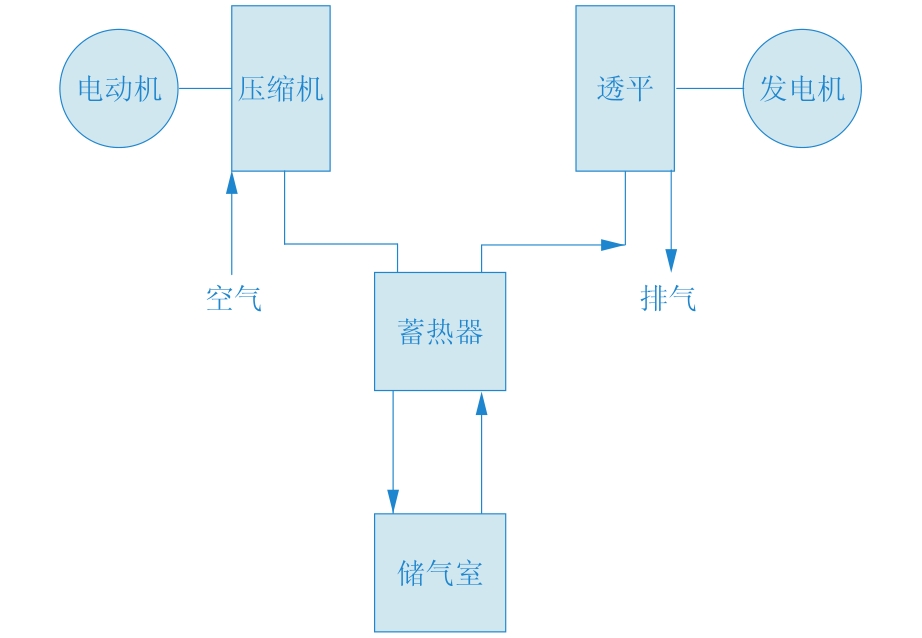

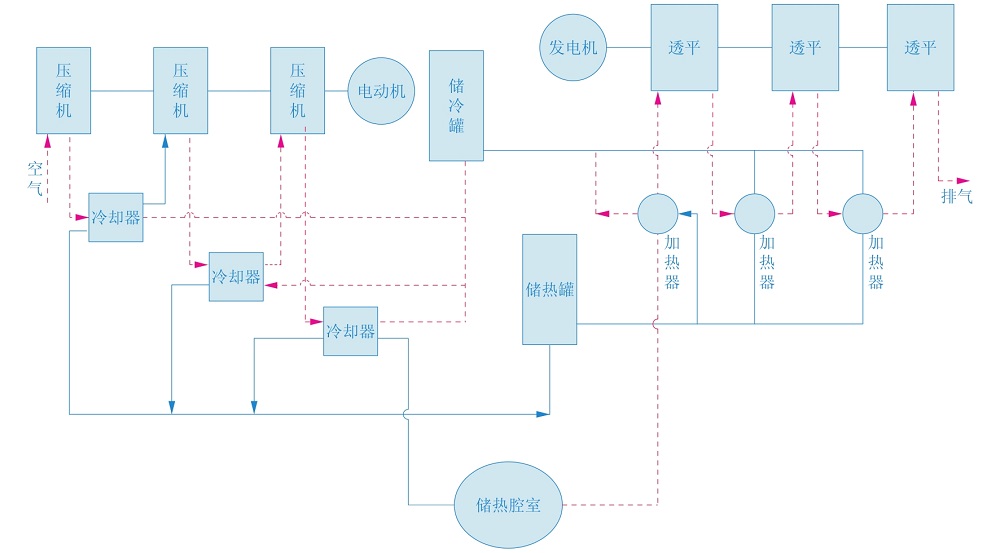

图9

图10

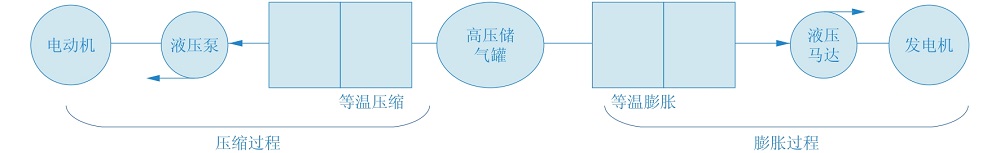

图11

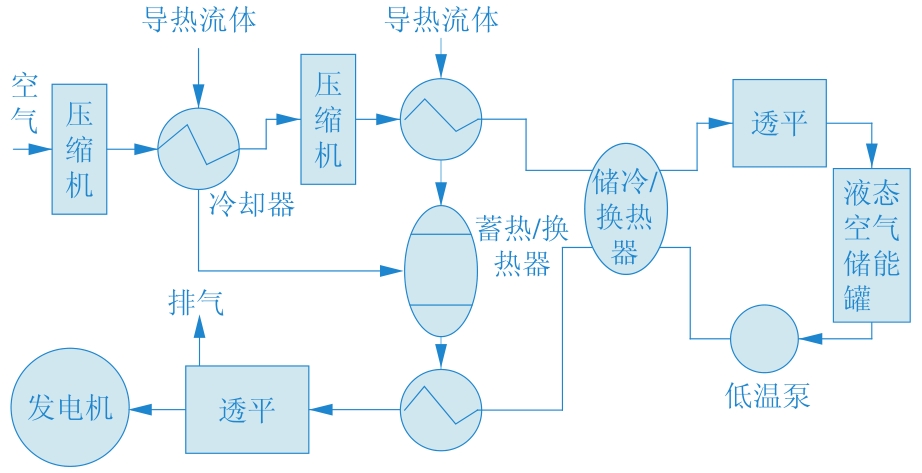

图12

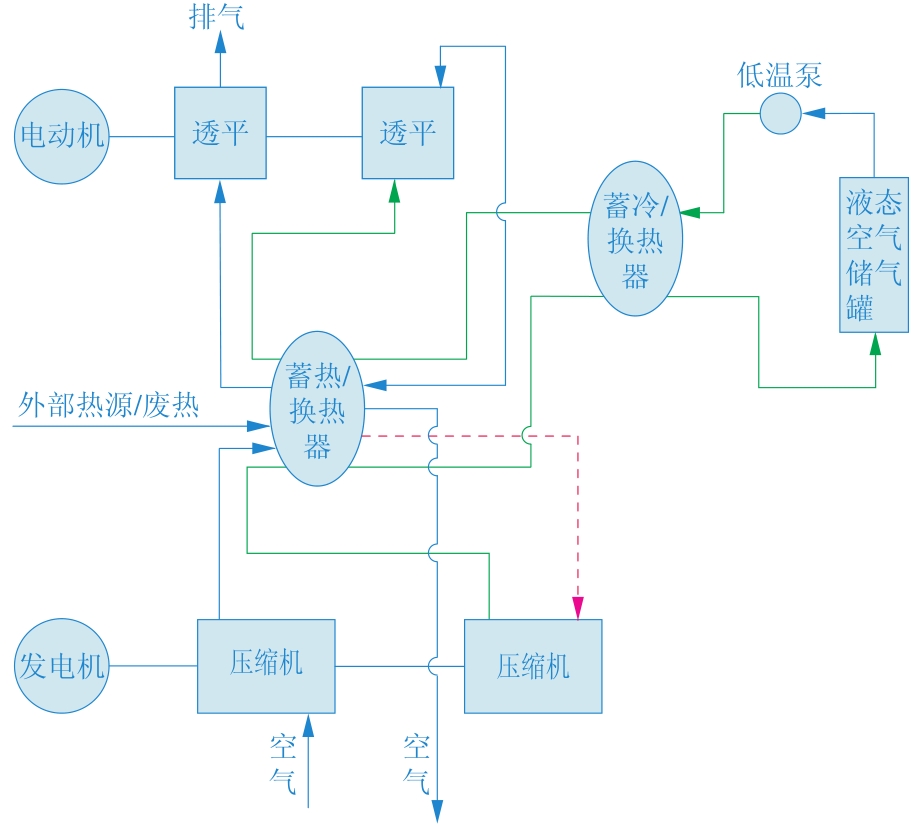

图13

表2

参考文献 36

[1]	International Energy Agency. World energy outlook 2018[R]Paris:2019.
[2]	Energy Information Administration US. International Energy Outlook 2018. Washington DC:US Energy Information Administration[R], 2018
[3]	国家发展改革委, 财政部, 科学技术部, 等. 关于促进储能技术与产业发展的指导意见[R], 2017.
[4]	林楚. 首个储能产业发展指导纲领——《关于促进储能技术与产业发展的指导意见》发布[J]. 电力系统装备, 2017,(10):38-40.
	LIN Chu. The first energy storage industry development guideline —"Guidelines on promoting energy storage technology and industry development" issuing[J]. Power System Equipment, 2017(10):38-40.
[5]	LUO X, WANG J, MARK D, et al. Overview of current development in electrical energy storage technologies and the application potential in power system operation[J]. Applied Energy, 2015, 137:511-536. doi: 10.1016/j.apenergy.2014.09.081
[6]	梅生伟, 李瑞, 陈来军, 等. 先进绝热压缩空气储能技术研究进展及展望[J]. 中国电机工程学报, 2018, 8(10):2893-2907.
	MEI Shengwei, LI Rui, CHEN Laijun. An overview and outlook on advanced adiabatic compressed air energy storage technique[J]. Proceedings of the CSEE, 2018, 38(10):2893-2907.
[7]	SWIDER D. Compressed air energy storage in an electricity system with significant wind power generation[J]. IEEE Transactions on Energy Conversion, 2007, 22(1):95-102. doi: 10.1109/TEC.2006.889547
[8]	余耀, 孙华, 许俊斌, 等. 压缩空气储能技术综述[J]. 装备机械, 2013(1):68-74.
	YU Yao, SUN Hua, XU Junbin, et al. Summary of compressed air energy storage technology[J]. Equipment Machinery, 2013(1):68-74.
[9]	董振斌, 蒯狄正. 以压缩空气储能耦合燃机技术促进东北新能源就地消纳[J]. 电力需求侧管理, 2017(5):28-30.
	DONG Zhenbin, KUAI Dizheng. Promote new energy consumption nearby in Northeast China with compressed air energy storage coupling gas turbine technology[J]. China Academic Journal Electronic Publishing House, 2017(5):28-30.
[10]	赵明, 梁俊宇, 杨延举. 考虑压缩空气储能的微电网交互仿真技术研究[J]. 电工电气, 2016,(2):19-22.
	ZHAO Ming, LIANG Junyu, YANG Yanju. Research on interactive simulation technology for micro-grid considering compressed-air energy storage[J]. China Academic Journal Electronic Publishing House, 2016,(2):19-22.
[11]	文贤馗, 张世海, 王锁斌. 压缩空气储能技术及示范工程综述[J]. 应用能源技术, 2018(3):43-48.
	WEN Xiankui, ZHAGN Shihai, WANG Suobin. Summary of compressed air energy storage technology and demonstration projects[J]. China Academic Journal Electronic Publishing House, 2018(3):43-48.
[12]	BENJAMIN B. Technology performance report sustain smart grid program[R]. Department of Energy's National Energy Technology Laboratory, 2015.
[13]	何子伟, 罗马吉, 涂正凯. 等温压缩空气储能技术综述[J]. 热能动力工程, 2018, 33(2):1-6.
	HE Ziwei, LUO Maji, TU Zhengkai. Survey of the isothermal compressed air energy storage technologies[J]. Journal of Engineering for Thermal Energy and Power, 2018, 33(2):1-6.
[14]	肖定垚, 王承民, 衣涛, 等. 压缩空气蓄能(CAES)系统综述[J]. 电网与清洁能源, 2014, 30(1):75-80.
	XIAO Dingyao, WANG Chengmin, YI Tao, et al. Review of compressed air energy storage system[J]. Power System and Clean Energy, 2014, 30(1):75-80.
[15]	NAKHAMKIN M, WOLK R, LINDEN S, et al. New compressed air energy storage concept improves the profitability of existing simple cycle, cyclecombined, energywind, landfill gas power plants[C]// ASME Turbo Expo 2004: Power for Land,Sea,and Air.
[16]	李斌, 陈吉玲, 李晨昕, 等. 压缩空气储能系统与火电机组的耦合方案研究[J]. 动力工程学报, 2021, 41(3):244-250.
	LI Bin, CHEN Jiling, LI Chenxin, et al. Research on coupling schemes of a compressed air energy storage system and thermal power unit[J]. Journal of Chinese Society of Power Engineering, 2021, 41(3):244-250.
[17]	李丞宸, 李宇峰, 张严, 等. 一种新型蒸汽恒压抽水压缩空气储能系统及其热力学分析[J]. 西安交通大学学报, 2021(6):1-9.
	LI Chengchen, LI Yufeng, ZHANG Yan, et al. Novel steam constant-pressure pumped hydro with cpmpressed air energy storage system and thermodynamic analysis[J]. Journal of Xi'an Jiaotong University, 2021(6):1-9.
[18]	张新敬, 陈海生, 刘金超, 等. 压缩空气储能技术研究进展[J]. 储能科学与技术, 2012(1):26-40.
	ZHANG Xinjing, CHEN Haisheng, LIU Jinchao, et al. Research progress in compressed air energy storage system:A review[J]. Energy Storage Science and Technology, 2012(1):26-40.
[19]	NAKHAMKIN M, CHIRUVOLU M, DANIEL C. Available compressed air energy storage(CAES)plant concepts[J]. Energy, 2010, 4100:81-89.
[20]	HUANG K, QUANG K, TSENG K. Study of recycling exhaust gas energy of hybrid pneumatic power system with CFD[J]. Energy Conversion & Management, 2009, 50(5):1271-1278.
[21]	CREUTZIG F, PAPSON A, SCHIPPER L, et al. Economic and environmental evaluation of compressed-air cars[J]. Environmental Research Letters, 2009, 4(4):44011-44019. doi: 10.1088/1748-9326/4/4/044011
[22]	IBRAHIM H, YOUNES R, ILINCA A, et al. Study and design of a hybrid wind-diesel-compressed air energy storage system for remote areas[J]. Applied Energy, 2010, 87(5):1749-1762. doi: 10.1016/j.apenergy.2009.10.017
[23]	LERCH E, SIEMENS A, PTD N. Storage of fluctuating wind energy[C]. European Conference on Power Electronics & Applications,IEEE, 2008.
[24]	DENHOLM P, SIOSHANSI R. The value of compressed air energy storage with wind in transmission-constrained electric power systems[J]. Energy Policy, 2009, 37(8):3149-3158. doi: 10.1016/j.enpol.2009.04.002
[25]	ZHANG X, XU Y, ZHOU X, et al. A near-isothermal expander for isothermal compressed air energy storage system[J]. Applied Energy, 2018, 225:955-964 doi: 10.1016/j.apenergy.2018.04.055
[26]	BARBOUR E, WILSON I, RADCLIFFE J, et al. A review of pumped hydro energy storage development in significant international electricity markets[J]. Renewable and Sustainable Energy Reviews, 2016, 61:421-432. doi: 10.1016/j.rser.2016.04.019
[27]	LIU J, WANG J. A comparative research of two adiabatic compressed air energy storage systems[J]. Energy Conversion and Management, 2016, 108:566-578. doi: 10.1016/j.enconman.2015.11.049
[28]	MAZLOUM Y, SAYAH H, NEMER M. Dynamic modeling and simulation of an isobaric adiabatic compressed air energy storage(IA-CAES)system[J]. Journal of Energy Storage, 2017, 11:178-190. doi: 10.1016/j.est.2017.03.006
[29]	SCIACOVELLI A, LI Y, CHEN H, et al. Dynamic simulation of adiabatic compressed air energy storage(A-CAES) plant with integrated thermal storage—Link between components performance and plant performance[J]. Applied Energy, 2017, 185:16-28. doi: 10.1016/j.apenergy.2016.10.058
[30]	CHEN L, HU P, ZHAO P, et al. A novel throttling strategy for adiabatic compressed air energy storage system based on an ejector[J]. Energy Conversion and Management, 2018, 158:50-59. doi: 10.1016/j.enconman.2017.12.055
[31]	TOLA V, MELONI V, SPADACCINI F, et al. Performance assessment of adiabatic compressed air energy storage(A-CAES)power plants integrated with packed-bed thermocline storage systems[J]. Energy Conversion and Management, 2017, 151:343-356. doi: 10.1016/j.enconman.2017.08.051
[32]	BUDT M, WOLF D, SPAN R, et al. A review on compressed air energy storage:Basic principles,past milestones and recent developments[J]. Applied Energy, 2016, 170:250-268. doi: 10.1016/j.apenergy.2016.02.108
[33]	董舟, 李凯, 王永生, 等. 压缩空气储能技术研究及应用现状[J]. 河北电力技术, 2019, 38(5):18-20.
	DONG Zhou, LI Kai, WANG Yongsheng, et al. Research and application status of compressed air energy storage technology[J]. Hebei Electric Power, 2019, 38(5):18-20.
[34]	ROBERT M, STUART N, EMMA G, et al. Liquid air energy storage-analysis and first results from a pilot scale demonstration plant[J]. Applied Energy, 2015, 137(3):845-853. doi: 10.1016/j.apenergy.2014.07.109
[35]	GUO H, XU Y, CHEN H, et al. Thermodynamic characteristics of a novel supercritical compressed air energy storage system[J]. Energy Conversion and Management, 2016, 115:167-177. doi: 10.1016/j.enconman.2016.01.051
[36]	刘佳. 超临界空气蓄热蓄冷数值与实验研究[D]. 北京: 中国科学院工程热物理研究所, 2012.

类型	规模/MW	效率/%	优点	限制
传统压缩空气储能	110.0	54	对环境影响小,投资少	需要高压,容量大的储能装置
绝热压缩空气储能	0.5~300.0	>50	系统简单、成本低、无二次排放、冷热电三联供	—
蓄热式压缩空气储能	2.0	>50	提高可再生能源利用率和压缩空气储能效率	—
液态空气储能	5.0	>50	能密度大	大型蓄热回冷难度大、系统热损失严重、成本高、实际储能效率低
超临界压缩空气储能	10.0	60	能密度大	大型蓄热回冷难度大、系统热损失严重、成本高、实际储能效率低
