多类型电源与储能协同的配电网规划优化

doi:10.3969/j.issn.2097-0706.2025.08.006

摘要/Abstract

摘要：

随着小火电、储能、风电、光伏及电动汽车等分布式电源的大规模接入，为优化配电网的系统运行成本和输电损耗，根据配电网内大量分布式电源的出力以及不同时段的负荷需求，建立多目标优化模型并对不同配电网的线路规划方案进行分析。采用改进的多目标灰狼算法结合前推回代潮流算法进行优化计算，实现每个节点的电压和分布式电源的出力优化。构建具备不同典型特征的规划路线场景，分析电动汽车接入不同的节点对线路损耗和系统运行成本的影响，得到最佳的线路规划方案。采用IEEE 33节点进行仿真计算，结果表明：与传统单一的供电方式相比，分布式电源接入后输电损耗降低了52.39%；利用新能源+电动汽车充电桩，可以有效降低系统运行成本，为未来大规模充电桩接入配电网提供参考。

关键词: 配电网, 分布式电源, 优化规划, 电动汽车充电桩, 多目标灰狼算法, 前推回代算法, 输电损耗

Abstract:

With the large-scale integration of distributed energy resources such as small thermal power units， energy storage systems， wind turbines， photovoltaic systems， and electric vehicle charging stations， it is essential to optimize the system operating costs and transmission loss in distribution networks. Based on the output of multiple distributed energy resources and the load demand at different time periods within distribution networks， a multi-objective optimization model was established to analyze different line planning schemes for distribution networks. An improved multi-objective grey wolf optimizer integrated with the forward/backward sweep algorithm was used for optimization to optimize voltage and output of distributed energy resources at each node. Planning route scenarios with different typical characteristics were developed to analyze the effect of electric vehicle access at different nodes on line loss and system operating costs， thereby obtaining the optimal line planning scheme. Simulation calculations were conducted using the IEEE 33-bus system. The results showed that compared to traditional single-source power supply methods， the integration of distributed energy resources reduced transmission loss by 52.39%. Additionally， the hybrid system combining renewable energy with electric vehicle charging stations could effectively reduce system operating costs， providing a reference for large-scale integration of charging stations into distribution networks in the future.

Key words: distribution network, distributed energy resources, optimization planning, electric vehicle charging station, multi-objective grey wolf optimizer, forward/backward sweep algorithm, transmission loss

中图分类号:

TK01

王砥凡, 魏飞, 蒋德玉, 韩树山, 李中凯, 张盛林, 王政伟, 陈衡. 多类型电源与储能协同的配电网规划优化[J]. 综合智慧能源, 2025, 47(8): 49-57.

WANG Difan, WEI Fei, JIANG Deyu, HAN Shushan, LI Zhongkai, ZHANG Shenglin, WANG Zhengwei, CHEN Heng. Optimization planning of distribution networks with multiple energy resources and energy storage coordination[J]. Integrated Intelligent Energy, 2025, 47(8): 49-57.

图/表 13

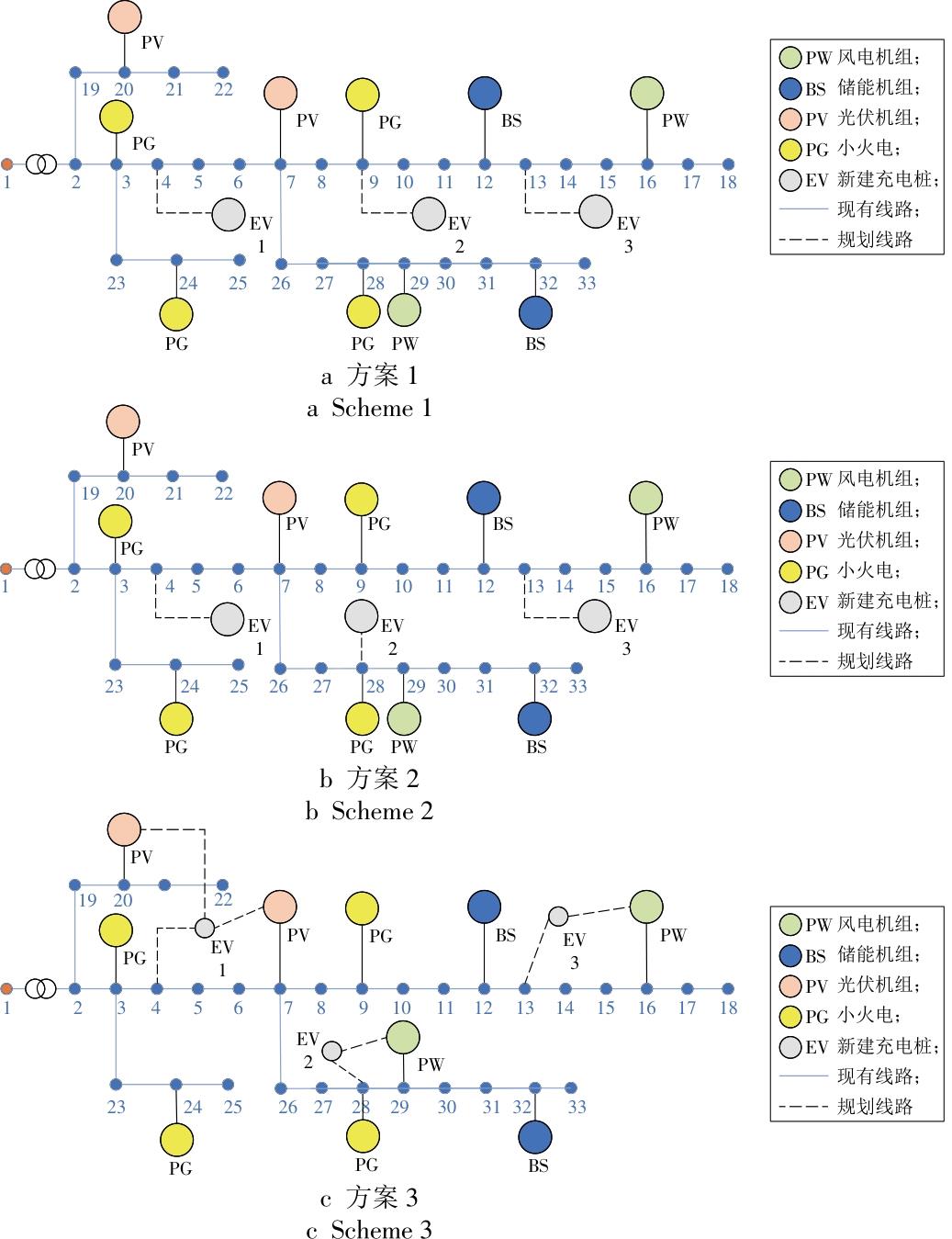

图1

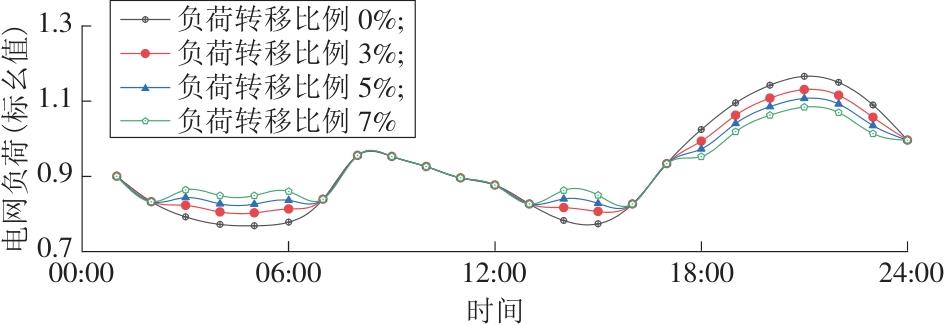

图2

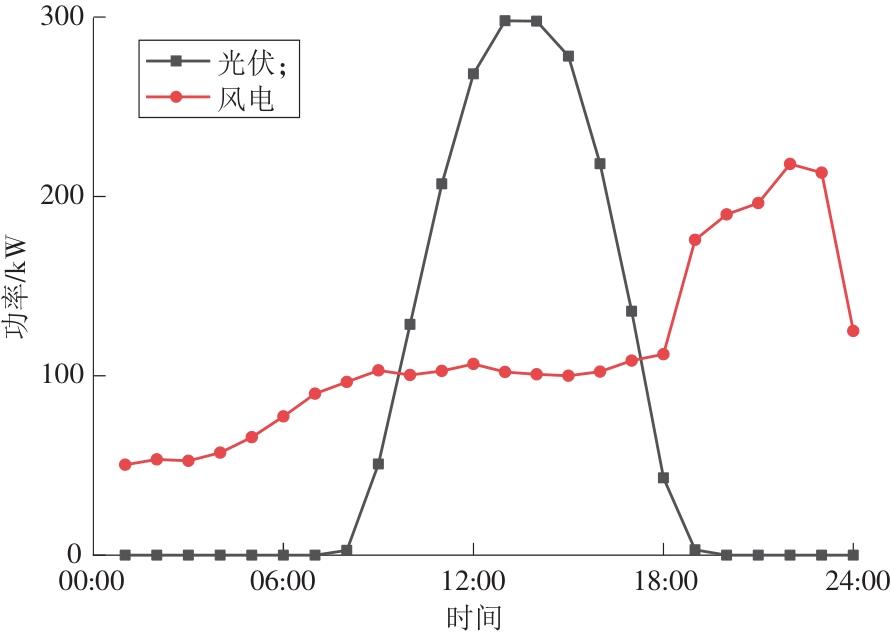

图3

表1

系统模型参数

参数	数值
$p P V$ /(元·kW^-1)	0.336
$p P V Y W$ /(元·kW^-1)	0.008
$p B A$ /(元·kW^-1)	0.235
$p B A Y W$ /(元·kW^-1)	0.030
$p W T$ /(元·kW^-1)	0.509
$p W T Y W$ /(元·kW^-1)	0.009
E/(kW·h)	500
$P i m a x$ /kW	300
$P i m i n$ /kW	100
$S O C, m a x$	1.0
$S O C, m i n$	0.3
b/(元·kW^-1)	0.000 6
c/(元·kW^-1)	0.308 8
d/(元·kW^-1)	40.000 0
$U i, m a x$ （标幺值）	1.03
$U i, m i n$ （标幺值）	0.97

表1

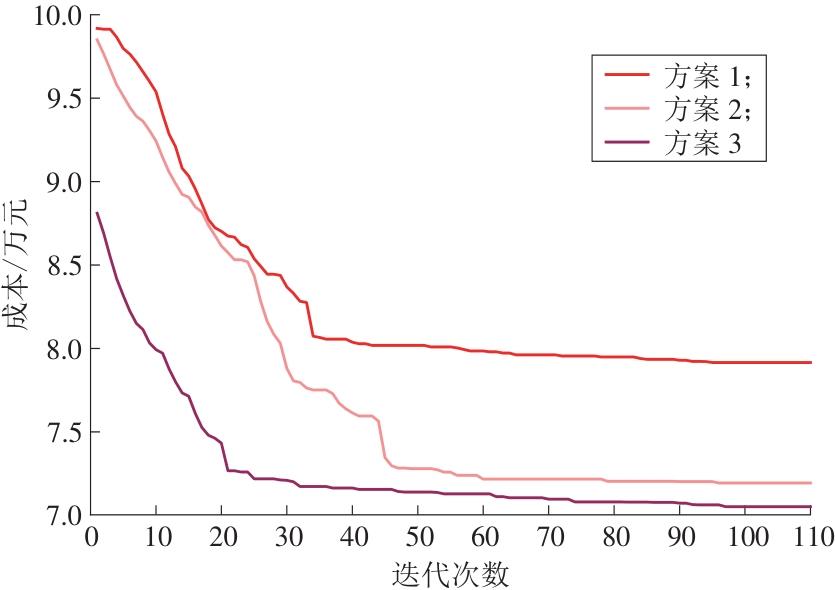

图4

表2

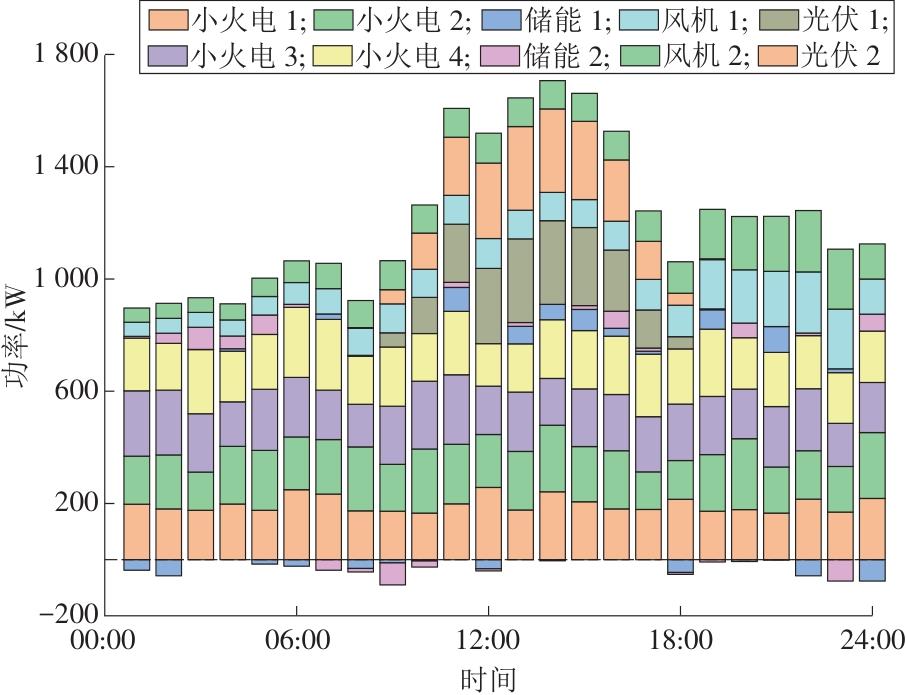

图5

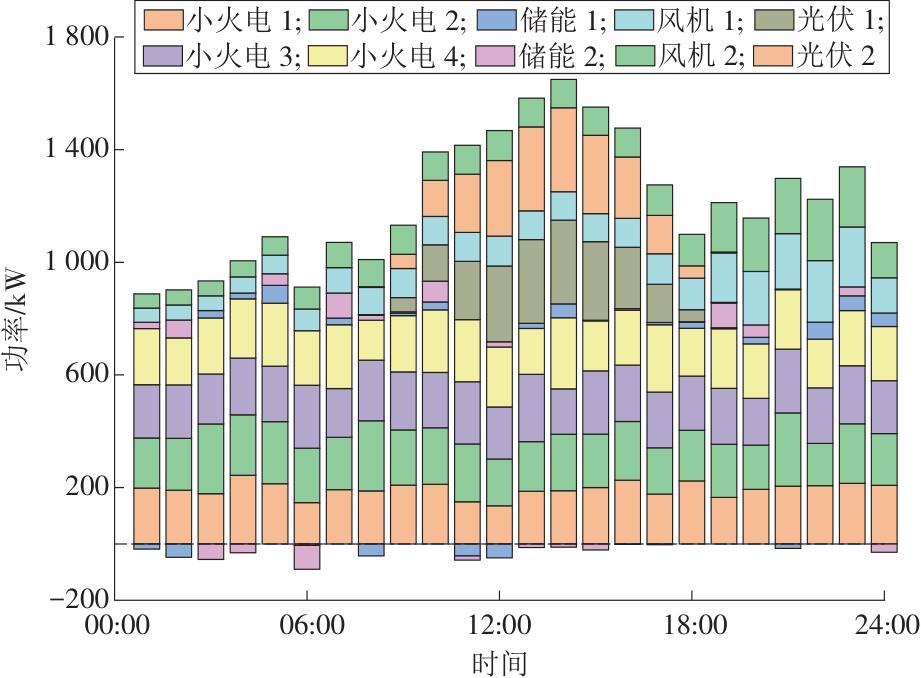

图6

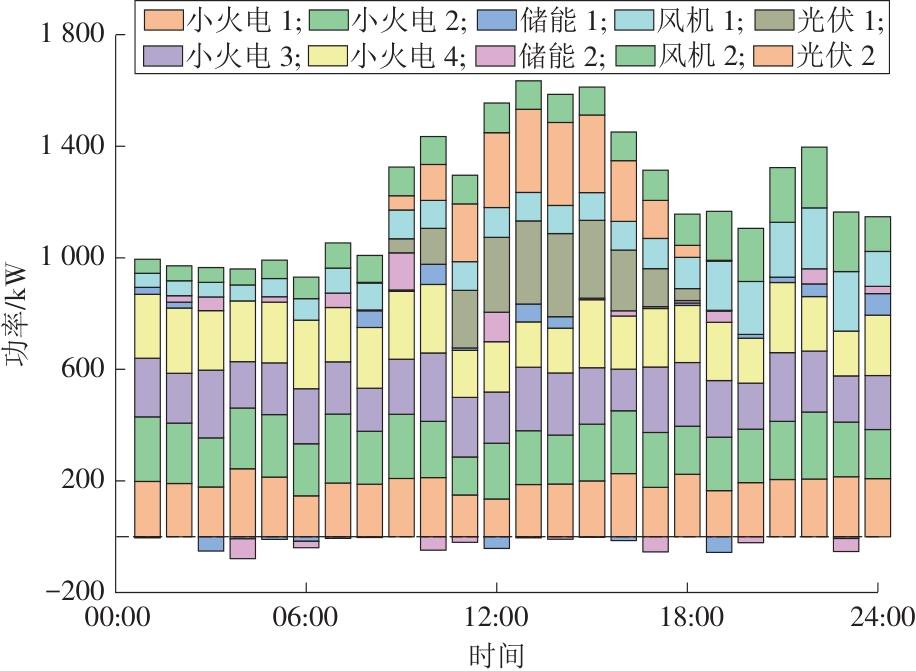

图7

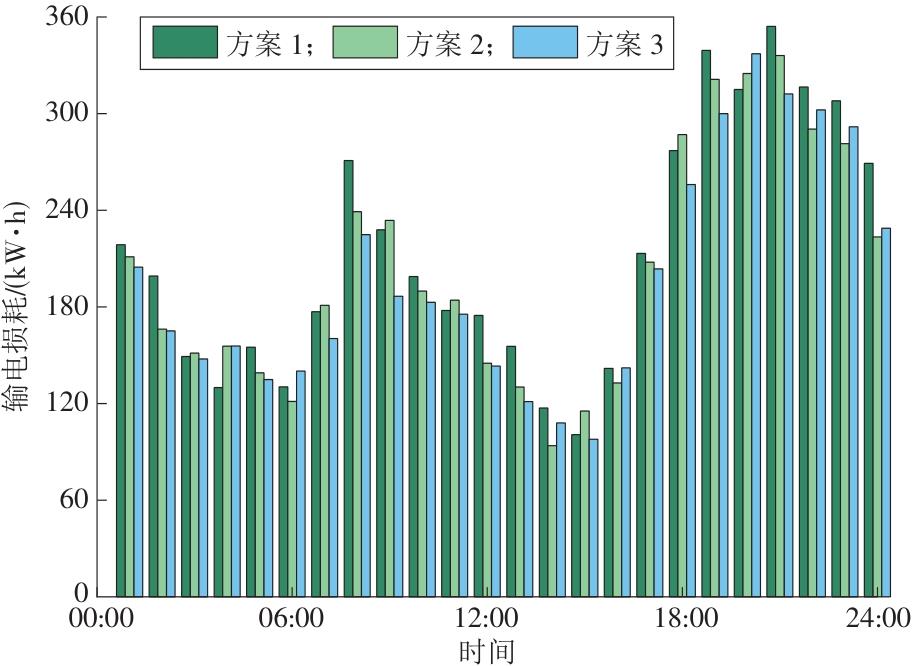

图8

表3

图9

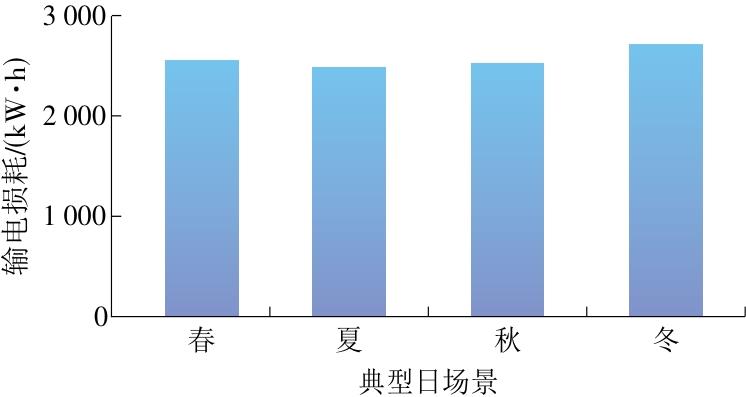

图10

参考文献 26

[1]	石海平. 分布式能源迎来发展良机[J]. 企业观察家, 2024(3):80-81.
	SHI Haiping. Distributed energy ushers in a good opportunity for development[J]. Enterprise Observer, 2024(3):80-81.
[2]	张跃, 杨汾艳, 曾杰, 等. 主动配电网的分布式电源优化规划方案研究[J]. 电力系统保护与控制, 2015, 43(15): 67-72.
	ZHANG Yue, YANG Fenyan, ZENG Jie, et al. Research of distributed generation optimization planning for active distributed network[J]. Power System Protection and Control, 2015, 43(15): 67-72.
[3]	管晓虎, 王长云, 张燕. 基于配网状态的分布式电源接入位置研究[J]. 综合智慧能源, 2024, 46(10): 26-31. doi: 10.3969/j.issn.2097-0706.2024.10.004
	GUAN Xiaohu, WANG Changyun, ZHANG Yan. Research on the access location of distributed generations based on distribution network status[J]. Integrated Intelligent Energy, 2024, 46(10): 26-31. doi: 10.3969/j.issn.2097-0706.2024.10.004
[4]	张珍珍, 吕清泉, 张健美. “双碳”目标下分布式光伏发电技术的研究进展及展望[J]. 太阳能, 2023(1): 17-21.
	ZHANG Zhenzhen, LYU Qingquan, ZHANG Jianmei. Research progress and prospect of distributed PV power generation technology under the goal of emission peak and carbon neutrality[J]. Solar Energy, 2023(1): 17-21.
[5]	宋宇. 考虑主动配电网脆弱性的分布式储能配置[D]. 郑州: 华北水利水电大学, 2024.
	SONG Yu. Distributed energy storage configuration considering the vulnerability of active distribution network[D]. Zhengzhou: North China University of Water Resources and Electric Power, 2024.
[6]	林泓宏, 余涛, 张桂源, 等. 基于数据驱动的高比例新能源配电网无功优化算法[J]. 综合智慧能源, 2023, 45(11): 10-19. doi: 10.3969/j.issn.2097-0706.2023.11.002
	LIN Honghong, YU Tao, ZHANG Guiyuan, et al. Data-driven reactive power optimization algorithm for the distribution network with high proportion of renewable energy[J]. Integrated Intelligent Energy, 2023, 45(11): 10-19. doi: 10.3969/j.issn.2097-0706.2023.11.002
[7]	刘洪波, 刘珅诚, 盖雪扬, 等. 高比例新能源接入的主动配电网规划综述[J]. 发电技术, 2024, 45(1): 151-161. doi: 10.12096/j.2096-4528.pgt.22106
	LIU Hongbo, LIU Shencheng, GAI Xueyang, et al. Summary of active distribution network planning with high proportion of new energy access[J]. Power Generation Technology, 2024, 45(1): 151-161. doi: 10.12096/j.2096-4528.pgt.22106
[8]	曾耀辉. 基于改进小生境PSO算法的主动配电网中分布式电源优化调度[J]. 机电信息, 2023(23): 16-19.
	ZENG Yaohui. Optimal dispatching of distributed generation in active distribution network based on improved niche PSO algorithm[J]. Mechanical and Electrical Information, 2023(23): 16-19.
[9]	王林, 孔小民, 周忠玉, 等. 云储能模式下的配电网分布式光伏-储能无功优化方法[J]. 综合智慧能源, 2024, 46(6): 44-53. doi: 10.3969/j.issn.2097-0706.2024.06.006
	WANG Lin, KONG Xiaomin, ZHOU Zhongyu, et al. Distributed photovoltaic-energy storage reactive power optimization method for distribution networks under cloud energy storage mode[J]. Integrated Intelligent Energy, 2024, 46(6): 44-53. doi: 10.3969/j.issn.2097-0706.2024.06.006
[10]	徐钰涵. 考虑源荷不确定性的微电网多时间尺度优化调度[D]. 广州: 华南理工大学, 2023.
	XU Yuhan. Multi-time scale optimal scheduling of microgrid considering source-load uncertainty[D]. Guangzhou: South China University of Technology, 2023.
[11]	何力. 考虑削峰填谷策略的多微电网经济性优化调度研究[C]// 浙江省电力学会2022年度优秀论文集. 2023: 181-193.
[12]	农灿. 基于改进灰狼算法的含分布式电源配电网无功优化[J]. 青海电力, 2024, 43(S1): 8-14.
	NONG Can. Reactive power optimization of distribution network with distributed generation based on improved grey wolf algorithm[J]. Qinghai Electric Power, 2024, 43(S1): 8-14.
[13]	杨淑婷, 郑权. 基于改进哈里斯鹰优化算法的微电网优化调度[J]. 山东电力高等专科学校学报, 2024, 27(4): 18-23.
	YANG Shuting, ZHENG Quan. Optimal dispatching of microgrid based on improved harris hawks optimization algorithm[J]. Journal of Shandong Electric Power College, 2024, 27(4): 18-23.
[14]	陈泽远, 范春菊, 胡炎, 等. 大规模分布式电源接入的配电网区域差动保护方案[J/OL]. 现代电力:1-9(2024-08-26)[2024-12-25].https://doi.org/10.19725/j.cnki.1007-2322.2023.0266.
	CHEN Zeyuan, FAN Chunju, HU Yan, et al. Regional differential protection scheme of distribution network for large-scale distributed power access[J/OL]. Modern Electric Power:1-9(2024-08-26)[2024-12-25].https://doi.org/10.19725/j.cnki.1007-2322.2023.0266.
[15]	缪雨函, 许寅, 王颖. 面向恢复力提升的高比例分布式光伏接入配电网规划方法[J]. 山东电力技术, 2024, 51(8): 1-9.
	MIAO Yuhan, XU Yin, WANG Ying. Planning of distribution system integrated with high-penetration photovoltaic for the resilience improvement[J]. Shandong Electric Power, 2024, 51(8): 1-9.
[16]	赵政洲, 郑天. 分布式电源并网对配电网电能质量的影响[J]. 光源与照明, 2024(6): 174-176.
	ZHAO Zhengzhou, ZHENG Tian. Influence of distributed generation on power quality of distribution network[J]. Lamps & Lighting, 2024(6): 174-176.
[17]	李玉龙, 韩兵. 电力系统无功线性优化问题的算法研究[J]. 青海电力, 2007, 26(2): 3-6.
	LI Yulong, HAN Bing. Study on the arithmetic of the linear optimization of reactive power in electrical power system[J]. Qinghai Electric Power, 2007, 26(2): 3-6.
[18]	张涛, 余利, 姚剑峰, 等. 基于改进多目标差分灰狼算法的配电网无功优化[J]. 信息与控制, 2020, 49(1): 78-86. doi: 10.13976/j.cnki.xk.2020.9187
	ZHANG Tao, YU Li, YAO Jianfeng, et al. Reactive power optimization of distribution network based on improved multi-objective differential gray wolf optimization[J]. Information and Control, 2020, 49(1): 78-86. doi: 10.13976/j.cnki.xk.2020.9187
[19]	肖浩, 裴玮, 董佐民, 等. 基于元模型全局最优化方法的含分布式电源配电网无功优化[J]. 中国电机工程学报, 2018, 38(19): 5751-5762, 5931.
	XIAO Hao, PEI Wei, DONG Zuomin, et al. Reactive power optimization of distribution network with distributed generation using metamodel-based global optimization method[J]. Proceedings of the CSEE, 2018, 38(19): 5751-5762, 5931.
[20]	李裕, 吴秋宁, 冷雪梅, 等. 农村配电网分布式电源选址定容研究[J]. 农村电气化, 2024(7): 15-19.
	LI Yu, WU Qiuning, LENG Xuemei, et al. Study on location and capacity of distributed generation in rural distribution network[J]. Rural Electrification, 2024(7): 15-19.
[21]	丛雨, 原帅, 王昊, 等. 基于改进多目标灰狼算法和二阶锥规划的主动配电网多时间尺度无功/电压优化控制[J/OL]. 现代电力:1-13(2024-04-29)[2024-12-25]. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=XDDL20240425001&dbname=CJFD&dbcode=CJFQ.
	CONG Yu, YUAN Shuai, WANG Hao, et al. Multi-time scale reactive power/voltage optimal control of active distribution network based on improved multi-objective grey wolf algorithm and second-order cone programming[J/OL]. Modern Electric Power:1-13(2024-04-29)[2024-12-25].http://kns.cnki.net/KCMS/detail/detail.aspx?filename=XDDL20240425001&dbname=CJFD&dbcode=CJFQ.
[22]	陈慧娜, 杨军, 高梦妍, 等. 基于改进前推回代的含分布式电源配电网潮流计算方法[J]. 自动化与仪表, 2021, 36(6): 6-11.
	CHEN Huina, YANG Jun, GAO Mengyan, et al. Power flow calculation method for distribution network with distributed generation based on improved forward and back generation[J]. Automation & Instrumentation, 2021, 36(6): 6-11.
[23]	刘可文, 侯朗博, 孙昊, 等. 含高密度光伏与储能的配电网多目标优化调度策略[J/OL]. 发电技术:1-11(2024-07-23)[2024-12-25].http://kns.cnki.net/kcms/detail/33.1405.tk.20240723.1357.002.html.
	LIU Kewen, HOU Langbo, SUN Hao, et al. Multi-objective optimal dispatching strategy of distribution network with high-density photovoltaic and energy storage[J/OL]. Power Generation Technology:1-11(2024-07-23)[2024-12-25].http://kns.cnki.net/kcms/detail/33.1405.tk.20240723.1357.002.html.
[24]	李文豪. 高比例分布式电源接入配电网线损优化策略研究[D]. 成都: 电子科技大学, 2023.
	LI Wenhao. Research on line loss optimization strategy of high proportion distributed power supply connected to distribution network[D]. Chengdu: University of Electronic Science and Technology of China, 2023.
[25]	李童宇, 武浩然, 陈衡, 等. 考虑储能调控优化的配电网分布式电源选址定容[J]. 浙江电力, 2024, 43(6): 41-51.
	LI Tongyu, WU Haoran, CHEN Heng, et al. Placement and sizing of distributed generation in distribution networks considering energy storage scheduling optimization[J]. Zhejiang Electric Power, 2024, 43(6): 41-51.
[26]	孙昊翔, 段俊东. 考虑富氧燃烧电厂与掺氢燃气设备联合运行的综合能源系统优化调度[J]. 热力发电, 2025, 54(1): 78-87.
	SUN Haoxiang, DUAN Jundong. Optimal dispatch of integrated energy system considering joint operation of oxy-fuel combustion power plants and hydrogen doped gas equipment[J]. Thermal Power Generation, 2025, 54(1): 78-87.

方案	输电损耗/（kW·h）	日运行成本/元
1	5 116.859	79 154.15
2	4 862.223	71 936.21
3	4 723.218	70 520.72

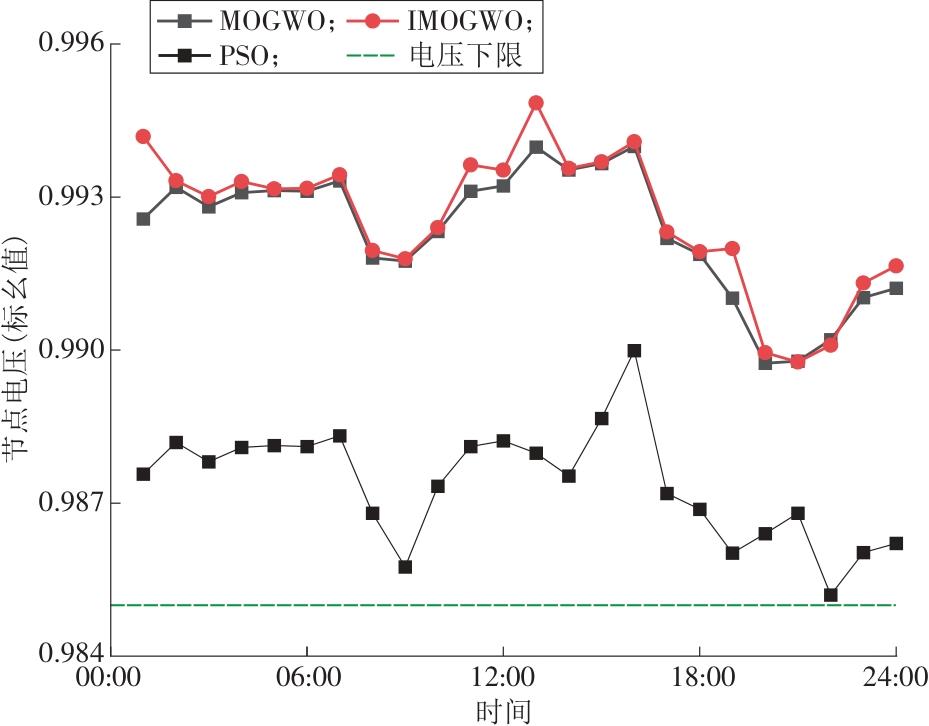

算法	电压偏差（标幺值）	损耗成本/元
PSO	0.005 08	1 525.69
MOGWO	0.004 68	1 504.13
IMOGWO	0.004 25	1 480.01
