基于甲醇合成与燃气轮机联合循环的联产系统优化分析

doi:10.3969/j.issn.2097-0706.2025.10.007

综合智慧能源 ›› 2025, Vol. 47 ›› Issue (10): 60-68.doi: 10.3969/j.issn.2097-0706.2025.10.007

• 新能源与储能系统优化 • 上一篇下一篇

基于甲醇合成与燃气轮机联合循环的联产系统优化分析

黄梓琪(), 吴志聪(), 徐钢^*(), 葛士宇(), 陈衡()

华北电力大学热电生产过程污染物监测与控制北京市重点实验室，北京 102206

收稿日期:2024-10-23 修回日期:2024-12-16 出版日期:2025-05-28
通讯作者: *徐钢（1978），男，教授，博士，从事热力学、火力发电节能理论与技术、多能互补系统集成等方面的研究，xgncepu@163.com。
作者简介:黄梓琪（2000），女，硕士生，从事氢醇高效转化及化工动力集成方面的研究，19030821131@163.com；
吴志聪（1997），男，博士生，从事氢醇高效转化及化工动力集成、复杂能源系统集成、发电节能理论与技术等方面的研究，wuzc_ncepu@163.com；
葛士宇（2001），男，硕士生，从事光热电站、氢醇转化、压缩空气储能、卡诺电池、热力系统集成等方面的研究，GSY_Ncepu@163.com；
陈衡（1989），男，教授，博士，从事电力系统集成、优化及评价、“双碳”技术路线、多类型源储协同、电网提质增效等方面的研究，heng@ncepu.edu.cn。
基金资助:
国家自然科学基金项目(51821004)

Optimization analysis of a cogeneration system based on methanol synthesis and gas turbine combined cycle

HUANG Ziqi(), WU Zhicong(), XU Gang^*(), GE Shiyu(), CHEN Heng()

Beijing Key Laboratory of Emission Surveillance and Control for Thermal Power Generation， North China Electric Power University， Beijing 102206， China

Received:2024-10-23 Revised:2024-12-16 Published:2025-05-28
Supported by:
National Natural Scientific Foundation of China(51821004)

摘要/Abstract

摘要：

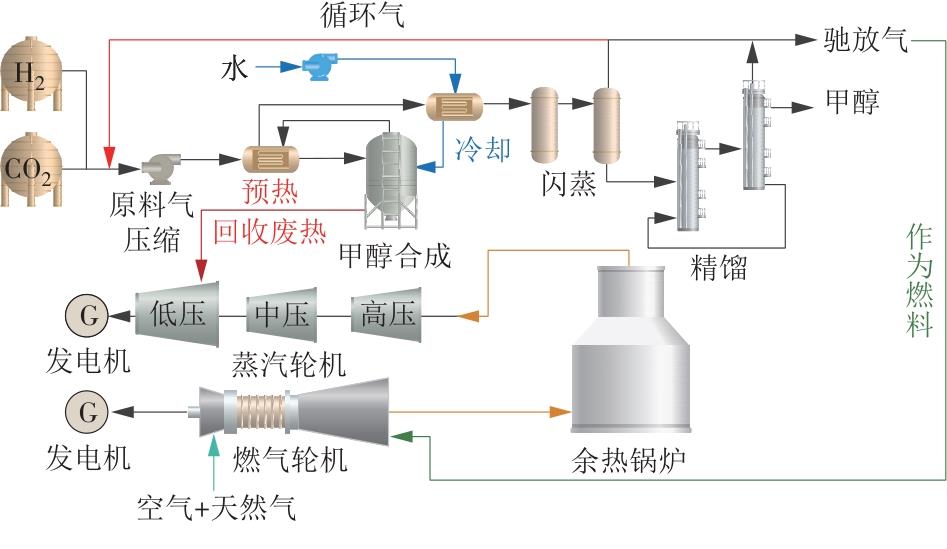

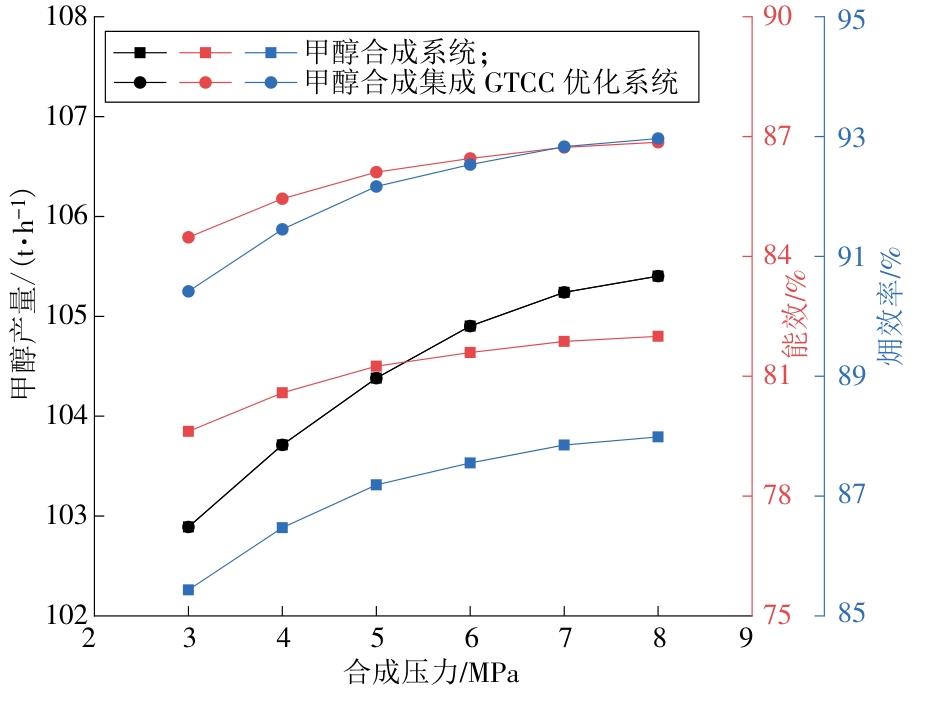

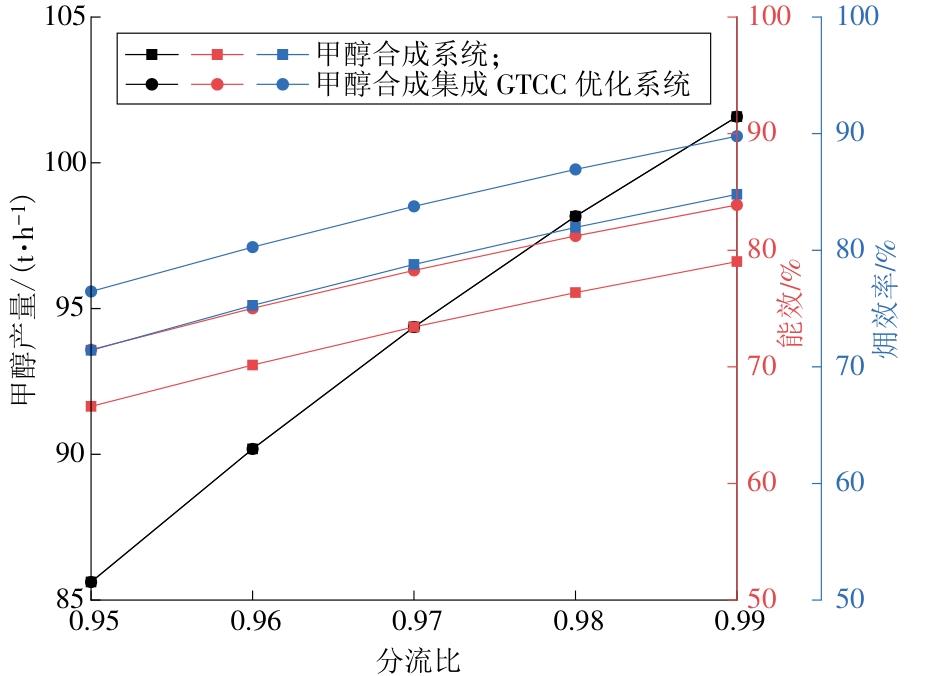

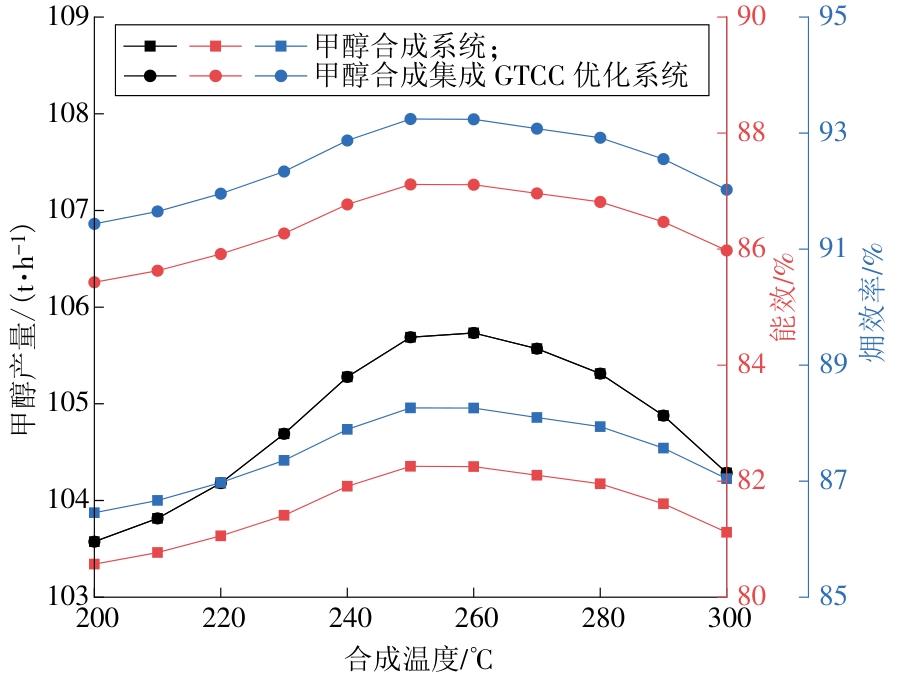

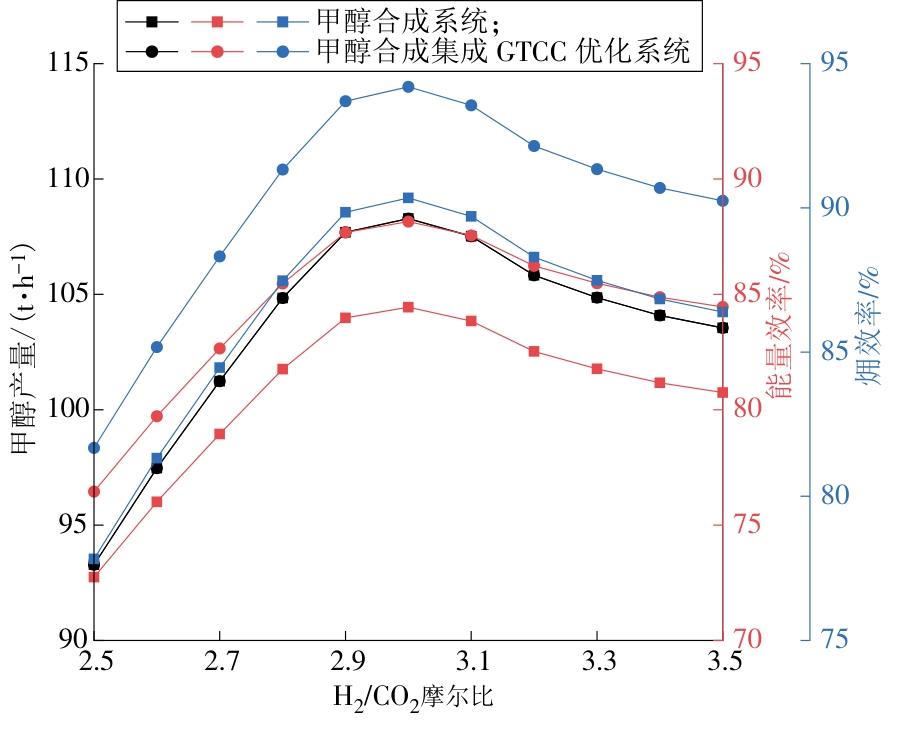

提出一种新型系统，对甲醇合成系统进行全流程优化。该系统将甲醇合成系统的驰放气用作燃气轮机联合循环（GTCC）的原料气体，且GTCC能够有效利用甲醇合成塔所产生的热量，从而提升整个系统能量的利用效率及发电能力。采用Aspen Plus软件构建新系统模型，与甲醇合成系统进行对比，并对两个系统进行热力学及敏感性分析。热力学分析表明：甲醇合成集成GTCC优化系统与传统系统相比能效提升3.53%，㶲效率提升3.66%。敏感性分析结果显示：操作条件设定压力为3~8 MPa、合成温度为200~300 ℃、分流比为0.95~ 0.99，H₂/CO₂摩尔比为2.5~3.5时，将合成温度设定为250 ℃，H₂/CO₂摩尔比设定为3，提高压力、增大分流比均对甲醇产量的提升有积极作用。

关键词: 绿氢制甲醇, 驰放气优化, 能量分析, 㶲分析, 敏感性分析

Abstract:

A new system was proposed to achieve comprehensive optimization of the traditional methanol synthesis system. In this system， the purge gas from methanol synthesis system served as the feed gas for the Gas Turbine Combined Cycle （GTCC）. Additionally， GTCC effectively recovered the heat generated by the methanol synthesis tower， improving overall energy efficiency and power generation capacity. A model of the new system was developed using Aspen Plus software， and its performance was compared with that of the traditional synthesis system. Thermodynamic and sensitivity analyses were conducted for both systems. Thermodynamic analysis results revealed that， compared to the conventional system， the GTCC-integrated methanol synthesis system achieved a 3.53% enhancement in energy efficiency and a 3.66% improvement in exergy efficiency. Sensitivity analysis indicated that under operating conditions with pressures ranging from 3 to 8 MPa， synthesis temperatures between 200 and 300 ℃， split ratio from 0.95 to 0.99， and an H₂/CO₂ molar ratio between 2.5 to 3.5， increasing pressure， adopting a higher split ratio， setting the synthesis temperature at 250 ℃， and maintaining an H₂/CO₂ molar ratio of 3 contributed positively to methanol production.

Key words: green hydrogen-based methanol production, purge gas optimization, energy analysis, exergy analysis, sensitivity analysis

中图分类号:

TK01：TM471

黄梓琪, 吴志聪, 徐钢, 葛士宇, 陈衡. 基于甲醇合成与燃气轮机联合循环的联产系统优化分析[J]. 综合智慧能源, 2025, 47(10): 60-68.

HUANG Ziqi, WU Zhicong, XU Gang, GE Shiyu, CHEN Heng. Optimization analysis of a cogeneration system based on methanol synthesis and gas turbine combined cycle[J]. Integrated Intelligent Energy, 2025, 47(10): 60-68.

图/表 17

图1

表1

图2

表2

表3

表4

表5

表6

图3

图4

表7

图5

图6

图7

图8

图9

图10

参考文献 32

[1]	肖先勇, 郑子萱. “双碳” 目标下新能源为主体的新型电力系统: 贡献、关键技术与挑战[J]. 工程科学与技术, 2022, 54(1): 47-59.
	XIAO Xianyong, ZHENG Zixuan. New power systems dominated by renewable energy towards the goal of emission peak and carbon neutrality: Contribution, key techniques, and challenges[J]. Advanced Engineering Sciences, 2022, 54(1): 47-59.
[2]	赵国涛, 钱国明, 孙艳兵, 等. 碳逸会计在综合能源系统低碳性评价中的应用[J]. 综合智慧能源, 2023, 45(6): 73-80. doi: 10.3969/j.issn.2097-0706.2023.06.010
	ZHAO Guotao, QIAN Guoming, SUN Yanbing, et al. Application of carbon-escape accounting system in integrated energy systems' low-carbon evaluation[J]. Integrated Intelligent Energy, 2023, 45(6): 73-80. doi: 10.3969/j.issn.2097-0706.2023.06.010
[3]	王玉亭, 张钟, 张淇钧, 等. 基于电解水制氢和生物质电厂的电与甲醇联产系统[J]. 科技和产业, 2022, 22(5): 288-294.
	WANG Yuting, ZHANG Zhong, ZHANG Qijun, et al. Electricity and methanol co-production system based on hydrogen production by electrolysis of water and biomass power plants[J]. Science Technology and Industry, 2022, 22(5): 288-294.
[4]	江婷, 赵雅姣. 基于燃气分布式的综合能源系统碳减排分析[J]. 综合智慧能源, 2022, 44(9): 27-32. doi: 10.3969/j.issn.2097-0706.2022.09.004
	JIANG Ting, ZHAO Yajiao. Carbon emission reduction analysis for gas-based distributed integrated energy systems[J]. Integrated Intelligent Energy, 2022, 44(9): 27-32. doi: 10.3969/j.issn.2097-0706.2022.09.004
[5]	HERDEM M S, SINAKI M Y, FARHAD S, et al. An overview of the methanol reforming process: Comparison of fuels, catalysts, reformers, and systems[J]. International Journal of Energy Research, 2019, 43(10): 5076-5105.
[6]	ZHAO S, SUN Z Q. Hydrogen generation from methanol reforming for fuel cell applications: A review[J]. Journal of Central South University, 2020, 27(4): 1074-1103.
[7]	ABDIN Z, TANG C G, LIU Y, et al. Large-scale stationary hydrogen storage via liquid organic hydrogen carriers[J]. iScience, 2021, 24(9): 102966.
[8]	ZHAO Y J, LIU Q, DUAN Y Y, et al. A multi-dimensional feasibility analysis of coal to methanol assisted by green hydrogen from a life cycle viewpoint[J]. Energy Conversion and Management, 2022, 268: 115992.
[9]	李贵贤, 曹阿波, 孟文亮, 等. 耦合固体氧化物电解槽的CO₂制甲醇过程设计与评价研究[J]. 化工学报, 2023, 74(7): 2999-3009. doi: 10.11949/0438-1157.20230519
	LI Guixian, CAO Abo, MENG Wenliang, et al. Process design and evaluation of CO₂ to methanol coupled with SOEC[J]. CIESC Journal, 2023, 74(7): 2999-3009.
[10]	WANG D L, MENG W L, ZHOU H R, et al. Green hydrogen coupling with CO₂ utilization of coal-to-methanol for high methanol productivity and low CO₂ emission[J]. Energy, 2021, 231: 120970.
[11]	SAFDER U, LOY-BENITEZ J, YOO C K. Techno-economic assessment of a novel integrated multigeneration system to synthesize e-methanol and green hydrogen in a carbon-neutral context[J]. Energy, 2024, 290: 130104.
[12]	PARIGI D, GIGLIO E, SOTO A, et al. Power-to-fuels through carbon dioxide re-utilization and high-temperature electrolysis: A technical and economical comparison between synthetic methanol and methane[J]. Journal of Cleaner Production, 2019, 226: 679-691.
[13]	WU Z, XU G, ZHANG W T, et al. Thermodynamic and economic analysis of a new methanol steam reforming system integrated with CO₂ heat pump and cryogenic separation system[J]. Energy, 2023, 283: 128501.
[14]	NAZERIFARD R, KHANI L, MOHAMMADPOURFARD M, et al. Design and thermodynamic analysis of a novel methanol, hydrogen, and power trigeneration system based on renewable energy and flue gas carbon dioxide[J]. Energy Conversion and Management, 2021, 233: 113922.
[15]	XIN T T, XU C, LIU Y H, et al. Thermodynamic analysis of a novel zero carbon emission coal-based polygeneration system incorporating methanol synthesis and allam power cycle[J]. Energy Conversion and Management, 2021, 244: 114441.
[16]	GE Website. H-class gas turbines[EB/OL]. (2023-08-09)[2024-10-20]. https://www.ge.com/gas-power/products/gas-turbines/h-class-gas-turbines.
[17]	WU Z C, XU G, GE S Y, et al. An efficient methanol pre-reforming gas turbine combined cycle with integration of mid-temperature energy upgradation and CO₂ recovery: Thermodynamic and economic analysis[J]. Applied Energy, 2024, 358: 122599.
[18]	ZARE AAD, YARI M, NAMI H, et al. Low-carbon hydrogen, power and heat production based on steam methane reforming and chemical looping combustion[J]. Energy Conversion and Management, 2023, 279: 116752.
[19]	GU Y, WANG D F, CHEN Q Q, et al. Techno-economic analysis of green methanol plant with optimal design of renewable hydrogen production: A case study in China[J]. International Journal of Hydrogen Energy, 2022, 47(8): 5085-5100.
[20]	SHEN Z W, QU Q P, CHEN M L, et al. Advancements in methanol distillation system: A comprehensive overview[J]. Chemical Engineering Research and Design, 2023, 199: 130-151.
[21]	DALENA F, SENATORE A, MARINO A, et al. Methanol production and applications: An overview[J]. Methanol,2018:3-28.
[22]	赵杨, 沙立成, 雷一鸣, 等. 北京电网燃气-蒸汽联合循环机组调峰运行特性[J]. 华北电力技术, 2015(2): 60-65.
	ZHAO Yang, SHA Licheng, LEI Yiming, et al. Analysis on peak load regulation characteristics of the gas-steam combined cycle units in Beijing grid[J]. North China Electric Power, 2015(2): 60-65.
[23]	HUANG H, YANG S Y, CUI P Z. Design concept for coal-based polygeneration processes of chemicals and power with the lowest energy consumption for CO₂ capture[J]. Energy Conversion and Management, 2018, 157: 186-194.
[24]	张世红, 何林, 孙威. 天然气催化燃烧理论和应用[J]. 化工进展, 2009, 28(S1): 115-117.
	ZHANG Shihong, HE Lin, SUN Wei. Theory and application of catalytic combustion of natural gas[J]. Chemical Industry and Engineering Progress, 2009, 28(S1): 115-117.
[25]	AGAHZAMIN S, MIRVAKILI A, RAHIMPOUR M R. Investigation and recovery of purge gas streams to enhance synthesis gas production in a mega methanol complex[J]. Journal of CO₂ Utilization, 2016, 16: 157-168.
[26]	WU Z C, ZHANG Z Y, XU G, et al. Thermodynamic and economic analysis of a new methanol synthesis system coupled with a biomass integrated gasification combined cycle[J]. Energy, 2024, 300: 131647.
[27]	HAYDARY J. Chemical process design and simulation: Aspen Plus and Aspen Hysys applications[M]. John Wiley and Sons, 2019.
[28]	王琳琳. 基于Aspen Plus对甲醇合成过程的模拟研究[D]. 呼和浩特: 内蒙古大学, 2017.
	WANG Linlin. Simulation of methanol synthesis process based on aspen plus[D]. Hohhot: Inner Mongolia University, 2017.
[29]	徐钢, 张钟, 吴志聪, 等. 基于绿氢和生物质富氧燃烧技术的零碳甲醇合成系统[J]. 动力工程学报, 2022, 42(10): 925-932. doi: 10.19805/j.cnkij.cspe.2022.10.006
	XU Gang, ZHANG Zhong, WU Zhicong, et al. Zero carbon methanol synthesis system based on green hydrogen and biomass oxygen enriched combustion technology[J]. Journal of Chinese Society of Power Engineering, 2022, 42(10): 925-932. doi: 10.19805/j.cnkij.cspe.2022.10.006
[30]	KOTAS T J. Exergy concepts for thermal plant first of two papers on exergy techniques in thermal plant analysis[J]. International Journal of Heat and Fluid Flow, 1980, 2(3): 105-114.
[31]	ISHIDA M, KAWAMURA K. Energy and exergy analysis of a chemical process system with distributed parameters based on the enthalpy-direction factor diagram[J]. Industrial and Engineering Chemistry Process Design and Development, 1982, 21(4): 690-695.
[32]	JIN H G, ISHIDA M. A novel gas turbine cycle with hydrogen-fueled chemical-looping combustion[J]. International Journal of Hydrogen Energy, 2000, 25(12): 1209-1215.

项目	摩尔分数/%	能量占比^①/%
H₂	32.91	1.16
CO	1.21	0.05
CO₂	30.56
CH₃OH	34.10	3.16
H₂O	1.22

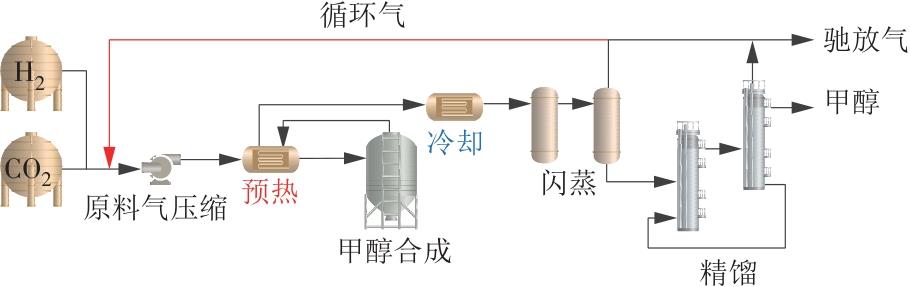

项目	原料气		循环气
项目	H₂	CO₂	循环气
H₂摩尔分数	1.000	0	0.757
CO₂摩尔分数	0	1.000	0.208
CO摩尔分数	0	0	0.027
H₂O摩尔分数	0	0	0.001
CH₃OH摩尔分数	0	0	0.006
温度/℃	50.000	14.000	44.455
压力/MPa	3.0	5.0	4.5
摩尔流量/(kmol·h^-1)	10 380.00	3 460.00	51 718.78

项目	数值
温度/℃	49.46
压力/MPa	0.1
CH₂OH摩尔流量/(kmol·h^-1)	124.31
H₂摩尔流量/(kmol·h^-1)	119.97
CO摩尔流量/(kmol·h^-1)	111.39
CO₂摩尔流量/(kmol·h^-1)	4.40
H₂O摩尔流量/(kmol·h^-1)	4.46
低热值/(MJ·kg^-1)	19.95

项目	数值
环境温度/℃	25
压力/MPa	0.1
空气压缩机压比	25.8
压气机多变效率/%	88
燃烧室燃气出口温度/℃	1 515
燃气轮机排气温度/℃	654
燃气轮机等熵效率/%	92
汽轮机高压缸等熵效率/%	85
汽轮机中压缸等熵效率/%	85
汽轮机低压缸等熵效率/%	85
汽轮机高压缸进汽温度/℃	615
再热温度/℃	92.2
发电效率/%	57.28

项目	文献数据^[17,26]	本文数据	相对误差/%
甲醇产量/(t·h^-1)	104.38	104.44	0.06
甲醇纯度/%	99.92	99.94	0.02
GTCC系统发电净输出功率/MW	526.14	525.07	0.20
GTCC系统发电效率/%	57.62	57.28	0.59

基于甲醇合成与燃气轮机联合循环的联产系统优化分析

Optimization analysis of a cogeneration system based on methanol synthesis and gas turbine combined cycle

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 17

参考文献 32

相关文章 15

编辑推荐

Metrics

本文评价

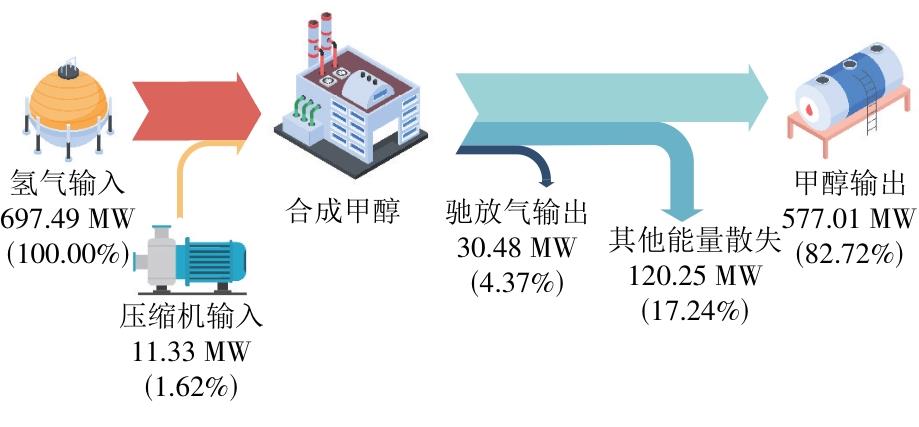

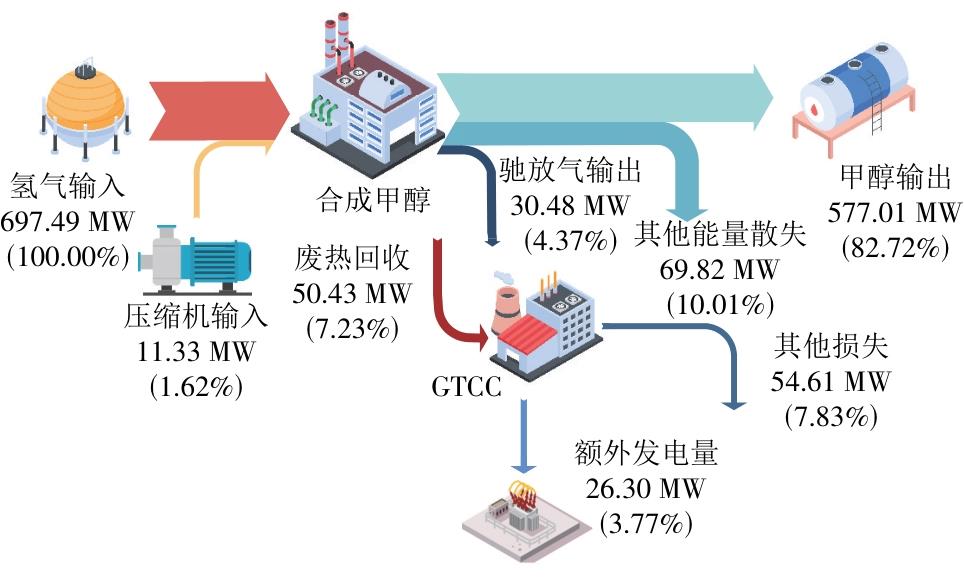

参数	甲醇合成系统	甲醇合成集成GTCC优化系统	性能提升情况
入口氢气质量流量/(t·h^-1)	20.92	20.92	0
入口氢气总能量/MW	697.49	697.49	0
压缩机功耗/MW	11.33	12.84	1.51
甲醇产量/(t·h^-1)	104.38	104.38	0
出口甲醇总能量/MW	577.01	577.01	0
GTCC发电功率增量/MW	0	26.30	26.30
甲醇合成能效/%	81.40	84.93	3.53

项目	甲醇合成系统	甲醇合成集成GTCC优化系统	变化量
氢气输入㶲/MW	669.59	669.59	0
电能输入㶲/MW	11.33	12.84	1.51
小计/MW	680.92	682.43	1.51
甲醇输出㶲/MW	594.32	594.32	0
GTCC发电功率增量/MW	0	26.30	26.30
小计/MW	594.32	620.61	26.30

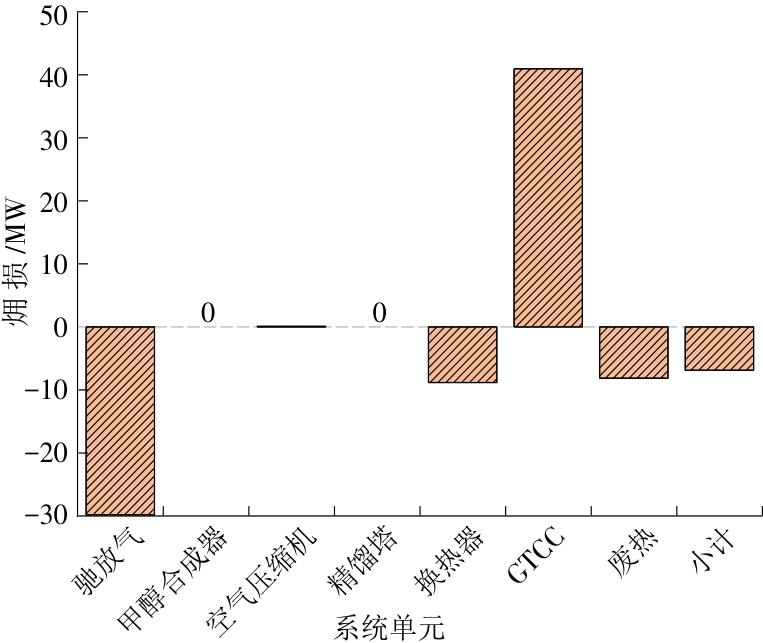

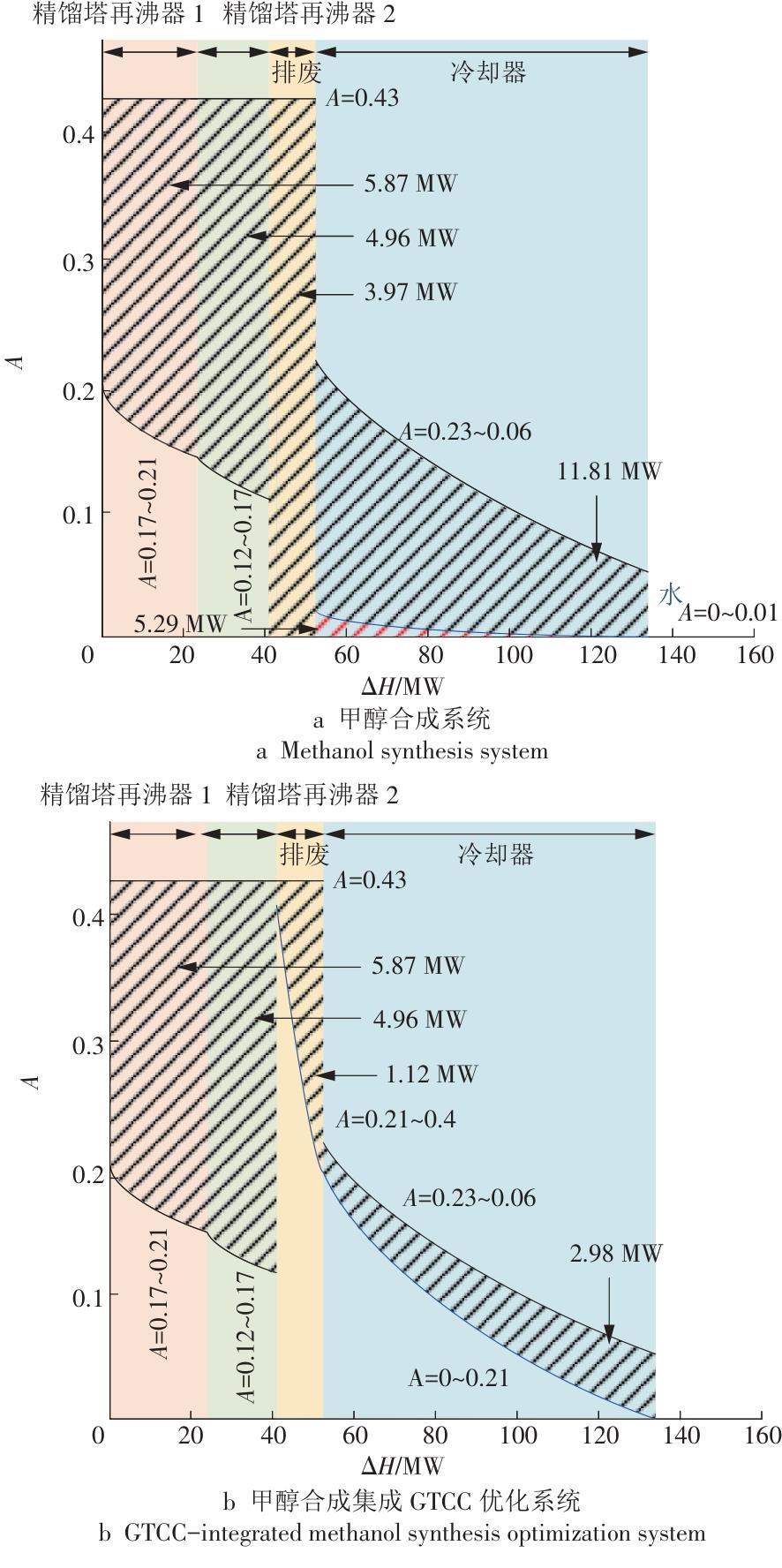

驰放气㶲损/MW	29.82	0	-29.82
甲醇合成器㶲损/MW	39.72	39.72	0
压缩机㶲损/MW	2.38	2.47	0.09
精馏塔㶲损/MW	9.37	9.37	0
换热器㶲损/MW	15.28	6.45	-8.83
GTCC㶲损/MW	0	40.95	40.95
废热㶲损/MW	22.17	14.03	-8.14
小计/MW	161.81	158.72	-6.87
㶲效率/%	87.28	90.94	3.66
