基于Aspen Plus的等压压缩空气储能系统性能仿真及分析

doi:10.3969/j.issn.2097-0706.2024.12.009

综合智慧能源 ›› 2024, Vol. 46 ›› Issue (12): 72-80.doi: 10.3969/j.issn.2097-0706.2024.12.009

基于Aspen Plus的等压压缩空气储能系统性能仿真及分析

胡雪如¹(), 邢令利¹^,^*(), 李原圆¹, 苏文², 刘鹏飞¹, 丁若晨³, 蔺新星³

1.湖南科技大学化学化工学院，湖南湘潭 411201
2.中南大学能源科学与工程学院，长沙 410083
3.中国三峡集团科学技术研究所，北京 100038

收稿日期:2024-09-18 修回日期:2024-10-21 出版日期:2024-11-18
通讯作者: *邢令利（1990），女，讲师，博士，从事热力循环储能、热力系统仿真与构建等方面的研究， xinglingli@hnust.edu.cn。
作者简介:胡雪如（2004），女，从事化工能源热力系统方面的研究，2206080131@mail.hnust.edu.cn
基金资助:
国家自然科学基金项目(52106037);湖南省自然科学基金项目(2024JJ6218)

Performance simulation and analysis of an isobaric compressed air energy storage system based on Aspen Plus

HU Xueru¹(), XING Lingli¹^,^*(), LI Yuanyuan¹, SU Wen², LIU Pengfei¹, DING Ruochen³, LIN Xinxing³

1. College of Chemistry and Chemical Engineering， Hunan University of Science and Technology， Xiangtan 411201， China
2. School of Energy Science and Engineering， Central South University， Changsha 410083， China
3. Science and Technology Research Institute， China Three Gorges Corporation， Beijing 100038， China

Received:2024-09-18 Revised:2024-10-21 Published:2024-11-18
Supported by:
National Natural Science Foundation of China(52106037);Hunan Provincial Natural Science Foundation Project(2024JJ6218)

摘要/Abstract

摘要：

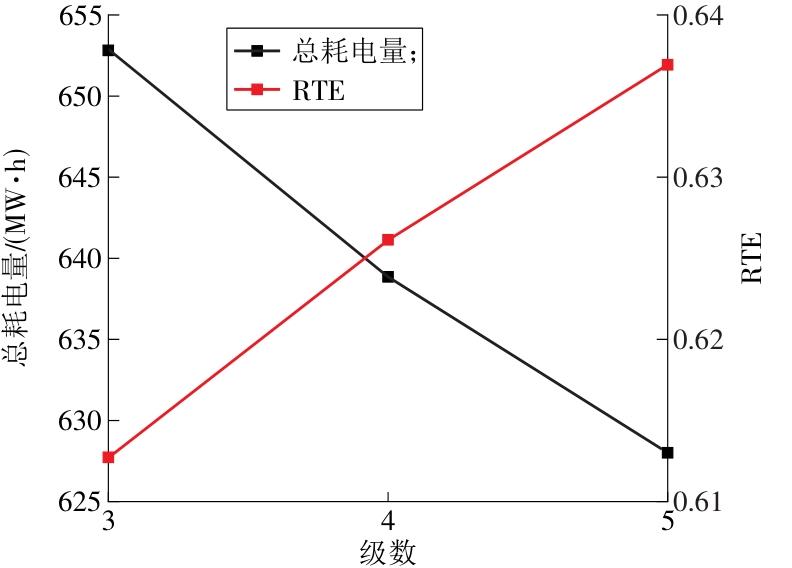

压缩空气储能是解决可再生能源发电并网、提高电网稳定性的有效方法。为减少储气库体积、维持系统工况稳定，采用工业流程模拟软件Aspen Plus建立了100 MW×4 h等压压缩空气储能（I-CAES）系统的热力学仿真模型，计算了设计工况下的系统性能，分析了压缩机出口温度及压缩膨胀级数对系统运行的影响。> 结果表明，当压缩机出口温度为160 ℃时，4级压缩-4级膨胀的I-CAES系统储能效率可达62.61%，储能密度为5.99 kW·h/m³；压缩机出口温度每升高10 ℃，储能密度及效率分别增加2.66 kW·h/m³，1.49百分点；压缩膨胀级数每增加1，储能密度及效率分别增加6.34 kW·h/m³，0.81百分点。

关键词: 等压压缩空气储能, 可再生能源, Aspen Plus, 压缩机出口温度, 压缩膨胀级数, 储能效率, 储能密度

Abstract:

Compressed air energy storage （CAES） is an effective solution for integrating renewable energy generation into the grid and improving grid stability. To reduce the volume of the air storage reservoir and maintain stable system operation， a thermodynamic simulation model for a 100 MW×4 h isobaric compressed air energy storage （I-CAES） system was developed using the industrial process simulation software Aspen Plus. The system's performance was calculated under design conditions， and the effects of compressor outlet temperature and the number of compression-expansion stages on system operation were analyzed. The results showed that when the compressor outlet temperature was 160 ℃， the I-CAES system with 4 compression and 4 expansion stages achieved an energy storage efficiency of 62.61% and an energy storage density of 5.99 kW·h/m³. For every 10 ℃ increase in compressor outlet temperature， both the energy storage density and efficiency increased by 2.66 kW·h/m³ and 1.49 percentage points， respectively. Additionally， for each additional compression-expansion stage， the energy storage density and efficiency increased by 6.34 kW·h/m³ and 0.81 percentage points， respectively.

Key words: isobaric compressed air energy storage, renewable energy, Aspen Plus, compressor outlet temperature, compression-expansion stages, energy storage efficiency, energy storage density

中图分类号:

TK02

胡雪如, 邢令利, 李原圆, 苏文, 刘鹏飞, 丁若晨, 蔺新星. 基于Aspen Plus的等压压缩空气储能系统性能仿真及分析[J]. 综合智慧能源, 2024, 46(12): 72-80.

HU Xueru, XING Lingli, LI Yuanyuan, SU Wen, LIU Pengfei, DING Ruochen, LIN Xinxing. Performance simulation and analysis of an isobaric compressed air energy storage system based on Aspen Plus[J]. Integrated Intelligent Energy, 2024, 46(12): 72-80.

图/表 14

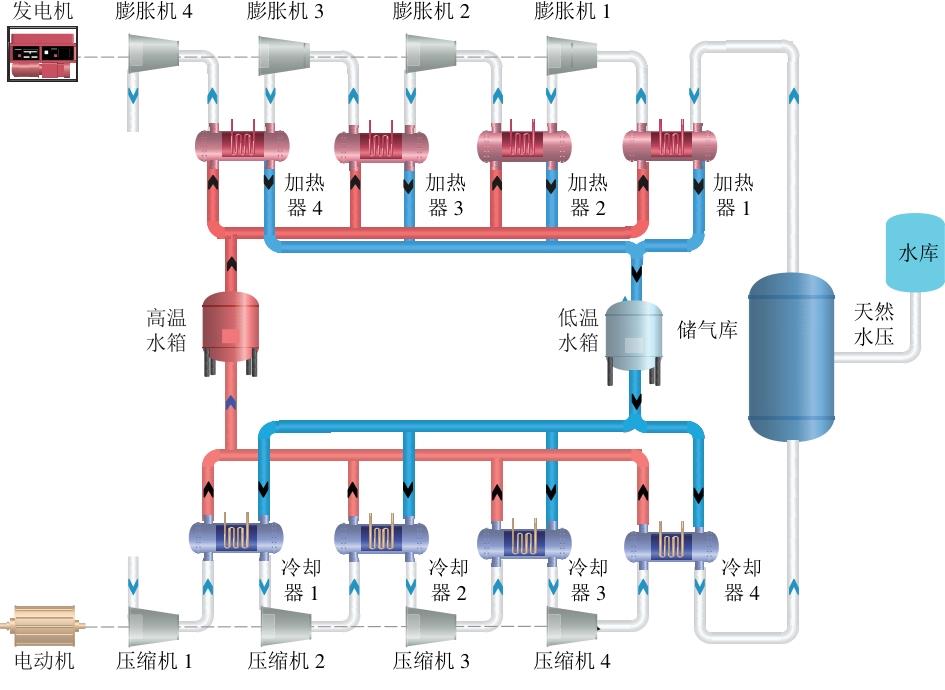

图1

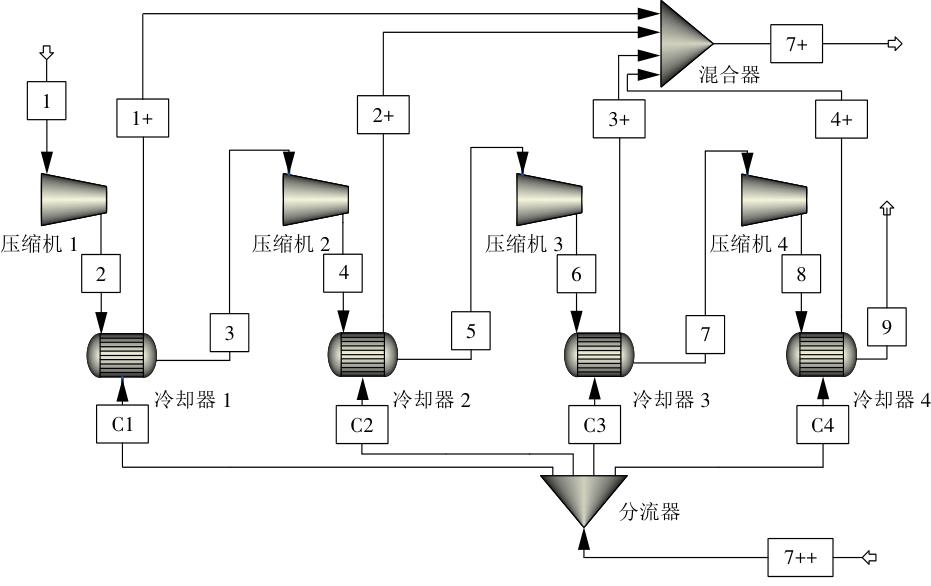

图2

图3

表1

表2

表3

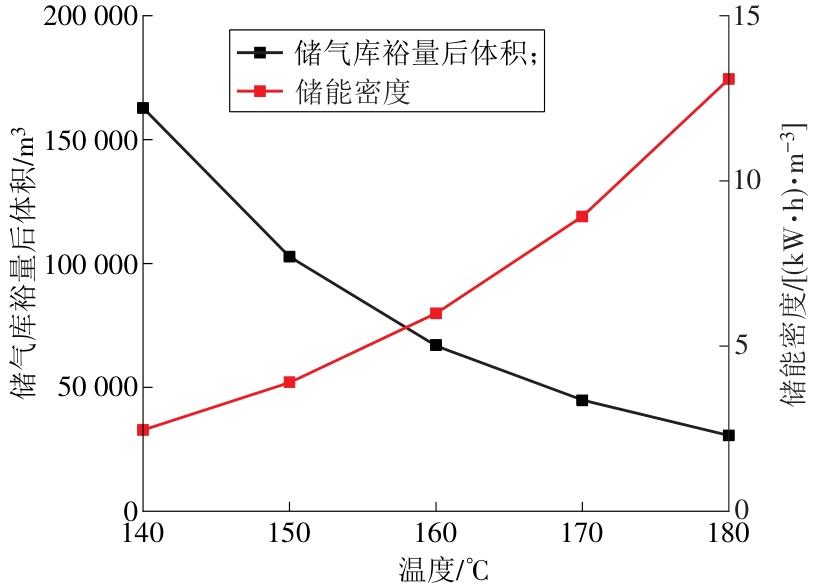

图4

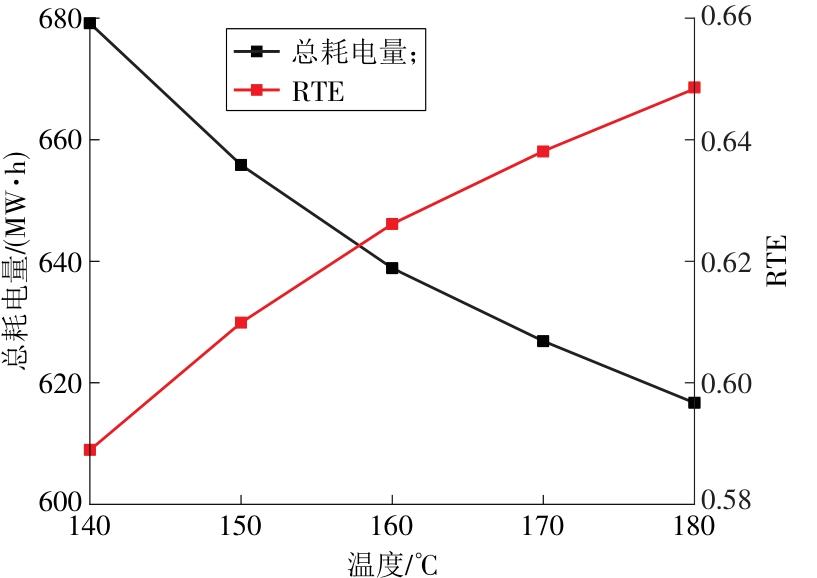

图5

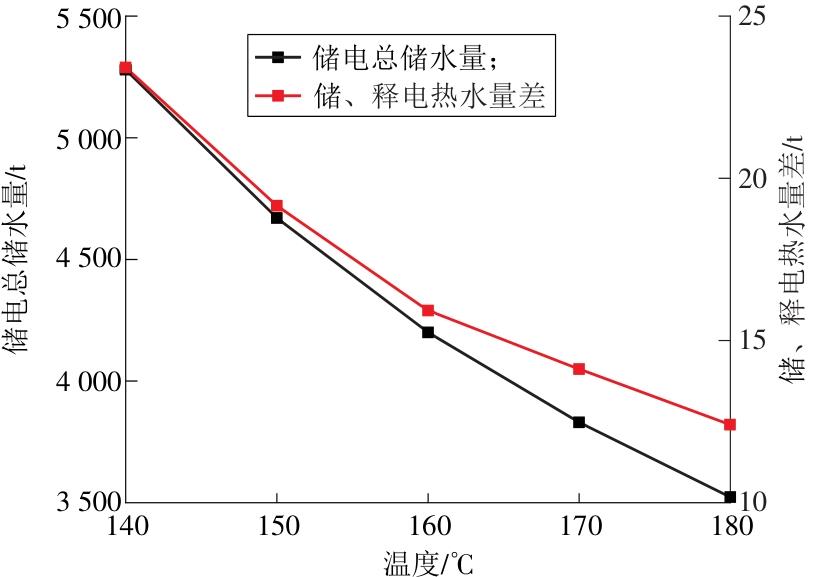

图6

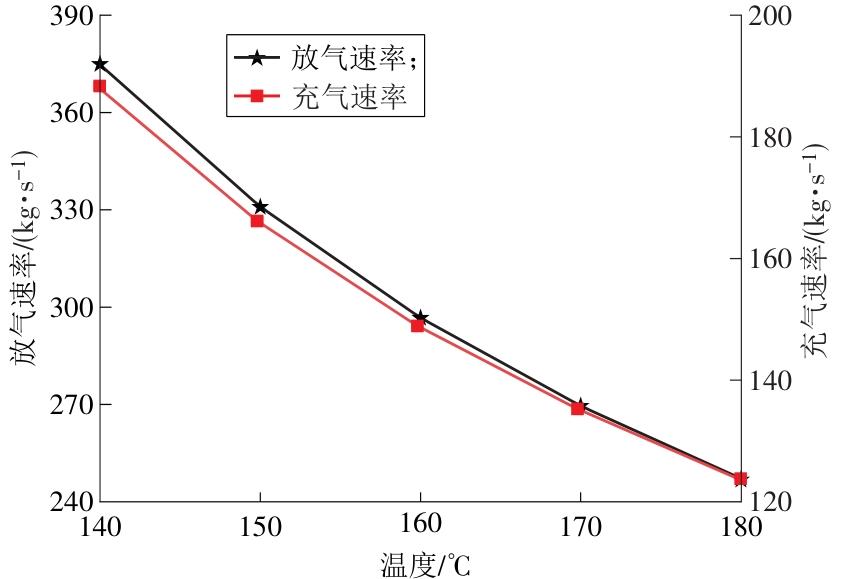

图7

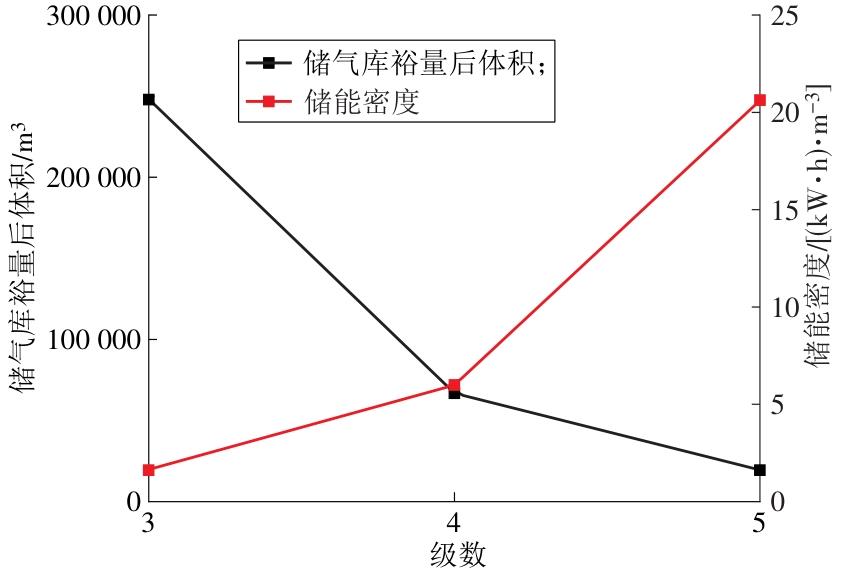

图8

图9

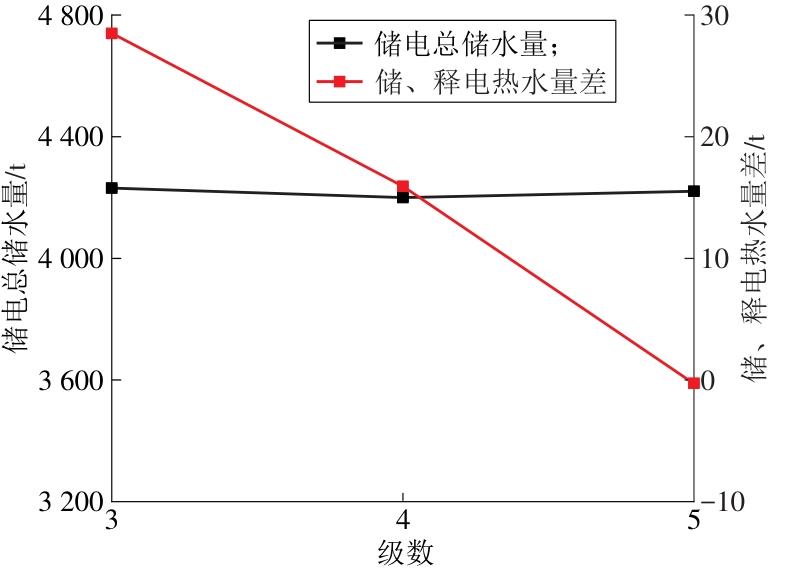

图10

图11

参考文献 27

[1]	刘笑驰, 梅生伟, 丁若晨, 等. 压缩空气储能工程现状、发展趋势及应用展望[J]. 电力自动化设备, 2023, 43(10): 38-47, 102.
	LIU Xiaochi, MEI Shengwei, DING Ruochen, et al. Current situation, development trend and application prospect of compressed air energy storage engineering projects[J]. Electric Power Automation Equipment, 2023, 43(10): 38-47, 102.
[2]	万明忠, 王元媛, 李峻, 等. 压缩空气储能技术研究进展及未来展望[J]. 综合智慧能源, 2023, 45(9): 26-31. doi: 10.3969/j.issn.2097-0706.2023.09.004
	WAN Mingzhong, WANG Yuanyuan, LI Jun, et al. Research progress and prospect of compressed air energy storage technology[J]. Integrated Intelligent Energy, 2023, 45(9): 26-31. doi: 10.3969/j.issn.2097-0706.2023.09.004
[3]	张新敬, 陈海生, 刘金超, 等. 压缩空气储能技术研究进展[J]. 储能科学与技术, 2012, 1(1): 26-40.
	ZHANG Xinjing, CHEN Haisheng, LIU Jinchao, et al. Research progress in compressed air energy storage system: A review[J]. Energy Storage Science and Technology, 2012, 1(1): 26-40.
[4]	陈海生, 刘金超, 郭欢, 等. 压缩空气储能技术原理[J]. 储能科学与技术, 2013, 2(2): 146-151. doi: 10.3969/j.issn.2095-4239.2013.02.008
	CHEN Haisheng, LIU Jinchao, GUO Huan, et al. Technical principle of compressed air energy storage system[J]. Energy Storage Science and Technology, 2013, 2(2): 146-151. doi: 10.3969/j.issn.2095-4239.2013.02.008
[5]	薛福, 马晓明, 游焰军. 储能技术类型及其应用发展综述[J]. 综合智慧能源, 2023, 45(9): 48-58. doi: 10.3969/j.issn.2097-0706.2023.09.007
	XUE Fu, MA Xiaoming, YOU Yanjun. Energy storage technologies and their applications and development[J]. Integrated Intelligent Energy, 2023, 45(9): 48-58. doi: 10.3969/j.issn.2097-0706.2023.09.007
[6]	蒋文坤, 韩颖慧, 薛智文, 等. 多能互补能源系统中储能原理及其应用[J]. 综合智慧能源, 2022, 44(1): 63-71. doi: 10.3969/j.issn.2097-0706.2022.01.009
	JIANG Wenkun, HAN Yinghui, XUE Zhiwen, et al. Energy storage technologies and their applications in multi-energy complementary power system[J]. Integrated Intelligent Energy, 2022, 44(1): 63-71. doi: 10.3969/j.issn.2097-0706.2022.01.009
[7]	张伟德, 徐钢, 刘文毅, 等. 典型压缩空气蓄能(CAES)电站热力学分析与系统优化[J]. 现代电力, 2013, 30(2): 41-47.
	ZHANG Weide, XU Gang, LIU Wenyi, et al. Thermodynamic analysis and optimization of a typical compressed air energy storage(CAES) power plant[J]. Modern Electric Power, 2013, 30(2): 41-47.
[8]	黄健. 压缩空气蓄能-联合循环系统性能分析及优化[D]. 北京: 华北电力大学, 2014.
	HUANG Jian. Performance analysis and optimization of compressed air energy storage-combined cycle system[D]. Beijing: North China Electric Power University, 2014.
[9]	纪律, 陈海生, 张新敬, 等. 压缩空气储能技术研发现状及应用前景[J]. 高科技与产业化, 2018, 24(4): 52-58.
	JI Lü, CHEN Haisheng, ZHANG Xinjing, et al. Research and development status and application prospect of compressed air energy storage technology[J]. High-Technology & Industrialization, 2018, 24(4): 52-58.
[10]	张建军, 周盛妮, 李帅旗, 等. 基于Huntorf CAES工厂系统热力学分析[J]. 工程热物理学报, 2019, 40(1): 118-124.
	ZHANG Jianjun, ZHOU Shengni, LI Shuaiqi, et al. Thermodynamic analysis of compressed air energy storage system(CAES) based on Huntorf case[J]. Journal of Engineering Thermophysics, 2019, 40(1): 118-124.
[11]	李双江, 肖枫, 陈伟, 等. 先进绝热压缩空气储能系统储能阶段建模仿真和动态分析[J]. 山东科学, 2024, 37(5):42-53. doi: 10.3976/j.issn.1002-4026.20230171
	LI Shuangjiang, XIAO Feng, CHEN Wei, et al. Modeling, simulation, and dynamic analysis of energy storage phase in advanced adiabatic compressed air energy storage systems[J]. Shandong Science, 2024, 37(5):42-53. doi: 10.3976/j.issn.1002-4026.20230171
[12]	WEN X K, YANG D H, ZHONG J L, et al. Research on recovery and utilization of waste heat in advanced compressed air energy storage system[J]. Energy Reports, 2022, 8: 1436-1445.
[13]	李国庆. 先进压缩空气储能系统动态建模仿真与运行控制研究[D]. 北京: 华北电力大学, 2019.
	LI Guoqing. Research on dynamic modeling, simulation and operation control of advanced compressed air energy storage system[D]. Beijing: North China Electric Power University, 2019.
[14]	王雅婧. 新型储能“蓄”势而发[N]. 中国纪检监察报, 2024-04-01( 005).
[15]	中国盐业股份有限公司. 世界首座非补燃压缩空气储能电站在江苏建成投产[J]. 电世界, 2022, 63(3): 62.
	China National Salt Industry Corporation. The world's first non-afterburning compressed air energy storage power station was completed and put into operation in Jiangsu[J]. Electrical World, 2022, 63(3): 62.
[16]	刘园园. 地下盐穴化身“能源仓库”[N]. 科技日报, 2024-06-24( 002).
[17]	卢奇秀, 赵雪明. 世界首台(套)300 MW级压气储能电站成功并网[N]. 中国能源报, 2024-04-15( 13).
[18]	姬海民, 薛磊, 周方盛, 等. 非补燃液态压缩空气储能系统性能模拟研究[J]. 发电技术, 2024, 45(5):910-918. doi: 10.12096/j.2096-4528.pgt.24030
	JI Haimin, XUE Lei, ZHOU Fangsheng, et al. Simulation research on the performance of non-supplementary fired liquid compressed air energy storage systems[J]. Power Generation Technology, 2024, 45(5):910-918. doi: 10.12096/j.2096-4528.pgt.24030
[19]	张晓磊. 液态压缩空气储能系统热力性能关键技术研究[D]. 昆明: 昆明理工大学, 2016.
	ZHANG Xiaolei. Research on key technologies of thermal performance of liquid compressed air energy storage system[D]. Kunming: Kunming University of Science and Technology, 2016.
[20]	DING Y X, LIU Y R, HAN Y D, et al. An integrated system based on liquid air energy storage, closed brayton cycle and solar power: Energy, exergy and economic (3E) analysis[J]. Journal of Energy Storage, 2024, 94: 112496.
[21]	青海格尔木60兆瓦液态空气储能示范项目建设实现突破性进展[EB/OL]. (2024-08-29)[2024-09-01]. http://cdm.qinghai.gov.cn/system/2024/08/29/030052297.shtml.
[22]	郭祚刚, 马溪原, 雷金勇, 等. 压缩空气储能示范进展及商业应用场景综述[J]. 南方能源建设, 2019, 6(3): 17-26.
	GUO Zuogang, MA Xiyuan, LEI Jinyong, et al. Review on demonstration progress and commercial application scenarios of compressed air energy storage system[J]. Southern Energy Construction, 2019, 6(3): 17-26.
[23]	陶永成, 王泽鹏, 郭兆君. 基于定压供气的压缩空气储能系统研究[J]. 电力勘测设计, 2023(12): 44-48.
	TAO Yongcheng, WANG Zepeng, GUO Zhaojun. Research on compressed air energy storage system with constant pressure gas supply[J]. Electric Power Survey & Design, 2023(12): 44-48.
[24]	严凯, 侯付彬, 刘明明, 等. 恒压型抽水压缩空气储能系统的热力学及经济学多目标优化[J]. 工程热物理学报, 2020, 41(1): 135-140.
	YAN Kai, HOU Fubin, LIU Mingming, et al. Multi-objective optimization on thermodynamics and economics of a constant-pressure pumped hydro combined with compressed air energy storage system[J]. Journal of Engineering Thermophysics, 2020, 41(1): 135-140.
[25]	郭欢. 新型压缩空气储能系统性能研究[D]. 北京: 中国科学院大学, 2013.
	GUO Huan. Study on performance of new compressed air energy storage system[D]. Beijing: University of Chinese Academy of Sciences, 2013.
[26]	易争明, 李正科, 吴志民. 化工过程模拟Aspen Plus教程[M]. 北京: 化学工业出版社, 2023.
[27]	陈力, 廖传华, 王常青. 液-液二氧化碳储能系统的性能分析[J]. 化工机械, 2024, 51(1): 151-159, 164.
	CHEN Li, LIAO Chuanhua, WANG Changqing. Performance analysis of liquid-liquid carbon dioxide energy storage system[J]. Chemical Engineering & Machinery, 2024, 51(1): 151-159, 164.

参数	设计工况	变工况
额定功率/MW	100
发电时长/h	4
压缩机压缩时长/h	8
膨胀机等熵效率/%	90
压缩机等熵效率/%	85
膨胀机机械效率/%	97
压缩机机械效率/%	97
热罐压力/MPa	1.6
换热窄点温度/℃	10
当地大气压/kPa	101.325
压缩及膨胀级数	4	3~5
压缩机出口温度/℃	160	140~180

状态点	温度/℃	压力/MPa	质量流量/(kg·s^-1)
1	30.00	0.10	148.91
2	160.17	0.30	148.91
3	35.00	0.26	148.91
4	160.02	0.74	148.91
5	35.00	0.70	148.91
6	160.02	1.99	148.91
7	35.00	1.95	148.91
8	160.01	5.50	148.91
9	35.00	5.50	148.91
1+	150.01	1.60	35.81
2+	150.00	1.60	35.99
3+	150.00	1.60	36.41
4+	150.03	1.60	37.61
7+	150.01	1.60	145.83
7++	34.00	1.60	145.83
C1	34.00	1.60	35.81
C2	34.00	1.60	35.99
C3	34.00	1.60	36.41
C4	34.00	1.60	37.61

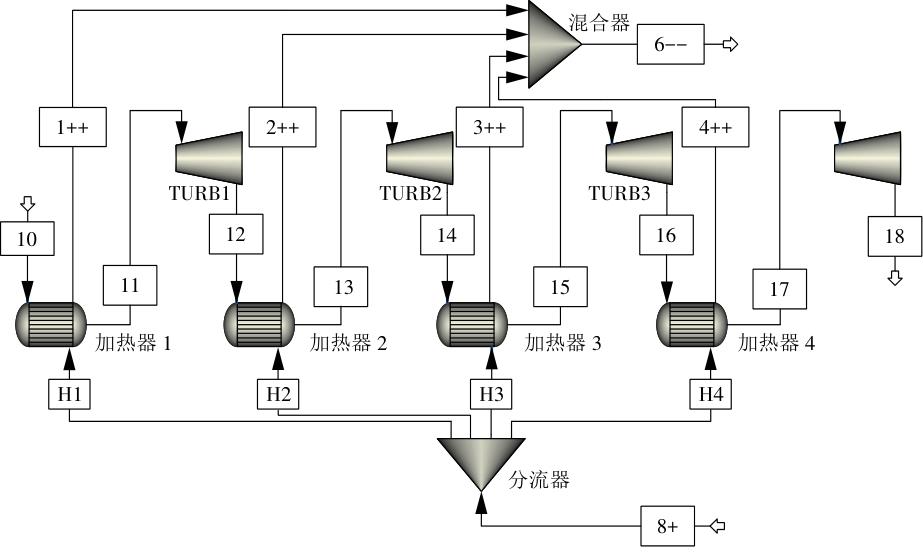

10	35.00	5.50	296.69
11	139.00	5.50	296.69
12	62.07	2.44	296.69
13	139.00	2.40	296.69
14	47.34	0.89	296.69
15	139.00	0.85	296.69
16	47.35	0.31	296.69
17	139.00	0.27	296.69
18	47.35	0.10	296.69
1++	59.70	1.60	75.20
2++	81.76	1.60	72.54
3++	66.80	1.60	71.61
4++	66.30	1.60	71.20
6--	68.62	1.60	290.55
8+	149.00	1.60	290.55
H1	149.00	1.60	75.20
H2	149.00	1.60	72.54
H3	149.00	1.60	71.61
H4	149.00	1.60	71.20

参数	数值
总发电量/(MW·h)	400.00
总耗电量/(MW·h)	638.85
总空气量/t	4 288.65
发电总需热水量/t	4 183.94
储电总储水量/t	4 199.86
储、发电热水量差/t	15.92
储气库体积/m³	66 792.54
储能密度/[(kW·h)·m^-3]	5.99
η_RTE/%	62.61
