Coordinated false data injection attacks against distributed economic dispatch of electricity-gas integrated energy system

doi:10.3969/j.issn.2097-0706.2025.11.008

Abstract

Abstract:

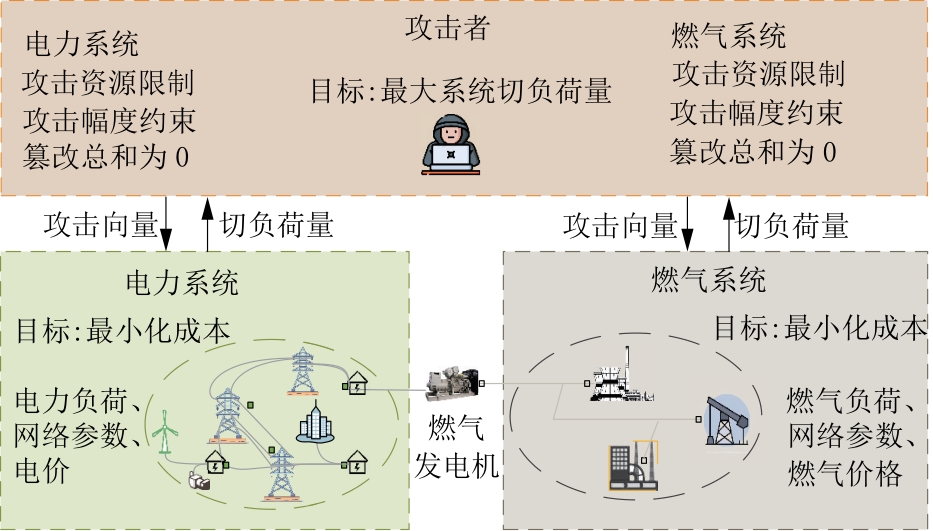

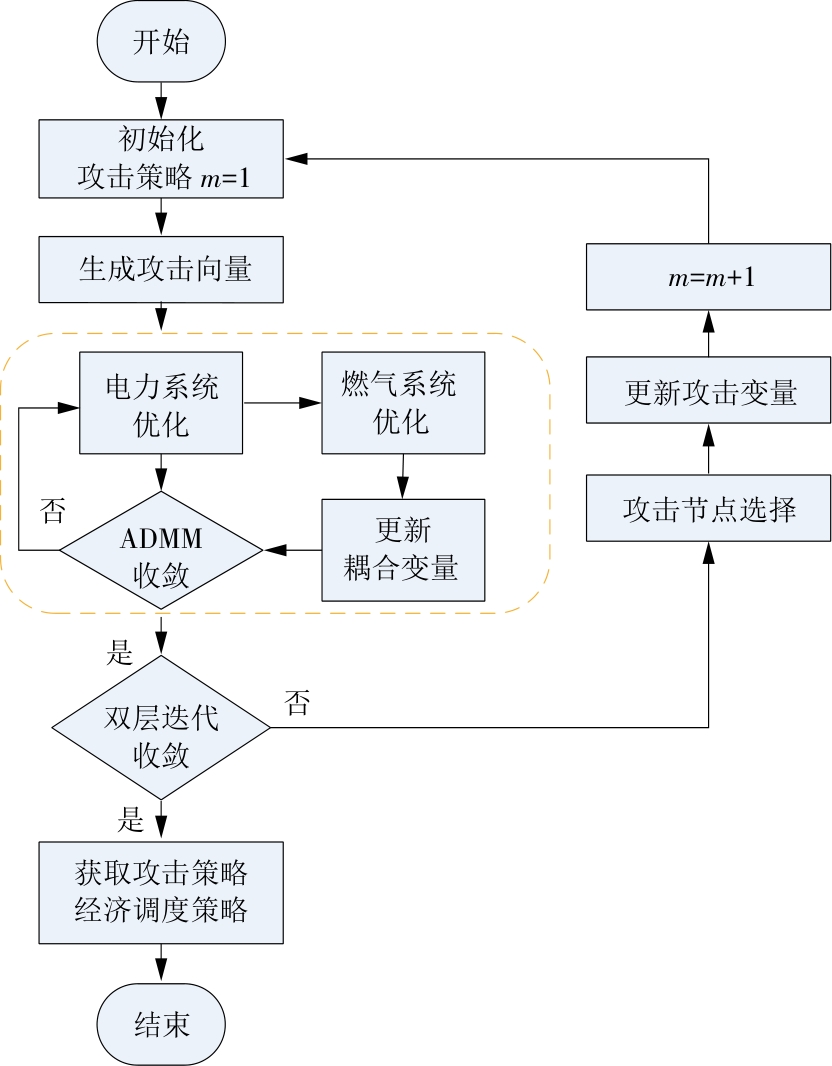

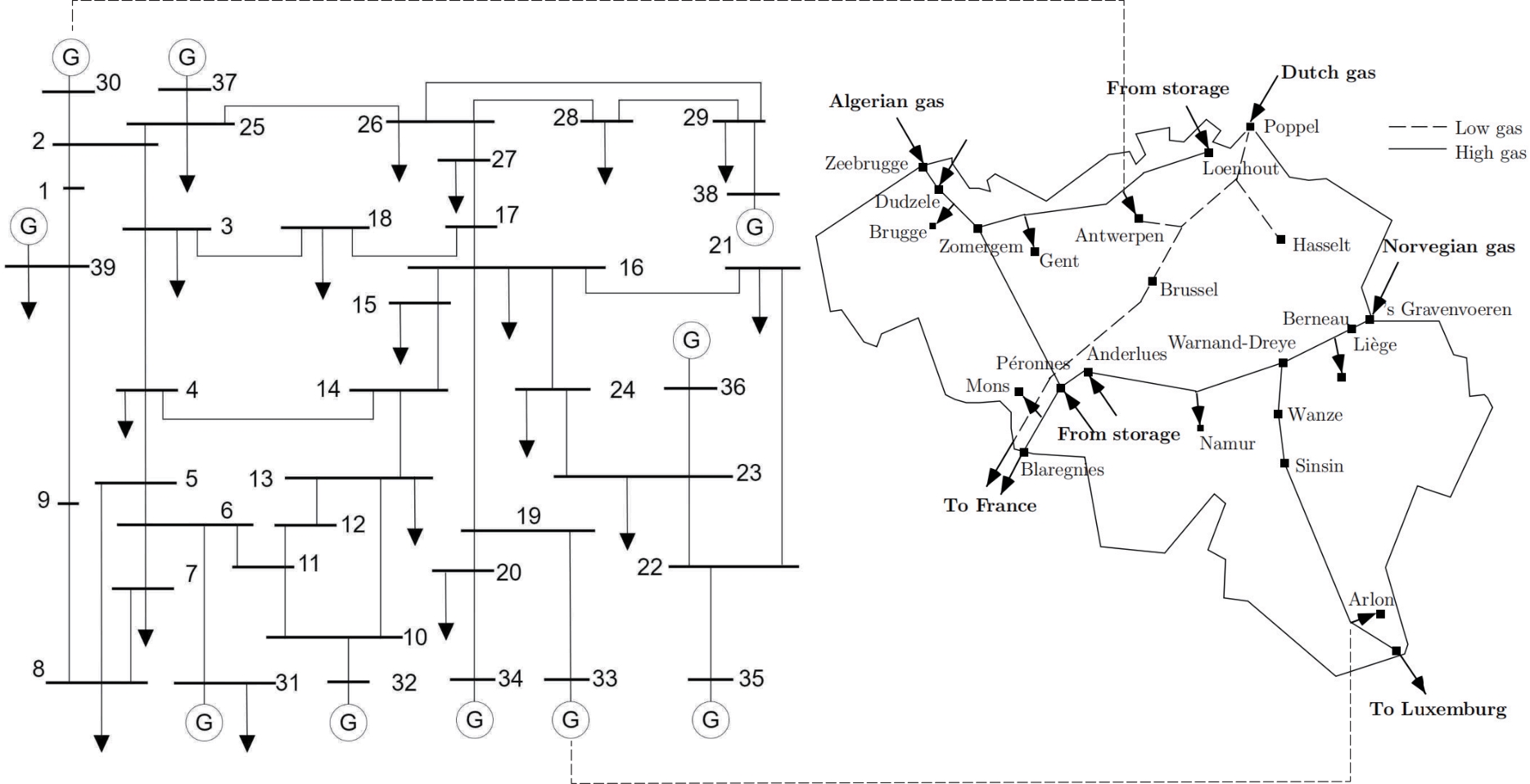

Multi-energy flow scheduling utilizes information technology to break down the barriers between traditional energy systems， thereby forming an efficient and complementary energy supply system. However， the transmission of a large amount of measurement and control data between energy systems also increases their risk of being subjected to cyberattacks. To clarify the potential attack patterns of false data injection attacks （FDIA） in integrated energy systems （IES）， a distributed scheduling-oriented modeling method for coordinated FDIA in the electricity-gas system was proposed. This method considered the influence of different management entities of electricity and gas in the IES， and established a distributed bilevel programming model. Additionally， it designed a bilevel nested distributed solution framework by integrating the alternating direction method of multipliers， protecting the privacy of data from each entity. Meanwhile， convex relaxation techniques were used to transform the Weymouth equation in the natural gas system into a tractable convex constraint form， facilitating the efficient solution of the model. Tests were conducted in an electricity-gas IES interconnected with the IEEE 39-bus and the Belgian 20-bus systems. The results showed that the destructive effect of the coordinated FDIA could be transmitted through coupling devices in the system， forcing the system to shed nearly 70% of the load. Meanwhile， the distributed solution algorithm could converge within a limited number of iterations， and the relative error compared with the centralized method was controlled within 1.4%. The proposed method provides an effective tool for analyzing the attack patterns of FDIA in IES under distributed architectures

Key words: integrated energy system, coordinated false data injection attacks, distributed solving algorithm, bilevel programming, convex relaxation, multi-energy flow scheduling

CLC Number:

TK01：TM73

FAN Yuxin, LI Yongming, SU Lei. Coordinated false data injection attacks against distributed economic dispatch of electricity-gas integrated energy system[J]. Integrated Intelligent Energy, 2025, 47(11): 87-95.

Figures/Tables 13

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Table 1

Table 2

Table 3

Table 4

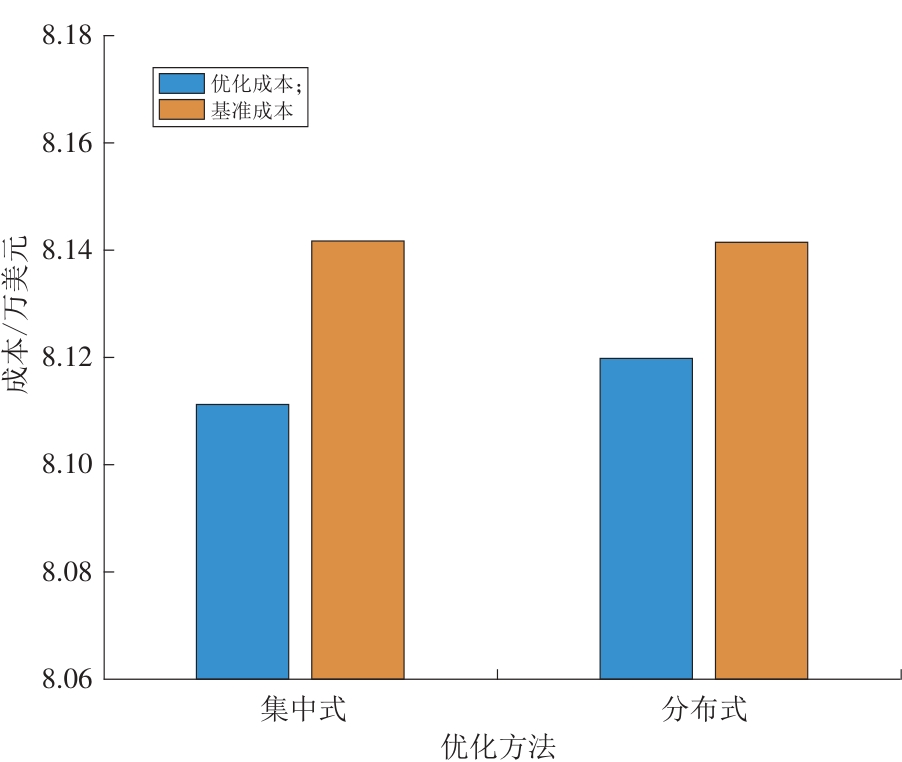

Fig.6

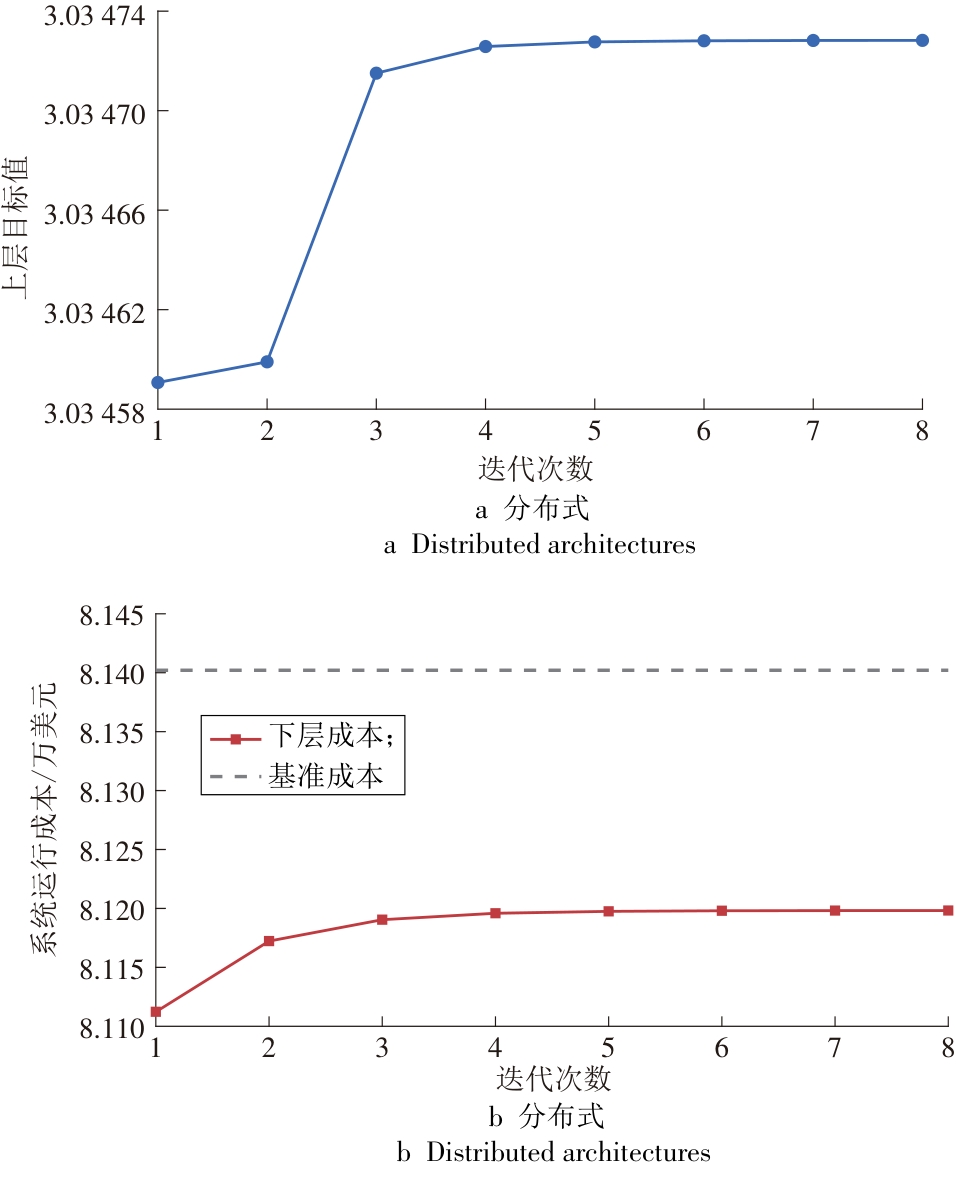

Fig.7

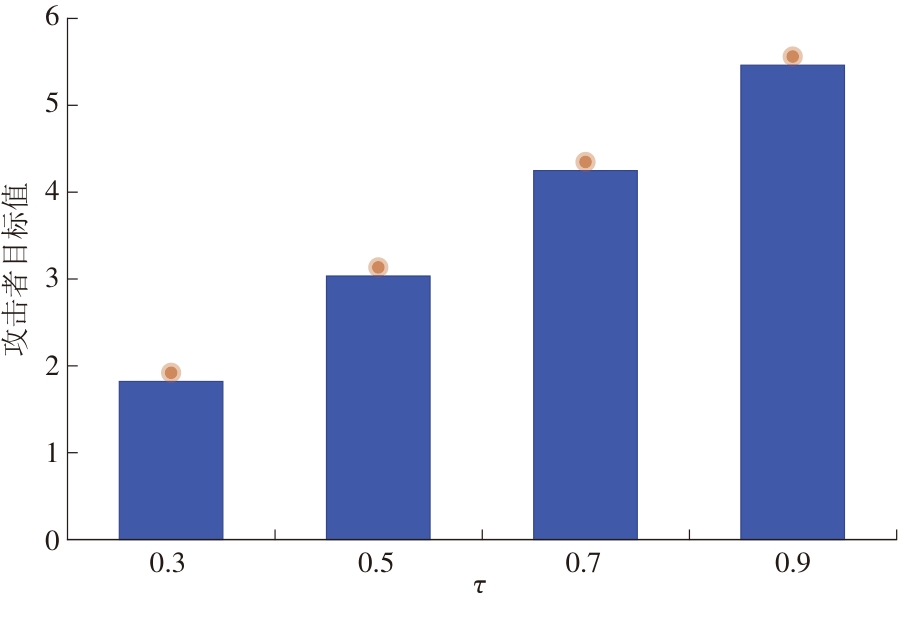

Fig.8

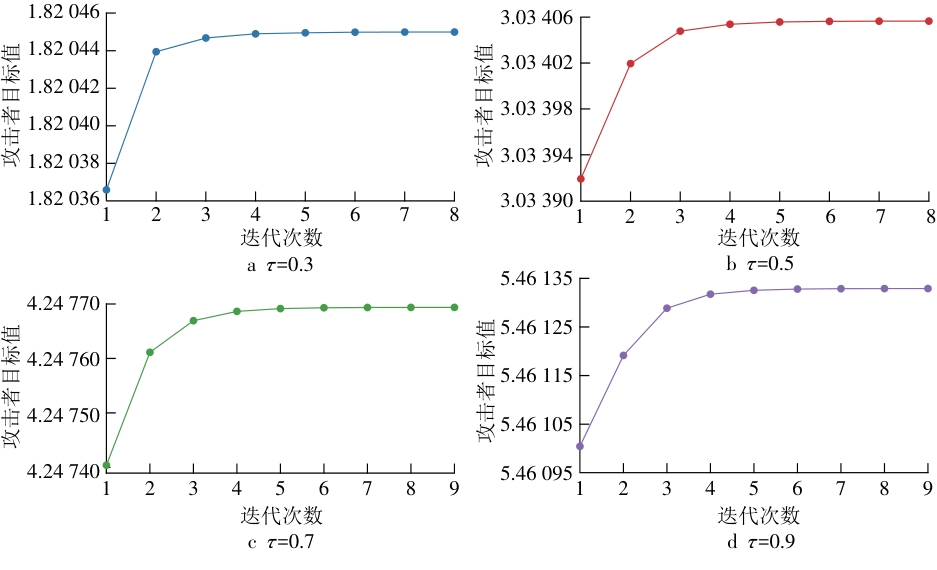

Fig.9

References 29

[1]	李铂航, 李宏仲, 张民元. 计及负荷特性的综合能源系统低碳经济调度[J]. 综合智慧能源, 2023, 45(8): 72-79.
	LI Bohang, LI Hongzhong, ZHANG Minyuan. Low-carbon economic dispatch of integrated energy systems considering load characteristics[J]. Integrated Intelligent Energy, 2023, 45(8): 72-79.
[2]	杨经纬, 张宁, 王毅, 等. 面向可再生能源消纳的多能源系统: 述评与展望[J]. 电力系统自动化, 2018, 42(4): 11-24.
	YANG Jingwei, ZHANG Ning, WANG Yi, et al. Multi-energy system towards renewable energy accommodation: Review and prospect[J]. Automation of Electric Power Systems, 2018, 42(4): 11-24.
[3]	姜飞, 刘利波, 裴翔羽, 等. 综合能源系统智慧运维技术综述及展望[J]. 电气工程学报, 2025, 20(1): 170-187.
	JIANG Fei, LIU Libo, PEI Xiangyu, et al. Review and prospect of intelligent operation and maintenance of integrated energy systems[J]. Journal of Electrical Engineering, 2025, 20(1): 170-187.
[4]	BAO Z J, ZHANG Q H, WU L, et al. Cascading failure propagation simulation in integrated electricity and natural gas systems[J]. Journal of Modern Power Systems and Clean Energy, 2020, 8(5): 961-970.
[5]	ZHAO P F, GU C H, HUO D. Coordinated risk mitigation strategy for integrated energy systems under cyber-attacks[J]. IEEE Transactions on Power Systems, 2020, 35(5): 4014-4025.
[6]	叶飞, 钟晓静, 关前锋. 电力信息物理系统的网络攻击建模、演化规律及应对成本研究[J]. 综合智慧能源, 2024, 46(5): 58-64.
	YE Fei, ZHONG Xiaojing, GUAN Qianfeng. Research on network attack modeling, evolution and response cost of power cyber physical systems[J]. Integrated Intelligent Energy, 2024, 46(5): 58-64.
[7]	张莹. 切断美燃油“大动脉”的黑客攻击来自哪[N]. 新华每日电讯,2021-05-14(009).
[8]	DENG R L, XIAO G X, LU R X, et al. False data injection on state estimation in power systems: Attacks, impacts, and defense: A survey[J]. IEEE Transactions on Industrial Informatics, 2017, 13(2): 411-423.
[9]	AHMADI A, NABIPOUR M, TAHERI S, et al. A new false data injection attack detection model for cyberattack resilient energy forecasting[J]. IEEE Transactions on Industrial Informatics, 2023, 19(1): 371-381.
[10]	周步祥, 闵昕玮, 臧天磊, 等. 负荷重分配攻击下电-气系统损失评估与脆弱性分析[J]. 工程科学与技术, 2023, 55(1): 3-13.
	ZHOU Buxiang, MIN Xinwei, ZANG Tianlei, et al. Loss assessment and vulnerability analysis of an integrated electricity natural gas system under load redistribution attack[J]. Advanced Engineering Sciences, 2023, 55(1): 3-13.
[11]	DENG R L, ZHUANG P, LIANG H. False data injection attacks against state estimation in power distribution systems[J]. IEEE Transactions on Smart Grid, 2019, 10(3): 2871-2881.
[12]	汪锦, 张啸宇. 基于LightGBM的家庭负荷虚假数据注入攻击检测模型[J]. 综合智慧能源, 2024, 46(11): 1-9.
	WANG Jin, ZHANG Xiaoyu. False data injection attacks detection model based on LightGBM for household load data[J]. Integrated Intelligent Energy, 2024, 46(11): 1-9.
[13]	阮振, 吕林, 刘友波, 等. 考虑负荷数据虚假注入的电力信息物理系统协同攻击模型[J]. 电力自动化设备, 2019, 39(2): 181-187.
	RUAN Zhen, LYU Lin, LIU Youbo, et al. Coordinated attack model of cyber-physical power system considering false load data injection[J]. Electric Power Automation Equipment, 2019, 39(2): 181-187.
[14]	CHE L, LIU X, LI Z Y, et al. False data injection attacks induced sequential outages in power systems[J]. IEEE Transactions on Power Systems, 2019, 34(2): 1513-1523.
[15]	TAN Y, LI Y, CAO Y J, et al. Cyber-attack on overloading multiple lines: A bilevel mixed-integer linear programming model[J]. IEEE Transactions on Smart Grid, 2018, 9(2): 1534-1536.
[16]	DING S X, GU W, LU S, et al. Cyber-attack against heating system in integrated energy systems: Model and propagation mechanism[J]. Applied Energy, 2022, 311: 118650.
[17]	ZHAO B N, LAMADRID A J, BLUM R S, et al. A coordinated scheme of electricity-gas systems and impacts of a gas system FDI attacks on electricity system[J]. International Journal of Electrical Power and Energy Systems, 2021, 131: 107060.
[18]	郭庆来, 田年丰, 孙宏斌. 支撑能源互联网协同优化的隐私计算关键技术[J]. 电力系统自动化, 2023, 47(8): 2-14.
	GUO Qinglai, TIAN Nianfeng, SUN Hongbin. Key technologies of privacy computation supporting collaborative optimization of energy Internet[J]. Automation of Electric Power Systems, 2023, 47(8): 2-14.
[19]	DUAN J D, YANG Y, LIU F. Distributed optimization of integrated electricity-natural gas distribution networks considering wind power uncertainties[J]. International Journal of Electrical Power and Energy Systems, 2022, 135: 107460.
[20]	CHEN S, CONEJO A J, WEI Z N. Gas-power coordination: From day-ahead scheduling to actual operation[J]. IEEE Transactions on Power Systems, 2022, 37(2): 1532-1542.
[21]	CHEN B B, WU W C, LIN C H, et al. Coordination of electricity and natural gas systems: An incentive-compatible mutual trust solution[J]. IEEE Transactions on Power Systems, 2021, 36(3): 2491-2502.
[22]	CHEN S, CONEJO A J, SIOSHANSI R, et al. Unit commitment with an enhanced natural gas-flow model[J]. IEEE Transactions on Power Systems, 2019, 34(5): 3729-3738.
[23]	杜预则, 董海鹰. 基于主从博弈的储能电站协同源荷消纳新能源调控策略[J]. 综合智慧能源, 2023, 45(11): 1-9.
	DU Yuze, DONG Haiying. Research on the source-load-storage collaborative scheduling strategy for new energy accommodation based on Stackelberg game[J]. Integrated Intelligent Energy, 2023, 45(11): 1-9.
[24]	SAWAS A M, KHANI H, FARAG H E Z. On the resiliency of power and gas integration resources against cyber attacks[J]. IEEE Transactions on Industrial Informatics, 2021, 17(5): 3099-3110.
[25]	LIU R P, WANG X Z, ZENG B, et al. Modeling load redistribution attacks in integrated electricity-gas systems[J]. IEEE Transactions on Smart Grid, 2024, 15(4): 4115-4127.
[26]	ZADSAR M, ABAZARI A, AMELI A, et al. Prevention and detection of coordinated false data injection attacks on integrated power and gas systems[J]. IEEE Transactions on Power Systems, 2023, 38(5): 4252-4268.
[27]	ZHANG Q W, LI F X, ZHAO J, et al. False data injection attack and corresponding countermeasure in multienergy systems[J]. IEEE Transactions on Power Systems, 2024, 39(2): 3537-3547.
[28]	BOYD S, PARIKH N, CHU E, et al. Distributed optimization and statistical learning via the alternating direction method of multipliers[J]. Foundations and Trends^® in Machine learning, 2011, 3(1): 1-122.
[29]	LIU R P, WANG X, ZENG B, et al. Modeling load redistribution attacks in integrated electricity-gas systems[J]. IEEE Transactions on Smart Grid, 2024, 15(4): 4115-4127.

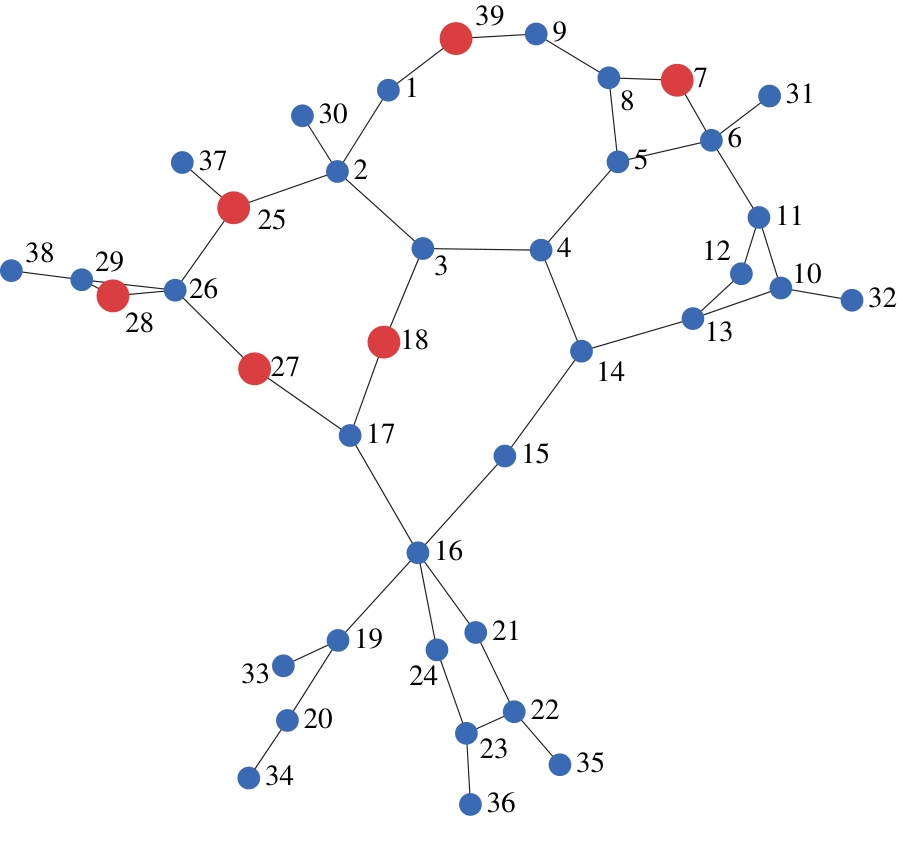

攻击节点	原始节点数据^①	攻击后节点数据^②
7	1.51	-0.76
18	3.37	-0.51
25	1.45	-0.72
27	1.82	-0.91
28	1.33	-0.67
39	7.14	3.56

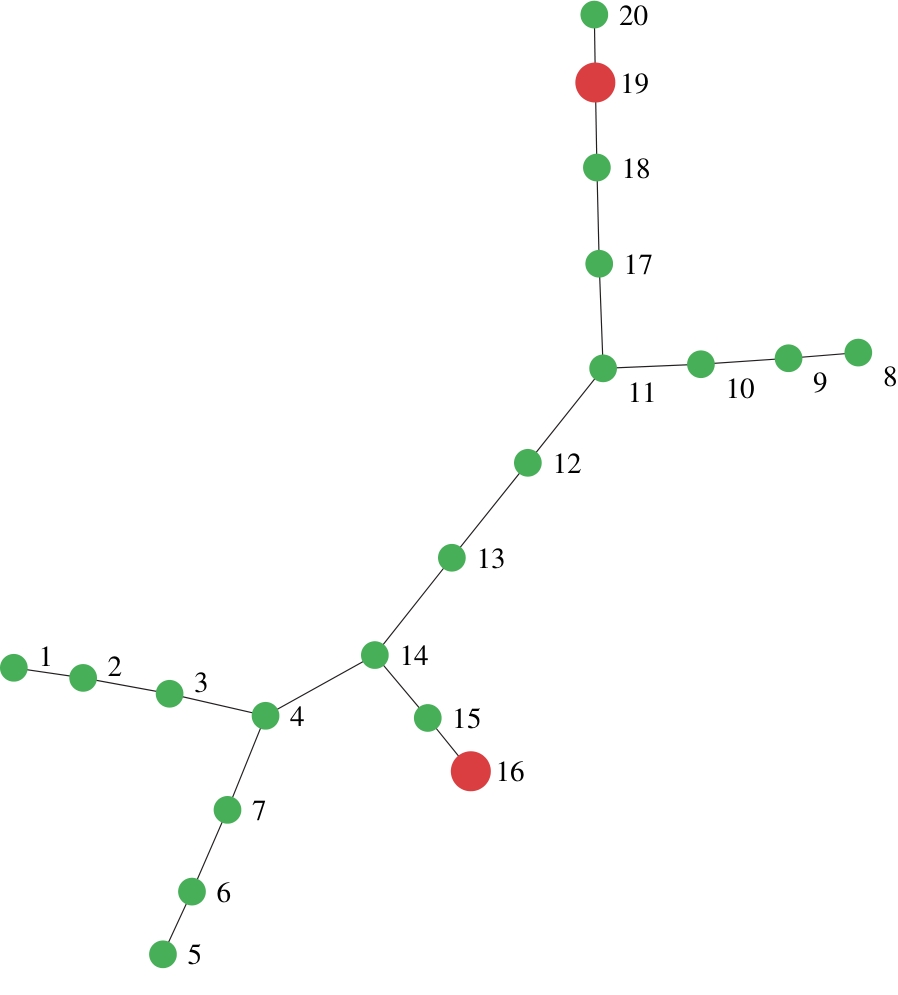

攻击节点	原始节点数据	攻击后节点数据
16	272 000	-136 000
19	272 000	136 000

系统类型	基准切负荷量	攻击后切负荷量
电力系统	0	0
燃气系统	0	3 920 000

发电机组	基准功率	攻击后功率
GT1	548.09	614.98
GT2	652.00	625.00
G1	0	0
G2	725.00	527.78
G3	0	0
G4	0	0
G5	152.33	85.44
G6	0	0
G7	865.00	865.00
G8	1 100.00	1 100.00
