基于粒子群优化算法的多能互补系统经济调度研究

doi:10.3969/j.issn.1674-1951.2021.04.003

摘要/Abstract

摘要：

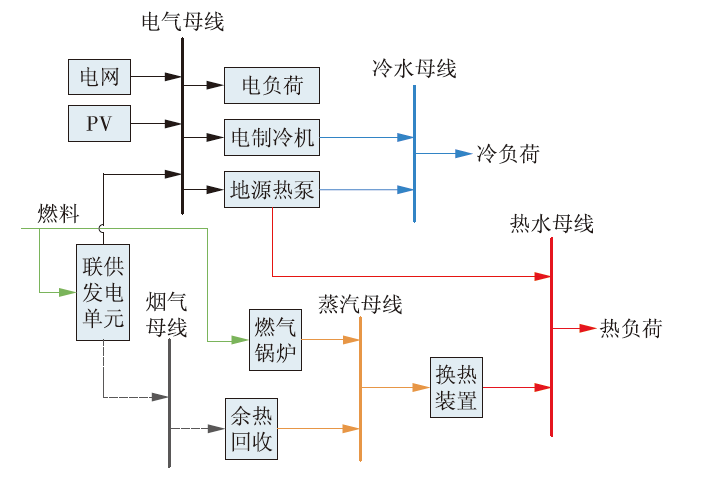

为了发挥多能互补系统能源协同利用的优势,实现能源梯级利用,保证电力系统安全、低碳、稳定、高效、经济运行,根据多能互补系统中能量流动的特点,选取电气母线、热水母线、冷水母线、烟气母线、蒸汽母线作为基本框架,对系统中的各个设备独立建模。围绕该结构建立多能互补系统的日动态经济调度混合整数线性规划模型,利用智能算法中的粒子群优化算法进行运行费用优化,得到成本最低的设备运行模式。以某医院为例进行测试,测试结果证实了该模型的有效性以及多能互补系统在充分利用可再生能源与经济性方面的优势。

关键词: 多能互补, 可再生能源, 冷热电联供, 低碳, 经济调度, 混合整数线性规划模型, 粒子群优化算法

Abstract:

Giving full play to the advantage of synergetic utilization on energy, multi-energy complementary systems can realize the cascade utilization of energy, and ensure the safe, low-carbon, stable, efficient and economic operation of power system. According to the characteristics of energy flow in the system, electric bus, hot water bus, cold water bus, flue gas bus and steam bus are selected as the basic framework of the system. The models of each device in the system is set up independently. Based on this structure, a mixed-integer linear programming model for the system's daily dynamic economic dispatch is established. The operation cost of this model can be adjusted by an intelligent algorithm, Particle Swarm Optimization （PSO）, and the operating mode of equipment with the lowest operating cost can be obtained. Taking a hospital as a testing example, the test results confirm the effectiveness of the model and the advantages of the multi-energy complementary system in making full use of renewable energy and economy.

Key words: multi-energy complementation, renewable energy, CCHP, low carbon, economic dispatch, mixed-integer linear programming model, Particle Swarm Optimization

中图分类号:

TK01⁺8：TM734

赵鑫, 郑文禹, 侯智华, 陈衡, 徐钢. 基于粒子群优化算法的多能互补系统经济调度研究[J]. 华电技术, 2021, 43(4): 14-20.

ZHAO Xin, ZHENG Wenyu, HOU Zhihua, CHEN Heng, XU Gang. Research on economic dispatch of multi-energy complementary system based on Particle Swarm Optimization[J]. Huadian Technology, 2021, 43(4): 14-20.

图/表 11

图1

表1

表2

表3

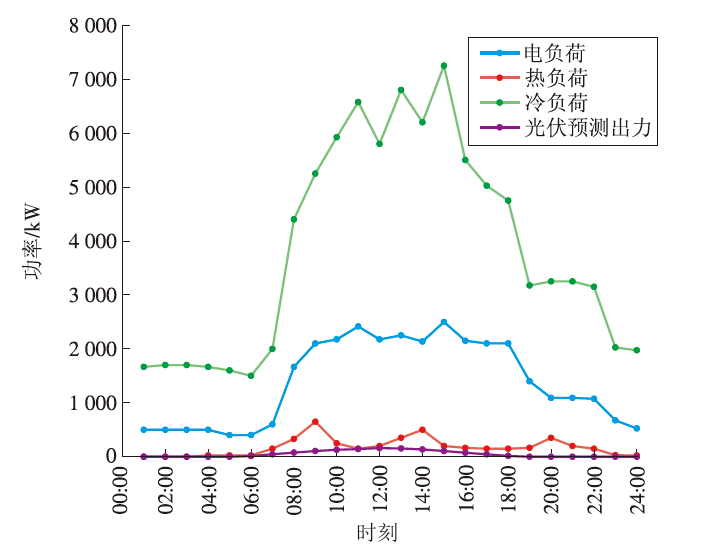

图2

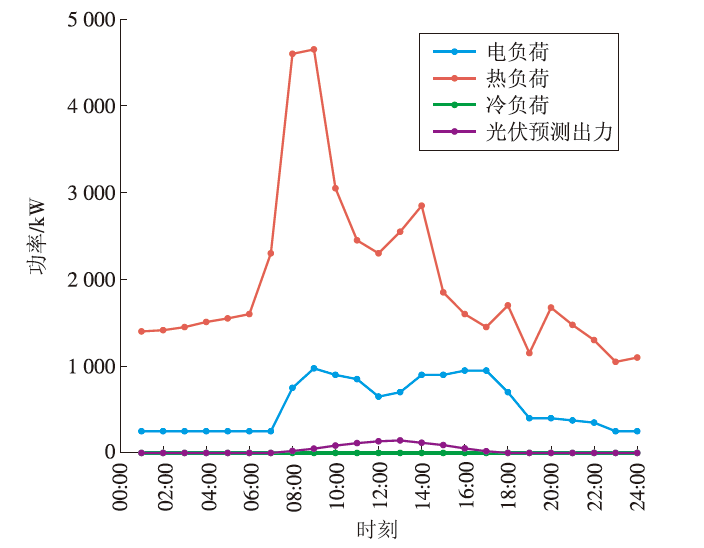

图3

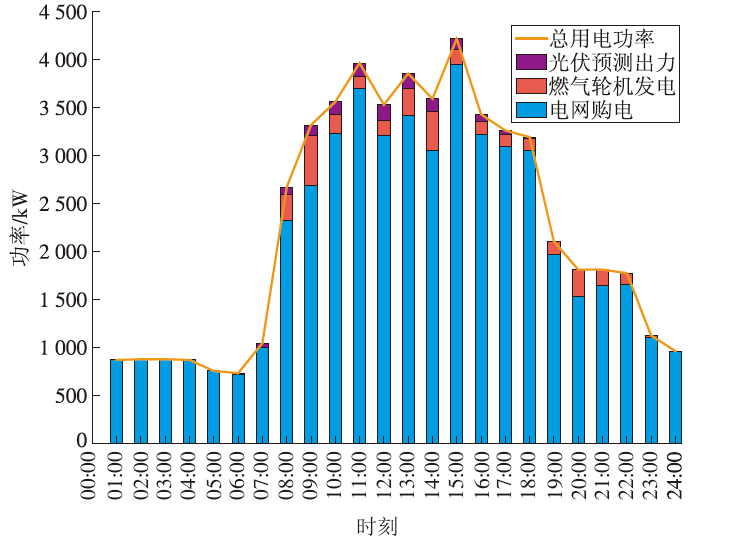

图4

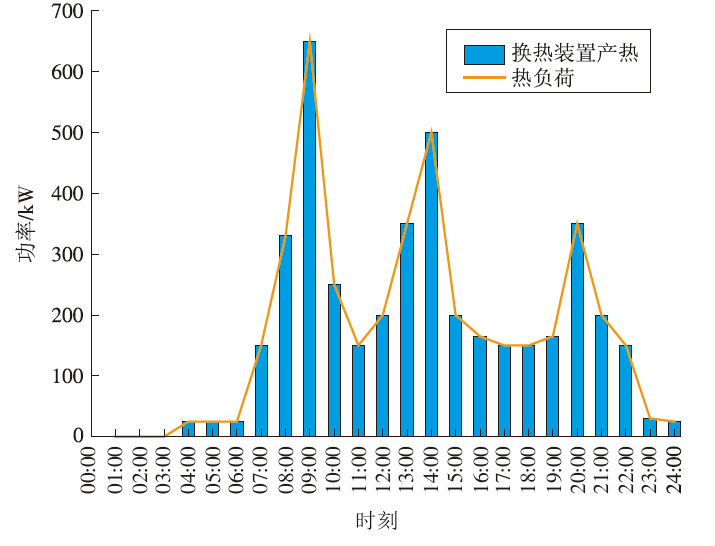

图5

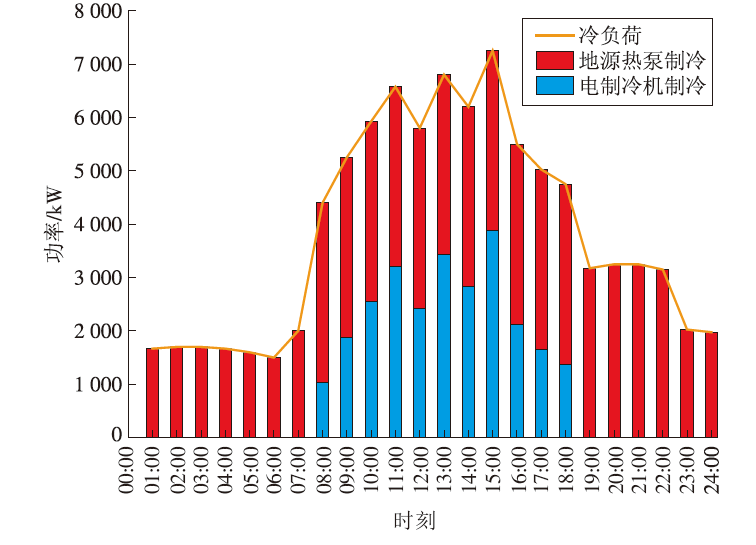

图6

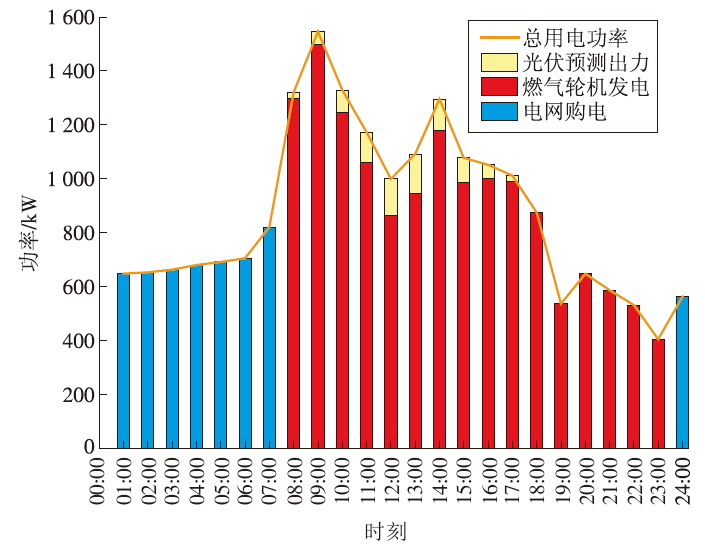

图7

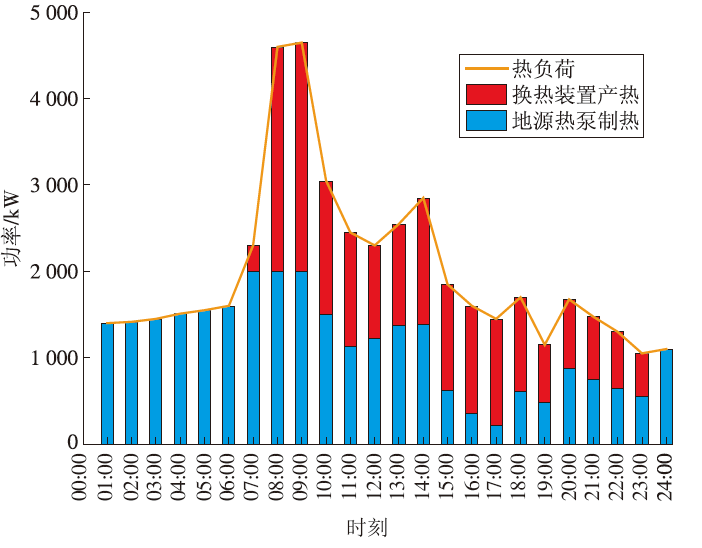

图8

参考文献 24

[1]	胡勇. 可持续性视角下太阳能热发电项目选址决策研究[D]. 北京:华北电力大学, 2018 .
[2]	杨晓巳, 陶新磊. 综合能源技术路线研究[J]. 华电技术, 2019,41(11):22-25.
	YANG Xiaosi, TAO Xinlei. Research on integrated energy technical route[J]. Huadian Technology, 2019,41(11):22-25.
[3]	刘吉臻. 新能源电力系统建模与控制[M]. 北京: 科学出版社, 2015: 25-38.
[4]	孙思宇, 于成琪, 孙涛, 等. 冷热电三联供分布式能源系统研究进展[J]. 华电技术, 2019,41(11):26-31.
	SUN Siyu, YU Chengqi, SUN Tao, et al. Advance in study on CCHP distributed energy system[J]. Huadian Technology, 2019,41(11):26-31.
[5]	LASSETER R H. Smart distribution: Coupled microgrids[J]. Proceedings of the IEEE, 2011,99(6):1074-1082.
[6]	LUND H, MÜNSTER E. Integrated energy systems and local energy markets[J]. Energy Policy, 2006,34(10):1152-1160.
[7]	MATHIESEN B V, LUND H, CONNOLLY D, et al. Smart energy systems for coherent 100% renewable energy and transport solutions[J]. Applied Energy, 2015,145:139-154.
[8]	孙振宇, 沈明忠. 基于工业厂区的多能互补系统在微能源网的应用[J]. 华电技术, 2019,41(11):46-48.
	SUN Zhenyu, SHEN Mingzhong. Application of multi-energy complementary system in micro-energy network of an industrial plant[J]. Huadian Technology, 2019,41(11):46-48.
[9]	李洋, 吴鸣, 周海明, 等. 基于全能流模型的区域多能源系统若干问题探讨[J]. 电网技术, 2015,39(8):2230-2237.
	LI Yang, WU Ming, ZHOU Haiming, et al. Discussion on several issues of regional multi-energy system based on all-energy flow model[J]. Power System Technology, 2015,39(8):2230-2237.
[10]	卢胤龙, 韩明新, 任洪波, 等. 多能互补分布式能源系统优化设计研究进展[J]. 上海电力学院学报, 2018,34(3):229-235.
	LU Yinlong, HAN Mingxin, REN Hongbo, et al. Research progress on optimal design of multi-energy complementary distributed energy system[J]. Journal of Shanghai University of Electric Power, 2018,34(3):229-235.
[11]	荆有印, 白鹤, 张建良. 太阳能冷热电联供系统的多目标优化设计与运行策略分析[J]. 中国电机工程学报, 2012,32(20):82-87,143.
	JING Youyin, BAI He, ZHANG Jianliang. Multi-objective optimization design and operation strategy analysis of solar energy combined cooling, heating and power system[J]. Proceedings of the Chinese Society of Electrical Engineering, 2012,32(20):82-87,143.
[12]	柳川, 王宇拓, 王林川, 等. 含冷热电联供系统微电网优化运行研究[J]. 电测与仪表, 2015,52(2):31-37.
	LIU Chuan, WANG Yutuo, WANG Linchuan, et al. Research on optimal operation of microgrid containing cooling, heating and power system[J]. Electrical Measurement & Instrumentation, 2015,52(2):31-37.
[13]	赖中练. 热电冷联产系统准稳态模拟[D]. 北京: 清华大学, 2009.
[14]	LIU P, GEROGIORGIS D I, PISTIKOPOULOS E N. Modeling and optimization of polygeneration energy systems[J]. Catalysis Today, 2009,127(1):347-359.
[15]	孙宏斌, 潘昭光, 郭庆来. 多能流能量管理研究: 挑战与展望[J]. 电力系统自动化, 2016,40(15):1-8.
	SUN Hongbin, PAN Zhaoguang, GUO Qinglai. Research on multi-energy flow energy management: Challenges and prospects[J]. Automation of Electric Power Systems, 2016,40(15):1-8.
[16]	孙浩, 陈永华. 综合能源系统多能流联合仿真技术研究[J]. 华电技术, 2020,42(5):66-72.
	SUN Hao, CHEN Yonghua. Research on multiple energy flow co-simulation technology applied in integrated energy system[J]. Huadian Technology, 2020,42(5):66-72.
[17]	熊京. 多能互补微网系统的优化设计及控制技术[D]. 北京:华北电力大学, 2016.
[18]	陈昌松, 段善旭, 蔡涛, 等. 基于改进遗传算法的微网能量管理模型[J]. 电工技术学报, 2013,28(4):196-201.
	CHEN Changsong, DUAN Shanxu, CAI Tao, et al. Microgrid energy management model based on improved genetic algorithm[J]. Journal of Electrotechnical Technology, 2013,28(4):196-201.
[19]	丁伯剑, 郑秀玉, 周逢权, 等. 微电网多能互补电源容量配置方法研究[J]. 电力系统保护与控制, 2013,41(16):144-148.
	DING Bojian, ZHENG Xiuyu, ZHOU Fengquan, et al. Research on capacity configuration method of multi-energy complementary power supply in microgrid[J]. Power System Protection and Control, 2013,41(16):144-148.
[20]	肖浩. 微网能量管理与协调控制策略研究[D]. 北京:中国科学院大学, 2015.
[21]	赵冉娇. 多能互补微电网的能量管理研究[D]. 西安:西安理工大学, 2015.
[22]	郭力, 刘文健, 焦冰琦, 等. 独立微网系统的多目标优化规划设计方法[J]. 中国电机工程学报, 2014,34(4):524-536.
	GUO Li, LIU Wenjian, JIAO Bingqi, et al. Multi-objective optimization planning design method of independent microgrid system[J]. Proceedings of the Chinese Society of Electrical Engineering, 2014,34(4):524-536.
[23]	陈亚红. 微电网能量管理策略研究[D]. 哈尔滨:哈尔滨工业大学, 2016.
[24]	章文浦, 王强钢. 基于遗传算法的分布式多能互补能源系统优化配置[J]. 华电技术, 2021,43(1):52-58.
	ZHANG Wenpu, WANG Qianggang. Optimized allocation of multi-energy complementary distributed energy system based on genetic algorithm[J]. Huadian Technology, 2021,43(1):52-58.

设备	功率上限
燃气轮机	1 500
换热装置	3 300
余热锅炉	3 000
电制冷机	1 200
燃气锅炉	1 200
地源热泵	750

项目	参数
燃气轮机热电比	1.90
燃气轮机效率	0.30
换热装置效率	0.90
余热锅炉效率	0.73
电制冷机性能系数	4.00
燃气锅炉效率	0.90
地源热泵性能系数（制冷）	4.50
地源热泵性能系数（制热）	3.50

项目		价格
电	尖峰	1.439 7
	高峰	1.310 4
	平段	0.784 7
	低谷	0.311 3
天然气		0.254 0
