综合能源服务项目新增热泵系统的案例分析

doi:10.3969/j.issn.2097-0706.2022.01.010

摘要/Abstract

摘要：

系统配置是综合能源服务项目节能经济性的核心因素,研究配置多能互补的能源供应体系是综合能源服务的重要任务。多能互补系统是传统分布式能源应用的拓展,是可包容多种能源资源输入,并具有多种产出功能和输运形式的“区域能源互联网”系统。多能互补的能源供应体系应根据用户的冷热电需求、负荷特性及各种能源价格,结合单个设备的效率制定出系统的运行策略,平衡经济性及环境效益后合理配置。结合北方某园区天然气分布式能源系统实例,通过收集、调研园区近3年的冷热电负荷数据,对供能系统的运行方式、综合能源利用效率及经济效益进行了深入分析,论证了在原系统中增加空气源热泵及烟气余热回收热泵的必要性和经济性,可为相关区域综合能源多能互补系统项目提供参考。

关键词: 分布式能源, 综合能源服务, 多能互补, 空气源热泵, 烟气余热回收热泵, 能源互联网

Abstract:

As the core factor affecting the energy-saving economy of an integrated energy service project,studying the configuration of a multi-energy complementary energy system is a crucial task in integrated energy services.The multi-energy complementary system is an extension of traditional distributed energy applications.It is a "regional energy internet" system that accommodates multiple energy resources,various outputs and transportation forms.The multi-energy complementary energy system can make an operation strategy based on user's cooling,heating and power demand,load characteristics and price of different energy.The strategy should fully consider the efficiency of a single unit and make a reasonable configuration that balances economic and environmental benefits.Taking a natural gas distributed energy system of an industrial park in northern China as an example,the operation mode,comprehensive energy utilization efficiency and economic benefits of the energy system is analyzed intensively by collecting and studying the data of cold,hot and electric loads of the park in the past three years.The analysis results demonstrates the necessity and economy of configuring air source heat pumps and flue gas waste heat recovery heat pumps in multi-energy complementary energy systems,which can provide a reference for the following regional multi-energy complementary energy systems.

Key words: distribution energy, integrated energy service, multi-energy complementation, air source heat pump, flue gas waste heat recovery heat pump, energy internet

中图分类号:

TK01

余莉, 徐静静, 马兰芳, 王佑天. 综合能源服务项目新增热泵系统的案例分析[J]. 综合智慧能源, 2022, 44(1): 72-79.

YU Li, XU Jingjing, MA Lanfang, WANG Youtian. Case study on the integrated energy service project with newly installed heat pumps[J]. Integrated Intelligent Energy, 2022, 44(1): 72-79.

图/表 13

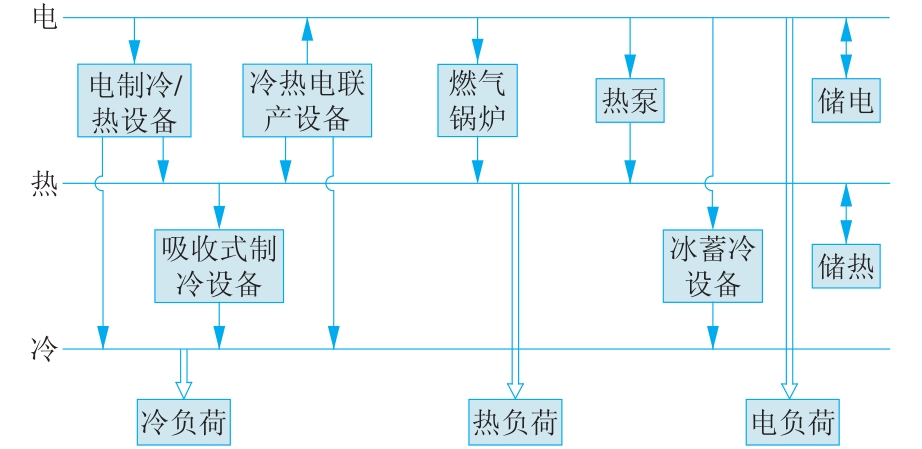

图1

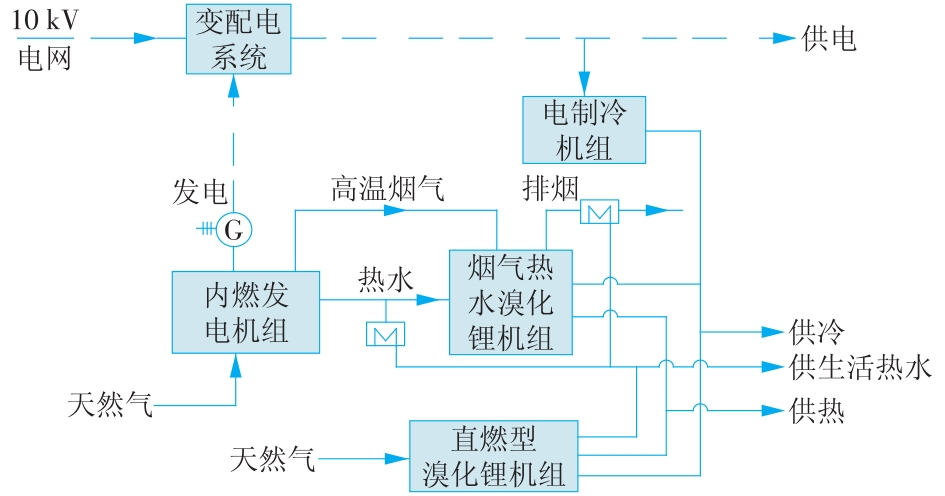

图2

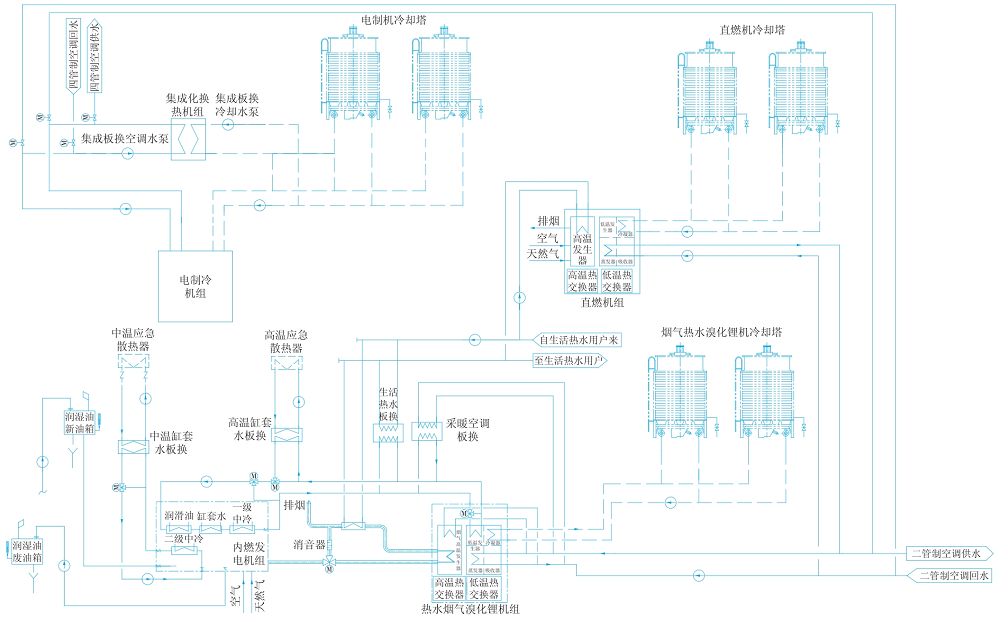

图3

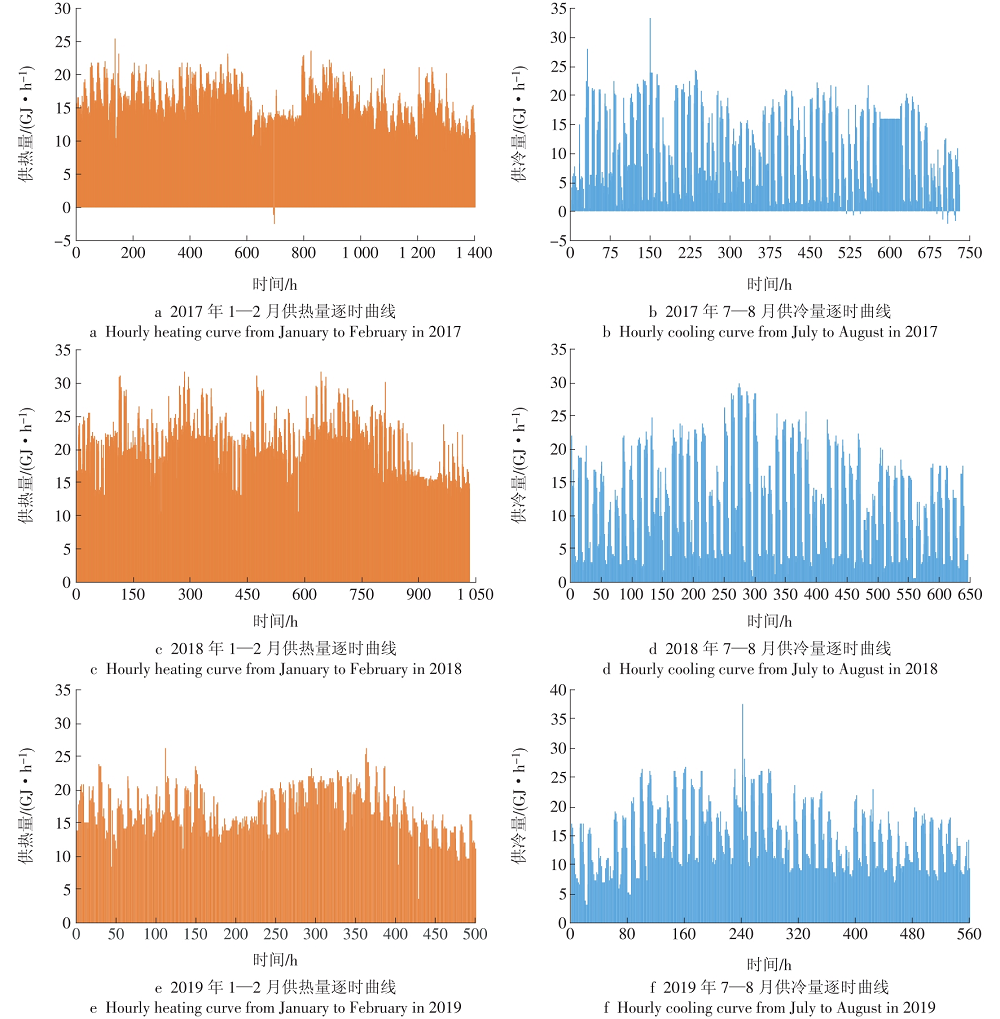

图4

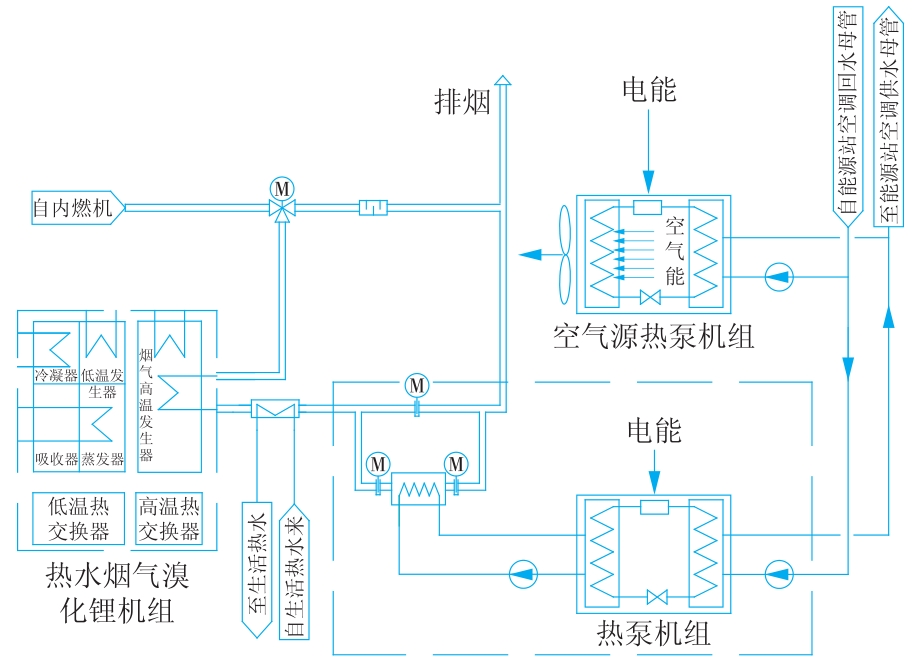

图5

表1

表2

表3

表4

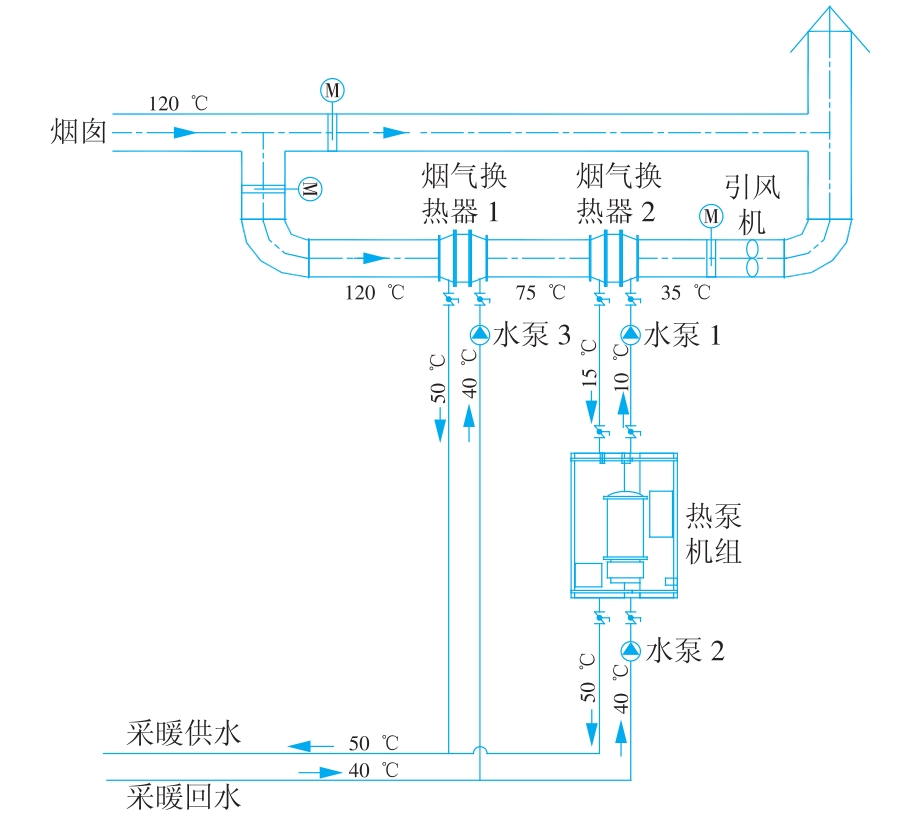

图6

表5

表6

表7

参考文献 18

[1]	叶琪超, 楼可炜, 张宝, 等. 多能互补综合能源系统设计及优化[J]. 浙江电力, 2018, 37(7):5-11.
	YE Qichao, LOU Kewei, ZHANG Bao, et al. Design and optimization of multi-energy complementary integrated energy system[J]. Zhejiang Electric Power, 2018, 37(7):5-11.
[2]	孙可, 段光, 李晓春, 等. 综合能源服务系统结构描述及设计优化[J]. 热力发电, 2017, 46(12):33-39.
	SUN Ke, DUAN Guang, LI Xiaochun, et al. Structure description and design optimization of integrated energy service system[J]. Thermal Tower Generation, 2017, 46(12):33-39.
[3]	彭克, 张聪, 徐丙垠, 等. 多能协同综合能源系统示范工程现状与展望[J]. 电力自动化设备, 2017, 37(6):3-9.
	PENG Ke, ZHANG Cong, XU Bingyin, et al. Present situation and prospect of the demonstration project of multi-energy cooperative integrated energy system[J]. Electric Power Automation Equipment, 2017, 37(6):3-9.
[4]	金红光, 郑丹星, 徐建中. 分布式冷热电联产系统装置及应用[M]. 北京: 中国电力出版社, 2010
[5]	吴建中. 欧洲综合能源系统发展的驱动与现状[J]. 电力系统自动化, 2016, 40(5):1-7.
	WU Jianzhong. Drivers and state-of-the-art of integrated energy systems in Europe[J]. Automation of Electric Power Systems, 2016, 40(5):1-7.
[6]	董朝阳, 赵俊华, 文福拴, 等. 从智能电网到能源互联网:基本概念与研究框架[J]. 电力系统自动化, 2014, 38(15):1-11.
	DONG Zhaoyang, ZHAO Junhua, WEN Fushuan, et al. From smart grid to energy internet basic concept and research framework[J]. Automation of Electric Power Systems, 2014, 38(15):1-11.
[7]	徐宪东, 贾宏杰, 靳小龙, 等. 区域综合能源系统电/气/热混合潮流算法研究[J]. 中国电机工程学报, 2015, 35(14):3634-3642.
	XU Xiandong, JIA Hongjie, JIN Xiaolong, et al. Study on hybrid heat-gas-power flow algorithm for integrated community energy system[J]. Proceedings of the CSEE, 2015, 35(14):3634-3642.
[8]	于波, 孙恒楠, 项添春, 等. 综合能源系统规划设计方法[J]. 电力建设, 2016, 37(2):78-84.
	YU Bo, SUN Hengnan, XIANG Tianchun, et al. Planning design method of integrated energy system[J]. Electric Power Construction, 2016, 37(2):78-84.
[9]	张勇军, 陈泽兴, 蔡泽祥, 等. 新一代信息能源系统:能源互联网[J]. 电力自动化设备, 2016, 36(9):1-7.
	ZHANG Yongjun, CHEN Zexing, CAI Zexiang, et al. New generation of cyber-energy system:Energy internet[J]. Electric Power Automation Equipment, 2016, 36(9):1-7.
[10]	谢竹雯. 既有建筑空气源热泵集中供热水系统利用分析[J]. 福建建设科技, 2020(2):92-93.
	XIE Zhuwen. Analysis on utilization of central heating water system of existing building air source heat pump[J]. Fujian Jianshe Technology, 2020(2):92-93.
[11]	吴文婧, 倪美琴, 张玉雪. 复合热泵热水系统运行特性的分析研究[J]. 流体机械, 2020, 48(2):78-82.
	WU Wenjing, NI Meiqin, ZHANG Yuxue. Analysis and research on the operating characteristics of combination heat pump hot water system[J]. Fluid Machinery, 2020, 48(2):78-82.
[12]	何梦渊, 李永生, 潘涛, 等. 基于吸收式热泵的锅炉烟气余热回收工艺统性能研究[J]. 石油与天然气化工, 2019, 48(1):115-120.
	HE Mengyuan, LI Yongsheng, PAN Tao, et al. Investigation on the system performance of waste heat recovery for boiler flue gas based on absorption heat pump[J]. Chemical Engineering of Oil and Gas, 2019, 48(1):115-120.
[13]	温兴柔. 燃气锅炉深度余热回收技术的应用[J]. 上海节能, 2016(10):564-566.
	WEN Xingrou. Application of advanced waste heat recovery technology in gas-fired boiler[J]. Shanghai Energy Conservation, 2016(10):564-566.
[14]	王贵玲, 杨轩, 马凌, 等. 地热能供热技术的应用现状及发展趋势[J]. 华电技术, 2021, 43(11):15-24.
	WANG Guiling, YANG Xuan, MA Ling, et al. Status quo and prospects of geothermal energy in heat supply[J]. Huadian Technology, 2021, 43(11):15-24.
[15]	王宁, 张佳男, 张爱琴, 等. 燃气锅炉烟气余热深度回收系统应用案例分析[J]. 节能与环保, 2019(7):63-64.
	WANG Ning, ZHANG Jianan, ZHANG Aiqin, et al. Case study on application of gas boiler flue gas waste heat recovery system[J]. Energy Conservation and Environmental Protection, 2019(7):63-64.
[16]	朱海东, 郝浩, 郑剑, 等. 基于冷热电多能互补的园区综合能源系统设计[J]. 华电技术, 2021, 43(4):34-38.
	ZHU Haidong, HAO Hao, ZHENG Jian, et al. Design of integrated energy system for parks based on complementation of cold,heat and electricity[J]. Huadian Technology, 2021, 43(4):34-38.
[17]	赵玺灵, 付林, 王笑吟, 等. 分布式热泵调峰型燃气热电联产烟气余热回收供热系统建模及模拟分析[J]. 太阳能学报, 2018, 39(10):2779-2786.
	ZHAO Xiling, FU Lin, WANG Xiaoyin, et al. Modeling and simulation analysis of waste heat recovery heating system for flue gas of peak-shaving gas-fired combined heat and power plant with distributed heat pump[J]. Acta Energiae Solaris Sinica, 2018, 39(10):2779-2786.
[18]	郑剑, 郝浩, 朱海东, 等. 新形势下发电企业在充电桩领域的业务分析[J]. 华电技术, 2021, 43(4):78-82.
	ZHENG Jian, HAO Hao, ZHU Haidong, et al. Business analysis on power generation enterprises in the field of charging pile under the new circumstances[J]. Huadian Technology, 2021, 43(4):78-82.

供能形式	供热量/GJ	COP	耗气/耗电	运行费/元
直燃机	1.00	0.938	31.57 m³	87.45^①
空气源热泵	1.00	2.400	115.74 kW·h	34.99^②
空气源热泵	1.00	2.400	115.74 kW·h	90.94^③

供能形式	供冷量/GJ	COP	耗气/耗电	运行费/元
直燃机	1.00	1.360	21.77 m³	53.35^①
空气源热泵	1.00	3.600^④	77.16 kW·h	23.33^②
空气源热泵	1.00	3.600^④	77.16 kW·h	60.63^③

项目		空气源热泵运行方案	余热机+直燃机运行方案
收入	售电收入	172.21^①	177.69^②
收入	售热收入	221.71	221.71
成本	购电费用	46.07	5.79
	供热机组耗电	50.05	0.00（机组厂用电扣除）
	供热耗气	0.00	157.01
收入-成本		297.81	236.60

项目		空气源热泵+直燃机运行方案	余热机+直燃机运行方案
收入	售电收入	172.21^①	177.69^②
收入	售热收入	221.71^③	221.71
成本	产业园用户购电	46.07	5.79
	供热机组耗电	37.54	0.00（机组厂用电扣除）
	供热耗气	31.27	157.01
收入-成本		279.04	236.60

供能形式	供热量/GJ	COP	耗气/耗电	运行费/元
直燃机	1.00	0.938	31.57 m³	87.45
烟气余热回收系统	1.00	5.120	54.25 kW·h	42.62
