基于工业余热的高温空气源耦合热泵循环性能分析

doi:10.3969/j.issn.2097-0706.2023.07.005

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (7): 40-47.doi: 10.3969/j.issn.2097-0706.2023.07.005

基于工业余热的高温空气源耦合热泵循环性能分析

孙健(), 秦宇(), 郝俊红(), 杨勇平()

华北电力大学新能源电力国家重点实验室，北京 102206

收稿日期:2023-05-26 修回日期:2023-06-25 接受日期:2023-07-03 出版日期:2023-07-25 发布日期:2023-07-25
作者简介:孙健（1985），男，副教授，硕士生导师，博士，从事建筑节能、零能耗建筑、可再生能源及关键设备方面的研究，stu@188.com；
秦宇（1998），男，在读硕士研究生，从事建筑节能、热泵方面的研究，qinyu980603@163.com；
郝俊红（1988），男，副教授，博士，从事储能与燃料电池、分布式能源系统、能效碳效诊断等方面的研究，hjh@ncepu.edu.cn；
杨勇平（1967），男，教授，博士生导师，博士，从事热力学、火力发电节能理论与技术、太阳能辅助燃煤发电、CO₂减排、IGCC等方面的研究，yyp@ncepu.edu.cn。
基金资助:
国家重点研发计划项目(2019YFE0104900);国家自然科学基金项目(52090062);中央高校基本科研业务费专项资金资助项目(2020MS009)

Performance analysis on high temperature air source heat pump coupling cycle based on industrial waste heat

SUN Jian(), QIN Yu(), HAO Junhong(), YANG Yongping()

State Key Laboratory of New Energy Electric Power，North China Electric Power University，Beijing 102206，China

Received:2023-05-26 Revised:2023-06-25 Accepted:2023-07-03 Online:2023-07-25 Published:2023-07-25
Supported by:
National Key Research and Development Program of China(2019YFE0104900);National Natural Science Foundation of China （Major Program）(52090062);Special Fund for Basic Scientific Research of Central University(2020MS009)

摘要/Abstract

摘要：

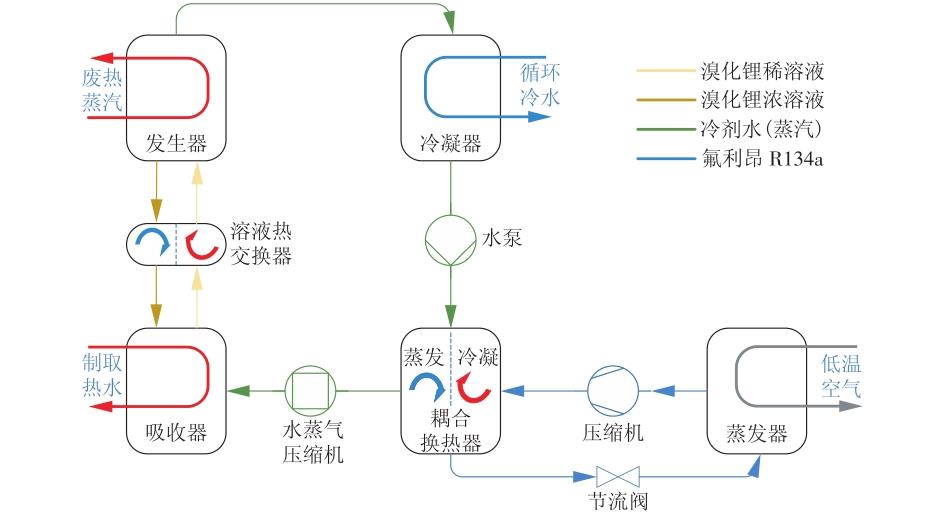

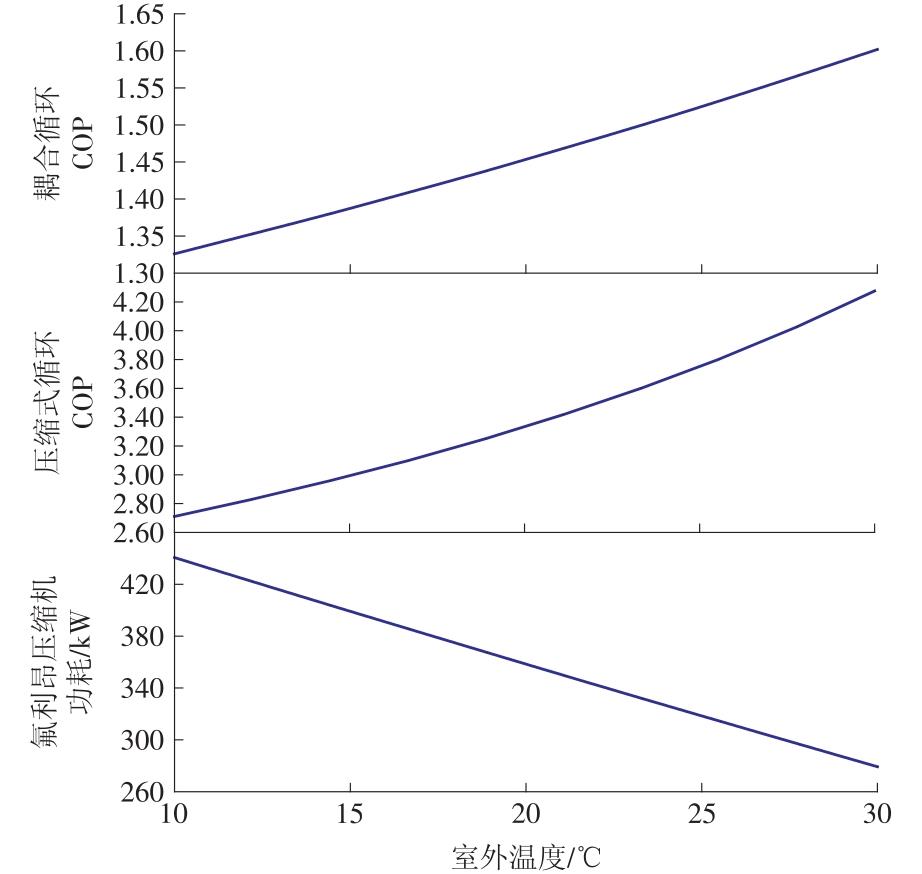

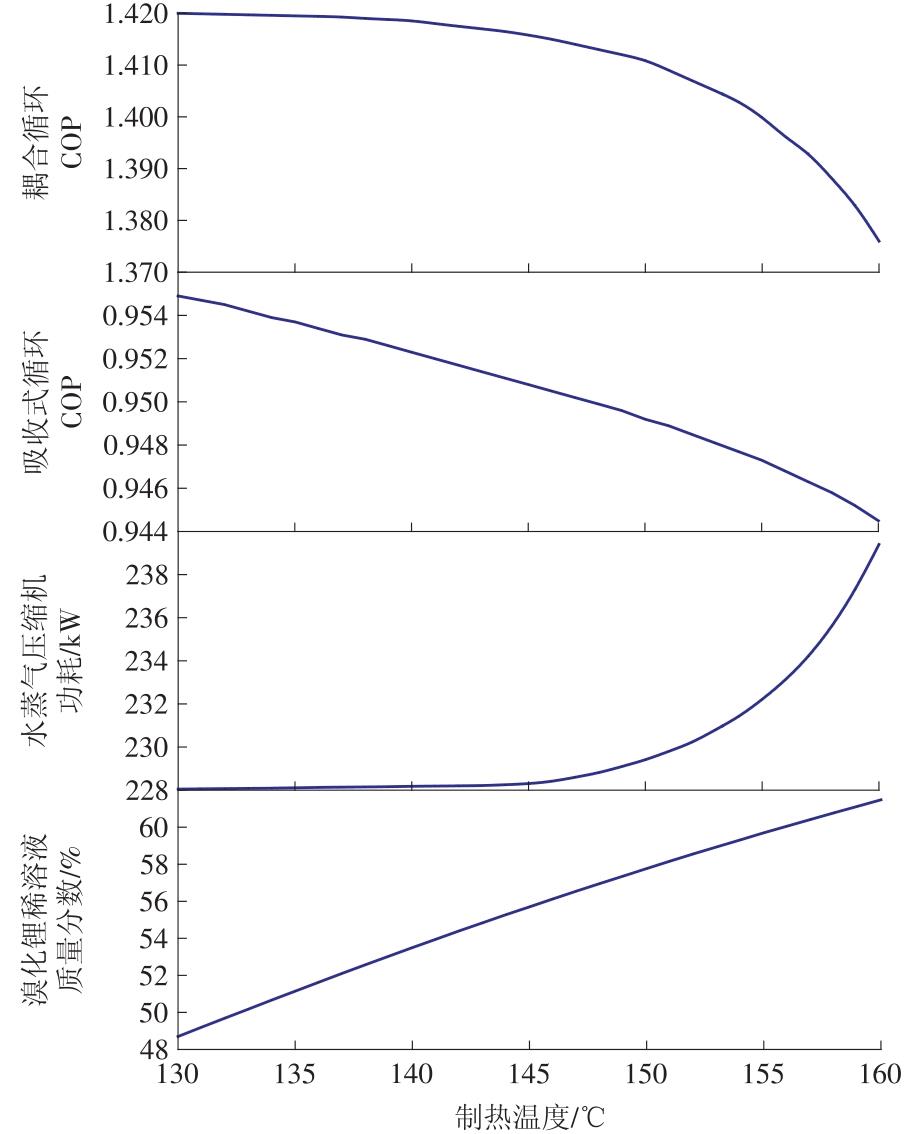

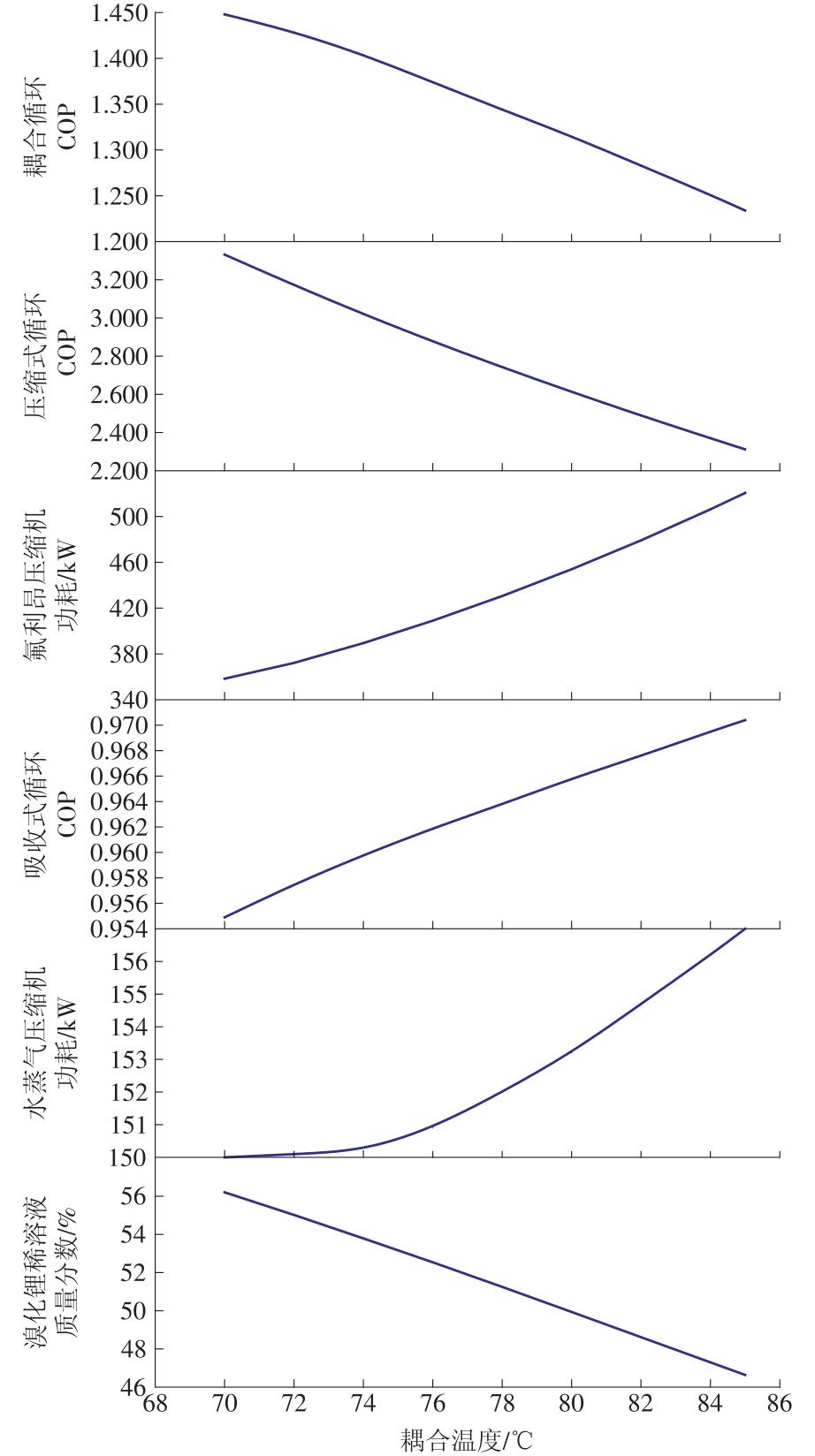

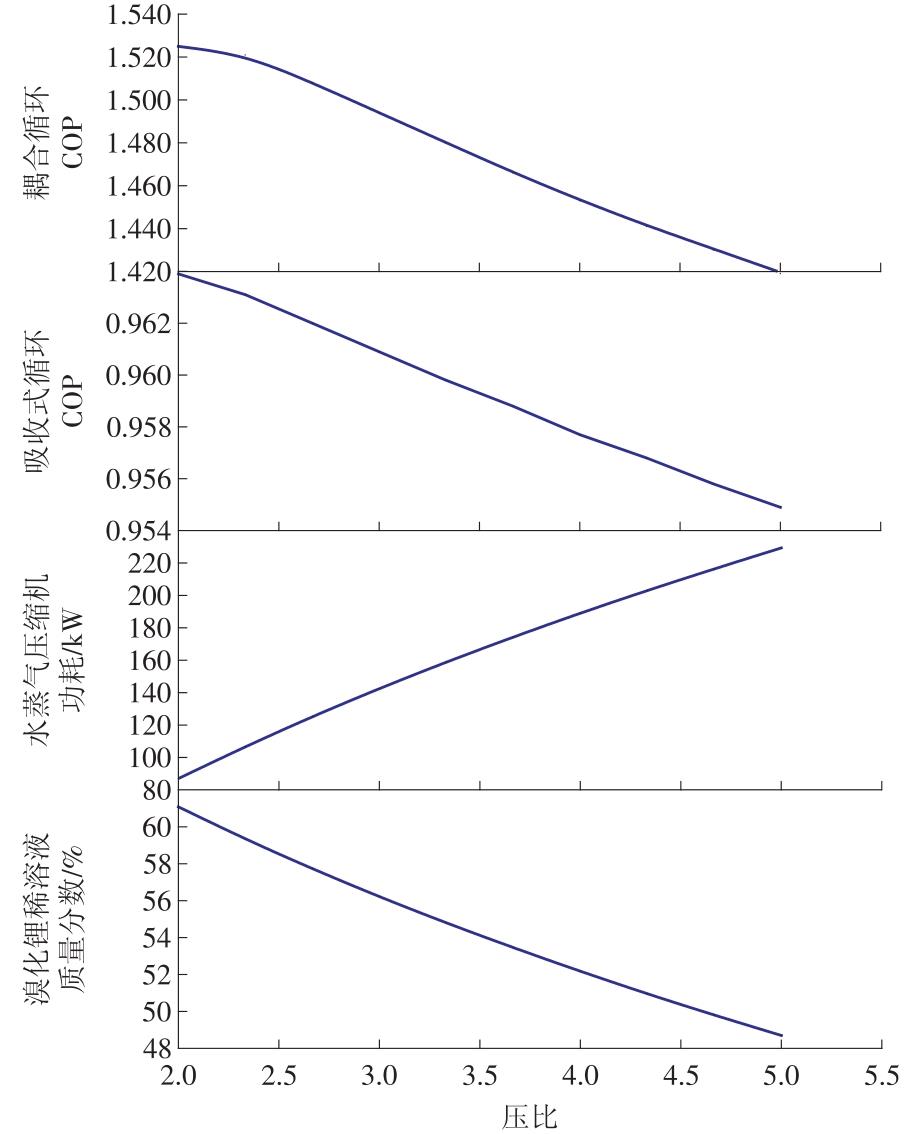

工业余热的温度分布范围广，常规余热利用方式难以对中低温余热进行有效回收利用，热泵用于回收中低温工业余热具有效率高、能耗低、安全环保等优点。传统的吸收式热泵与压缩式热泵由于热力学循环、工作介质热力性以及压缩机耐温耐压程度的限制导致其只能在窄温域内工作，无法满足工业余热回收背景下的“高制热温度”“宽温域换热”需求。为解决上述问题，提出一种基于吸收-压缩式耦合循环的超高温空气源热泵机组，回收工业废蒸汽（120 ℃）和空气热量，制取160 ℃热水（蒸汽）。通过使用工程方程求解器软件（EES）对提出的新型耦合循环进行数学建模和仿真分析，结果表明：最优工况为制取热水温度130 ℃，室外环境温度30 ℃时热泵机组热泵性能系数（COP）达到最大值1.600。在制取热水温度160 ℃下，热泵机组COP最高达1.400。研究的结果拓宽了热泵的工作温度范围，提高了热泵的制热温度。研究结果对热泵用于工业余热回收领域具有一定参考价值，对于提高工业领域一次能源利用率具有重要的研究意义。

关键词: 吸收式热泵, 压缩式热泵, 耦合循环, 余热回收, 空气源热泵

Abstract:

Industrial waste heat，with a wide range of temperature，can be hardly utilized by conventional ways. Heat pumps can recovery medium and low temperature waste heat effectively， safely and environmental-friendly with low energy consumption. However， traditional absorption heat pumps and compressive heat pumps can only work in a narrow temperature range due to the limitations of thermodynamic cycle， thermodynamic properties of their working mediums and temperature and pressure resistance of their compressors， which cannot meet the requirements of "high heating temperature" and " wide temperature range heat transfer" of industrial waste heat recovery. To solve the problems above， an ultra-high temperature air source heat pump unit based on absorption and compression coupling cycle is proposed. The unit can recover heat from industrial waste steam（120 ℃） and air to produce 160 ℃ hot water（vapor）. The proposed coupling cycle is modelled and simulated by Engineering Equation Solver（EES）. The results show that the COP of the heat pump unit peaks at 1.600 under the optimal working condition under which hot water temperature is 130 ℃ and outdoor temperature is 30 ℃. When the hot water temperature rises to 160 ℃， the COP of the heat pump unit will be 1.400. The coupling cycle greatly broadens the working temperature range of heat pumps and improves their heating temperature. The study is of certain reference value for heat pumps in industrial waste heat recovery， and can significantly improve the utilization rate of primary energy in industrial field.

Key words: absorption heat pump, compressive heat pump, coupling cycle, waste heat recovery, air source heat pump

中图分类号:

TK115

孙健, 秦宇, 郝俊红, 杨勇平. 基于工业余热的高温空气源耦合热泵循环性能分析[J]. 综合智慧能源, 2023, 45(7): 40-47.

SUN Jian, QIN Yu, HAO Junhong, YANG Yongping. Performance analysis on high temperature air source heat pump coupling cycle based on industrial waste heat[J]. Integrated Intelligent Energy, 2023, 45(7): 40-47.

图/表 5

参考文献 32

[1]	国际能源署. 《2021年世界能源展望》[R].
[2]	国际能源署. 《2020年全球能源评论》[R].
[3]	国际能源署. 《2018年世界能源展望》[R].
[4]	陈彬, 杨延春, 张建海. 低温工业余热回收利用典型场景与应用案例[J]. 节能与环保, 2023, 342(1):87-88.
	CHEN Bin, YANG Yanchun, ZHANG Jianhai. Typical scenarios and application cases of waste heat recovery and utilization in low-temperature industry[J]. Energy Conservation and Environmental Protection, 2023, 342(1):87-88.
[5]	夏建军. 流程工业余热资源及利用[J]. 可持续发展经济导刊, 2022, 34(4):30-31.
	XIA Jianjun. Waste heat resources and utilization of process industry[J]. Economic Guide for Sustainable Development, 2022, 34(4):30-31.
[6]	余龙清, 马锋, 胡学伟. 低温工业余热综合利用[J]. 资源节约与环保, 2018, 197(4):13,17.
	YU Longqing, MA Feng, HU Xuewei. Comprehensive utilization of industrial waste heat at low temperature[J]. Journal of Resource Saving and Environmental Protection, 2018, 197(4):13,17.
[7]	孙健, 王寅武, 吴可欣, 等. 综合能源系统中热泵技术研究与应用[J]. 综合智慧能源, 2023, 45(4):1-11. doi: 10.3969/j.issn.2097-0706.2023.04.001
	SUN Jian, WANG Yinwu, WU Kexin, et al. Research and Application of heat pump technology in integrated energy system[J]. Integrated Intelligent Energy, 2023, 45(4):1-11. doi: 10.3969/j.issn.2097-0706.2023.04.001
[8]	刘伟, 牛栓文, 徐涛, 等. 油田采出水驱动带经济器的高温压缩式热泵分析[J]. 工业加热, 2022, 51(9):15-19,23.
	LIU Wei, NIU Shuanwen, XU Tao, et al. Analysis of high temperature compression heat pump driven by oil field produced water with economizer[J]. Industrial Heating, 2022, 51(9):15-19,23.
[9]	张俊博, 金旭, 刘忠彦, 等. 吸收式热泵余热回收先进技术综述[J]. 发电技术, 2020, 41(3):269-280. doi: 10.12096/j.2096-4528.pgt.19170
	ZHANG Junbo, JIN Xu, LIU Zhongyan, et al. Review of advanced technologies for waste heat recovery of absorption heat pumps[J]. Power Generation Technology, 2020, 41(3):269-280. doi: 10.12096/j.2096-4528.pgt.19170
[10]	马世财. 新型耦合热泵热力学循环特性研究[D]. 北京: 华北电力大学, 2022.
	MA Shicai. New coupling heat pump thermodynamic cycle characteristics research[D]. Beijing: North China Electric Power University, 2022.
[11]	马振西, 刘凤国, 张蕊, 等. 燃气压缩式与双效吸收式耦合热泵的制冷性能[J]. 天津城建大学学报, 2020, 26(2):137-141,154.
	MA Zhenxi, LIU Fengguo, ZHANG Rui, et al. Refrigeration performance of gas compression coupled with dual-effect absorption heat pump[J]. Journal of Tianjin Urban Construction University, 2020, 26(2):137-141,154.
[12]	孙健, 马世财, 霍成, 等. 新型吸收式与压缩式耦合循环性能研究[J]. 太阳能学报, 2020, 41(10):375-380.
	SUN Jian, MA Shicai, HUO Cheng, et al. Research on performance of novel absorption and compression coupling cycles[J]. Acta Solar Energy Sinica, 2019, 41(10):375-380.
[13]	ZHANG X, WANG R, XU Z. Air-source hybrid absorption-compression heat pumps with three-stage thermal coupling configuration for temperature lift over 150 ℃[J]. Energy Conversion and Management, 2022, 271:116304. doi: 10.1016/j.enconman.2022.116304
[14]	GAO J, XU Z, WANG R. An air-source hybrid absorption-compression heat pump with large temperature lift[J]. Applied Energy, 2021, 291:116810. doi: 10.1016/j.apenergy.2021.116810
[15]	孙健, 刘靖宇, 戈志华, 等. 基于三元混合工质高温压缩式热泵循环性能研究[J]. 工程热物理学报, 2020, 41(5):1043-1049.
	SUN Jian, LIU Jingyu, GE Zhihua, et al. Research on cycle performance of high temperature compression Heat pump based on ternary mixing medium[J]. Journal of Engineering Thermal Physics, 20, 41(5):1043-1049.
[16]	安美燕, 赵心蕊, 徐震原, 等. 工业余热回收的耦合压缩-吸收式高温热泵循环[J]. 上海交通大学学报, 2021, 55(4):434-443.
	AN Meiyan, ZHAO Xinrui, XU Zhenyuan, et al. Coupling compression-absorption high temperature heat pump cycle for industrial waste heat recovery[J]. Journal of Shanghai Jiaotong University, 2021, 55(4):434-443.
[17]	张冲, 张涛, 王光林. 基于吸收式-压缩式热泵耦合技术的热电厂余热回收系统研究[J]. 节能, 2019, 38(10):27-28.
	ZHANG Chong, ZHANG Tao, WANG Guanglin. Research on waste heat recovery system of thermal power plant based on absorption-compression heat pump coupling technology[J]. Energy Saving, 2019, 38(10):27-28.
[18]	陈金峰. 太阳能吸收制冷与蒸汽压缩空调耦合循环机理与实验研究[D]. 上海: 上海交通大学, 2018.
	CHEN Jinfeng. Experimental study on the coupling cycle mechanism of solar absorption refrigeration and steam compression air conditioning[D]. Shanghai: Shanghai Jiaotong University, 2018.
[19]	姜迎春. 回收低温烟气余热的吸收-压缩复合热泵系统集成与分析[D]. 北京: 中国科学院大学(中国科学院工程热物理研究所), 2017.
	JIANG Yingchun. Integration and analysis of absorption-compression combined heat pump system for recovering waste heat from low-temperature flue gas[D]. Beijing: University of Chinese Academy of Sciences (Institute of Engineering Thermophysics), 2017.
[20]	XU Z, GAO J, HU B. Multi-criterion comparison of compression and absorption heat pumps for ultra-low grade waste heat recovery[J]. Energy, 2022, 238:121804. doi: 10.1016/j.energy.2021.121804
[21]	XIAO W, HAO Z, LIN C, et al. Simulation study of an open compression absorption heat pump in water and heat recovery of low-temperature and high-humidity flue gas[J]. Energy Conversion and Management, 2022, 269:116180. doi: 10.1016/j.enconman.2022.116180
[22]	WEI W, CHONG Z, SI H, et al. A hybrid H₂O/IL absorption and CO₂ compression air-source heat pump for ultra-low ambient temperatures[J]. Energy, 2022, 239:122180. doi: 10.1016/j.energy.2021.122180
[23]	QIANG J, HAN Z, ZHANG X, et al. Study on the heating performance of absorption-compression hybrid heat pump in severe cold regions[J]. Applied Thermal Engineering, 2021, 185:116419. doi: 10.1016/j.applthermaleng.2020.116419
[24]	GAO P, QING C, CHANG M, et al. Hybrid absorption-compression heat pump with two-stage rectification and subcooler[J]. Applied Thermal Engineering, 2020, 181:116027. doi: 10.1016/j.applthermaleng.2020.116027
[25]	ROSTAMZADEH H, NAMIN S, GHAEBI H, et al. Performance assessment and optimization of a humidification dehumidification (HDH) system driven by absorption-compression heat pump cycle[J]. Desalination, 2018, 447:84-101. doi: 10.1016/j.desal.2018.08.015
[26]	冯慧敏, 包睿祺, 刘舫辰, 等. 新型第二类溴化锂吸收压缩复合式热泵系统研究[J]. 能源与节能, 2019, 168(9):45-47.
	FENG Huimin, BAO Ruiqi, LIU Fangchen, et al. New type of the second type of lithium bromide absorption compressed composite heat pump system research[J]. Energy and Energy Conservation, 2019, 168(9):45-47.
[27]	孙健, 秦宇, 王寅武, 等. 基于热网驱动的综合能源新型空气源高温热水机组性能研究[J]. 综合智慧能源, 2022, 44(7):33-39. doi: 10.3969/j.issn.2097-0706.2022.07.004
	SUN Jian, QIN Yu, WANG Yinwu, et al. Research on performance of new air source high temperature water heater with comprehensive energy based on heat network drive[J]. Integrated Intelligent Energy, 2022, 44(7):33-39. doi: 10.3969/j.issn.2097-0706.2022.07.004
[28]	聂东梅. 准二级压缩热泵干燥系统性能研究[D]. 绵阳: 西南科技大学, 2021.
	NIE Dongmei. Quasi secondary compression heat pump drying system performance study[D]. Mianyang: Southwest University of Science and Technology, 2021.
[29]	王斌. 基于R134a-DMF工质对吸收式热泵的数值模拟和性能研究[D]. 济南: 山东建筑大学, 2022.
	WANG Bin. Numerical simulation and performance study of absorption heat pump based on R134a-DMF working medium[D]. Jinan: Shandong Construction University, 2022.
[30]	马世财, 周少祥, 王寅武, 等. 基于吸收-压缩新型热泵循环变工况性能分析[J]. 华北电力大学学报(自然科学版), 2022, 49(4):105-112.
	MA Shicai, ZHOU Shaoxiang, WANG Yinwu, et al. Performance analysis of a new heat pump based on absorption-compression cycles[J]. Journal of North China Electric Power University(Natural Science Edition), 2022, 49(4):105-112.
[31]	孙健, 霍成, 马世财, 等. 基于电动热泵的天然气锅炉余热深度回收研究[J]. 中国电机工程学报, 2022, 42(11):4060-4069.
	SUN Jian, HUO Cheng, MA Shicai, et al. Research on deep recovery of waste heat from natural gas boilers based on electric heat pump[J]. Proceedings of the CSEE, 2022, 42(11):4060-4069.
[32]	孙健, 马世财, 霍成, 等. 烟气余热回收高温电动热泵混合工质性能研究[J]. 华北电力大学学报(自然科学版), 2021, 48(2):120-126.
	SUN Jian, MA Shicai, HUO Cheng, et al. Study on mixed working medium performance of high temperature electric heat pump with flue gas waste heat recovery[J]. Journal of North China Electric Power University(Natural Science Edition), 2021, 48(2):120-126.
