基于新型工质热泵的烟气余热回收优化温度研究

doi:10.3969/j.issn.2097-0706.2023.04.003

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (4): 19-25.doi: 10.3969/j.issn.2097-0706.2023.04.003

基于新型工质热泵的烟气余热回收优化温度研究

孙健, 秦宇, 王寅武, 吴可欣, 戈志华

华北电力大学能源动力与机械工程学院零碳能源建筑技术研究所，北京 102206

收稿日期:2022-08-03 修回日期:2022-08-30 接受日期:2023-02-27 出版日期:2023-04-25 发布日期:2023-05-06
作者简介:孙健（1985），男，副教授，硕士生导师，博士，从事工业及民用领域新型热泵技术研发和应用方面的研究，s@ncepu.edu.cn。
基金资助:
国家重点研发计划项目(2019YFE0104900);国家自然科学基金项目(52090062);中央高校基本科研业务费专项资金资助项目(2020MS009)

Study on the optimal temperature for flue gas waste heat recovery of the heat pump with new working fluid

SUN Jian, QIN Yu, WANG Yinwu, WU Kexin, GE Zhihua

Institute of Zero Carbon Energy Building Technology, School of Energy, Power and Mechanical Engineering, North China Electric Power University, Beijing 102206, China

Received:2022-08-03 Revised:2022-08-30 Accepted:2023-02-27 Online:2023-04-25 Published:2023-05-06
Supported by:
National Key R&D Program of China(2019YFE0104900);National Natural Science Foundation of China(52090062);the Fundamental Research Funds for the Central Universities(2020MS009)

摘要/Abstract

摘要：

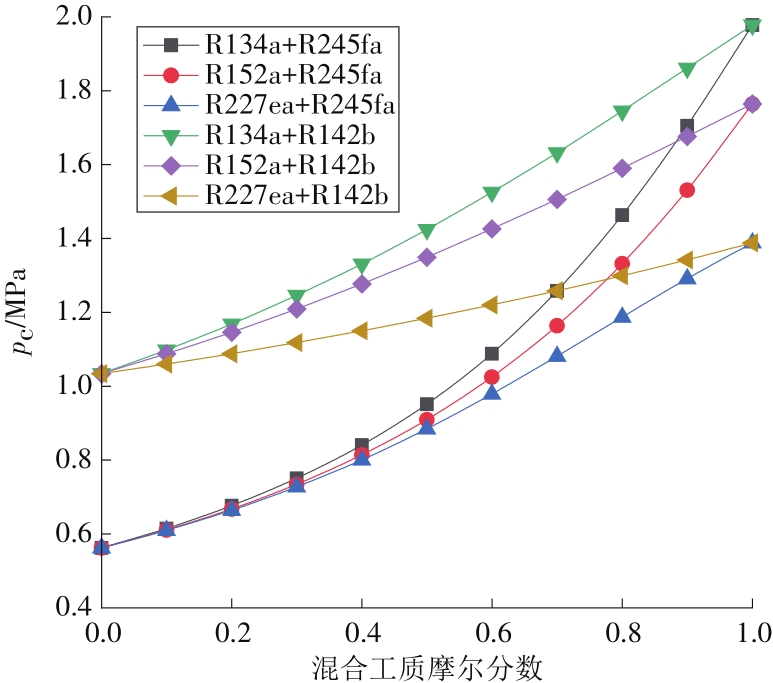

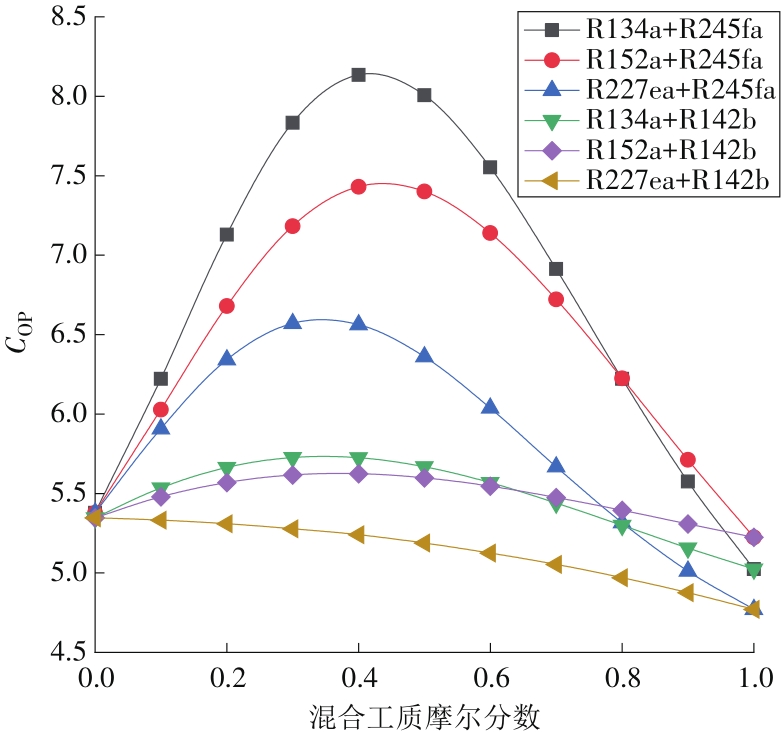

天然气锅炉排烟温度较高，烟气中含有较多的水蒸气潜热，具有显著的热量回收价值，目前常采用新型工质电动热泵回收天然气烟气余热加热热网回水，助力“双碳”目标的实现。为提升电动热泵的循环性能系数，研究不同工况下新型工质电动热泵适配混合工质的性能，对机组运行中R134a+R245fa，R152a+R245fa，R227ea+R245fa，R134a+R142b，R152a+R142b，R227ea+R142b共6种混合工质的循环性能进行计算分析。针对锅炉房实际运行参数，对比冷凝器热水进出口温度为50/65 ℃，蒸发器冷水进出口温度为40/35 ℃及40/30 ℃工况下各混合工质的热力学性能，得出在该工况下R134a+R245fa（摩尔分数比为0.41∶0.59）为较佳工质。采用所筛选工质对烟气余热回收排烟温度进行优化，分析了不同排烟温度的经济性，对比余热回收收益及电动热泵运行成本，揭示了烟气余热回收最优化温度变化规律，指导余热回收系统设计与应用。

关键词: “双碳”目标, 天然气锅炉, 排烟温度, 余热回收, 电动热泵, 混合工质

Abstract:

Since the flue gas emitted from natural gas boilers is of high temperature and contains high latent heat of steam， it is worthy to be reused. To pursuit the "dual carbon" target， the waste heat in natural gas boiler flue gas is recovered by electric heat pumps with new working fluids to rise the return water temperature. In order to improve the coefficient of performance of electric heat pumps， their performances under different working conditions are studied. Six types of mixed working fluids， R134a+R245fa， R152a+R245fa， R227ea+R245fa， R134a+R142b， R152a+R142b and R227ea+R142b， show different cycling properties. Under the actual operating condition of a boiler room，the thermodynamic properties of different mixed working fluids are compared when the inlet and outlet hot water temperatures of the condenser are 50/65 ℃，and the inlet and outlet cold water temperatures of the evaporator are 40/35 ℃ or 40/30 ℃. The conclusion is that the optimal working fluid under this working condition is the mixture of R134a and R245fa whose mole fractions are 0.41 and 0.59. The benefits of the waste heat recovery system and the costs of the heat pump with the optimized flue gas temperature and selected working fluid are analysed， and the variation law of the economy of waste flue gas recovery with flue gas temperature is obtained. The analysis is beneficial for the future design of waste heat recovery systems.

Key words: dual carbon target, natural gas boiler, exhaust gas temperature, waste heat recovery, electric heat pump, mixed working fluid

中图分类号:

TK115

孙健, 秦宇, 王寅武, 吴可欣, 戈志华. 基于新型工质热泵的烟气余热回收优化温度研究[J]. 综合智慧能源, 2023, 45(4): 19-25.

SUN Jian, QIN Yu, WANG Yinwu, WU Kexin, GE Zhihua. Study on the optimal temperature for flue gas waste heat recovery of the heat pump with new working fluid[J]. Integrated Intelligent Energy, 2023, 45(4): 19-25.

图/表 14

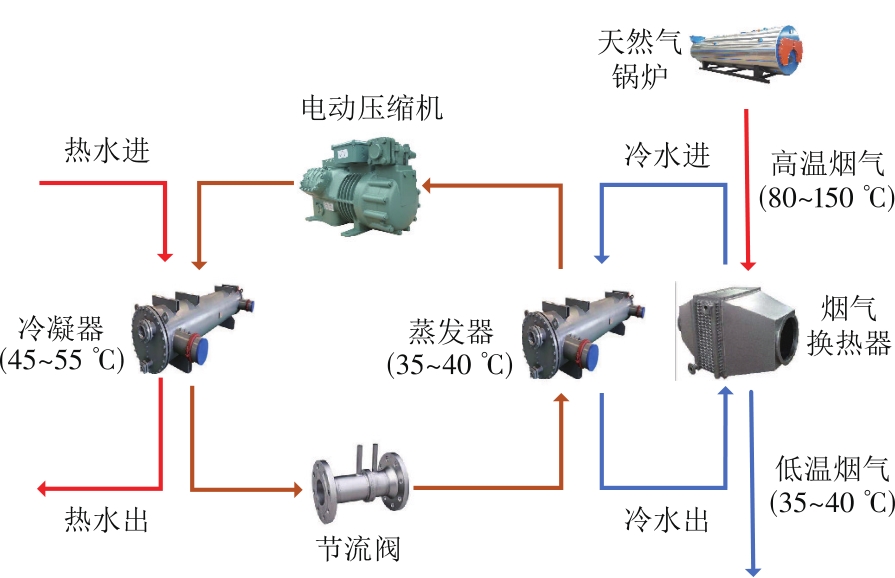

图1

表1

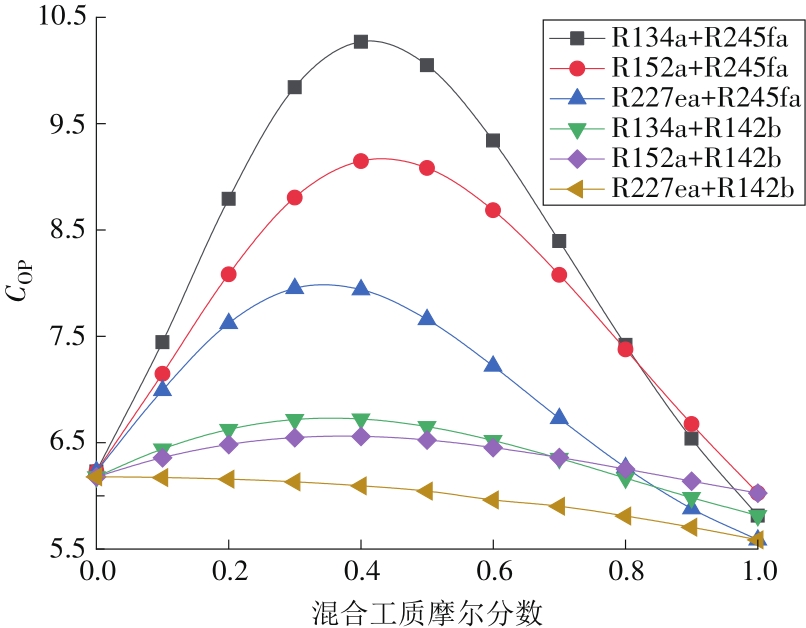

图2

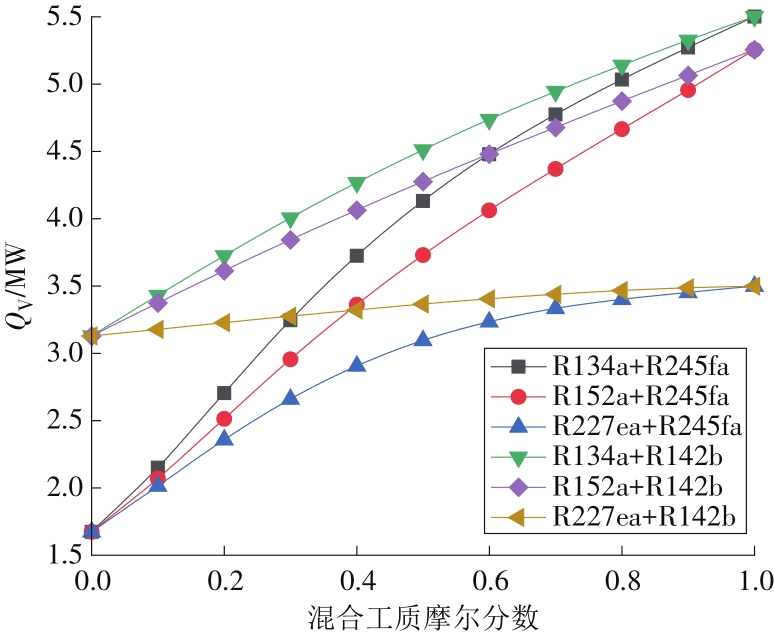

图3

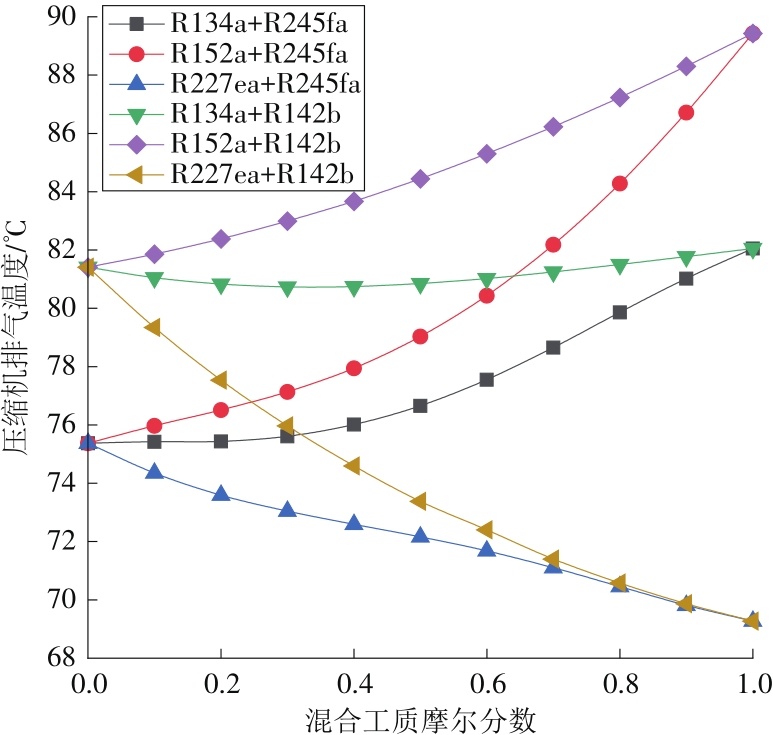

图4

图5

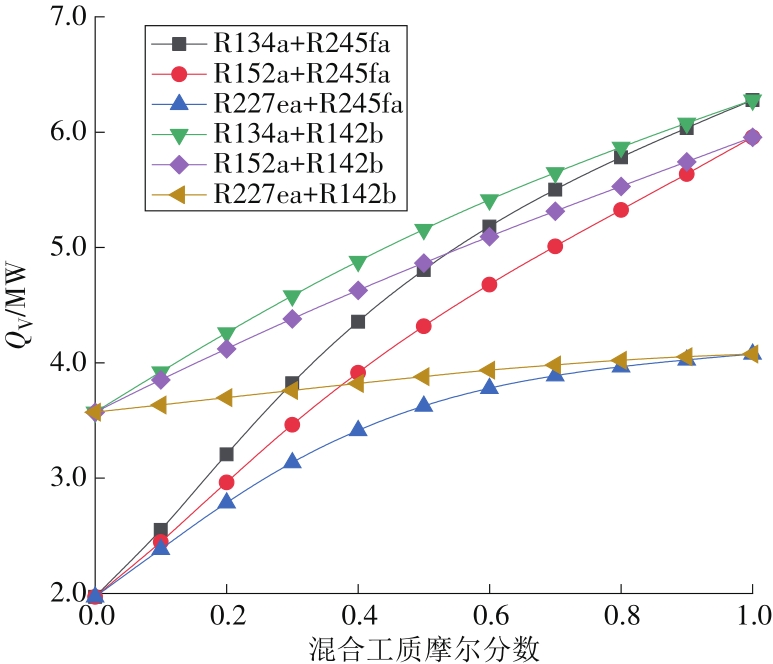

图6

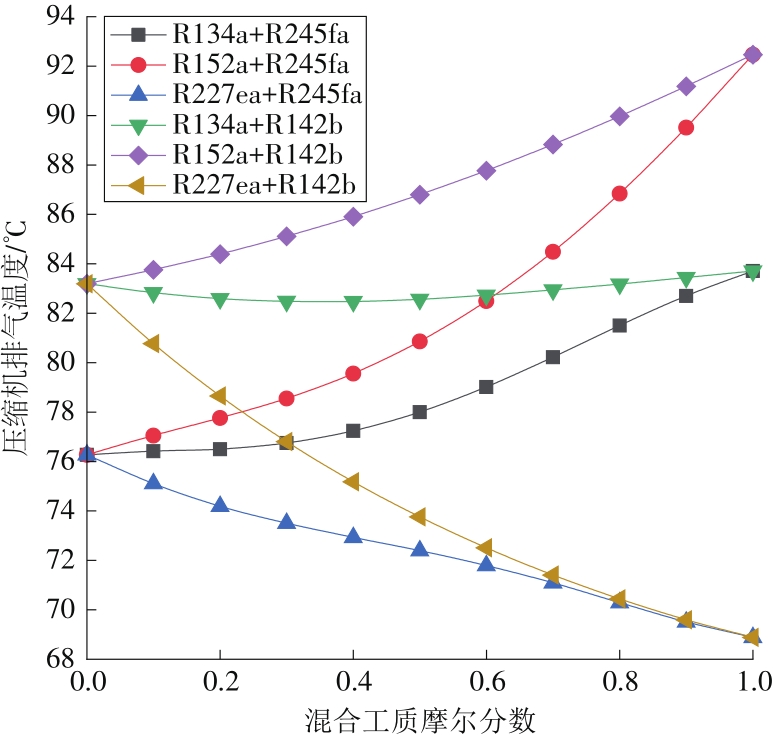

图7

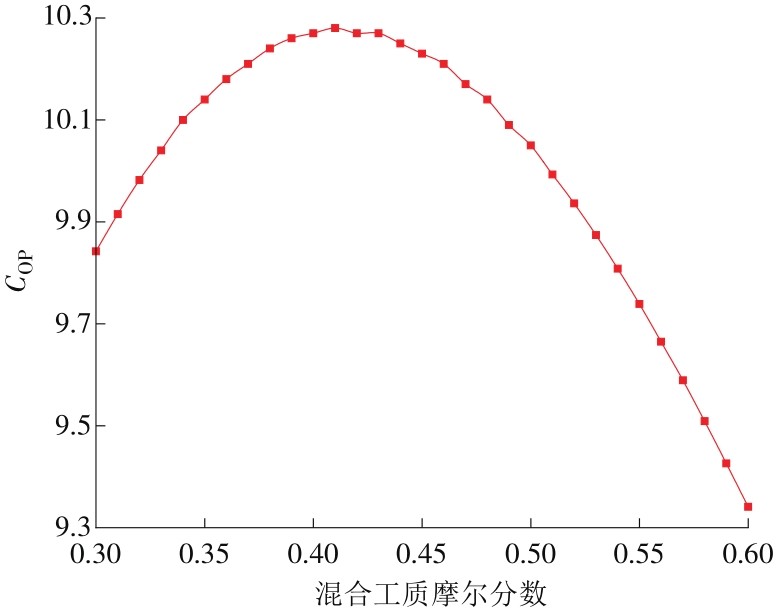

图8

图9

图10

表2

图11

表3

参考文献 21

[1]	周守为, 朱军龙, 单彤文, 等. 中国天然气及LNG产业的发展现状及展望[J]. 中国海上油气, 2022, 34(1):1-8.
	ZHOU Shouwei, ZHU Junlong, SHAN Tongwen, et al. Development status and outlook of natural gas and LNG industry in China[J]. China Offshore Oil and Gas, 2022, 34(1):1-8.
[2]	毛俊杰, 郜小芳. 电力行业对“双碳”目标的贡献、问题及对策探讨[J]. 电力勘测设计, 2022(5):60-66.
	MAO Junjie, GAO Xiaofang. Discussion on the potential contribution,problems and countermeasures of the power industry to the"dual carbon"goal[J]. Electric Power Survey & Design, 2022(5):60-66.
[3]	刁培滨, 徐静静, 余莉, 等. 燃气分布式能源站余热深度利用技术方案研究[J]. 华电技术, 2019, 41(12): 37-40.
	DIAO Peibin, XU Jingjing, YU Li, et al. Technical schemes for waste heat deep utilization in gas distributed energy stations[J]. Huadian Technology, 2019, 41(12): 37-40.
[4]	余莉, 徐静静, 马兰芳, 等. 综合能源服务项目新增热泵系统的案例分析[J]. 综合智慧能源, 2022, 44(1): 72-79. doi: 10.3969/j.issn.2097-0706.2022.01.010
	YU Li, XU Jingjing, MA Lanfang, et al. Case study on the integrated energy service project with newly installed heat pumps[J]. Integrated Intelligent Energy, 2022, 44(1):72-79. doi: 10.3969/j.issn.2097-0706.2022.01.010
[5]	孙健, 刘靖宇, 戈志华, 等. 基于三元混合工质高温压缩式热泵循环性能研究[J]. 工程热物理学报, 2020, 41(5):1043-1049.
	SUN Jian, LIU Jingyu, GE Zhihua, et al. Study on Cycle performance of ternary mixed working fluid in high temperature heat pump[J]. Journal of Engineering Thermophysics, 2020, 41(5):1043-1049.
[6]	孙健, 董小波, 戈志华, 等. 余热回收型高温热泵非共沸工质循环性能研究[J]. 工程热物理学报, 2019, 40(9):1949-1957.
	SUN Jian, DONG Xiaobo, GE Zhihua, et al. Study on cycle performance of non-azeotropic mixed working fluid in high temperature heat pump for heat recovery[J]. Journal of Engineering Thermophysics, 2019, 40(9):1949-1957.
[7]	孔祥渠, 孙振国, 韩毅. 吸收式热泵技术在燃气供热厂烟气余热深度回收中的应用[J]. 区域供热, 2018(3):43-46.
[8]	韩伟. 应用热泵进一步回收低温烟气余热的经济性分析[J]. 工业锅炉, 2018(1):42-48.
	HAN Wei. Analysis of application of heat pump in heat recovering of low temperature flue gas[J]. Industrial Boiler, 2018(1):42-48.
[9]	张志钢, 潘瑛. 天然气锅炉烟气余热回收与效率[J]. 山西财经大学学报, 2013, 35(S1):187.
[10]	别尔兰·贾纳依汗, 叶尔太·热旦. 基于吸收式热泵的烟气余热深度回收技术[J]. 石油和化工设备, 2017, 20(7):111-113.
[11]	孙健, 马世财, 霍成, 等. 烟气余热回收高温电动热泵混合工质性能研究[J]. 华北电力大学学报(自然科学版), 2021, 48(2):120-126.
	SUN Jian, MA Shicai, HUO Cheng, et al. Study on performance of high temperature electric heat pump mixture for flue gas waste heat recovery[J]. Journal of North China Electric Power University(Natural Science Edition), 2021, 48(2): 120-126.
[12]	田富宽. 中高温热泵混合工质实验研究[D]. 北京: 华北电力大学, 2018.
	TIAN Fukuan. Experimental study on mixed mass of medium and high temperature heat pump[D]. Beijing: North China Electric Power University, 2018.
[13]	YOSHIDA Y, NAKATANI K, ARITA K, et al. Experimental research of high-temperature composition changeable circuit using alternative mixture[J]. Transactions of the Japan Society of Refrigerating & Air Conditioning Engineers, 1990, 7(3): 225-234.
[14]	何永宁, 夏源, 金磊, 等. 制冷剂R1234ze在高温热泵中应用的对比研究[J]. 流体机械, 2014, 42(3):62-66.
	HE Yongning, XIA Yuan, JIN Lei, et al. Investigation on application of refrigerant R1234ze in high-temperature heat pump[J]. Fluid Machinery, 2014, 42(3):62-66.
[15]	庄绪成, 郭健翔, 孙晋飞, 等. R134a/R245fa对比R245fa高温热泵循环性能实验研究[J]. 青岛理工大学学报, 2020, 41(4):81-86.
	ZHUANG Xucheng, GUO Jianxiang, SUN Jinfei, et al. Experimental research on cyclic performance of high temperature heat pump with R134a/R245fa in comparison with R245fa[J]. Journal of Qingdao University of Technology, 2020, 41(4):81-86.
[16]	KLEIN S, NELLIS G. Thermodynamics[M]. Cambridge: Cambridge University Press, 2012.
[17]	杨金文. 以R245fa为工质的高温水源热泵样机研制及实验研究[D]. 青岛: 青岛理工大学, 2018.
	YANG Jinwen. Development and experimental study of high temperature water source heat pump prototype with R245fa as the working fluid[D]. Qingdao: Qingdao University of Technology, 2018.
[18]	孙维栋, 张娅玲, 孔祥敏, 等. R1234yf/R134a/R152a用作汽车空调制冷剂的可行性分析[J]. 节能, 2022, 41(3):60-64.
	SUN Weidong, ZHANG Yaling, KONG Xiangmin, et al. Feasibility analysis of using R1234yf/R134a/R152a as refrigerant for vehicle air-conditioning[J]. Energy Conservation, 2022, 41(3):60-64.
[19]	杞卓玲, 贾力, 党超. R134a/R245fa非共沸混合工质流动沸腾液膜蒸发特性研究[J]. 工程热物理学报, 2021, 42(12):3265-3273.
	QI Zhuoling, JIA Li, DANG Chao. The investigation for liquid film evaporation characteristics of zeotropic mixtures R134a/R245fa[J]. Journal of Engineering Thermophysics, 2021, 42(12):3265-3273.
[20]	丁德锋, 陈武, 郑超瑜, 等. R1234ze/R32混合工质冷藏集装箱循环性能分析[J]. 集美大学学报(自然科学版), 2022, 27(1):70-76.
	DING Defeng, CHEN Wu, ZHENG Chaoyu, et al. Performance evaluation of refeer container using refrigerant blends R1234ze/R32[J]. Journal of Jimei University(Natural Science Edition), 2022, 27(1):70-76.
[21]	邵阳. 加过冷装置的以R245fa为工质的中高温热泵实验研究[D]. 天津: 天津商业大学, 2020.
	SHAO Yang. Study of medium and high temperature heat pump with R245fa as the working mass by adding subcooling device[D]. Tianjin: Tianjin University of Commerce, 2020.

物性参数	R134a	R152a	R245fa	R227ea	R142b
临界温度/℃	101.0	113.3	154.0	102.8	137.2
临界压力/MPa	4.1	4.5	3.7	3.0	4.1
分子量	102.0	66.1	134.0	170.0	100.5
汽化潜热（0 ℃）/（kJ·kg^-1）	197.0	324.2	196.1	131.0	233.0
沸点/℃	-26.2	-25.0	15.1	-17.0	-10.0

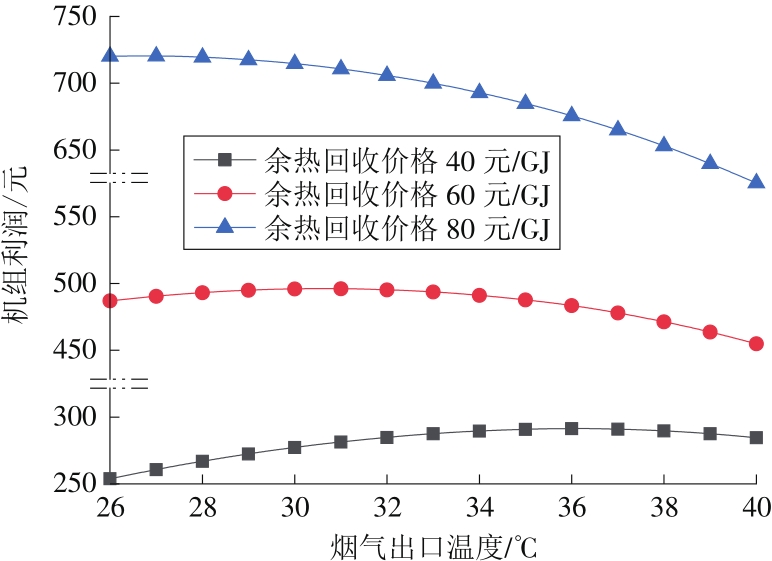

余热回收价格/（元·GJ^-1）	最佳排烟温度/℃	机组利润/（元·h^-1）
40	36	291
60	31	496
80	26	720

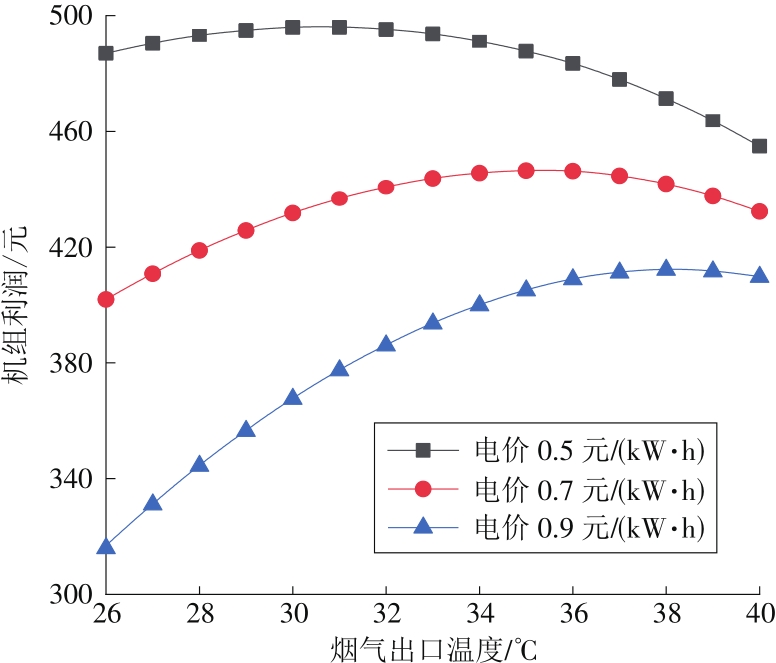

电价/[元·（kW·h）^-1]	最佳排烟温度/℃	机组利润/（元·h^-1）
0.5	31	496
0.7	35	446
0.9	38	412
