计及负荷特性的综合能源系统低碳经济调度

doi:10.3969/j.issn.2097-0706.2023.08.009

摘要/Abstract

摘要：

随着“双碳”目标的不断推进，为改善电-热园区综合能源系统（IES）供需矛盾，平抑负荷波动及降低碳排放量，提出了计及电热负荷特性的IES低碳经济调度策略。采用能源集线器模型对园区IES进行建模，体现用户侧电热柔性负荷的特性。目标函数为碳交易成本及IES运行成本之和最小，采用Cplex求解器进行求解，得到2种场景下的IES日前运行成本及碳交易成本，通过对仿真结果对比分析电热柔性负荷在碳交易机制下降低IES日前运行成本及碳交易成本的作用。电热柔性负荷参与调度的结果，柔性负荷特性能够减少IES日前运行成本，起到平滑负荷曲线、减小负荷峰谷差的作用，还能够改善源荷矛盾，减少碳排放。

关键词: “双碳”目标, 综合能源系统, 低碳经济, 电热耦合, 柔性负荷, 碳交易

Abstract:

With the continuous advancement of "double carbon" target，to alleviate the contradiction between supply and demand of a power-thermal integrated energy system（IES），and stabilize load fluctuations and reduce carbon emissions，a low-carbon economy dispatch strategy for the IES taking the characteristics of power and heat loads into account is proposed. An energy hub model of the IES can reflect the characteristics of flexible power and heat loads on user side. The objective function aims at minimizing the sum of carbon trading cost and operation cost of the IES. Solved by Cplex solver，the day-ahead operation cost and carbon trading cost of the IES under two scenarios are obtained. According to the simulation results，the reduction of the IES day-ahead operation cost and carbon trading cost made by flexible power and heat loads under carbon trading mechanism is expounded. Flexible loads can lower the IES day-ahead operation cost by smoothing the load curve and diminishing peak-valley difference， so as to alleviate the source-load contradiction and carbon emissions.

Key words: "dual carbon"target, integrated energy system, low-carbon economy, power-thermal coupling, flexible load, carbon trade

中图分类号:

TK01

李铂航, 李宏仲, 张民元. 计及负荷特性的综合能源系统低碳经济调度[J]. 综合智慧能源, 2023, 45(8): 72-79.

LI Bohang, LI Hongzhong, ZHANG Minyuan. Low-carbon economic dispatch of integrated energy systems considering load characteristics[J]. Integrated Intelligent Energy, 2023, 45(8): 72-79.

图/表 10

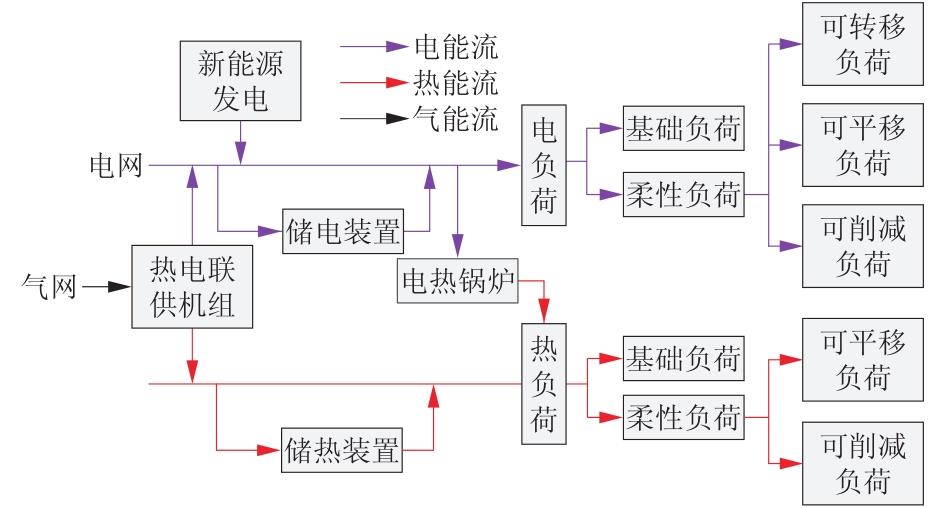

图1

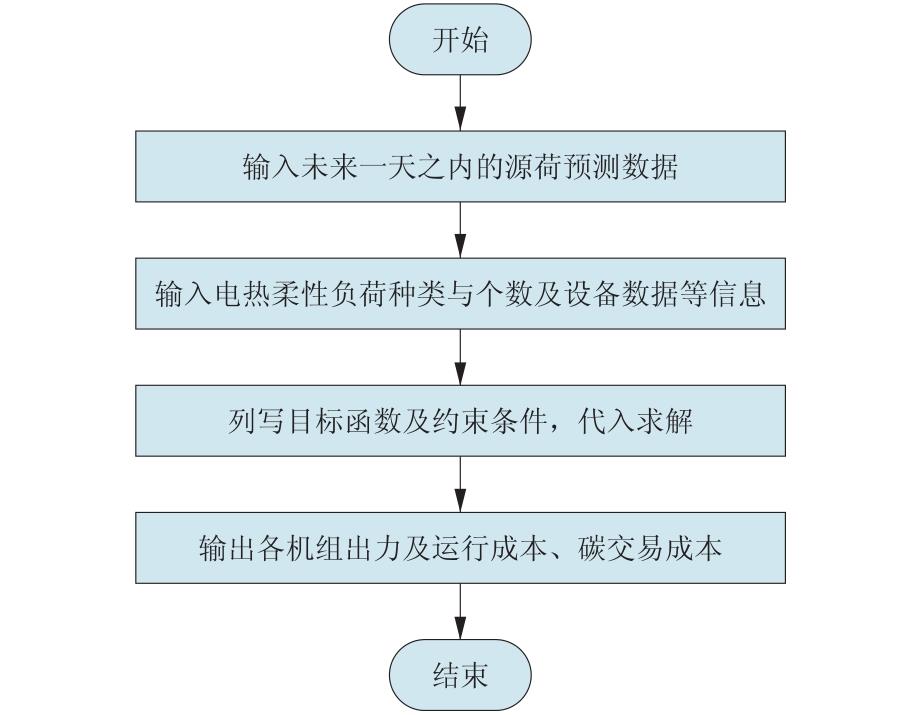

图2

表1

设备参数

类型	功率/kW	运行成本/[ $元 · (k W · h) - 1$ ]
光伏	以预测值为主	0.40
风电	以预测值为主	0.51
EB	500	4.60
CHP电功率	65	参照天然气价格
CHP热功率	164	参照天然气价格

表1

表2

电柔性负荷参数

类型	持续时间/h	调度成本/[ $元 · (k W · h) - 1$ ]
可转移电负荷	—	0.30
可平移电负荷	3	0.15
可削减电负荷	—	0.38

表2

表3

热柔性负荷参数

类型	持续时间/h	调度成本/[ $元 · (k W · h) - 1$ ]
可削减热负荷	—	0.20
可平移热负荷	3	0.15

表3

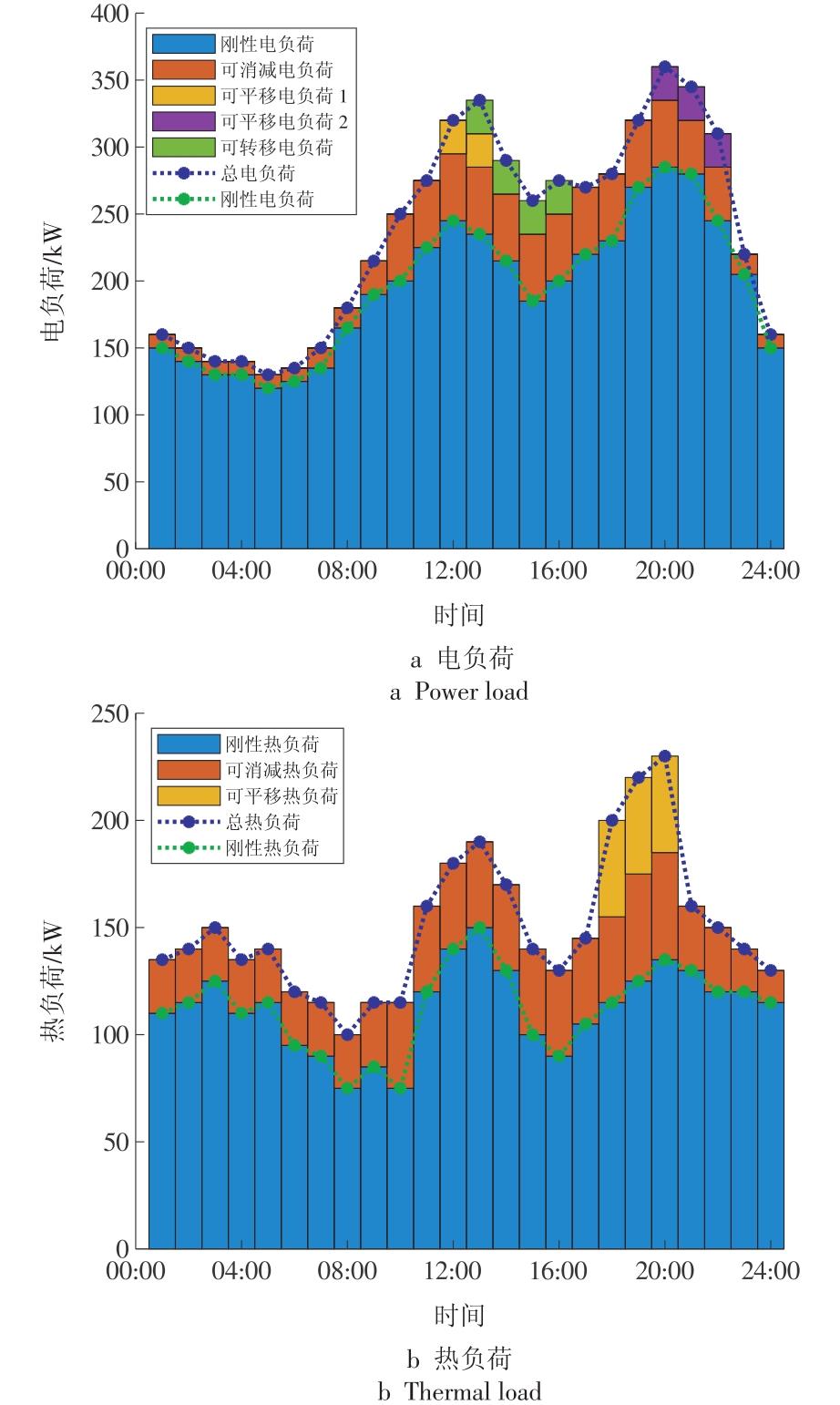

图3

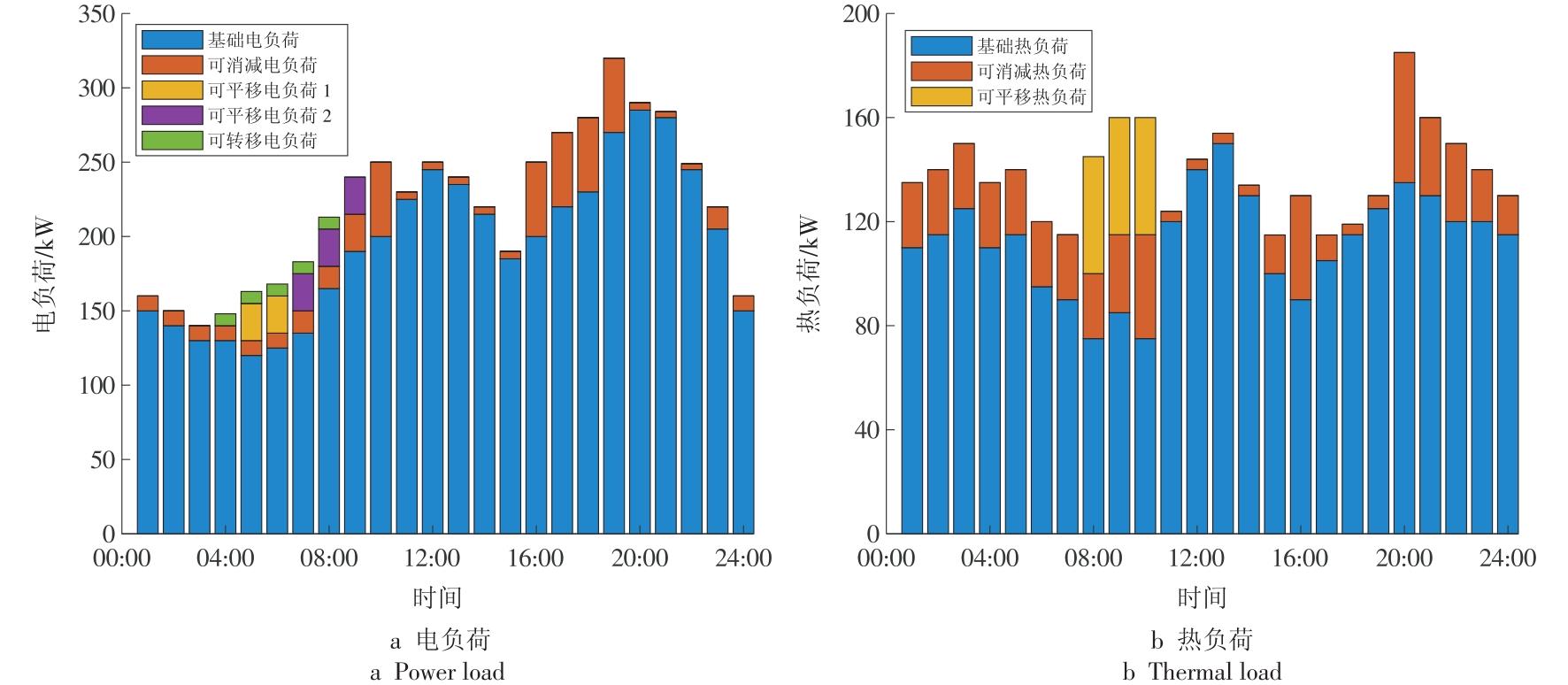

图4

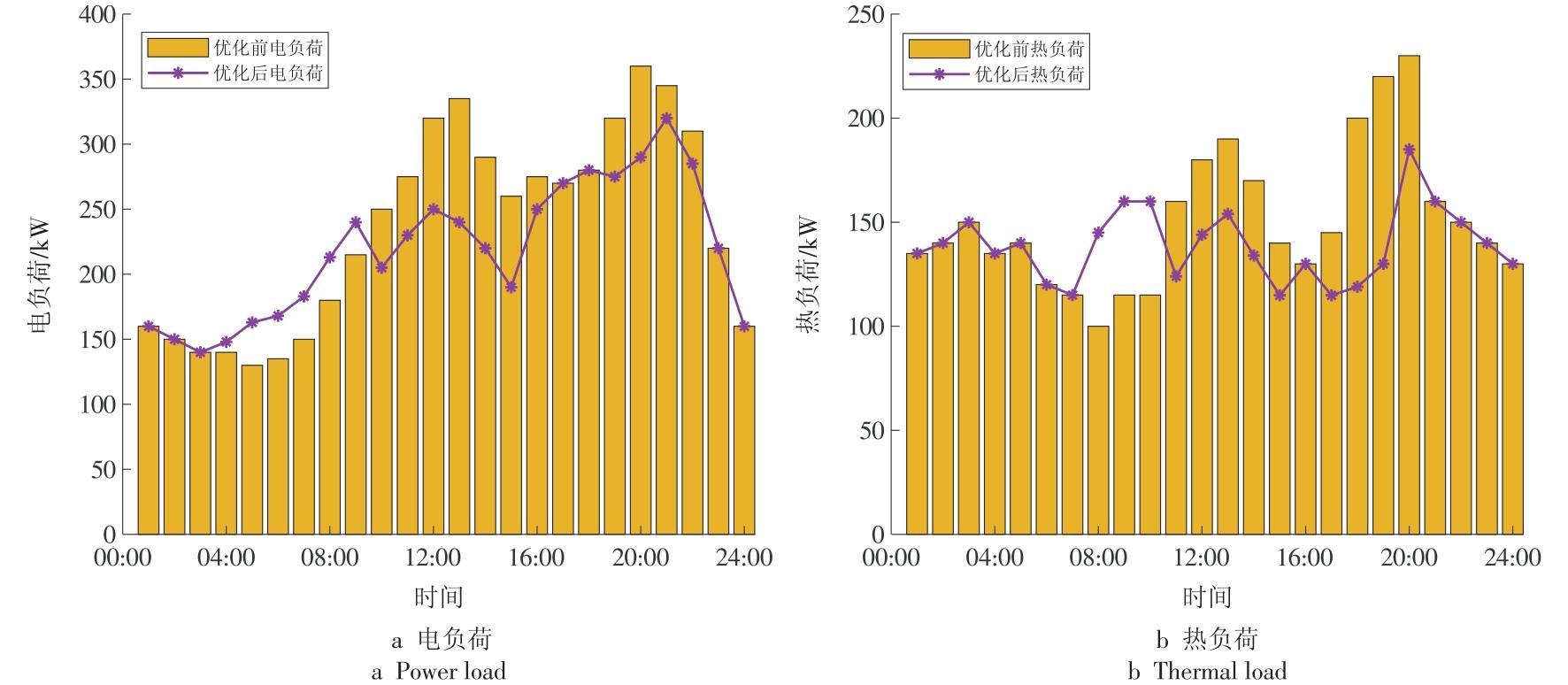

图5

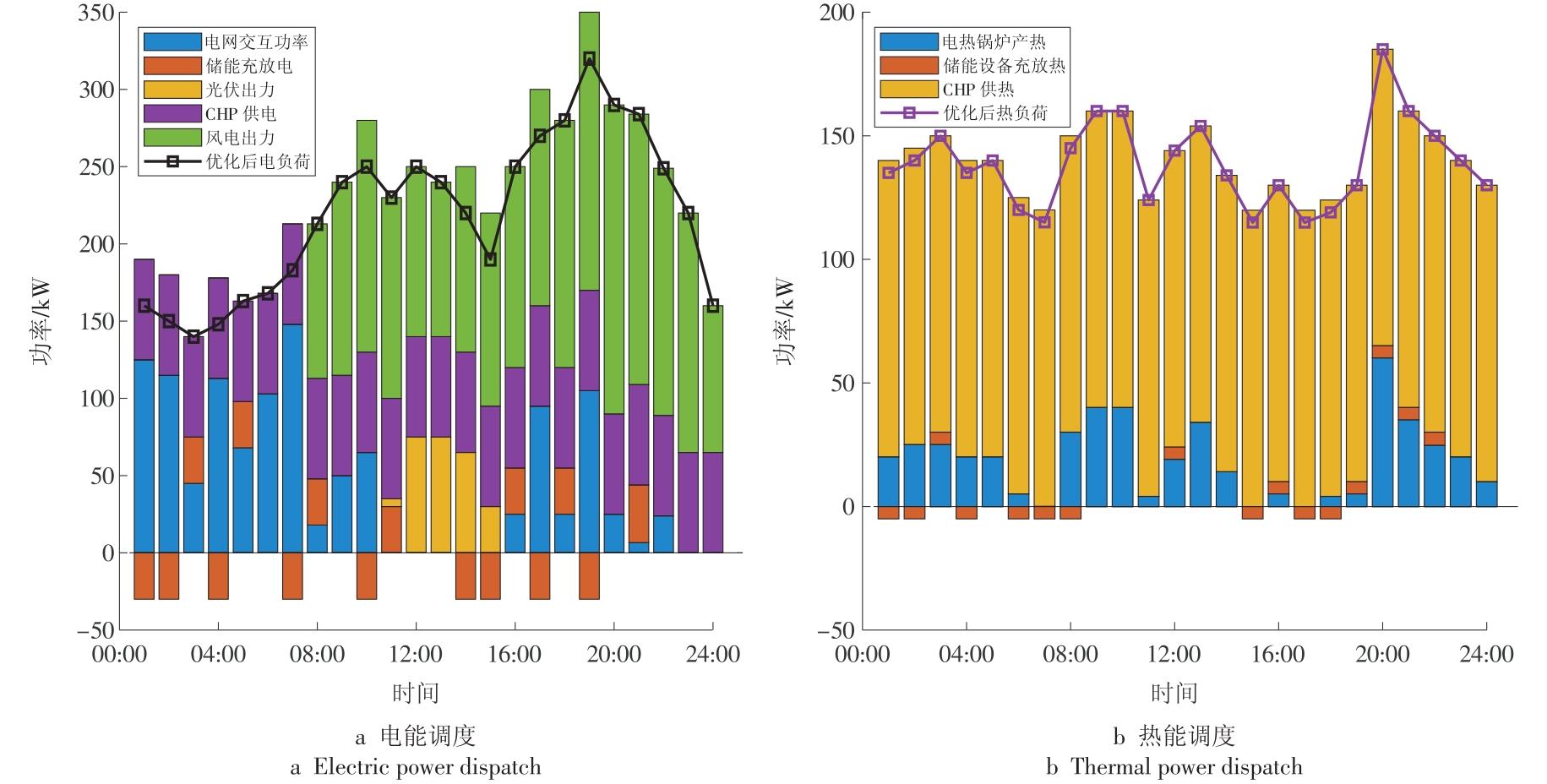

图6

表4

参考文献 23

[1]	汤广福, 周静, 庞辉, 等. 能源安全格局下新型电力系统发展战略框架[J]. 中国工程科学, 2023, 25(2):79-88.
	TANG Guangfu, ZHOU Jing, PANG Hui, et al. Strategic framework for new electric power system development under the energy security pattern[J]. Strategic Study of CAE, 2023, 25(2):79-88. doi: 10.15302/J-SSCAE-2023.01.003
[2]	程浩忠, 胡枭, 王莉, 等. 区域综合能源系统规划研究综述[J]. 电力系统自动化, 2019, 43(7):2-13.
	CHENG Haozhong, HU Xiao, WANG Li, et al. Review on research of regional integrated energy system planning[J]. Automation of Electric Power Systems, 2019, 43(7):2-13.
[3]	黎静华, 朱梦姝, 陆悦江, 等. 综合能源系统优化调度综述[J]. 电网技术, 2021, 45(6):2256-2272.
	LI Jinghua, ZHU Mengshu, LU Yuejiang, et al. Review on optimal scheduling of integrated energy systems[J]. Power System Technology, 2021, 45(6):2256-2272.
[4]	王森, 张照彦, 袁玉宝, 等. 提高新能源消纳的电-热综合能源系统日前优化调度策略[J]. 热力发电, 2022, 51(7):36-45.
	WANG Sen, ZHANG Zhaoyan, YUAN Yubao, et al. Day-ahead scheduling strategy optimization of electric-thermal integrated energy system for improvement of new energy consumption[J]. Thermal Power Generation, 2022, 51(7):36-45.
[5]	卢志刚, 杨宇, 耿丽君, 等. 基于Benders分解法的电热综合能源系统低碳经济调度[J]. 中国电机工程学报, 2018, 38(7):1922-1934,2208.
	LU Zhigang, YANG Yu, GENG Lijun, et al. Low-carbon economic dispatch of the integrated electrical and heating systems based on Benders decomposition[J]. Proceedings of the CSEE, 2018, 38(7):1922-1934,2208.
[6]	张大海, 贠韫韵, 王小君, 等. 考虑广义储能及光热电站的电热气互联综合能源系统经济调度[J]. 电力系统自动化, 2021, 45(19):33-42.
	ZHANG Dahai, YUAN Yunyun, WANG Xiaojun, et al. Economic dispatch of integrated electricity-heat-gas energy system considering generalized energy storage and concentrating solar power plant[J]. Automation of Electric Power Systems, 2021, 45(19):33-42.
[7]	颜宁, 马广超, 李相俊, 等. 考虑跨季节性储能的园区综合能源系统低碳经济调度方法[J/OL]. 高电压技术:1-12(2023-07-13)[2023-07-20]. http://kns.cnki.net/kcms/detail/42.1239.TM.20230713.1654.003.html.
	YAN Ning, MA Guangchao, LI Xiangjun, et al. Low-carbon economic dispatch method of park integrated energy system considering cross-seasonal energy storage[J/OL]. High Voltage Engineering:1-12(2023-07-13)[2023-07-20]. http://kns.cnki.net/kcms/detail/42.1239.TM.20230713.1654.003.html.
[8]	王浩, 袁至, 李骥, 等. 考虑综合需求响应的含光热电站的综合能源系统低碳优化调度[J]. 现代电子技术, 2023, 46(14):107-114.
	WANG Hao, YUAN Zhi, LI Ji, et al. Low-carbon optimal scheduling of integrated energy system with photo-thermal power station considering comprehensive demand response[J]. Modern Electronics Technique, 2023, 46(14):107-114.
[9]	吕智林, 易佳奇, 刘泉, 等. 含氢能利用和需求响应的综合能源系统低碳优化[J]. 电力系统及其自动化学报, 2023, 35(7):10-19.
	LV Zhilin, YI Jiaqi, LIU Quan, et al. Low-carbon optimization of integrated energy system with hydrogen energy utilization and demand response[J]. Proceedings of the CSU-EPSA, 2023, 35(7):10-19.
[10]	李鹏, 吴迪凡, 李雨薇, 等. 基于综合需求响应和主从博弈的多微网综合能源系统优化调度策略[J]. 中国电机工程学报, 2021, 41(4):1307-1321,1538.
	LI Peng, WU Difan, LI Yuwei, et al. Optimal dispatch of multi-microgrids integrated energy system based on integrated demand response and stackelberg game[J]. Proceedings of the CSEE, 2021, 41(4):1307-1321,1538.
[11]	王凯旋, 张玉敏, 吉兴全, 等. 计及柔性电负荷的综合能源系统规划[J]. 安徽大学学报(自然科学版), 2022, 46(6):67-75.
	WANG Kaixuan, ZHANG Yumin, JI Xingquan, et al. Integrated energy system planning considering flexible electrical loads[J]. Journal of Anhui University(Natural Sciences), 2022, 46(6):67-75.
[12]	李欣, 李涵文, 陈德秋, 等. 储液式CCS耦合P2G的综合能源系统低碳经济调度[J/OL]. 电力系统及其自动化学报:1-8(2023-07-13)[2023-07-20].http://doi.org.shiep.vpn358.com/10.19635/j.cnki.csu-epsa.001301.
	LI Xin, LI Hanwen, CHEN Deqiu, et al. Low carbon economic dispatch of integrated energy system with coupling solvent-storaged CCS and P2G[J/OL]. Proceedings of the CSU-EPSA:1-8(2023-07-13)[2023-07-20].http://doi.org.shiep.vpn358.com/10.19635/j.cnki.csu-epsa.001301.
[13]	靳瑞强, 马广昭, 周喜超. 考虑柔性负荷的电-气综合能源系统低碳经济调度方法[J]. 工业加热, 2022, 51(5):36-40.
	JING Ruiqiang, MA Guangzhao, ZHOU Xichao. Low carbon economic dispatch method of electricity gas integrated energy system considering flexible load[J]. Industrial Heating, 2022, 51(5):36-40.
[14]	XIA Y, GE H, HAO S, et al. Low carbon operation of integrated energy systems considering electric and thermal flexible loads[C]//2022 IEEE 3rd China International Youth Conference on Electrical Engineering (CIYCEE). IEEE, 2022: 1-5.
[15]	刘蓉晖, 李子林, 杨秀, 等. 考虑用户侧柔性负荷的社区综合能源系统日前优化调度[J]. 太阳能学报, 2019, 40(10):2842-2850.
	LIU Ronghui, LI Zilin, YANG Xiu, et al. Optimal dispatch of community integrated energy system considering user-side flexible load[J]. Acta Energiae Solaris Sinica, 2019, 40(10):2842-2850.
[16]	LIN X W, TSAY W D, YOU X F. Determinants analysis of the carbon trading market[C]//2020 IEEE 2nd Eurasia Conference on Biomedical Engineering, Healthcare and Sustainability (ECBIOS). IEEE, 2020: 193-196.
[17]	LU Z, BAI L, WANG J, et al. Peer-to-peer joint electricity and carbon trading based on carbon-aware distribution locational marginal pricing[J]. IEEE transactions on power systems, 2022, 38(1): 835-852. doi: 10.1109/TPWRS.2022.3167780
[18]	薛开阳, 楚瀛, 凌梓, 等. 考虑柔性负荷的综合能源系统低碳经济优化调度[J]. 可再生能源, 2019, 37(8):1206-1213.
	XUE Kaiyang, CHU Ying, LING Zi, et al. Low-carbon economic optimal dispatch of integrated energy system considering flexible load[J]. Renewable Energy Resources, 2019, 37(8):1206-1213.
[19]	崔杨, 陈志, 严干贵, 等. 基于含储热热电联产机组与电锅炉的弃风消纳协调调度模型[J]. 中国电机工程学报, 2016, 36(15):4072-4081.
	CUI Yang, CHEN Zhi, YAN Gangui, et al. Coordinated wind power accommodating dispatch model based on electric boiler and CHP with thermal energy storage[J]. Proceedings of the CSEE, 2016, 36(15):4072-4081.
[20]	尹晨旭, 朱刘柱, 项超, 等. 考虑氢能交互转换的综合能源微网协调调度方法[J]. 中国电力, 2020, 53(10):88-95,148.
	YIN Chenxu, ZHU Liuzhu, XIANG Chao, et al. Coordinated dispatch method for integrated microgrid energy system considering interactive hydrogen conversion[J]. Electric Power, 2020, 53(10):88-95,148.
[21]	郭尊, 李庚银, 周明. 计及碳交易机制的电-气联合系统快速动态鲁棒优化运行[J]. 电网技术, 2020, 44(4):1220-1228.
	GUO Zun, LI Gengyin, ZHOU Ming. Fast and dynamic robust optimization of integrated electricity-gas system operation with carbon trading[J]. Power System Technology, 2020, 44(4):1220-1228.
[22]	许周, 孙永辉, 谢东亮, 等. 计及电/热柔性负荷的区域综合能源系统储能优化配置[J]. 电力系统自动化, 2020, 44(2):53-59.
	XU Zhou, SUN Yonghui, XIE Dongliang, et al. Optimal configuration of energy storage for integrated region energy system considering power/thermal flexible load[J]. Automation of Electric Power Systems, 2020, 44(2):53-59.
[23]	王晓海, 徐静静, 胡永锋, 等. 新形势下发电企业在综合能源服务领域的业务分析[J]. 综合智慧能源, 2022, 44(3):9-16. doi: 10.3969/j.issn.2097-0706.2022.03.002
	WANG Xiaohai, XU Jingjing, HU Yongfeng, et al. Business analysis on integrated energy services of power generation enterprises under the new circumstances[J]. Integrated Intelligent Energy, 2022, 44(3):9-16. doi: 10.3969/j.issn.2097-0706.2022.03.002

场景	碳交易成本	总运行成本
场景1	185.11	3718.5
场景2	147.54	3575.9
