基于热网驱动的综合能源新型空气源高温热水机组性能研究

doi:10.3969/j.issn.2097-0706.2022.07.004

摘要/Abstract

摘要：

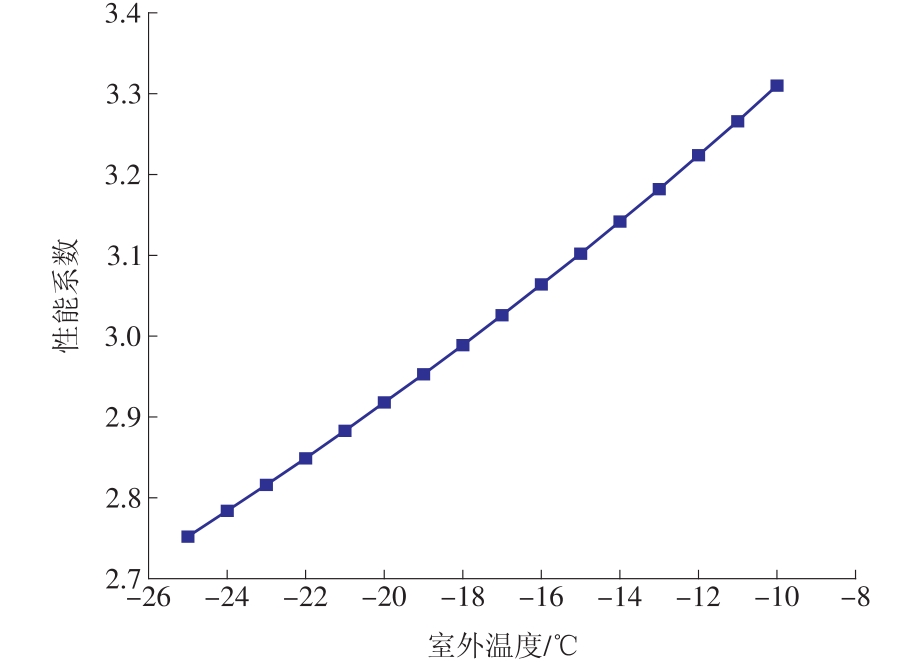

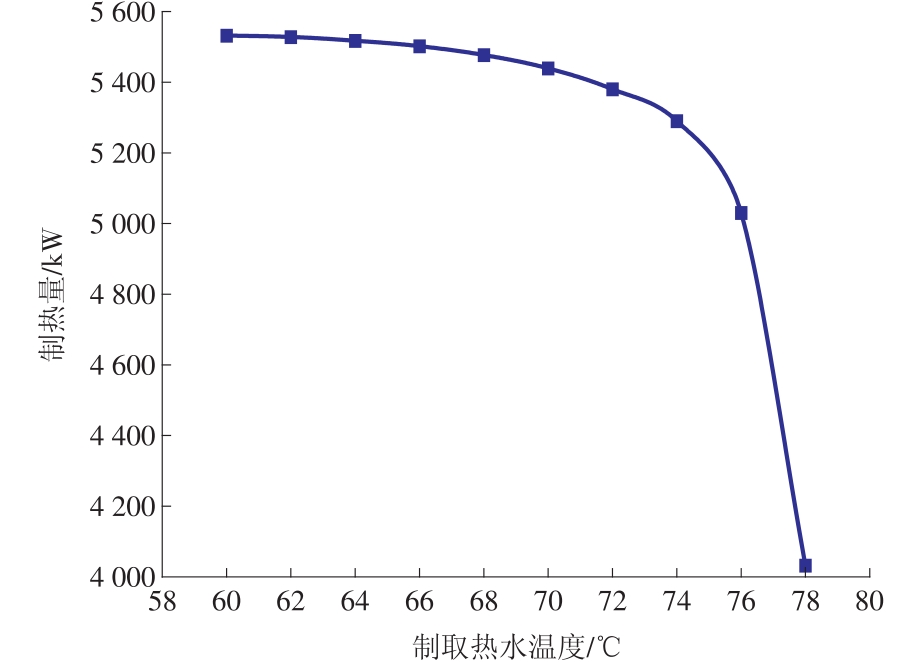

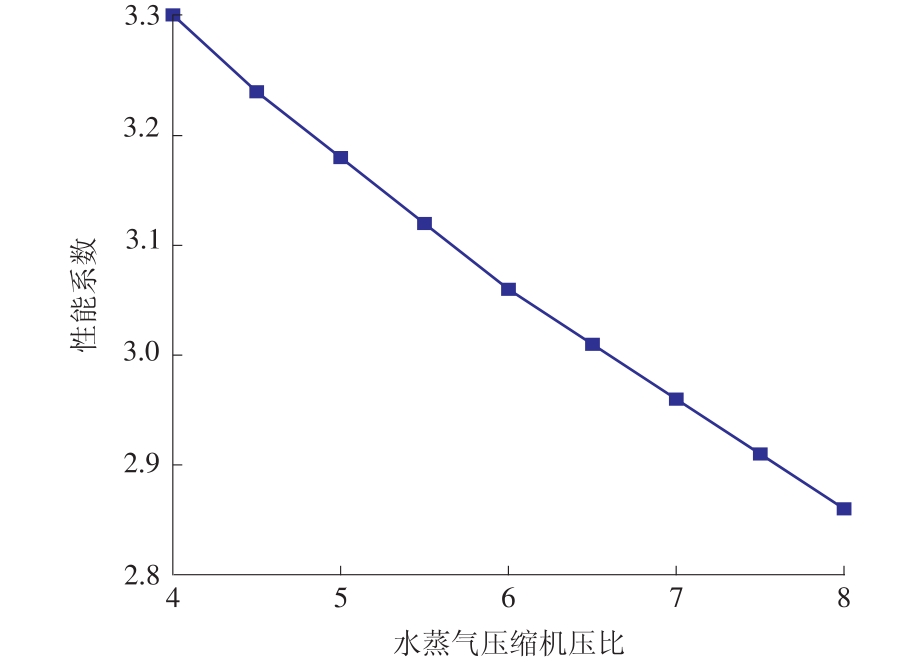

常规电动热泵应用于寒冷地区能效较低,且溴化锂吸收式热泵机组的蒸发极限运行温度为5 ℃,因此基于吸收式循环的空气源热泵在我国东北地区零下气温环境中无法工作。提出一种将压缩式循环与吸收式循环进行耦合的创新型低环温空气源热泵,旨在综合能源系统中利用城市热网驱动高效制取高温热水,解决了电动热泵在低温环境中性能差及电费成本高的技术难题。首先分析耦合热泵机组的运行原理,其次对提出的新型热泵机组进行仿真模拟。通过模拟计算得出双相变换热器蒸发温度、热水出口温度、环境温度以及水蒸气压缩机压比对热泵制热性能的影响规律。通过对4种不同工况的理论计算和分析以及与压缩式热泵的对比,验证了所提出新型低温空气源热泵系统具有良好的性能优势和工业应用推广价值。

关键词: 综合能源系统, 吸收式热泵, 压缩式热泵, 双相变换热器, 耦合循环, 空气源热泵, 热网驱动

Abstract:

Conventional electric heat pumps are of low energy efficiency in cold regions.Since the lowest operation temperature of lithium bromide absorption heat pumps is 5 ℃,they cannot work in sub-zero areas of Northeast China.By coupling compression cycle with absorption cycle,a new low-temperature air-source heat pump is proposed.The pump driven by the municipal heat network in an integrated energy system can produce domestic hot water effectively and solve the problems of conventional pumps'poor performance in cold areas and high electricity cost.The operation principle of the coupled heat pump unit is analyzed,and the proposed new heat pump unit is simulated.The effect of the evaporation temperature of a dual-phase heat exchanger,hot water outlet temperature,ambient temperature and steam compressor pressure ratio on the heating performance of the heat pump is obtained through simulation calculations.Through theoretical calculation and comparative analysis on the compression heat pump and the proposed new low-temperature air-source heat pump under four different working conditions,the high performance and industrial value of the latter pump is verified.

Key words: integrated energy systems, absorption heat pump, compression heat pump, dual-phase heat exchanger, coupled cycle, air-source heat pump, driven by heat-supply network

中图分类号:

TK01：TU83

孙健, 秦宇, 王寅武, 吴可欣, 郝俊红, 杨勇平. 基于热网驱动的综合能源新型空气源高温热水机组性能研究[J]. 综合智慧能源, 2022, 44(7): 33-39.

SUN Jian, QIN Yu, WANG Yinwu, WU Kexin, HAO Junhong, YANG Yongping. Study on the performance of new air-source high-temperature hot water units driven by heat supply network in integrated energy systems[J]. Integrated Intelligent Energy, 2022, 44(7): 33-39.

图/表 12

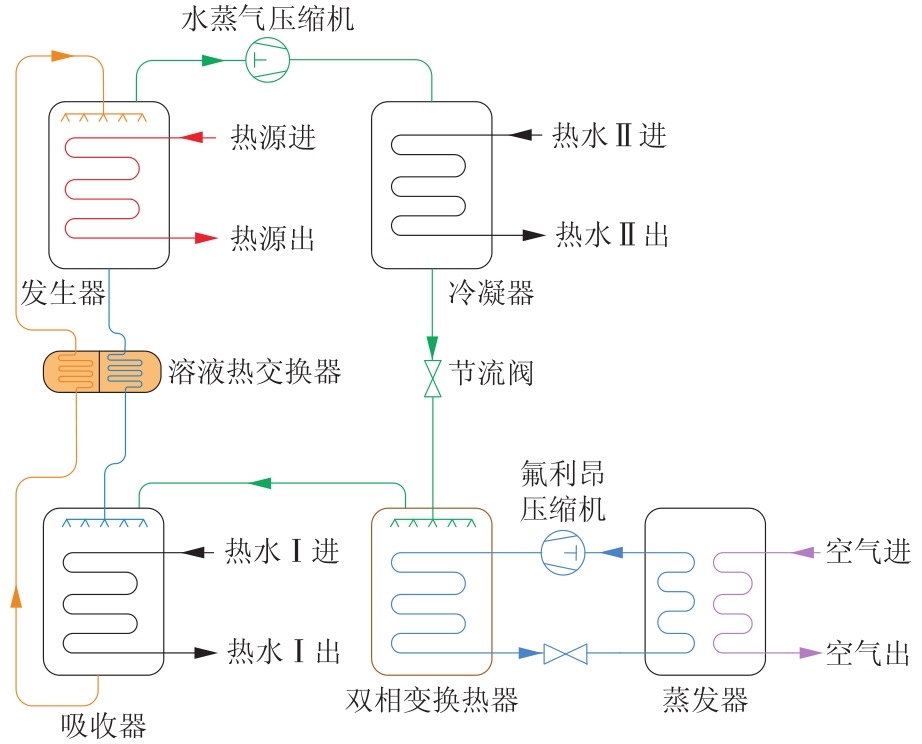

图1

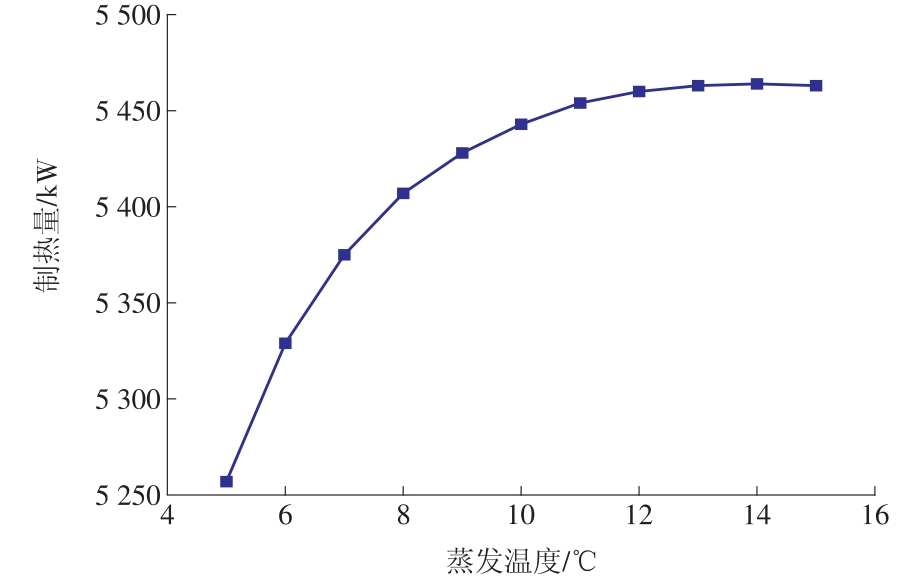

图2

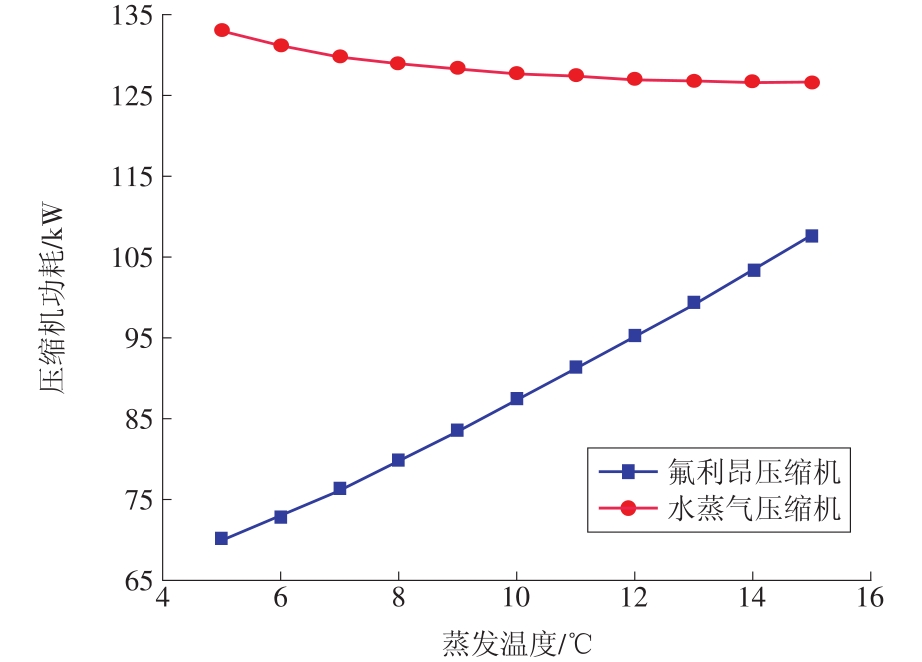

图3

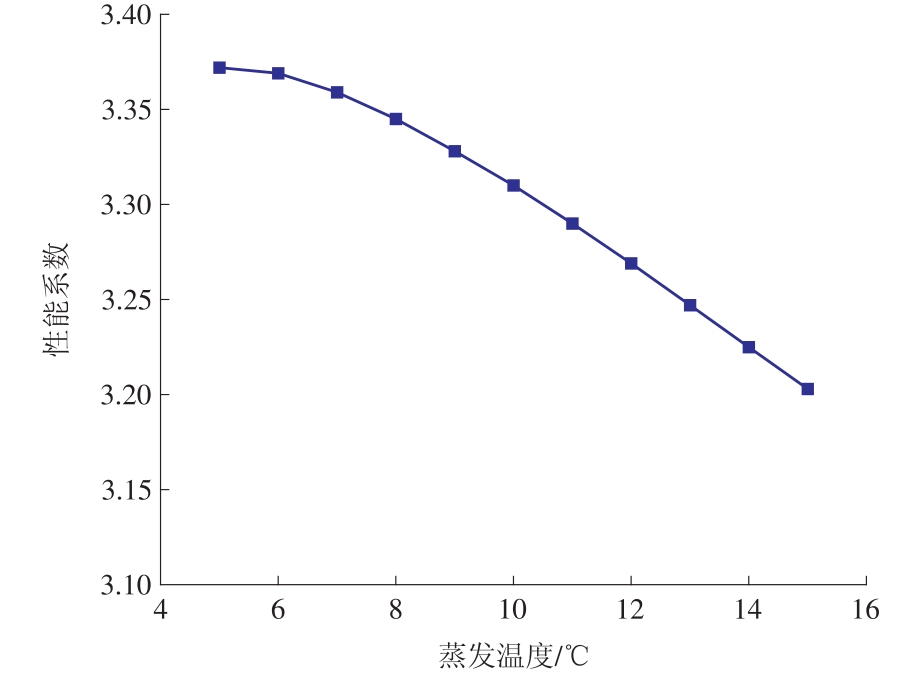

图4

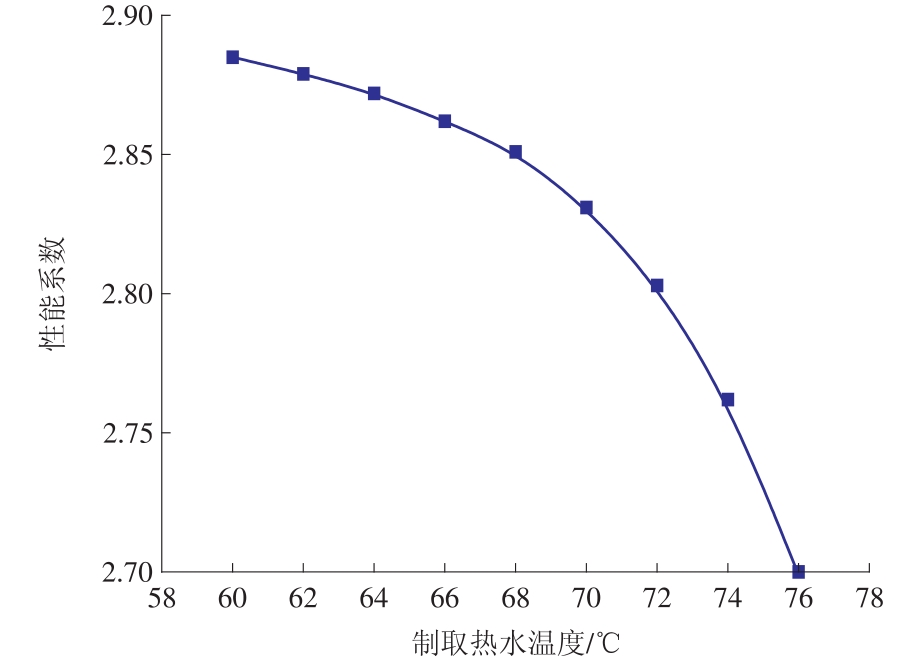

图5

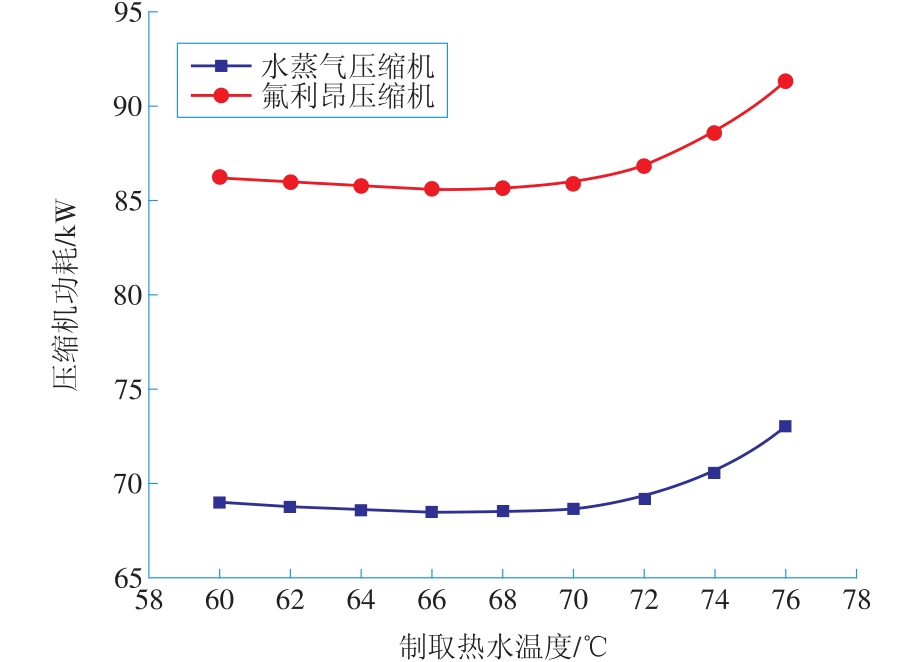

图6

图7

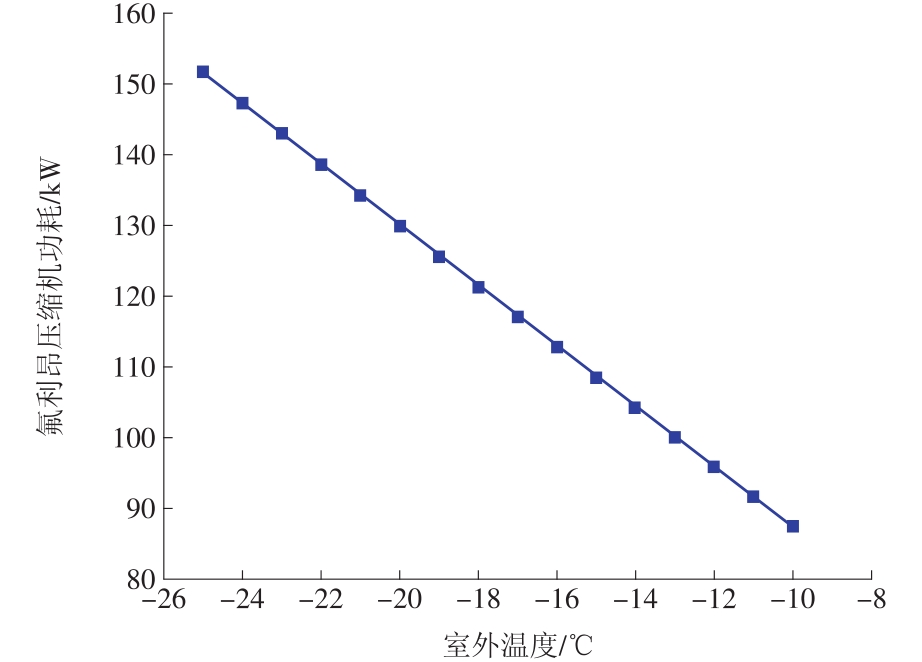

图8

图9

图10

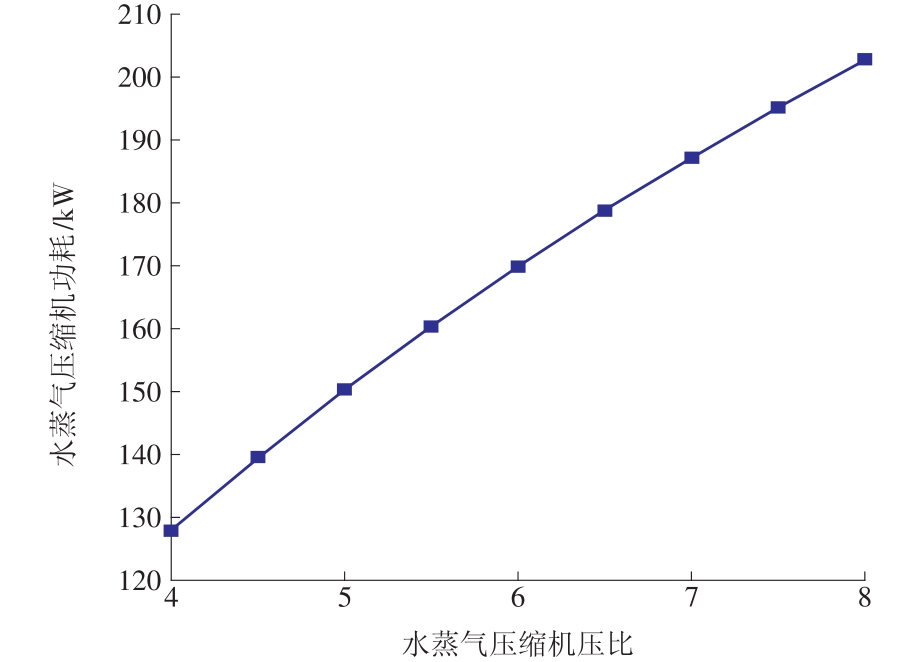

图11

表1

参考文献 21

[1]	孙健, 马世财, 霍成, 等. 碳中和目标下热泵技术应用现状及前景分析[J]. 华电技术, 2021, 43(10):22-30.
	SUN Jian, MA Shicai, HUO Cheng, et al. Application analysis and prospect of heat pump technology under the goal of carbon neutrality[J]. Huadian Technology, 2021, 43(10):22-30.
[2]	陈健勇, 李浩, 陈颖, 等. 空气源热泵空调技术应用现状及发展前景[J]. 华电技术, 2021, 43(11): 25-39.
	CHEN Jianyong, LI Hao, CHEN Ying, et al. Application status and perspectives of air-source heat pump air conditioning technology[J]. Huadian Technology, 2021, 43(11):25-39.
[3]	清华大学建筑节能研究中心. 中国建筑节能年度发展研究报告2008[M]. 北京: 中国建筑工业出版社.
[4]	熊军, 廖晔, 胡宪法, 等. 溴化锂吸收式热泵的动态建模及运行特性分析[J]. 热能动力工程, 2022, 37(2):122-128,159.
	XIONG Jun, LIAO Ye, HU Xianfa, et al. Dynamic modeling and operating characteristics analysis of lithium bromide absorption heat pump[J]. Thermal Power Engineering, 2022, 37(2):122-128,159.
[5]	冯慧敏, 包睿祺, 刘舫辰, 等. 新型第二类溴化锂吸收压缩复合式热泵系统研究[J]. 能源与节能, 2019(9):45-47.
	FENG Huimin, BAO Ruiqi, LIU Fangchen, et al. Research on a new type II lithium bromide absorption compression composite heat pump system[J]. Energy and Energy Conservation, 2019(9):45-47.
[6]	AYALA R, HEARD C, HOLLAND F. Ammonia/lithium nitrate absorption/compression refrigeration cycle.Part I. Simulation[J]. Applied Thermal Engineering, 1997, 17(3):223-233. doi: 10.1016/S1359-4311(96)00042-7
[7]	MITSUHIRO F, TADASHI Y, HIROAKI I, et al. Performance of compression/absorption hybrid refrigeration cycle with propane/mineral oil combination[J]. International Journal of Refrigeration, 2002, 25(7):907-915. doi: 10.1016/S0140-7007(01)00102-5
[8]	王长庆. 溴化锂两级高温吸收式热泵及其设计[J]. 节能技术, 2000(1):6-8.
	WANG Changqing. Lithium bromide two-stage high-temperature absorption heat pump and its design[J]. Energy Saving Technology, 2000(1):6-8.
[9]	姜秀华. 单双效结合运行的溴化锂第一类吸收式热泵[J]. 节能, 2009, 28(12):21-24,2.
	JIANG Xiuhua. Single and double effect combined operation of lithium bromide type I absorption heat pumps[J]. Energy Conservation, 2009, 28(12):21-24,2.
[10]	张红岩, 夏克盛, 赵明海. 第一类溴化锂吸收式热泵最佳工作域[J]. 制冷技术, 2012, 32(4):46-50.
	ZHANG Hongyan, XIA Kesheng, ZHAO Minghai. Optimal working domain of the first type of lithium bromide absorption heat pump[J]. Refrigeration Technology, 2012, 32(4):46-50.
[11]	米玉鸿, 冯林魁, 柏建华, 等. 亚临界热电联产机组耦合吸收式热泵系统热经济性及环境效益分析[J]. 热能动力工程, 2022, 37(4):94-99.
	MI Yuhong, FENG Linkui, BAI Jianhua, et al. Analysis of thermal economy and environmental benefits of coupled absorption heat pump system for subcritical cogeneration units[J]. Thermal Power Engineering, 2022, 37(4):94-99.
[12]	薛小军, 侯智华, 张红昌, 等. 碳中和背景下燃气热电联产与地源热泵耦合替代燃气锅炉供热研究[J]. 动力工程学报, 2022, 42(4):359-364,386.
	XUE Xiaojun, HOU Zhihua, ZHANG Hongchang, et al. Study of gas-fired cogeneration with ground source heat pump coupling to replace gas boilers for heat supply in a carbon neutral context[J]. Journal of Power Engineering, 2022, 42(4):359-364,386.
[13]	KOHLENBACH P, ZIEGLER F. A dynamic simulation model for transient absorption chiller performance. Part II: The model[J]. International Journal of Refrigeration, 2007, 31(2):226-233. doi: 10.1016/j.ijrefrig.2007.06.010
[14]	周勇, 魏航, 李永田, 等. 吸收式热泵能效分析及模拟研究[J]. 上海节能, 2021(11):1257-1262.
	ZHOU Yong, WEI Hang, LI Yongtian, et al. Energy efficiency analysis and simulation study of absorption heat pump[J]. Shanghai Energy Conservation, 2021(11):1257-1262.
[15]	陈清, 王锡. 溴化锂吸收式热泵变设计工况分析[J]. 建筑热能通风空调, 2020, 39(3):49-53,11.
	CHEN Qing, WANG Xi. Analysis of variable design conditions of lithium bromide absorption heat pump[J]. Building Thermal Ventilation and Air Conditioning, 2020, 39(3):49-53,11.
[16]	孙健, 戈志华, 杜小泽, 等. 一种高效工业余热回收变负荷冷热水机组制造技术:ZL201910089196.9[P]. 2019.
[17]	孙健, 马世财, 霍成, 等. 新型吸收式与压缩式耦合循环性能研究[J]. 太阳能学报, 2020, 41(10):375-380.
	SUN Jian, MA Shicai, HUO Cheng, et al. Performance study of a new coupled absorption and compression cycle[J]. Journal of Solar Energy, 2020, 41(10):375-380.
[18]	KLEIN S, NELLIS G. Thermodynamics[M]. England: Ambridge University Press, 2012.
[19]	孙健, 董小波, 戈志华, 等. 余热回收型高温热泵非共沸工质循环性能研究[J]. 工程热物理学报报, 2019, 40(9):1949-1957.
	SUN Jian, DONG Xiaobo, GE Zhihua, et al. Study on the performance of waste heat recovery type high temperature heat pump with non-azeotropic work cycle[J]. Journal of Engineering Thermophysics, 2019, 40(9):1949-1957.
[20]	方旭, 彭雪风, 张凯, 等. 燃煤热电联产系统冷端余能供热改造研究进展[J]. 华电技术, 2021, 43(3):48-56.
	FANG Xu, PENG Xuefeng, ZHANG Kai, et al. Development of heating retrofit using waste heat from coal-fired CHP system cold end[J]. Huadian Technology, 2021, 43(3):48-56.
[21]	余莉, 徐静静, 马兰芳, 等. 综合能源服务项目新增热泵系统的案例分析[J]. 综合智慧能源, 2022, 44(1):72-79. doi: 10.3969/j.issn.2097-0706.2022.01.010
	YU Li, XU Jingjing, MA Lanfang, et al. Case study on the integrated energy service project with newly installed heat pumps[J]. Integrated Intelligent Energy, 2022, 44(1):72-79. doi: 10.3969/j.issn.2097-0706.2022.01.010

项目	耦合循环机组	压缩式热泵
性能系数	3.31	2.24
压缩机耗功功率/kW	215	418
热水流量/（kg·s^-1）	13.0	7.5
