“地热能+”在工程实践中的综合梯级应用

doi:10.3969/j.issn.2097-0706.2022.09.008

摘要/Abstract

摘要：

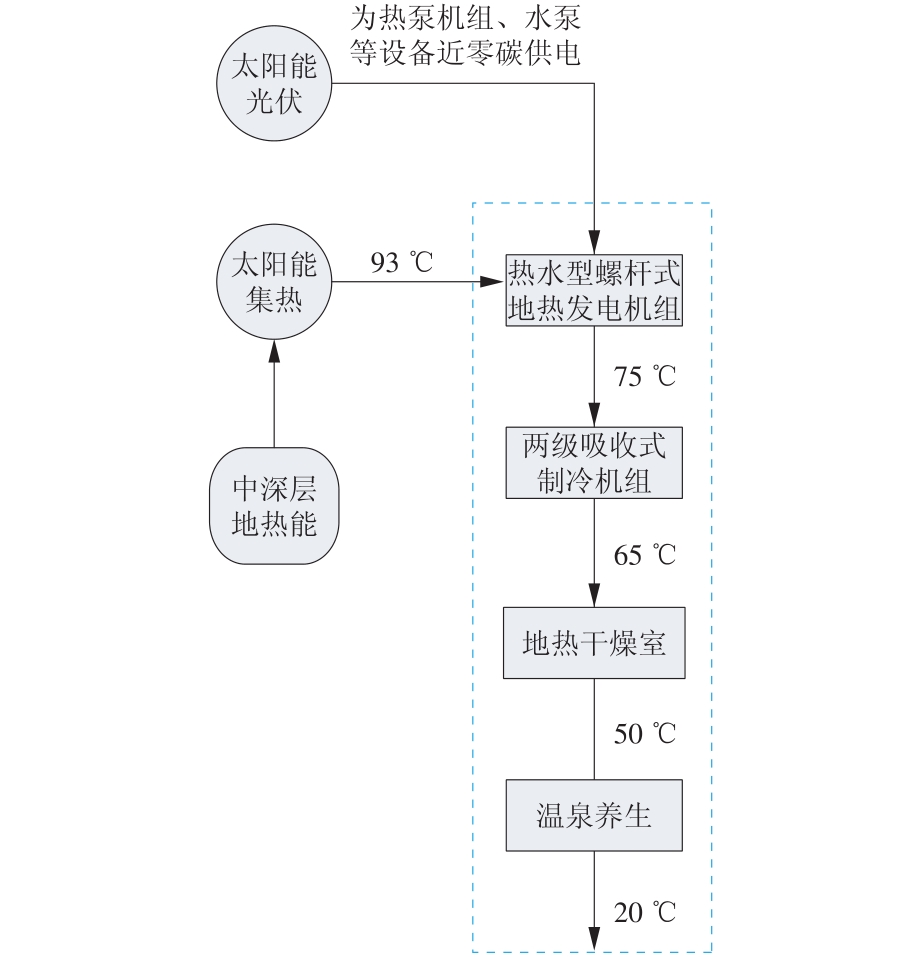

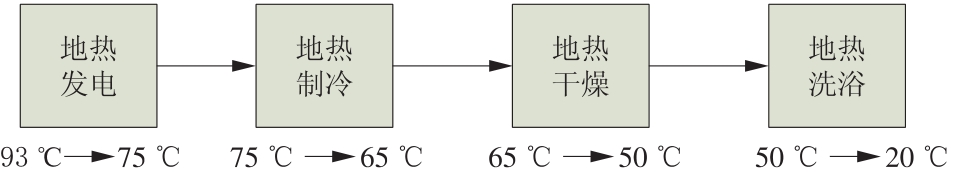

面向我国碳达峰、碳中和的战略需求,迫切需要解决节能减排问题并提高清洁能源利用率,结合国内地热发展情况,对地热能的利用方式进行研究。地热能的应用模式由原来仅用于发电或取暖这种单一、粗放型向梯级利用、集成应用型发展。根据某景区地热和太阳能资源条件,设计了一种新型地热能综合梯级利用方案,即将地热水依次用来发电、制冷、干燥、洗浴。由于地热水经过管道运输散热后仅为80~90 ℃,国产发电机组无法用其进行发电,需利用太阳能光热将地热水温度提高至93 ℃后再进行发电;发电后地热水可用来制冷,水温由75 ℃降至65 ℃;制冷后的地热水再用来干燥,水温由65 ℃降至50 ℃;最后50 ℃的地热水用来洗浴。所提出的“地热能+”综合梯级利用方案可实现热泵机组、水泵等设备的近零碳供电,可提高能源利用率,降低运行成本,实现能源可持续性发展。

关键词: 碳达峰, 碳中和, 地热能+, 梯级利用, 地热发电, 地热制冷, 地热干燥, 地热洗浴, 清洁供热, 综合能源系统

Abstract:

To achieve the goals of carbon peaking and carbon neutrality in China, and to realize energy conservation, emission reduction and clean energy utilization rate improvement, geothermal resource application methods are summarized based on the storage of geothermal energy in China. The geothermal energy application mode has developed from the single and extensive one, such as power generation or heating only,to a cascade and integrated one. According to the conditions of geothermal and solar energy of a scenic spot, a new comprehensive cascade utilization scheme for geothermal energy is designed, in which geothermal water is successively used for power generation, cooling, drying and bathing. Since the temperature of geothermal water is only 80-90 ℃ after heat dissipation in pipes, it cannot be applied for power generation by domestic generator sets. The temperature of geothermal water heated to 93 ℃ by solar energy can be used to generate electricity.Then the temperature of geothermal water drops from 75 ℃ to 65 ℃ after cooling, and reduces from 65 ℃ to 50 ℃ after drying. Finally, it reaches at 50 ℃ and is used for bathing. The "geothermal energy +" comprehensive cascade utilization scheme realizes the “near-zero carbon” power supply of heat pump units, water pumps and other equipment, improves energy utilization rate, reduces operating costs and achieves the sustainable development of energy.

Key words: carbon peaking, carbon neutrality, geothermal energy +, cascade utilization, geothermal power generation, geothermal cooling, geothermal drying, geothermal bathing, clean heating, integrated energy system

中图分类号:

TK91

姜曙, 刘芳芳, 刘媛媛, 陈启召, 连丽, 任梦楠. “地热能+”在工程实践中的综合梯级应用[J]. 综合智慧能源, 2022, 44(9): 59-64.

JIANG Shu, LIU Fangfang, LIU Yuanyuan, CHEN Qizhao, LIAN Li, REN Mengnan. Comprehensive cascade application of "geothermal energy +" in engineering practice[J]. Integrated Intelligent Energy, 2022, 44(9): 59-64.

图/表 11

表1

图1

表2

表3

表4

表5

图2

表6

表7

表8

表9

参考文献 26

[1]	李德英. 我国清洁能源与清洁取暖发展机遇与挑战[R]. 2020国际可再生能源供热技术大会暨以太阳能为主的建筑供热论坛,内蒙古, 2020.
[2]	王贵玲, 杨轩, 马凌, 等. 地热能供热技术的应用现状及发展趋势[J]. 华电技术, 2021, 43(11): 15-23.
	WANG Guiling, YANG Xuan, MA Ling, et al. Status quo and prospects of geothermal energy in heat supply[J]. Huadian Technology, 2021, 43(11): 15-23.
[3]	张晋宾, 周四维. 碳中和体系解读[J]. 华电技术, 2021, 43(6):1-10.
	ZHANG Jinbin, ZHOU Siwei. Interpretation on carbon neutrality system[J]. Huadian Technology, 2021, 43(6):1-10.
[4]	清华大学气候变化与可持续发展研究院. 中国低碳发展战略与转型路径研究[R]. 北京: 清华大学气候变化与可持续发展研究院, 2020.
[5]	汪集暘. 地热学及其应用[M]. 北京: 科学出版社, 2015.
[6]	李健, 武江元, 杨震, 等. 地热发电技术及其关键影响因素综述[J]. 热力发电, 2022, 51(3): 1-8.
	LI Jian, WU Jiangyuan, YANG Zhen, et al. Review of geothermal power generation technologies and key influencing factors[J]. Thermal Power Generation, 2022, 51(3): 1-8.
[7]	周总瑛, 刘世良, 刘金侠. 中国地热资源特点与发展对策[J]. 自然资源学报, 2015, 30(7): 1210-1221.
	ZHOU Zongying, LIU Shiliang, LIU Jinxia. Study on the characteristics and development strategies of geothermal resources in China[J]. Journal of Natural Resources, 2015, 30(7): 1210-1221.
[8]	蔺文静, 刘志明, 王婉丽, 等. 中国地热资源及其潜力评估[J]. 中国地质, 2013, 40(1): 312-321.
	LIN Wenjing, LIU Zhiming, WANG Wanli, et al. The assessment of geothermal resources potential of China[J]. Geology in China, 2013, 40(1): 312-321.
[9]	赵军, 李扬, 李浩, 等. 中低温能源在中国[J]. 太阳能学报, 2022, 43(2):250-260.
	ZHAO Jun, LI Yang, LI Hao, et al. Mid-/low-temperature energy in China[J]. Acta Energiae Solaris Sinica, 2022, 43(2):250-260.
[10]	王淑娟. 可再生能源及其利用技术[M]. 北京: 清华大学出版社, 2012.
[11]	李扬, 赵婉雨. 地热能领域产业技术分析报告[J]. 高科技与产业化, 2019(9):46-51.
	LI Yang, ZHAO Wanyu. An industrial and technical analysis report of geothermal energy[J]. High ‐ Technology & Commercialization, 2019(9):46-51.
[12]	黄嘉超, 李天舒, 谷雪曦. 国际地热利用发展形势对中国的启发[J]. 石化技术, 2020, 27(9): 252-253.
	HUANG Jiachao, LI Tianshu, GU Xuexi. Inspiration of international geothermal utilization development situation to China[J]. Petrochemical Industry Technology, 2020, 27(9): 252-253.
[13]	苗杉. 国外地热政策探析及对我国的借鉴意义[J]. 赤峰学院学报(自然科学版), 2015, 31(19):87-90.
[14]	Technology roadmap: Geothermal heat and power[R]. International Energy Agency, 2011: 1-52.
[15]	PAN S Y, GAO M Y, SHAH K J, et al. Establishment of enhanced geothermal energy utilization plans: Barriers and strategies[J]. Renewable Energy, 2019, 132: 19-32. doi: 10.1016/j.renene.2018.07.126
[16]	郑克棪, 陈梓慧. 地热供暖世界现状及中国清洁供暖的地热选择[J]. 河北工业大学学报, 2018, 47(2):102-107.
	ZHENG Keyan, CHEN Zihui. World status of geothermal space heating and geothermal option in China′s clean heating[J]. Journal of Hebei University of Technology, 2018, 47(2):102-107.
[17]	罗佐县, 刘芮, 宫昊, 等. 中国地热产业发展空间分析[J]. 国际石油经济, 2021, 29(4):40-47.
	LUO Zuoxian, LIU Rui, GONG Hao, et al. The development space of geothermal industry in China[J]. International Petroleum Economics, 2021, 29(4):40-47.
[18]	薛颀. 浅层地热能高效换热技术研究[J]. 科学技术创新, 2022, 36(7): 143-146.
	XUE Qi. A Study on efficient heat exchange technology for shallow geothermal energy[J]. Scientific and Technological Innovation, 2022, 36(7): 21-25.
[19]	王贵玲, 刘彦广, 朱喜, 等. 中国地热资源现状及发展趋势[J]. 地学前缘, 2020, 27(1):1-9. doi: 10.13745/j.esf.2020.1.1
	WANG Guiling, LIU Yanguang, ZHU Xi, et al. The status and development trend of geothermal resources in China[J]Earth Science Frontiers, 2020, 27(1):1-9. doi: 10.13745/j.esf.2020.1.1
[20]	王文中, 邵东云, 程新科, 等. 中国浅层和中深层地热能的开发和利用[J]. 水电与新能源, 2022, 36(3): 21-25.
	WANG Wenzhong, SHAO Dongyun, CHENG Xinke, et al. Development and utilization of the Shallow and middle-deep geothermal energy in China[J]. Hydropower and New Energy, 2022, 36(3): 21-25.
[21]	王贵玲, 张薇, 梁继运, 等. 中国地热资源潜力评价[J]. 地球学报, 2017, 38(4):449-459.
	WANG Guiling, ZHANG Wei, LIANG Jiyun, et al. Evaluation of geothermal resources potential in China[J]. Acta Geoscientist Sinica, 2017, 38(4):449-459.
[22]	袁健灵, 余跃进, 曾繁博, 等. 某地源热泵工程案例的技术经济性分析研究[J]. 南京师范大学学报:工程技术版, 2017, 17(4):66-70.
	YUANG Jianling, YU Yuejin, ZENG Fanbo, et al. The technical and economic evaluation research of ground source heat pump system in Nanjing area as an example[J]. Journal of Nanjing Normal University (Engineering and Technology edition), 2017, 17(4): 66-70.
[23]	尤伟静, 刘延锋, 郭明晶. 地热资源开发利用过程中的主要环境问题[J]. 安全与环境工程, 2013, 20(2):24-28,34.
	YOU Weijing, LIU Yanfeng, GUO Mingjing. Environmental issues in the development and utilization of geothermal resources[J]. Safety and Environmental Engineering, 2013, 20(2):24-28,34.
[24]	罗佐县, 高珊珊, 孙庆丰, 等. 夏热冬冷地区浅层地热能开发利用路径初探[J]. 当代石油石化, 2020, 28(9):7-14.
	LUO Zuoxian, GAO Shanshan, SUN Qingfeng, et al. A preliminary study on the development and utilization path of shallow geothermal energy in hot summer and cold winter areas[J]. Petroleum & Petrochemical Today, 2020, 28(9):7-14.
[25]	黄璜, 刘然, 李茜, 等. 地热能多级利用技术综述[J]. 热力发电, 2021, 50(9): 1-10.
	HUANG Huang, LIU Ran, LI Qian, et al. Overview on multi-level utilization techniques of geothermal energy[J]. Thermal Power Generation, 2021, 50(9): 1-10.
[26]	王永真, 韩恺, 赵军, 等. 地热发电在新型电力系统中的定位及参与模式[J]. 华电技术, 2021, 43(11): 58-65.
	WANG Yongzhen, HAN Kai, ZHAO Jun, et al. Orientation and participation mode of geothermal power generation in the new power system[J]. Huadian Technology, 2021, 43(11): 58-65.

钻井编号	流量/（m³·d^-1）	井口温度/℃
ZK1	590	92
ZK2	578	95
ZK3	187	90
ZK4	264	95

月份	总辐射量/（MJ·m^-²）	散射辐射/(MJ·m^-²）	温度/℃	风速/(m·s^-1）
1	453	238	21.2	4.5
2	395	243	21.2	3.7
3	521	292	23.1	3.6
4	568	327	25.2	3.2
5	614	328	27.3	2.7
6	576	288	27.4	2.8
7	584	301	27.1	2.9
8	599	300	27.1	3.0
9	492	310	25.9	3.2
10	509	255	25.1	4.2
11	435	221	23.4	4.5
12	394	211	20.6	4.5
平均	512	276	24.6	3.6
合计	6 140	3 314

等级（符号）	分级阈值
等级（符号）	总辐射/[kW·h·（m²·a）^-1]	总辐射/[MJ·（m²·a）^-1]
最丰富（A）	≥1 750	≥6 300
很丰富（B）	≥1 400~1 750	≥5 040~6 300
丰富（C）	≥1 050~1 400	≥3 780~5 040
一般（D）	<1 050	<3 780

等级名称（符号）	分级阈值
很稳定（A）	≥0.47
稳定（B）	≥0.36~0.47
一般（C）	≥0.28~0.36
欠稳定（D）	<0.28

等级（符号）	分级阈值	等级说明
很高（A）	≥0.60	直接辐射主导
高（B）	≥0.50~0.60	直接辐射较多
中（C）	≥0.35~0.50	散射辐射较多
低（D）	<0.35	散射辐射主导
