基于概率鲁棒的改进自抗扰控制器设计

doi:10.3969/j.issn.2097-0706.2022.10.008

摘要/Abstract

摘要：

过热汽温是火电机组日常运行的重要参数，为适应其大惯性大滞后的特性，常采用串级控制策略进行控制，但控制结构较为复杂，控制器整定较为繁琐。一种改进的自抗扰控制器可简化传统过热汽温的控制结构并获得满意的控制效果，但由可再生能源系统接入引起的不确定性客观存在，改进的自抗扰控制仅是在标称工况下设计的，无法有效应对不确定性。采用不确定系统的随机分析方法——概率鲁棒设计改进自抗扰控制器，旨在保证机组工况发生变化时控制器仍可最大概率满足控制指标要求。仿真结果表明，基于概率鲁棒的改进自抗扰控制器能够获得良好的动态性能与强鲁棒性，展现了其未来应用于火电机组的前景。

关键词: 火电机组, 过热汽温, 概率鲁棒, 自抗扰控制, 不确定性, 随机分析, 可再生能源

Abstract:

Superheated steam temperature （SST） is a vital parameter for the daily operation of a coal-fired power unit because it is related to the efficiency and the safety of the unit. Due to SST's characteristics of large inertia and delay， cascade control strategies are usually applied to the control of the parameter. However， the structures of cascade control systems are complex， which brings challenges to the tuning of controllers. A hybrid active disturbance rejection controller （HADRC） can simplify the control structure of SST and perform satisfying control. Nevertheless， uncertainties caused by the access of renewable energy systems exist. The original HADRC designed based on the nominal system is unable to handle with uncertainties effectively. To meet the control requirements under variable working conditions with maximum probability，a HADRC is designed based on the stochastic analysis method—probabilistic robustness（PR）. Simulation results illustrate that the PR-based HADRC is of fast dynamic performance and strong robustness， which shows its promising prospect in future applications to coal-fired power units.

Key words: coal-fired power unit, superheated steam temperature, probabilistic robustness, active disturbance rejection control, uncertainty, stochastic analysis, renewable energy

中图分类号:

TM921.5：TK39

史耕金, 李东海, 丁艳军. 基于概率鲁棒的改进自抗扰控制器设计[J]. 综合智慧能源, 2022, 44(10): 57-64.

SHI Gengjin, LI Donghai, DING Yanjun. Design of a hybrid active disturbance rejection control based on probabilistic robustness[J]. Integrated Intelligent Energy, 2022, 44(10): 57-64.

图/表 11

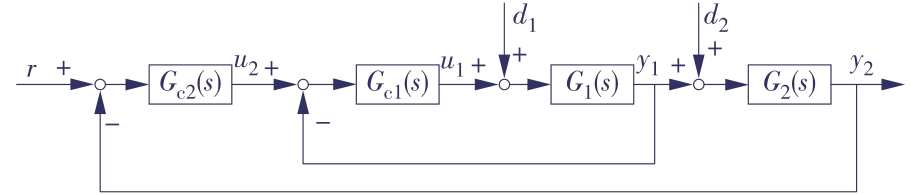

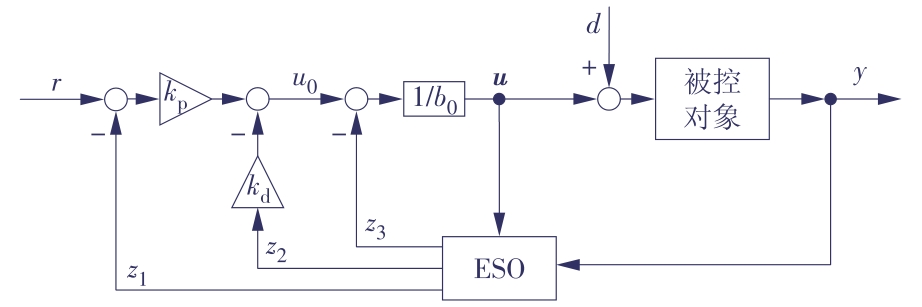

图1

图2

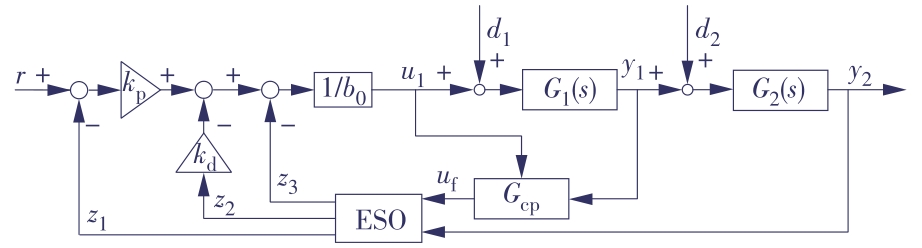

图3

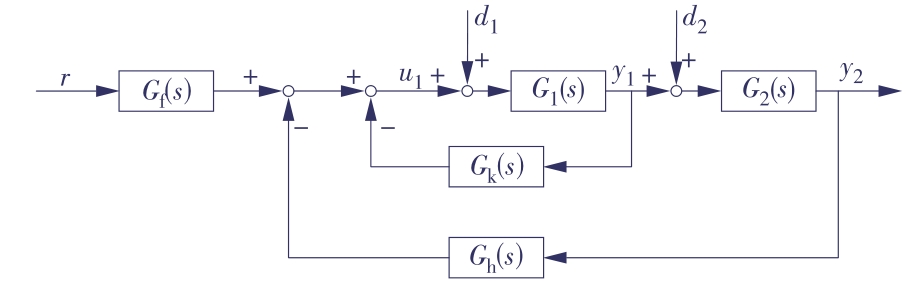

图4

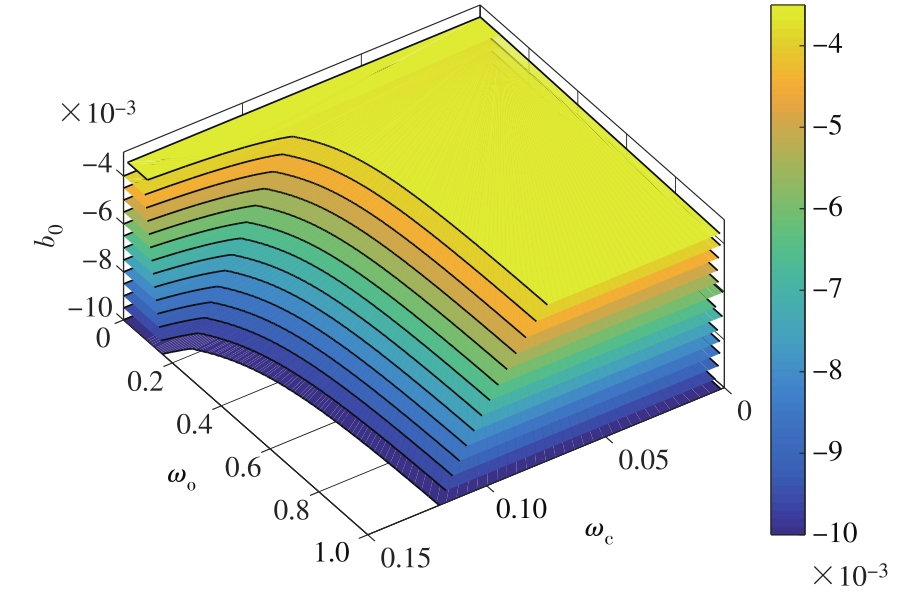

图5

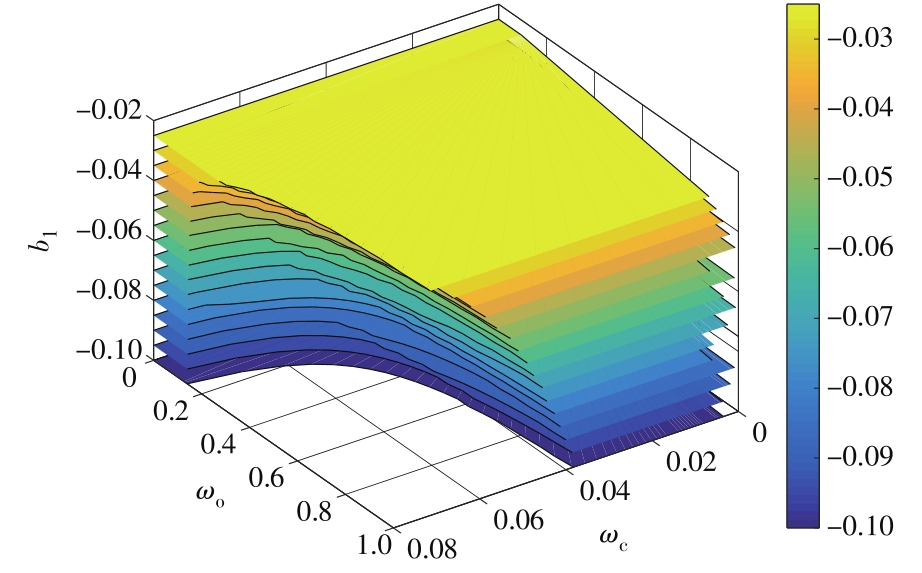

图6

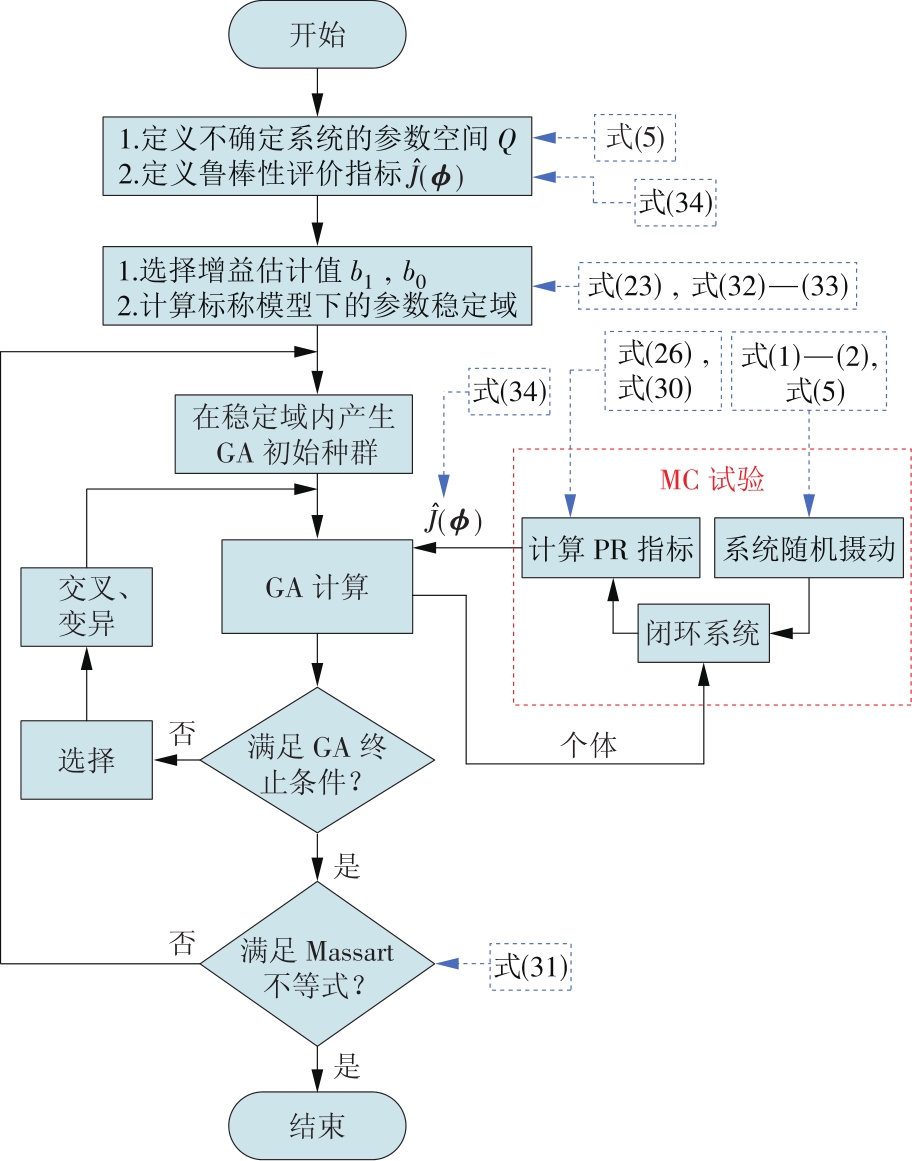

图7

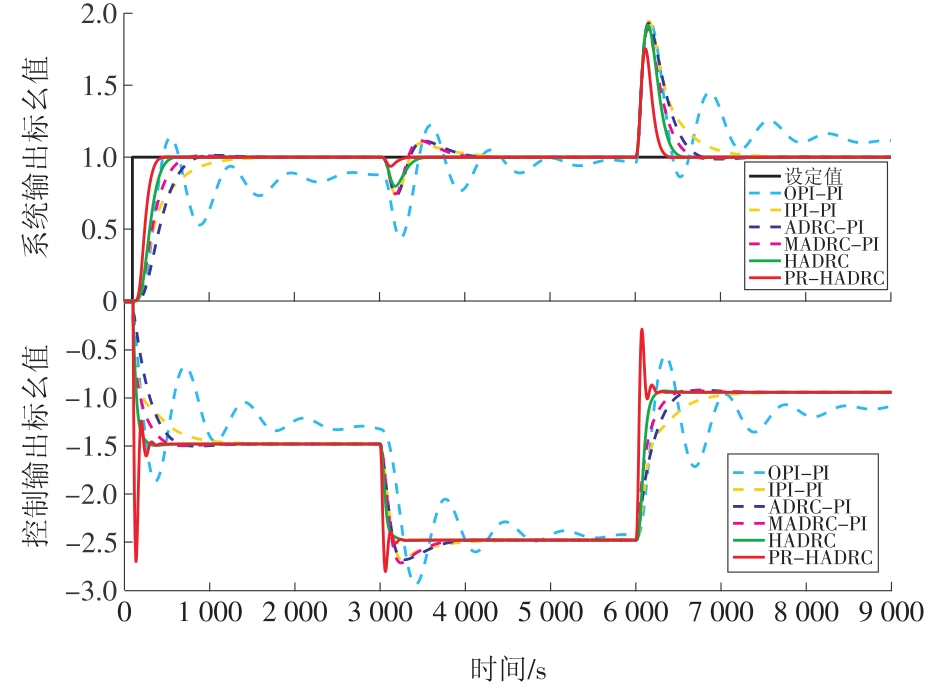

图8

表1

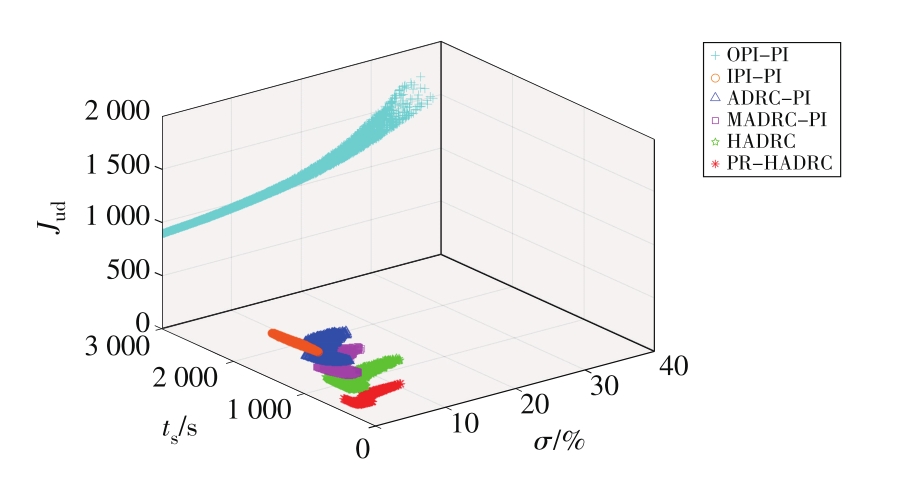

图9

表2

参考文献 30

[1]	吴振龙. 热力系统鲁棒自抗扰控制研究与设计[D]. 北京: 清华大学, 2020.
[2]	张兴科, 魏朝阳, 王康平, 等. 面向高比例光伏并网的火电爬坡压力缓解策略[J]. 综合智慧能源, 2022, 44(1):1-8. doi: 10.3969/j.issn.2097-0706.2022.01.001
	ZHANG Xingke, WEI Chaoyang, WANG Kangping, et al. Strategies for relieving ramp pressure of thermal power units with high-proportion photovoltaic power connecting to the grid[J]. Integrated Intelligent Energy, 2022, 44(1): 1-8. doi: 10.3969/j.issn.2097-0706.2022.01.001
[3]	MAZALAN N A, MALEK A A, WAHID M A, et al. Review of control strategies employing neural network for main steam temperature control in thermal power plant[J]. Jurnal Teknologi, 2012, 66(2): 73-76.
[4]	金以慧. 过程控制[M]. 北京: 清华大学出版社, 1993.
[5]	荆立坤, 唐宜强, 潘凤萍, 等. 基于鲁棒约束的PI控制器参数多目标优化及应用[J]. 华电技术, 2021, 43(5): 1-8.
	JING Likun, TANG Yiqiang, PAN Fengping, et al. Multi-objective optimization of PI controller parameters under robustness constraint and its application[J]. Huadian Technology, 2021, 43(5): 1-8.
[6]	曹子飞, 杨栋, 吴茂坤, 等. 控制器参数对AGC调节性能的影响[J]. 综合智慧能源, 2022, 44(4): 36-42. doi: 10.3969/j.issn.2097-0706.2022.04.005
	CAO Zifeng, YANG Dong, WU Maokun, et al. Influence of controller parameters on AGC regulation performance[J]. Integrated Intelligent Energy, 2022, 44(4): 36-42. doi: 10.3969/j.issn.2097-0706.2022.04.005
[7]	WU X, SHEN J, LI Y G, et al. Fuzzy modeling and predictive control of superheater steam temperature for power plant[J]. ISA Transactions, 2015, 56: 241-251. doi: 10.1016/j.isatra.2014.11.018 pmid: 25530258
[8]	MA L, LEE K Y. Neural network based superheater steam temperature control for a large-scale supercritical boiler unit[C]// 2011 IEEE Power and Energy Society General Meeting. IEEE, 2011: 1-8.
[9]	SHOME A, ASHOK S D. Fuzzy logic approach for boiler temperature & water level control[J]. International Journal of Scientific & Engineering Research, 2012, 3(6):1-6.
[10]	WU Z, LI D, WANG L. Control of the superheated steam temperature:A comparison study between PID and fractional order PID controller[C]// 2016 35th Chinese Control Conference (CCC). IEEE, 2016: 10521-10526.
[11]	韩京清. 自抗扰控制技术——估计补偿不确定因素的控制技术[M]. 北京: 国防工业出版社, 2008.
[12]	HAN J. From PID to active disturbance rejection control[J]. IEEE Transactions on Industrial Electronics, 2009, 56: 900-906. doi: 10.1109/TIE.2008.2011621
[13]	GAO Z. Scaling and bandwidth-parameterization based controller tuning[C]// American Control Conference.IEEE, 2003: 4989-4996.
[14]	WU Z, LI D, XUE Y, et al. Modified active disturbance rejection control for fluidized bed combustor[J]. ISA Transactions, 2020, 102: 135-153. doi: S0019-0578(20)30111-7 pmid: 32183992
[15]	SHI G, WU Z, HE T, et al. Decentralized active disturbance rejection control design for the gas turbine[J]. Measurement and Control, 2020, 53(9-10): 1589-1601. doi: 10.1177/0020294020947130
[16]	SHI G, WU Z, HE T, et al. Shaft speed control of the gas turbine based on active disturbance rejection control[J]. IFAC-PapersOnLine, 2020, 53(2): 12523-12529. doi: 10.1016/j.ifacol.2020.12.1795
[17]	HUANG C, LI D, XUE Y. Active disturbance rejection control for the ALSTOM gasifier benchmark problem[J]. Control Engineering Practice, 2013, 21: 556-564. doi: 10.1016/j.conengprac.2012.11.014
[18]	王佑, 吴振龙, 薛亚丽, 等. 高阶大惯性系统的线性自抗扰控制器设计[J/OL]. 控制与决策, 2022. DOI: 10.13195/j.kzyjc.2021.1576. doi: 10.13195/j.kzyjc.2021.1576
	WANG You, WU Zhenlong, XUE Yali, et al. Design of linear active disturbance rejection controller for high order large inertia system[J]. Control and Decision, 2022. DOI: 10.13195/j.kzyjc.2021.1576. doi: 10.13195/j.kzyjc.2021.1576
[19]	WU Z, HE T, LI D, et al. Superheated steam temperature control based on modified active disturbance rejection control[J]. Control Engineering Practice, 2019, 83: 83-97. doi: 10.1016/j.conengprac.2018.09.027
[20]	SHI G, WU Z, GUO J, et al. Superheated steam temperature control based on a hybrid active disturbance rejection control[J]. Energies, 2020, 13(7):1757. doi: 10.3390/en13071757
[21]	WANG C, LI D, LI Z, et al. Optimization of controllers for gas turbine based on probabilistic robustness[J]. Journal of Engineering for Gas Turbines and Power, 2009, 131(5): 054502. doi: 10.1115/1.2981174
[22]	WU Z, LI D, CHEN Y. Active disturbance rejection control design based on probabilistic robustness for uncertain systems[J]. Industrial & Engineering Chemistry Research, 2020, 59(40): 18070-18087. doi: 10.1021/acs.iecr.0c03248
[23]	SHI G, LI D, DING Y, et al. Desired dynamic equational proportional-integral-derivative controller design based on probabilistic robustness[J]. International Journal of Robust and Nonlinear Control, 2021: 1-37.
[24]	SUN L, HUA Q, SHEN J, et al. Multi-objective optimization for advanced superheater steam temperature control in a 300 MW power plant[J]. Applied Energy, 2017, 208: 592-606. doi: 10.1016/j.apenergy.2017.09.095
[25]	HUANG Y, XUE W. Active disturbance rejection control: Methodology and theoretical analysis[J]. ISA Transactions, 2014, 53: 963-976. doi: 10.1016/j.isatra.2014.03.003 pmid: 24742958
[26]	刘京宫. 二自由度控制器的稳定域分析及其在热工过程中的应用[D]. 北京: 清华大学, 2011.
[27]	LANZKRON R, HIGGINS T. D-decomposition analysis of automatic control systems[J]. IRE-Transactions on Automatic Control, 1959, AC-4(3): 150-171.
[28]	RAY L R, STENGEL R F. A Monte Carlo approach to the analysis of control system robustness[J]. Automatica, 1993, 29(1): 229-236. doi: 10.1016/0005-1098(93)90187-X
[29]	CHEN X, ZHOU K, ARAVENA J L. Fast universal algorithms for robustness analysis[C]// 42nd IEEE International Conference on Decision and Control. IEEE, 2003: 1926-1931.
[30]	WU Z, ZHANG F, SHI G, et al. Frequency-domain analysis of a modified active disturbance rejection control with application to superheated steam temperature control[C]// 2019 19th International Conference on Control, Automation and Systems (ICCAS). IEEE, 2019: 44-50.

控制策略	σ/%	t_s/s	J_sp	J_ud1	J_ud2
OPI-PI	13.6	2 900	680.9	329.6	656.3
IPI-PI	0	1 122	336.5	92.4	350.0
ADRC-PI	1.3	700	344.2	92.2	292.9
MADRC-PI	1.0	578	260.6	82.8	238.8
HADRC	0.2	424	215.1	41.6	202.9
PR-HADRC	0.2	299	153.5	8.5	114.0

控制策略	概率估计值
OPI-PI	0.081 6
IPI-PI	0.231 6
ADRC-PI	0.180 0
MADRC-PI	0.249 6
HADRC	0.427 2
PR-HADRC	0.909 2
