考虑经济效益目标的源网荷储综合能源系统动态最优能流优化研究

doi:10.3969/j.issn.2097-0706.2022.11.009

摘要/Abstract

摘要：

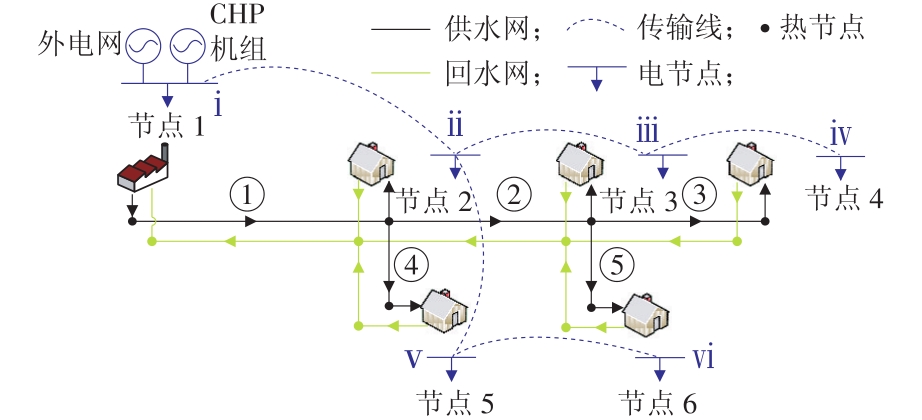

随着新能源大规模接入，电力系统将呈现显著的“双侧随机性”和“双峰双高”的“三双”特征。为保证电力系统安全稳定高效运行，必须加速推进源网荷储一体化和多能互补发展，通过综合能源系统（IES）建设，保障大规模新能源顺利消纳。在综合能源框架下，各能源子系统间的能量交互更加频繁，为获得源网荷储各环节的交互特性、响应时间尺度及调节速率等信息，着眼于综合能源系统动态最优能流分析，以经济、高效为目标分析源网荷储动态最优潮流特性。首先，分别建立了IES中电力网络、天然气网络和热力系统的数学模型；在此基础上，以源网储侧经济成本最低、效率最高为目标，构建了考虑源网荷储互动的多能流系统的整体动态分析模型；最后，基于包含1个6节点的电力系统和1个6节点的供热系统的综合能源系统，分析了多能流系统的动态响应和调控特性，验证了所提出模型的正确性和有效性。

关键词: 综合能源系统, 电-气-热互联系统, 多能流, 最优能流分析, 动态分析, 源网荷储, 双峰双高

Abstract:

With the large-scale access of new energy，the power system shows the characteristics of "two-side randomness"，"two peaks" and "two high proportions". In order to ensure the safe，stable and efficient operation of the power system，it is necessary to accelerate the integration of source，network，load and storage and the complementary development of multiple energy. A large amount of new energy can be consumed by Integrated Energy Systems（IESs）. Energy interactions between energy subsystems can be more frequent in an integrated energy system. In order to obtain the data such as interaction characteristics，response time scale and regulation rate of in source，network，load and storage links， the dynamic optimal energy flow analysis of the integrated energy system is made with the goals of economic benefit and high efficiency. Firstly，the mathematical models of the power grid，natural gas network and thermal system in the IES are established，respectively. Then， the overall dynamic analysis model of the multi-energy flow system considering the energy interaction between source， network， load and storage links is constructed， aiming at the lowest economic cost and the highest efficiency of these links. Finally，based on the case study of an integrated energy system including a 6-node power system and a 6-node heating system，its dynamic response and regulation characteristics of the multi-energy flow system are analyzed，which verifies the correctness and effectiveness of the proposed model.

Key words: integrated energy system, electricity-gas-heat combined system, multi-energy flow, optimal energy flow analysis, dynamic analysis, power-grid-load-storage, "two peaks" and "two high proportions"

中图分类号:

TK01

杨梅, 周喜超, 魏强, 梁大伟, 吴茂乾. 考虑经济效益目标的源网荷储综合能源系统动态最优能流优化研究[J]. 综合智慧能源, 2022, 44(11): 63-69.

YANG Mei, ZHOU Xichao, WEI Qiang, LIANG Dawei, WU Maoqian. Study on dynamic optimal energy flow of a source-network-load-storage integrated energy system considering its economic benefit[J]. Integrated Intelligent Energy, 2022, 44(11): 63-69.

图/表 6

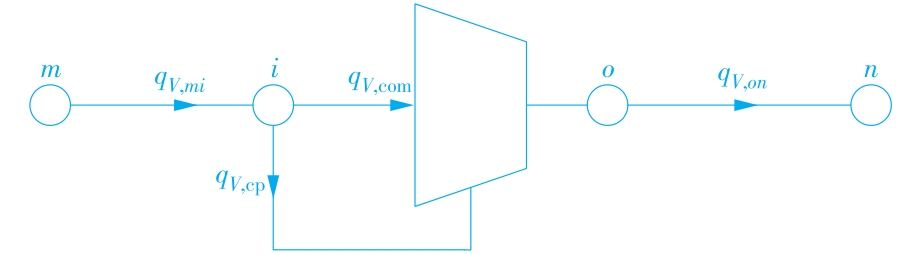

图1

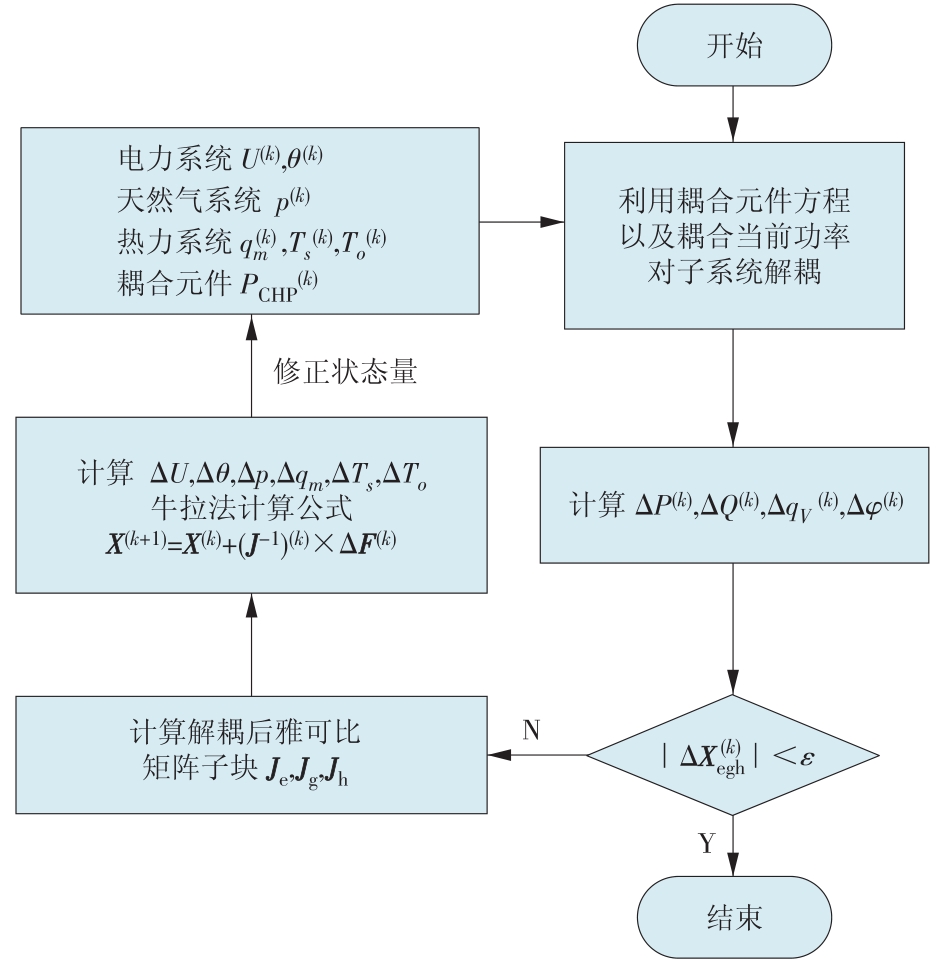

图2

图3

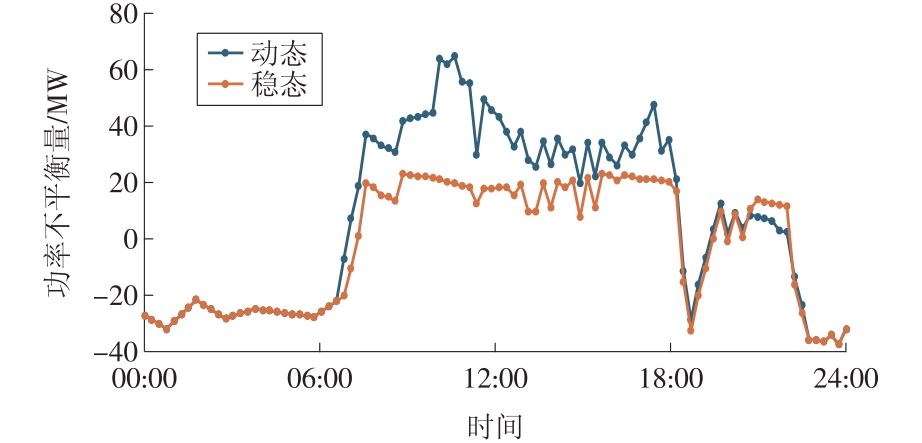

图4

表1

表2

参考文献 29

[1]	JIN H, HONG H, WANG B, et al. A new principle of synthetic cascade utilization of chemical energy and physical energy[J]. Science in China Series E:Technological Sciences, 2005, 48(2):163-179. doi: 10.1360/04ye0234
[2]	康重庆, 陈启鑫, 夏清. 低碳电力技术的研究展望[J]. 电网技术, 2009, 33(2):1-7.
	KANG Chongqing, CHEN Qixin, XIA Qing. Prospects of low-carbon electricity[J]. Power System Technology, 2009, 33(2):1-7.
[3]	程耀华, 张宁, 康重庆, 等. 低碳多能源系统的研究框架及展望[J]. 中国电机工程学报, 2017, 37(14):4060-4069.
	CHENG Yaohua, ZHANG Ning, KANG Chongqing, et al. Research framework and prospects of low-carbon m ultiple energy system s[J]. Proceedings of the CSEE, 2017, 37(14):4060-4069.
[4]	赵国涛, 钱国明, 王盛. “双碳”目标下绿色电力低碳发展的路径分析[J]. 华电技术, 2021, 43(6): 11-20.
	ZHAO Guotao, QIAN Guoming, WANG Sheng. Analysis on green and low-carbon development path for power industry to realize carbon peak and carbon neutrality[J]. Huadian Technology, 2021, 43(6): 11-20.
[5]	谢典, 高亚静, 芦新波, 等. 能耗“双控”向碳排放“双控”转变的实施路径研究[J]. 综合智慧能源, 2022, 44(7): 73-80. doi: 10.3969/j.issn.2097-0706.2022.07.009
	XIE Dian, GAO Yajing, LU Xinbo, et al. Research on the implementation path of the transition from dual control on energy consumption to dual control on carbon emission[J]. Integrated Intelligent Energy, 2022, 44(7): 73-80. doi: 10.3969/j.issn.2097-0706.2022.07.009
[6]	贾宏杰, 穆云飞, 余晓丹. 对我国综合能源系统发展的思考[J]. 电力建设, 2015, 36(1):16-25. doi: 10.3969/j.issn.1000－7229.2015.01.003
	JIA Hongjie, MU Yunfei, YU Xiaodan. Thought about the integrated energy system in China[J]. Electric Power Construction, 2015, 36(1):16-25. doi: 10.3969/j.issn.1000－7229.2015.01.003
[7]	贾宏杰, 王丹, 徐宪东, 等. 区域综合能源系统若干问题研究[J]. 电力系统自动化, 2015, 39(7):198-207.
	JIA Hongjie, WANG Dan, XU Xiandong, et al. Research on some key problems related to integrated energy systems[J]. Automation of Electric Power Systems, 2015, 39(7):198-207.
[8]	刘自发, 谭雅之, 李炯, 等. 区域综合能源系统规划关键问题研究综述[J]. 综合智慧能源, 2022, 44(6): 12-24. doi: 10.3969/j.issn.2097-0706.2022.06.002
	LIU Zifa, TAN Yazhi, LI Jiong, et al. Review on key points in the planning for a district-level integrated energy system[J]. Integrated Intelligent Energy, 2022, 44(6): 12-24. doi: 10.3969/j.issn.2097-0706.2022.06.002
[9]	韩峰, 张衍国, 严矫平, 等. 综合能源服务业务和合作模式[J]. 华电技术, 2019, 41(11): 1-4.
	HAN Feng, ZHANG Yanguo, YAN Jiaoping, et al. Integrated energy service and cooperation modes[J]. Huadian Technology, 2019, 41(11): 1-4.
[10]	杨勇平, 林振娴, 何坚忍. 热电联产系统中最佳冷源热网加热器的选择方法[J]. 中国电机工程学报, 2010, 30(26):1-6.
	YANG Yongping, LIN Zhenxian, HE Jianren. Chosen method of optimum cold source thermal-system heater in heat and power cogeneration system[J]. Proceeding of the CSEE, 2010, 30(26):1-6.
[11]	PAN Z, GUO Q, SUN H. Interactions of district electricity and heating systems considering time-scale characteristics based on quasi-steady multi-energy flow[J]. Applied Energy, 2016, 167(10):230-243. doi: 10.1016/j.apenergy.2015.10.095
[12]	CORREA-POSADA C M, SANCHEZ-MARTIN P. Integrated power and natural gas model for energy adequacy in short-term operation[J]. IEEE Transactions on Power Systems, 2015, 30(6):3347-3355. doi: 10.1109/TPWRS.2014.2372013
[13]	刘长军. 楼宇热电冷联供系统的节能分析与应用研究[D]. 成都: 西南交通大学, 2006.
[14]	周任军, 冉晓洪, 毛发龙, 等. 分布式冷热电三联供系统节能协调优化调度[J]. 电网技术, 2012, 36(6):8-14.
	ZHOU Renjun, RAN Xiaohong, MAO Falong, et al. Energy-saving coordinated optimal dispatch of distributed combined cool,heat and power supply[J]. Power System Technology, 2012, 36(6):8-14.
[15]	朱海东, 郝浩, 郑剑, 等. 基于冷热电多能互补的园区综合能源系统设计[J]. 华电技术, 2021, 43(4): 34-38.
	ZHU Haidong, HAO Hao, ZHENG Jian, et al. Design of integrated energy system for parks based on complementation of cold, heat and electricity[J]. Huadian Technology, 2021, 43(4): 34-38.
[16]	孙思宇, 于成琪, 孙涛, 等. 冷热电三联供分布式能源系统研究进展[J]. 华电技术, 2019, 41(11): 26-31.
	SUN Siyu, YU Chengqi, SUN Tao, et al. Advance in study on CCHP distributed energy system[J]. Huadian Technology, 2019, 41(11): 26-31.
[17]	顾泽鹏, 康重庆, 陈新宇, 等. 考虑热网约束的电热能源集成系统运行优化及其风电消纳效益分析[J]. 中国电机工程学报, 2015, 35(14):3596-3604.
	GU Zepeng, KANG Chongqing, CHEN Xinyu, et al. Operation optimization of integrated power and heat energy systems and the benefit on wind power accommodation considering heating network constraints[J]. Proceeding of the CSEE, 2015, 35(14):3596-3604.
[18]	XU X, JIN X, JIA H, et al. Hierarchical management for integrated community energy systems[J]. Applied Energy, 2015, 160:231-243. doi: 10.1016/j.apenergy.2015.08.134
[19]	PAN Z, GUO Q, SUN H. Interactions of district electricity and heating systems considering time-scale characteristics based on quasi-steady multi-energy flow[J]. Applied Energy, 2016, 167:230-243. doi: 10.1016/j.apenergy.2015.10.095
[20]	MA T, WU J, HAO L, et al. Energy flow matrix modeling and optimal operation analysis of multi energy systems based on graph theory[J]. Applied Thermal Engineering, 2018, 146:648-663. doi: 10.1016/j.applthermaleng.2018.10.022
[21]	JASZCZUR M, HASSAN Q, PALEJ P, et al. Multi-objective optimization of a micro-grid hybrid power system for household application[J]. Energy, 2020, 202:117738. doi: 10.1016/j.energy.2020.117738
[22]	ZENG Q, FANG J, LI J, et al. Steady-state analysis of the inte grated natural gas and electric power system with bi-directional energy conversion[J]. Applied Energy, 2016, 184:1483-1492. doi: 10.1016/j.apenergy.2016.05.060
[23]	王英瑞, 曾博, 郭经, 等. 电-热-气综合能源系统多能流计算方法[J]. 电网技术, 2016, 40(10):2942-2950.
	WANG Yingrui, ZENG Bo, GUO Jing, et al. Multi-energy flow calculation method for integrated energy system containing electricity,heat and gas[J]. Power System Technology, 2016, 40(10):2942-2950.
[24]	LI J, FANG J, ZENG Q, et al. Optimal operation of the integrated electrical and heating systems to accommodate the intermittent renewable sources[J]. Applied Energy, 2016, 167:244-254. doi: 10.1016/j.apenergy.2015.10.054
[25]	徐宪东, 贾宏杰, 靳小龙, 等. 区域综合能源系统电/气/热混合潮流算法研究[J]. 中国电机工程学报, 2015, 35(14):3634-3642.
	XU Xiandong, JIA Hongjie, JIN Xiaolong, et al. Study on hybrid heat-gas-power flow algorithm for integrated community energy system[J]. Proceedings of the CSEE, 2015, 35(14):3634-3642.
[26]	江茂泽, 徐羽镗, 王寿喜, 等. 输配气管网的模拟与分析[M]. 北京: 石油工业出版社, 1995:205-219.
[27]	LIU X. Combined analysis of electricity and heat networks[D]. Cardiff: Cardiff University, 2013.
[28]	BASU A K, CHOWDHURY S, CHOWDHURY S P. Operational management of CHP-based microgrid[C]// 2010 International Conference on Power System Technology(POWERCON).Hangzhou,China:IEEE, 2010:1-5.
[29]	LI Z, WU W, WANG J, et al. Transmission-constrained unit commitment considering combined electricity and district heating networks[J]. IEEE Transactions on Sustainable Energy, 2016, 7(2):480-492. doi: 10.1109/TSTE.2015.2500571

时间	电功率/MW	电价/[美元·(MW·h)^-1]	时间	电功率/MW	电价/[美元·(MW·h)^-1]
01：00	0	50	13:00	11	105
02：00	0	50	14:00	0	50
03：00	0	50	15:00	0	50
04：00	0	50	16:00	0	50
05:00	0	50	17:00	23	170
06:00	0	50	18:00	11	105
07:00	0	50	19:00	0	50
08:00	0	50	20:00	0	50
09:00	4	70	21:00	18	140
10:00	48	280	22:00	12	110
11:00	28	180	23:00	0	50
12:00	13	120	24:00	0	50

方法	总成本/万美元	求解器时间/s	总求解时间/s
稳态最优潮流	49.29	0.87	91.57
动态最优潮流	47.98	5.48	614.76
