含分布式新能源和需求响应负荷的虚拟电厂定价机制及优化调度

doi:10.3969/j.issn.2097-0706.2024.10.002

摘要/Abstract

摘要：

面对电网中分布式风电、光伏发电以及柔性负荷的广泛接入，将这些资源通过虚拟电厂（VPP）进行聚合，采用合理的电价机制来引导用户参与需求响应，可以有效提升新能源的消纳能力并降低整体运营成本。传统的分时电价机制往往难以实现需求响应负荷与新能源出力的良好匹配，可能会导致需求响应的不合理或过度反应。为此，针对包括分布式风电、分布式光伏发电和柔性负荷的VPP，提出了一种基于新能源出力的VPP内部定价机制，并设置电力交易优先级来引导VPP内部各资源优化运行，以VPP的整体运营成本最小化为目标，构建了一个VPP优化调度的混合整数线性规划模型。基于内蒙古某地区的实际数据进行仿真计算，结果表明，与基于传统分时电价的优化结果相比，该方法能显著提高新能源的利用率并降低VPP的运行费用。

关键词: 分布式新能源, 虚拟电厂, 柔性负荷, 需求响应, 定价机制, 混合整数线性规划模型

Abstract:

Faced with the widespread integration of distributed wind power， photovoltaic power generation， and flexible loads into the grid， aggregating these resources through virtual power plants （VPPs） and adopting a reasonable pricing mechanism to guide users to participate in demand response can effectively enhance the absorption capacity of renewable energy and reduce overall operating costs. Traditional time-of-use pricing mechanisms often struggle to achieve a good match between demand response loads and renewable energy output， which may result in irrational or excessive demand response. To address this， a VPP internal pricing mechanism based on renewable energy output was proposed for VPPs containing distributed wind power， distributed photovoltaic power generation， and flexible loads. Power trading priorities were set to guide the optimal operation of internal VPP resources， with the goal of minimizing the overall operating costs of the VPP. A mixed integer linear programming （MILP） model was constructed for optimal VPP scheduling. Simulation results based on real data from a region in Inner Mongolia show that， compared to optimization results based on traditional time-of-use pricing， this method significantly improves renewable energy utilization and reduces VPP operating costs.

Key words: distributed renewable energy resource, virtual power plant, flexible load, demand response, pricing mechanism, mixed integer linear programming model

中图分类号:

TK01：TM732

李明扬, 董哲. 含分布式新能源和需求响应负荷的虚拟电厂定价机制及优化调度[J]. 综合智慧能源, 2024, 46(10): 12-17.

LI Mingyang, DONG Zhe. Pricing mechanism and optimal scheduling of virtual power plants containing distributed renewable energy and demand response loads[J]. Integrated Intelligent Energy, 2024, 46(10): 12-17.

图/表 7

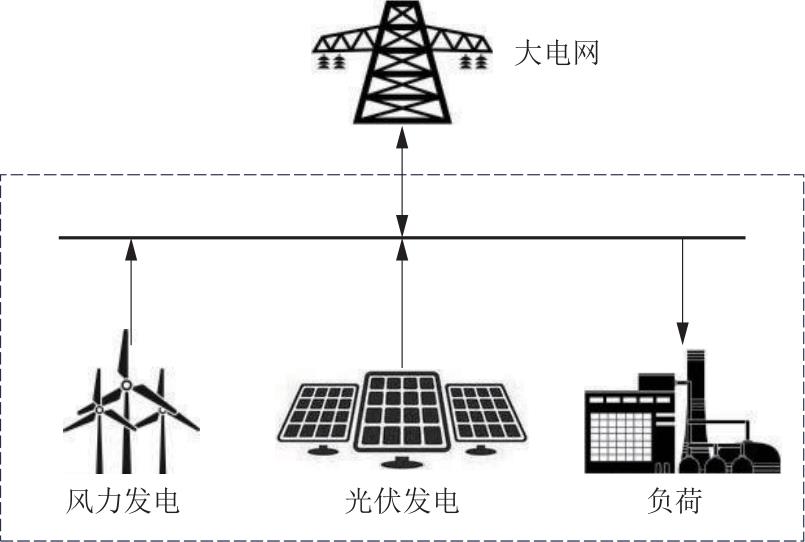

图1

表1

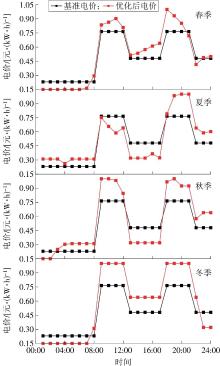

图2

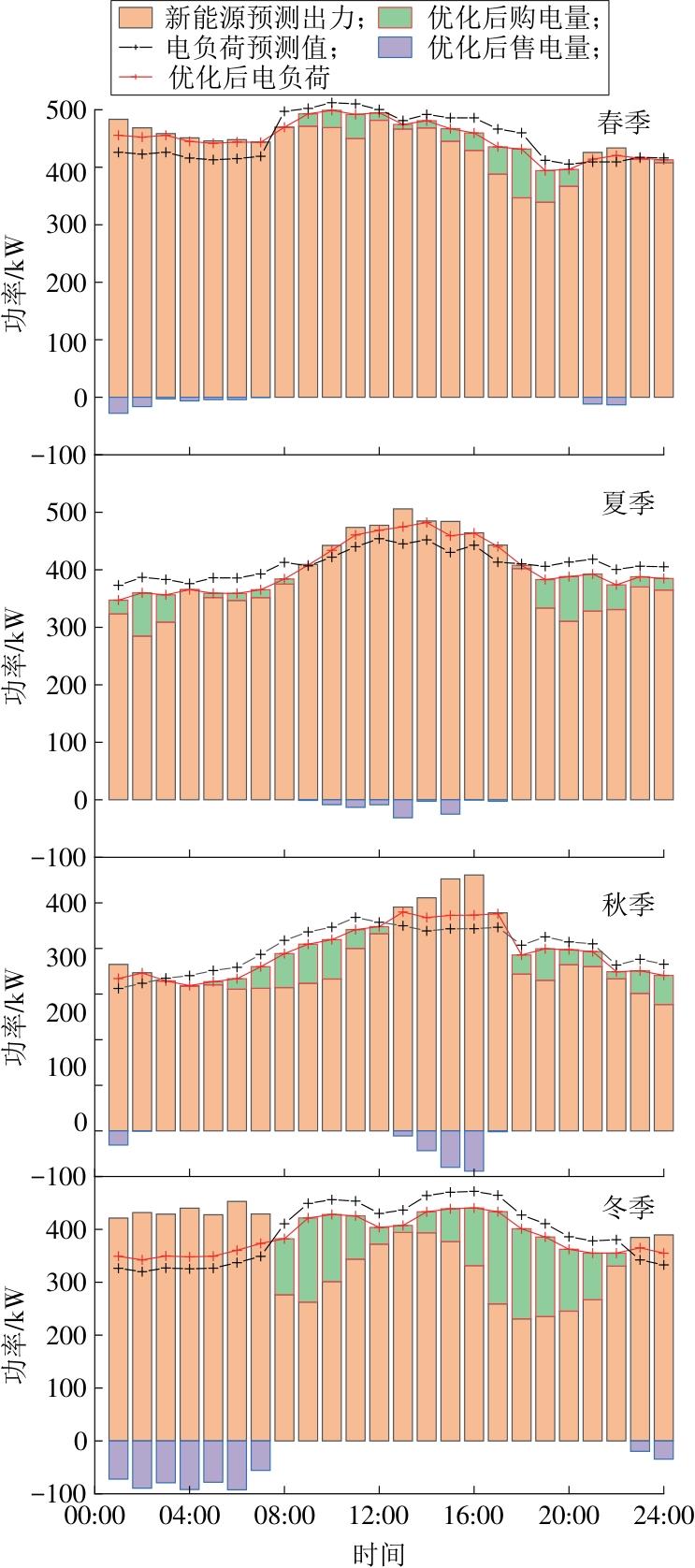

图3

图4

图5

表2

参考文献 22

[1]	杨力帆, 周鲲, 齐增清, 等. 基于需求响应的虚拟电厂多时间尺度优化调度[J]. 电网与清洁能源, 2024, 40(3): 10-21.
	YANG Lifan, ZHOU Kun, QI Zengqing, et al. A multi-time scale optimal scheduling strategy of virtual power plants based on demand response[J]. Power System and Clean Energy, 2024, 40(3): 10-21.
[2]	张静, 李昊, 李文, 等. 面向碳中和的中国电能替代发展路径规划方法探讨[J]. 电力建设, 2022, 43(9): 47-53. doi: 10.12204/j.issn.1000-7229.2022.09.005
	ZHANG Jing, LI Hao, LI Wen, et al. Discussion on the pathways of China's electrification polices to pursue the carbon neutralization target[J]. Electric Power Construction, 2022, 43(9): 47-53. doi: 10.12204/j.issn.1000-7229.2022.09.005
[3]	CHEN S J, LIU C C. From demand response to transactive energy: State of the art[J]. Journal of Modern Power Systems and Clean Energy, 2017, 5(1): 10-19.
[4]	王康平, 黄曲粲, 张兴科, 等. 考虑调峰成本的大规模电动汽车分群调度策略[J]. 综合智慧能源, 2022, 44(11): 12-19. doi: 10.3969/j.issn.2097-0706.2022.11.002
	WANG Kangping, HUANG Qucan, ZHANG Xingke, et al. Strategy for large-scale electric vehicles cluster scheduling considering peak-shaving cost[J]. Integrated Intelligent Energy, 2022, 44(11): 12-19. doi: 10.3969/j.issn.2097-0706.2022.11.002
[5]	何金松, 叶鹏, 张涛, 等. 面向电力系统应用的空调负荷研究综述[J]. 沈阳工程学院学报(自然科学版), 2019, 15(4): 343-349.
	HE Jinsong, YE Peng, ZHANG Tao, et al. Research overview of air conditioning load for power system application[J]. Journal of Shenyang Institute of Engineering (Natural Science), 2019, 15(4): 343-349.
[6]	皎月. 2022新能源汽车产业排行[J]. 互联网周刊, 2023(9):8-9.
	JIAO Yue. 2022 New energy vehicle industry ranking[J]. China Internet Week, 2023(9):8-9.
[7]	徐筝, 孙宏斌, 郭庆来. 综合需求响应研究综述及展望[J]. 中国电机工程学报, 2018, 38(24): 7194-7205.
	XU Zheng, SUN Hongbin, GUO Qinglai. Review and prospect of integrated demand response[J]. Proceedings of the CSEE, 2018, 38(24): 7194-7205.
[8]	王彩霞, 时智勇, 梁志峰, 等. 新能源为主体电力系统的需求侧资源利用关键技术及展望[J]. 电力系统自动化, 2021, 45(16): 37-48.
	WANG Caixia, SHI Zhiyong, LIANG Zhifeng, et al. Key technologies and prospects of demand-side resource utilization for power systems dominated by renewable energy[J]. Automation of Electric Power Systems, 2021, 45(16): 37-48.
[9]	曹紫霖, 王文静, 赵薇, 等. 考虑需求响应的负荷密集区分布式综合能源系统优化调度研究[J]. 综合智慧能源, 2023, 45(7): 11-21. doi: 10.3969/j.issn.2097-0706.2023.07.002
	CAO Zilin, WANG Wenjing, ZHAO Wei, et al. Research on optimal scheduling of distributed integrated energy systems in load-intensive areas considering demand response[J]. Integrated Intelligent Energy, 2023, 45(7): 11-21. doi: 10.3969/j.issn.2097-0706.2023.07.002
[10]	刘健, 刘雨鑫, 庄涵羽. 虚拟电厂关键技术及其建设实践[J]. 综合智慧能源, 2023, 45(6): 59-65. doi: 10.3969/j.issn.2097-0706.2023.06.008
	LIU Jian, LIU Yuxin, ZHUANG Hanyu. Key technologies and construction practices of virtual power plants[J]. Integrated Intelligent Energy, 2023, 45(6): 59-65. doi: 10.3969/j.issn.2097-0706.2023.06.008
[11]	SOWA T, VASCONCELOS M, SCHNETTLER A, et al. Method for the operation planning of virtual power plants considering forecasting errors of distributed energy resources[J]. Electrical Engineering, 2016, 98(4): 347-354.
[12]	谢敏, 黄莹, 李弋升, 等. 分布式能源动态聚合于虚拟电厂的演化博弈决策方法和机理分析[J]. 电网技术, 2023, 47(12): 4958-4977.
	XIE Min, HUANG Ying, LI Yisheng, et al. Evolutionary game decision and mechanism analysis of dynamical aggregation of distributed energy resources into virtual power plant[J]. Power System Technology, 2023, 47(12): 4958-4977.
[13]	梅书凡. 市场条件下含多种分布式能源的虚拟电厂运营优化研究[D]. 北京: 华北电力大学, 2022.
	MEI Shufan. Research on operation optimization of virtual power plant with multi-distributed energy under market conditions[D]. Beijing: North China Electric Power University, 2022.
[14]	KUMAR P A, KUMAR J V, SABHAHIT JAYALAKSHMI N. Real-time peak valley pricing based multi-objective optimal scheduling of a virtual power plant considering renewable resources[J]. Energies, 2022, 15(16): 5970.
[15]	TAN Y T, ZHI Y M, LUO Z B, et al. Optimal scheduling of virtual power plant with flexibility margin considering demand response and uncertainties[J]. Energies, 2023, 16(15):5833.
[16]	CAO J Y, ZHENG Y Y, HAN X R, et al. Two-stage optimization of a virtual power plant incorporating with demand response and energy complementation[J]. Energy Reports, 2022, 87374-7385.
[17]	LIU Z, ZHENG W, QI F, et al. Optimal dispatch of a virtual power plant considering demand response and carbon trading[J]. Energies, 2018, 11(6): 1488-1488.
[18]	焦丰顺, 张杰, 任畅翔, 等. 多种绿色能源形态下的虚拟电厂定价机制研究[J]. 南方能源建设, 2020, 7(1): 133-139.
	JIAO Fengshun, ZHANG Jie, REN Changxiang, et al. Research on pricing mechanism of virtual power plants containing multiple green energy sources[J]. Southern Energy Construction, 2020, 7(1): 133-139.
[19]	CHEN W, QIU J, ZHAO J, et al. Customized rebate pricing mechanism for virtual power plants using a hierarchical game and reinforcement learning approach[J]. IEEE Transactions on Smart Grid, 2023, 14(1): 424-439.
[20]	张忠伟. 考虑源荷双重不确定性的虚拟电厂内部定价机制研究[D]. 重庆: 重庆工商大学, 2023.
	ZHANG Zhongwei. Research on internal pricing mechanism of virtual power plant considering double uncertainty of source and load[D]. Chongqing: Chongqing Technology and Business University, 2023.
[21]	魏震波, 马新如, 郭毅, 等. 碳交易机制下考虑需求响应的综合能源系统优化运行[J]. 电力建设, 2022, 43(1): 1-9. doi: 10.12204/j.issn.1000-7229.2022.01.001
	WEI Zhenbo, MA Xinru, GUO Yi, et al. Optimized operation of integrated energy system considering demand response under carbon trading mechanism[J]. Electric Power Construction, 2022, 43(1): 1-9. doi: 10.12204/j.issn.1000-7229.2022.01.001
[22]	李嘉媚, 艾芊. 考虑调峰辅助服务的虚拟电厂运营模式[J]. 电力自动化设备, 2021, 41(6): 1-13.
	LI Jiamei, AI Qian. Operation mode of virtual power plant considering peak regulation auxiliary service[J]. Electric Power Automation Equipment, 2021, 41(6): 1-13.

时段		p_b(t)	p_s(t)
平时段	12:00—17:00，21:00—24:00	0.64	0.32
峰时段	08:00—12:00，17:00—21:00	1.00	0.53
谷时段	00:00—08:00	0.31	0.15

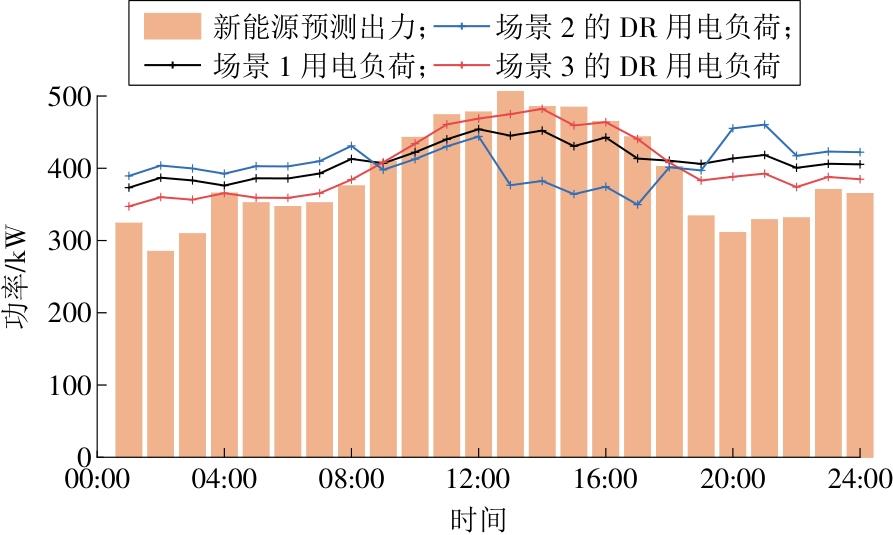

场景	VPP运行费用/元	新能源消纳率/%
1	381.59	97.02
2	393.60	92.99
3	270.35	99.00
