西北地区近零能耗建筑围护结构多目标优化研究

doi:10.3969/j.issn.2097-0706.2024.12.010

摘要/Abstract

摘要：

针对近零能耗建筑投资成本高以及西北地区近零能耗建筑建设水平参差不齐等问题，以某既有近零能耗建筑为研究对象，综合考虑能耗、成本、碳排放及室内舒适度等多项建筑性能指标，采用试验研究和TRNSYS仿真模拟相结合的方法，从能耗、成本、碳排放和室内舒适度等多个性能指标出发，对围护结构进行优化。研究结果表明：在最优围护结构组合方案，即天花板和外墙保温材料为聚苯板和聚氨酯，外墙、天花板保温层厚度分别为100，110 mm，西向、南向和北向窗墙比分别为0.05，0.28，0.30，外窗遮阳系数为0.38时，建筑成本较原始方案降低了9.8%，碳排放、能耗以及预测平均评价指数较原始方案分别提升了9.7%，12.1%，10.3%，不满意度占比降低了28.4%，建筑综合性能得以提升。

关键词: 西北地区, 近零能耗建筑, 围护结构, 碳排放, 预测平均评价指数, 不满意度占比, 多目标优化

Abstract:

To address the high investment costs of nearly zero-energy buildings （nZEBs） and the uneven construction quality of such buildings in Northwest China， an existing nZEB is selected as the research subject. By comprehensively considering multiple building performance indicators， including energy consumption， cost， carbon emissions， and indoor comfort， an optimization of the envelope structure was conducted. This was achieved through a combination of experimental research and TRNSYS simulation. The optimization process evaluated multiple performance metrics， including energy consumption， cost， carbon emissions， and indoor comfort. The results indicated that under the optimal envelope configuration—where the insulation materials for the ceiling and external walls were polystyrene board and polyurethane， and the insulation layer thicknesses for external walls and ceilings were 100 mm and 110 mm， respectively， with window-to-wall ratios of 0.05， 0.28， and 0.30 for the west， south， and north walls， and an external window shading coefficient of 0.38—the building cost decreased by 9.8% compared to the original design. Meanwhile， improvements were observed in carbon emissions（9.7%）， energy consumption（12.1%）， and predicted mean vote（10.3%）， with the predicted percentage dissatisfied reduced by 28.4%. These findings enhance the comprehensive performance of the building.

Key words: Northwest China, nearly zero-energy buildings, envelope structures, carbon emissions, PMV, PPD, multi-objective optimization

中图分类号:

TK018

甄箫斐, 李尚娥, 张永恒, 焦若楠, 吴文兵. 西北地区近零能耗建筑围护结构多目标优化研究[J]. 综合智慧能源, 2024, 46(12): 81-90.

ZHEN Xiaofei, LI Shang'e, ZHANG Yongheng, JIAO Ruonan, WU Wenbing. Research on multi-objective optimization of envelope structures for nearly zero-energy buildings in Northwest China[J]. Integrated Intelligent Energy, 2024, 46(12): 81-90.

图/表 20

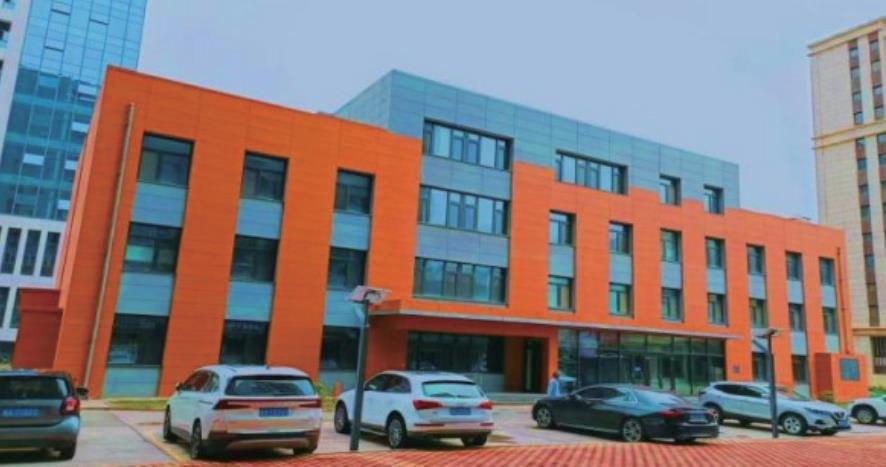

图1

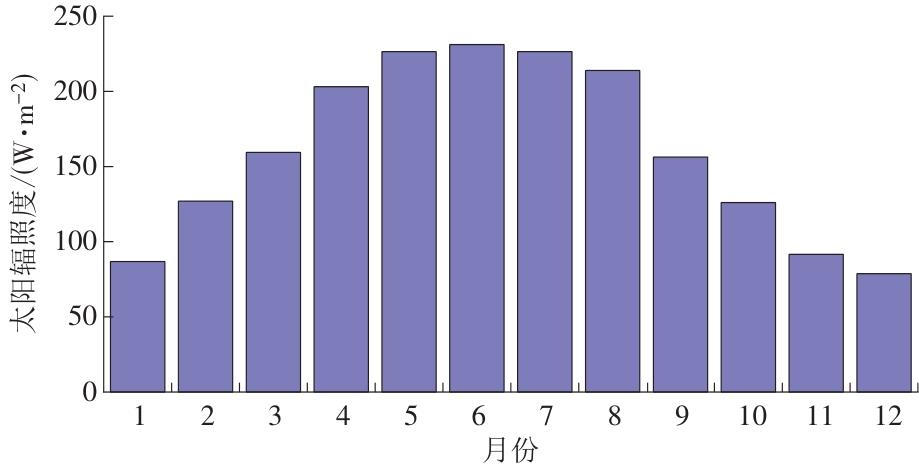

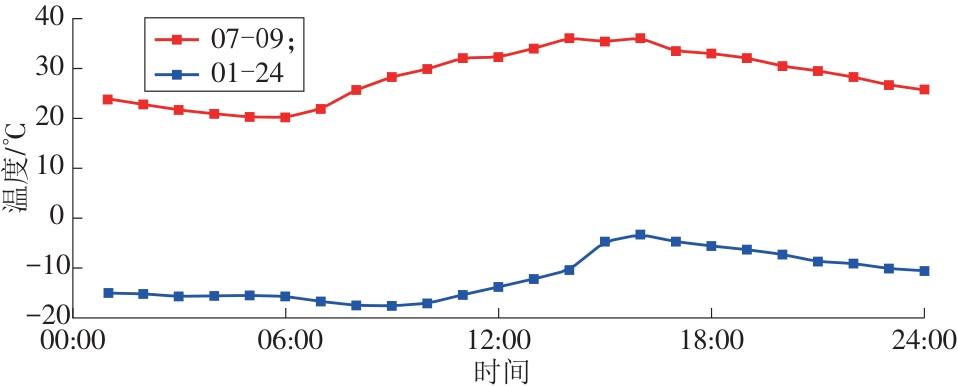

图2

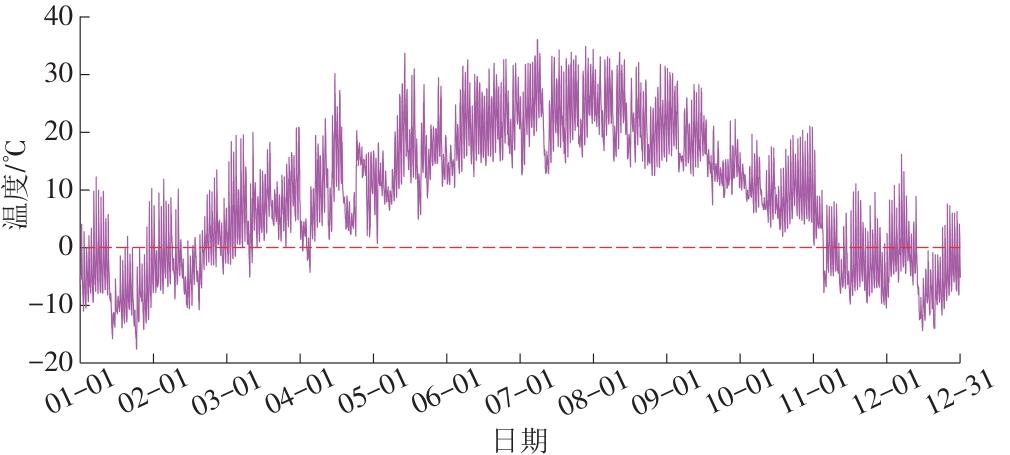

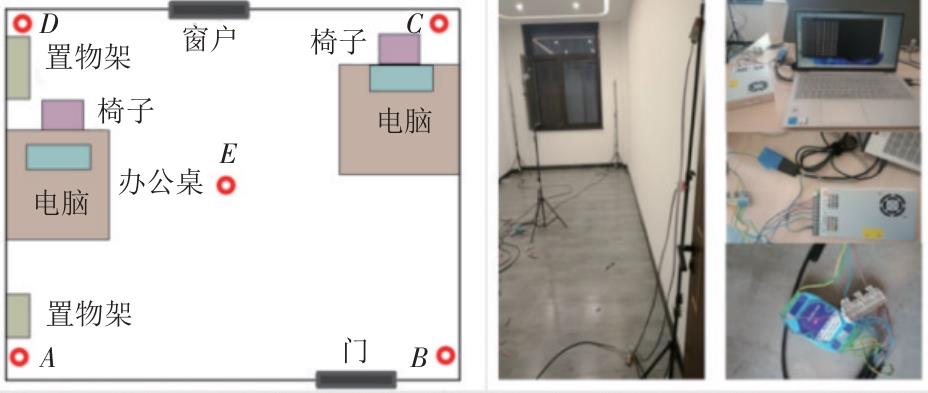

图3

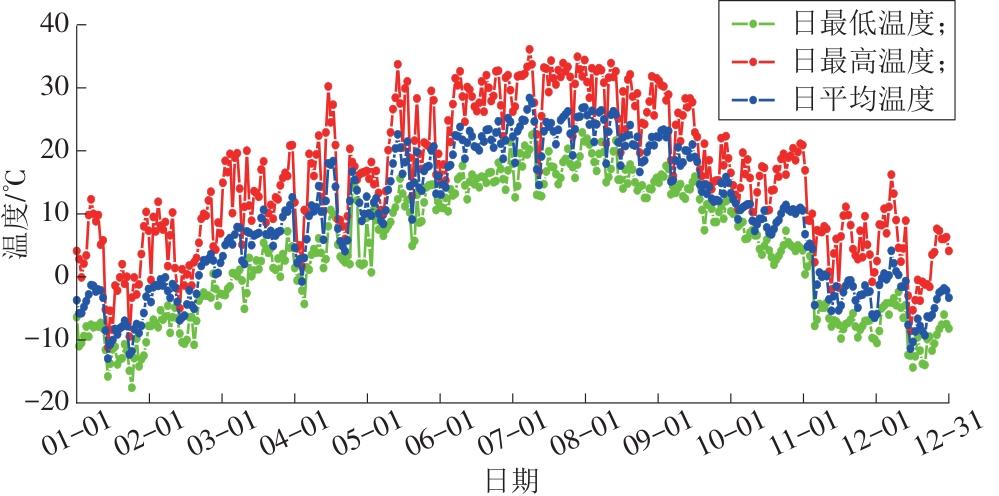

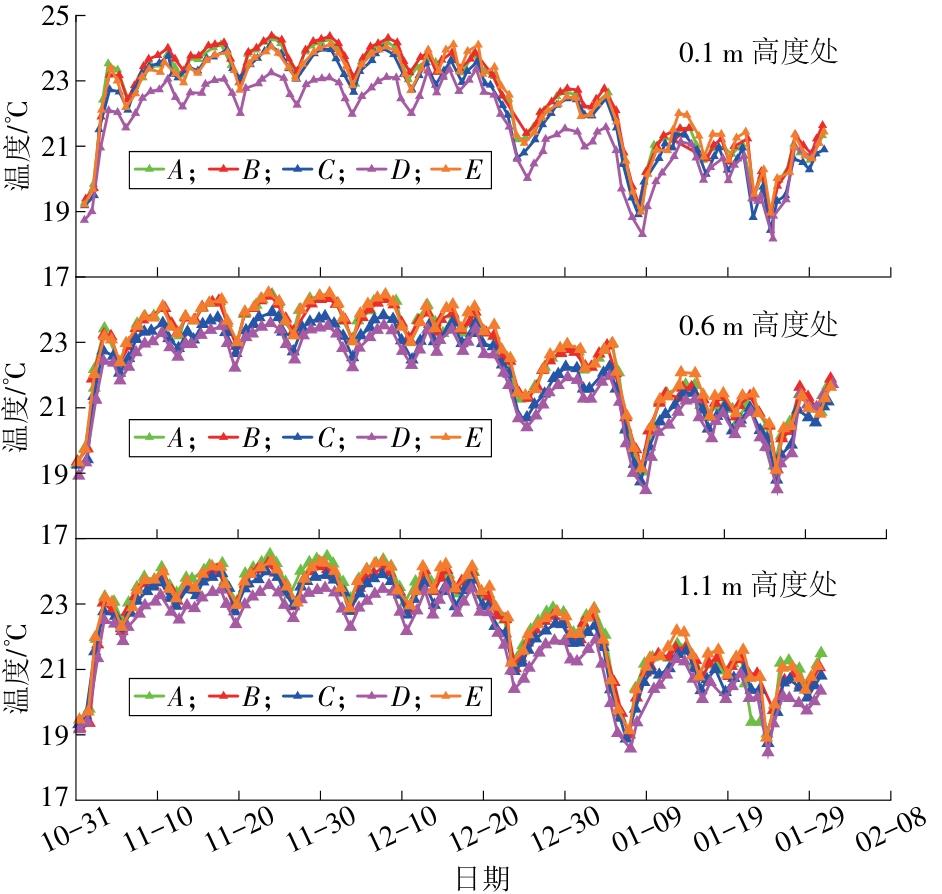

图4

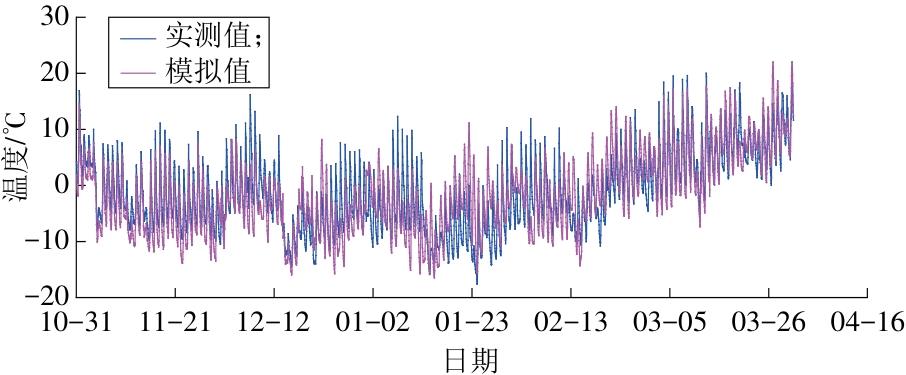

图5

图6

表1

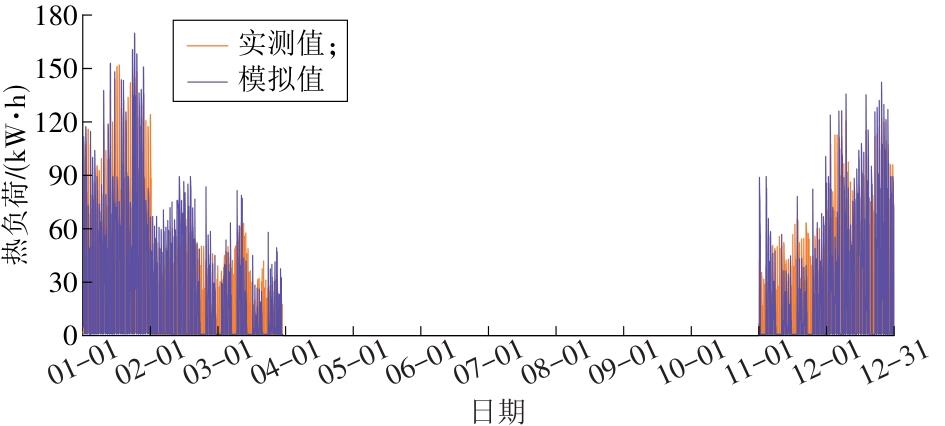

图7

表2

优化变量及优化目标约束范围

项目	约束范围
外墙厚度（岩棉+聚苯板）/mm	50 $∼$ 150
外墙厚度（聚氨酯）/mm	20 $∼$ 100
天花板保温层厚度/mm	20 $∼$ 250
西向窗墙比	0.04 $∼$ 0.35
南向窗墙比	0.24 $∼$ 0.50
北向窗墙比	0.25 $∼$ 0.30
PMV	-1 $∼$ 1
PPD/%	≤20

表2

表3

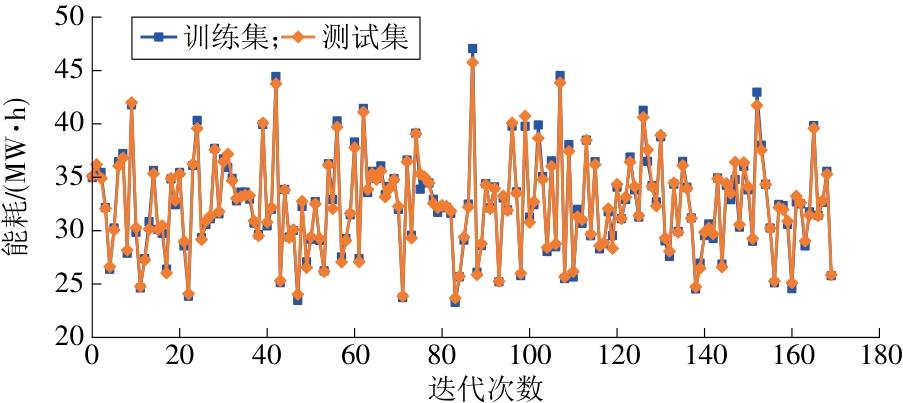

图8

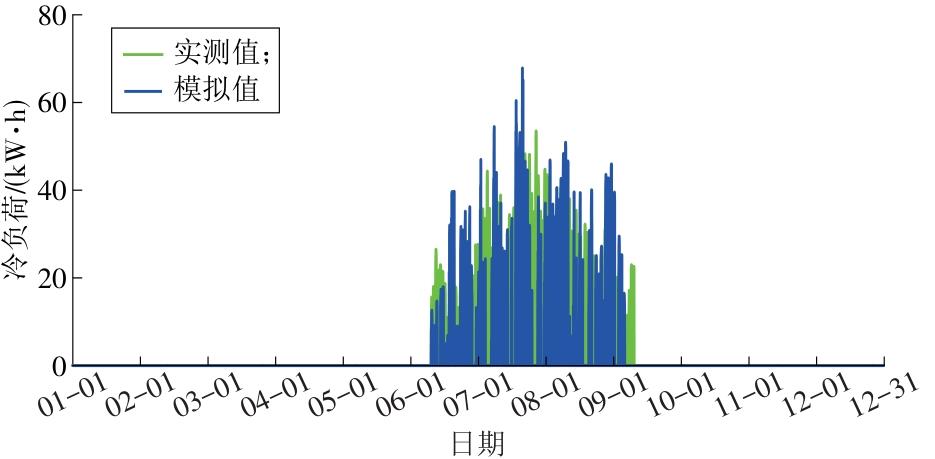

图9

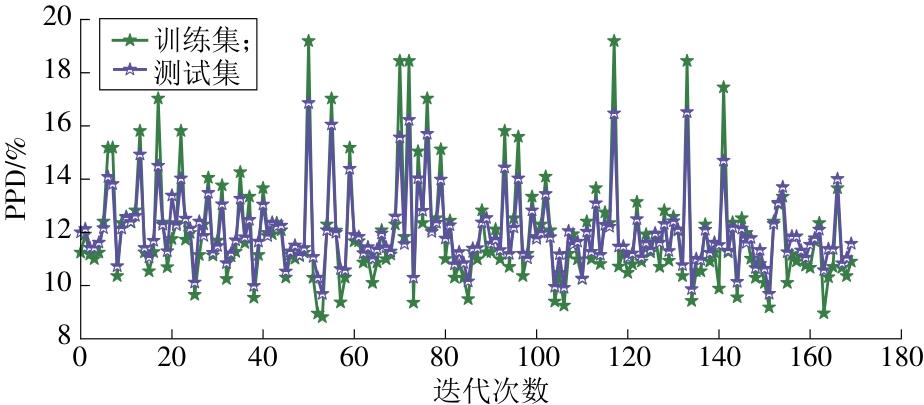

图10

图11

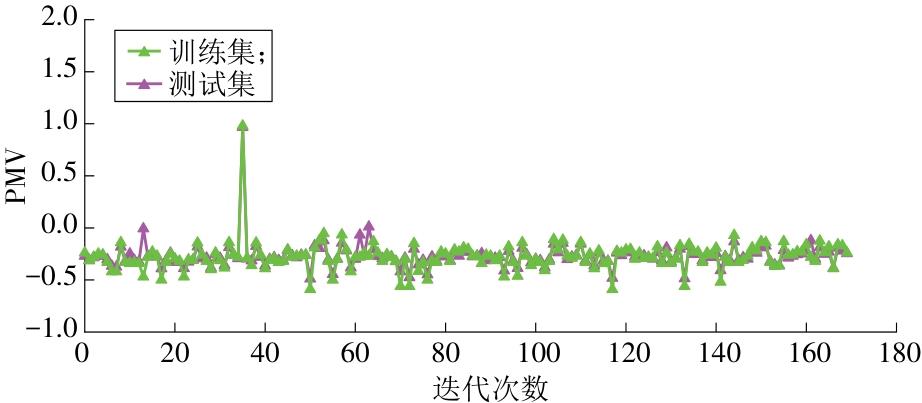

图12

图13

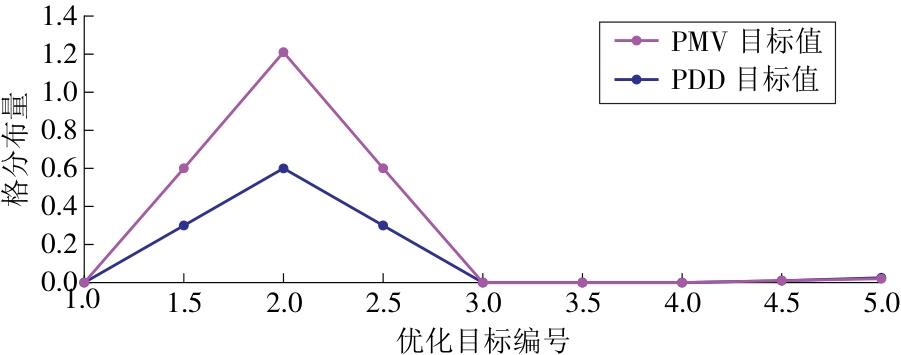

图14

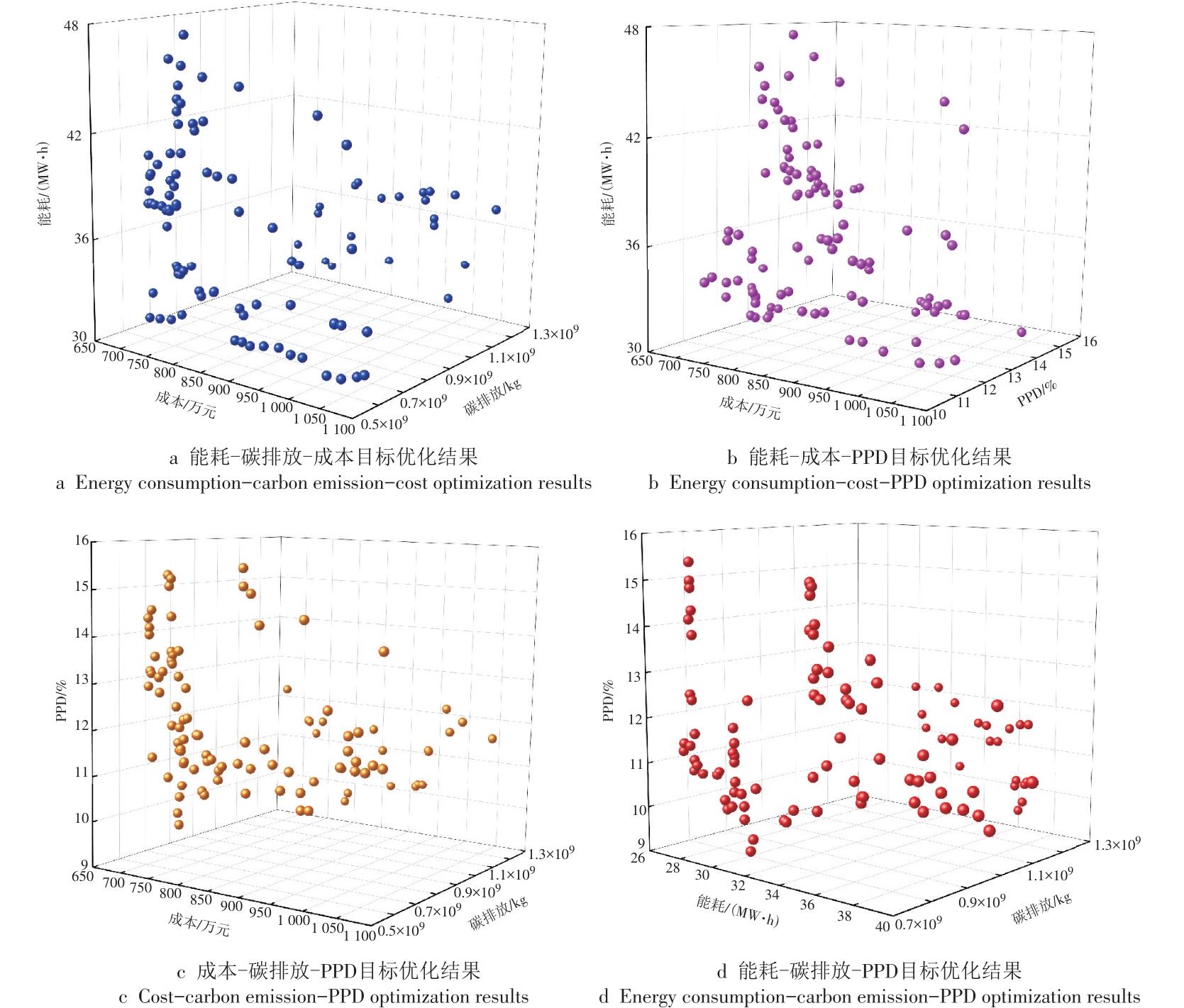

图15

表4

表5

参考文献 38

[1]	KHALID A H, STUART H, ABOUELWAFA A M. Occurrence, human exposure, and risk of microplastics in the indoor environment[J]. Environmental Science Processes & Impacts, 2021, 24(1): D1EM00301A.
[2]	郑立红, 周志华, 郭而郛, 等. 双碳背景下建筑碳排放动态基准线研究[J]. 制冷与空调(四川), 2022, 36(2):305-310,336.
	ZHENG Lihong, ZHOU Zhihua, GUO Erfu, et al. Research on dynamic baseline of building carbon emission under double carbon background[J]. Refrigeration and Air Conditioning, 2022, 36(2):305-310,336.
[3]	WASHIM A M, FIRDAUS M Z M, MD H, et al. Global prospects, advance technologies and policies of energy-saving and sustainable building systems: A review[J]. Sustainability, 2022, 14(3): 1316.
[4]	阳栋, 李晃, 李水生, 等. 建筑业减碳途径及实施策略[J]. 科技导报, 2022, 40(11): 105-110. doi: 10.3981/j.issn.1000-7857.2022.11.012
	YANG Dong, LI Huang, LI Shuisheng, et al. On the ways and implementation strategies of carbon reduction in China's construction industry[J]. Science & Technology Review, 2022, 40(11): 105-110.
[5]	樊颜搏, 熊亚选, 李想, 等. 基于遗传算法的建筑用能多目标优化应用进展[J]. 综合智慧能源, 2024, 46(9): 69-85. doi: 10.3969/j.issn.2097-0706.2024.09.009
	FAN Yanbo, XIONG Yaxuan, LI Xiang, et al. Advancement in multi-objective optimization for building energy use based on genetic algorithms[J]. Integrated Intelligent Energy, 2024, 46(9): 69-85. doi: 10.3969/j.issn.2097-0706.2024.09.009
[6]	林漫华, 张婉娜, 郑荣宝, 等. 广州市绿色建筑的时空演变及影响因素分析[J]. 热带地理, 2023, 43(9):1823-1834. doi: 10.13284/j.cnki.rddl.003737
	LIN Manhua, ZHANG Wanna, ZHENG Rongbao. Spatial and temporal evolution and influencing factors of green buildings in Guangzhou[J]. Tropical Geography, 2023, 43(9): 1823-1834. doi: 10.13284/j.cnki.rddl.003737
[7]	赵泽锋, 袁媛, 李振兴, 等. 近零能耗建筑发展简述[J]. 绿色建筑, 2024, 16(1): 7-9, 24.
	ZHAO Zefeng, YUAN Yuan, LI Zhenxing, et al. A brief overview of the development of near-zero energy buildings[J]. Green Building, 2024, 16(1): 7-9, 24.
[8]	胡开永, 刘峰, 吴秀杰, 等. 基于Trnsys能耗预测的村镇建筑不同供能方式碳-经济分析[J]. 综合智慧能源, 2023, 45(8): 64-71. doi: 10.3969/j.issn.2097-0706.2023.08.008
	HU Kaiyong, LIU Feng, WU Xiujie, et al. Carbon-economy analysis on energy supply methods for rural buildings based on Trnsys energy consumption prediction[J]. Integrated Intelligent Energy, 2023, 45(8): 64-71. doi: 10.3969/j.issn.2097-0706.2023.08.008
[9]	秦力, 刘佳楠, 史巍. 寒冷地区村镇附加阳光间住宅围护结构能耗实测分析[J]. 太阳能学报, 2022, 43(4): 264-270. doi: 10.19912/j.0254-0096.tynxb.2020-0715
	QIN Li, LIU Jianan, SHI Wei. Test analyses on energy consumption of rural residential building envelope with attached sunspace in cold region[J]. Acta Energiae Solaris Sinica, 2022, 43(4): 264-270. doi: 10.19912/j.0254-0096.tynxb.2020-0715
[10]	RAVISHANKAR E, BOOTH R E, SARAVITZ C, et al. Achieving net zero energy greenhouses by integrating semitransparent organic solar cells[J]. Joule, 2020, 4(2): 490-506.
[11]	褚于颉, 陈柳, 邓文杰, 等. 太阳能驱动转轮空调在近零能耗建筑中的应用[J]. 太阳能学报, 2023, 44(4): 464-471. doi: 10.19912/j.0254-0096.tynxb.2021-1390
	CHU Yujie, CHEN Liu, DENG Wenjie, et al. Application of solar driven desiccant cooling system in near zero energy buildings[J]. Acta Energiae Solaris Sinica, 2023, 44(4): 464-471. doi: 10.19912/j.0254-0096.tynxb.2021-1390
[12]	马文生, 郭强, 黄霆鹤, 等. 严寒地区近零能耗建筑太阳能新风预热系统供暖效果实测研究[J]. 太阳能学报, 2020, 41(6): 370-374.
	MA Wensheng, GUO Qiang, HUANG Tinghe, et al. Experimental study on solar preheating system used in nearly-zero-energy building in severe cold area[J]. Acta Energiae Solaris Sinica, 2020, 41(6): 370-374.
[13]	NASROLLAH N. Comprehensive building envelope optimization: Improving energy, daylight, and thermal comfort performance of the dwelling unit[J]. Journal of Building Engineering, 2021, 44: 103418.
[14]	桑国臣, 陈得勇, 韩艳, 等. 双热扰下节能墙体对室内热环境的动态影响[J]. 太阳能学报, 2017, 38(1): 164-171.
	SANG Guochen, CHEN Deyong, HAN Yan, et al. Influence of energy-saving wall on indoor thermal environment under the condition of bilateral thermal disturbance[J]. Acta Energiae Solaris Sinica, 2017, 38(1): 164-171.
[15]	ACAR U, KASKA O, TOKGOZ N. Multi-objective optimization of building envelope components at the preliminary design stage for residential buildings in Turkey[J]. Journal of Building Engineering, 2021, 42: 102499.
[16]	住房和城乡建设部. 近零能耗建筑技术标准: GB/T 51350 —2019[S]. 北京: 中国建筑工业出版社.
[17]	徐权, 冯乐涛, 高楠, 等. 基于不同光资源数据的光伏发电小时数模拟分析[J]. 能源与节能, 2023(8): 18-22.
	XU Quan, FENG Letao, GAO Nan, et al. Simulation analysis of photovoltaic power generation hours based on different optical resource data[J]. Energy and Energy Conservation, 2023(8): 18-22.
[18]	方宇龙, 张小松, 刘畅. 干式地板辐射非全覆盖导热板式末端供暖系统试验研究[J]. 东南大学学报(自然科学版), 2022, 52(6):1104-1113.
	FANG Yulong, ZHANG Xiaosong, LIU Chang. Experimental study of lightweight radiant floor heating system with non-full-coverage heat-conducting plate[J]. Journal of Southeast University (Natural Science Edition), 2022, 52(6):1104-1113.
[19]	钟辉智, 蔡君伟. 夏热冬冷地区净零能耗示范建筑能耗及碳排放分析[J]. 制冷与空调(四川), 2022, 36(2): 258-262.
	ZHONG Huizhi, CAI Junwei. Analysis on energy consumption and carbon emission of net zero energy consumption demonstration buildings in hot summer and cold winter areas[J]. Refrigeration & Air Conditioning, 2022, 36(2): 258-262.
[20]	ALI K A, AHMAD M I, YUSUP Y. Issues, impacts, and mitigations of carbon dioxide emissions in the building sector[J]. Sustainability, 2020, 12(18): 7427.
[21]	汪文楠. 绿色建筑工程造价管理的影响因素及解决方法[J]. 智能城市应用, 2024(2): 67-69.
	WANG Wennan. The influencing factors and solutions of cost management in green building projects[J]. Smart City Application, 2024(2): 67-69.
[22]	王宜卿, 成建宏, 陈焕新, 等. 用于居民建筑的多联机系统能效标准分区可行性探讨[J]. 制冷技术, 2023, 43(3): 43-50.
	WANG Yiqing, CHENG Jianhong, CHEN Huanxin, et al. Discussion on feasibility of energy efficiency standard of variable refrigerant flow system for residential buildings[J]. Chinese Journal of Refrigeration Technology, 2023, 43(3): 43-50.
[23]	刘勇. 暖通节能设计与暖通工程造价成本控制[J]. 工程技术创新与发展, 2023, 1(3): 105-107.
	LIU Yong. HVAC energy-saving design and HVAC engineering cost control[J]. Engineering Technology Innovation and Development, 2023, 1(3): 105-107.
[24]	冯国会, 崔航, 常莎莎, 等. 近零能耗建筑碳排放及影响因素分析[J]. 气候变化研究进展, 2022, 18(2): 205-214.
	FENG Guohui, CUI Hang, CHANG Shasha, et al. Analysis of carbon emissions and influencing factors of near-zero energy buildings[J]. Climate Change Research, 2022, 18(2): 205-214.
[25]	FIDAN A A. Determination of optimum building envelope parameters of a room concerning window-to-wall ratio, orientation, insulation thickness and window type[J]. Buildings, 2022, 12(3): 383.
[26]	MEHRDAD R, HABTAMU B M, NATASA N. Achieving zero-energy building performance with thermal and visual comfort enhancement through optimization of fenestration, envelope, shading device, and energy supply system[J]. Sustainable Energy Technologies and Assessments, 2021, 44: 101020.
[27]	狄育慧, 高亚茹, 蒋婧. 基于Airpak的某建筑工地活动板房室内热环境数值模拟[J]. 西安工程大学学报, 2023, 37(2): 40-46.
	DI Yuhui, GAO Yaru, JIANG Jing. Numerical simulation of indoor thermal environment of prefab house on a construction site based on Airpak[J]. Journal of Xi'an Polytechnic University, 2023, 37(2): 40-46.
[28]	刘若辰, 李建霞, 刘静, 等. 动态多目标优化研究综述[J]. 计算机学报, 2020, 43(7): 1246-1278.
	LIU Ruochen, LI Jianxia, LIU Jing, et al. A survey on dynamic multi-objective optimization[J]. Chinese Journal of Computers, 2020, 43(7): 1246-1278.
[29]	周少航. 近零能耗建筑碳排放及影响因素分析[J]. 城市建筑与发展, 2023, 4(5): 101-104.
	ZHOU Shaohang. Analysis of carbon emissions and influencing factors of near-zero energy buildings[J]. Urban architecture and development, 2023, 4(5): 101-104.
[30]	闻莉. 基于技术进步的建筑业碳排放回弹效应测度[J]. 运筹与模糊学, 2023, 13(5):4298-4306.
	WEN Li. Measurement of the rebound effect of carbon emissions in the construction industry based on technological progress[J]. Operations Research and Fuzziness, 2023, 13(5):4298-4306.
[31]	纪士斌. 建筑材料[M]. 4版. 北京: 清华大学出版社, 2004.
[32]	潘英. 能源战略下的能源电力发展方向和碳排放问题[J]. 南方能源建设, 2019, 6(3): 32-39.
	PAN Ying. Energy power development direction and low carbon emission under energy strategy[J]. Southern Energy Construction, 2019, 6(3): 32-39.
[33]	张涛, 姜裕华, 黄有亮, 等. 建筑中常用的能源与材料的碳排放因子[J]. 中国建设信息, 2010(23): 58-59.
	ZHANG Tao, JIANG Yuhua, HUANG Youliang, et al. Carbon emission factors of energy and materials commonly used in buildings[J]. Information of China Construction, 2010(23): 58-59.
[34]	中华人民共和国住房和城乡建设部. 建筑碳排放计算标准: GB/T 51366—2019[S]. 北京: 中国建筑工业出版社.
[35]	冯国会, 陈菲, 常莎莎. 近零能耗建筑围护结构多目标优化研究[J]. 沈阳建筑大学学报(自然科学版), 2023, 39(4): 699-706.
	FENG Guohui, CHEN Fei, CHANG Shasha. Multi-objective optimization of envelope structure for near zero energy building[J]. Journal of Shenyang Jianzhu University (Natural Science), 2023, 39(4): 699-706.
[36]	罗中凯, 张立波. 学习路径规划方法[J]. 中国科学院大学学报, 2024, 41(1): 11-27.
	LUO Zhongkai, ZHANG Libo. Learning path planning methods[J]. Journal of University of Chinese Academy of Sciences, 2024, 41(1): 11-27.
[37]	谢冰川, 张岳, 徐振耀, 等. 基于代理模型的电机多学科优化关键技术综述[J]. 电工技术学报, 2022, 37(20): 5117-5143.
	XIE Bingchuan, ZHANG Yue, XU Zhenyao, et al. Review on multidisciplinary optimization key technology of electrical machine based on surrogate models[J]. Transactions of China Electrotechnical Society, 2022, 37(20): 5117-5143.
[38]	包晓安, 曹云棣, 张娜, 等. 基于格分布方差的多目标云工作流调度算法[J]. 电信科学, 2019, 35(2): 1-13. doi: 10.11959/j.issn.1000-0801.2019035
	BAO Xiao'an, CAO Yundi, ZHANG Na, et al. Multi-objective cloud workflow scheduling algorithm based on grid variance[J]. Telecommunications Science, 2019, 35(2): 1-13. doi: 10.11959/j.issn.1000-0801.2019035

名称	数量/个	规格型号
温湿度传感器	60	JTH-2D1卡轨式，精度：温度，±0.2 ℃；相对湿度，±2% RH
电源开关	1	LRS明纬开关电源400W/12V
4路RS485集线器	1	JPX-6104
USB转RS485	1	1.1 m，进口双芯片
双绞屏蔽线RVSP2芯		纯铜芯铜网ZR-RVSP，100 m， 4芯，0.5 mm²
分线盒	30	3进15出
三脚架	15	高2.1 m

围护结构	材料	厚度/mm	密度/（kg·m^-3）	碳排放系数
外墙	岩棉	150.0	120	1 980.00
	水泥砂浆	10.0	2 300	396.00
	基层水泥	300.0	3 100	260.20
地板	聚苯板	120.0	25	5.64
地板	基层水泥	131.7	1 000	260.20
天花板	聚苯板	120.0	25	5.64
天花板	基层水泥	141.7	1 000	260.20
窗户	铝包木	43.0	2 500	122.50

方案	年耗电量/ (kW·h)	全生命周期碳排放量/t	成本/ 万元	PMV	PPD/%
原始方案	43 130.00	674 850.000 0	773.97	-0.39	20.11
最优解	37 927.18	609 712.410 2	697.58	-0.35	14.39
