Optimization of virtual power plant operation considering the active recovery of remaining available regulating capacity

doi:10.3969/j.issn.2097-0706.2025.07.006

Abstract

Abstract:

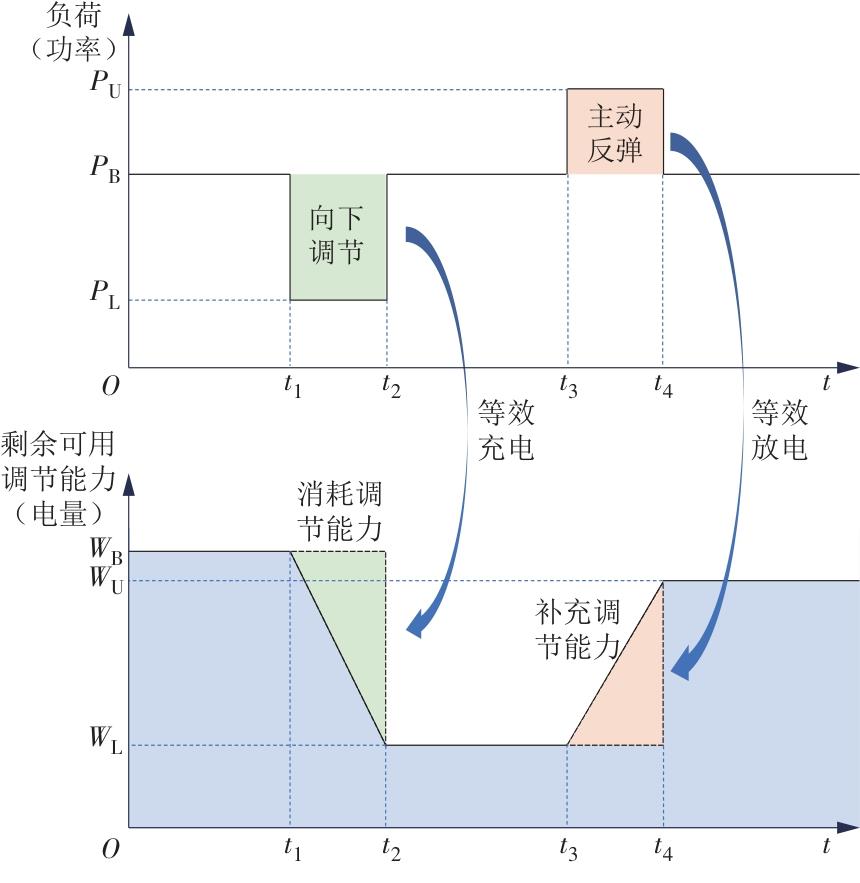

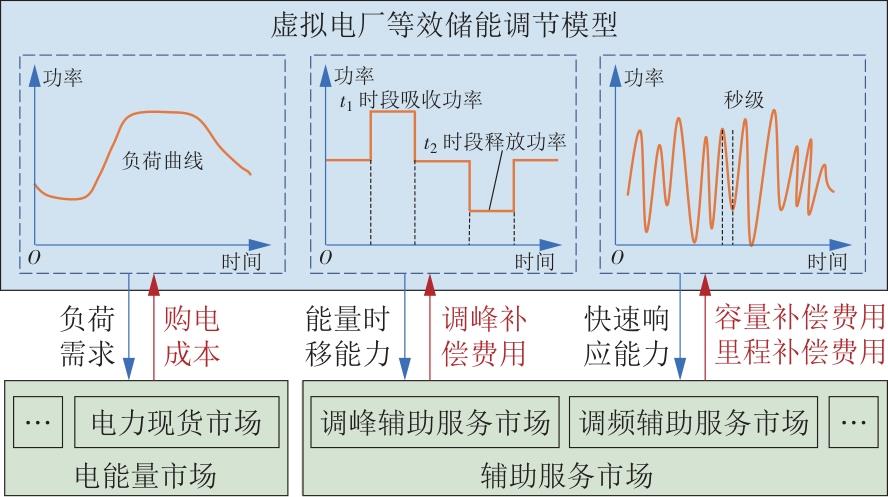

With the accelerated construction of the new power system， virtual power plants（VPPs） are increasingly participating in market-driven interactions with the grid， becoming an important tool for enhancing the regulation capacity of the new power system. To address the optimization problem of VPP operation under continuous market-based regulation， this paper proposes an optimization method for VPP operation considering the active recovery of remaining available regulating capacity. Based on the regulation and rebound characteristics of VPPs， the effect of active rebound on the recovery of remaining available regulating capacity was analyzed， and an equivalent energy storage regulation model for VPPs considering the active recovery of remaining available regulating capacity was constructed. Based on the equivalent energy storage regulation model， a market-based operation mode and joint optimization model for VPP participation in spot markets， peak-shaving， and frequency regulation were established. Simulation results of the case study indicated that the proposed method helped ensure continuous and stable VPP market operation while improving economic efficiency. However， market pricing should fully consider the regulatory capacity boundaries of the VPP.

Key words: new power system, virtual power plants, remaining available regulating capacity, active recovery, power spot market, peak-shaving auxiliary service, frequency regulation auxiliary service

CLC Number:

TK01：TM76

WANG Jun, DU Wei, WANG Xin, DOU Xun, DOU Zhenlan, XU Chen. Optimization of virtual power plant operation considering the active recovery of remaining available regulating capacity[J]. Integrated Intelligent Energy, 2025, 47(7): 55-63.

Figures/Tables 11

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Table 1

Table 2

Fig.6

Fig.7

Fig.8

Fig.9

References 37

[1]	黎博, 陈民铀, 钟海旺, 等. 高比例可再生能源新型电力系统长期规划综述[J]. 中国电机工程学报, 2023, 43(2): 555-581.
	LI Bo, CHEN Minyou, ZHONG Haiwang, et al. A review of long-term planning of new power systems with large share of renewable energy[J]. Proceedings of the CSEE, 2023, 43(2): 555-581.
[2]	GAO Y, AI Q. Research on demand side response strategy of multi-microgrids based on improved co-evolution algorithm[J]. CSEE Journal of Power and Energy Systems, 2021, 7(5):8-16.
[3]	张智刚, 康重庆. 碳中和目标下构建新型电力系统的挑战与展望[J]. 中国电机工程学报, 2022, 42(8): 2806-2819.
	ZHANG Zhigang, KANG Chongqing. Challenges and prospects for constructing the new-type power system towards a carbon neutrality future[J]. Proceedings of the CSEE, 2022, 42(8): 2806-2819.
[4]	GAO Y, AI Q. Novel optimal dispatch method for multiple energy sources in regional integrated energy systems considering wind curtailment[J]. CSEE Journal of Power and Energy Systems, 2024, 10(5): 2166-2173.
[5]	国家发展改革委, 国家能源局, 国家数据局. 关于印发《加快构建新型电力系统行动方案(2024—2027年)》的通知[EB/OL].(2024-07-25)[2025-02-25]. https://www.gov.cn/zhengce/zhengceku/202408/content_6966863.htm.
[6]	WEI X, XU Y L, SUN H B, et al. Day-ahead optimal dispatch of a virtual power plant in the joint energy-reserve-carbon market[J]. Applied Energy, 2024, 356:122459.
[7]	CHEN J R, LIU M Y, MILANO F. Aggregated model of virtual power plants for frequency and voltage stability analysis[J]. IEEE Transactions on Power Systems, 2021, 36(5):4366-4375.
[8]	ZHANG Y Y, ZHAO H R, LI B K. Distributionally robust comprehensive declaration strategy of virtual power plant participating in the power market considering flexible ramping product and uncertainties[J]. Applied Energy, 2023:121133.
[9]	NAVAL N, YUSTA J M. Virtual power plant models and electricity markets — A review[J]. Renewable and Sustainable Energy Reviews, 2021, 149:111393.
[10]	苏伟芳. 基于虚拟电厂的电力市场辅助服务研究[D]. 北京: 华北电力大学, 2020.
	SU Weifang. Research on power market auxiliary services based on virtual power plant[D]. Beijing: North China Electric Power University, 2020.
[11]	WU Q L, LI C X. A bi-level optimization framework for the power-side virtual power plant participating in day-ahead wholesale market as a price-maker considering uncertainty[J]. Energy, 2024, 304:132050.
[12]	王文悦, 刘海涛, 季宇. 虚拟电厂可调空间统一建模及其参与调峰市场的优化运行策略[J]. 电力系统自动化, 2022, 46(18): 74-82.
	WANG Wenyue, LIU Haitao, JI Yu. Unified modeling for adjustable space of virtual power plant and its optimal operation strategy for participating in peak-shaving market[J]. Automation of Electric Power Systems, 2022, 46(18): 74-82.
[13]	卿竹雨, 安锐, 高红均, 等. 考虑分散式资源互动响应的虚拟电厂智能化调峰定价[J]. 电力自动化设备, 2023, 43(5): 96-103.
	QING Zhuyu, AN Rui, GAO Hongjun, et al. Intelligent peak regulation pricing for virtual power plant considering interactive response of distributed resources[J]. Electric Power Automation Equipment, 2023, 43(5): 96-103.
[14]	刘鑫, 李扬, 史云鹏, 等. 计及用户参与不确定性的虚拟电厂分布鲁棒优化模型[J]. 电力自动化设备, 2022, 42(7): 84-93.
	LIU Xin, LI Yang, SHI Yunpeng, et al. Distributionally robust optimization model of virtual power plant considering user participation uncertainty[J]. Electric Power Automation Equipment, 2022, 42(7): 84-93.
[15]	闫鹏, 曾四鸣, 李铁成, 等. 基于改进量子遗传算法的虚拟电厂在多时间尺度下参与AGC优化调度[J]. 电网与清洁能源, 2023, 39(3): 23-32.
	YAN Peng, ZENG Siming, LI Tiecheng, et al. Optimal scheduling of virtual power plant participating in AGC based on improved quantum genetic algorithm on multi-time scale[J]. Power System and Clean Energy, 2023, 39(3): 23-32.
[16]	莫理莉, 兰峻焜, 周亮, 等. 虚拟电厂下灵活资源多时间尺度调频控制[J]. 电力系统自动化, 2024, 48(18): 76-86.
	MO Lili, LAN Junkun, ZHOU Liang, et al. Multi-time scale frequency regulation control of flexible resources in virtual power plant[J]. Automation of Electric Power Systems, 2024, 48(18): 76-86.
[17]	WU Q L, LI C X, BAI J Y. Optimal bidding strategy for multi-energy virtual power plant participating in coupled energy, frequency regulation and carbon trading markets[J]. International Journal of Hydrogen Energy, 2024, 73: 430-442.
[18]	李孟阳, 李国杰, 汪可友, 等. 考虑需求响应及调频性能变化的虚拟电厂日前投标策略[J]. 电力系统保护与控制, 2023, 51(3):13-25.
	LI Mengyang, LI Guojie, WANG Keyou, et al. Day-ahead bidding strategy for virtual power plant considering demand response and frequency regulation performance variation[J]. Power System Protection and Control, 2023, 51(3):13-25.
[19]	关舒丰, 王旭, 蒋传文, 等. 基于可控负荷响应性能差异的虚拟电厂分类聚合方法及辅助服务市场投标策略研究[J]. 电网技术, 2022, 46(3): 933-944.
	GUAN Shufeng, WANG Xu, JIANG Chuanwen, et al. Classification and aggregation of controllable loads based on different responses and optimal bidding strategy of VPP in ancillary market[J]. Power System Technology, 2022, 46(3): 933-944.
[20]	周挺, 谭玉东, 孙晋, 等. 虚拟电厂参与能量与辅助服务市场的协同优化策略[J]. 中国电力, 2024, 57(1): 61-70.
	ZHOU Ting, TAN Yudong, SUN Jin, et al. Collaborative optimization strategy for virtual power plant participating in energy and ancillary service market[J]. Electric Power, 2024, 57(1): 61-70.
[21]	王俊, 王馨, 朱金大, 等. 考虑动态定价的新能源汽车能源站优化运行[J]. 电力系统自动化, 2024, 48(22): 182-190.
	WANG Jun, WANG Xin, ZHU Jinda, et al. Optimal operation of renewable-energy vehicle energy stations considering dynamic pricing[J]. Automation of Electric Power Systems, 2024, 48(22): 182-190.
[22]	DOU X, WANG J, FAN D L, et al. Interaction mechanism and pricing strategy of hydrogen fueling station for hydrogen-integrated transportation and power systems[J]. IEEE Transactions on Industry Applications, 2022, 58(2): 2941-2949.
[23]	叶飞, 邵平, 王宣元, 等. 考虑购售风险的虚拟电厂双层竞标策略[J]. 电力建设, 2020, 41(6): 28-35. doi: 10.12204/j.issn.1000-7229.2020.06.004
	YE Fei, SHAO Ping, WANG Xuanyuan, et al. Bi-level bidding strategies for virtual power plants considering purchase and sale risks[J]. Electric Power Construction, 2020, 41(6): 28-35. doi: 10.12204/j.issn.1000-7229.2020.06.004
[24]	文淅宇, 朱继忠, 李盛林, 等. 基于时空协同的多数据中心虚拟电厂低碳经济调度策略[J]. 电力系统自动化, 2024, 48(18): 56-65.
	WEN Xiyu, ZHU Jizhong, LI Shenglin, et al. Low-carbon economic dispatch for multiple data center virtual power plant based on spatio-temporal collaboration[J]. Automation of Electric Power Systems, 2024, 48(18): 56-65.
[25]	曾庆彬, 梁伟强, 张勇军, 等. 考虑多重轮换调控的空调负荷调控潜力评估与控制策略[J]. 电力系统自动化, 2024, 48(4): 123-131.
	ZENG Qingbin, LIANG Weiqiang, ZHANG Yongjun, et al. Regulation potential evaluation and control strategy of air conditioning load considering multiple rotation regulation[J]. Automation of Electric Power Systems, 2024, 48(4): 123-131.
[26]	王飞, 王歌, 徐飞. 面向系统响应能力提升的虚拟电厂聚合特性及交易机制综述[J]. 电力系统自动化, 2024, 48(18): 87-103.
	WANG Fei, WANG Ge, XU Fei. Review on aggregation characteristics and trading mechanisms of virtual power plant for enhancing system response capability[J]. Automation of Electric Power Systems, 2024, 48(18): 87-103.
[27]	李明扬, 董哲. 含分布式新能源和需求响应负荷的虚拟电厂定价机制及优化调度[J]. 综合智慧能源, 2024, 46(10): 12-17. doi: 10.3969/j.issn.2097-0706.2024.10.002
	LI Mingyang, DONG Zhe. Pricing mechanism and optimal scheduling of virtual power plants containing distributed renewable energy and demand response loads[J]. Integrated Intelligent Energy, 2024, 46(10): 12-17. doi: 10.3969/j.issn.2097-0706.2024.10.002
[28]	马云凤. 需求侧灵活性资源参与电力辅助服务的聚合调控技术研究[D]. 北京: 华北电力大学, 2024.
	MA Yunfeng. Research on aggregate regulation technology of demand-side flexible resources participating in power auxiliary services[D]. Beijing: North China Electric Power University, 2024.
[29]	GAO Y, AI Q, HE X, et al. Coordination for regional integrated energy system through target cascade optimization[J]. Energy, 2023, 276:127606.
[30]	江美慧, 许镇江, 张其朴, 等. 面向综合能源系统的综合需求响应策略及其建模技术[J]. 电力建设, 2024, 45(12): 65-82.
	JIANG Meihui, XU Zhenjiang, ZHANG Qipu, et al. Integrated demand response strategy and modeling technology for integrated energy systems[J]. Electric Power Construction, 2024, 45(12): 65-82.
[31]	李振坤, 黄滢, 李谅, 等. 计及需求侧响应的主动配电网多时间尺度优化调度[J]. 电力建设, 2023, 44(3): 36-48. doi: 10.12204/j.issn.1000-7229.2023.03.004
	LI Zhenkun, HUANG Ying, LI Liang, et al. Multi-time scale optimal dispatching of active distribution network considering demand-side response[J]. Electric Power Construction, 2023, 44(3): 36-48. doi: 10.12204/j.issn.1000-7229.2023.03.004
[32]	龙寰, 赵烁, 吴志, 等. 考虑反弹效应的空调负荷可调潜力评估与控制策略研究[J]. 电网技术, 2023, 47(9): 3638-3648.
	LONG Huan, ZHAO Shuo, WU Zhi, et al. Adjustable potential evaluation and control strategy of air conditioning loads considering rebound effect[J]. Power System Technology, 2023, 47(9): 3638-3648.
[33]	窦迅, 王俊, 曾浩辉, 等. 考虑响应可靠率的需求侧资源自主被动组合响应策略[J]. 电网技术, 2024, 48(8): 3207-3216.
	DOU Xun, WANG Jun, ZENG Haohui, et al. Active and passive combined response strategy of demand-side resources considering response reliability[J]. Power System Technology, 2024, 48(8): 3207-3216.
[34]	国家发展改革委办公厅, 国家能源局综合司. 关于进一步加快电力现货市场建设工作的通知[EB/OL].(2023-10-12)[2025-02-25]. https://www.gov.cn/zhengce/zhengceku/202311/content_6913560.htm.
[35]	国家能源局. 关于印发《电力并网运行管理规定》的通知[EB/OL].(2021-12-21)[2025-02-25]. https://zfxxgk.nea.gov.cn/2021-12/21/c_1310391369.htm.
[36]	国家能源局. 关于印发《电力辅助服务管理办法》的通知[EB/OL].(2021-12-21)[2025-02-25]. https://zfxxgk.nea.gov.cn/2021-12/21/c_1310391161.htm.
[37]	国家能源局华中监管局. 关于印发《重庆电力调频辅助服务市场运营规则》的通知[EB/OL].(2022-12-08)[2025-02-25]. https://hzj.nea.gov.cn/xxgk/zcfg/202310/t20231021_165677.html.

场景	参与现货市场	参与调峰	参与调频
S1	√	×	×
S2	√	√	×
S3	√	×	√
S4	√	√	√

场景	C	C_E	R_P	R_F
S1	4 887.10	4 887.10
S2	4 387.60	4 937.05	549.45
S3	4 349.90	5 051.10		701.20
S4	4 041.75	5 030.45	355.25	633.45
