基于绿证-碳交易机制的含风电电力系统动态环境经济调度

doi:10.3969/j.issn.1674-1951.2021.09.009

摘要/Abstract

摘要：

在低碳绿色经济背景下,为促进电力行业节能减排和绿色发展,将碳排放交易机制和绿色证书交易机制引入电力系统环境经济调度中,建立一个以绿色证书交易成本、火电发电成本、风电运行维护成本、弃风惩罚成本和碳交易成本为经济成本目标函数,SO₂和NO_x气体排放为污染物的含风电电力系统多目标环境经济调度模型。基于MOEA/D算法进行改进得出MOEA/D-OLSMS算法,采用MOEA/D-OLSMS算法与MOEA/D算法对模型进行求解。分析在不同调度情景以及不同可再生能源配额系数对系统的影响。通过算例仿真,验证所提出模型的有效性及算法的优越性。

关键词: 碳交易机制, 绿色证书交易机制, 环境经济调度, 多目标, 可再生能源配额, 碳中和

Abstract:

In the context of low-carbon green economy, in order to promote energy conservation, emission reduction and green development of power industry, carbon emission trading mechanism and green certificate trading mechanism are introduced into the environmental economic dispatch（EED） of power system. Based on the objective function attempting to minimize green certificate transaction cost, thermal power generation cost, wind power operation and maintenance cost, wind power curtailment penalty and carbon emission right transaction cost, and taking SO₂ and NO_x emissions as pollutant emissions, a multi-objective environmental economic dispatch model for the power system containing wind power is established. By improving the MOEA/D algorithm, the MOEA/D-OLSMS algorithm is obtained.The model is solved by MOEA/D-OLSMS and MOEA/D algorithm,respectively. The impact of different renewable energy quota coefficients on the power system under different dispatch scenarios is analyzed. The validity of the proposed model and the superiority of the algorithms are verified by the simulation examples.

Key words: carbon emission trading mechanism, green certificate trading mechanism, environmental economic dispatch, multi-target, renewable energy quota, carbon neutrality

中图分类号:

TK0：TM712

张家瑞, 余朋军, 许忠义, 徐加宝, 朱泽伟. 基于绿证-碳交易机制的含风电电力系统动态环境经济调度[J]. 华电技术, 2021, 43(9): 69-77.

ZHANG Jiarui, YU Pengjun, XU Zhongyi, XU Jiabao, ZHU Zewei. Environmental economic dispatch considering wind power systems based on green certificate-carbon trading mechanism[J]. Huadian Technology, 2021, 43(9): 69-77.

图/表 11

表1

表2

机组能耗特性参数

机组	P_G.min/MW	P_G.max/MW	a_i/（美元·h^-1)	b_i/(美元·h^-1)	c_i/[美元·(MW²·h)^-1]	d_i/(美元·h^-1)	e_i/(rad·MW^-1)	$δ p, i$
1	150	455	1 000	16.19	0.004 80	400	0.023	0.98
2	150	455	970	17.26	0.003 10	420	0.035	0.95
3	20	130	700	16.60	0.002 50	260	0.030	0.93
4	20	130	680	16.50	0.002 11	250	0.048	1.13
5	25	162	450	19.70	0.003 98	260	0.043	1.15
6	20	80	370	22.36	0.007 12	300	0.034	0.86
7	25	85	480	27.74	0.007 90	220	0.075	0.68
8	10	55	660	25.92	0.004 13	210	0.075	0.95
9	10	55	665	27.27	0.002 22	160	0.088	1.32
10	10	55	670	27.79	0.001 73	150	0.079	0.59

表2

表3

机组排污特性方程参数

机组	$α S$ /(kg·h^-1)	$β S$ /[kg·(MW∙h）^-1]	$γ S$ /[kg·(MW²∙h）^-1]	$α N$ /(kg·h^-1)	$β N$ /[kg·(MW∙h）^-1]	$γ N$ /[kg·(MW²∙h）^-1]
1	198.33	2.06	0.000 19	130.0	-2.86	0.022
2	195.34	2.09	0.000 18	132.0	-2.72	0.020
3	155.15	2.14	0.000 22	137.7	-2.94	0.044
4	152.26	2.25	0.000 22	130.0	-2.35	0.058
5	152.26	2.11	0.000 21	125.0	-2.36	0.065
6	101.43	3.45	0.000 25	110.0	-2.28	0.080
7	111.87	2.62	0.000 22	135.0	-2.36	0.075
8	126.62	5.18	0.000 42	157.0	-1.29	0.082
9	134.15	5.38	0.000 54	160.0	-1.14	0.090
10	142.26	5.40	0.000 55	137.7	-2.14	0.084

表3

表4

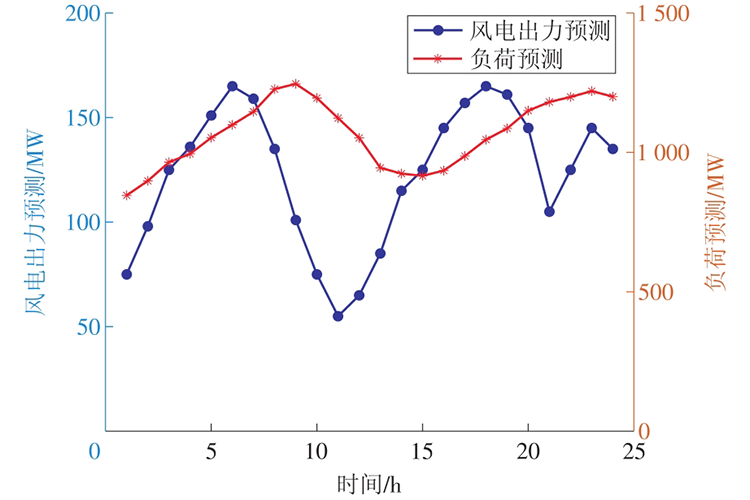

图1

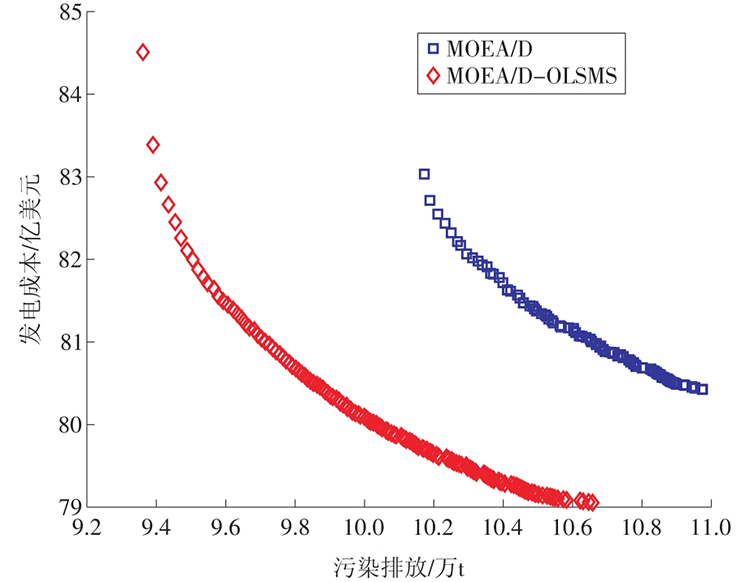

图2

表5

表6

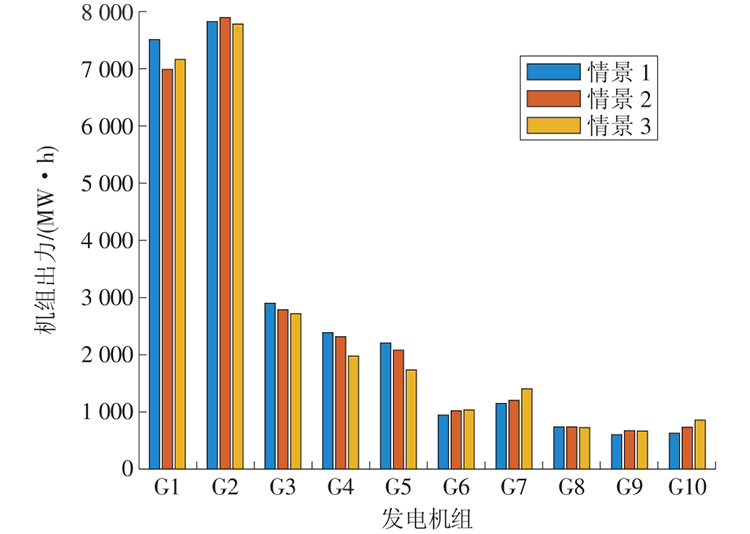

图3

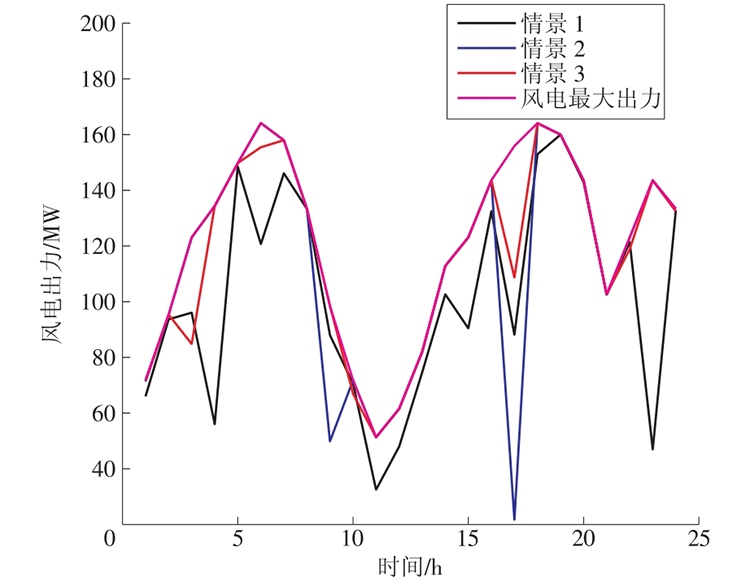

图4

表7

参考文献 22

[1]	胡鞍钢. 中国实现2030年前碳达峰目标及主要途径[J]. 北京工业大学学报(社会科学版), 2021, 21(3):1-15.
	HU Angang. China's goal of achieving carbon peaks by 2030 and the main ways[J]. Journal of Beijing University of Technology (Social Science Edition), 2021, 21(3):1-15.
[2]	王乾坤, 李琼慧, 谢国辉. 美国加州可再生能源配额制及对我国的启示[J]. 中外能源, 2012, 17(9):25-31.
	WANG Qiankun, LI Qionghui, XIE Guohui. Renewable portfolio standard in California and its enlightenment for China[J]. Sino-global Energy, 2012, 17(9):25-31.
[3]	娄素华, 卢斯煜, 吴耀武, 等. 低碳电力系统规划与运行优化研究综述[J]. 电网技术, 2013 (6):1483-1490.
	LOU Suhua, LU Siyu, WU Yaowu, et al. An overview on low-carbon power system planning and operation optimization[J]. Power System Technology, 2013(6):1483-1490.
[4]	高亚静, 李瑞环, 梁海峰, 等. 碳市场环境下计及碳捕集电厂和换电站的电力系统优化调度[J]. 电力系统自动化, 2014, 38(17):150-156.
	GAO Yajing, LI Ruihuan, LIANG Haifeng, et al. Power system optimal dispatch incorporating carbon capture power plant and battery swap station under carbon market environment[J]. Automation of Electric Power Systems, 2014, 38(17):150-156.
[5]	吉斌, 刘妍, 朱丽叶, 等. 基于联盟区块链的电力碳权交易机制设计[J]. 华电技术, 2020, 42(8):32-40.
	JI Bin, LIU Yan, ZHU Liye, et al. Design of carbon emission permit trading mechanism in power industry based on consortium blockchain[J]. Huadian Technology, 2020, 42(8):32-40.
[6]	赵国涛, 钱国明, 丁泉, 等. 基于区块链的可再生能源消纳激励机制研究[J]. 华电技术, 2021, 43(4):71-77.
	ZHAO Guotao, QIAN Guoming, DING Quan, et al. Study on incentive mechanism of renewable energy consumption based on blockchain[J]. Huadian Technology, 2021, 43(4):71-77.
[7]	张晓辉, 闫柯柯, 卢志刚, 等. 基于碳交易的含风电系统低碳经济调度[J]. 电网技术, 2013, 37(10):2697-2704.
	ZHANG Xiaohui, YAN Keke, LU Zhigang, et al. Carbon trading based low-carbon economic dispatching for power grid integrated with wind power system[J]. Power System Technology, 2013, 37(10):2697-2704.
[8]	张晓辉, 闫鹏达, 钟嘉庆, 等. 可再生能源激励制度下的低碳经济电源规划[J]. 电网技术, 2015, 39(3):655-662.
	ZHANG Xiaohui, YAN Pengda, ZHONG Jiaqing, et al. Research on generation expansion planning in low-carbon economy environment under incentive mechanism of renewable energy sources[J]. Power System Technology, 2015, 39(3):655-662.
[9]	徐基光. 基于绿色证书交易的含风电系统低碳经济调度[J]. 中国电力, 2016, 49(7):145-150.
	XU Jiguang. Low carbon economic dispatch of wind power system based on green certificate transaction[J]. Electric Power, 2016, 49(7):145-150.
[10]	周任军, 李绍金, 陈瑞先, 等. 采用模糊自修正粒子群算法的碳排放权交易冷热电多目标调度[J]. 中国电机工程学报, 2014, 34(12):6119-6126.
	ZHOU Renjun, LI Shaojin, CHEN Ruixian, et al. Multi-objective scheduling for carbon emissions trading based on fuzzy self-modifying particle swarm optimization[J]. Proceedings of the CSEE, 2014, 34(12):6119-6126.
[11]	肖俊明, 周谦, 瞿博阳, 等. 多目标进化算法及其在电力环境经济调度中的应用综述[J]. 郑州大学学报(工学版), 2016, 37(2):4-12.
	XIAO Junming, ZHOU Qian, QU Boyang, et al. Multi-objective evolutionary algorithm and its application in electric power environment economic dispatch[J]. Journal of Zhengzhou University(Engineering Science), 2016, 37(2):4-12.
[12]	戴光明, 王茂才. 多目标优化算法及在卫星星座设计中的应用[M]. 武汉: 中国地质大学出版社, 2009.
[13]	林锉云, 董加礼. 多目标优化的方法与理论[M]. 北京: 清华大学出版社, 1992.
[14]	张福威, 李军, 孟品超, 等. 多目标进化算法综述[J]. 长春光学精密机械学院学报, 2012, 35(3):102-105.
	ZHANG Fuwei, LI Jun, MENG Pinchao, et al. Survey of multi-objective evolutionary algorithms[J]. Journal of Changchun Institute of Optics and Fine Mechanics, 2012, 35(3):102-105.
[15]	BASU M. Dynamic economic emission dispatch using nondominated sorting genetic algorithm-II[J]. International Journal of Electrical Power＆Energy Systems, 2008, 78(2):140-149.
[16]	ABIDO M A. Multi-objective particle swarm optimization for environmental/economic dispatch problem[J]. Electric Power Systems Research, 2009, 79(7):1105-1113. doi: 10.1016/j.epsr.2009.02.005
[17]	朱永胜, 王杰, 瞿博阳, 等. 采用基于分解的多目标进化算法的电力环境经济调度[J]. 电网技术, 2014, 38(6):1577-1584.
	ZHU Yongsheng, WANG Jie, QU Boyang, et al. Environmental economic dispatch adopting multi-objective evolutionary algorithm based on decomposition[J]. Power System Technology, 2014, 38(6):1577-1584.
[18]	丁青锋, 尹晓宇. 差分进化算法综述[J]. 智能系统学报, 2017, 12(4):431-442.
	DING Qingfeng, YIN Xiaoyu. Research survey of differential evolution algorithms[J]. CAAI Transactions on Intelligent Systems, 2017, 12(4):431-442.
[19]	LI H, ZHANG Q. Multi-objective optimization problems with complicated Pareto sets, MOEA/D and NSGA-II[J]. IEEE Trans on Evolutionary Computation, 2009, 13(2):284-302. doi: 10.1109/TEVC.2008.925798
[20]	ZHANG Q, LI H. MOEA/D:A multi-objective evolutionary algorithm based on decomposition[J]. IEEE Trans on Evolutionary Computation, 2007, 11(6):712-731. doi: 10.1109/TEVC.2007.892759
[21]	TIZHOOSH H R. Opposition-based learning: A new scheme for machine intelligence[A]. Proceeding of the IEEE International Conference of Intelligent Agents Web Technologies and Internet Commerce[C]// Vienna, IEEE Press, 2005:695-701.
[22]	卢有麟, 周建中, 李英海, 等. 基于混沌搜索的自适应差分进化算法[J]. 计算机工程与应用, 2008, 44(10) 31-33.
	LU Youlin, ZHOU Jianzhong, LI Yinghai, et al. Adaptive differential evolution algorithm combined with chaotic search[J]. Computer Engineering and Applications, 2008, 44(10) 31-33.

参数	取值	参数	取值
N_P	100	p_m	0.2
w₀	0.5	G_max	100
M₀	20	C_R	0.5

机组(i)	B_i₁（×10^-4）	B_i₂（×10^-4）	B_i₃（×10^-4）	B_i₄（×10^-4）	B_i₅（×10^-4）	B_i₆（×10^-4）	B_i₇（×10^-4）	B_i₈（×10^-4）	B_i₉（×10^-4）	B_i₁₀（×10^-4）
1	2.022	0.286	0.543	0.565	0.454	0.103	0.324	0.213	0.154	0.302
2	0.286	0.243	0.016	0.307	0.422	0.147	0.456	0.235	0.171	0.365
3	0.534	0.016	0.185	0.831	0.023	0.27	0.336	0.214	0.158	0.412
4	0.565	0.307	0.831	1.129	0.113	0.295	0.298	0.465	0.185	0.346
5	0.454	0.422	0.023	0.113	0.460	0.153	0.265	0.155	0.374	0.135
6	0.103	0.147	0.270	0.295	0.153	0.898	0.323	0.255	0.196	0.462
7	0.454	0.422	0.023	0.113	0.460	0.153	0.179	0.365	0.186	0.389
8	0.286	0.243	0.016	0.307	0.422	0.147	0.298	0.561	0.165	0.584
9	0.542	0.136	0.266	0.354	0.155	0.398	0.175	0.123	0.245	0.338
10	0.561	0.414	0.323	0.122	0.223	0.315	0.421	0.371	0.286	0.541

算法	目标	E_p/t	F/万美元
MOEA/D	经济最优	106.70	80.43
	环境最优	98.73	83.03
	最优折中解	102.10	81.38
MOEA/D- OLSMS	经济最优	106.60	79.06
	环境最优	93.61	84.51
	最优折中解	98.11	80.65

情景	E_p/t	F/万美元	f_c/万美元	f_gre/万美元	f₂/万美元
1	98.11	80.65	0	0	2.53
2	97.29	87.70	0	5.66	0.90
3	96.08	99.03	10.80	5.01	0.52

情景	E_p/t	F/万美元	风电消纳量/MW	风电弃风率/%
1	97.17	96.11	2 810	4.68
2	96.40	99.03	2 845	3.47
3	96.06	102.90	2 886	2.08
