基于Trnsys能耗预测的村镇建筑不同供能方式碳-经济分析

doi:10.3969/j.issn.2097-0706.2023.08.008

摘要/Abstract

摘要：

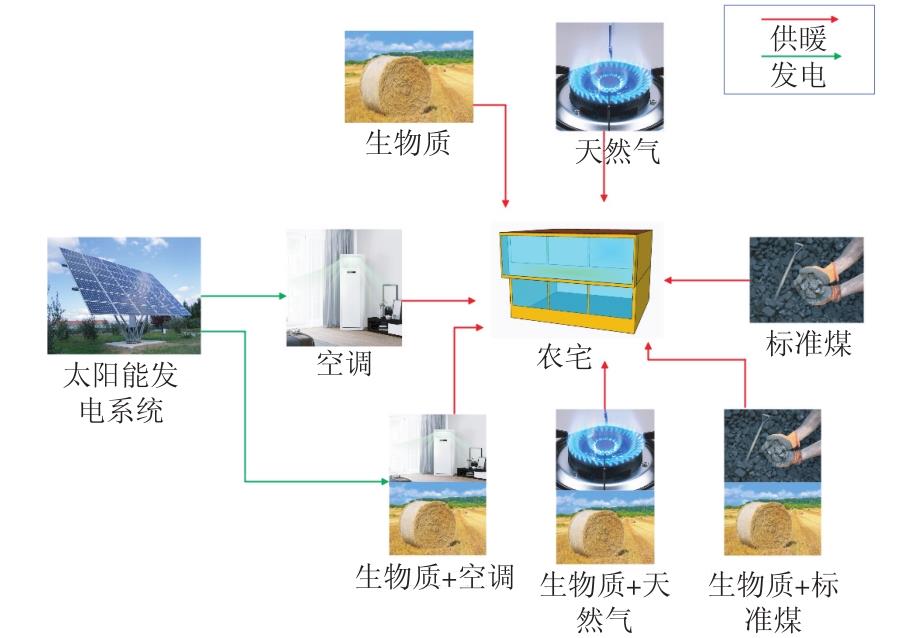

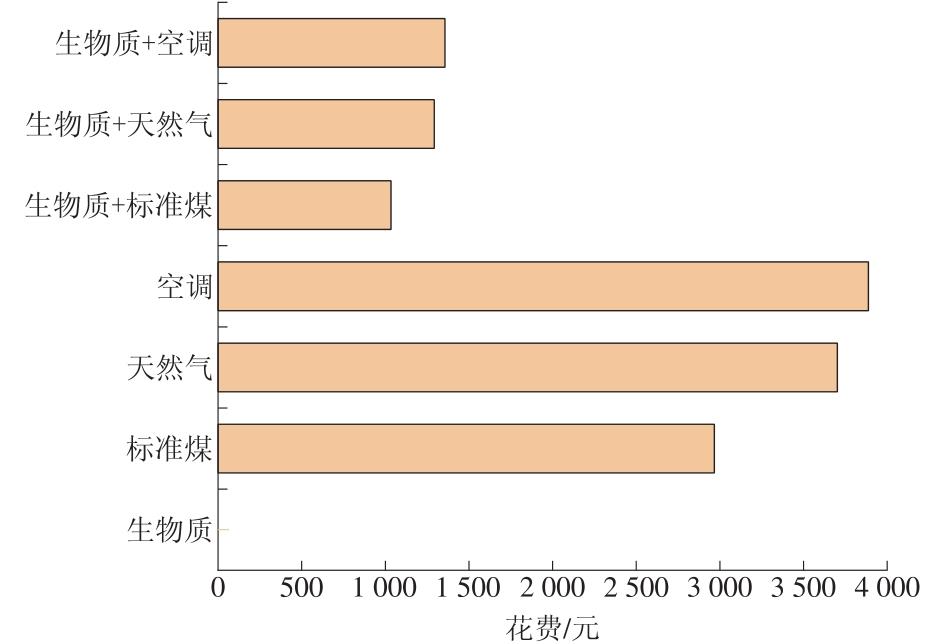

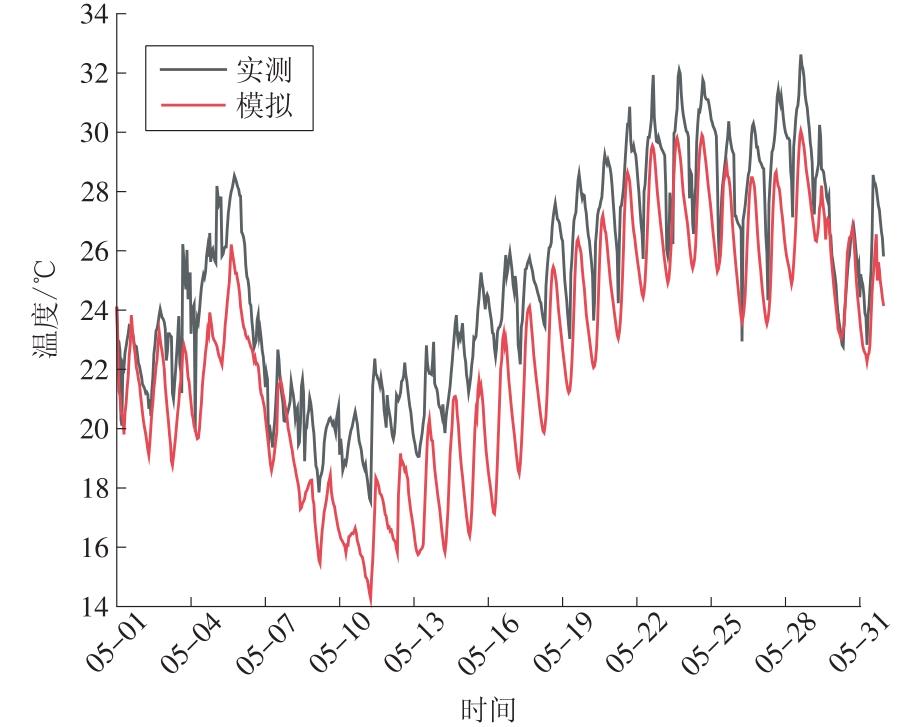

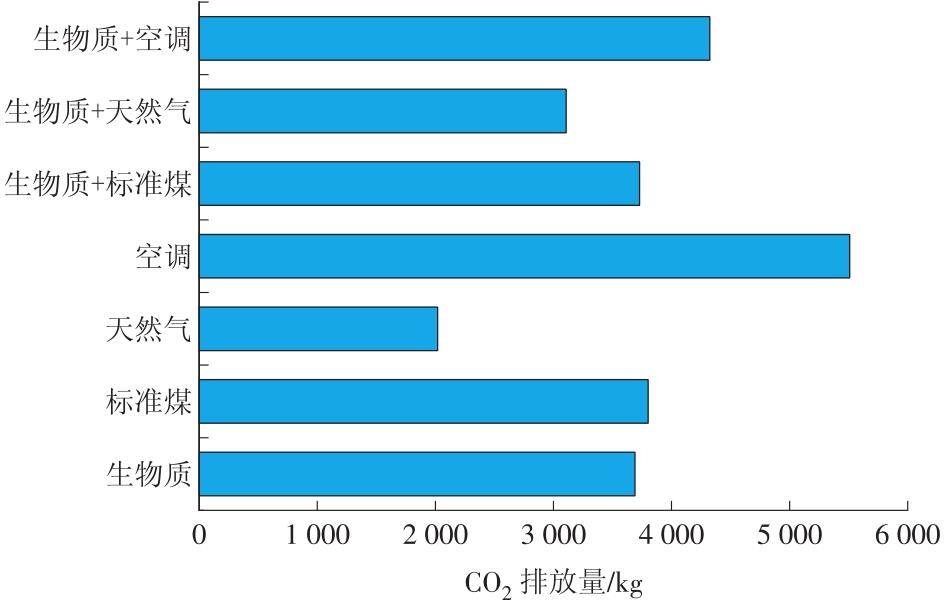

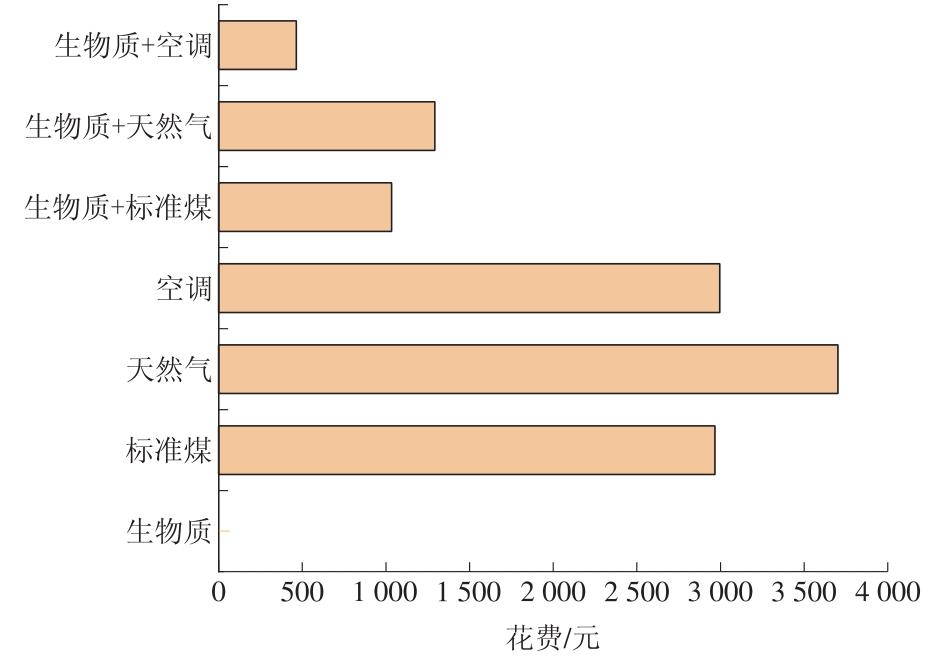

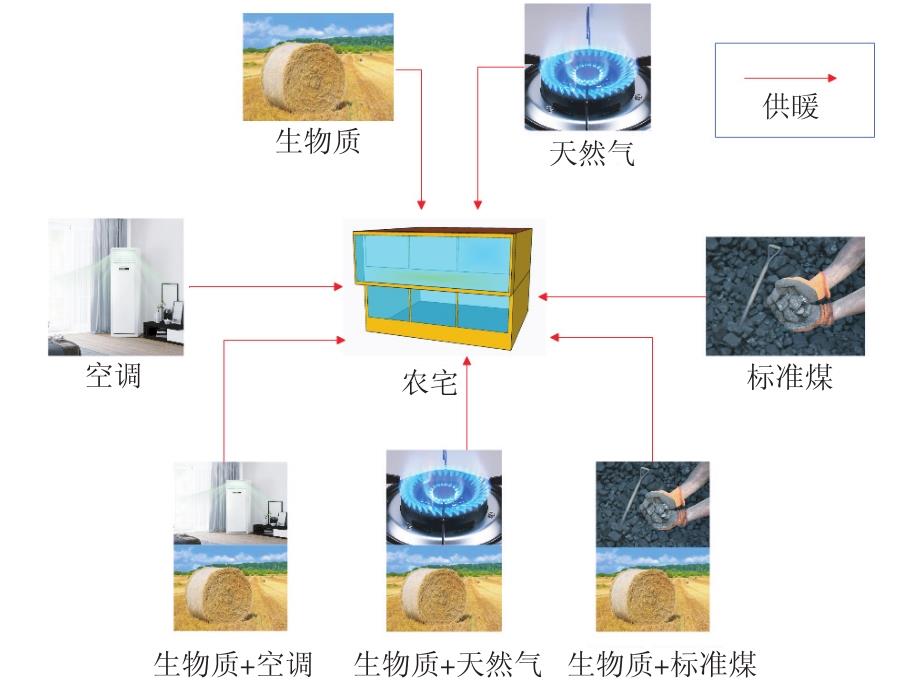

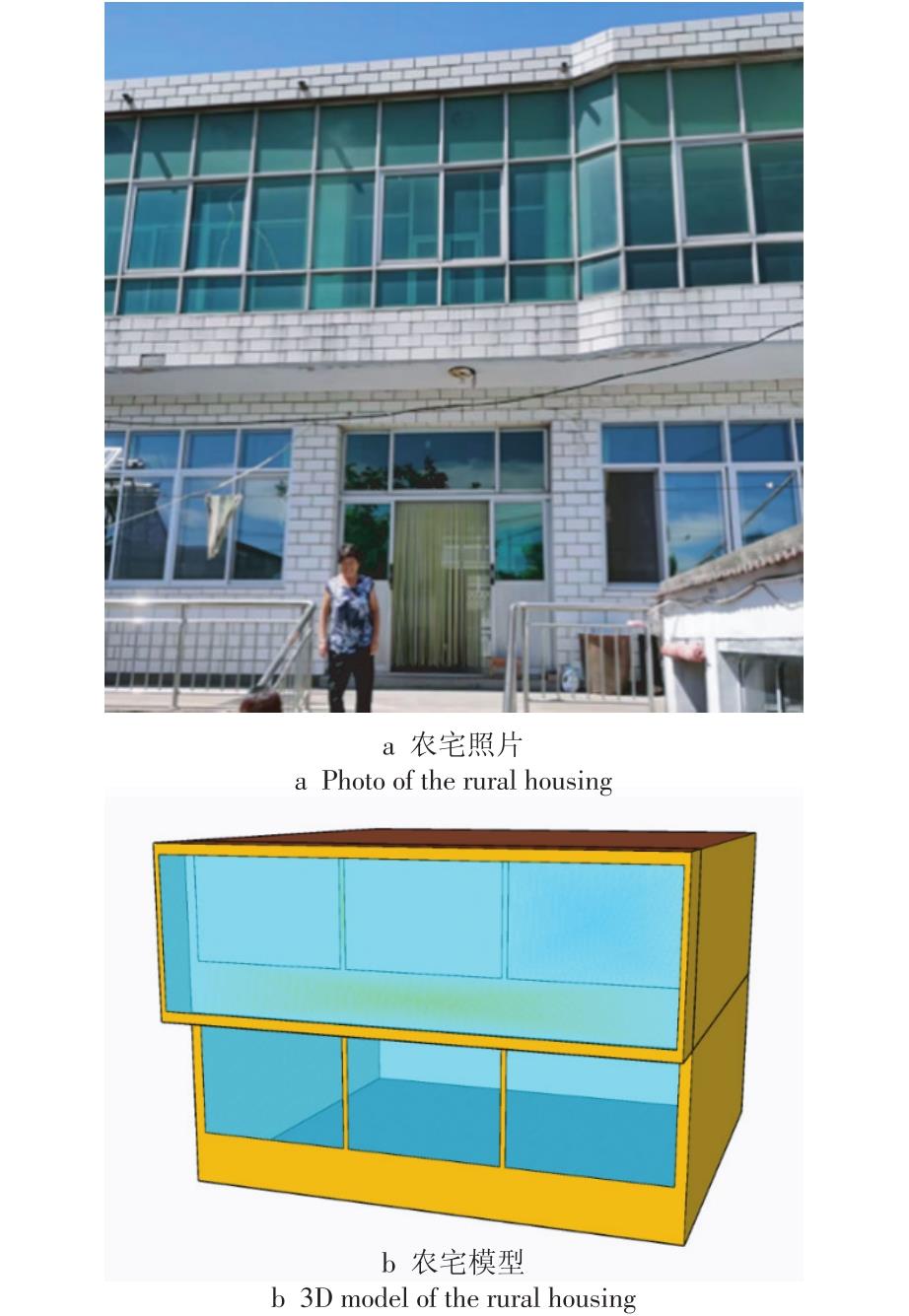

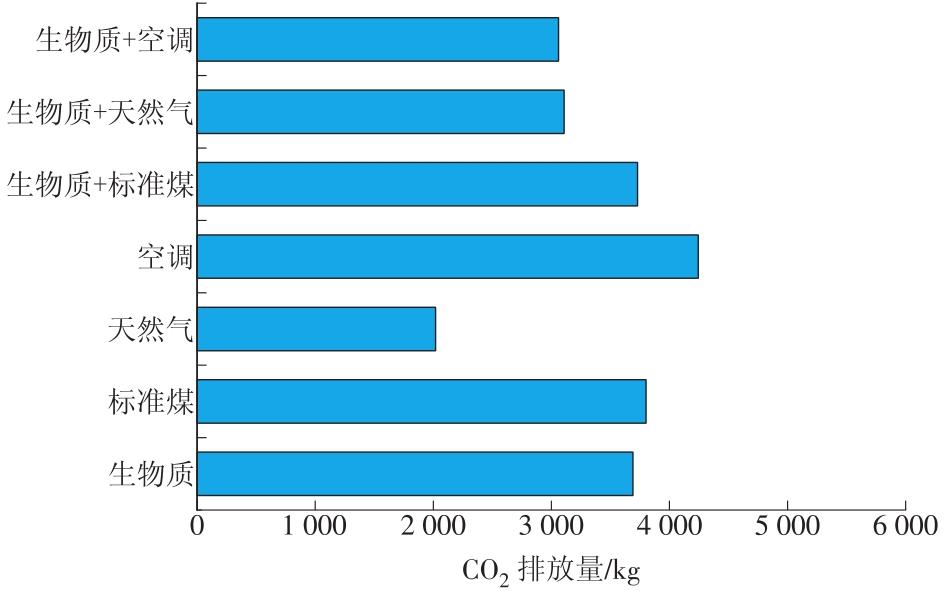

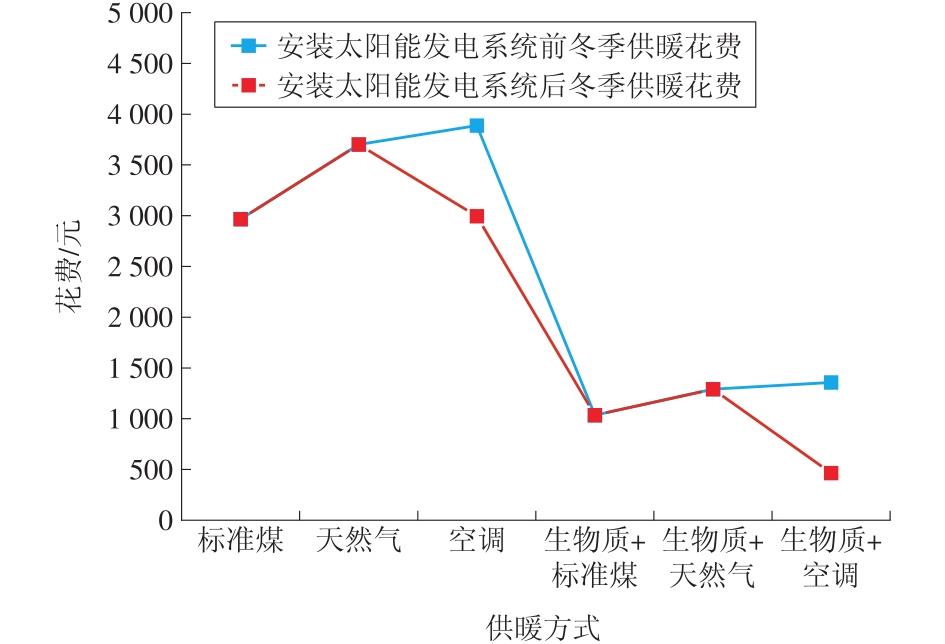

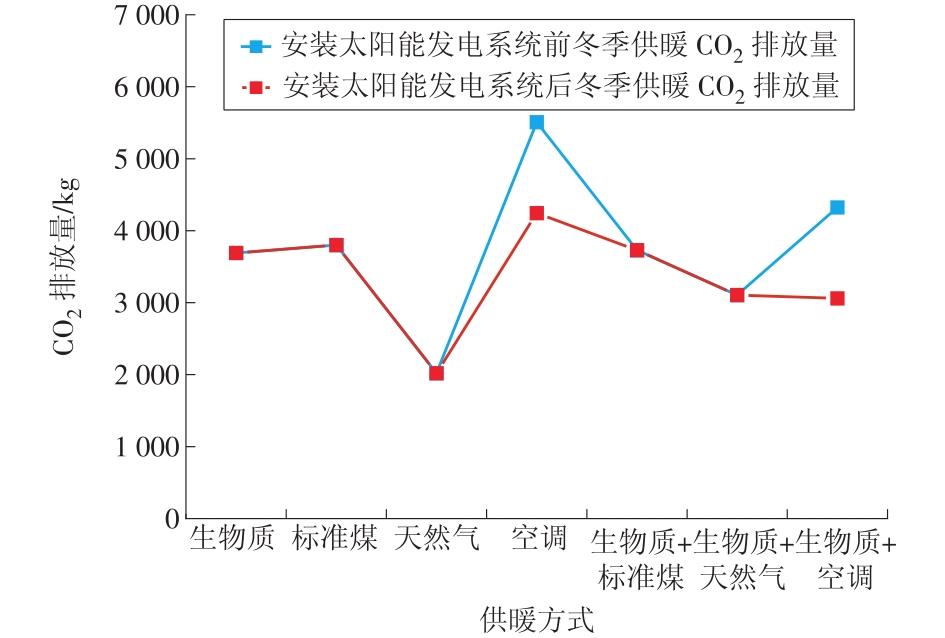

在碳中和背景下，村镇生物质与太阳能资源具有广阔的应用前景。以河北迁安地区某农宅为基础，建立三维模型，采用Trnsys对农宅能耗进行预测，通过实测数据对模型进行验证。分析不同供能方式的碳排放和经济性，结果表明：该农宅以天然气为燃料的供暖方式具有较高的CO₂减排潜力，CO₂排放量为2 019.75 kg/年，以生物质+标准煤的供暖方式具有较好的经济性，花费1 034.42 元/年；当安装太阳能光伏发电系统时，采用生物质+空调的采暖方式具有较好的经济性，花费464.62 元/年，且CO₂排放量为3 060.56 kg/年，仅次于天然气。因此，合理利用天然气、生物质和太阳能成为减轻供暖经济负担，降低CO₂排放的有效方法。

关键词: 碳中和, 能耗预测, 生物质能, 太阳能光伏发电, CO₂排量

Abstract:

To achieve carbon neutrality，biomass and solar power are of promising prospects in rural areas. A 3D model based on rural housings in Qian'an city，Hebei province is constructed. Energy consumption of these buildings is predicted by Trnsys，and the model is validated by measured data. Analyzing the carbon emissions and economy of different energy supply methods for the buildings，it is found that the heating mode with natural gas as fuel can reduce the carbon emissions to 2 019.75 kg/a，and the heating mode integrating biomass and standard coal can bring the cost down to 1 034.42 yuan/a. If PV power generation system is installed，the heating mode integrating biomass and air conditioning will reduce the cost to 464.62 yuan/a，and the carbon emissions to 3 060.56 kg/a， which is only second to that emitted from the gas heater. Utilizing natural gas，biomass and solar energy reasonably is an effective technique for improving the economy of heating and reducing the CO₂ emission.

Key words: carbon neutrality, energy consumption prediction, biomass energy, PV power generation, CO₂ emission

中图分类号:

TK01

胡开永, 刘峰, 吴秀杰, 胡芸清, 郑怡, 田绅. 基于Trnsys能耗预测的村镇建筑不同供能方式碳-经济分析[J]. 综合智慧能源, 2023, 45(8): 64-71.

HU Kaiyong, LIU Feng, WU Xiujie, HU Yunqing, ZHENG Yi, TIAN Shen. Carbon-economy analysis on energy supply methods for rural buildings based on Trnsys energy consumption prediction[J]. Integrated Intelligent Energy, 2023, 45(8): 64-71.

图/表 17

图1

表1

表2

图2

表3

表4

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

参考文献 21

[1]	杨晓宇. 村镇居住建筑相变蓄能地板间歇辐射供暖研究[D]. 济南: 山东建筑大学, 2020.
	YANG Xiaoyu. Study on intermittent radiant heating of phase change energy storage floor in rural residential buildings[D]. Jinan: Shandong Jianzhu University, 2020.
[2]	罗意然, 韦进毅, 郭送军, 等. 广西秸秆燃烧大气污染物排放及生物炭转化固碳量估算[J]. 环境污染与防治, 2022, 44(8):993-1000,1009.
	LUO Yiran, WEI Jinyi, GUO Songjun, et al. Estimation of air pollutant emissions from straw burning and carbon sequestration by biochar conversion in Guangxi[J]. Environmental Pollution and Control, 2022, 44(8): 993-1000, 1009.
[3]	刘联胜, 王冬计, 段润泽. 农村地区生物质成型燃料清洁供暖技术研究进展[J]. 华电技术, 2020, 42(11):106-116.
	LIU Liansheng, WANG Dongji, DUAN Runze. Research progress on clean heating technology of biomass briquette fuel in rural areas[J]. Huadian Technology, 2020, 42(11): 106-116.
[4]	那威, 张宇璇, 吴景山. 我国寒冷地区村镇温室建筑适用供暖热负荷分析[J]. 区域供热, 2019, 200(3):38-44.
	NA Wei, ZHANG Yuxuan, WU Jingshan. Heat load analysis of suitable heating for greenhouse buildings in villages and towns in cold regions of China[J]. District Heating, 2019, 200(3): 38-44.
[5]	刘戈, 黄月强. 北方寒冷地区村镇住宅建筑节能适宜技术研究[J]. 科技管理研究, 2011(12):93-96.
	LIU Ge, HUANG Yueqiang. Study on the suitable technology of building energy saving in rural residential buildings in cold regions of northern China[J]. Science and Technology Management Research, 2011(12): 93-96.
[6]	田驰, 张承文, 孙宁, 等. 外壁炉秸秆燃烧地暖供热系统的研究[J]. 建筑节能, 2018, 46(11):110-115,136.
	TIAN Chi, ZHANG Chengwen, SUN Ning, et al. Study on the heating system of straw burning in the outer fireplace[J]. Building Energy Saving, 2018, 46(11):110-115, 136.
[7]	SOLTERO V M, CHACARTEGUI R, ORTIZ C, et al. Potential of biomass district heating systems in rural areas[J]. Energy, 2018, 156: 132-143. doi: 10.1016/j.energy.2018.05.051
[8]	CHATZISTOUGIANNI N, GIAGOZOGLOU E, SENTZAS K, et al. Biomass district heating methodology and pilot installations for public buildings groups[C]// IOP Conference Series: Materials Science and Engineering. IOP Publishing, 2016, 161( 1): 012083.
[9]	ROBERTS E. Warming with wood: Exploring the everyday heating practices of rural off-gas households in Wales[J]. Energy policy, 2020, 142: 111451. doi: 10.1016/j.enpol.2020.111451
[10]	冯乐军, 付志浩, 刘锋, 等. 技术-经济因素对天然气分布式能源系统经济性影响分析[J]. 综合智慧能源, 2022, 44(10):65-70. doi: 10.3969/j.issn.2097-0706.2022.10.009
	FENG Lejun, FU Zhihao, LIU Feng, et al. Analysis of the influence of technical and economic factors on the economy of natural gas distributed energy system[J]. Integrated Intelligent Energy, 2022, 44(10): 65-70. doi: 10.3969/j.issn.2097-0706.2022.10.009
[11]	刁培滨, 王宇帆. 国内天然气发展评述及走势分析[J]. 华电技术, 2019, 41(11):9-11,25.
	DIAO Peibin, WANG Yufan. Domestic natural gas development review and trend analysis[J]. Huadian Technology, 2019, 41(11): 9-11, 25.
[12]	王志峰, 何雅玲, 康重庆, 等. 明确太阳能热发电战略定位促进技术发展[J]. 华电技术, 2021, 43(11):1-4.
	WANG Zhifeng, HE Yaling, KANG Chongqing, et al. Clarify the strategic positioning of solar thermal power generation to promote technological development[J]. Huadian Technology, 2021, 43(11): 1-4.
[13]	王鹏, 石尔, 单增卓嘎, 等. 基于太阳能的北方农村建筑供热系统分析[J]. 西藏科技, 2023(3):14-19.
	WANG Peng, SHI Er, SHAN Zengzhuoga, et al. Analysis of northern rural building heating system based on solar energy[J]. Tibet's Science and Technology, 2023(3): 14-19.
[14]	TIAN S, SHAO S Q, LIU B. Investigation on transient energy consumption of cold storages: Modeling and a case study[J]. Energy, 2019, 180: 1-9. doi: 10.1016/j.energy.2019.04.217
[15]	袁鹏丽, 端木琳, 王宗山, 等. 内蒙古农村区域住宅能耗与碳排放研究[J]. 建设科技, 2022(19):41-45.
	YUAN Pengli, DUAN Mulin, WANG Zongshan, et al. Study on residential energy consumption and carbon emissions in rural areas of Inner Mongolia[J]. Construction Science and Technology, 2022(19): 41-45.
[16]	程辞. 兰州市居民食品消费碳足迹研究[D]. 兰州: 兰州大学, 2013.
	CHENG Ci. Study on the carbon footprint of food consumption of residents in Lanzhou City[D]. Lanzhou: Lanzhou University, 2013.
[17]	刘钢, 黄明皎. 秸秆发电厂燃料收集半径与装机规模[J]. 电力建设, 2011, 32(3):72-75.
	LIU Gang, HUANG Mingjiao. Fuel collection radius and installed capacity of straw power plant[J]. Electric Power Construction, 2011, 32(3): 72-75.
[18]	路染妮. 农村智能家用太阳能发电系统设计[J]. 自动化与仪器仪表, 2018(2):68-70.
	LU Ranni. Design of rural intelligent household solar power generation system[J]. Automation and Instrumentation, 2018(2): 68-70.
[19]	邱伟强, 王茂春, 林振智, 等. “双碳”目标下面向新能源消纳场景的共享储能综合评价[J]. 电力自动化设备, 2021, 41(10):244-255.
	QIU Weiqiang, WANG Maochun, LIN Zhenzhi, et al. Comprehensive evaluation of shared energy storage towards new energy accommodation scenario under targets of carbon emission peak and carbon neutrality[J]. Electric Power Automation Equipment, 2021, 41(10):244-255.
[20]	蒋从伟, 欧庆和, 吴仲超, 等. 基于联盟博弈的多微网共享储能联合配置与优化[J]. 中国电力, 2022, 55(12):11-21.
	JIANG Congwei, OU Qinghe, WU Zhongchao, et al. Joint configuration and optimization of multi-micro grid shared energy storage based on coalition game[J]. Electric Power, 2022, 55(12):11-21.
[21]	苏向敬, 陈思利, 米阳, 等. 分布式电池储能在含高比例可再生能源不平衡配电网中的序次优化配置[J]. 电网技术, 2019, 43(10):3698-3707.
	SU Xiangjing, CHEN Sili, MI Yang, et al. Sequential and optimal placement of distributed battery energy storage systems within unbalanced distribution networks hosting high renewable penetrations[J]. Power System Technology, 2019, 43(10):3698-3707.

项目	红砖	水泥	瓷砖	屋瓦
导热系数/[W·(m·℃）^-1]	0.49	1.84	1.10	1.74
比热容/[kJ·(kg·K）^-1]	0.86	1.00	0.84	0.97
密度/（kg·m^-3）	1 560	1 400	2 090	2 020

农宅围护结构	水泥层	红砖	瓷砖	屋瓦
外墙	0.10	0.46	0.10	—
内墙	0.10	0.26	—	—
屋顶	0.26	—	—	—
夹层	0.36	—	—	—

农作物	K	M₁	M₂
玉米	0.90	0.548~0.600	0.49
水稻	0.78	0.645~1.103	0.50
小麦	0.73	0.467~0.488	0.34
棉花	3.53	0.138~0.142	0.49
大豆	0.75	0.195~0.225	0.15
油菜	1.29	0.195~0.206	0.25
