计及公平性的多能合作博弈鲁棒优化调度

doi:10.3969/j.issn.2097-0706.2023.02.002

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (2): 10-21.doi: 10.3969/j.issn.2097-0706.2023.02.002

计及公平性的多能合作博弈鲁棒优化调度

王芸芸²(), 马志程³(), 周强³(), 董海鹰^*()

1.兰州交通大学 a.自动化与电气工程学院； b.新能源与动力工程学院兰州 730070
2.中车株洲电力机车研究所有限公司风电事业部，湖南株洲 412007
3.国网甘肃省电力公司电力科学研究院，兰州 730070

收稿日期:2022-09-16 修回日期:2022-10-10 出版日期:2023-02-25 发布日期:2023-03-14
通讯作者: *董海鹰（1966），男，教授，博士生导师，博士，从事电力系统运行与优化控制、新能源发电等方面的研究，hydong@mail.lzjtu.cn。
作者简介:王芸芸（1996），女，在读硕士研究生，从事电力系统和综合能源系统方面的研究，wangyunyun2019@126.com；
马志程（1969），男，高级工程师，硕士，从事电力系统、信息通信技术等方面的研究，mazc@gs.sgcc.com.cn；
周强（1985），男，高级工程师，硕士，从事电力系统研究，2928503489@qq.com。
基金资助:
甘肃省科技重大专项计划项目(19ZD2GA003)

Robust optimal scheduling of multi-energy cooperative game considering fairness

WANG Yunyun²(), MA Zhicheng³(), ZHOU Qiang³(), DONG Haiying^*()

1.a. China School of Automation &Electrical Engineering； b. School of New Energy and Power Engineering，Lanzhou Jiaotong University，Lanzhou 730070，China
2. Wind Power Business Unit，CRRC Zhuzhou Institute Company Limited，Zhuzhou 412007，China
3. Electric Power Research Institute of State Grid Gansu Electric Power Company，Lanzhou 730070，China

Received:2022-09-16 Revised:2022-10-10 Online:2023-02-25 Published:2023-03-14
Supported by:
Major Projects of Science and Technology in Gansu Province(19ZD2GA003);Tianyou innovation team of Lanzhou Jiaotong University(TY202009)

摘要/Abstract

摘要：

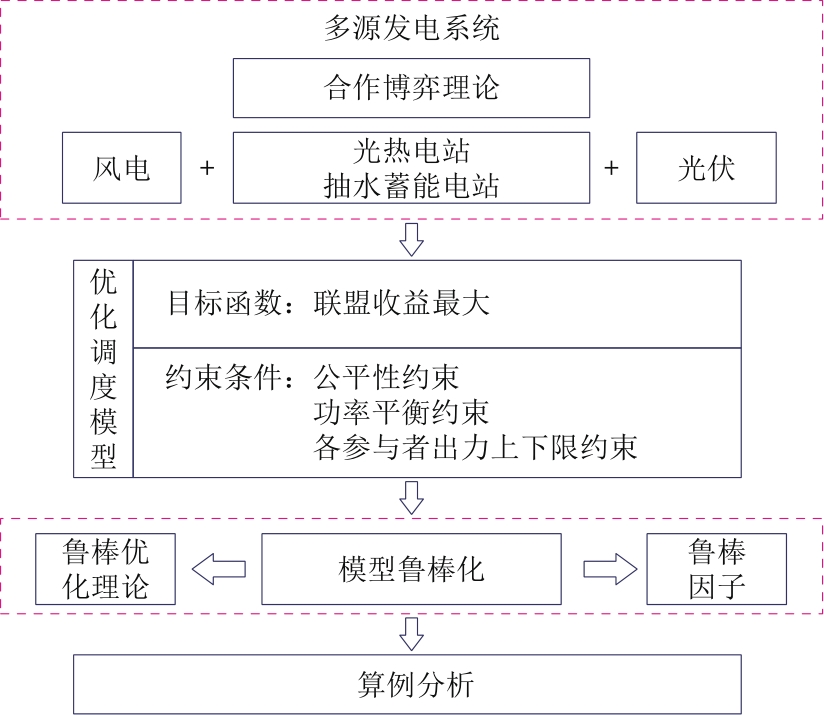

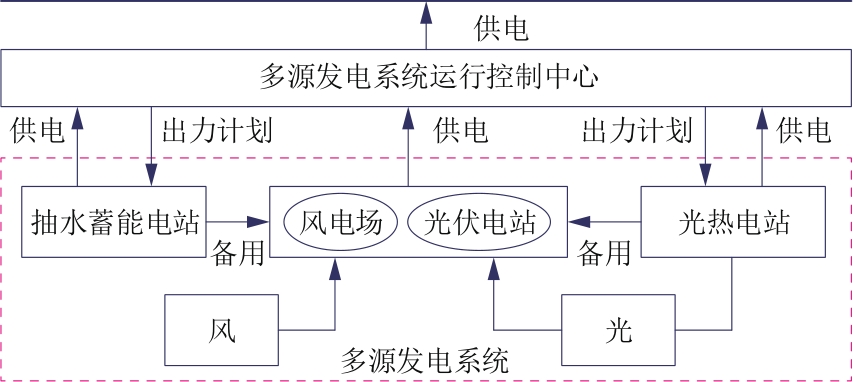

针对电力市场环境下多能协调优化运行系统中风电、光伏出力不确定性问题，提出了一种计及公平性的风光储多源合作博弈鲁棒优化调度模型。构建了以风力发电、光伏发电、抽水蓄能电站和光热电站为发电单元的多源发电系统，在发电系统内部建立计及公平性的合作博弈优化调度模型；在合作博弈模型的基础上，结合鲁棒优化理论，引入鲁棒因子，将含有不确定性的约束条件转化为确定性约束，实现模型的鲁棒化。以甘肃某地区电网为例进行算例分析，分析结果表明：模型具有灵活性，能适应不同稳定性要求下的运行需求，系统运营者可通过调整鲁棒系数来调节对系统随机性的容忍度；相比于非合作博弈情景下的收益，采用合作博弈时系统的总体收益高，能够充分发挥合作博弈的优势，促进新能源联合系统的可靠运行。

关键词: 多源发电系统, 可再生能源, 抽水蓄能电站, 光热电站, 博弈论, 鲁棒优化调度, 调度公平性, 碳中和

Abstract:

In view of the uncertainty of wind and photovoltaic outputs in multi-energy coordinated optimal operation system under electricity market environment， a robust optimal scheduling model of wind-PV-storage multi-energy cooperative game considering fairness is proposed. Firstly， a multi-energy power system integrated with wind power generators， photovoltaic power generators， pumped storage power stations and photovoltaic thermal power stations （CSPs） is constructed， then a cooperative game optimization scheduling model considering fairness for this power system is established. On the basis of the cooperative game model and robust optimization theory， the model gets robust by introducing robust factors to transform the uncertain constraints into deterministic constraints. The model is analyzed and verified by a power grid in Gansu Province. The analysis shows that the model is flexible and can meet the operation requirements under different stability requirements. The system operator can adjust the inclusiveness of the randomness of the system by adjusting the robust coefficient. Compared with the benefit under non-cooperative game scenario， the overall benefit of the system adopting cooperative game is higher， since giving full play to the advantages of cooperative game can promote the reliable operation of new energy integrated system.

Key words: multi-energy power system, renewable energy, pumped storage power station, CSP, game theory, robust optimal scheduling, scheduling fairness, carbon neutrality

中图分类号:

TK019：TM61

王芸芸, 马志程, 周强, 董海鹰. 计及公平性的多能合作博弈鲁棒优化调度[J]. 综合智慧能源, 2023, 45(2): 10-21.

WANG Yunyun, MA Zhicheng, ZHOU Qiang, DONG Haiying. Robust optimal scheduling of multi-energy cooperative game considering fairness[J]. Integrated Intelligent Energy, 2023, 45(2): 10-21.

图/表 14

图1

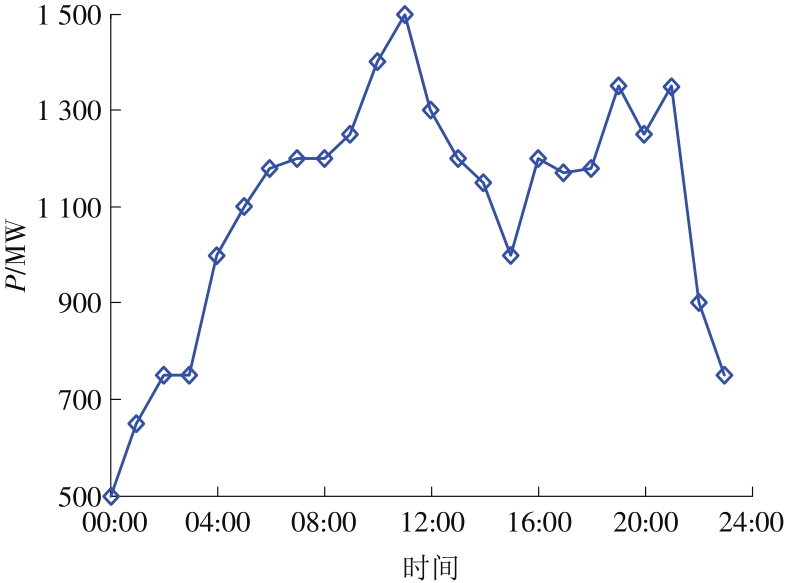

图2

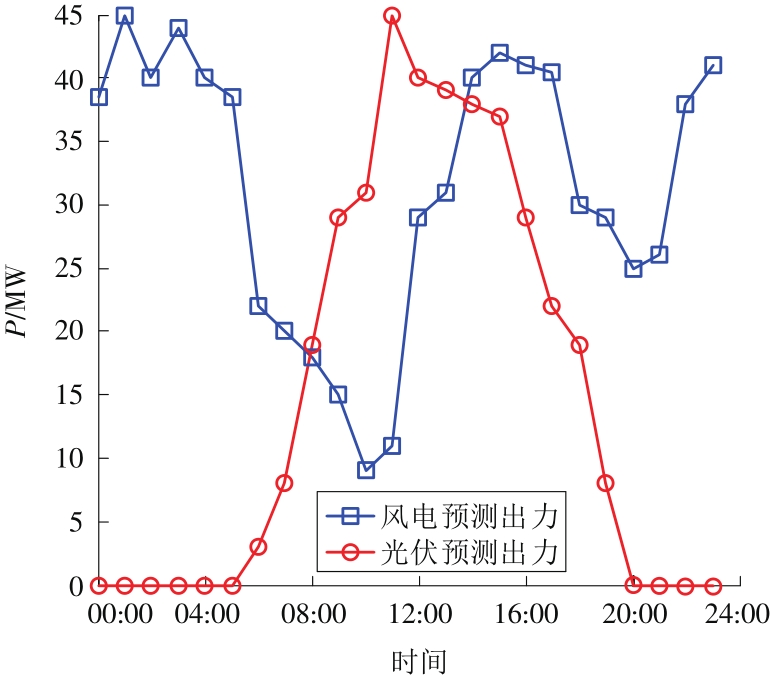

图3

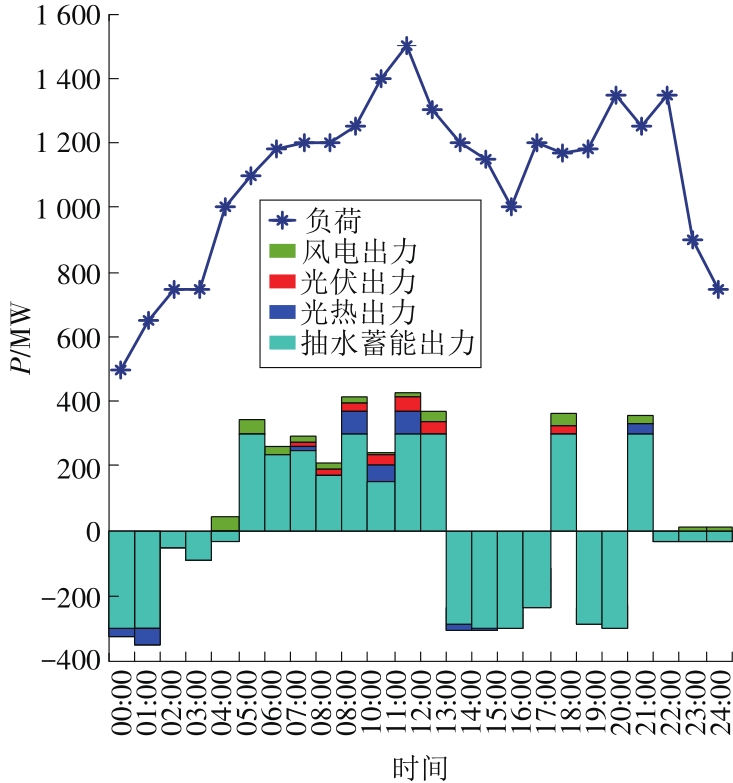

图4

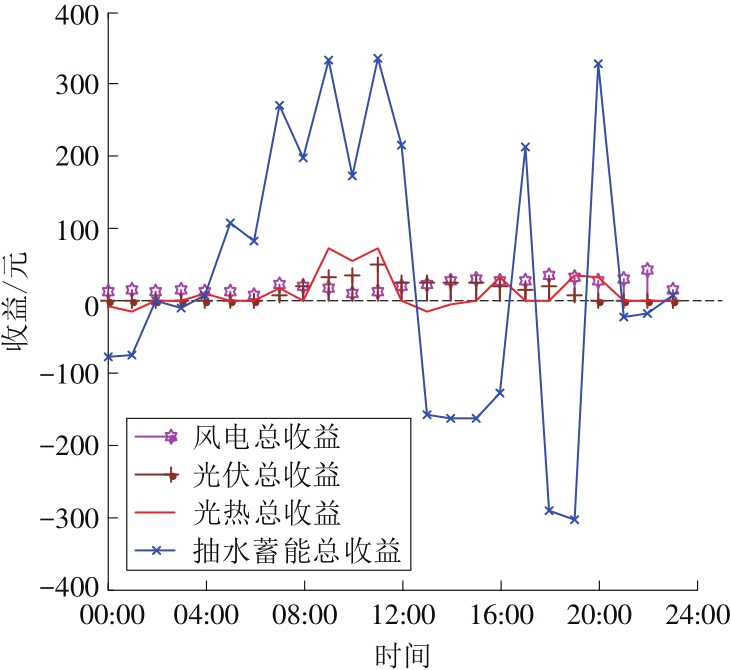

图5

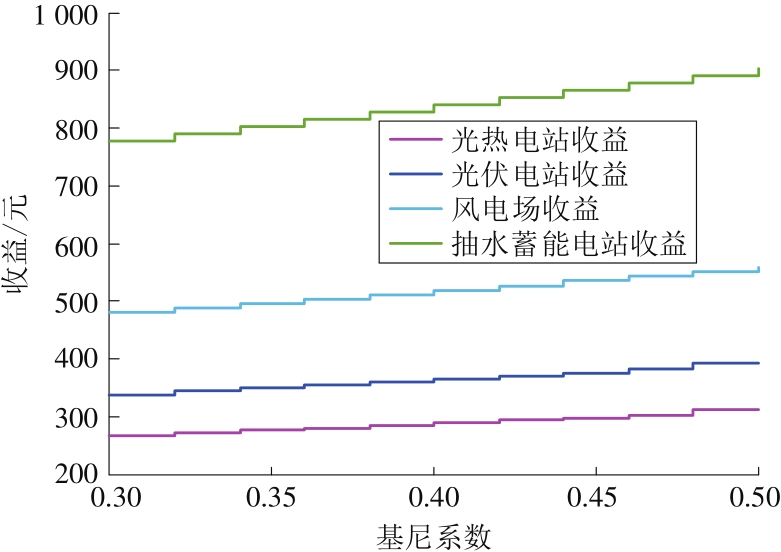

图6

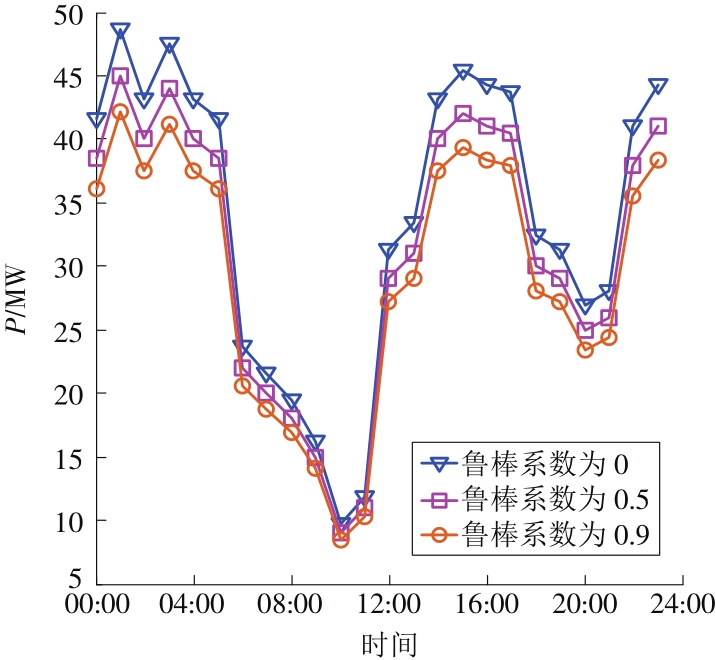

图7

表1

表2

表3

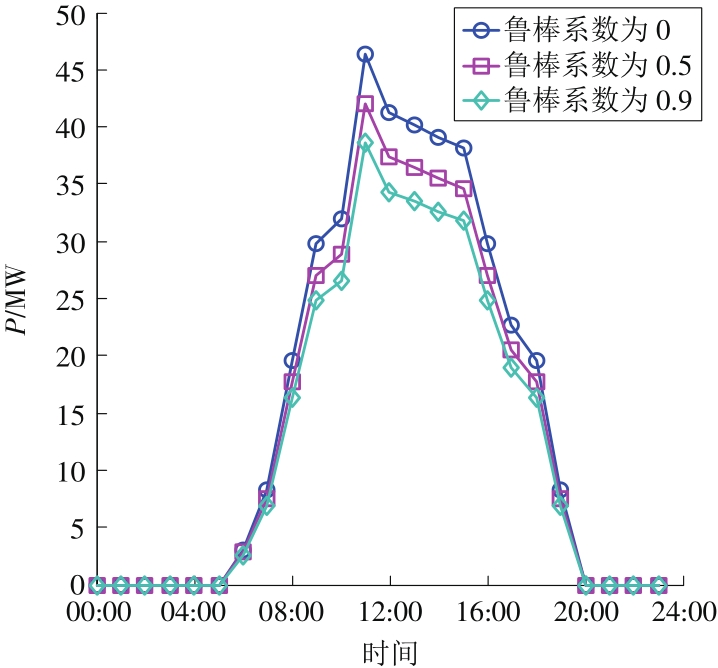

图8

图9

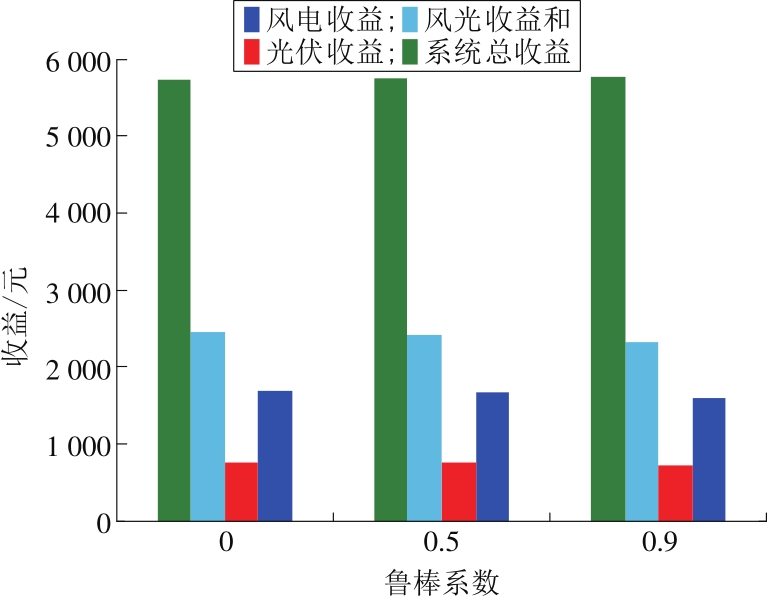

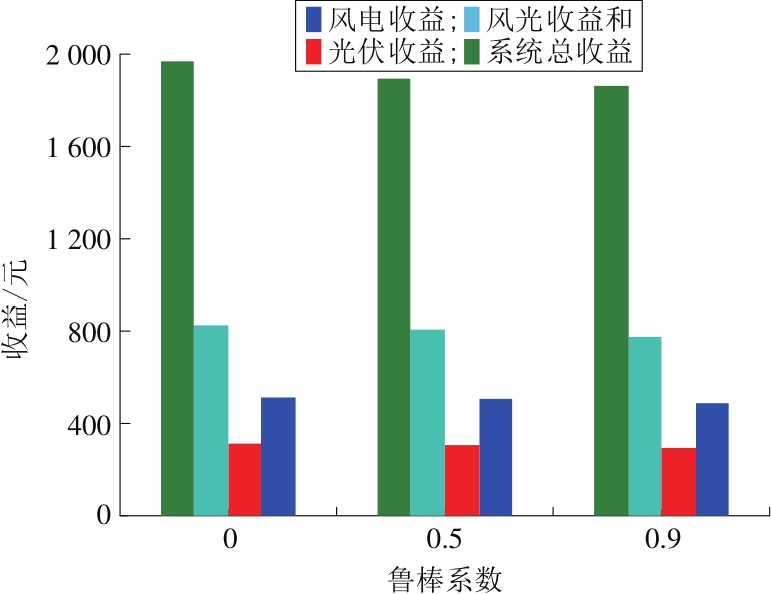

图10

图11

参考文献 32

[1]	Energy Transitions Commission, Rocky Mountain Institute. China 2050: A fully developed rich zero-carbon economy[R]. ETC&RMI, 2019.
[2]	李铁, 李正文, 杨俊友, 等. 计及调峰主动性的风光水火储多能系统互补协调优化调度[J]. 电网技术, 2020, 44(10): 3622-3630.
	LI Tie, LI Zhengwen, YANG Junyou, et al. Complementary coordination and optimal dispatching of wind, solar, hydro thermal energy storage multi energy system considering peak shaving initiative[J]. Power System Technology, 2020, 44 (10): 3622-3630.
[3]	侯慧, 徐焘, 肖振锋, 等. 计及可调控负荷的发用电一体化综合优化调度[J]. 电网技术, 2020, 44(11): 4294-4304.
	HOU Hui, XU Tao, XIAO Zhenfeng, et al. Generation and load integrated optimal scheduling considering adjustable load[J]. Power System Technology, 2020, 44(11):4294-4304.
[4]	温正楠, 刘继春. 风光水互补发电系统与需求侧数据中心联动的优化调度方法[J]. 电网技术, 2019, 43(7): 2449-2460.
	WEN Zhengnan, LIU Jichun. A optimal scheduling method for hybrid wind-solar-hydro power generation system with data center in demand side[J]. Power System Technology, 2019, 43 (7): 2449-2460.
[5]	崔杨, 张汇泉, 仲悟之, 等. 基于分时能量互补的风电-光热联合外送容量优化配置方法[J]. 电网技术, 2019, 43(11): 3875-3882.
	CUI Yang, ZHANG Huiquan, ZHONG Wuzhi, et al. An optimization method to determine power delivery capacity of combined wind-CSP system based on time-sharing energy complementation[J]. Power System Technology, 2019, 43(11): 3875-3882.
[6]	戴嘉彤, 董海鹰. 基于抽水蓄能电站的风光互补发电系统容量优化研究[J]. 电网与清洁能源, 2019, 35(6): 76-82.
	DAI Jiatong, DONG Haiying. Research on capacity optimization of wind solar complementary power generation system based on pumped storage power station[J]. Power System and Clean Energy, 2019, 35(6): 76-82.
[7]	孙伟卿, 宋赫, 秦艳辉, 等. 考虑灵活性供需不确定性的储能优化配置[J]. 电网技术, 2020, 44(12): 4486-4497.
	SUN Weiqing, SONG He, QIN Yanhui, et al. Optimal allocation of energy storage system considering uncertainty of flexibility supply and demand[J]. Power System Technology, 2020, 44(12): 4486-4497.
[8]	李咸善, 马凯琳, 程杉. 含多区域综合能源系统的主动配电网双层博弈优化调度策略[J]. 电力系统保护与控制, 2022, 42(1):8-22.
	LI Xianshan, MA Kailin, CHENG Shan. Dispatching strategy of active distribution network with multiple regional integrated energy systems based on two-level game optimization[J]. Power System Protection and Control, 2022, 42(1):8-22.
[9]	陈岑, 武传涛, 康慨, 等. 基于改进Owen值法的分布式储能双层合作博弈优化策略[J]. 中国电机工程学报, 2022, 42(11):3924-3935.
	CHEN Cen, WU Chuantao, KANG Kai, et al. Optimal strategy of distributed energy storage two-layer cooperative game based on improved Owen-value method[J]. Proceedings of the CSEE, 2022, 42(11):3924-3935.
[10]	李得民, 吴在军, 赵波. 多微电网系统的合作博弈模型及其优化调度策略[J]. 中国电机工程学报, 2022, 42(14):5140-5153.
	LI Demin, WU Zaijun, ZHAO Bo. Cooperative game model and optimal dispatch strategy of multi-microgrid system[J]. Proceedings of the CSEE, 2022, 42(14):5140-5153.
[11]	MOHAMMADI R, MASHHADI H R, SHAHIDEHPOUR M. Market-based customer reliability provision in distribution systems based on game theory: A bi-level optimization approach[J]. IEEE Transactions on Smart Grid, 2019, 10 (4): 3840-3848. doi: 10.1109/TSG.5165411
[12]	GHORBANIAN M, DOLATABADI S H, SIANO P. Game theory-based energy-management method considering autonomous demand response and distributed generation interactions in smart distribution systems[J]. IEEE Systems Journal, 2021, 15(1): 905-914. doi: 10.1109/JSYST.4267003
[13]	张靠社, 冯培基, 张刚, 等. 考虑机会约束的多能源微电网双层优化配置[J]. 太阳能学报, 2021, 42(8):41-48.
	ZHANG Kaoshe, FENG Peiji, ZHANG Gang, et al. Bi-level optimization configuration method for multi energy microgrid considering chance constraints[J]. Acta Energiae Solaris Sinica, 2021, 42 (8): 41-48.
[14]	LU C, WANG J, YAN R. Multi-objective optimization of combined cooling, heating and power system considering the collaboration of thermal energy storage with load uncertainties[J]. Journal of Energy Storage, 2021, 40: 102819-102829. doi: 10.1016/j.est.2021.102819
[15]	丁明, 吴伟, 吴红斌. 风速概率分布参数预测及应用[J]. 电网技术, 2008, 32(14): 10-14.
	DING Ming, WU Wei, WU Hongbin. Research on forecasting of probabilistic distribution parameters of wind speed and its application[J]. Power System Technology, 2008, 32 (14): 10-14.
[16]	张喆, 李庚银, 魏军强. 考虑分布式电源随机特性的配电网电压质量概率评估[J]. 中国电机工程学报, 2013, 33(13): 150-156.
	ZHANG Zhe, LI Gengyin, WEI Junqiang. Probabilistic evaluation of voltage quality in distribution networks considering the stochastic characteristic of distributed generators[J]. Proceedings of the CSEE, 2013, 33 (13): 150-156.
[17]	陈寒, 唐忠, 鲁家阳, 等. 基于CVaR量化不确定性的微电网优化调度研究[J]. 电力系统保护与控制, 2021, 49(5): 105-115.
	CHEN Han, TANG Zhong, LU Jiayang, et al. Research on optimal dispatch of a microgrid based on CVaR quantitative uncertainty[J]. Power System Protection and Control, 2021, 49(5): 105-115.
[18]	PRADO J C D, CHIKEZIE U. Decision model for an electricity retailer with energy storage and virtual bidding under daily and hourly CVaR assessment[J]. IEEE Access, 2021, 9: 106181-106191. doi: 10.1109/ACCESS.2021.3100815
[19]	帅轩越, 王秀丽, 吴雄, 等. 计及条件风险价值下基于合作博弈的多微网协同优化调度[J]. 电网技术, 2022, 46(1) :130-137.
	SHUAI Xuanyue, WANG Xiuli, WU Xiong, et al. Cooperative optimal scheduling of multi-microgrids based on cooperative game considering conditional value at risk[J]. Power System Technology, 2022, 46(1) :130-137.
[20]	姜明军, 任明远, 徐兰兰, 等. 计及分布式电源不确定性的多微网鲁棒博弈研究[J]. 可再生能源, 2021, 39(4): 533-540.
	JIANG Mingjun, REN Mingyuan, XU Lanlan, et al. Research on robust game in multi-microgrid considering distributed generation uncertainty[J]. Renewable Energy Resources, 2021, 39 (4): 533-540.
[21]	邬嘉雨, 刘洋, 许立雄, 等. 区块链技术下考虑风电不确定性的微网群鲁棒博弈交易模式[J]. 电力建设, 2021, 42(9): 10-21. doi: 10.12204/j.issn.1000-7229.2021.09.002
	WU Jiayu, LIU Yang, XU Lixiong, et al. Robust game transaction model of multi-microgrid system applying blockchain technology considering wind power uncertainty[J]. Electric Power Construction, 2021, 42 (9): 10-21. doi: 10.12204/j.issn.1000-7229.2021.09.002
[22]	柯人观, 黄民翔, 徐辰婧. 基于信息熵的电力调度公平性指标探讨[J]. 华东电力, 2012, 40(6): 1060-1063.
	KE Renguan, HUANG Minxiang, XU Chenjing. Impartiality index of power dispatching based on information entropy[J]. East China Electric Power, 2012, 40 (6): 1060-1063.
[23]	赵翔宇, 安成, 姚刚, 等. 我国电力市场改革的调度公平性评价指标体系研究[J]. 电力大数据, 2018, 21(3): 44-50.
	ZHAO Xiangyu, AN Cheng, YAO Gang, et al. Research on power dispatching fairness evaluation index system adapted to the power market reform in our country[J]. Power Systems and Big Data, 2018, 21 (3): 44-50.
[24]	易文飞. 智能配网环境下需求侧资源与可再生能源集成方法研究[D]. 北京: 华北电力大学, 2019.
	YI Wenfei. Research on integration method of demand side resources and renewable energy in intelligent distribution network[D]. Beijing: North China Electric Power University, 2019.
[25]	季东旭. 市场境下基于合作博弈的风-水-火电厂收益分配研究[D]. 西安: 西安理工大学, 2019.
	JI Dongxu. Research on income distribution of wind-water-thermal power plants based on cooperative game under market conditions[D]. Xi'an: Xi'an University of Technology, 2019.
[26]	孙亮, 张娜, 李宁, 等. 基于基尼系数电量进度公平性的日内滚动发电计划[J]. 电网技术, 2020, 44(1): 340-347.
	SUN Liang, ZHANG Na, LI Ning, et al. An intra-day rolling scheduling considering energy equity based on Gini coefficient[J]. Power System Technology, 2020, 44 (1): 340-347.
[27]	贠韫韵, 董海鹰, 陈钊, 等. 考虑随机性及光热电站参与的多源发电系统两阶段随机优化调度[J]. 电力系统保护与控制, 2020, 48(4): 30-38.
	YUN Yunyun, DONG Haiying, CHEN Zhao, et al. A two-stage stochastic scheduling optimization for multi-source power system considering randomness and concentrating solar power plant participation[J]. Power System Protection and Control, 2020, 48 (4): 30-38.
[28]	刘静, 史梦鸽, 胡永锋. 含电池储能系统的智能楼宇多阶段能量管理策略[J]. 综合智慧能源, 2022, 44(3): 29-37. doi: 10.3969/j.issn.2097-0706.2022.03.005
	LIU Jing, SHI Mengge, HU Yongfeng. Multi-stage energy management strategy for smart buildings with BESS[J]. Integrated Intelligent Energy, 2022, 44(3): 29-37. doi: 10.3969/j.issn.2097-0706.2022.03.005
[29]	董文略, 王群, 杨莉. 含风光水的虚拟电厂与配电公司协调调度模型[J]. 电力系统自动化, 2015, 39(9): 75-81,207.
	DONG Wenlue, WANG Qun, YANG Li. A coordinated dispatching model for a distribution utility and virtual power plant with wind/photovoltaic/hydro generators[J]. Automation of Electric Power Systems, 2015, 39(9):75-81,207.
[30]	CHEN R Z, SUN H B, GUO Q L, et al. Reducing generation uncertainty by integrating CSP with wind power: An adaptive robust optimization-based analysis[J]. IEEE Transactions on Sustainable Energy, 2015, 6(2):583-594. doi: 10.1109/TSTE.2015.2396971
[31]	梅生伟, 王莹莹, 刘锋. 风-光-储混合电力系统的博弈论规划模型与分析[J]. 电力系统自动化, 2011, 35(20): 13-19.
	MEI Shengwei, WANG Yingying, LIU Feng. A game theory planning model and analysis of wind optical storage hybrid power system[J]. Automation of Electric Power Systems, 2011, 35 (20): 13-19.
[32]	王莹莹, 梅生伟, 刘锋. 混合电力系统合作博弈规划的分配策略研究[J]. 系统科学与数学, 2012, 32 (4): 418-428.
	WANG Yingying, MEI Shengwei, LIU Feng. Imputation schemes for the cooperative game in the hybrid power system planning[J]. Journal of Systems Science and Mathematical Sciences, 2012, 32 (4): 418-428. doi: 10.12341/jssms11861

联盟				一天的收益
W	P	H	C	W	P	H	C
√				511.360	0	0	0
	√			0	309.390	0	0
		√		0	0	862.610	0
			√	0	0	0	284.580
√	√	√	√	1 693.800	760.990	983.870	2 287.540
√	√	√		1 693.800	760.990	3 269.410	0
√	√		√	1 693.800	760.990	0	983.410
	√	√	√	0	866.538	2 351.920	1 693.800
√		√	√	1 693.800	0	2 318.520	1 439.690
√		√		1 693.800	0	3 666.830	0
√	√			1 693.800	737.590	0	0
	√	√		0	737.590	3 807.370	0
√			√	1 693.800	0	0	1 439.690
	√		√	0	737.590	0	1 693.800
		√	√	0	0	2 694.900	1 693.800

联盟	特征函数	边际贡献
联盟	特征函数	W	P	H	C
{W}	v{W}=0	0	0	0	0
{P}	v{P}=0	0	0	0	0
{H}	v{H}=0	0	0	0	0
{C}	v{C}=0	0	0	0	0
{WPHC}	v{WPHC}= 3 749.26	3 749.26	3 749.26	3 749.26	3 749.26
{WPH}	v{WPH}= 3 794.26	3 794.26	3 794.26	3 794.26	0
{WPC}	v{WPC}=398.71	398.71	398.71	0	398.71
{PHC}	v{PHC}= 2 980.32	0	2 980.32	2 980.32	2 980.32
{WHC}	v{WHC}= 3 520.70	3 520.70	0	3 520.70	3 520.70
{WP}	v{WP}=499.45	499.45	499.45	0	0
{HC}	v{HC}=2 456.76	0	0	2 456.76	2 456.76
{WH}	v{WH}= 5 360.63	5 360.63	0	5 360.63	0
{PH}	v{PH}=2 613.02	0	2 613.02	2 613.02	0
{WC}	v{WC}=1 201.55	1 201.55	0	0	1 201.55
{PC}	v{PC}=499.50	0	499.50	0	499.50

联盟	参与者收益
联盟	W	P	H	C
{WPHC}	974.81	599.88	1 649.67	449.91
{WPC}	986.51	607.08	1 669.45	0
{WPC}	103.66	63.79	0	47.85
{PHC}	0	476.851 2	1 311.341 0	357.638 4
{WHC}	915.38	0	1 549.11	422.48
{PC}	129.86	79.91	0	0
{WC}	0	0	1 080.974 0	294.811 2
{HC}	1 393.76	0	2 358.68	0
{WP}	0	418.08	1 149.73	0
{WH}	312.40	0	0	144.19
{PH}	0	79.92	0	59.94
