考虑调峰响应的峰谷型售电套餐效用评估方法

doi:10.3969/j.issn.1674-1951.2021.09.010

摘要/Abstract

摘要：

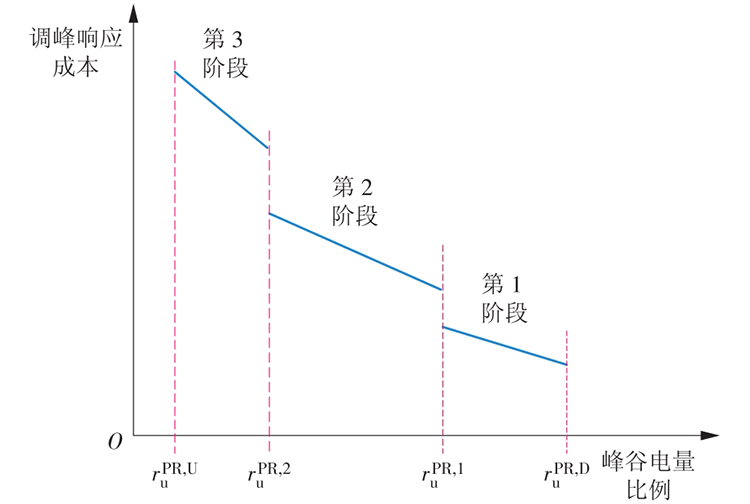

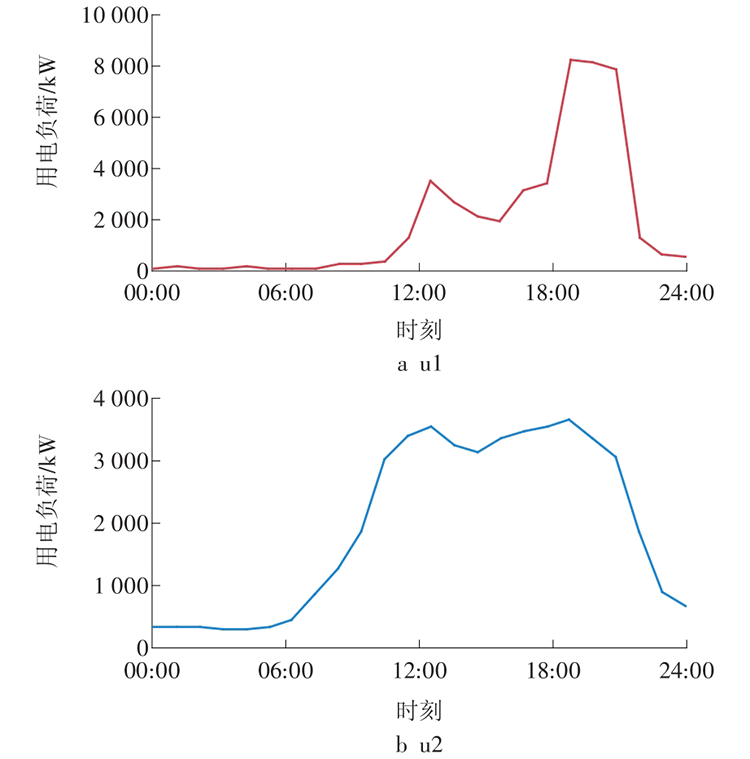

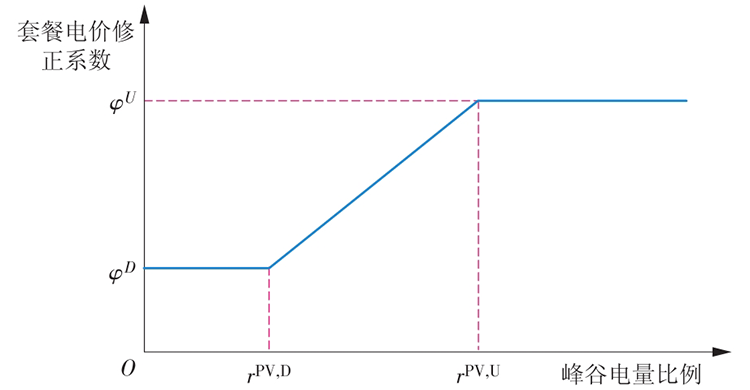

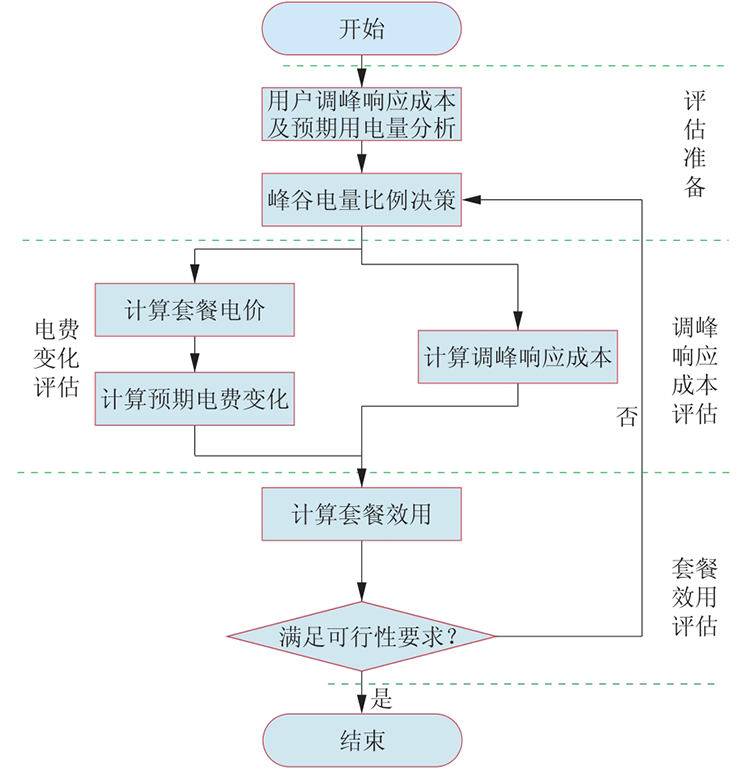

为准确评估不同申报模式下售电套餐的预期效益,研究了电力用户在峰谷型售电套餐中调峰响应的贡献度,并提出了一种考虑调峰响应的峰谷型售电套餐效用评价方法。介绍了峰谷型售电套餐基本概念,其主要特征在于电价随用户峰谷电量比例的下降而下降,以激励用户主动参与调峰服务。为量化调峰响应带来的不利影响,设计了电力用户调峰响应影响程度评价模型。在此基础上,综合考虑用户在履行该协议后,购电费用和调峰响应带来的不利影响,提出了一种考虑调峰响应的效用评价方法。基于2类用户实际数据构造算例得出评估结果：若不考虑调峰响应带来的不利影响,用户倾向于申报较低的峰谷电量比例系数,以降低套餐电价;然而当套餐电价降低到一定程度后,峰谷电量比例系数带来的用电限制将大幅影响电力用户正常使用需求,导致综合效用下降。结果表明,电力用户在购买峰谷型售电套餐时,必须统筹考虑峰谷电量比例调整带来的购电费用变化和用电习惯变化,准确评估调峰响应带来的不利影响,合理确定峰谷电量比例指标。

关键词: 峰谷型售电套餐, 调峰响应, 综合效用, 峰谷电量比例, 电力用户, 用电习惯, 储能

Abstract:

In order to accurately evaluate the expected benefits of electricity retail packages under different reporting modes, the contribution of power users' peak regulation responses to peak-valley power retail package was studied, and a utility evaluation method for the peak-valley power retail package considering peak regulation responses was proposed. Firstly, the basic concept of the peak-valley power package is introduced. A main feature of the package is that the electricity price it offered decreases with the shrink of peak-valley power' proportion, so users will actively participate in peak-valley regulation. In order to quantify the adverse effects of peak-shaving responses, an evaluation model to classify power users' peak-shaving responses was designed. On the basis of this, a utility evaluation method considering the variation of electricity price and adverse effects of peak-load responses is proposed. Finally, based on the data of two power users, a case study is made and the evaluation results show that users tend to declare a lower peak-valley power ratio without considering the adverse effects of peak response. However, when the price is reduced to an extent, the power restriction caused by the ratio coefficient of peak-valley electricity will greatly affect the normal use demand of power users, leading to the decline of comprehensive utility. The results show that when purchasing peak-valley electricity package, power users must take into account the changes of electricity purchase cost and electricity consumption habits caused by the adjustment of peak-valley electricity ratio, accurately evaluate the adverse effects brought by the response of peak-valley electricity ratio, and reasonably determine the peak-valley electricity ratio index.

Key words: peak-valley power electricity package, peak regulation response, comprehensive utility, peak-valley power ratio, power user, electricity consumption behavior, energy storage

中图分类号:

TM743

王天峰, 刘丙栋, 张一晨, 谢天, 黄红伟. 考虑调峰响应的峰谷型售电套餐效用评估方法[J]. 华电技术, 2021, 43(9): 78-84.

WANG Tianfeng, LIU Bingdong, ZHANG Yichen, XIE Tian, HUANG Hongwei. Utility evaluation method for peak-valley electricity retail packages considering peak regulation responses[J]. Huadian Technology, 2021, 43(9): 78-84.

图/表 6

图1

图2

图4

图3

图5

表1

参考文献 19

[1]	马莉, 张晓萱, 杨素, 等. 中国售电市场发展动态及关键问题[J]. 中国电力, 2017, 50(7):5-9.
	MA Li, ZHANG Xiaoxuan, YANG Su, et al. Recent developments and key issues of China's retail electricity market[J]. Electric Power, 2017, 50(7):5-9.
[2]	宋艺航, 王刚, 蔡浩, 等. 售电公司购售电决策研究综述[J]. 电力需求侧管理, 2020, 22(6):85-89.
	SONG Yihang, WANG Gang, CAI Hao, et al. Research review of electricity purchase and sale trading strategies[J]. Power Demand Side Management, 2020, 22(6):85-89.
[3]	何青, 高效, 张文月, 等. 美国德州电力市场零售电价套餐体系及启示[J]. 供用电, 2018, 35(12):50-55.
	HE Qing, GAO Xiao, ZHANG Wenyue, et al. The retail electricity price package system of Texas electricity market in the USA and its revelation[J]. Distribution & Utilization, 2018, 35(12):50-55.
[4]	李鹏, 黄龙, 陈皓勇, 等. 日本电力市场建设对我国的启示[J]. 南方电网技术, 2019, 13(9):67-74.
	LI Peng, HUANG Long, CHEN Haoyong, et al. Enlightenment of Japan's power market construction to China[J]. Southern Power System Technology, 2019, 13(9):67-74.
[5]	叶钰童, 何永秀, 陈奋开, 等. 英国零售电价套餐体系发展经验及启示[J]. 电力需求侧管理, 2020, 22(5):97-100.
	YE Yutong, HE Yongxiu, CHEN Fenkai, et al. Development experience and enlightenment of retail electricity price package system in UK[J]. Power Demand Side Management, 2020, 22(5):97-100.
[6]	THOMAS A G, TESFATSION L, COBWEBS B. Cautionary tales for dynamic pricing in retail electric power markets[J]. IEEE Transactions on Power Systems, 2018, 33(6):6870-6882. doi: 10.1109/TPWRS.59
[7]	HUANG C, WANG C, XIE N, et al. Robust coordination expansion planning for active distribution network in deregulated retail power market[J]. IEEE Transactions on Smart Grid, 2020, 11(2):1476-1488. doi: 10.1109/TSG.5165411
[8]	丁叶强, 姚学恒, 陈向民, 等. 基于5G与实时电价的电动汽车需求侧管理研究[J]. 华电技术, 2021, 43(1):66-70.
	DING Yeqiang, YAO Xueheng, CHEN Xiangmin, et al. Study on electric vehicle demand side management based on 5G and spot pricing[J]. Huadian Technology, 2021, 43(1):66-70.
[9]	HAIDER R, BAROS S, YASUAKI W, et al. Toward a retail market for distribution grids[J]. IEEE Transactions on Smart Grid, 2020, 11(6):4891-4905. doi: 10.1109/TSG.5165411
[10]	窦迅, 张盼, 李建安, 等. 不同资质的售电公司购售电策略分析[J]. 中国电机工程学报, 2020, 40(S1):181-187.
	DOU Xun, ZHANG Pan, LI Jian’an, et al. Analysis of power purchase-sale strategy of power retail companies with different establishment qualifications[J]. Proceedings of the CSEE, 2020, 40(S1):181-187.
[11]	徐杰彦, 卢悦, 曲弘, 等. 新电改背景下我国电网公司售电服务竞争力分析[J]. 电力需求侧管理, 2020, 22(4):89-93,100.
	XU Jieyan, LU Yue, QU Hong, et al. Competitive power analysis on the electricity retail service of Chinese grid companies under new electricity market reform[J]. Power Demand Side Management, 2020, 22(4):89-93,100.
[12]	林伟伟, 胡志坚, 谢仕炜, 等. 基于非合作博弈的独立售电公司最优规划方法[J]. 电力自动化设备, 2020, 40(3):154-161.
	LIN Weiwei, HU Zhijian, XIE Shiwei, et al. Optimal planning method of independent electricity retail company based on non-cooperative game[J]. Electric Power Automation Equipment, 2020, 40(3):154-161.
[13]	冯丽, 李俊, 刘波. 清洁能源消纳背景下的重庆电网需求响应实践[J]. 华电技术, 2021, 43(1):71-75.
	FENG Li, LI Jun, LIU Bo. Demand response of Chongqing power grid integrated with clean energy consumption[J]. Huadian Technology, 2021, 43(1):71-75.
[14]	王星华, 刘升伟, 陈豪君, 等. 考虑用户差异性的售电公司需求响应电价模型[J]. 电力建设, 2019, 40(9):116-123.
	WANG Xinghua, LIU Shengwei, CHEN Haojun, et al. Demand response pricing model for power sales companies considering user differences[J]. Electric Power Construction, 2019, 40(9):116-123.
[15]	薛松, 胡源, 李维, 等. 售电市场建设发展成效评估国际经验及我国售电市场评估体系[J]. 电网技术, 2019, 43(6):1969-1977.
	XUE Song, HU Yuan, LI Wei, et al. International experience in construction and development evaluation of electricity retail market and China's electricity retail market evaluation system design[J]. Power System Technology, 2019, 43(6):1969-1977.
[16]	FANG X, HU Q, LI F, et al. Coupon-based demand response considering wind power uncertainty:A strategic bidding model for load serving entities[J]. IEEE Transactions on Power Systems, 2016, 31(2):1025-1037. doi: 10.1109/TPWRS.2015.2431271
[17]	YANG J, ZHAO J, WEN F, et al. A model of customizing electricity retail prices based on load profile clustering analysis[J]. IEEE Transactions on Smart Grid, 2019, 10(3):3374-3386. doi: 10.1109/TSG.5165411
[18]	夏叶, 康重庆, 宁波, 等. 用户侧互动模式下发用电一体化调度计划[J]. 电力系统自动化, 2012, 36(1):17-23.
	XIA Ye, KANG Chongqing, NING Bo, et al. A generation and load integrated scheduling on interaction mode on customer side[J]. Automation of Electric Power Systems, 2012, 36(1):17-23.
[19]	喻小宝, 谭忠富, 屈高强. 基于电力客户评估的差异化电价套餐研究[J]. 中国电力, 2020, 53(2):9-19.
	YU Xiaobao, TAN Zhongfu, QU Gaoqiang. Research on differentiated price package based on power customer evaluation[J]. Electric Power, 2020, 53(2):9-19.

用户	峰谷电量比决策值	电价修正系数	交易电价/[元·（kW·h)^-1]	月电费降低/万元	月调峰响应成本/万元	月综合效用/万元
u1	40.0	1.025	0.67	0.630	100.300	-99.670
u2	10.0	0.800	0.52	1.344	370.000	-368.700
