含水源热泵的区域综合能源系统低碳运行优化研究

doi:10.3969/j.issn.2097-0706.2022.01.006

综合智慧能源 ›› 2022, Vol. 44 ›› Issue (1): 39-48.doi: 10.3969/j.issn.2097-0706.2022.01.006

• 综合能源系统优化运行与控制 • 上一篇下一篇

含水源热泵的区域综合能源系统低碳运行优化研究

徐恒志¹^,²(), 周博文¹^,²^,^*(), 李广地¹^,², 华光辉³, 孔祥淼⁴

1.东北大学信息科学与工程学院,沈阳 110819
2.辽宁省综合能源优化与安全运行重点实验室,沈阳 110819
3.中国电力科学研究院有限公司新能源与储能运行控制国家重点实验室,南京 210003
4.沈阳航天新乐有限责任公司,沈阳 110034

收稿日期:2021-07-12 修回日期:2021-10-28 出版日期:2022-01-25 发布日期:2022-02-15
通讯作者: 周博文
作者简介:徐恒志（1997）,男,在读硕士研究生,从事综合能源系统优化配置与运行方面的研究, 3291220239@qq.com。
基金资助:
国家自然科学基金项目(61703081);中央高校基本科研业务费项目(N2004030)

Research on optimal operation of the regional integrated energy system with water-source heat pumps

XU Hengzhi¹^,²(), ZHOU Bowen¹^,²^,^*(), LI Guangdi¹^,², HUA Guanghui³, KONG Xiangmiao⁴

1. College of Information Science and Engineering, Northeastern University,Shenyang 110819,China
2. Key Laboratory of Integrated Energy Optimization and Secure Operation of Liaoning Province, Northeastern University,Shenyang 110819,China
3. State Key Laboratory of Operation and Control of Renewable Energy & Storage Systems, China Electric Power Research Institute, Nanjing 210003, China
4. Shenyang Aerospace Xinle Company Limited, Shenyang 110034, China

Received:2021-07-12 Revised:2021-10-28 Online:2022-01-25 Published:2022-02-15
Contact: ZHOU Bowen

摘要/Abstract

摘要：

区域综合能源系统冬季供暖期通常受“以热定电”的运行模式制约,区域电网电能调峰能力低,可再生能源利用率低。提出在水源充沛地域引入水源热泵机组,实现热电解耦;同时,结合电制冷机、吸收制冷机、多元储能装置等能量转换设备,形成含水源热泵的区域综合能源系统。构建了各设备机组运行模型并耦合形成系统总体架构,为实现“双碳”目标,综合考虑系统运行经济成本与碳排放成本,建立了区域综合能源系统低碳运行优化模型并给出求解方法。对所提模型及方法进行仿真分析,探讨求解得到的最优运行策略对综合能源系统各方面运行成本的影响,验证了所提模型及运行策略的合理性及有效性。

关键词: 碳中和, 区域综合能源系统, 水源热泵, 以热定电, 热电解耦, 电制冷机, 吸收制冷机, 多元储能装置, 碳排放模型

Abstract:

Regional integrated energy systems usually follow the "determining power by heating load" energy-supply principal in winter, resulting in the low load-regulation ability and low renewable energy consumption rate. Water source heat pump units are introduced into areas with abundant water sources to realize thermo-electric decoupling. Combining electric refrigeration devices, absorption refrigeration devices and multi-energy storage devices,a regional integrated energy system with water-source heat pumps is proposed. The overall architecture of this system is constructed by coupling the operation modes of different equipment. To achieve the goals of carbon peaking and carbon neutrality, a low-carbon optimized operation model is proposed on the premise of considering the operation costs and carbon emission costs. Through simulation, the effects of the optimal operation strategy on the operation costs of the integrated energy system at all aspects are studied, which verified the effectiveness of the proposed model and strategy.

Key words: carbon neutrality, regional integrated energy system, water-source heat pump, determining power by heating load, thermoelectric decoupling, electric refrigeration device, absorption refrigeration device, multi-energy storage device, carbon emission model

中图分类号:

TK01:TM732

徐恒志, 周博文, 李广地, 华光辉, 孔祥淼. 含水源热泵的区域综合能源系统低碳运行优化研究[J]. 综合智慧能源, 2022, 44(1): 39-48.

XU Hengzhi, ZHOU Bowen, LI Guangdi, HUA Guanghui, KONG Xiangmiao. Research on optimal operation of the regional integrated energy system with water-source heat pumps[J]. Integrated Intelligent Energy, 2022, 44(1): 39-48.

图/表 16

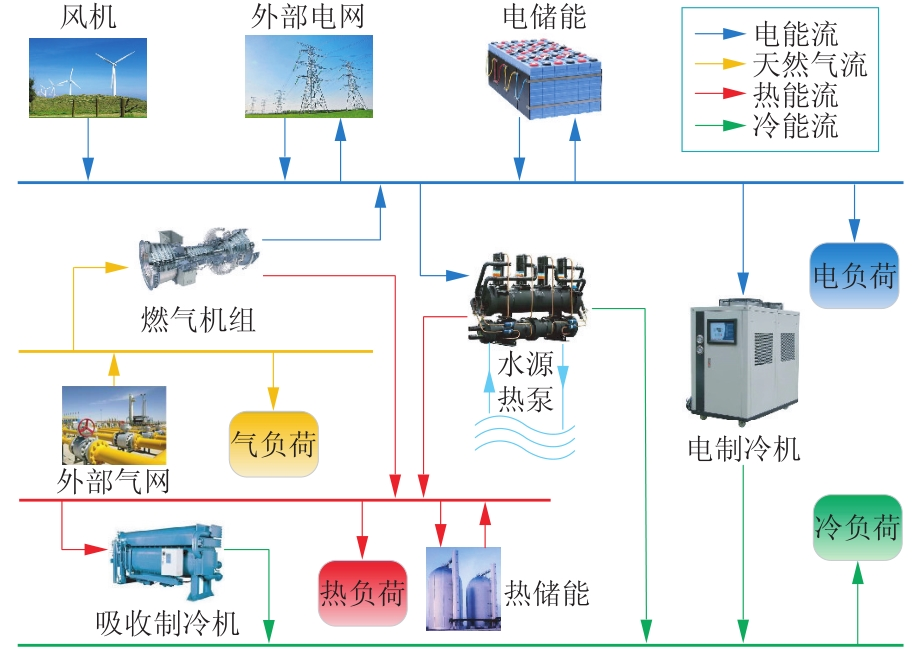

图1

表1

表2

表3

表4

天然气阶梯价格

各时段购气量/m³	售气价格
0~100	3.10
$>$ 100~160	3.65
$>$ 160	4.50

表4

图2

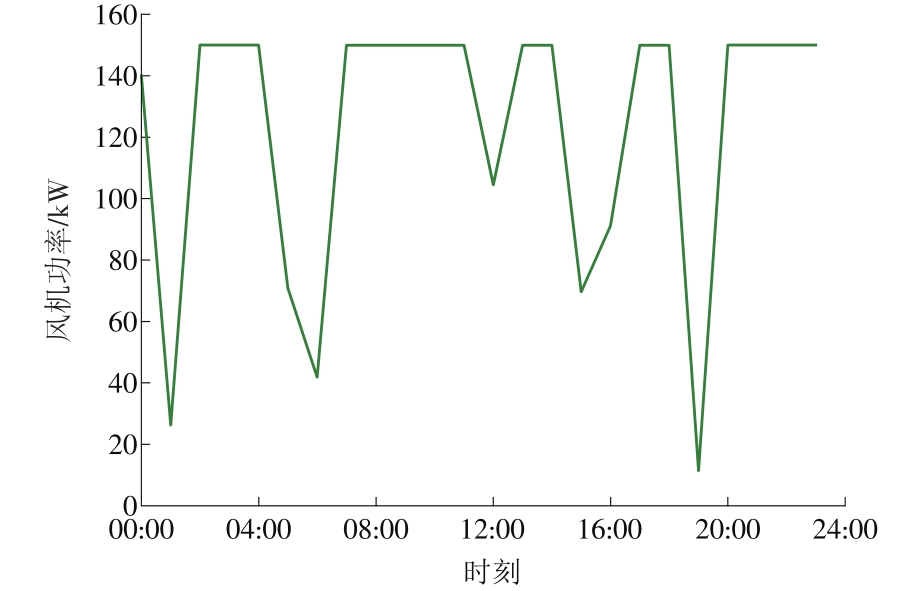

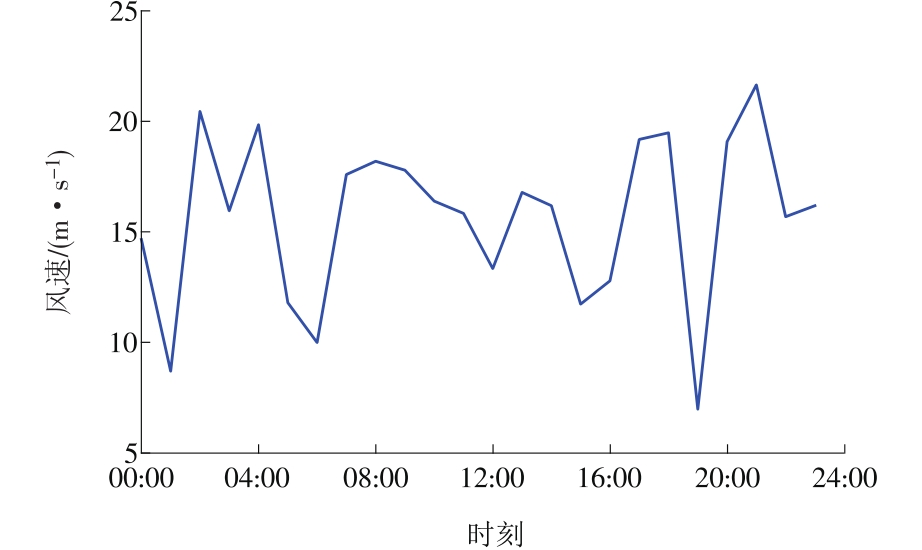

图3

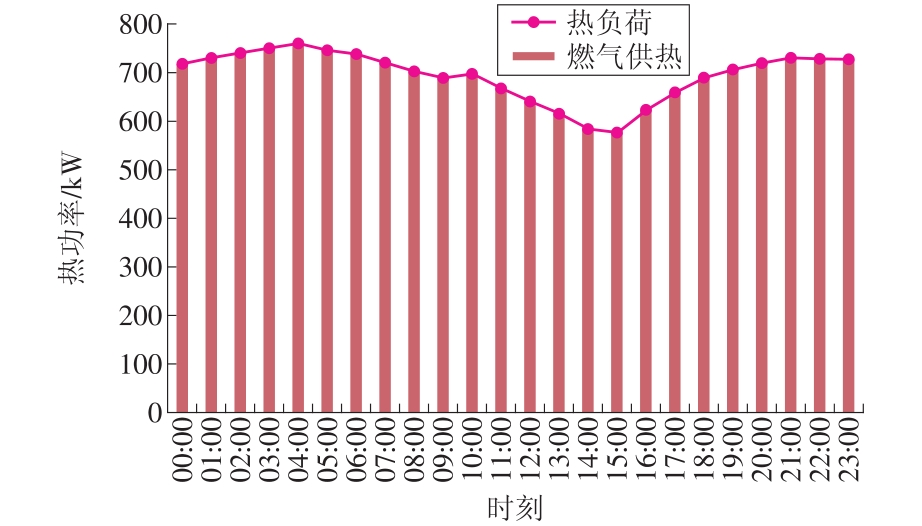

图4

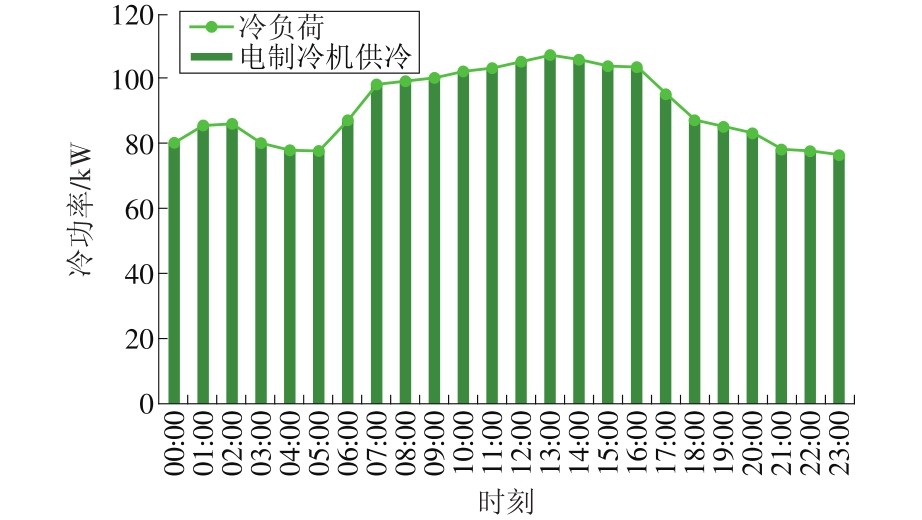

图5

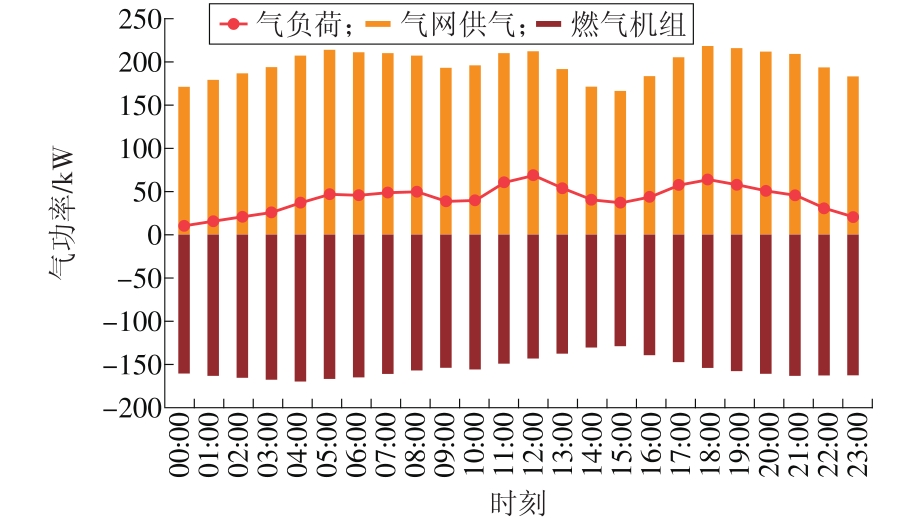

图6

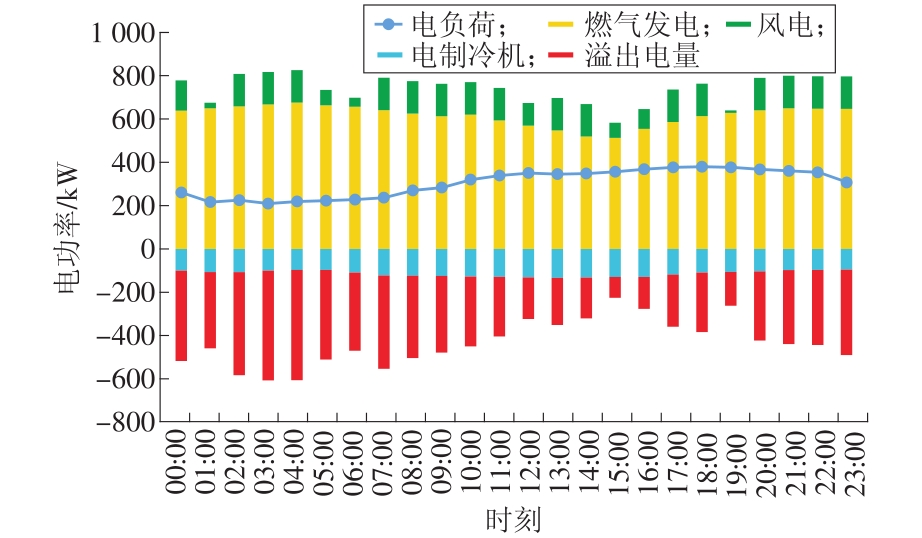

图7

图8

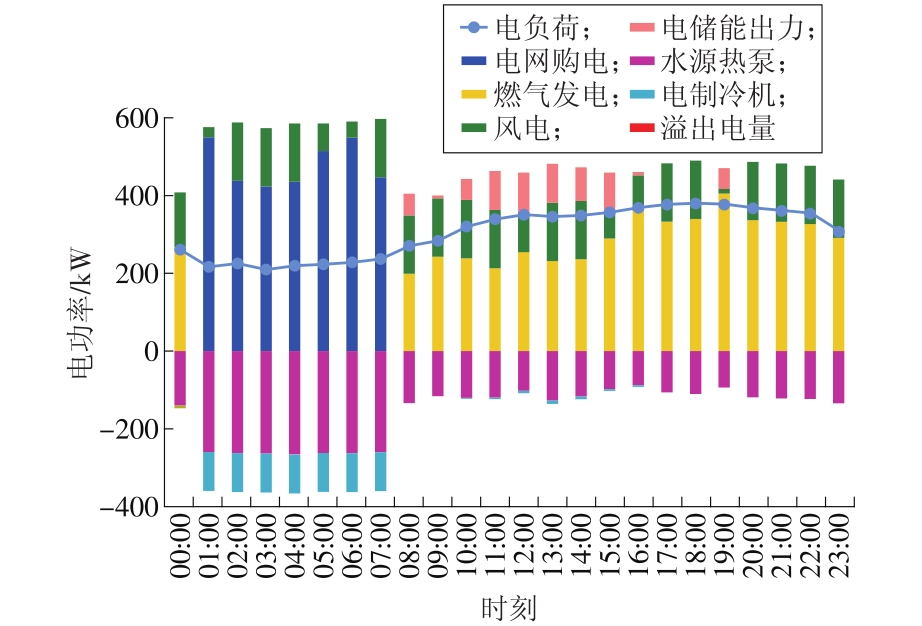

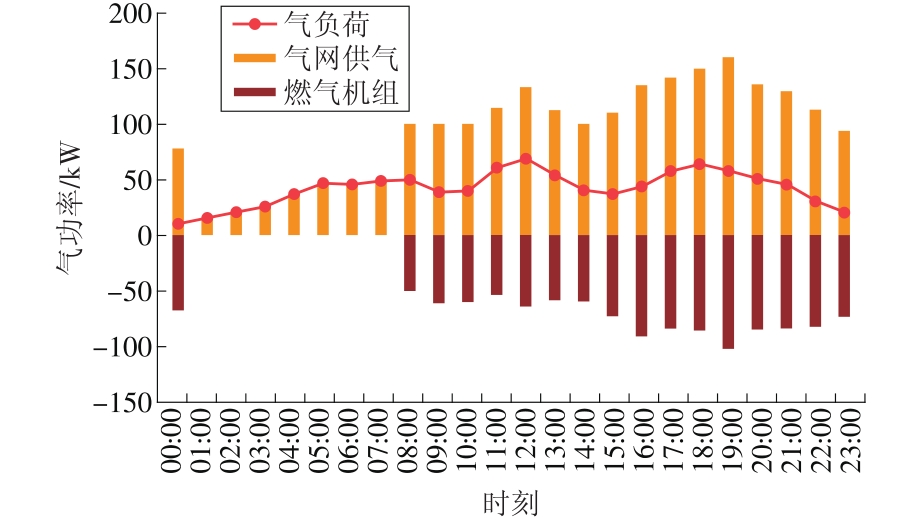

图9

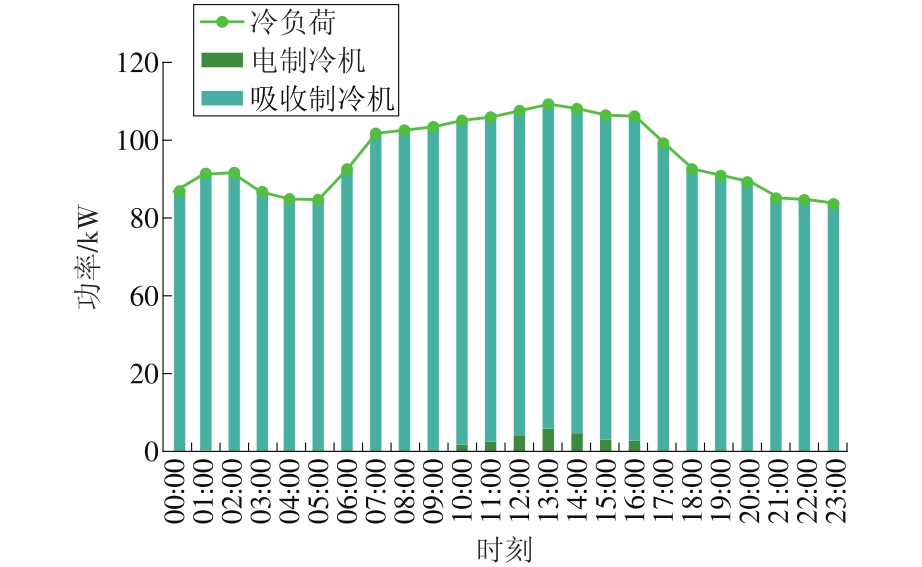

图10

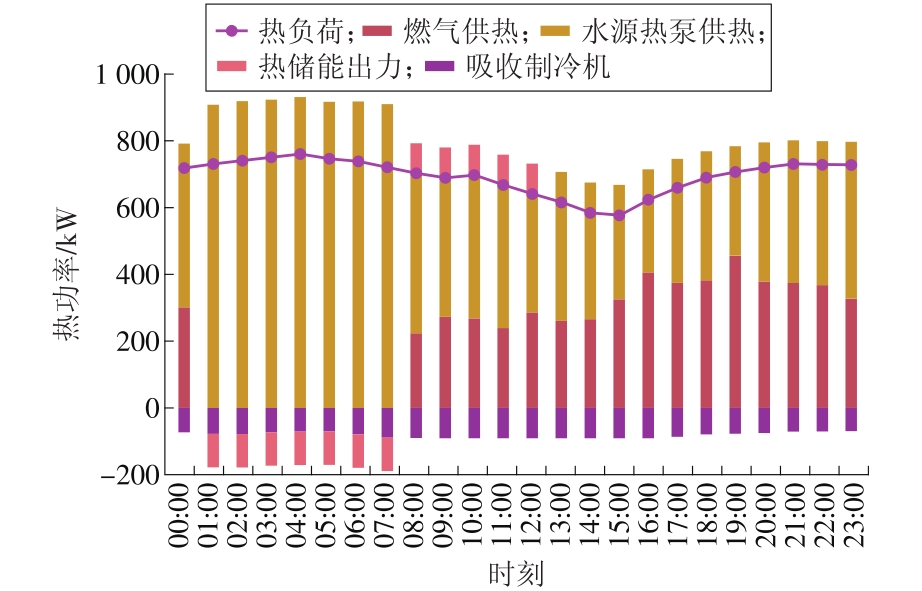

图11

表5

参考文献 29

[1]	刘斌, 张玉琼, 麻林巍, 等. 西北地区源端基地综合能源系统的技术方案设计及优化研究[J]. 中国电机工程学报, 2021, 41(2):568-581.
	LIU Bin, ZHANG Yuqiong, MA Linwei, et al. Design and optimization of technical schemes of supply-side base integrated energy systems in Northwest China[J]. Proceedings of the CSEE, 2021, 41(2):568-581.
[2]	LIU H, LI Z, CHENG Q, et al. Construction of the evaluation index system of the regional integrated energy system compatible with the hierarchical structure of the Energy Internet[C]// 2020 IEEE 4th Conference on Energy Internet and Energy System Integration (EI2), 2020:342-348.
[3]	熊文, 刘育权, 苏万煌, 等. 考虑多能互补的区域综合能源系统多种储能优化配置[J]. 电力自动化设备, 2019, 39(1):118-126.
	XIONG Wen, LIU Yuquan, SU Wanhuang, et al. Optimal configuration of multi-energy storage in regional integrated energy system considering multi-energy complementation[J]. Electric Power Automation Equipment, 2019, 39(1):118-126.
[4]	孙浩, 陈永华. 综合能源系统多能流联合仿真技术研究[J]. 华电技术, 2020, 42(5):66-72.
	SUN Hao, CHEN Yonghua. Research on multiple energy flow co-simulation technology applied in integrated energy system[J]. Huadian Technology, 2020, 42(5):66-72.
[5]	QIN Y, WU L, ZHENG J, et al. Optimal operation of integrated energy systems subject to coupled demand constraints of electricity and natural gas[J]. CSEE Journal of Power and Energy Systems, 2020, 6(2):444-457.
[6]	LIU N, WANG J, WANG L. Hybrid energy sharing for multiple microgrids in an integrated heat-electricity energy system[J]. IEEE Transactions on Sustainable Energy, 2019, 10(3):1139-1151. doi: 10.1109/TSTE.5165391
[7]	赵鑫, 郑文禹, 侯智华, 等. 基于粒子群优化算法的多能互补系统经济调度研究[J]. 华电技术, 2021, 43(4):14-20.
	ZHAO Xin, ZHENG Wenyu, HOU Zhihua, et al. Research on economic dispatch of multi-energy complementary system based on Particle Swarm Optimization[J]. Huadian Technology, 2021, 43(4):14-20.
[8]	许周, 孙永辉, 谢东亮, 等. 计及电/热柔性负荷的区域综合能源系统储能优化配置[J]. 电力系统自动化, 2020, 44(2):53-59.
	XU Zhou, SUN Yonghui, XIE Dongliang, et al. Optimal configuration of energy storage for integrated region energy system considering power/thermal flexible load[J]. Automation of Electric Power System, 2020, 44(2):53-59.
[9]	GONG Y F, YANG X, XU J K, et al. Optimal operation of integrated energy system considering virtual heating energy storage[J]. Energy Reports, 2021, 7:419-425.
[10]	刘文霞, 李征洲, 杨粤, 等. 计及需求响应不确定性的综合能源系统协同优化配置[J]. 电力系统自动化, 2020, 44(10):41-49.
	LIU Wenxia, LI Zhengzhou, YANG Yue, et al. Collaborative optimal configuration for integrated energy system considering uncertainties of demand response[J]. Automation of Electric Power System, 2020, 44(10):41-49.
[11]	TAO Y, QIU J, LAI S, et al. Integrated electricity and hydrogen energy sharing in coupled energy systems[J]. IEEE Transactions on Smart Grid, 2021, 12(2):1149-1162. doi: 10.1109/TSG.5165411
[12]	LI Z, XU Y, FANG S, et al. Robust coordination of a hybrid AC/DC multi-energy ship microgrid with flexible voyage and thermal loads[J]. IEEE Transactions on Smart Grid, 2020, 11:2782-2793. doi: 10.1109/TSG.5165411
[13]	朱海东, 郝浩, 郑剑, 等. 基于冷热电多能互补的园区综合能源系统设计[J]. 华电技术, 2021, 43(4):34-38.
	ZHU Haidong, HAO Hao, ZHENG Jian, et al. Design of integrated energy system for parks based on complementation of cold, heat and electricity[J]. Huadian Technology, 2021, 43(4):34-38.
[14]	MIAO B, LIN J, LI H, et al. Day-ahead energy trading strategy of regional integrated energy system considering energy cascade utilization[J]. IEEE Access, 2020, 8:138021-138035. doi: 10.1109/Access.6287639
[15]	WEGENER M, MALMQUIST A, ISALGUE A, et al. A techno-economic optimization model of a biomass-based CCHP/heat pump system under evolving climate conditions[J]. Energy Conversion and Management, 2020, 223(1):113256. doi: 10.1016/j.enconman.2020.113256
[16]	孙浩, 傅金洲, 鄢小虎, 等. 区域综合能源仿真优化系统的研制[J]. 华电技术, 2021, 43(4):8-13.
	SUN Hao, FU Jinzhou, YAN Xiaohu, et al. Research and development of integrated community energy simulation-optimization system[J]. Huadian Technology, 2021, 43(4):8-13.
[17]	SUN Y, ZHANG B, GE L, et al. Day-ahead optimization schedule for gas-electric integrated energy system based on second-order cone programming[J]. CSEE Journal of Power and Energy Systems, 2020, 6(1):142-151.
[18]	LAZDINS R, MUTULE A. Operational algorithm for natural gas boiler and heat pump system optimization with PV panel[C]// 2020 IEEE 61th International Scientific Conference on Power and Electrical Engineering of Riga Technical University(RTUCON).IEEE, 2020.
[19]	BARTNIK R, BURY N Z, HNYDIUK-STEFAN A. Thermodynamic and economic analysis of effect of heat accumulator volume on the specific cost of heat production in the gas-steam CHP plant[J]. Energy, 2021, 230:120828. doi: 10.1016/j.energy.2021.120828
[20]	陈伯达, 林楷东, 张勇军, 等. 计及碳捕集和电转气协同的电气互联系统优化调度[J]. 南方电网技术, 2019, 13(11):9-17.
	CHEN Boda, LIN Kaidong, ZHANG Yongjun, et al. Optimal dispatching of integrated electricity and natural gas energy systems considering the coordination of carbon capture system and power-to-gas[J]. Southern Power System Technology, 2019, 13(11):9-17.
[21]	ZHOU Y, YU H, LI Z, et al. Robust optimization of a distribution network location-routing problem under carbon trading policies[J]. IEEE Access, 2020, 8:46288-46306. doi: 10.1109/Access.6287639
[22]	吉斌, 刘妍, 朱丽叶, 等. 基于联盟区块链的电力碳权交易机制设计[J]. 华电技术, 2020, 42(8):32-40.
	JI Bin, LIU Yan, ZHU Liye, et al. Design of carbon emission permit trading mechanism in power industry based on consortium blockchain[J]. Huadian Technology, 2020, 42(8):32-40.
[23]	HU Z, DU Y, RAO C, et al. Delegated proof of reputation consensus mechanism for blockchain-enabled distributed carbon emission trading system[J]. IEEE Access, 2020, 8:214932-214944. doi: 10.1109/Access.6287639
[24]	尹硕, 郭兴五, 燕景, 等. 考虑高渗透率和碳排放约束的园区综合能源系统优化运行研究[J]. 华电技术, 2021, 43(4):1-7.
	YIN Shuo, GUO Xingwu, YAN Jing, et al. Study on optimized operation on integrated energy system in parks with high permeability and carbon emission constraints[J]. Huadian Technology, 2021, 43(4):1-7.
[25]	WANG Y, QIU J, TAO Y, et al. Carbon-oriented operational planning in coupled electricity and emission trading markets[J]. IEEE Transactions on Power Systems, 2020, 35(4):3145-3157. doi: 10.1109/TPWRS.59
[26]	HOU Q, GUAN Y, YU S. Stochastic differential game model analysis of emission-reduction technology under cost-sharing contracts in the carbon trading market[J]. IEEE Access, 2020, 8:167328-167340. doi: 10.1109/Access.6287639
[27]	王泽森, 石岩, 唐艳梅, 等. 考虑LCA能源链与碳交易机制的综合能源系统低碳经济运行及能效分析[J]. 中国电机工程学报, 2019, 39(6):1614-1626,1858.
	WANG Zeyan, SHI Yan, TANG Yanmei, et al. Low carbon economy operation and energy efficiency analysis of integrated energy systems considering LCA energy chain and carbon trading mechanism[J]. Proceedings of the CSEE, 2019, 39(6):1614-1626,1858.
[28]	PAN J, LI S. Research of underground water temperature recovery characteristics on site after water-source heat pump heating :In Shenyang City as an example[C]// 2011 International Conference on Electrical and Control Engineering, 2011:3591-3595.
[29]	李帅. 水源热泵系统运行调控与能耗优化[D]. 青岛:青岛大学, 2018.

储能装置	自然电/热损失系数	放电/热效率	充电/热效率
电储能	1/2 400	0.95	0.95
热储能	1/500	0.85	0.85

时段	售电价格
01:00—07:00	0.41
08:00—10:00,23:00—00:00	0.74
11:00—22:00	1.10

运行模式	经济成本	碳排放成本	总成本
1	16 773.91	2 143.56	18 917.46
2	8 234.50	1 078.10	9 312.60
