含储氢结构的园区综合能源系统优化配置研究

doi:10.3969/j.issn.2097-0706.2022.09.002

摘要/Abstract

摘要：

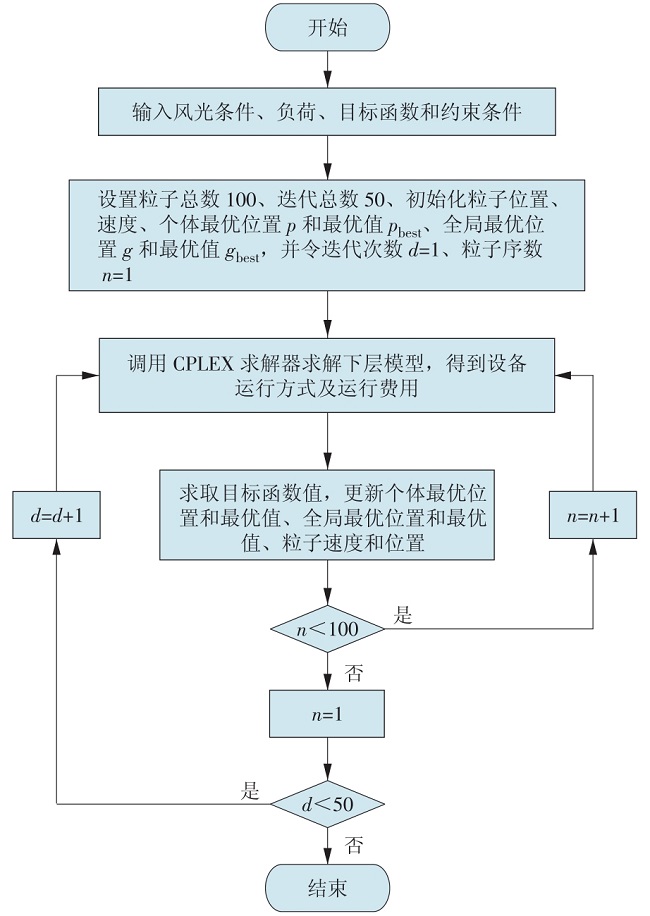

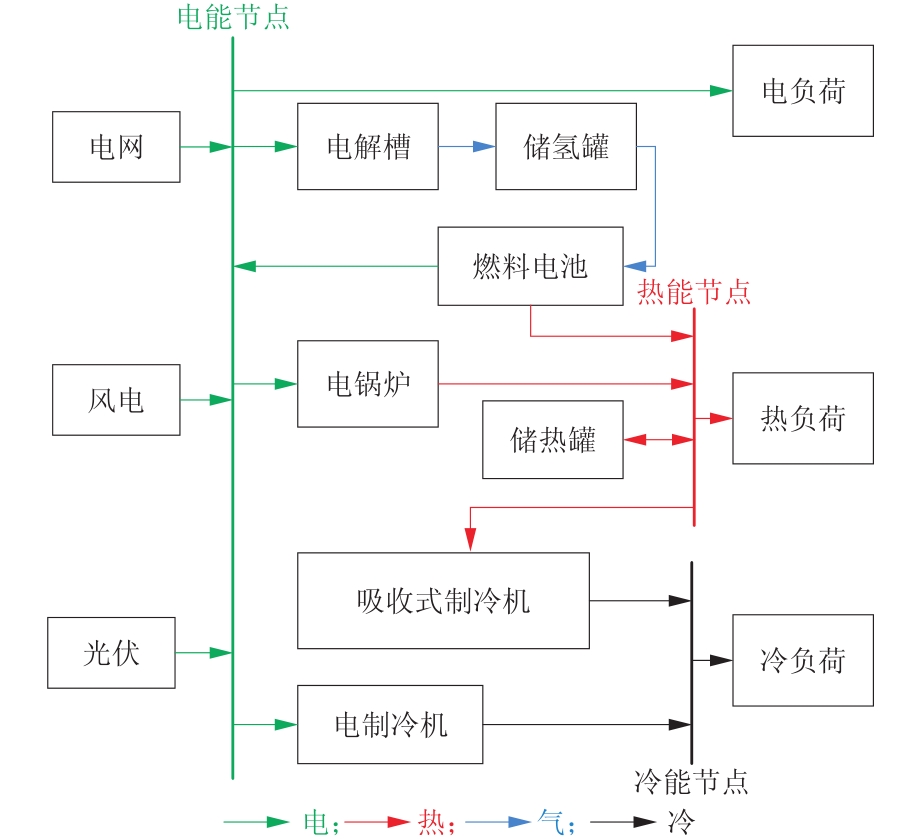

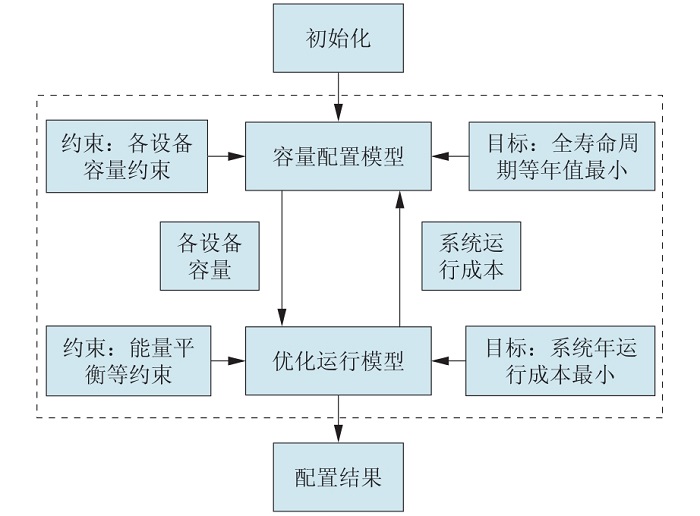

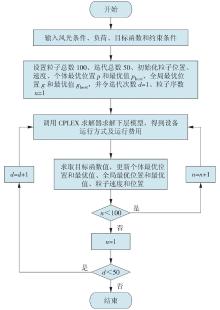

氢能能量密度高,具有良好的储能能力,将储氢应用于园区综合能源系统可有效提高其经济性。为此,针对含储氢结构的园区综合能源系统进行了优化配置研究,首先以储氢替代储电的形式构建了含储氢结构的园区综合能源系统,以系统全寿命周期等年值为容量配置层目标函数,系统年运行成本为优化运行层目标函数,在能量平衡和设备出力等约束条件下,建立了相应的优化配置模型,并采用粒子群算法与CPLEX求解器相结合的双层优化算法进行求解,最后对园区算例的设备容量、运行方式、系统性能和经济性进行分析。分析表明,建立的含储氢结构的园区综合能源系统能实时可靠地满足用户能源需求,且相较于含储电结构的园区综合能源系统,两者性能大致相同,但前者经济效果更明显,进而验证了所提方法的可行性。

关键词: 储氢, 园区综合能源系统, 优化配置模型, 双层优化算法, 算例分析, 可再生能源

Abstract:

Since hydrogen energy is of high energy density and good energy storage capacity,its application to an integrated energy system for an industrial park can effectively improve the economy of the system.A study on the optimal configuration of integrated energy systems for parks with hydrogen storage devices is made.Firstly,electricity storage devices for the system are replaces by hydrogen storage devices.Then,the system takes the uniform annual value of its whole-life-cycle cost as the objective function of the capacity configuration layer,and its annual operating cost as the objective function of the optimal operating layer.Under the constraints on energy balance and equipment outputs,the corresponding model of the optimal configuration is established.The bi-level optimization algorithm that integrates particle swarm algorithm and CPLEX solver is used to solve the model.Finally,the equipment capacities,operation mode,system performance and economy of the power system for an industrial park are analyzed.The analysis results shows that the scheme of integrated energy systems for parks with hydrogen storage systems can meet users' real-time energy demand reliably.Comparing the power system with hydrogen storage devices and the one with electricity storage devices,their performances are roughly the same,but the former one is obviously more economic,which proves the practicability of the suggested method.

Key words: hydrogen storage, integrated energy system for parks, optimal configuration model, bi-level optimization algorithm, case study, renewable energy

中图分类号:

TK01

钟鹏元, 杨晓宏, 寇建玉. 含储氢结构的园区综合能源系统优化配置研究[J]. 综合智慧能源, 2022, 44(9): 11-19.

ZHONG Pengyuan, YANG Xiaohong, KOU Jianyu. Research on the optimal configuration of integrated energy systems for parks with hydrogen storage devices[J]. Integrated Intelligent Energy, 2022, 44(9): 11-19.

图/表 11

图1

图2

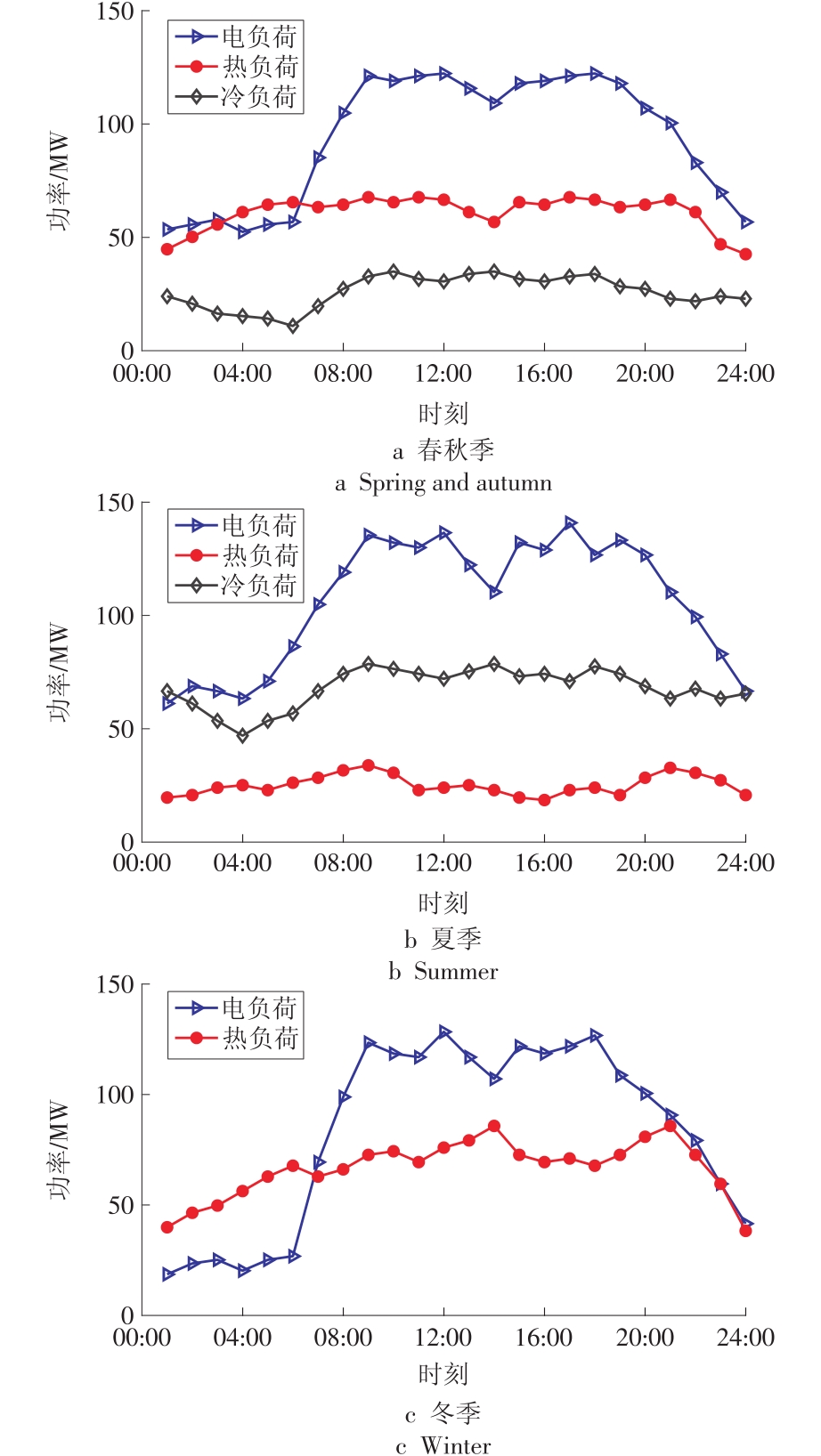

图3

表1

表2

表3

图4

表4

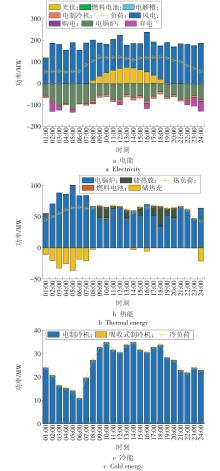

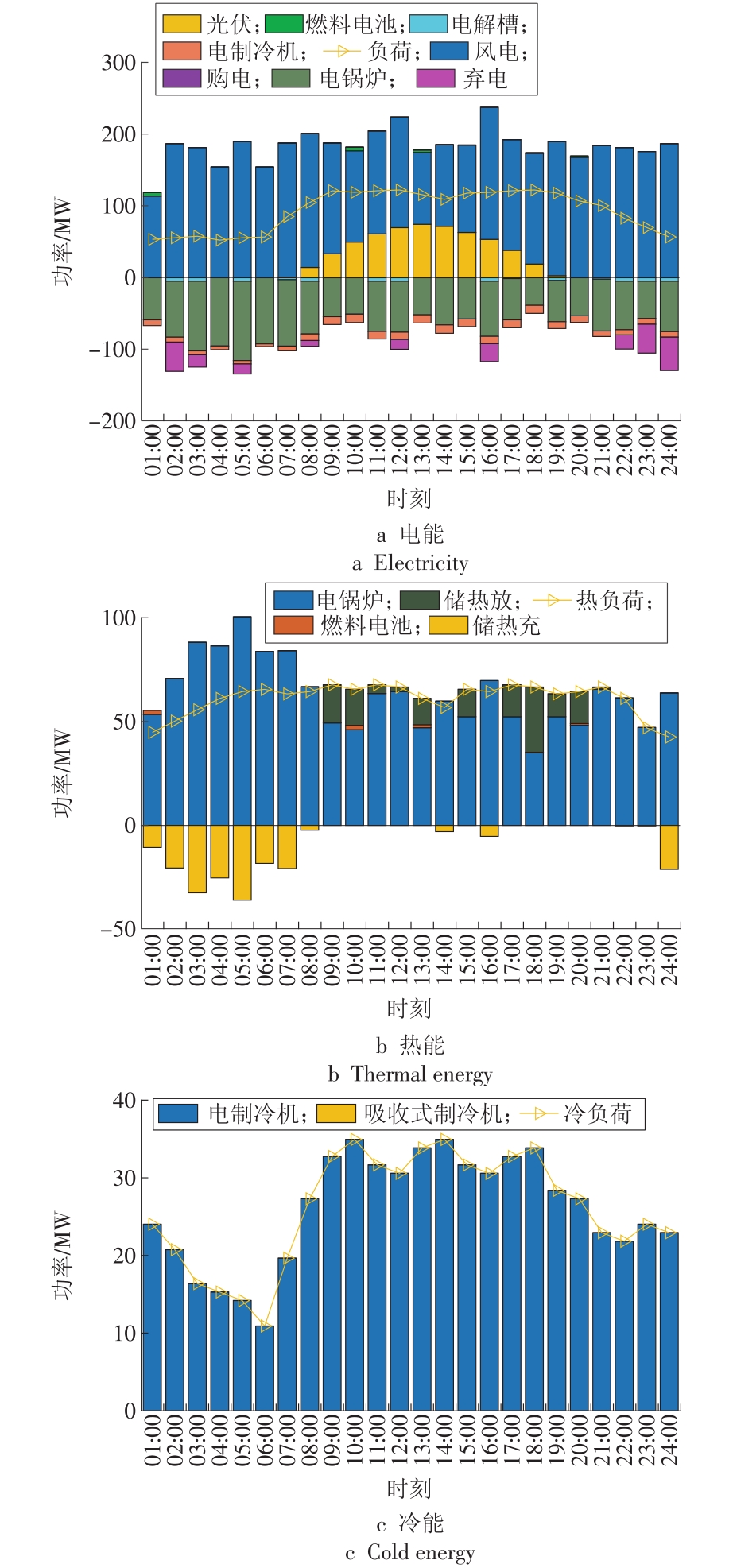

图5

表5

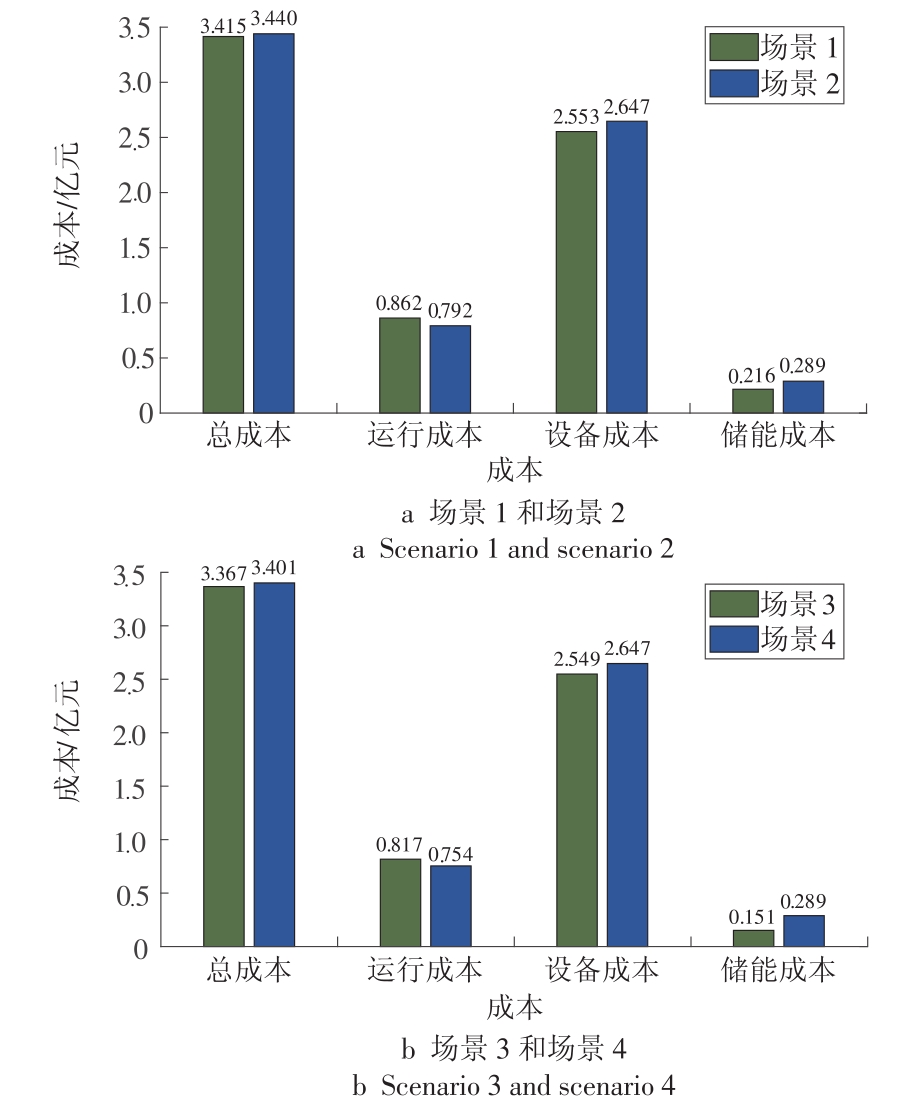

图6

参考文献 23

[1]	HONG B, CHEN J, ZHANG W, et al. Integrated energy system planning at modular regional-user level based on a two-layer bus structure[J]. CSEE Journal of Power and Energy System, 2018, 4(2):188-196. doi: 10.17775/CSEEJPES.2018.00110
[2]	郝然, 艾芊, 姜子卿. 区域综合能源系统多主体非完全信息下的双层博弈策略[J]. 电力系统自动化, 2018, 42(4):194-201.
	HAO Ran, AI Qian, JIANG Ziqing. Bi-level game strategy for multi-agent with incomplete information in regional integrated energy system[J]. Automation of Electric Power Systems, 2018, 42(4):194-201.
[3]	WANG Y, HUANG Y, WANG Y, et al. Optimal scheduling of the RIES considering time-based demand response programs with energy price[J]. Energy, 2018, 164(1):773-793. doi: 10.1016/j.energy.2018.09.014
[4]	于雪风. 含储氢及储热的园区综合能源系统优化配置与运行研究[D]. 北京: 华北电力大学, 2020.
[5]	王玉东. 基于双层优化的区域综合能源系统规划研究[D]. 北京: 华北电力大学, 2020.
[6]	边晓燕, 史越奇, 裴传逊, 等. 计及经济性和可靠性因素的区域综合能源系统双层协同优化配置[J]. 电工技术学报, 2021, 36(21):4529-4543.
	BIAN Xiaoyan, SHI Yueqi, PEI Chuanxun, et al. Bi-level collaborative configuration optimization of ICES considering economy and reliability[J]. Transactions of China Electrotechnical Society, 2021, 36(21):4529-4543.
[7]	张海静, 杨雍琦, 赵昕, 等. 计及需求响应的区域综合能源系统双层优化调度策略[J]. 中国电力, 2021, 54(4): 141-150.
	ZHANG Haijing, YANG Yongqi, ZHAO Xin, et al. Two-level optimal dispatching strategy for regional integrated energy system considering demand response[J]. Electric Power, 2021, 54(4):141-150.
[8]	章文浦, 王强钢. 基于遗传算法的分布式多能互补能源系统优化配置[J]. 华电技术, 2021, 43(1):52-58.
	ZHANG Wenpu, WANG Qianggang. Optimal allocation of multi-energy complementary distributed energy system based on genetic algorithm[J]. Huadian Technology, 2021, 43(1):52-58.
[9]	吴福保, 史如新, 桑丙玉, 等. 考虑能量成本和污染排放的综合能源系统优化配置[J]. 热力发电, 2021, 50(2):10-17.
	WU Fubao, SHI Ruxin, SANG Bingyu, et al. Optimization of integrated energy system considering energy cost and pollution emission[J]. Thermal Power Generation, 2021, 50(2):10-17.
[10]	仇知, 王蓓蓓, 贲树俊, 等. 计及不确定性的区域综合能源系统双层优化配置规划模型[J]. 电力自动化设备, 2019, 39(8):176-185.
	QIU Zhi, WANG Beibei, JIA Shujun, et al. Bi-level optimal configuration planning model of regional integrated energy system considering uncertainties[J]. Electric Power Automation Equipment, 2019, 39(8):176-185.
[11]	赵鑫, 郑文禹, 侯智华, 等. 基于粒子群优化算法的多能互补系统经济调度研究[J]. 华电技术, 2021, 43(4):14-20.
	ZHAO Xin, ZHENG Wenyu, HOU Zhihua, et al. Research on economic dispatch of multi-energy complementary system based on particle swarm optimization[J]. Huadian Technology, 2021, 43(4):14-20.
[12]	潘华, 肖雨涵, 梁作放, 等. 基于复杂网络的电-气-热综合能源系统健壮性分析[J]. 电力自动化设备, 2019, 39(8):104-112.
	PAN Hua, XIAO Yuhan, LIANG Zuofang, et al. Robustness analysis of electricity-gas-heat integrated energy system based on complex network[J]. Electric Power Automation Equipment, 2019, 39(8):104-112.
[13]	毛志斌, 陈琦, 王威力, 等. 基于果蝇算法的综合能源系统容量优化配置研究[J]. 内江科技, 2021, 42(5):13-14.
[14]	LUO F, SHAO J, JIAO Z, et al. Research on optimal allocation strategy of multiple energy storage in regional integrated energy system based on operation benefit increment[J]. International Journal of Electrical Power and Energy Systems, 2021, 125:106376. doi: 10.1016/j.ijepes.2020.106376
[15]	吴桂联, 林婷婷, 郑洁云, 等. 大型园区综合能源系统能源站优化配置[J]. 电力系统及其自动化学报, 2019, 31(9):116-122.
	WU Guilian, LIN Tingting, ZHENG Jieyun, et al. Optimal allocation of energy stations in large-scale park integrated energy system[J]. Proceedings of the CSU-EPSA, 2019, 31(9):116-122.
[16]	宋倩倩. 生态园区综合能源利用双层多目标优化配置研究[D]. 保定: 河北农业大学, 2021.
[17]	中国氢能联盟. 中国氢能源及燃料电池产业白皮书(2019版)[R]. 2019.
[18]	任大伟, 侯金鸣, 肖晋宇, 等. 能源电力清洁化转型中的储能关键技术探讨[J]. 高电压技术, 2021, 47(8):2751-2759.
	REN Dawei, HOU Jinming, XIAO Jinyu, et al. Exploration of key technologies for energy storage in the cleansing transformation of energy and power[J]. High Voltage Engineering, 2021, 47(8):2751-2759.
[19]	王长君, 刘硕, 丁薛峰. 相变储能技术在清洁供暖中的应用研究[J]. 华电技术, 2020, 42(11):91-96.
	WANG Changjun, LIU Shuo, DING Xuefeng. The study on application of phase change energy storage technology in clean heating[J]. Huadian Technology, 2020, 42(11):91-96.
[20]	蒋文坤, 韩颖慧, 薛智文, 等. 多能互补能源系统中储能原理及其应用[J]. 综合智慧能源, 2022, 44(1):63-71. doi: 10.3969/j.issn.2097-0706.2022.01.009
	JIANG Wenkun, HAN Yinghui, XUE Zhiwen, et al. Energy storage technologies and their applications in multi-energy complementary power system[J]. Integrated Intelligent Energy, 2022, 44(1):63-71. doi: 10.3969/j.issn.2097-0706.2022.01.009
[21]	高章鹏. 面向园区微网的综合能源系统优化配置与运行研究[D]. 北京: 华北电力大学, 2019.
[22]	林晓明, 张勇军, 陈伯达, 等. 计及多评价指标的园区能源互联网双层优化配置[J]. 电力系统自动化, 2019, 43(20):8-15,30.
	LIN Xiaoming, ZHANG Yongjun, CHEN Boda, et al. Bi-level optimal configuration of park energy internet considering multiple evaluation indicators[J]. Automation of Electric Power Systems, 2019, 43(20):8-15,30.
[23]	HOLJEVAC N, CAPUDER T, ZHANG N, et al. Corrective receding horizon scheduling of flexible distributed multi-energy micro-grids[J]. Applied Energy, 2017, 207: 176-194. doi: 10.1016/j.apenergy.2017.06.045

参数	HST	TES	EES
单位购置成本/元	300	320	1 800
单位替换成本/元	280	280	1 500
单位运维成本/元	0.002 0	0.003 4	0.004 0
输入效率	0.97	0.91	0.95
输出效率	0.97	0.91	0.95
功率下限	0.00	0.00	0.00
功率上限	0.20 S_HST	0.20 S_TES	0.20 S_EES
储能上限	0.95 S_HST	1.00 S_TES	1.00 S_EES
储能下限	0.20 S_HST	0.10 S_TES	0.10 S_EES
自损耗率	0.010	0.010	0.001

设备	单位购置成本/元	单位替换成本/元	单位运维成本/元	效率/%
PV	4 000	3 500	0.010	—
WT	6 000	5 500	0.006	—
EL	6 000	4 800	0.020	0.60
HFC	2 500	2 000	0.022	0.60/0.25
EB	750	600	0.013	0.91
ER	540	420	0.015	3.00
AR	750	700	0.014	1.20

时段	时间划分	电价/[元·(kW·h)^-1]
谷时段	00：00—04：00 10：00—15：00	0.487 4
平时段	04：00—10：00 15：00—17：00 21：00—24：00	0.502 5
高峰时段	17：00—21：00	0.743 7

设备	单位	场景1	场景2	场景3	场景4
PV	MW	89.1	59.7	91.5	59.7
WT	MW	372.0	388.0	368.0	388.0
EL	MW	4.9	—	4.1	—
HFC	MW	15.6	—	16.0	—
HST	kg	3 898.0	—	4 001.0	—
EES	MW·h	—	67.8	—	67.8
TES	MW·h	179.9	180.0	180.0	180.0
EB	MW	159.2	127.4	178.6	127.4
ER	MW	78.6	78.6	78.6	78.6
AR	MW	0.0	0.0	0.0	0.0

场景	综合能源利用率	综合能源自给率	弃风弃光率
1	105.85	92.51	8.00
2	106.43	92.89	7.99
3	106.21	92.35	7.91
4	106.46	92.92	7.99
