超长距蒸汽供热管道保温性能分析

doi:10.3969/j.issn.2097-0706.2023.04.007

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (4): 47-51.doi: 10.3969/j.issn.2097-0706.2023.04.007

超长距蒸汽供热管道保温性能分析

商永强¹(), 王文峰¹, 王为术²^,^*(), 郭嘉伟², 郑毫楠², 葛学文²

1.华电郑州机械研究院有限公司, 郑州 450046
2.华北水利水电大学电力学院, 郑州 450045

收稿日期:2021-01-08 修回日期:2022-03-22 接受日期:2023-02-27 出版日期:2023-04-25 发布日期:2023-05-06
通讯作者: 王为术
作者简介:商永强（1981），正高级工程师，从事火力发电、节能供热设计和工程管理方面的工作，7522051@qq.com；
基金资助:
中国华电集团科技项目(CHDKJ18-01-47)

Analysis on the thermal insulation of long-distance steam heating pipes

SHANG Yongqiang¹(), WANG Wenfeng¹, WANG Weishu²^,^*(), GUO Jiawei², ZHENG Haonan², GE Xuewen²

1. Huadian Zhengzhou Mechanical Design Institute Company Limited, Zhengzhou 450046, China
2. School of Electric Power, North China University of Water Resources and Electric Power, Zhengzhou 450045, China.

Received:2021-01-08 Revised:2022-03-22 Accepted:2023-02-27 Online:2023-04-25 Published:2023-05-06
Contact: WANG Weishu
Supported by:
Science and Technology Program of China Huadian Corporation Limited(CHDKJ18-01-47)

摘要/Abstract

摘要：

针对热电联产蒸汽长距离运输过程中保温的问题，结合某管网工程，采用数值模拟的方法，研究了不同敷设方式管网的散热特性，并根据设计负荷计算了管网用户处的蒸汽参数。研究结果表明，在蒸汽供热管道中，空气层和土壤可一定程度上降低管道中蒸汽的热损失，对管道起到保温效果，直埋敷设管段的热损失要小于架空敷设管段。当管网负荷较低时，部分用户处会出现冷凝，负荷增大会使管道温降减小，压降增大。该研究为供热管道工程优化提供理论基础。

关键词: 数值模拟, 热电联产, 供热管网, 节能降损, 蒸汽供热

Abstract:

In order to solve the thermal insulation problem in the long-distance transportation of cogeneration steam，a pipe network project undertaken was simulated to study its heat dissipation characteristics under different laying schemes.And the steam parameters at the network's user side were calculated based on the design load.The simulation results show that laying an air layer and soil over the steam heating pipes can reduce the heat loss of the pipes to a certain extent，so as to improve the thermal insulation of the pipelines.The heat loss of the directly buried section is less than that of the overhead pipe section.Since the increase of the load will reduce the temperature drop of the pipe and increase the pressure drop，condensation will occur at some user ends when the load of the pipe network is low.This simulation facilitates the theoretical study on heating pipe allocation optimization.

Key words: numerical simulation, cogeneration, heating pipe network, energy conservation and loss reduction, steam heating

中图分类号:

TK11：TM621

商永强, 王文峰, 王为术, 郭嘉伟, 郑毫楠, 葛学文. 超长距蒸汽供热管道保温性能分析[J]. 综合智慧能源, 2023, 45(4): 47-51.

SHANG Yongqiang, WANG Wenfeng, WANG Weishu, GUO Jiawei, ZHENG Haonan, GE Xuewen. Analysis on the thermal insulation of long-distance steam heating pipes[J]. Integrated Intelligent Energy, 2023, 45(4): 47-51.

图/表 11

图1

表1

图2

表2

保温材料导热系数

保温材料	导热系数λ/[W·（m·K）^-1]
玻璃棉	$λ = 2.907 1 × 102 + 1.102 2 × 10 - 4 T + 7.652 29 × 10 - 10 T 3$
摩根	$λ = 0.03 + 0.000 2 × (T - 150)$
CNT	$λ = 0.031 + 0.000 092 5 × (T - 70)$

表2

表3

湍流方程经验系数

项目	$C μ$	$C 1 ε$	$C 2 ε$	$σ k$	$σ ε$
数值	0.09	1.44	1.92	1.00	1.30

表3

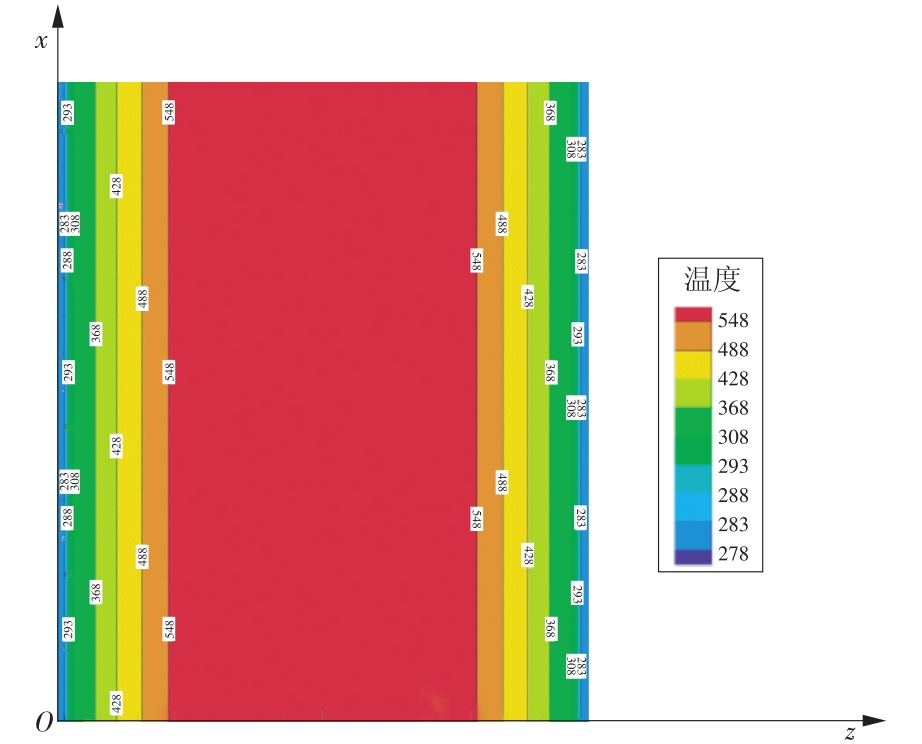

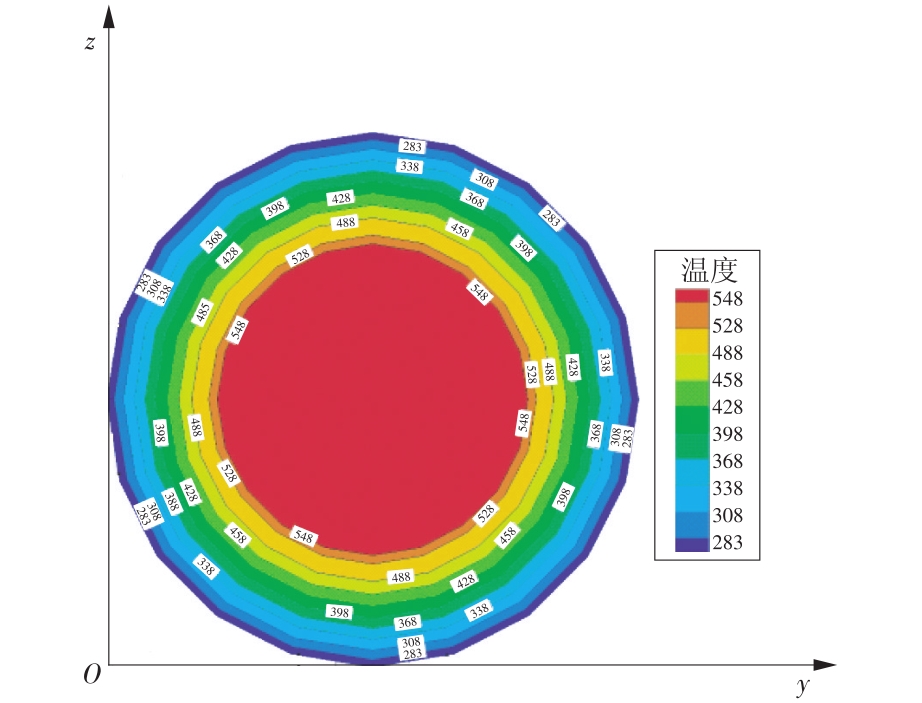

图3

图4

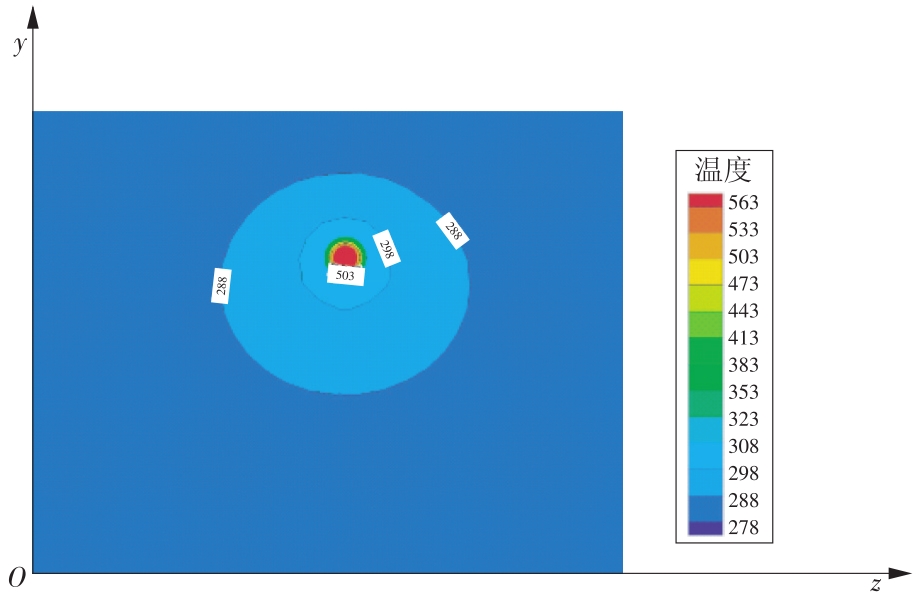

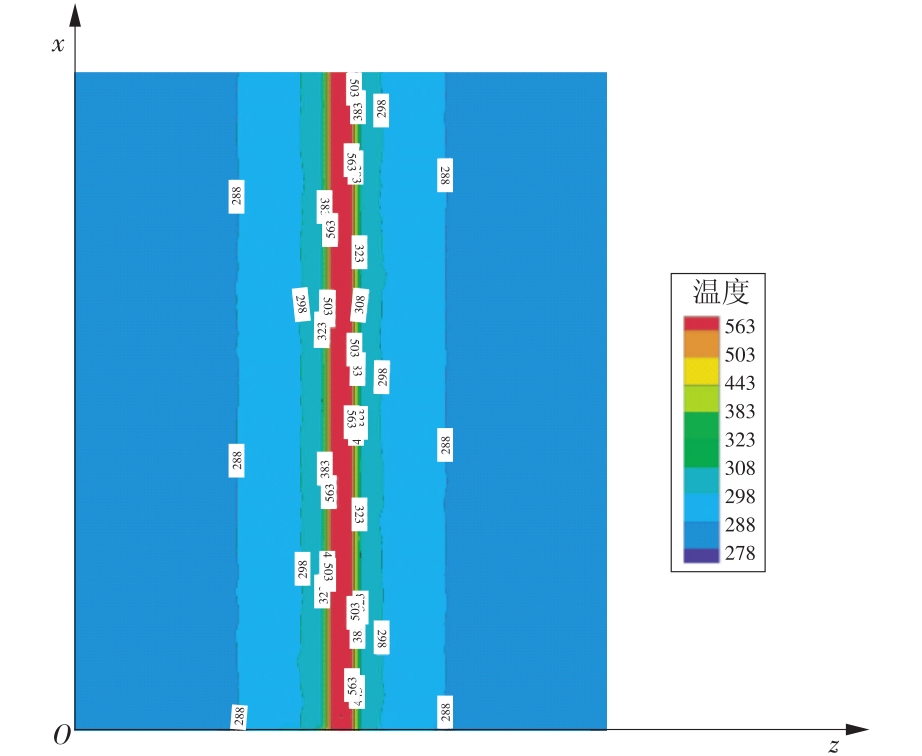

图5

图6

表4

表5

参考文献 15

[1]	刘斯佳. 我国热电联产集中供热的发展趋势[C]// 2019 供热工程建设与高效运行研讨会论文集. 2019:904-906.
[2]	陈杰, 李以通, 张成昱, 等. 我国集中供热管网维护修复技术发展现状分析[J]. 节能, 2020, 39(2):115-118.
	CHEN Jie, LI Yitong, ZHANG Chengyu, et al. Discussion on maintenance and repair technology of central heating network in China[J]. Energy Conservation, 2020, 39(2):115-118.
[3]	张汉贤, 钟巍, 蔡东平. 化工区长距离供热管道热损分析与研究[J]. 上海节能, 2020(11):1343-1347.
	ZHANG Hanxian, ZHONG Wei, CAI Dongping, et al. Analysis and research on heat loss of long distance heating pipeline in chemical industry district[J]. Shanghai Energy Conservation, 2020(11):1343-1347.
[4]	高月芬, 王萌, 王城智. 聚氨酯直埋供热管道保温经济性研究[J]. 区域供热, 2020(4):93-96.
	GAO Yuefen, WANG Meng, WANG Chengzhi. Study on the economic performance of polyurethane insulation for directly buried heating pipeline[J]. District Heating, 2020(4):93-96.
[5]	钟升楷, 顾景磊, 贺泽平, 等. 热力蒸汽管道保温性能恶化的影响机制研究[J]. 能源工程, 2020(1):78-83.
	ZHONG Shengkai, GU Jinglei, HE Zeping, et al. Study of the deterioration mechanisms of thermal insulation performance of steam pipe[J]. Energy Engineering, 2020(1):78-83.
[6]	蔡俊华. 长距离蒸汽供热管道热瞬态特性研究[J]. 中国化工装备, 2019, 21(6):40-43.
	CAI Junhua. Study on thermal transient characteristics of long-distance steam heating pipeline[J]. China Chemical Industry Equipment, 2019, 21(6):40-43.
[7]	刘鸿恺, 白莉, 郭禹歧. 水平直埋供热管道热损失影响因素敏感性分析[J]. 吉林建筑大学学报, 2020, 37(5):41-48.
	LIU Hongkai, BAI Li, GUO Yuqi. Sensitivity analysis on influencing factors of heat loss in horizontally and directly buried heating pipes[J]. Journal of Jilin Jianzhu University, 2020, 37(5):41-48.
[8]	张锦鹏, 乔正凡, 张智斌. 直埋供热管道添加隔热板后土壤温度场的简化计算[J]. 区域供热, 2020(2):53-56.
[9]	李明巍, 王正, 王璐, 等. 多屏绝热辐射管道数值模拟分析[J]. 农业装备与车辆工程, 2019, 57(3):102-104,108.
	LI Mingwei, WANG Zheng, WANG Lu, et al. Numerical simulation analysis of multi-screen adiabatic radiation pipe[J]. Agricultural Equipment & Vehicle Engineering, 2019, 57(3):102-104, 108.
[10]	付治博, 王珍妮, 金立文, 等. 不同气候区架空供热管道保温层经济厚度的分析[J]. 暖通空调, 2018, 48(11):56-62.
	FU Zhibo, WANG Zhenni, JIN Liwen, et al. Economic insulation thickness analysis of elevated heating pipelines in different climatic zones[J]. Heating Ventilating & Air Conditioning, 2018, 48(11):56-62.
[11]	XU Q, WANG K, ZOU Z, et al. A new type of two-supply, one-return, triple pipe-structured heat loss model based on a low temperature district heating system[J]. Energy, 2021, 218: 119569. doi: 10.1016/j.energy.2020.119569
[12]	ARABKOOHSAR A, ALSAGRI A S. A new generation of district heating system with neighborhood-scale heat pumps and advanced pipes, a solution for future renewable-based energy systems[J]. Energy, 2020, 193: 116781. doi: 10.1016/j.energy.2019.116781
[13]	任新生. 火电企业供热生产集中化、智能化的改造实践[J]. 华电技术, 2019, 41(11):70-75.
	REN Xinsheng. Practice of centralizing and intelligent transformation on heating supply of thermal power enterprises[J]. Huadian Technology, 2019, 41(11):70-75.
[14]	方修睦, 杨大易, 周志刚, 等. 供热自动化、信息化及智慧化的差异探讨[J]. 华电技术, 2020, 42(11):34-38.
	FANG Xiumu, YANG Dayi, ZHOU Zhigang, et al. Discussion on automation,informatization and intellectualization of heating[J]. Huadian Technology, 2020, 42(11):34-38.
[15]	栾天华. 某地区集中供热管网不同运行方式比较[J]. 华电技术, 2017, 39(7):15-19,77.
	LUN Tianhua. Comparison of different operating methods of centralized heat supply pipeline[J]. Huadian Technology, 2017, 39(7):15-19, 77.

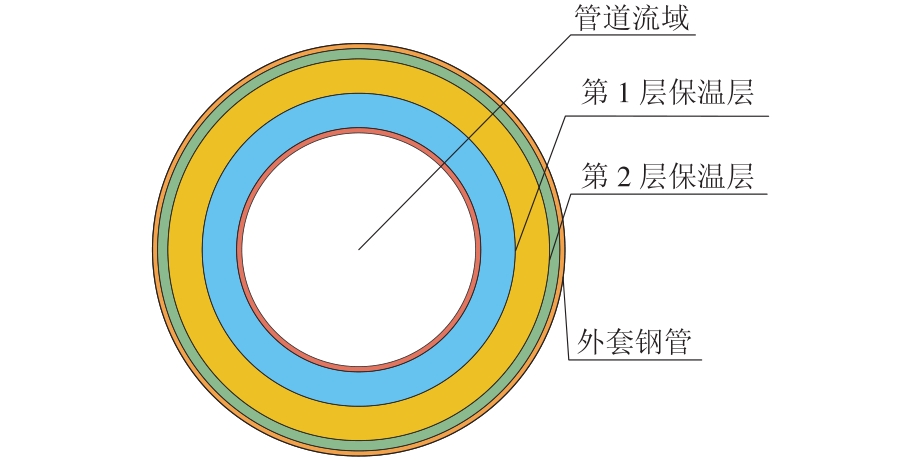

管道规格	流域直径	管壁厚度	第1层保温层厚度	第2层保温层厚度	外套管厚度
DN400	426.0	9.0	60.0	60.0	9.0
DN350	377.0	9.0	75.0	75.0	9.0
DN300	325.0	8.0	85.0	85.0	9.0
DN250	273.0	6.5	100.0	100.0	9.0
DN200	219.0	6.0	90.0	90.0	9.0
DN150	159.0	4.5	45.0	45.0	8.0
DN100	108.0	4.0	55.0	55.0	8.0
DN50	89.0	4.0	50.0	50.0	7.0

用户	出口温度
用户	工况1	工况2	工况3
1	553.955 27	580.648 16	584.533 41
2	563.985 96	584.435 39	588.390 79
3	517.457 21	540.011 03	543.169 64
4	489.135 11	507.781 73	510.398 30
5	514.697 21	559.722 06	564.175 38
6	515.845 23	555.672 93	570.058 44
7	503.812 30	548.355 90	561.833 22
8	489.903 49	535.947 00	548.531 85
9	472.416 50	512.943 70	523.423 40
10	514.710 33	561.504 36	569.574 81
11	443.391 42	553.667 77	561.410 87
12	521.563 37	567.407 03	576.137 87
13	428.303 68	530.041 37	537.095 65
14	445.738 34	538.129 33	561.410 87
15	504.258 78	557.478 22	565.625 21
16	507.633 15	558.861 97	567.065 72

用户	出口压力
用户	工况1	工况2	工况3
1	1.903	1.740	1.662
2	1.907	1.775	1.697
3	1.898	1.761	1.686
4	1.893	1.755	1.681
5	1.881	1769	1.648
6	1.862	1.723	1.518
7	1.862	1.722	1.519
8	1.856	1.705	1.502
9	1.830	1.662	1.473
10	1.876	1.736	1.578
11	1.875	1.703	1.545
12	1.876	1.733	1.575
13	1.869	1.672	1.515
14	1.870	1.692	1.545
15	1.864	1.677	1.520
16	1.863	1.677	1.520
