不同截面流道对PV/T系统性能影响的模拟研究

doi:10.3969/j.issn.2097-0706.2022.04.010

摘要/Abstract

摘要：

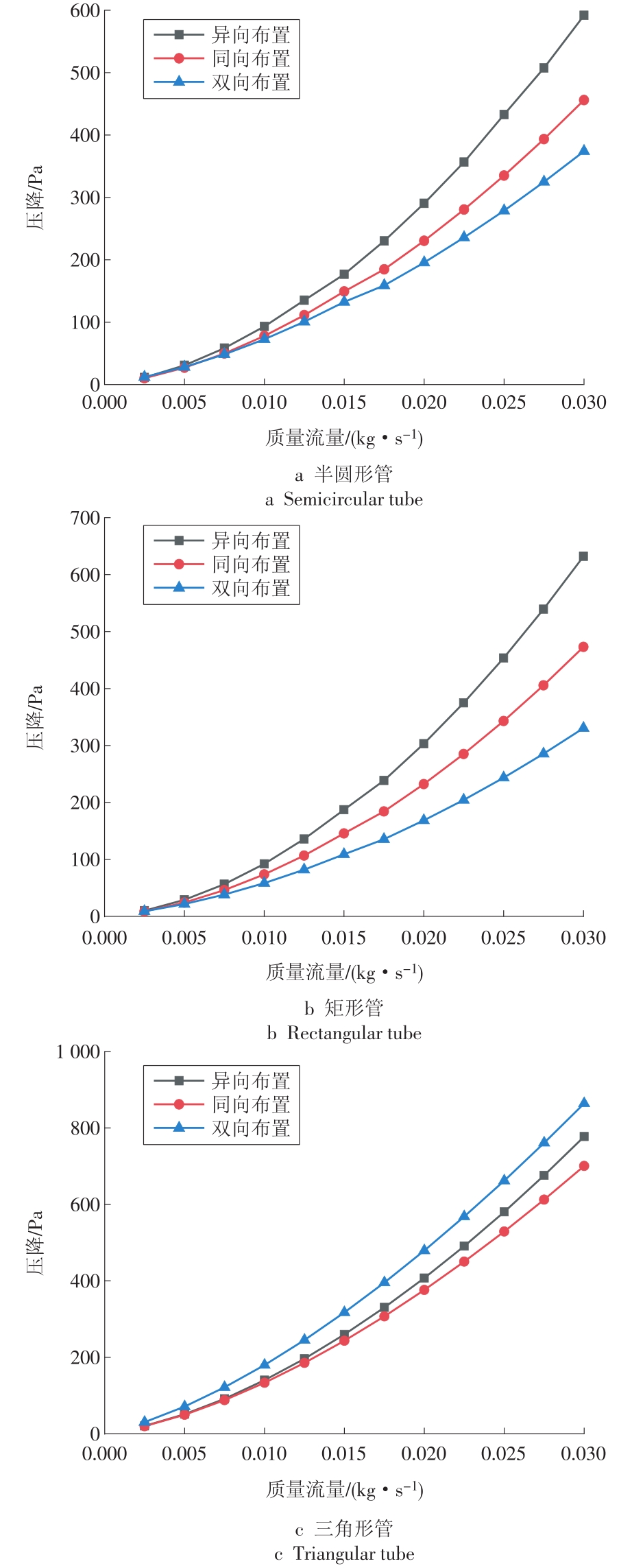

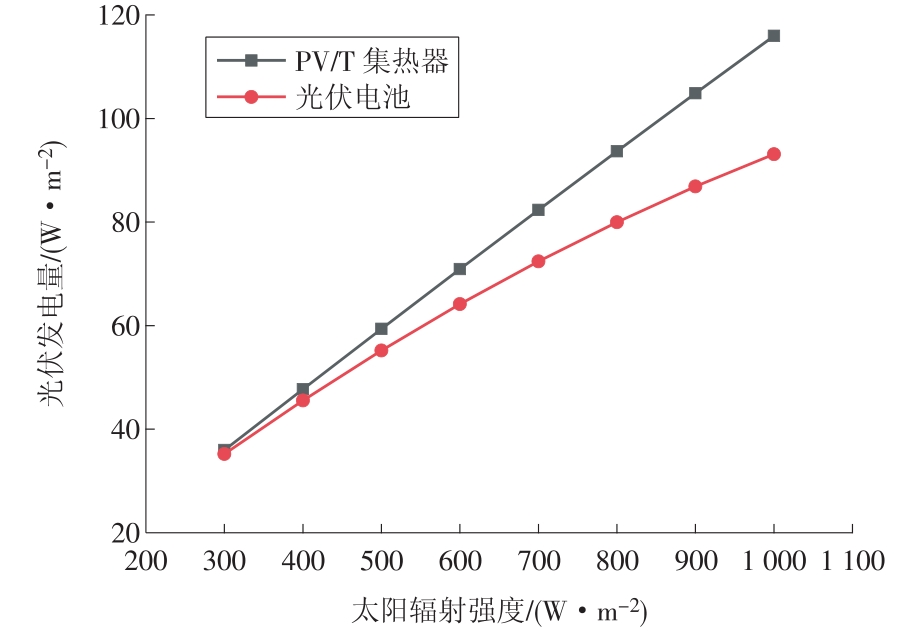

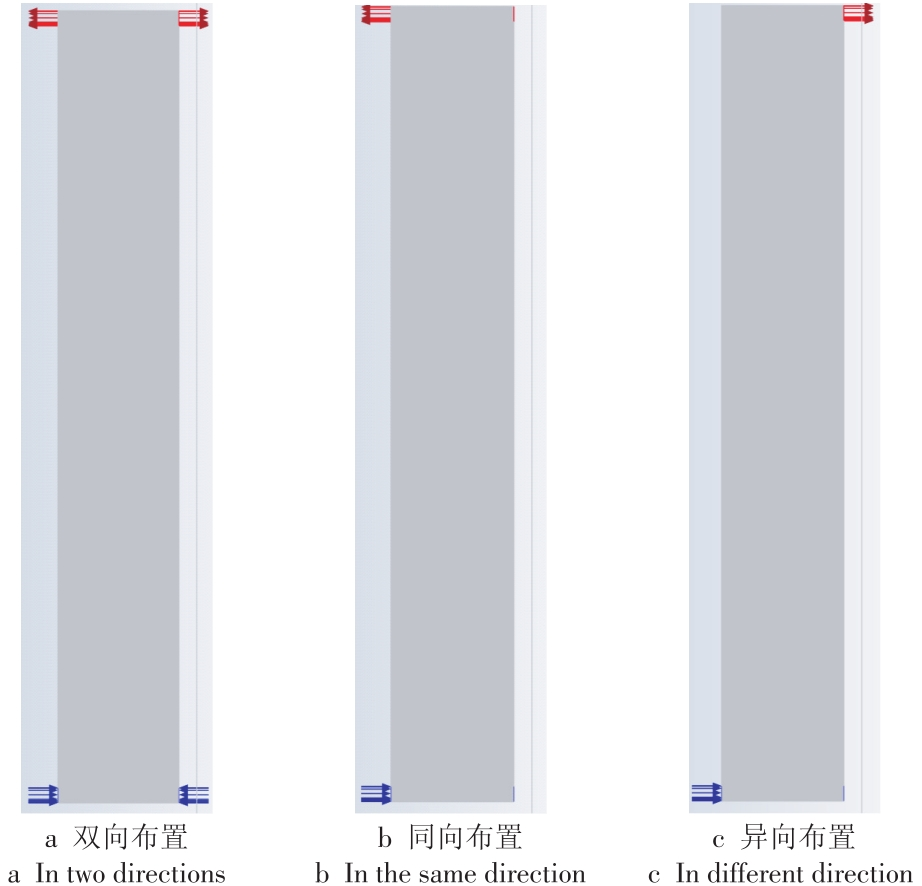

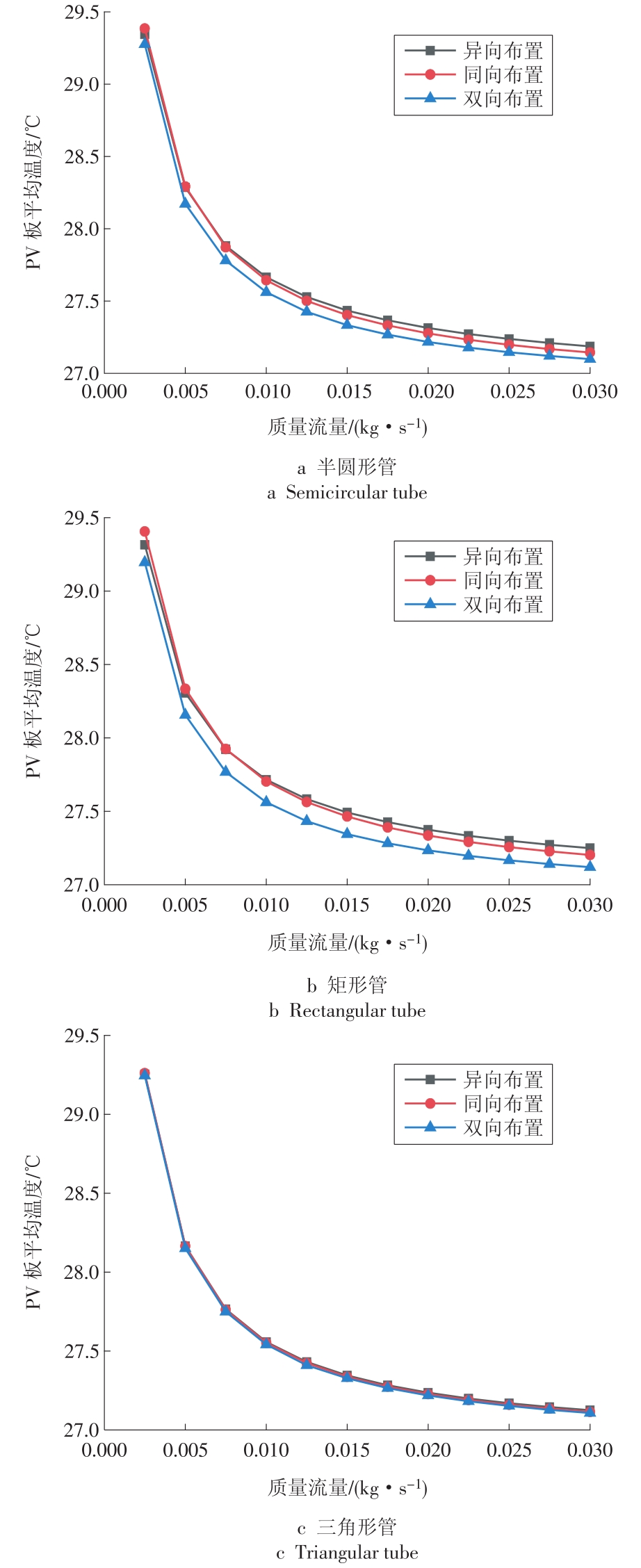

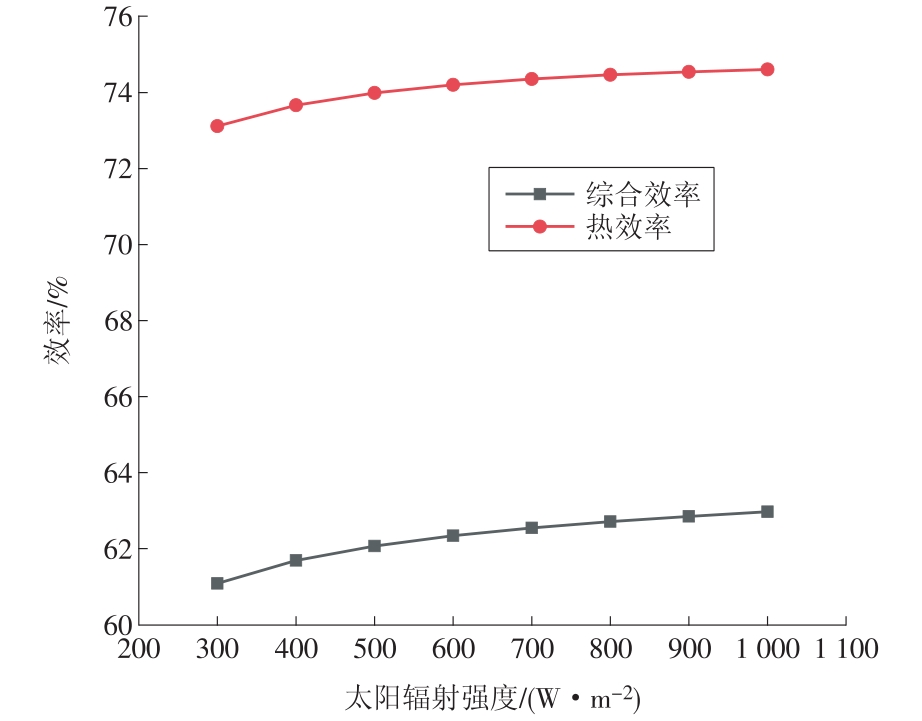

碳中和背景下,太阳能热泵技术应用前景广阔,针对传统管板式光伏/热（PV/T）集热器的集热效率较低的问题,提出矩形、半圆形、三角形3种新型流道结构,并研究其对PV/T系统性能的影响。使用ANSYS Fluent 2020模拟分析了不同截面形状流道的PV/T系统的工作状况,对PV/T集热器系统进行建模,并使用Matlab/Simulink 2018进行动态仿真,结果显示半圆形和矩形截面流道的综合效果更佳;双向进出口布置能减小压降,提高冷却性能;新型PV/T集热器较光伏电池在1 000 W/m²辐射强度下发电量提高了24%,在环境温度25 ℃时能量综合利用效率达70%以上。

关键词: PV/T, 数值模拟, 流动, 性能, 效率, 集热器, 碳中和, 太阳能热泵

Abstract:

The heat collection efficiency of traditional tube sheet PV/T collectors is low.A study is made on the influence on the performance of PV/T systems brought by three neo structures of flow channels,rectangle,semicircle and triangle. Simulation analysis on the working conditions of a PV/T system with different cross-sectional flow channel is made by ANSYS Fluent 2020.Then,the model for the PV/T collector system is constructed and simulated dynamically by Matlab/Simulink 2018.The research results indicate that the semicircular flow channel and rectangular flow channel performance better,and the two-way arrangement for the inlet and outlet can reduce the pressure drop and improve the cooling performance.The power generated by new PV/T collector is higher than that of a photovoltaic cell by 24% under 1 000 W/m² radiation intensity.At the ambient temperature of 25 ℃,the comprehensive energy utilization rate of the PV/T collector can be over 70%.

Key words: PV/T, numerical simulation, flow, performance, efficiency, heat collector, carbon neutrality, solar heat pump

中图分类号:

TK515

郭光正, 勾昱君, 钟晓晖. 不同截面流道对PV/T系统性能影响的模拟研究[J]. 综合智慧能源, 2022, 44(4): 76-84.

GUO Guangzheng, GOU Yujun, ZHONG Xiaohui. Simulation study on the effect of flow channel's different cross-section on PV/T system performance[J]. Integrated Intelligent Energy, 2022, 44(4): 76-84.

图/表 18

表1

PV/T集热器各层热物理性参数

材料	厚度/mm	密度/（kg $∙$ m^-3）	导热系数/ [W·(m·K)^-1]	比热容/ [J·(kg·K）^-1]
玻璃	3.20	2 500	0.980	84.00
EVA	0.38	840	0.230	2 930.80
Si	0.30	2 330	148.000	712.00
EVA	0.38	920	0.230	2 930.80
TPT	0.15	1 397	0.614	1.38

表1

表2

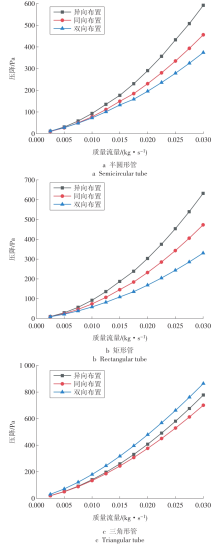

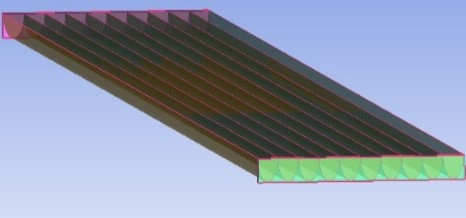

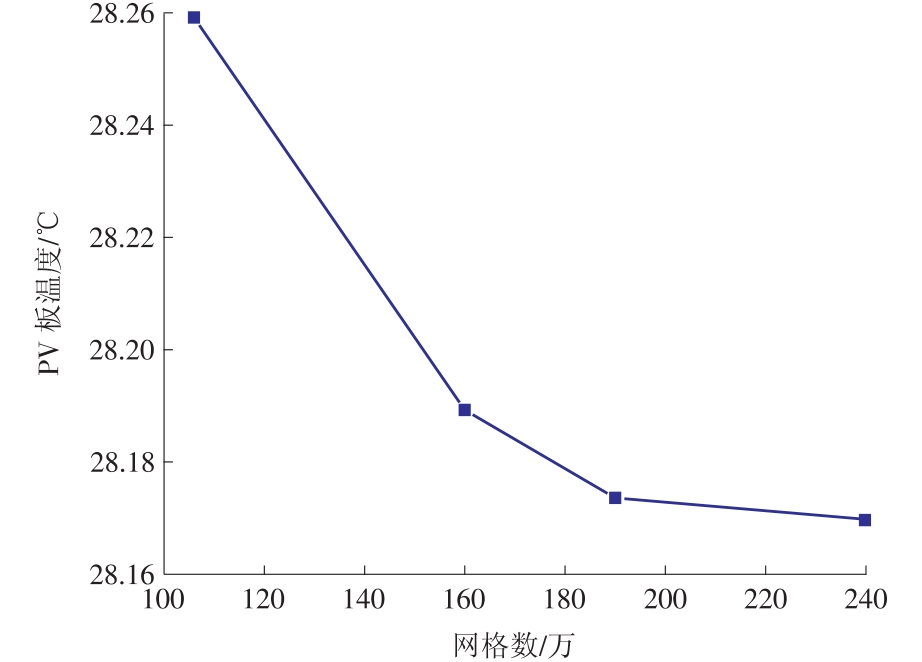

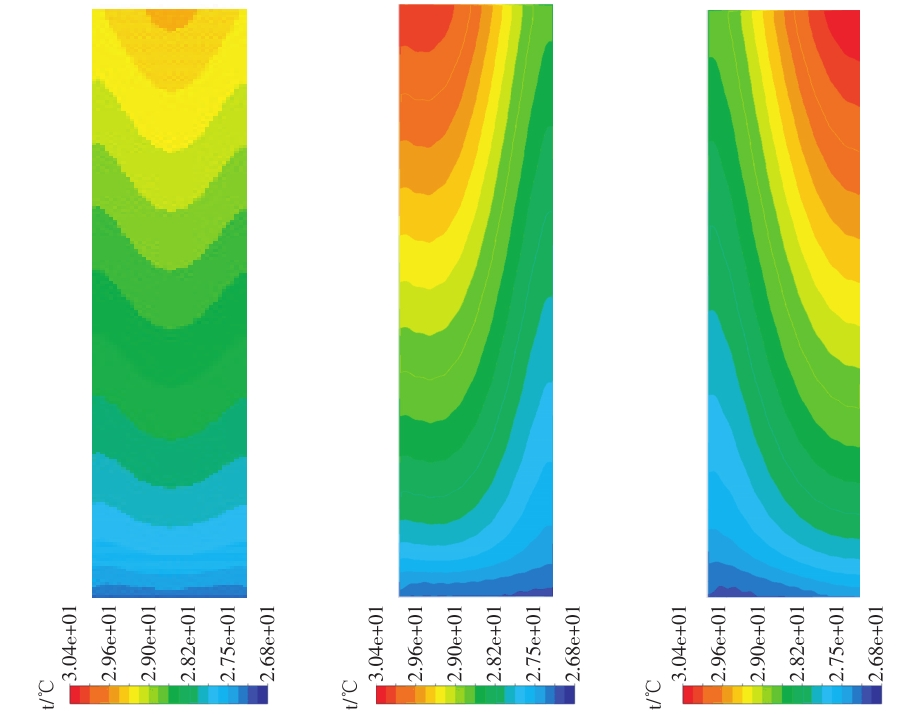

图1

图2

图3

图4

图5

图6

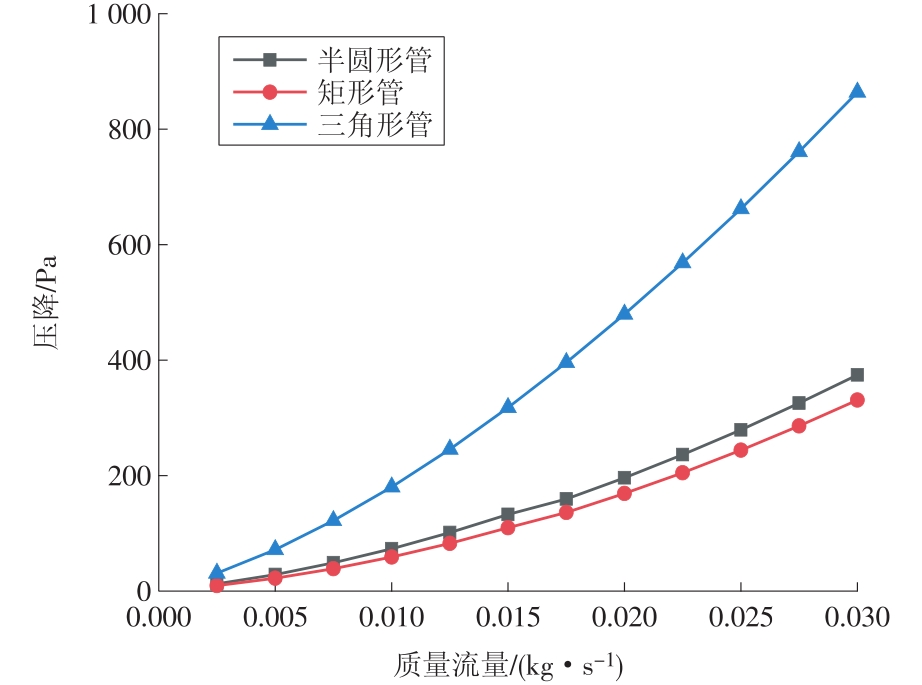

图7

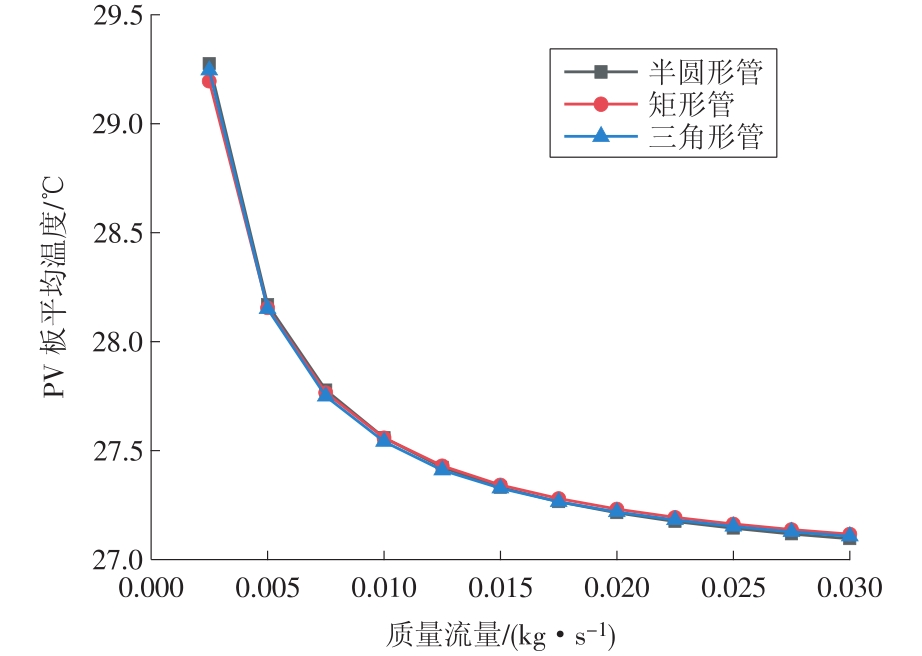

图8

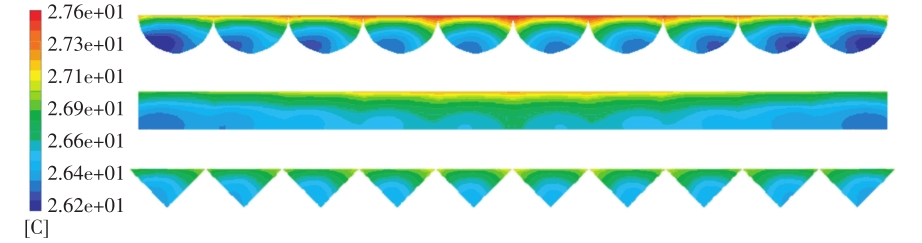

图9

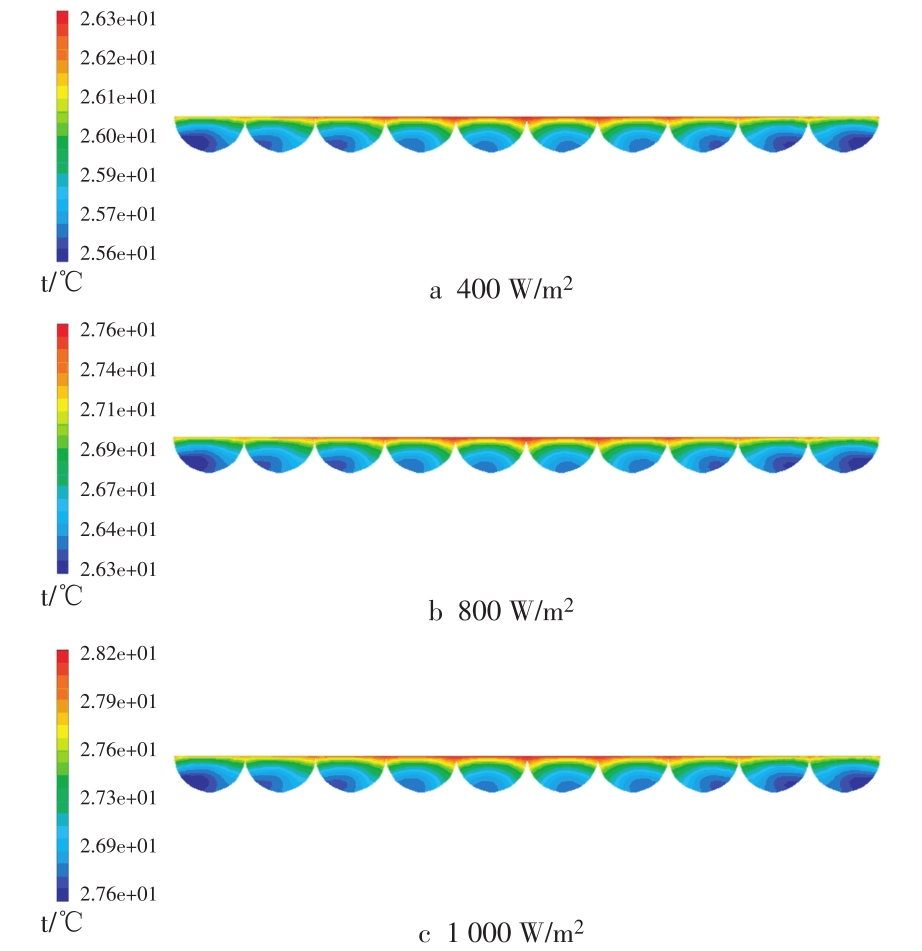

图10

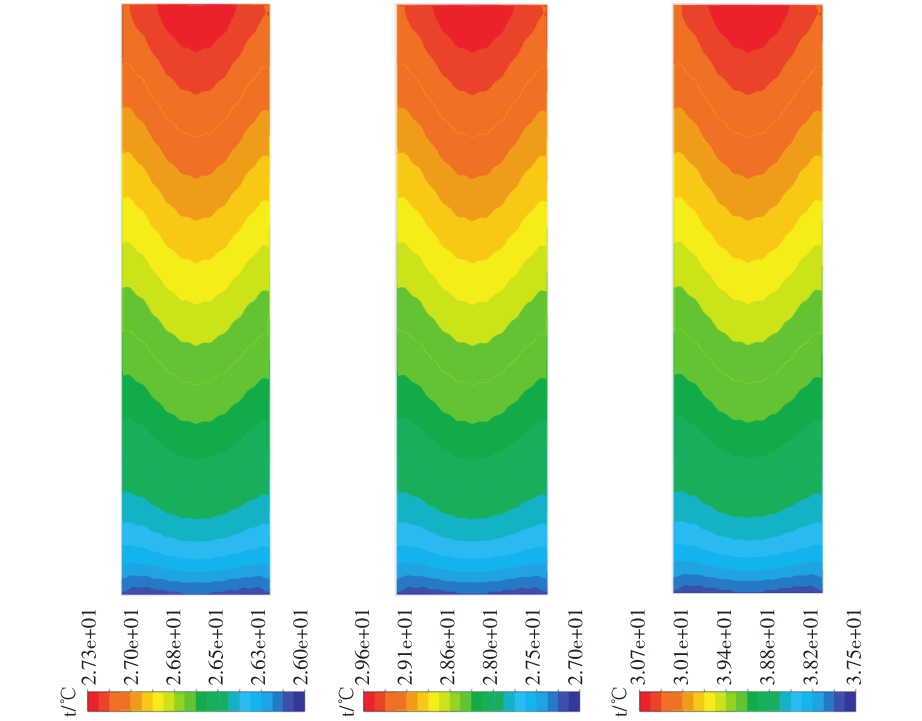

图11

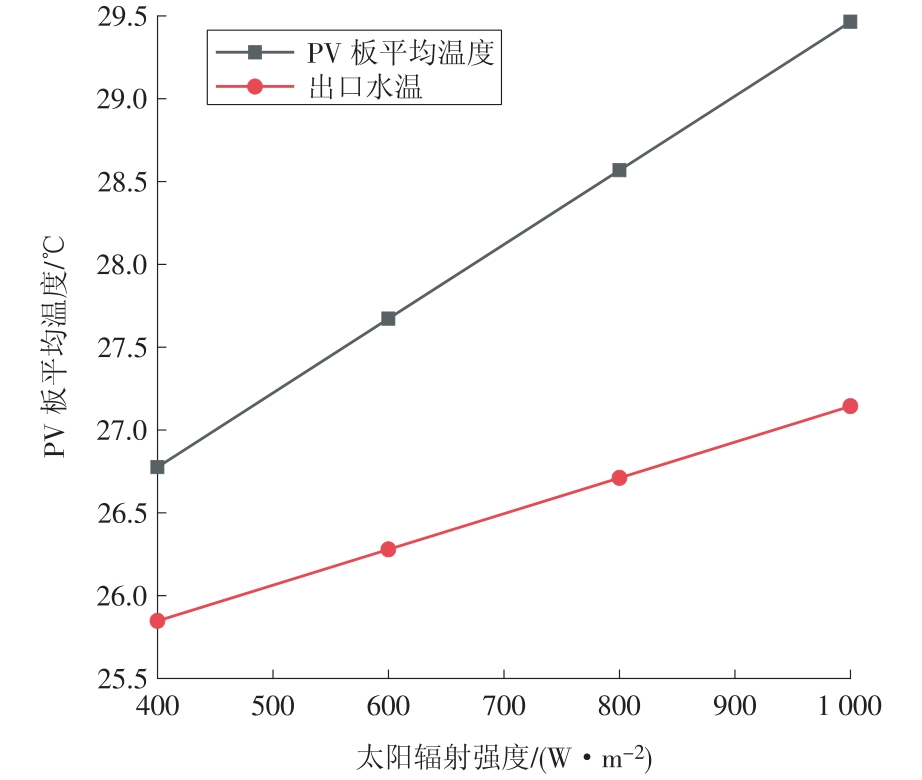

图12

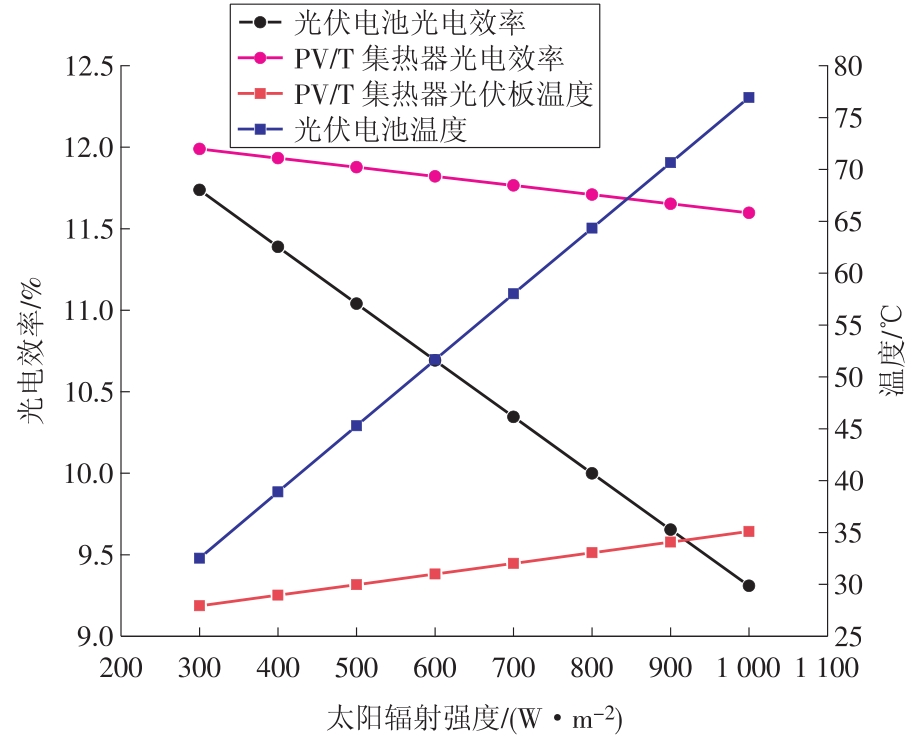

图13

图14

图15

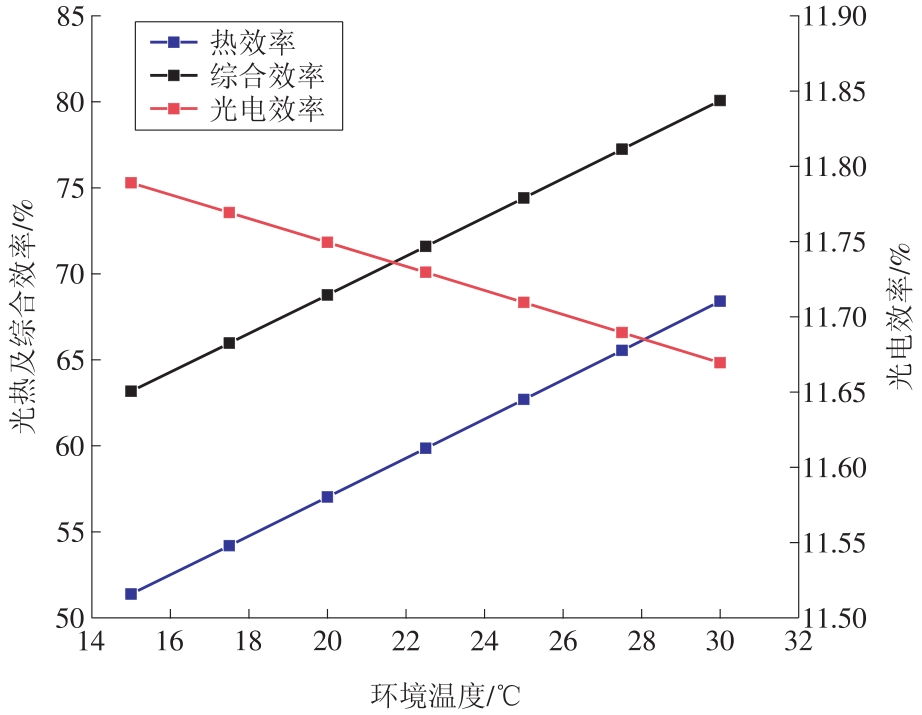

图16

参考文献 22

[1]	王志峰, 何雅玲, 康重庆, 等. 明确太阳能热发电战略定位促进技术发展[J]. 华电技术, 2021, 43(11):1-4. doi: 10.3969/j.issn.1674-1951.2021.11.001
	WANG Zhifeng, HE Yaling, KANG Chongqing, et al. Strategic positioning of solar thermal power generation to promote technological progress[J]. Huadian Technology, 2021, 43(11):1-4.
[2]	陈尔健, 贾腾, 姚剑, 等. 太阳能空调与热泵技术进展及应用[J]. 华电技术, 2021, 43(11):40-48. doi: 10.3969/j.issn.1674-1951.2021.11.005
	CHEN Erjian, JIA Teng, YAO Jian, et al. Progresses and applications of solar air conditioning and heat pump technologies[J]. Huadian Technology, 2021, 43(11):40-48.
[3]	KHELIFA A, TOUAFEK K, BEN M H, et al. Mod eling and detailed study of hybrid photovoltaic thermal(PV/T) solar collector[J]. Solar Energy, 2016, 135:169-176. doi: 10.1016/j.solener.2016.05.048
[4]	ZHOU J C, KE H Y, DENG X Q. Experimental and CFD investigation on temperature distribution of a serpentine tube type photovoltaic/thermal collector[J]. Solar Energy, 2018, 174:735-742. doi: 10.1016/j.solener.2018.09.063
[5]	YAO J, XU H, DAI Y J, et al. Performance analysis of solar assisted heat pump coupled with build-in PCM heat storage based on PV/T panel[J]. Solar Energy, 2020, 197:279-291. doi: 10.1016/j.solener.2020.01.002
[6]	任玉杰, 杨洪兴, 吕建, 等. 热管间距及空气层对PV/T系统性能的模拟研究[J]. 太阳能学报, 2018, 39(4):965-971.
	REN Yujie, YANG Hongxing, LYU Jian, et al. Simulation study of heat pipe sacing and air layer on PV/T system performance[J]. Acta Energiae Solaris Sinica, 2018, 39(4):965-971.
[7]	RUKMAN N S B, FUDHOLI A, RAZALI N F M, et al. Investigation of TiO₂ and MWCNT nanofluids-based photovoltaic-thermal(PV/T) system[C]// IOP Conference Series:Earth and Environmental Science, 2019, 268(1).DOI: 10.1088/1755-1315/268/1/012076. doi: 10.1088/1755-1315/268/1/012076
[8]	TERASHIMA K, SATO H, IKAGA T. Development of an environmentally friendly PV/T solar panel[J]. Solar Energy, 2020, 199:510-520. doi: 10.1016/j.solener.2020.02.051
[9]	JIA Y T, GURUPRASAD A, FANG G Y, et al. Performance evaluation of a novel solar photovoltaic-thermal collector with dual channel using microencapsulated phase change slurry as cooling fluid[J]. Energy Conversion and Management, 2017, 145:30-40. doi: 10.1016/j.enconman.2017.04.089
[10]	JIA Y T, ZHANG C Q, FANG G Y. Performance optimization of a photovoltaic/thermal collector using microencapsulated phase change slurry[J]. International Journal of Energy Research, 2019, 44(3):1812-1827. doi: 10.1002/er.5028
[11]	GONZÁLEZ-PEÑA D, ALONSO-DEMIGUEL I, DÍEZ-MEDIAVILLA M, et al. Experimental analysis of a novel PV/T panel with PCM and heat pipes[J]. Sustainability, 2020, 12(5).DOI: 10.3390/su12051710. doi: 10.3390/su12051710
[12]	HEDAYATI-MEHDIABADI E, SARHADDI F, SOBHNAMAYAN F. Exergy performance evaluation of a basin-type double-slope solar still equipped with phase-change material and PV/T collector[J]. Renewable Energy, 2020, 145:2409-2425. doi: 10.1016/j.renene.2019.07.160
[13]	YOUSSEF W, GE Y T, TASSOU S A. CFD modelling development and experimental validation of a phase change material(PCM) heat exchanger with spiral-wired tubes[J]. Energy Conversion and Management, 2017, 157:498-510. doi: 10.1016/j.enconman.2017.12.036
[14]	HUO Y X, LV J, LI X L, et al. Experimental study on the tube plate PV/T system with iron filings filled[J]. Solar Energy, 2019, 185:189-198. doi: 10.1016/j.solener.2019.04.041
[15]	ZHANG X X, ZHAO X D, et al. Dynamic performance of a novel solar photovoltaic/loop-heat-pipe heat pump system[J]. Applied Energy, 2014, 114:335-352. doi: 10.1016/j.apenergy.2013.09.063
[16]	许茹茹, 李照萌, 徐礼颉, 等. 真空玻璃与单层玻璃盖板PV/T集热器性能的对比研究[J]. 新能源进展, 2020, 8(2):100-108.
	XU Ruru, LI Zhaomeng, XU Lijie, et al. Comparative study on performance of vacuum glass and single-layer glass cover PV/T collector[J]. Advances in New and Renewable Energy, 2020, 8(2):100-108.
[17]	SUN X, WU J, DAI Y, et al. Experimental study on roll-bond collector/evaporator with optimized-channel used in direct expansion solar assisted heat pump water heating system[J]. Applied Thermal Engineering, 2014, 66(1-2):571-579. doi: 10.1016/j.applthermaleng.2014.02.060
[18]	MOHANRAJ M, GUNASEKAR N, VELMURUGAN V. Comparison of energy performance of heat pumps using a photovoltaic-thermal evaporator with circular and triangular tube configurations[J]. Building Simulation, 2016, 9(1):27-41. doi: 10.1007/s12273-015-0256-1
[19]	陈红兵, 姚华宁, 龚雨桐, 等. 新型平板热管式太阳能PV/T集热系统的性能研究[J]. 可再生能源, 2019, 37(8):1139-1145.
	CHEN Hongbing, YAO Ninghua, GONG Yutong, et al. Research on the performance of a new flat heat pipe solar PV/T collector system[J]. Renewable Energy Resources, 2019, 37(8):1139-1145.
[20]	ZHOU J Z, ZHAO X D, YUAN Y P, et al. Operational performance of a novel heat pump coupled with mini-channel PV/T and thermal panel in low solar radiation[J]. Energy and Built Environment, 2020, 1(1):50-59. doi: 10.1016/j.enbenv.2019.08.001
[21]	孙健, 马世财, 霍成, 等. 碳中和目标下热泵技术应用现状及前景分析[J]. 华电技术, 2021, 43(10):22-30. doi: 10.3969/j.issn.1674-1951.2021.10.003
	SUN Jian, MA Shicai, HUO Cheng, et al. Application analysis and prospect of heat pump technology under the goal of carbon neutrality[J]. Huadian Technology, 2021, 43(10):22-30.
[22]	梁子伟, 简林桦, 闫金州, 等. PV/T集热器优化设计及实验[J]. 化工进展, 2016, 35(5):1326-1331.
	LIANG Ziwei, JIAN Linhua, YAN Jinzhou, et al. Optimal design and experiment of PV/T collector[J]. Chemical Industry and Engineering Progress, 2016, 35(5):1326-1331.

参数	数值
导热系数/[W·(m·K)^-1]	0.647
密度/(kg·m^-3)	2 172
比热容/[J·(kg·K)^-1]	327.00
