基于改进概率规划算法的农业园区综合能源系统优化调度

doi:10.3969/j.issn.2097-0706.2023.10.005

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (10): 35-43.doi: 10.3969/j.issn.2097-0706.2023.10.005

基于改进概率规划算法的农业园区综合能源系统优化调度

刘彦茹^a(), 张蕊萍^b, 董海鹰^a^,^*()

兰州交通大学 a.新能源与动力工程学院; b.自动化与电气工程学院，兰州 730070

收稿日期:2023-06-08 修回日期:2023-06-27 出版日期:2023-10-25 发布日期:2023-10-27
通讯作者: *董海鹰（1966），男，教授，博士生导师，博士，从事电力系统运行与优化控制、新能源发电等方面的研究，hydong@mail.lzjtu.cn。
作者简介:刘彦茹（1999），女，在读硕士研究生，从事综合能源系统优化调度研究，2018175773@qq.com；
张蕊萍（1974），女，副教授，硕士生导师，硕士，从事现代电力电子技术在现代电力系统中的应用等方面的研究。
基金资助:
国网甘肃省电力公司科技项目(W22KJ2714016)

Optimal scheduling of integrated energy systems in agricultural parks based on improved probability planning algorithm

LIU Yanru^a(), ZHANG Ruiping^b, DONG Haiying^a^,^*()

a. School of New Energy and Power Engineering;b. School of Automation and Electrical Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China

Received:2023-06-08 Revised:2023-06-27 Online:2023-10-25 Published:2023-10-27
Supported by:
Science and Technology Project of State Grid Gansu Electric Power Company(W22KJ2714016)

摘要/Abstract

摘要：

针对农业园区综合能源系统能耗成本高和可再生能源消纳率低的问题，提出了一种基于改进概率规划算法的农业园区综合能源系统优化运行方法。首先，针对农业园区能源多元化的特点，构建农业园区综合能源系统整体架构；然后，基于农业园区负荷的可调节特性，以系统运行经济最优为目标函数建立农业园区综合能源系统优化运行模型；最后，对概率规划算法进行改进，用高斯概率分布代替三角概率分布，将不确定性最佳化问题转换为确定性最佳化问题。以西北某农业园区为例进行算例分析，结果表明，使用改进的概率规划算法对农业园区综合能源系统优化可降低园区的综合运行成本，夏季典型日系统运行成本减少了45.52%，新能源消纳率提高了35.57百分点；冬季典型日系统运行成本减少了37.42%，新能源消纳率提高了26.25百分点。

关键词: 综合能源系统, 农业园区, 可再生能源, 概率规划算法, 高斯概率分布, 可调节负荷, 新能源消纳率

Abstract:

To address the problems of high energy consumption and low renewable energy accommodation capacity in an integrated energy system of an agricultural park， an optimal scheduling method based on improved dynamic probabilistic planning is proposed for the system. The overall structure of an integrated energy system is established considering the diversity of energy sources in the agricultural park. Then， based on the loads' adjustability of the agricultural park， the optimal scheduling model for the integrated energy system is established with the minimum total operating cost as the objective function. Finally， by replacing Gaussian probability distributions with triangular probability distributions， the uncertainty optimization problems of probabilistic planning algorithm are transformed into deterministic optimization problems. Testing the improved probabilistic planning algorithm on an agricultural park in the Northwest of China， the test results show that the proposed algorithm can reduce the comprehensive operation cost of the integrated energy system in the agricultural park. In summer， the daily operating cost of the system can be reduced by 45.52%， and the new energy consumption rate can be increased by 35.57 percentage points.In winter， the daily operating cost of the system is reduced by 37.42%， and the new energy consumption rate is increased by 26.25 percentage points.

Key words: integrated energy system, agricultural park, renewable energy, probability planning algorithm, Gaussian probability distributions, adjustable load, new energy consumption rate

中图分类号:

TK019

刘彦茹, 张蕊萍, 董海鹰. 基于改进概率规划算法的农业园区综合能源系统优化调度[J]. 综合智慧能源, 2023, 45(10): 35-43.

LIU Yanru, ZHANG Ruiping, DONG Haiying. Optimal scheduling of integrated energy systems in agricultural parks based on improved probability planning algorithm[J]. Integrated Intelligent Energy, 2023, 45(10): 35-43.

图/表 13

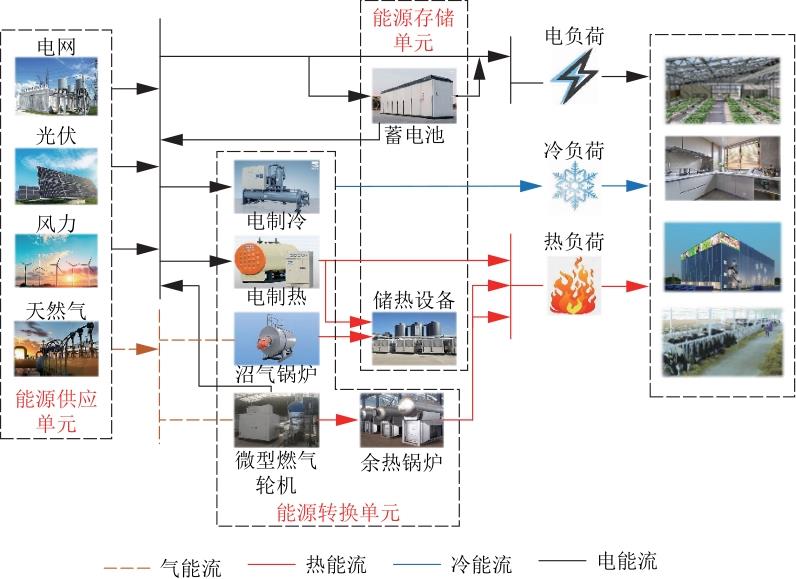

图1

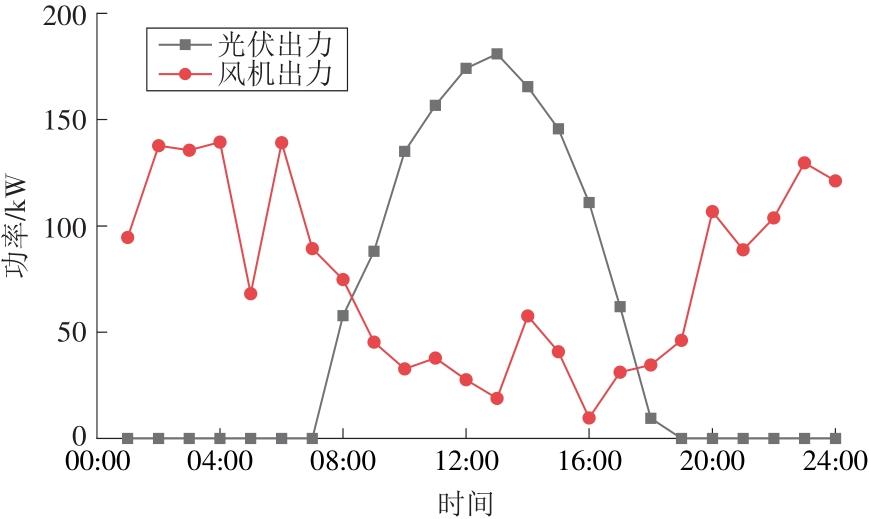

图2

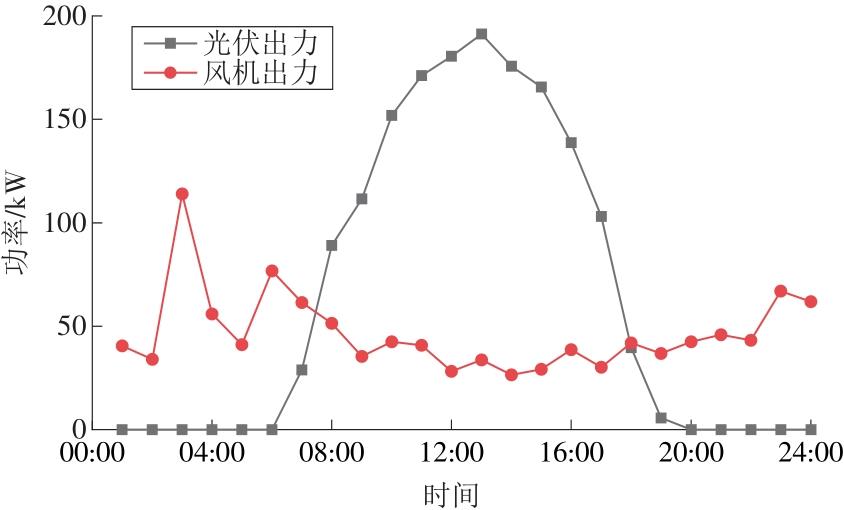

图3

表1

表2

表3

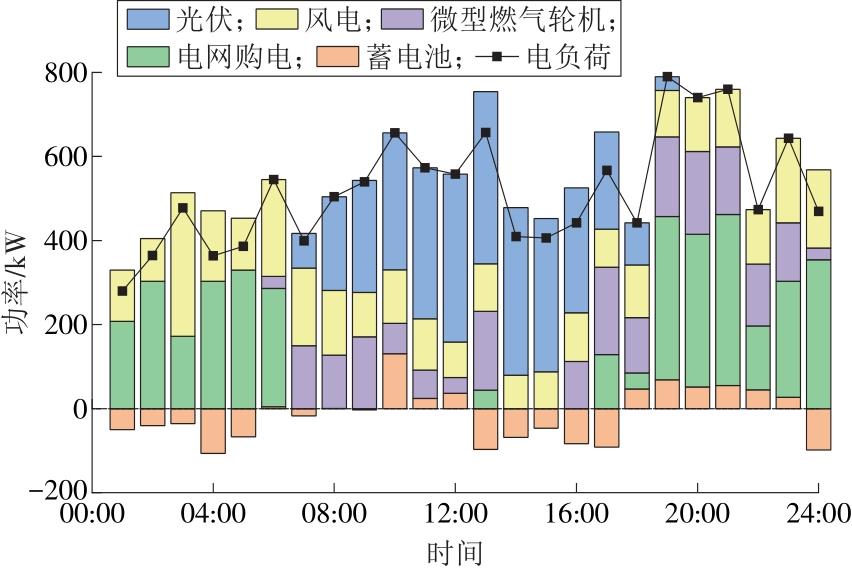

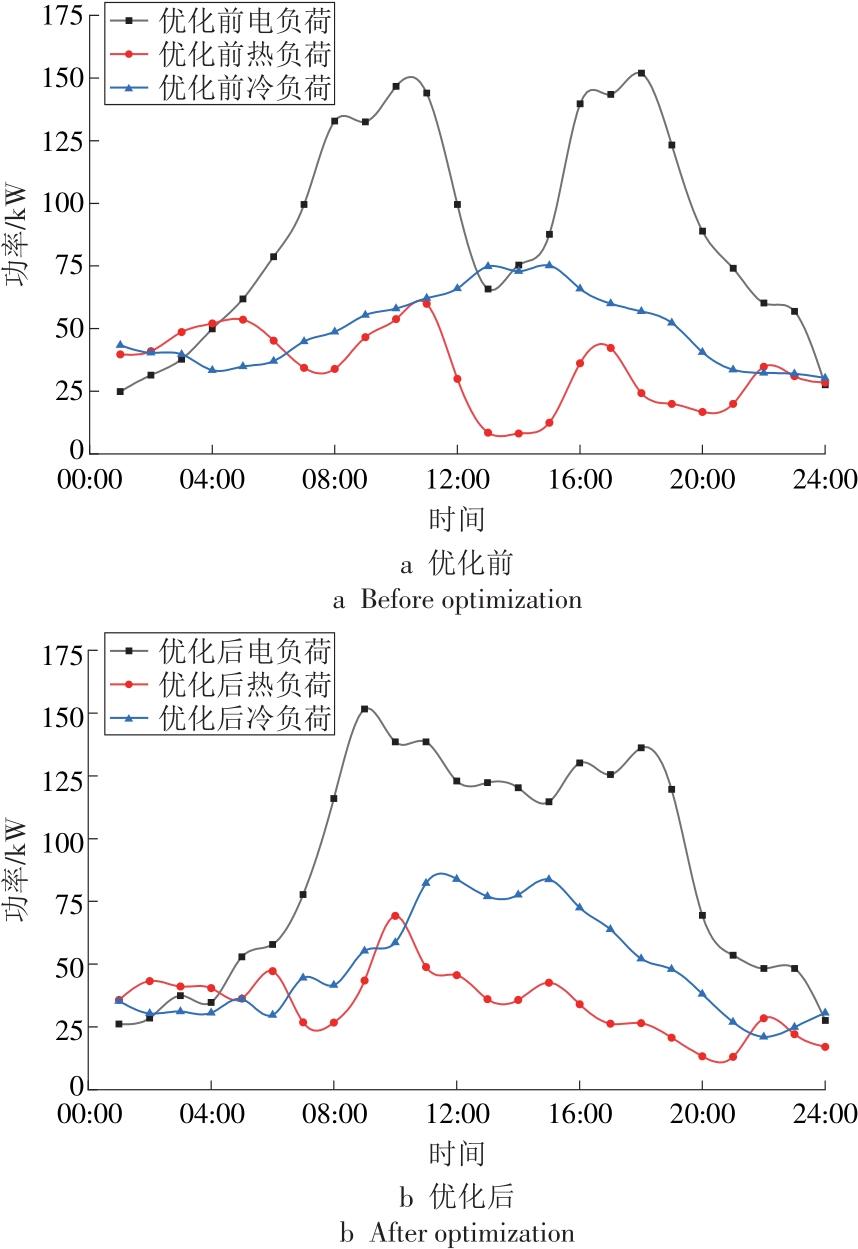

图4

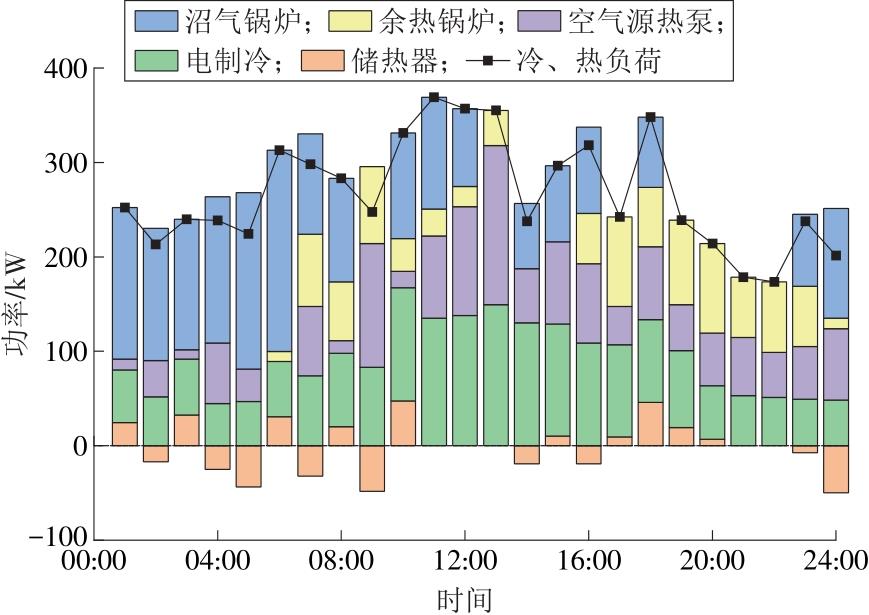

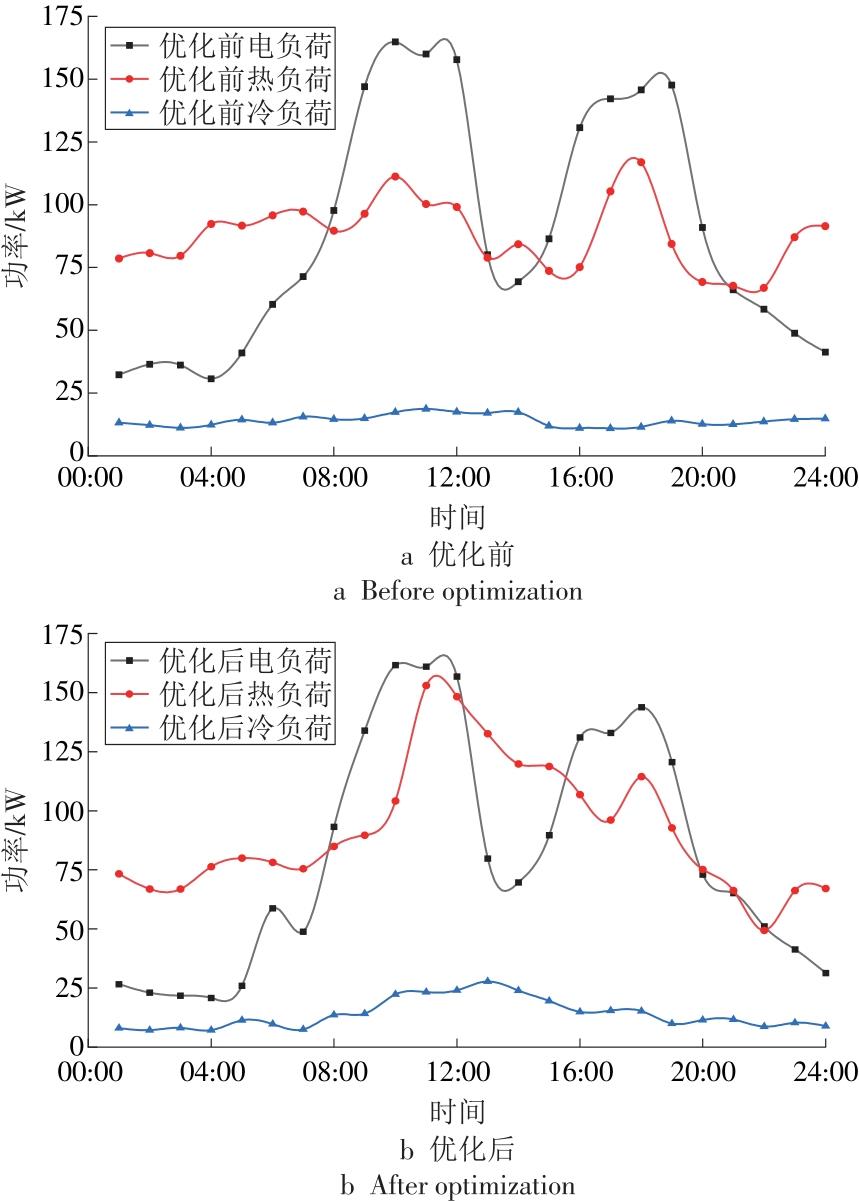

图5

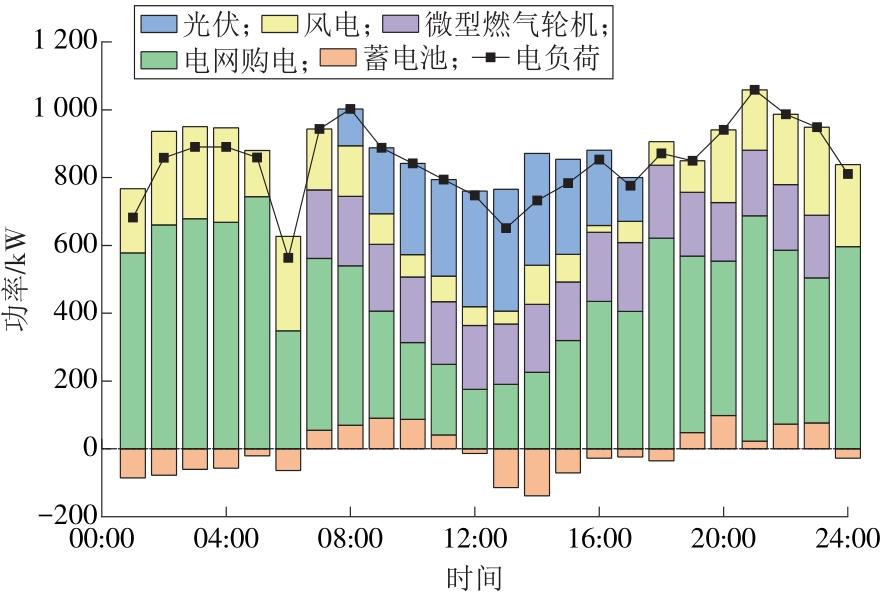

图6

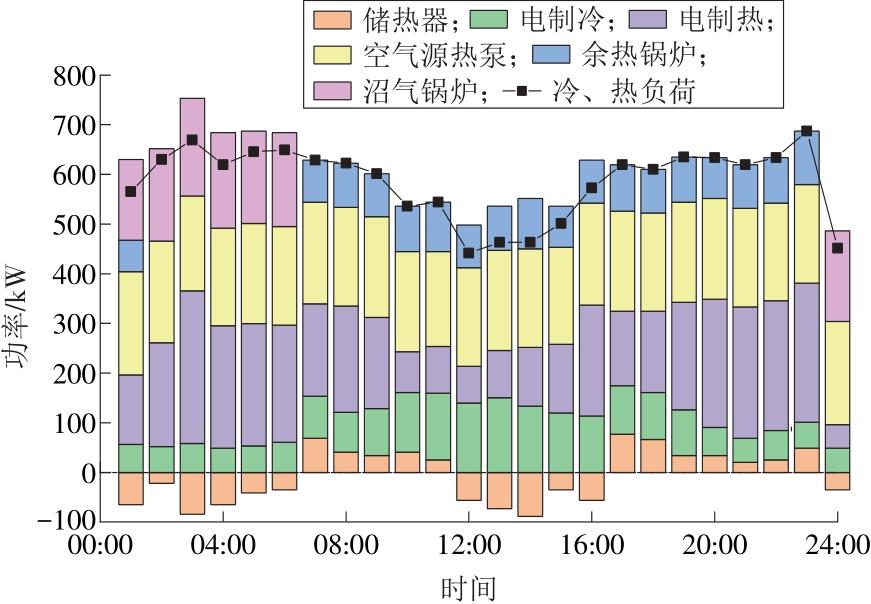

图7

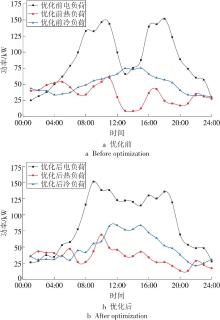

图8

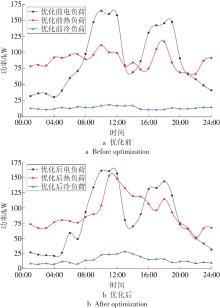

图9

表4

参考文献 27

[1]	陈伟, 路源, 何欣, 等. 计及风光就地消纳的设施农业产业园区综合能源系统多目标优化调度方法[J]. 电力建设, 2021, 42(7):20-27. doi: 10.12204/j.issn.1000-7229.2021.07.003
	CHEN Wei, LU Yuan, HE Xin, et al. A multi-objective optimal scheduling method for integrated energy system of protected agricultural industrial park considering local consumption rate of wind and solar energy[J]. Electric Power Construction, 2021, 42(7): 20-27. doi: 10.12204/j.issn.1000-7229.2021.07.003
[2]	姜飞, 肖昌麟, 易子木, 等. 含光伏与生物质能的生态农业综合能源系统多能协同及低碳运行策略[J/OL]. 中国电机工程学报:1-15[2023-05-12]. https://doi.org/10.13334/j.0258-8013.pcsee.222606.
	JIANG Fei, XIAO Changlin, YI Zimu, et al. Multi-energy coordination and low-carbon operation strategy of ecological agriculture integrated energy system including photovoltaic and biomass energy[J/OL]. Chinese Journal of Electrical Engineering:1-15[2023-05-22]. https://doi.org/10.13334/j.0258-8013.pcsee.222606.
[3]	白嘉浩, 付学谦. 碳中和背景下农业能源互联网电能替代综述[J]. 综合智慧能源, 2022, 44(6): 1-11. doi: 10.3969/j.issn.2097-0706.2022.06.001
	BAI Jiahao, FU Xueqian. Review on electric energy substitution of agricultural energy internet in the context of carbon neutrality[J]. Integrated Intelligent Energy, 2022, 44(6): 1-11. doi: 10.3969/j.issn.2097-0706.2022.06.001
[4]	DING X Y, SHEN S Y, ZHANG Z Y, et al. Research on the optimization method of multi energy interconnected microgrid configuration and operation based on lifecycle cost[C]// 2016 IEEE International Conference on Power and Renewable Energy (ICPRE). 2016:428-431.
[5]	KONG X Q, WANG R Z, HUANG X H. Energy optimization model for a CCHP system with available gas turbines[J]. Applied Thermal Engineering, 2005, 25(2-3): 377-391. doi: 10.1016/j.applthermaleng.2004.06.014
[6]	孙强, 谢典, 聂青云, 等. 含电-热-冷-气负荷的园区综合能源系统经济优化调度研究[J]. 中国电力, 2020, 53(4):79-88.
	SUN Qiang, XIE Dian, NIE Qingyun, et al. Study on economic optimization scheduling of integrated energy system in the park with electricity-heat-cold-gas load[J]. China Electric Power, 2020, 53 (4): 79-88.
[7]	BAMISILE O, HUANG Q, LI J, et al. Modelling and performance analysis of an innovative CPVT,wind and biogas integrated comprehensive energy system:An energy and exergy approach[J]. Energy Conversion and Management, 2020, 209: 112611. doi: 10.1016/j.enconman.2020.112611
[8]	付学谦, 周亚中, 孙宏斌, 等. 园区农业能源互联网: 概念、特征与应用价值[J]. 农业工程学报, 2020, 36(12): 152-161.
	FU Xueqian, ZHOU Yazhong, SUN Hongbin, et al. Park-level agricultural energy Internet:Concept,characteristic and application value[J]. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36(12): 152-161.
[9]	罗平, 周濠炳, 徐林, 等. 基于区间优化的冷热电联供型多微网日前优化调度[J]. 电力系统自动化, 2022, 46(9):137-146.
	LUO Ping, ZHOU Haobing, XU Lin, et al. Day-ahead optimal scheduling of multi-microgrids with combined cooling, heating and power based on interval optimization[J]. Automation of Electric Power Systems, 2022, 46(9): 137-146.
[10]	翁志鹏, 周京华, 李津, 等. 含风光接入的微电网可靠性影响分析[J]. 综合智慧能源, 2023, 45(1): 67-74. doi: 10.3969/j.issn.2097-0706.2023.01.008
	WENG Zhipeng, ZHOU Jinghua, LI Jin, et al. Impact of wind and solar power grid connection on microgrid reliability[J]. Integrated Intelligent Energy, 2023, 45(1):67-74. doi: 10.3969/j.issn.2097-0706.2023.01.008
[11]	WU M, XU J, ZENG L, et al. Two-stage robust optimization model for park integrated energy system based on dynamic programming[J]. Applied Energy, 2022, 308: 118249. doi: 10.1016/j.apenergy.2021.118249
[12]	窦真兰, 沈建忠, 张春雁, 等. 考虑供需不确定性的区域综合能源系统时间解耦分层能量管理[J]. 综合智慧能源, 2023, 45(6): 17-24. doi: 10.3969/j.issn.2097-0706.2023.06.003
	DOU Zhenlan, SHEN Jianzhong, ZHANG Chunyan, et al. Time-decoupling hierarchical energy management of integrated energy systems considering supply and demand uncertainty[J]. Integrated Intelligent Energy, 2023, 45(6): 17-24. doi: 10.3969/j.issn.2097-0706.2023.06.003
[13]	刘小平, 丁明, 张颖媛, 等. 微网系统的动态经济调度[J]. 中国电机工程学报, 2011, 31(31):77-84.
	LIU Xiaoping, DING Ming, ZHANG Yingyuan, et al. Dynamic economic dispatch for microgrids[J]. Proceedings of the CSEE, 2011, 31(31): 77-84.
[14]	吴鸣, 骆钊, 季宇, 等. 基于模型预测控制的冷热电联供型微网动态优化调度[J]. 中国电机工程学报, 2017, 37(24):7174-7184,7431.
	WU Ming, LUO Zhao, JI Yu, et al. Dynamic optimization scheduling of cold,heat and power supply microgrid based on model prediction control[J]. Chinese Journal of Electrical Engineering, 2017, 37(24):7174-7184,7431.
[15]	ZHAO Y, LU Y H, YAN C C. MPC-based optimal scheduling of grid-connected low energy buildings with thermal energy storages[J]. Energy and Buildings, 2015, 86: 415-426. doi: 10.1016/j.enbuild.2014.10.019
[16]	徐筝, 孙宏斌, 郭庆来. 综合需求响应研究综述及展望[J]. 中国电机工程学报, 2018, 38(24):7194-7205,7446.
	XU Zheng, SUN Hongbin, GUO Qinglai. Review and outlook of comprehensive demand response research[J]. Chinese Journal of Electrical Engineering, 2018, 38 (24): 7194-7205,7446.
[17]	魏震波, 任小林, 黄宇涵. 考虑综合需求侧响应的区域综合能源系统多目标优化调度[J]. 电力建设, 2020, 41(7):92-99. doi: 10.12204/j.issn.1000-7229.2020.07.012
	WEI Zhenbo, REN Xiaolin, HUANG Yuhan. Multi-objective optimal scheduling of regional integrated energy system considering integrated demand side response[J]. Electric Power Construction, 2020, 41 (7):92-99. doi: 10.12204/j.issn.1000-7229.2020.07.012
[18]	方绍凤, 周任军, 许福鹿, 等. 考虑电热多种负荷综合需求响应的园区微网综合能源系统优化运行[J]. 电力系统及其自动化学报, 2020, 32(1):50-57.
	FANG Shaofeng, ZHOU Renjun, XU Fulu, et al. Optimized operation of the park micro-grid integrated energy system considering the comprehensive demand response of multiple electric heating loads[J]. Journal of Electric Power System and Automation, 2020, 32(1):50-57.
[19]	许志荣, 张高瑞. 响应用户有限理性需求的微电网优化策略[J]. 综合智慧能源, 2022, 44(11): 43-49. doi: 10.3969/j.issn.2097-0706.2022.11.006
	XU Zhirong, ZHANG Gaorui. Optimization strategy of microgrid responding users' bounded rational demand[J]. Integrated Intelligent Energy, 2022, 44(11): 43-49. doi: 10.3969/j.issn.2097-0706.2022.11.006
[20]	胡枭, 尚策, 陈东文. 考虑能量品质的区域综合能源系统多目标规划方法[J]. 电力系统自动化, 2019, 43(19):22-31,139.
	HU Xiao, SHANG Ce, CHEN Dongwen, et al. A multi-objective planning approach for regional integrated energy systems considering energy quality[J]. Power System Automation, 2019, 43 (19): 22-31,139.
[21]	张俊锋, 许文娟, 王跃锜, 等. 面向碳中和的中国碳排放现状调查与分析[J]. 华电技术, 2021, 43(10):1-10.
	ZHANG Junfeng, XU Wenjuan, WANG Yueqi, et al. Investigation and analysis on carbon emission status in China on the path to carbon neutrality[J]. Huadian Technology, 2021, 43(10): 1-10.
[22]	张千禧, 曹智, 王介勇. 双碳视角下乡村地域系统碳效应研究进展[J/OL]. 中国生态农业学报(中英文):1-18[2023-05-22]. http://kns.cnki.net/kcms/detail/13.1432.S.20230306.1419.001.html.
	ZHANG Qianxi, CAO Zhi, WANG Jianyong. Progress on carbon effect of rural regional system from the perspective of two carbon[J/OL]. Chinese Journal of Eco-Agriculture (Chinese and English):1-18[2023-05-22]. http://kns.cnki.net/kcms/detail/13.1432.S.20230306.1419.001.html.
[23]	代心芸, 陈皓勇, 肖东亮, 等. 电力市场环境下工业需求响应技术的应用与研究综述[J]. 电网技术, 2022, 46(11):4169-4186.
	DAI Xinyun, CHEN Haoyong, XIAO Dongliang, et al. Review of applications and researches of industrial demand response technology under electricity market environment[J]. Power System Technology, 2022, 46(11):4169-4186.
[24]	纪历, 杨晓伟, 陈振宇, 等. 考虑农业电排灌负荷的配电网运行优化策略研究[J]. 电力需求侧管理, 2020, 22(4):66-70,76.
	JI Li, YANG Xiaowei, CHEN Zhenyu, et al. Research on the operation optimization strategy of power distribution network considering agricultural electric drainage and irrigation load[J]. Power Demand side management, 2020, 22(4):66-70,76.
[25]	刘哲. 基于概率规划的三元复合驱模糊多目标动态优化研究[D]. 青岛: 中国石油大学(华东), 2018.
	LIU Zhe. Study on dynamic optimization of multi-objective based on probabilistic programming[D]. Qingdao: China University of Petroleum (East China), 2018.
[26]	鲜杏, 范传光, 文闪闪, 等. 考虑可再生能源随机性的孤岛微网容量优化配置方法[J]. 武汉大学学报(工学版), 2016, 49(1):100-104,125.
	XIAN Xing, FAN Chuanguang, WEN Shanshan, et al. Optimal deployment for island microgrid considering probabilistic factors of renewable energy generations[J]. Engineering Journal of Wuhan University, 2016, 49(1): 100-104,125.
[27]	FANG S F, ZHOU R JN, XU F L, et al. Optimized operation of the park micro-grid integrated energy system considering the comprehensive demand response of multiple electric heating loads[J]. Journal of Electric Power System and Automation, 2020, 32(1):50-57.

类型	时段	价格
峰值电价	07:00—11:00 19:00—20:00	0.97
平值电价	11:00—18:00 21:00—23:00	0.61
谷值电价	23:00—07:00	0.35

设备	维护费用
光伏发电设备	0.015
风力发电设备	0.098
余热锅炉	0.020
微型燃气轮机	0.080
沼气锅炉	0.020
蓄电池组	0.010
空气源热泵	0.030

设备	参数	数值
光伏太阳能板	发电功率上限/kW	500
风力发电系统	发电功率上限/kW	200
微型燃气轮机	最大发电功率/kW	200
	发电效率	0.35
	热损耗系数	0.03
沼气锅炉	制热效率	0.90
沼气锅炉	制热功率上限/kW	200
余热锅炉	热回收效率	0.60
余热锅炉	热输出效率	0.80
电制热设备	制热效率	2.30
电制热设备	热功率输出上限/kW	400
电制热设备	制冷效率	3.40
电制热设备	冷功率输出上限/kW	140
空气源热泵	热转换系数	3.64
空气源热泵	换热功率上限/kW	200

典型日	参数	优化前	优化后
夏季典型日	总费用/元	6 355.0	3 462.1
夏季典型日	新能源消纳率/%	60.38	95.75
冬季典型日	总费用/元	9 633.7	6 028.3
冬季典型日	新能源消纳率/%	72.15	98.40
