Energy management strategy for smart commercial buildings considering electric vehicle charging patterns and building thermal inertia

doi:10.3969/j.issn.2097-0706.2025.07.002

Abstract

Abstract:

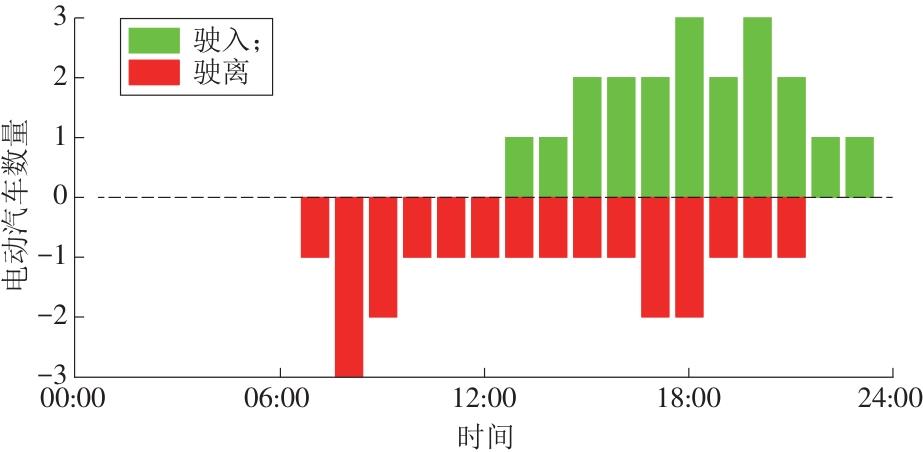

With the growth of the economic level， the proportion of electricity consumption in buildings continues to increase. Optimizing building energy management strategies can effectively enhance energy conservation and reduce emissions. In commercial building loads， air conditioning loads and electric vehicles loads account for a large proportion of energy consumption. Therefore， a smart commercial building energy management model considering building thermal inertia and incorporating electric vehicle integration was proposed， with the behavioral characteristics of electric vehicles modeled via Monte Carlo simulation. Based on the thermal capacitance-resistance model， a building thermal dynamic balance equation was established. Scenario-based stochastic programming was adopted to establish a smart commercial building energy management model， and Conditional Value at Risk （CVaR） was introduced to improve robustness. The results of case studies showed that considering building thermal inertia could reduce the operating costs of air conditioning loads by 9.7% and increase revenue by 1.4%. Although CVaR reduces the operational risks of buildings， it also lowers their comprehensive expected returns.

Key words: building thermal inertia, electric vehicle, stochastic programming, smart building, energy management, value at risk

CLC Number:

TK01⁺8：TM715

WU Guoliang, ZHENG Wen, HE Ling, WANG Lei, HUANG Yuan, LIU Junyong. Energy management strategy for smart commercial buildings considering electric vehicle charging patterns and building thermal inertia[J]. Integrated Intelligent Energy, 2025, 47(7): 12-22.

Figures/Tables 16

Fig.1

Fig.2

Fig.3

Fig.4

Table 1

Fig.5

Fig.6

Fig.7

Table 2

Fig.8

Table 3

Fig.9

Fig.10

Fig.11

Table 4

Fig.12

References 30

[1]	SALAM R A, AMBER K P, RATYAL N I, et al. An overview on energy and development of energy integration in major south Asian countries: The building sector[J]. Energies, 2020, 13(21): 5776.
[2]	刘东林, 周霞, 戴剑丰, 等. 考虑虚拟储能的建筑综合能源系统双层优化调度策略[J/OL]. 上海交通大学学报, 1-27 (2024-06-25)[2025-04-01]. https://link.cnki.net/doi/10.16183/j.cnki.jsjtu.2024.036.
	LIU Donglin, ZHOU Xia, DAI Jianfeng, et al. Double layer optimization scheduling strategy for building integrated energy system considering virtual energy storage[J/OL]. Journal of Shanghai Jiao Tong University, 1-27 (2024-06-25)[2025-04-01]. https://link.cnki.net/doi/10.16183/j.cnki.jsjtu.2024.036.
[3]	GUO T T, LIU Y B, ZHAO J B, et al. A dynamic wavelet-based robust wind power smoothing approach using hybrid energy storage system[J]. International Journal of Electrical Power and Energy Systems, 2020, 116: 105579.
[4]	LIU Y B, ZHAO J B, XU L X, et al. Online TTC estimation using nonparametric analytics considering wind power integration[J]. IEEE Transactions on Power Systems, 2019, 34(1): 494-505.
[5]	KHAN M H, ASAR A U, ULLAH N, et al. Modeling and optimization of smart building energy management system considering both electrical and thermal load[J]. Energies, 2022, 15(2): 574.
[6]	陈心宜, 胡秦然, 石庆鑫, 等. 新型电力系统居民分布式资源管理综述[J]. 电力系统自动化, 2024, 48(5): 157-175.
	CHEN Xinyi, HU Qinran, SHI Qingxin, et al. Review on residential distributed energy resource management in new power system[J]. Automation of Electric Power Systems, 2024, 48(5): 157-175.
[7]	陈亚临, 杨涌文, 赵一涵. 面向需求响应的电动汽车-充电桩负荷聚合调度优化策略[J]. 上海电力大学学报, 2024, 40(4): 309-314.
	CHEN Yalin, YANG Yongwen, ZHAO Yihan. Demand response-oriented electric vehicle-charging pile load aggregation scheduling optimization strategy[J]. Journal of Shanghai University of Electric Power, 2024, 40(4): 309-314.
[8]	中国政府网. 图表:超3000万辆！我国新能源汽车保有量高速增长[EB/OL].(2025-01-17)[2025-04-01]. https://www.gov.cn/zhengce/jiedu/tujie/202501/content_69995 27.htm.
[9]	胡安妮, 张天策, 李庚银, 等. 考虑电动汽车参数一致性的虚拟电厂云边协同调度方法[J/OL]. 电力系统自动化, 1-13 (2025-03-13)[2025-04-01]. https://kns.cnki.net/KCMS/detail/detail.aspx?filename=DLXT20250313001&dbname=CJFD&dbcode=CJFQ.
	HU Anni, ZHANG Tiance, LI Gengyin, et al. Cloud-edge collaborative scheduling method for virtual power plants considering consistency of electric vehicle parameters[J/OL]. Automation of Electric Power Systems, 1-13 (2025-03-13)[2025-04-01]. https://kns.cnki.net/KCMS/detail/detail.aspx?filename=DLXT20250313001&dbname=CJFD&dbcode=CJFQ.
[10]	姜晓锋, 魏巍, 王永灿, 等. 含电动汽车智慧楼宇的多时间尺度MPC能量管理策略[J]. 重庆理工大学学报(自然科学), 2023, 37(2): 260-271.
	JIANG Xiaofeng, WEI Wei, WANG Yongcan, et al. Multi-time scale MPC energy management strategy for smart buildings with electric vehicles[J]. Journal of Chongqing University of Technology (Natural Science), 2023, 37(2): 260-271.
[11]	胡寰宇, 艾欣, 胡俊杰, 等. 考虑电动汽车移动储能特性的智能楼宇群能量管理方法[J]. 电力自动化设备, 2022, 42(10): 227-235.
	HU Huanyu, AI Xin, HU Junjie, et al. Energy management method of smart building cluster considering mobile energy storage characteristics of electric vehicles[J]. Electric Power Automation Equipment, 2022, 42(10): 227-235.
[12]	于浩, 沈运帷, 林顺富, 等. 考虑用户心理的商业楼宇集群能量共享优化策略[J]. 电网技术, 2022, 46(11): 4423-4436.
	YU Hao, SHEN Yunwei, LIN Shunfu, et al. Optimization strategies for energy sharing in commercial building clusters considering user psychology[J]. Power System Technology, 2022, 46(11): 4423-4436.
[13]	李明, 胡楠, 刘鑫蕊. 考虑电动汽车公平性的虚拟电厂优化运行策略[J]. 综合智慧能源, 2025, 47(1): 70-78. doi: 10.3969/j.issn.2097-0706.2025.01.009
	LI Ming, HU Nan, LIU Xinrui. Optimal operation strategy of virtual power plants considering fairness for electric vehicles[J]. Integrated Intelligent Energy, 2025, 47(1): 70-78. doi: 10.3969/j.issn.2097-0706.2025.01.009
[14]	刘向向, 卢婕, 严勤, 等. 考虑热惯性的居民楼宇综合能源系统日前运行优化[J]. 可再生能源, 2020, 38(3): 409-415.
	LIU Xiangxiang, LU Jie, YAN Qin, et al. Day-ahead optimal operation of residential building integrated energy system considering thermal inertia[J]. Renewable Energy Resources, 2020, 38(3): 409-415.
[15]	陈厚合, 吴桐, 李本新, 等. 考虑建筑热惯性的园区代理商电价策略及用能优化[J]. 电力系统自动化, 2021, 45(3): 148-156.
	CHEN Houhe, WU Tong, LI Benxin, et al. Electricity pricing strategy of park retailer and energy optimization considering thermal inertia of building[J]. Automation of Electric Power Systems, 2021, 45(3): 148-156.
[16]	张风晓, 靳小龙, 穆云飞, 等. 融合虚拟储能系统的楼宇微网模型预测调控方法[J]. 中国电机工程学报, 2018, 38(15): 4420-4428, 4642.
	ZHANG Fengxiao, JIN Xiaolong, MU Yunfei, et al. Model predictive scheduling method for a building microgrid considering virtual storage system[J]. Proceedings of the CSEE, 2018, 38(15): 4420-4428, 4642.
[17]	张浩鹏, 李泽宁, 薛屹洵, 等. 基于共享储能服务的智能楼宇双层优化配置[J]. 中国电机工程学报, 2025, 45(3): 899-911.
	ZHANG Haopeng, LI Zening, XUE Yixun, et al. Bi-level optimal configuration of intelligent buildings based on shared energy storage services[J]. Proceedings of the CSEE, 2025, 45(3): 899-911.
[18]	李天阳, 赵兴旺, 肖文举. 面向峰谷平衡的商业楼宇空调负荷调控技术[J]. 电力系统自动化, 2015, 39(17): 96-102.
	LI Tianyang, ZHAO Xingwang, XIAO Wenju. Regulation technology of air-conditioning load in commercial buildings for balance of power grid peak and valley[J]. Automation of Electric Power Systems, 2015, 39(17): 96-102.
[19]	王旭东, 吴莉萍, 戚艳, 等. 基于模型预测控制的智能楼宇暖通空调能量管理策略[J]. 电力系统及其自动化学报, 2019, 31(6): 98-106.
	WANG Xudong, WU Liping, QI Yan, et al. Energy management strategy for heating, ventilation and air conditioning in smart building based on model predictive control[J]. Proceedings of the CSU-EPSA, 2019, 31(6): 98-106.
[20]	KELMAN A, BORRELLI F. Bilinear model predictive control of a HVAC system using sequential quadratic programming[J]. IFAC Proceedings Volumes, 2011, 44(1): 9869-9874.
[21]	李晖, 刘栋, 秦继朔, 等. 考虑风光出力不确定性的新能源基地直流外送随机规划方法研究[J]. 电网技术, 2024, 48(7): 2795-2803.
	LI Hui, LIU Dong, QIN Jishuo, et al. Stochastic planning method for UHVDC transmission of renewable energy power base considering wind and photovoltaic output uncertainties[J]. Power System Technology, 2024, 48(7): 2795-2803.
[22]	赵书强, 赵蓬飞, 韦子瑜, 等. 数据驱动下考虑多预测误差带信息的多场景随机优化调度[J]. 电力自动化设备, 2024, 44(11): 52-59.
	ZHAO Shuqiang, ZHAO Pengfei, WEI Ziyu, et al. Multi-scenario stochastic optimal scheduling considering multi-prediction error band information under data-driven[J]. Electric Power Automation Equipment, 2024, 44(11): 52-59.
[23]	王皓, 艾芊, 甘霖, 等. 基于多场景随机规划和MPC的冷热电联合系统协同优化[J]. 电力系统自动化, 2018, 42(13): 51-58.
	WANG Hao, AI Qian, GAN Lin, et al. Collaborative optimization of combined cooling heating and power system based on multi-scenario stochastic programming and model predictive control[J]. Automation of Electric Power Systems, 2018, 42(13): 51-58.
[24]	崔再岳, 杨扬, 王立地. 考虑负荷需求响应的配电网三相不平衡优化[J]. 综合智慧能源, 2025, 47(3): 92-101. doi: 10.3969/j.issn.2097-0706.2025.03.009
	CUI Zaiyue, YANG Yang, WANG Lidi. Three-phase unbalance optimization of distribution network considering load demand response[J]. Integrated Intelligent Energy, 2025, 47(3): 92-101. doi: 10.3969/j.issn.2097-0706.2025.03.009
[25]	刘静, 史梦鸽, 胡永锋. 含电池储能系统的智能楼宇多阶段能量管理策略[J]. 综合智慧能源, 2022, 44(3): 29-37. doi: 10.3969/j.issn.2097-0706.2022.03.005
	LIU Jing, SHI Mengge, HU Yongfeng. Multi-stage energy management strategy for smart buildings with BESS[J]. Integrated Intelligent Energy, 2022, 44(3): 29-37. doi: 10.3969/j.issn.2097-0706.2022.03.005
[26]	赵书强, 周靖仁, 李志伟, 等. 基于出行链理论的电动汽车充电需求分析方法[J]. 电力自动化设备, 2017, 37(8): 105-112.
	ZHAO Shuqiang, ZHOU Jingren, LI Zhiwei, et al. EV charging demand analysis based on trip chain theory[J]. Electric Power Automation Equipment, 2017, 37(8): 105-112.
[27]	王灿, 李布略. 基于区块链技术的共享汽车商业模式探究[J]. 商展经济, 2023(21): 109-112.
	WANG Can, LI Bulue. Exploring the business models of car sharing based on blockchain technologies[J]. Trade Fair Economy, 2023(21): 109-112.
[28]	INUZUKA S, SHEN T L. Optimal energy consuming planning for a home-based microgrid with mobility constraint of electric vehicles and tractors[J]. Control Theory and Technology, 2021, 19(4): 465-483.
[29]	张彬桥, 张松甲, 冉远航, 等. 考虑风电条件风险的水火风联合调度模型及求解[J]. 太阳能学报, 2024, 45(4): 394-403.
	ZHANG Binqiao, ZHANG Songjia, RAN Yuanhang, et al. Hydro-thermal-wind co-scheduling model and solution method considering conditional risk of wind power[J]. Acta Energiae Solaris Sinica, 2024, 45(4): 394-403.
[30]	宋云超, 王丹, 何伟, 等. 基于场景构建技术的含多种清洁能源微能源网多目标随机规划研究[J]. 电力系统保护与控制, 2021, 49(3): 20-31.
	SONG Yunchao, WANG Dan, HE Wei, et al. Research on multi-objective stochastic planning of a micro energy grid with multiple clean energy sources based on scenario construction technology[J]. Power System Protection and Control, 2021, 49(3): 20-31.

备用发电机组			商业智能楼宇热惯性参数			储能设备		负荷		主网
参数	数值		参数	数值		参数	数值	参数	数值	参数	数值
固定花费/ [美元·(kW·h)^-1]	8	热容/(J·℃^-1)		9×10⁷	容量/(kW·h)		100	上爬坡速率/kW	40	最大交易功率/kW	400
上爬坡速率/kW	40	墙体热阻/(℃·W^-1)		4×10^-4	最小SOC/(kW·h)		10	下爬坡速率/kW	30
下爬坡速率/kW	40	窗户透射率		0.9	充、放电功率/kW		30
可变花费/ [美元·(kW·h)^-1]	35	窗户热阻/(℃·W^-1)		2×10^-4	充、放电效率		0.9
可变花费/ [美元·(kW·h)^-1]	35	窗户热阻/(℃·W^-1)		2×10^-4	初始SOC/(kW·h)		50

不确定性参数	场景编号	场景概率

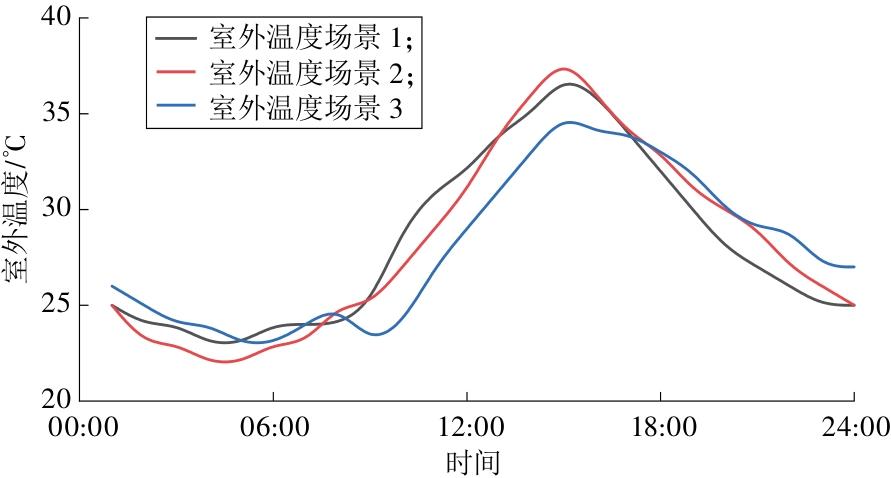

室外温度	1	0.3
	2	0.3
	3	0.4

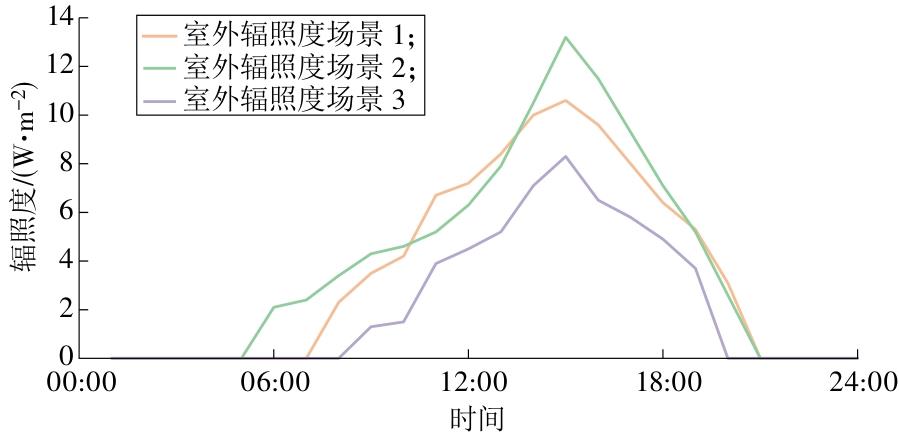

室外辐照度	1	0.5
	2	0.3
	3	0.2

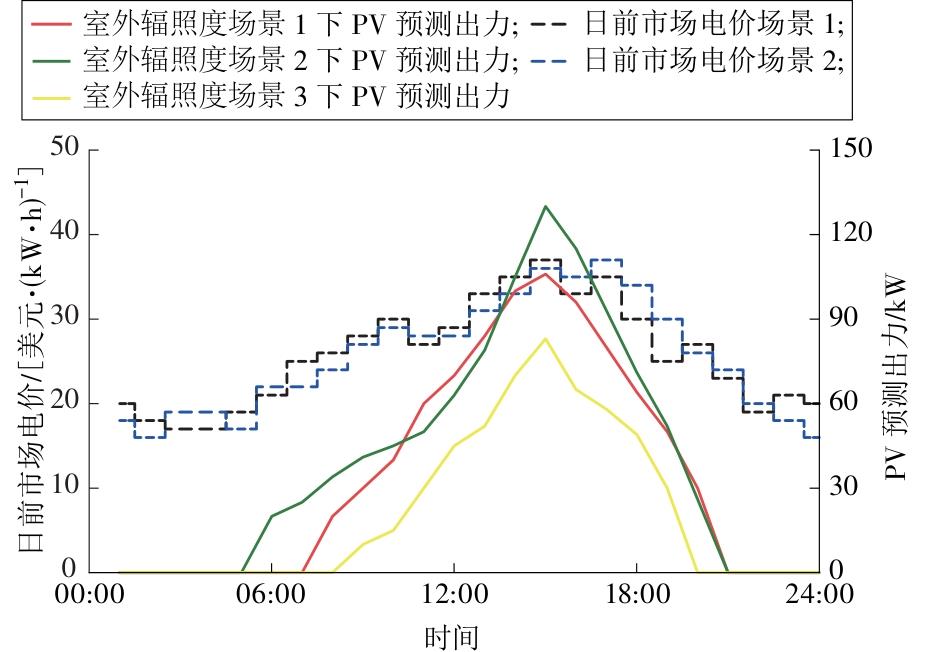

日前市场电价	1	0.6
日前市场电价	2	0.4

场景	A1.B1.D1	A1.B1.D2	A1.B2.D1	A1.B2.D2	A1.B3.D1	A1.B3.D2	A2.B1.D1	A2.B1.D2	A2.B2.D1
收益	12 760.0	12 348.1	16 319.6	15 907.6	10 863.2	10 531.8	12 683.6	12 458.3	16 098.5
场景	A2.B2.D2	A2.B3.D1	A2.B3.D2	A3.B1.D1	A3.B1.D2	A3.B2.D1	A3.B2.D2	A3.B3.D1	A3.B3.D2
收益	16 159.4	10 596.4	11 984.8	11 864.5	11 358.7	15 987.6	15 394.8	9 876.1	9 548.6

情况	空调负荷运行费用	商业智能楼宇总收益
1	2 106.9	12 760.0
2	2 271.6	12 595.3
