Optimized strategy for emergency load shedding in virtual power plants based on dynamic elastic grading and 5G communication delay compensation

doi:10.3969/j.issn.2097-0706.2025.11.006

Abstract

Abstract:

Emergency load shedding in virtual power plants（VPPs） faces command deviations due to inaccurate load identification and communication delays. Therefore， an optimized model for emergency load shedding in VPPs based on dynamic elastic grading and 5G communication delay compensation was proposed. A dynamic elastic grading mechanism was introduced to accurately identify load characteristics， providing a basis for load shedding operations. A 5G communication delay compensation mechanism was incorporated to effectively reduce command execution deviations caused by communication delays， thereby improving the execution accuracy of load shedding commands. An objective function with the goal of minimizing operational costs was constructed， and the model was solved through multi-mechanism collaborative optimization. Case study results demonstrated that the two mechanisms above helped fully leverage the advantages of the optimized model， significantly improving the execution accuracy of load shedding commands while reducing system carbon emissions. The optimized model could reduce the execution error of load shedding commands from 0.73 MW to 0.28 MW， decrease the total system cost by 13.3%， and lower carbon emissions by 32.0%. The proposed model effectively enhances the operational precision， environmental performance， and economic efficiency of the system， providing a novel solution with both theoretical and practical value for emergency load shedding decision-making in VPPs.

Key words: virtual power plant, emergency load shedding, dynamic elastic grading, 5G communication delay compensation, demand response

CLC Number:

TK01：TM37

BIAN Lijie, MA Gang, CHEN Xudong, ZHAN Xiaosheng. Optimized strategy for emergency load shedding in virtual power plants based on dynamic elastic grading and 5G communication delay compensation[J]. Integrated Intelligent Energy, 2025, 47(11): 62-71.

Figures/Tables 10

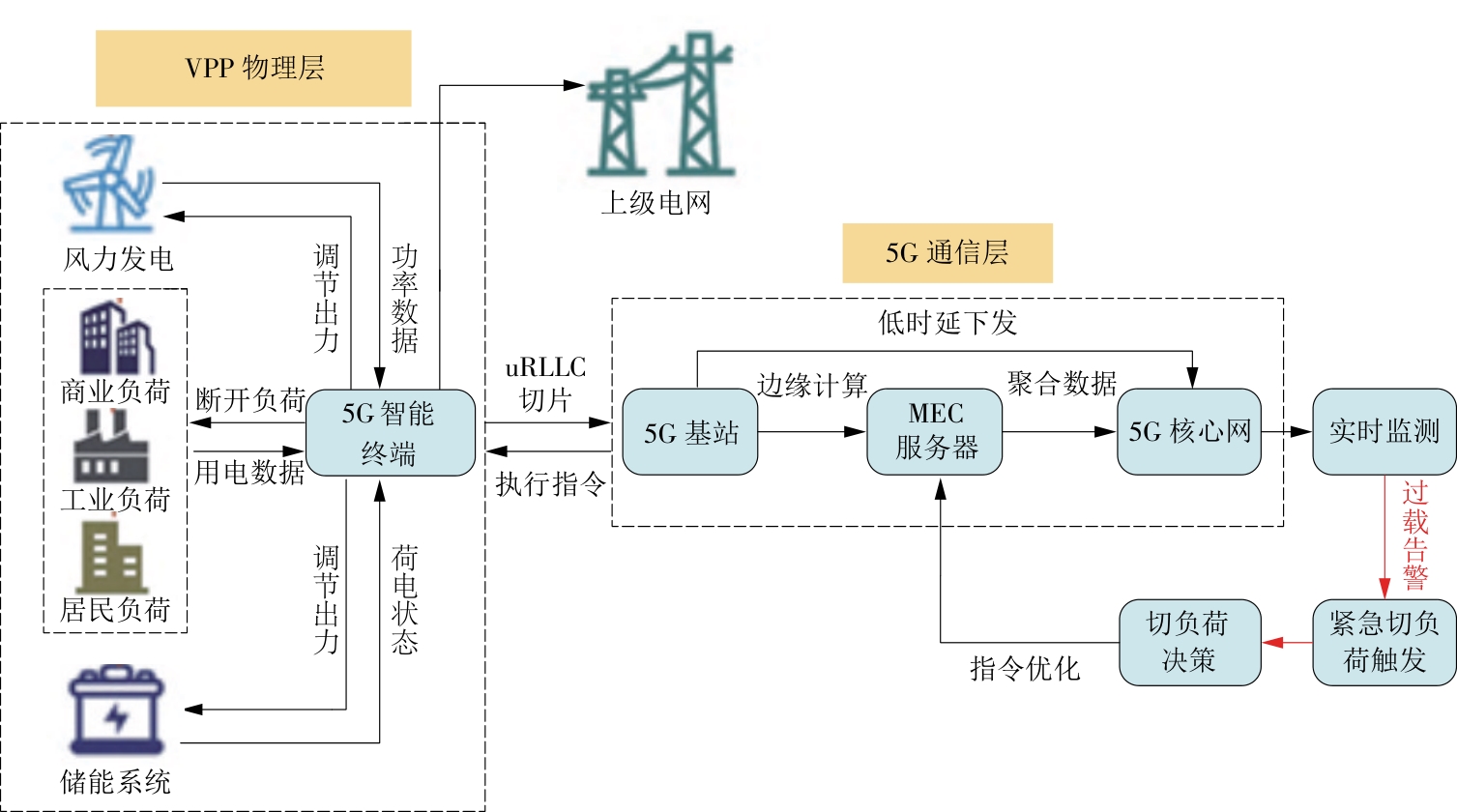

Fig.1

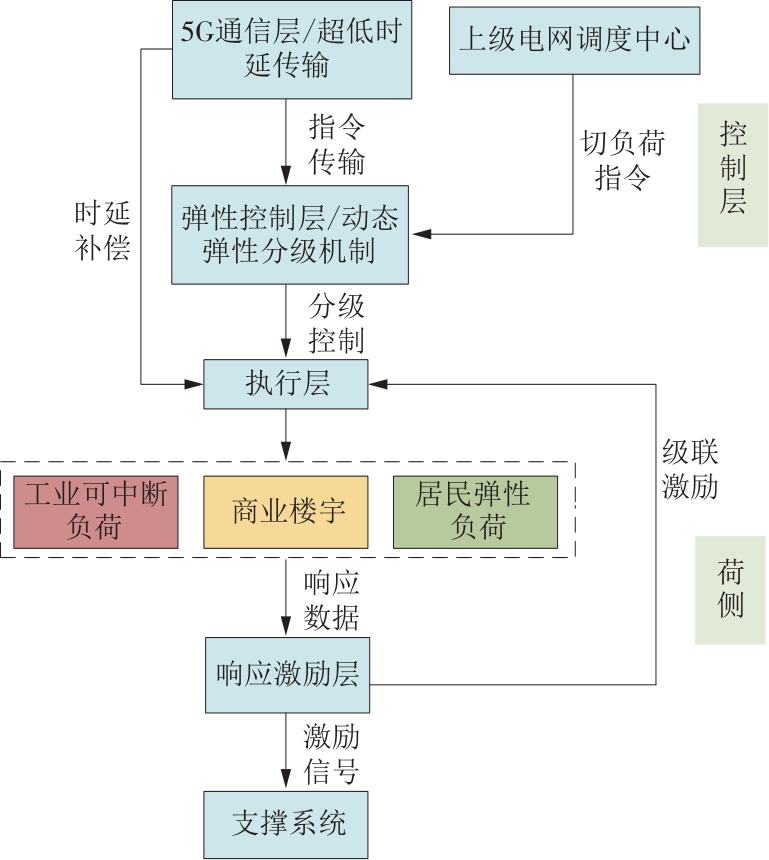

Fig. 2

Table 1

Parameter setting

参数	数值	参数	数值
$k$	2.5	$h$	0.3
$c$ /(m·s^-1)	8	n	0.5
$Δ P b a s e / M W$	0.75	$θ 1,0 / °$	30
$v r a t e d$ /(m·s^-1)	20	$m$	0.95
$α$	0.05	$λ$	0.1
$β$	0.2	$γ$	1.5/0.6
$c 1$ /(元·kW^-1）	200	$η$	0.95
$c 2$ /(元·kW^-1）	50	$c c e r t$ /(元·本^-1)	500
$c 3$ /(元·kW^-1）	10	$c c a r b o n / 元 ⋅ k g - 1$	60
$c b u y$ /[元·（kW·h）^-1]	0.6	$c e l e /$ [元·（kW·h）^-1]	0.5
$c c u r$ /[元·（kW·h）^-1]	0.3

Table 1

Table 2

Table 3

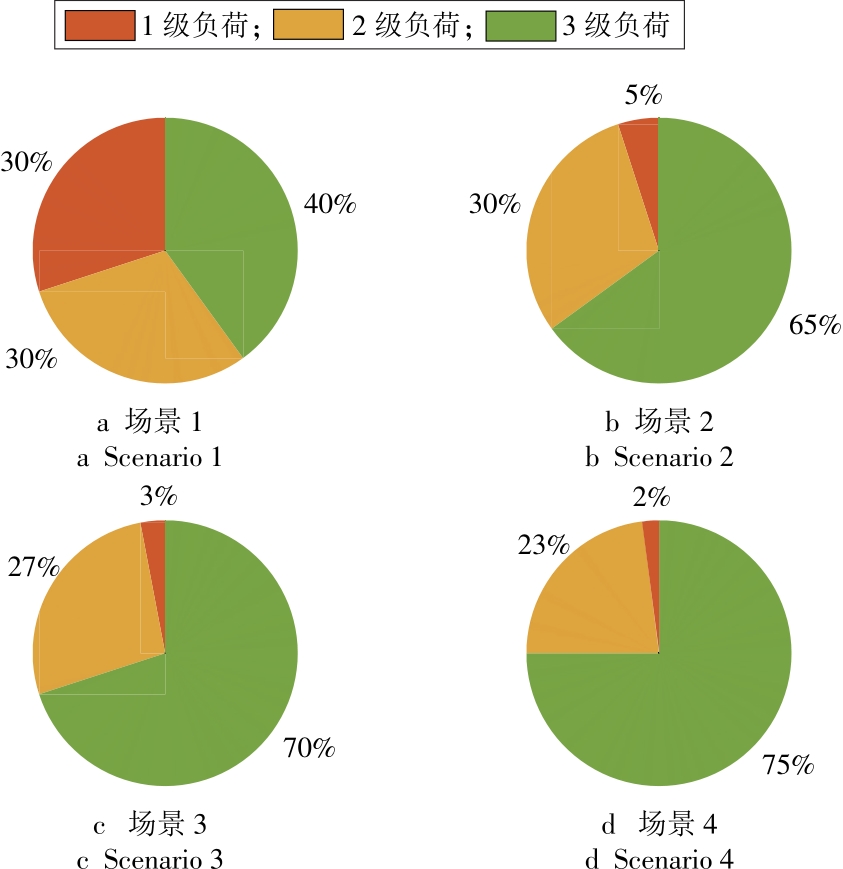

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

References 35

[1]	汤晨阳, 王磊, 江伟建. 计及不确定性风险与电能贡献度的多虚拟电厂协同优化策略[J]. 电力建设, 2025, 46(7): 27-41.
	TANG Chenyang, WANG Lei, JIANG Weijian. Collaborative optimization strategy for multiple virtual power plants considering uncertainty risk and energy contribution[J]. Electric Power Construction, 2025, 46(7): 27-41.
[2]	王俊, 杜炜, 王馨, 等. 考虑剩余可用调节能力主动恢复的虚拟电厂优化运行[J]. 综合智慧能源, 2025, 47(7): 55-63.
	WANG Jun, DU Wei, WANG Xin, et al. Optimization of virtual power plant operation considering the active recovery of remaining available regulating capacity[J]. Integrated Intelligent Energy, 2025, 47(7): 55-63.
[3]	胡洋, 董治新, 韩雅萱, 等. 促进新能源消纳的虚拟电厂运营优化策略[J]. 科技管理研究, 2024, 44(14): 173-182.
	HU Yang, DONG Zhixin, HAN Yaxuan, et al. Operation optimization strategy of virtual power plants for promoting new energy consumption[J]. Science and Technology Management Research, 2024, 44(14): 173-182.
[4]	窦梦园. 含虚拟电厂的电力系统优化运行方法研究[D]. 北京: 华北电力大学, 2024.
	DOU Mengyuan. Research on optimal operation method of power system containing virtual power plants[D]. Beijing: North China Electric Power University, 2024.
[5]	任建文, 张青青. 基于能源区块链的虚拟电厂两阶段鲁棒优化调度[J]. 电力自动化设备, 2020, 40(8): 23-33.
	REN Jianwen, ZHANG Qingqing. Two-stage robust optimal scheduling of virtual power plant based on energy blockchain[J]. Electric Power Automation Equipment, 2020, 40(8): 23-33.
[6]	邓泽宇. 考虑电网互动的园区综合能源系统运行优化研究[D]. 广州: 华南理工大学, 2024.
	DENG Zeyu. Research on operation optimization of park integrated energy system considering power grid interaction[D]. Guangzhou: South China University of Technology, 2024.
[7]	卓会丹, 孙艳玲, 马宏伟, 等. 基于双层优化的虚拟电厂与共享储能的耦合运营策略[J]. 电气应用, 2025, 44(6): 86-92.
	ZHUO Huidan, SUN Yanling, MA Hongwei, et al. Coupling operation strategy of virtual power plant and shared energy storage based on double-layer optimization[J]. Electrotechnical Application, 2025, 44(6): 86-92.
[8]	WANG Y, QIU J, STRBAC G. A conditional value-at-risk based planning model for integrated energy systems with virtual power plant[J]. IEEE Transactions on Power Systems, 2022, 37(6): 4322-4333.
[9]	辛晓钢, 李强, 张谦, 等. 计及多灵活性资源的虚拟电厂两阶段鲁棒优化调度方法[J]. 热能动力工程, 2024, 39(9): 113-122.
	XIN Xiaogang, LI Qiang, ZHANG Qian, et al. A two-stage robust optimal scheduling method for virtual power plants taking into account multi-flexibility resources[J]. Journal of Engineering for Thermal Energy and Power, 2024, 39(9): 113-122.
[10]	FAN M H, TANG X S, PEI W, et al.Peer-peer electricity transaction and integrated regulation of VPP based on blockchain[C]// 2020 IEEE 4th Conference on Energy Internet and Energy System Integration(EI2),2020: 727-732.
[11]	陈学增. 源荷不确定性下虚拟电厂两阶段鲁棒电算协同调度[J]. 电工电气, 2025(6): 61-71.
	CHEN Xuezeng. Two-stage robust computing-power collaborative dispatch of virtual power plants under source-load uncertainty[J]. Electrotechnics Electric, 2025(6): 61-71.
[12]	杨康, 崔小磊, 王硕, 等. 面向虚拟电厂的边云协同架构及其优化调控研究[J]. 电工技术, 2025(9): 95-98.
	YANG Kang, CUI Xiaolei, WANG Shuo, et al. Edge-cloud collaboration architecture for virtual power plantsand its optimal regulation research[J]. Electric Engineering, 2025(9): 95-98.
[13]	许鹏, 何霖. 新型电力系统下5G+云边端协同的源网荷储架构及关键技术初探[J]. 四川电力技术, 2021, 44(6): 67-73.
	XU Peng, HE Lin. Preliminary discussion on source-grid-load-storage architecture and key technology based on 5G +cloud-edge-terminal cooperation in new power system[J]. Sichuan Electric Power Technology, 2021, 44(6): 67-73.
[14]	张弛龙. 5G多接入融合与协同的网络架构[J]. 通信电源技术, 2020, 37(7): 184-186, 190.
	ZHANG Chilong. 5G multi access fusion and collaborative network architecture[J]. Telecom Power Technology, 2020, 37(7): 184-186, 190.
[15]	朱卫卫, 朱清, 高文森, 等. 基于5G通信时延的配电网馈线自动化切换方法[J]. 综合智慧能源, 2024, 46(5): 1-11.
	ZHU Weiwei, ZHU Qing, GAO Wensen, et al. Switching method for distribution network feeder automation system based on 5G communication delay[J]. Integrated Intelligent Energy, 2024, 46(5): 1-11.
[16]	税月, 刘俊勇, 高红均, 等. 考虑风电不确定性的电热综合系统分布鲁棒协调优化调度模型[J]. 中国电机工程学报, 2018, 38(24): 7235-7247, 7450.
	SHUI Yue, LIU Junyong, GAO Hongjun, et al. A distributionally robust coordinated dispatch model for integrated electricity and heating systems considering uncertainty of wind power[J]. Proceedings of the CSEE, 2018, 38(24): 7235-7247, 7450.
[17]	杨富程, 韩二红, 王彬滨, 等. 风电场风速概率Weibull分布的参数估计研究[J]. 江西科学, 2019, 37(2): 264-269, 299.
	YANG Fucheng, HAN Erhong, WANG Binbin, et al. Estimation algorithm on the weibull probabilistic distribution parameters of wind speed in wind farms[J]. Jiangxi Science, 2019, 37(2): 264-269, 299.
[18]	邸燕君, 张文波, 赵文婧, 等. 风电场风电转换功率模拟进行个性化改进研究[J]. 科技与创新, 2021(18): 72-76.
	DI Yanjun, ZHANG Wenbo, ZHAO Wenjing, et al. Research on personalized improvement of wind power conversion power simulation in wind farm[J]. Science and Technology & Innovation, 2021(18): 72-76.
[19]	代博祉. 计及风速变化特征的风电功率超短期预测研究[D]. 吉林: 东北电力大学, 2021.
	DAI Bozhi. Ultra-short-term wind power forecasting considering wind speed variation characteristics[D]. Jilin:Northeast Dianli University, 2021.
[20]	陈子珍, 丁洪起, 李稳良, 等. 风电预测误差非正态分布电力系统优化调度[J]. 控制工程, 2016, 23(6): 937-943.
	CHEN Zizhen, DING Hongqi, LI Wenliang, et al. Optimal dispatch of power system considering the non-normal distribution of wind power forecast error[J]. Control Engineering of China, 2016, 23(6): 937-943.
[21]	周立立, 王仪贤. 基于CVaR的配电网储能容量配置研究[J]. 电工电气, 2025(3): 21-28, 52.
	ZHOU Lili, WANG Yixian. Research on energy storage capacity configuration of distribution network based on CVaR[J]. Electrotechnics Electric, 2025(3): 21-28, 52.
[22]	马乾鑫, 加鹤萍, 郭宇辰, 等. 基于CVaR的虚拟电厂与电动汽车主从博弈策略[J]. 电力建设, 2025, 46(7): 53-66.
	MA Qianxin, JIA Heping, GUO Yuchen, et al. Stackelberg game optimization strategy of virtual power plants and electric vehicles based on conditional value-at-risk[J]. Electric Power Construction, 2025, 46(7): 53-66.
[23]	冯宜伟, 刘顺民. 通信延迟下的分布式孤岛微电网有限时间二次频率控制[J]. 控制工程, 2024, 31(9): 1561-1571.
	FENG Yiwei, LIU Shunmin. Finite-time secondary frequency control of distributed island microgrid under communication delay[J]. Control Engineering of China, 2024, 31(9): 1561-1571.
[24]	姚伟, 文劲宇, 孙海顺, 等. 考虑通信延迟的分散网络化预测负荷频率控制[J]. 中国电机工程学报, 2013, 33(1): 84-92.
	YAO Wei, WEN Jinyu, SUN Haishun, et al. Decentralized networked predictive load frequency control considering communication delays[J]. Proceedings of the CSEE, 2013, 33(1): 84-92.
[25]	陈文颖, 郑修诺, 闫倩文, 等. 绿证-碳交易交互机制下的虚拟电厂优化调度[J/OL]. 南方电网技术, 2025: 1-12( 2025-03-25)[2025-09-01]. https://kns.cnki.net/KCMS/detail/detail.aspx?filename=NFDW20250324001&dbname=CJFD&dbcode=CJFQ.
	CHEN Wenying, ZHENG Xiunuo, YAN Qianwen, et al. Optimal scheduling of virtual power plant under the green certificate carbon trading interaction mechanism[J/OL]. Southern Power System Technology, 2025: 1-12( 2025-03-25)[2025-09-01]. https://kns.cnki.net/KCMS/detail/detail.aspx?filename=NFDW20250324001&dbname=CJFD&dbcode=CJFQ.
[26]	尚文强, 李广磊, 丁月明, 等. 考虑源荷不确定性和新能源消纳的综合能源系统协同调度方法[J]. 电网技术, 2024, 48(2): 517-532.
	SHANG Wenqiang, LI Guanglei, DING Yueming, et al. Collaborative scheduling for integrated energy system considering uncertainty of source load and absorption of new energy[J]. Power System Technology, 2024, 48(2): 517-532.
[27]	LUO Q, ZHANG S. Two-stage optimal scheduling of virtual power plant considering demand response and forecast errors[C]// 2022 4th International Conference on Electrical Engineering and Control Technologies (CEECT), 2022: 852-856.
[28]	周伟, 孙永辉, 王建喜, 等. 计及自适应阶梯型需求响应激励机制的园区综合能源系统优化调度[J]. 电网技术, 2023, 47(10): 4210-4221.
	ZHOU Wei, SUN Yonghui, WANG Jianxi, et al. Optimal dispatch of park-level integrated energy system considering adaptive stepped demand response incentive mechanism[J]. Power System Technology, 2023, 47(10): 4210-4221.
[29]	凌云鹏, 周波, 徐楠, 等. 考虑碳交易成本与预测不确定性的源荷储优化调度方法[J/OL]. 现代电力, 2025: 1-9. ( 2025-05-29)[2025-09-01]. https://link.cnki.net/doi/10.19725/j.cnki.1007-2322.2024.0080.
	LING Yunpeng, ZHOU Bo, XU Nan, et al. An optimal scheduling method for source-load-storage systems considering carbon trading cost and forecast uncertainty[J/OL]. Modern Electric Power, 2025: 1-9. ( 2025-05-29)[2025-09-01]. https://link.cnki.net/doi/10.19725/j.cnki.1007-2322.2024.0080.
[30]	姜尚, 孙东彦, 梁伟阁, 等. 考虑通信延迟的网络化弹药多约束协同策略[J/OL]. 电子学报, 2023:1- 11 ( 2023-07-06)[2025-09-01]. https://kns.cnki.net/KCMS/detail/detail.aspx?filename=DZXU2023070401D&dbname=CJFD&dbcode=CJFQ.
	JIANG Shang, SUN Dongyan, LIANG Weige, et al. Multi-constraint cooperative strategy of networked ammunition considering communication delay[J/OL]. Acta Electronica Sinica, 2023:1-11( 2023-07-06)[2025-09-01]. https://kns.cnki.net/KCMS/detail/detail.aspx?filename=DZXU2023070401D&dbname=CJFD&dbcode=CJFQ.
[31]	孔祥玉, 于凡凡, 张祖锋, 等. 考虑碳排放约束的工业园区高耗能负荷互动决策方法[J/OL]. 电力系统自动化, 2025: 1-17( 2025-07-11)[2025-09-01]. https://kns.cnki.net/KCMS/detail/detail.aspx?filename=DLXT20250710001&dbname=CJFD&dbcode=CJFQ.
	KONG Xiangyu, YU Fanfan, ZHANG Zufeng, et al. Interactive decision-making method for high-energy-consuming loads in industrial parks considering carbon emission constraints[J/OL]. Automation of Electric Power Systems, 2025: 1-17( 2025-07-11)[2025-09-01]. https://kns.cnki.net/KCMS/detail/detail.aspx?filename=DLXT20250710001&dbname=CJFD&dbcode=CJFQ.
[32]	白留星, 吴飞宇, 叶露阳, 等. 考虑风电不确定性的电力现货市场联合出清模型[J]. 综合智慧能源, 2025, 47(5): 73-83.
	BAI Liuxing, WU Feiyu, YE Luyang, et al. A joint clearing model of electricity spot market considering wind power uncertainty[J]. Integrated Intelligent Energy, 2025, 47(5): 73-83.
[33]	CHEN Y W, GUO Q L, SUN H B, et al. A distributionally robust optimization model for unit commitment based on Kullback-Leibler divergence[J]. IEEE Transactions on Power Systems, 2018, 33(5): 5147-5160.
[34]	NING B, HAN Q L, DING L. Distributed Finite-time secondary frequency and voltage control for islanded microgrids with communication delays and switching topologies[J]. IEEE Transactions on Cybernetics, 2020, 51(8): 3988-3999.
[35]	CHEN Y L, GAN Z, ZHOU D Q, et al. A resource allocation strategy for virtual power plants based on URLLC to minimize control costs[C]// 2025 IEEE 8th Information Technology and Mechatronics Engineering Conference (ITOEC), 2025.

场景	动态弹性分级	5G通信延迟补偿	DR
1	×	×	×
2	×	×	√
3	√	×	√
4	√	√	√

场景	切负荷成本	碳排放成本	补偿费用	DR成本	绿证收益
1	10 173.20	2 123.50	3 000.06	0	823.50
2	9 785.23	1 987.40	2 865.11	1 628.39	1 156.74
3	8 763.62	1 865.05	2 689.74	1 265.97	1 198.50
4	8 379.24	1 710.34	2 552.43	1 174.30	1 274.38
