Bi-level trading decision-making model for electric energy-frequency regulation markets

doi:10.3969/j.issn.2097-0706.2026.05.002

Abstract

Abstract:

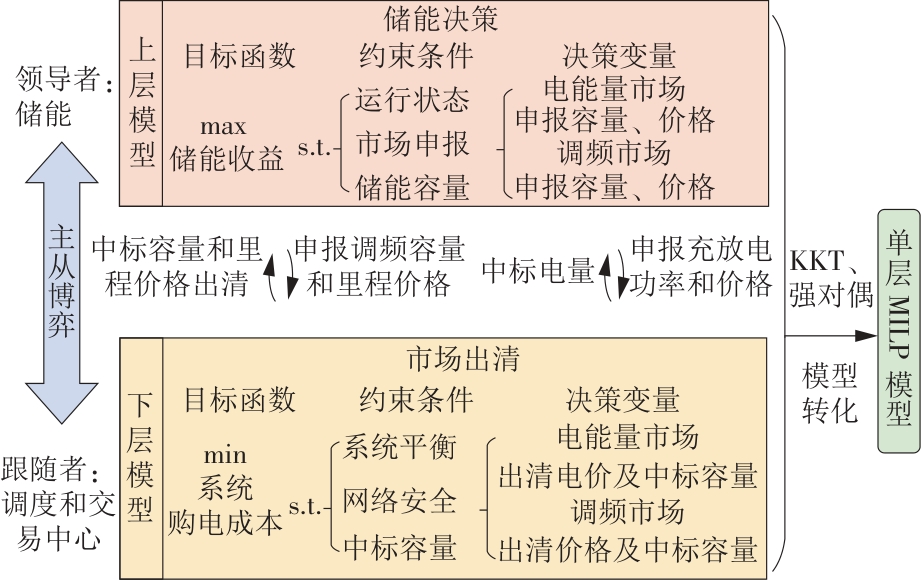

Energy storage（ES）， as a new type of single-technology business entity with flexible regulation and rapid response capabilities， can simultaneously participate in multi-market trading such as electric energy and frequency regulation. To address the insufficient coordination of existing models， a bi-level optimization model was constructed for ES power stations to jointly participate in electric energy and frequency regulation markets. The upper level aimed to maximize revenue by optimizing bidding and scheduling strategies， while the lower level simulated market clearing with the goal of minimizing system electricity purchase costs. By introducing complementary slackness conditions and strong duality theory， the model was transformed into a mixed-integer linear programming problem， ensuring both solvability and scalability. Simulation results based on an IEEE 30-bus system demonstrated that the proposed strategy could reduce system electricity purchase costs by approximately 5.8% and increase the revenues of ES power stations by over 20%， thereby effectively enhancing resource allocation efficiency and economic benefits for market participants. This model can provide decision-making support and mechanism references for new entities such as ES power stations in multi-market trading.

Key words: energy storage system, multi-market trading, bi-level optimization model, mixed-integer linear programming, market clearing

CLC Number:

TK01：TM73

GUO Binglin, ZHANG Jingyu, ZANG Qiyong. Bi-level trading decision-making model for electric energy-frequency regulation markets[J]. Integrated Intelligent Energy, 2026, 48(5): 10-18.

Figures/Tables 10

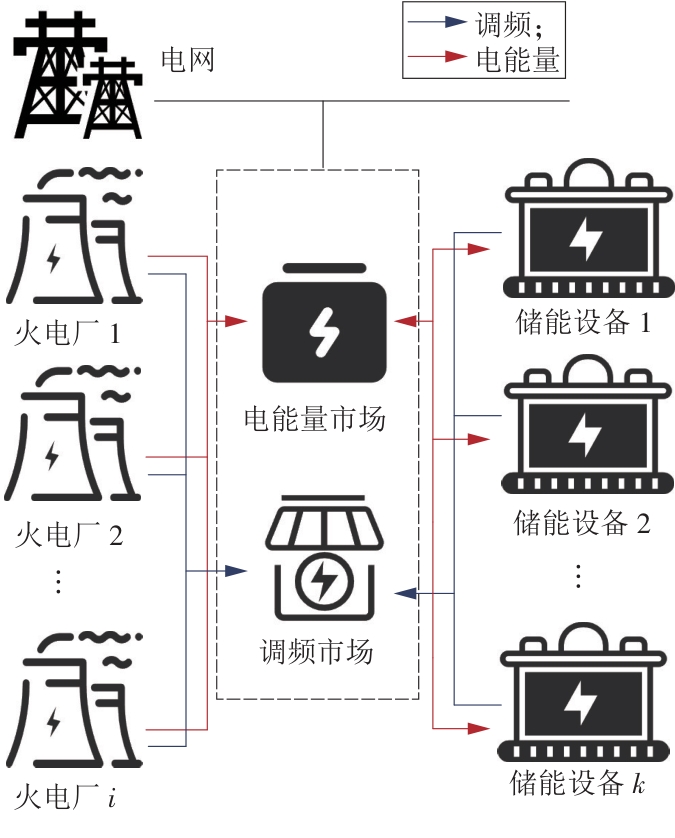

Fig.1

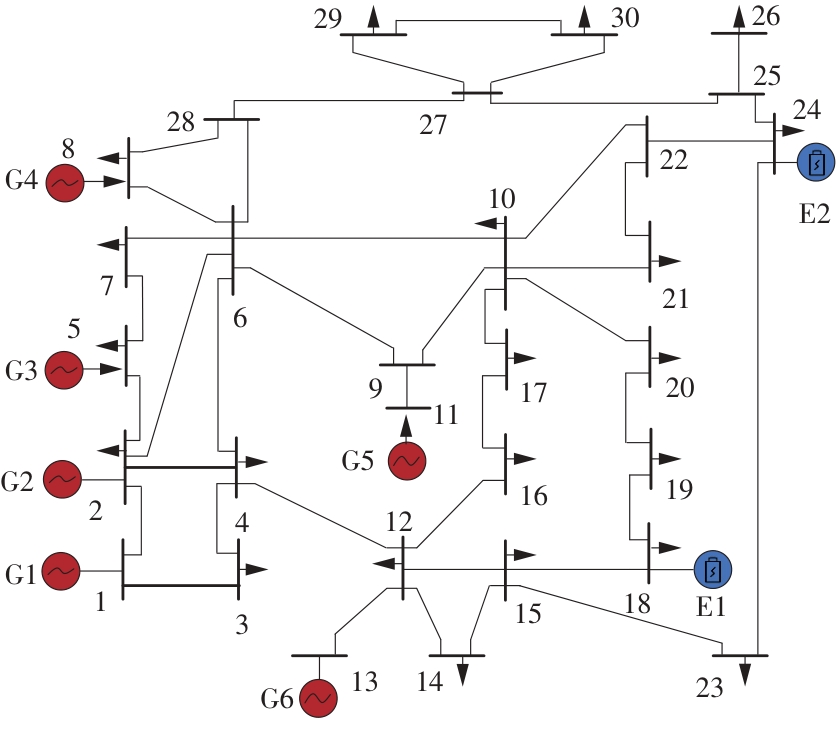

Fig.2

Table 1

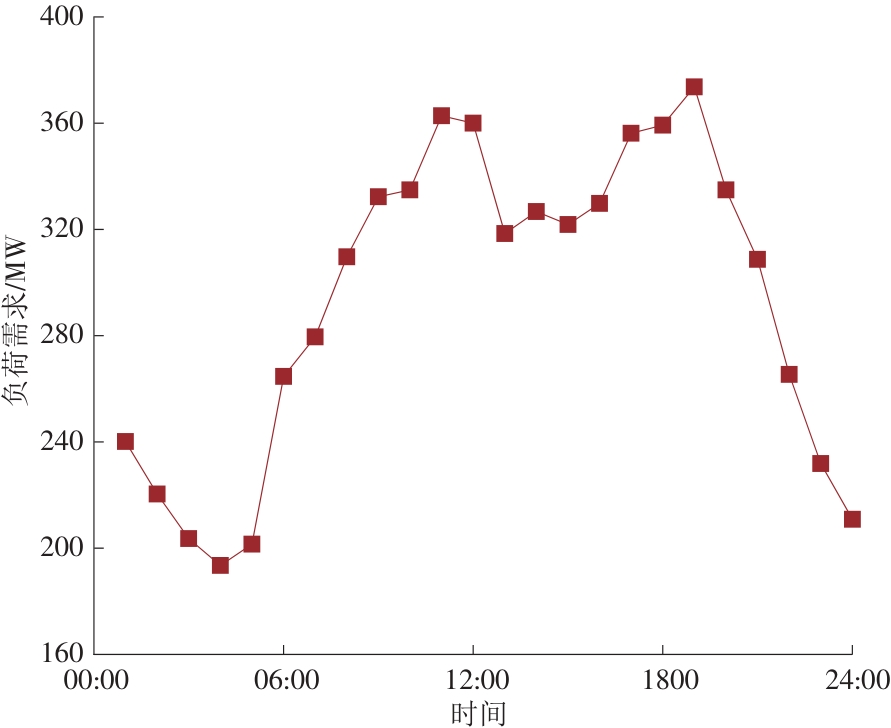

Fig.3

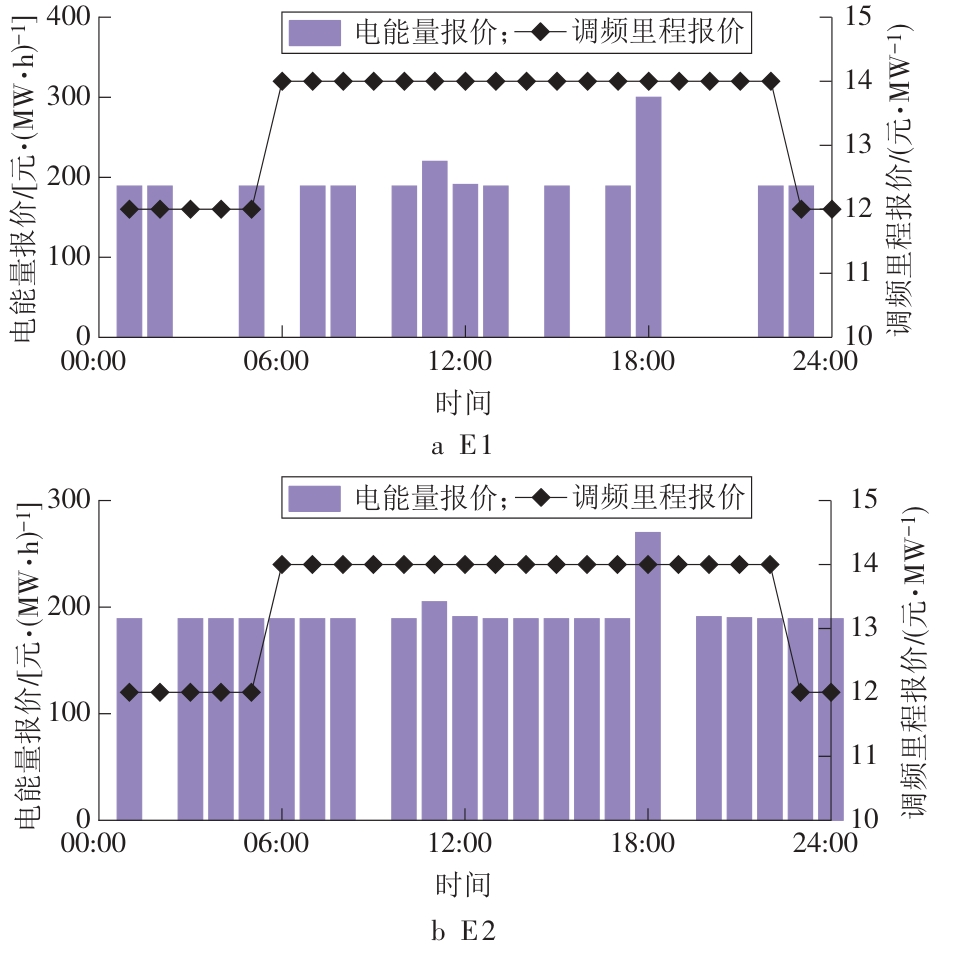

Fig.4

Table 2

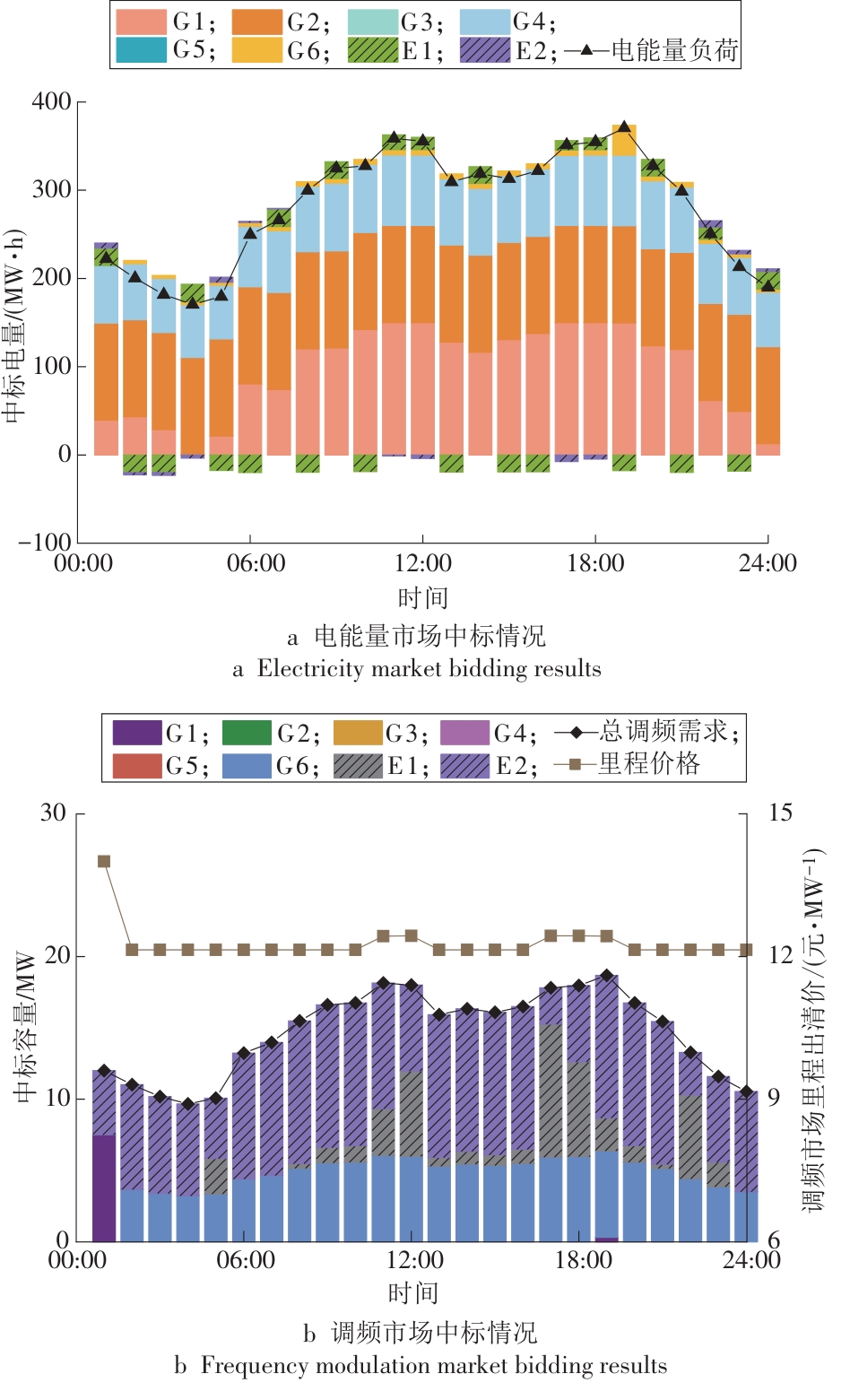

Fig.5

Table 3

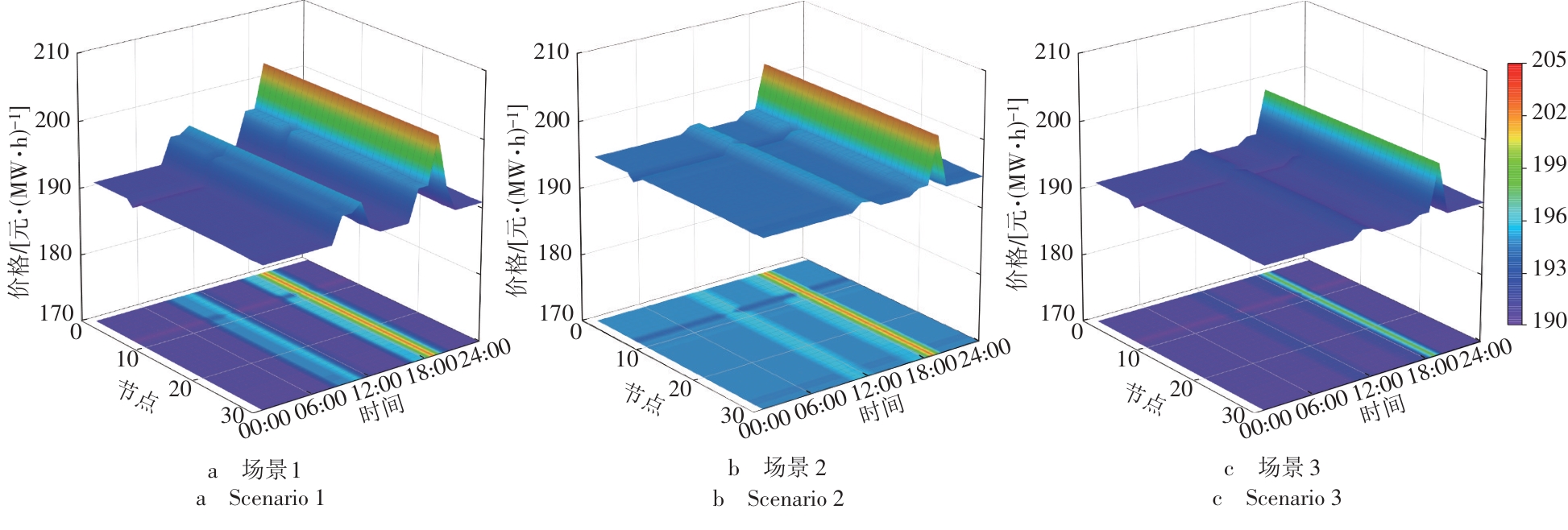

Fig.6

Fig.7

References 24

[1]	国家能源局. 2024年可再生能源并网运行情况[EB/OL]. (2025-01-27)[2025-07-18]. https://www.nea.gov.cn/20250221/e10f363cabe3458aaf78ba4558970054/c.html.
[2]	国家能源局. 我国已建成投运新型储能装机4 444万千瓦[EB/OL]. (2024-07-31)[2025-07-18]. https://www.gov.cn/lianbo/bumen/202407/content_6965499.htm.
[3]	王成, 邵冲, 何欣, 等. 基于MOIBKA算法的电化学储能电站最优功率分配[J]. 综合智慧能源, 2025, 47(6): 74-84. doi: 10.3969/j.issn.2097-0706.2025.06.008
	WANG Cheng, SHAO Chong, HE Xin, et al. Optimal power allocation for electrochemical energy storage power stations based on MOIBKA algorithm[J]. Integrated Intelligent Energy, 2025, 47(6): 74-84. doi: 10.3969/j.issn.2097-0706.2025.06.008
[4]	许志军, 臧鹏程, 白格平, 等. 考虑风储联合运行系统经济性的储能配置优化[J]. 内蒙古电力技术, 2022, 40(4): 47-53.
	XU Zhijun, ZANG Pengcheng, BAI Geping, et al. Energy storage configuration optimization considering economy of wind-storage combined operation system[J]. Inner Mongolia Electric Power, 2022, 40(4): 47-53.
[5]	何新宇, 党照群, 杨斯涵, 等. 平抑风电波动的混合储能容量配置策略[J]. 东北电力技术, 2024, 45(3):7-12.
	HE Xinyu, DANG Zhaoqun, YANG Sihan, et al. Hybrid energy storage capacity configuration strategy for suppressing wind power fluctuations[J]. Northeast Electric Power Technology, 2024, 45(3):7-12.
[6]	孙娜, 董海鹰, 陈薇, 等. 新型电力系统场景下网侧规模化储能二次调频控制策略[J]. 综合智慧能源, 2024, 46(2): 59-67. doi: 10.3969/j.issn.2097-0706.2024.02.008
	SUN Na, DONG Haiying, CHEN Wei, et al. Secondary frequency modulation control strategy for large-scale grid-side energy storage devices in new power systems[J]. Integrated Intelligent Energy, 2024, 46(2): 59-67. doi: 10.3969/j.issn.2097-0706.2024.02.008
[7]	王森, 李凤婷, 张高航, 等. 面向新能源高渗透系统调峰和调频的系统级储能容量需求分析[J]. 电力自动化设备, 2024, 44(1): 24-31.
	WANG Sen, LI Fengting, ZHANG Gaohang, et al. Capacity demand analysis of system-level energy storage for peak regulation and frequency regulation of power system with high penetration of renewable energy[J]. Electric Power Automation Equipment, 2024, 44(1): 24-31.
[8]	王俊, 田浩, 赵二岗, 等. 计及电动汽车共享储能特性的园区柔性资源低碳运行控制方法[J]. 综合智慧能源, 2024, 46(6): 16-26. doi: 10.3969/j.issn.2097-0706.2024.06.003
	WANG Jun, TIAN Hao, ZHAO Ergang, et al. Low-carbon operation control on park-level integrated energy systems considering shared energy storage devices for electric vehicles[J]. Integrated Intelligent Energy, 2024, 46(6): 16-26. doi: 10.3969/j.issn.2097-0706.2024.06.003
[9]	李笑竹, 陈来军, 杜锡力, 等. 发电侧共享储能运营机制与交易模式研究综述[J]. 电气工程学报, 2023, 18(1): 188-200.
	LI Xiaozhu, CHEN Laijun, DU Xili, et al. Research status and prospect of shared energy storage operation mechanism and trading mode on generation side[J]. Journal of Electrical Engineering, 2023, 18(1): 188-200.
[10]	王雷, 闫瑞涛, 张凡, 等. 基于现货电能量市场与一次调频市场联合优化模型的独立储能项目经济性分析[J]. 储能科学与技术, 2025, 14(2): 834-845. doi: 10.19799/j.cnki.2095-4239.2024.0856
	WANG Lei, YAN Ruitao, ZHANG Fan, et al. Economic analysis of independent energy-storage project participation based on the optimization model of in-spot power market and primary frequency regulation markets[J]. Energy Storage Science and Technology, 2025, 14(2): 834-845. doi: 10.19799/j.cnki.2095-4239.2024.0856
[11]	KALATHIL D, WU C Y, POOLLA K, et al. The sharing economy for the electricity storage[J]. IEEE Transactions on Smart Grid, 2017, 10(1): 556-567. doi: 10.1109/TSG.2017.2748519
[12]	张巍, 卢骧. 点对点交易下储能聚合商共享自营多模式交易模型[J]. 电力系统自动化, 2022, 46(2): 15-23.
	ZHANG Wei, LU Xiang. Sharing and self-operating multi-mode trading model of energy storage aggregators with peer-to-peer trade[J]. Automation of Electric Power Systems, 2022, 46(2): 15-23.
[13]	MOTALLEB M, GHORBANI R. Non-cooperative game-theoretic model of demand response aggregator competition for selling stored energy in storage devices[J]. Applied Energy, 2017, 202: 581-596. doi: 10.1016/j.apenergy.2017.05.186
[14]	KRISHNAMURTHY D, UCKUN C, ZHOU Z, et al. Energy storage arbitrage under day-ahead and real-time price uncertainty[J]. IEEE Transactions on Power Systems, 2018, 33(1): 84-93. doi: 10.1109/TPWRS.2017.2685347
[15]	李柯江, 宋天昊, 韩肖清, 等. 计及电价不确定性和损耗成本的储能竞价策略[J]. 电力系统自动化, 2020, 44(17): 52-59.
	LI Kejiang, SONG Tianhao, HAN Xiaoqing, et al. Bidding strategy of energy storage considering electricity price uncertainty and loss cost[J]. Automation of Electric Power Systems, 2020, 44(17): 52-59.
[16]	姜欣, 刘萌, 王天梁, 等. 电网侧储能电站参与现货联合市场的竞价策略[J]. 电网技术, 2021, 45(9): 3398-3408.
	JIANG Xin, LIU Meng, WANG Tianliang, et al. Bidding strategy for grid-side energy storage power stations to participate in the spot joint market[J]. Power System Technology, 2021, 45(9): 3398-3408.
[17]	唐琦雯, 沈琪, 祝俊, 等. 浙江调频辅助服务市场机制设计及运营实践[J]. 综合智慧能源, 2022, 44(9): 71-77. doi: 10.3969/j.issn.2097-0706.2022.09.010
	TANG Qiwen, SHEN Qi, ZHU Jun, et al. Mechanism design and operation practice of Zhejiang frequency regulation ancillary service market[J]. Integrated Intelligent Energy, 2022, 44(9): 71-77. doi: 10.3969/j.issn.2097-0706.2022.09.010
[18]	肖云鹏, 张兰, 张轩, 等. 包含独立储能的现货电能量与调频辅助服务市场出清协调机制[J]. 中国电机工程学报, 2020, 40(S1): 167-180.
	XIAO Yunpeng, ZHANG Lan, ZHANG Xuan, et al. Coordination mechanism of spot electric energy with independent energy storage and market clearing of FM auxiliary service[J]. Proceedings of the CSEE, 2020, 40(S1): 167-180.
[19]	AKHAVAN-HEJAZI H, MOHSENIAN-RAD H. Optimal operation of independent storage systems in energy and reserve markets with high wind penetration[J]. IEEE Transactions on Smart Grid, 2013, 5(2): 1088-1097. doi: 10.1109/TSG.2013.2273800
[20]	赵海岭, 王维庆, 李笑竹, 等. 计及储能参与的电能-调频-备用市场日前联合交易决策模型[J]. 电网技术, 2023, 47(11): 4575-4587.
	ZHAO Hailing, WANG Weiqing, LI Xiaozhu, et al. Day ahead joint trading decision model for electricity, frequency regulation and reserve market considering energy storage participation[J]. Power System Technology, 2023, 47(11): 4575-4587.
[21]	ZOU P, CHEN Q X, XIA Q, et al. Evaluating the contribution of energy storages to support large-scale renewable generation in joint energy and ancillary service markets[J]. IEEE Transactions on Sustainable Energy, 2016, 7(2): 808-818. doi: 10.1109/TSTE.2015.2497283
[22]	宋永华, 包铭磊, 丁一, 等. 新电改下我国电力现货市场建设关键要点综述及相关建议[J]. 中国电机工程学报, 2020, 40(10): 3172-3187.
	SONG Yonghua, BAO Minglei, DING Yi, et al. Review of Chinese electricity spot market key issues and its suggestions under the new round of Chinese power system reform[J]. Proceedings of the CSEE, 2020, 40(10): 3172-3187.
[23]	国家能源局山东监管办公室. 关于印发《山东电力市场规则(试行)》的通知: 鲁监能市场规〔2024〕24号[EB/OL]. (2024-04-19)[2025-07-18]. https://sdb.nea.gov.cn/dtyw/tzgg/202404/t20240419_261034.html.
[24]	MARZBAND M, JAVADI M, DOMNGUEZ-GARCA J L, et al. Non-cooperative game theory based energy management systems for energy district in the retail market considering DER uncertainties[J]. IET Generation Transmission & Distribution, 2016, 10(12): 2999-3009. doi: 10.1049/gtd2.v10.12

火电机组	额定功率/MW	电能量报价/ [元·(MW∙h)^-1]	调频里程报价/ (元·MW^-1)
G1	150	191	12
G2	110	183	15
G3	60	201	15
G4	80	190	18
G5	40	230	14
G6	40	192	16

场景编号	系统购电成本/万元	相对变化/%	成本构成说明
1	948.6	+5.45	火电为主供能，储能电站贡献小，备用费用较高
2	983.6	+9.35	储能电站承担调频，未参与供能，需额外购电
3	899.6		储能电站同时供能与调频，显著降低备用与购电成本

场景编号	储能电站总收益/ 万元	电能量市场收益/ 万元	调频市场收益/ 万元	电能量市场占比/%	调频市场占比/%
1	22.00	22.00	0	100	0
2	24.50	0	24.50	0	100
3	28.00	14.56	13.44	52	48
