燃煤电厂万吨级碳捕集工程设计与运行优化研究

doi:10.3969/j.issn.1674-1951.2021.06.009

摘要/Abstract

摘要：

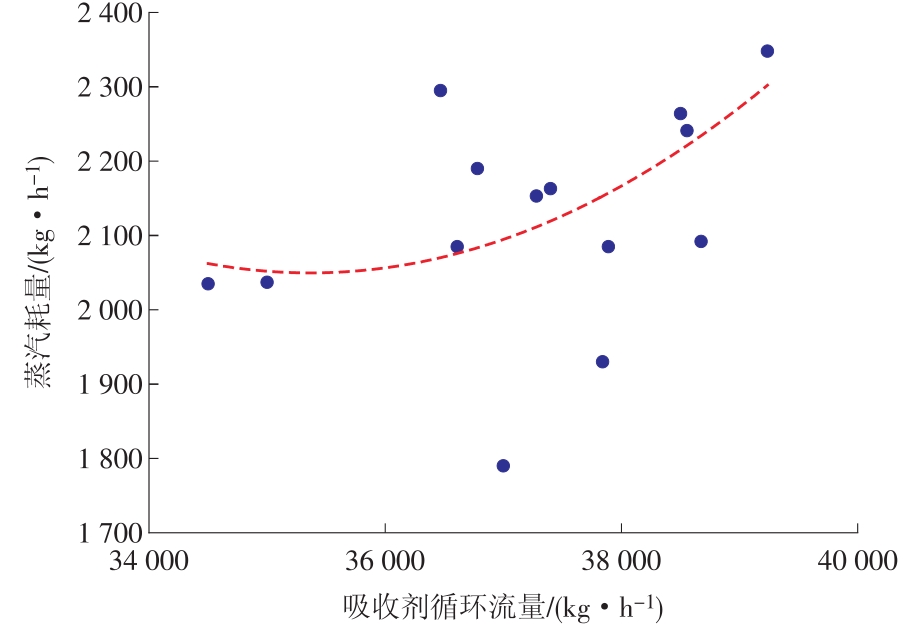

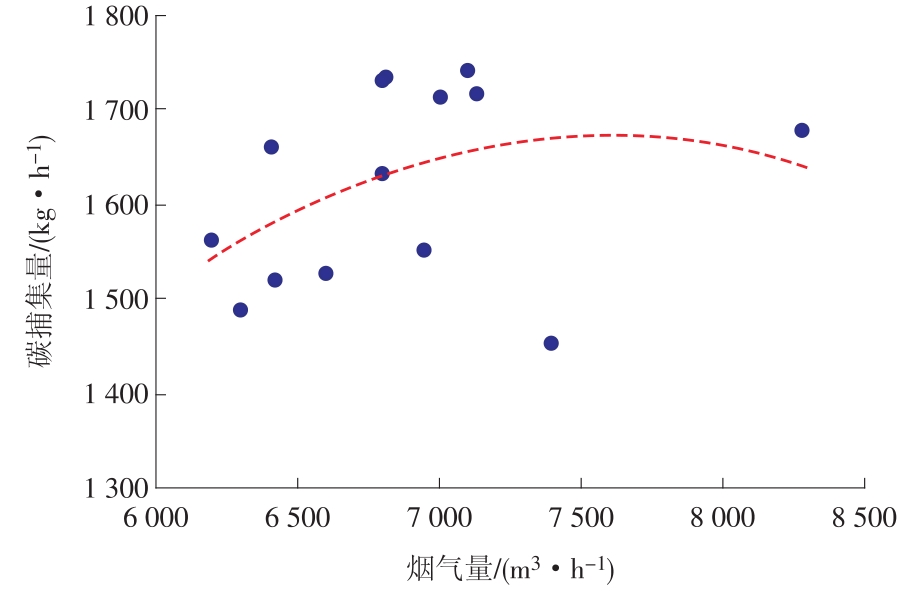

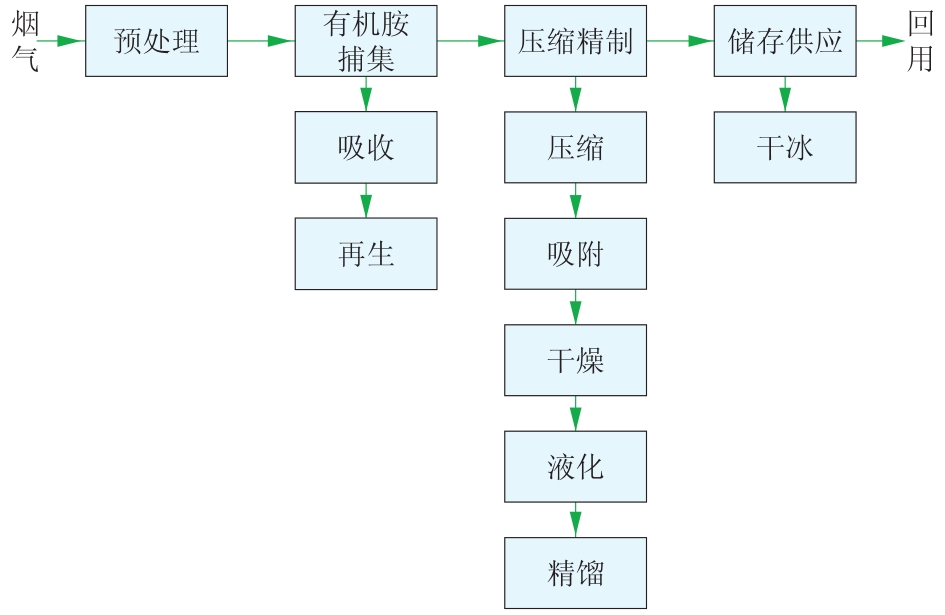

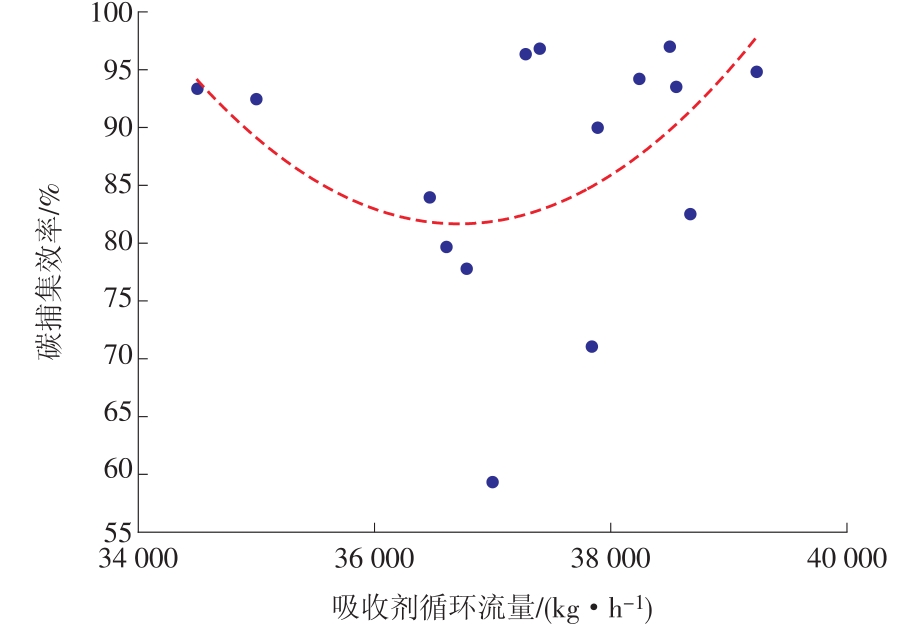

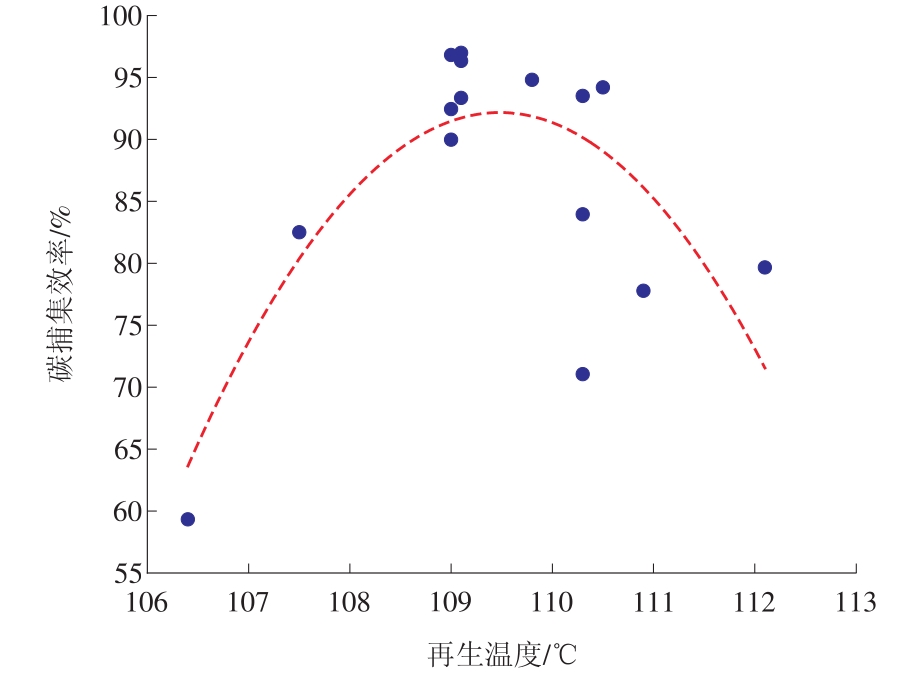

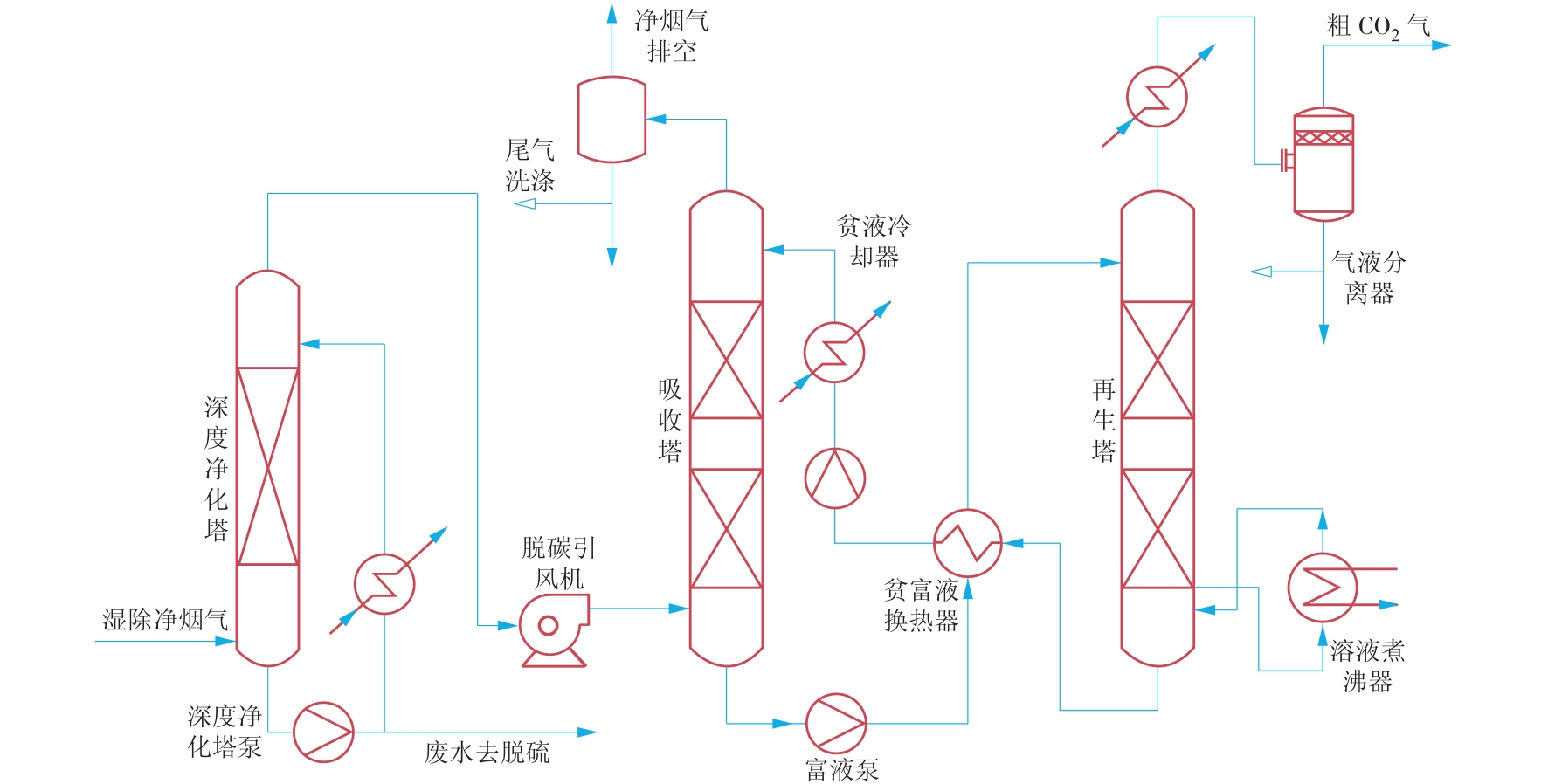

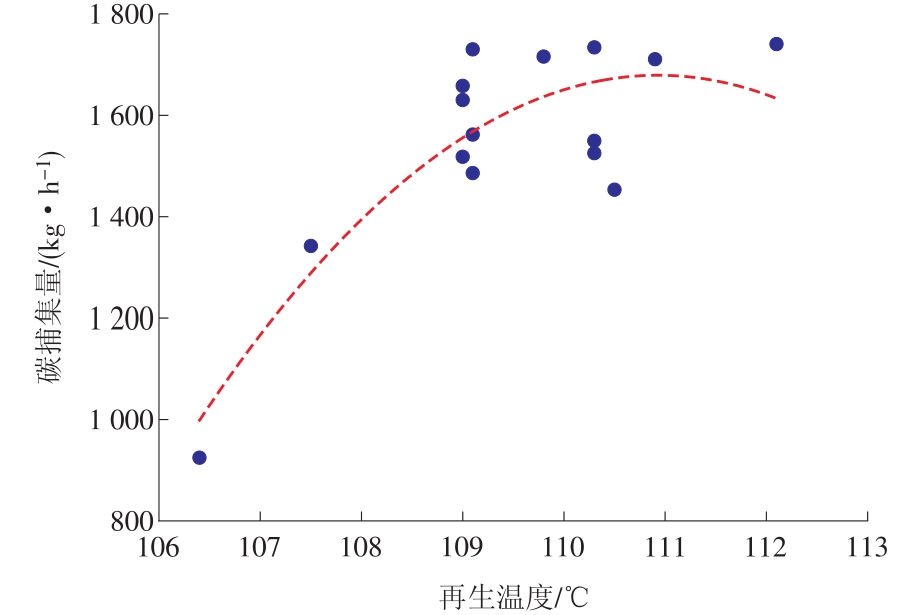

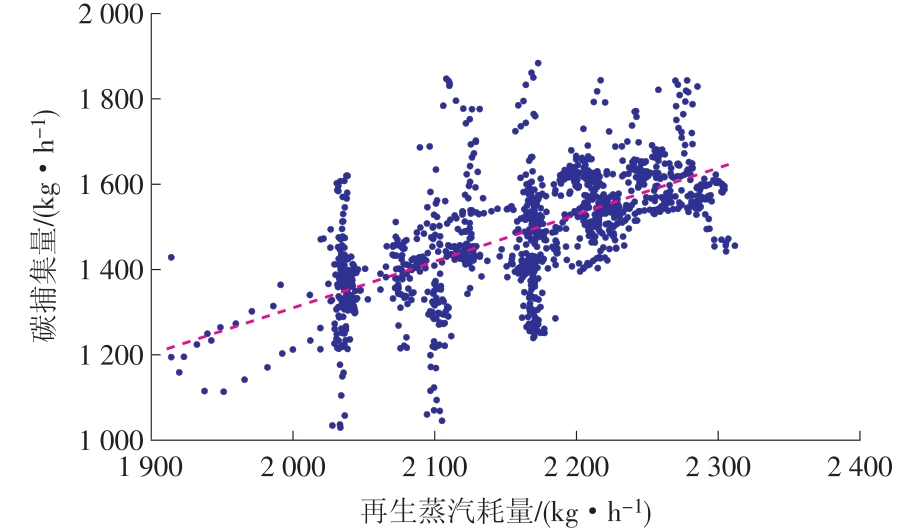

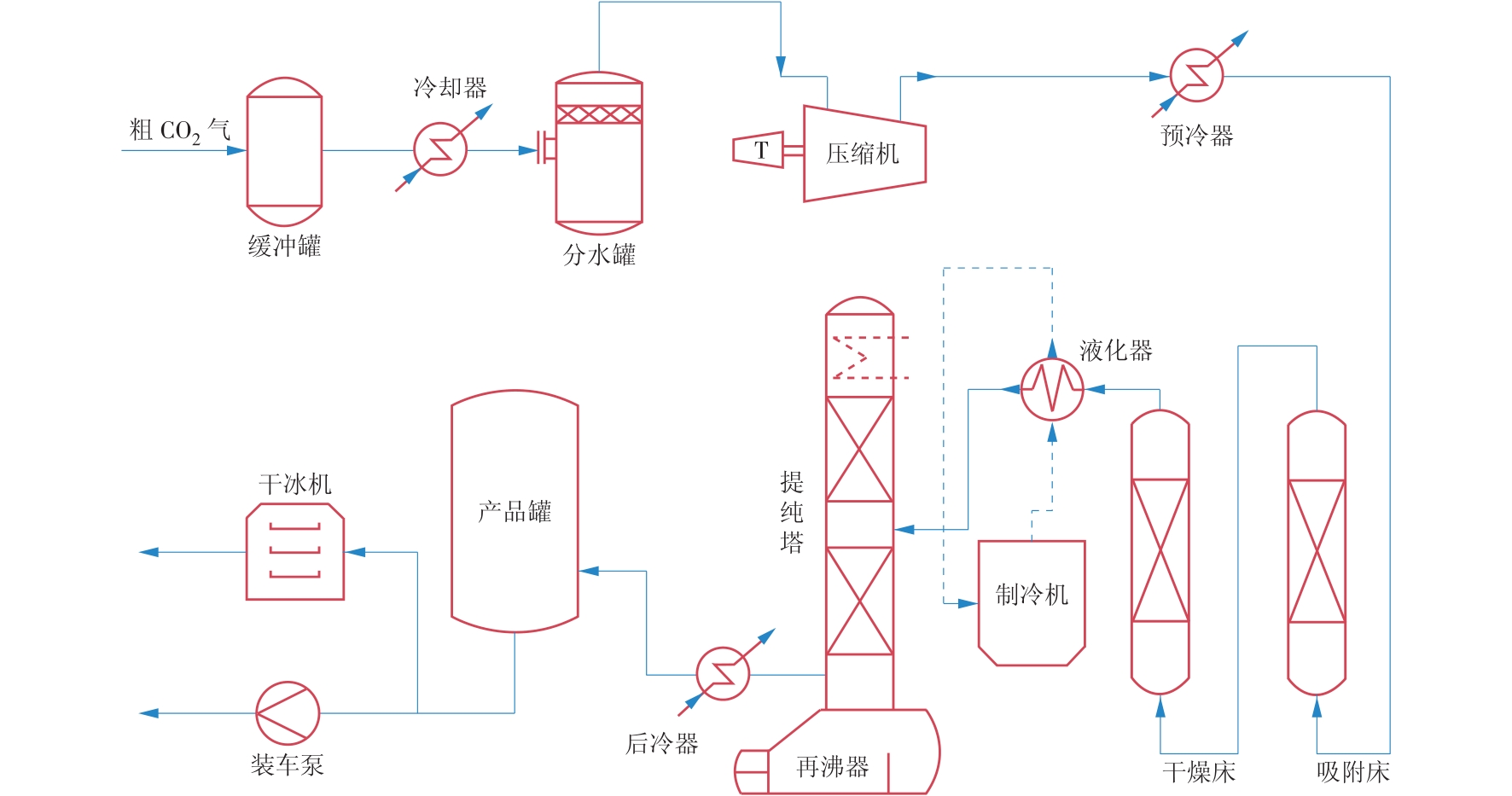

为验证碳捕集、利用与封存（CCUS）技术在燃煤机组中的实际应用效果,在某电厂设计和建设了1套万吨级有机胺法碳捕集示范工程。通过技术比选,选定了有机胺吸收和压缩精制技术路线,并对工艺系统和主要设备选型进行了讨论。示范装置投运后,通过长时间运行试验,获得了吸收剂流量、烟气量、再生温度等因素对系统碳捕集效率、碳捕集量、蒸汽用量和电耗的影响规律,利用分析结果对碳捕集系统进行了运行优化,获得了最佳运行参数。结果表明,本装置在烟气流量6 000~7 000 m³/h,吸收剂循环流量3 400~3 700 kg/h,再生温度108.5~109.0 ℃时运行性能最好,其碳捕集效率可达90%,碳捕集量可达1.39 t/h,平均电耗为312 （kW·h）/t CO₂,平均再生热耗为3.07 GJ/t CO₂,能耗较传统30%单乙醇胺（MEA）吸收系统降低23%左右。最后探讨了碳捕集装置运行成本及其构成。研究结果可以为同类碳捕集装置的系统设计、设备选型及运行研究提供较为翔实的参考数据。

关键词: 二氧化碳, 碳捕集, CCUS, 有机胺, 运行优化, 碳达峰, 碳中和

Abstract:

In order to test the application result of carbon capture,utilization and storage（CCUS） technology in coal-fired boilers,a 10 000 t/a carbon capture demonstration project was designed and built for a power plant.A technical path including organic amine absorption,compression and refinery is selected through comparison,and its process and main equipment selection are discussed.After long-term operation test since the start-up of the demonstration project,the influences of absorbent flow,flue gas flow and regenerate temperature on capture efficiency,capture capacity,steam consumption and electricity consumption of the carbon capture system have been studied.The optimum operational parameters are obtained from the analysis on the influence factors,which are the flue gas flow kept at 6 000~7 000 m³/h,the absorbent circulation flow kept at 3 400~3 700 kg/h and the regeneration temperature maintained at 108.5~109.0 ℃.Keeping the parameters within the optimum ranges above,the system is of a capture efficiency higher than 90%,a carbon capture capacity above 1.39 t/h,an average electricity consumption of 312 （kW·h）/t CO₂ and an average regeneration heat rate of 3.05 GJ/t CO₂.The energy consumption of the system is about 23% lower than that of the traditional capture system taking 30% MEA.Finally,the operation cost and its composition are calculated.The study offers solid data for the design and equipment selection of similar carbon capture projects.

Key words: carbon dioxide, carbon capture, CCUS, organic amine, operational optimization, carbon peak, carbon neutrality

中图分类号:

TM732：TK284.9

孙路长, 王争荣, 吴冲, 王凯亮, 张士明, 韩文荃. 燃煤电厂万吨级碳捕集工程设计与运行优化研究[J]. 华电技术, 2021, 43(6): 69-78.

SUN Luchang, WANG Zhengrong, WU Chong, WANG Kailiang, ZHANG Shiming, HAN Wenquan. Research on operation optimization of a 10 000 t/a carbon capture project for coal-fired power plants[J]. Huadian Technology, 2021, 43(6): 69-78.

图/表 19

图1

表1

图2

图3

图4

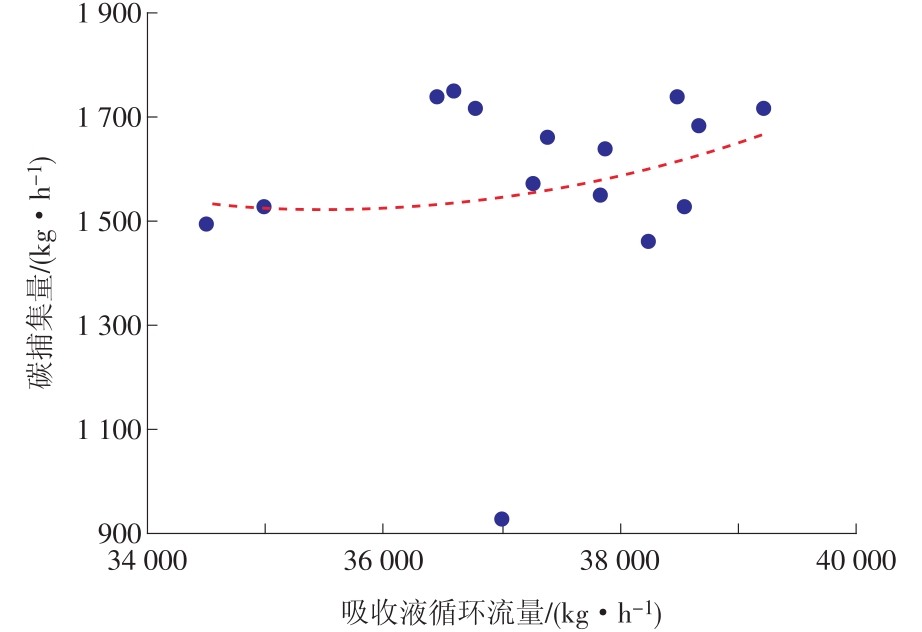

图5

图6

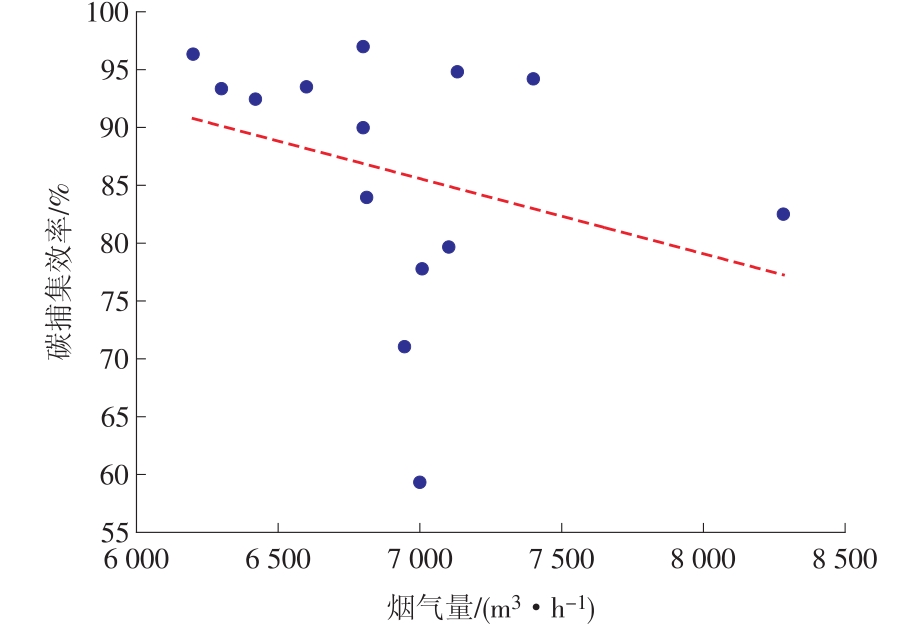

图7

图8

图9

图10

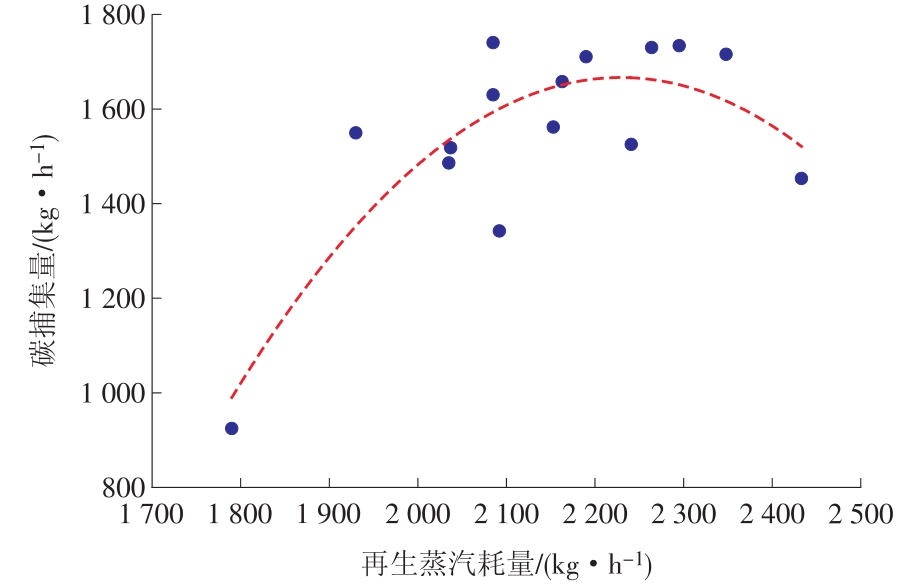

图11

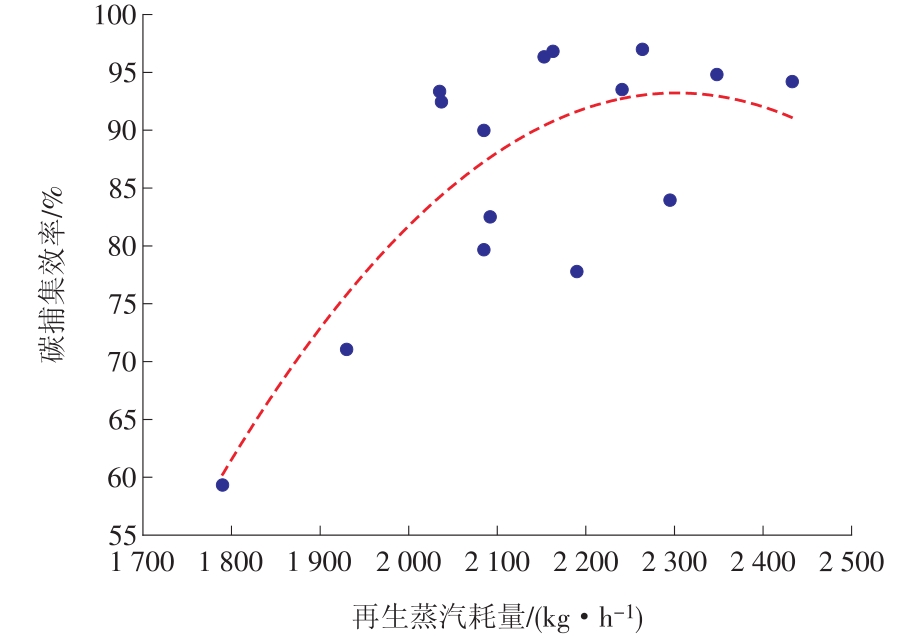

图12

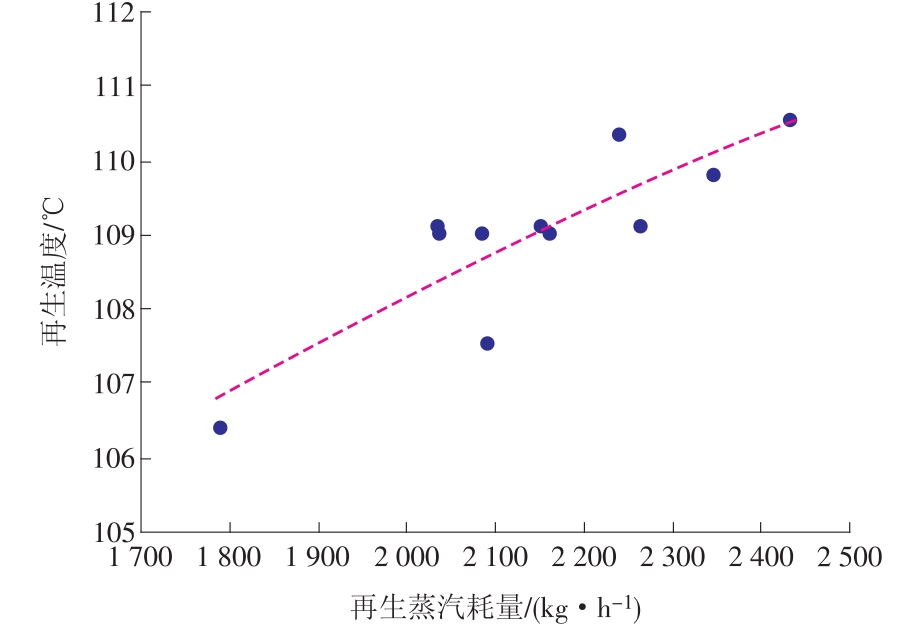

图13

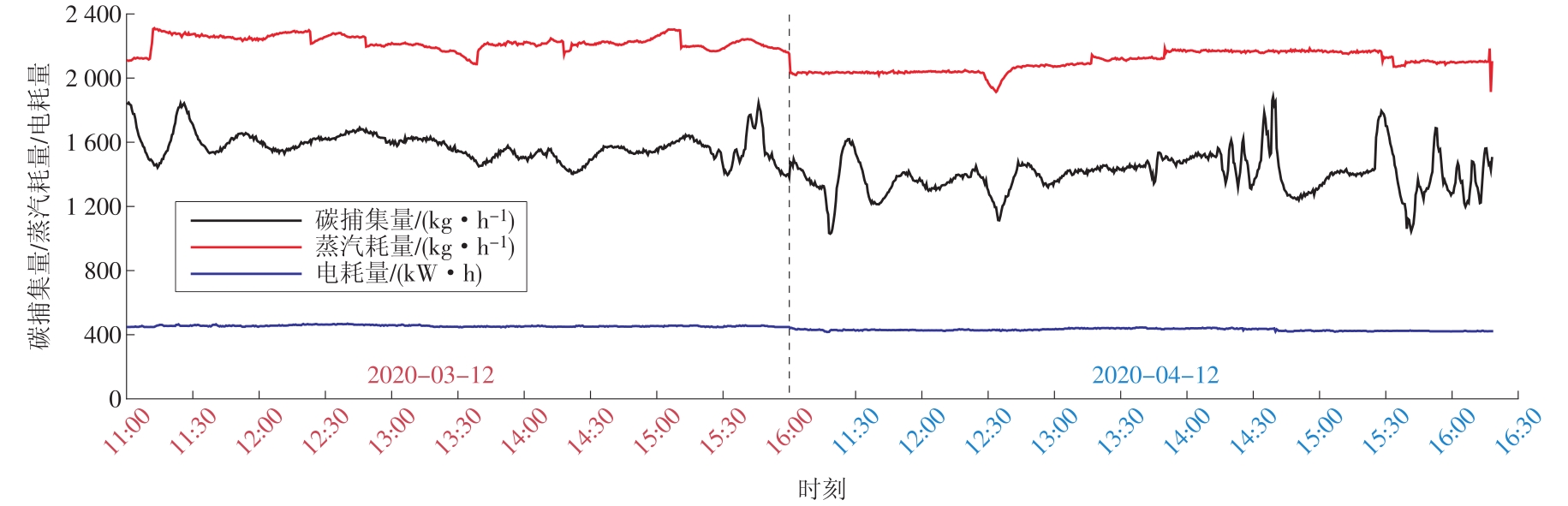

图14

图15

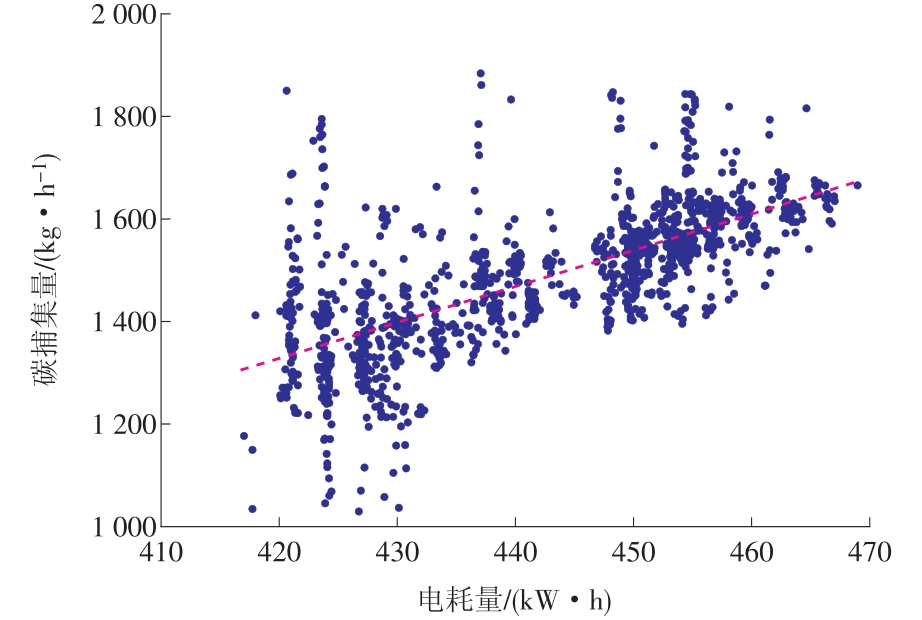

图16

表2

表3

参考文献 25

[1]	IPCC. Global Warning of 1.5 ℃[R]. 2018.
[2]	TAPIA J F D, LEE J Y, OOI R E H, et al. A review of optimization and decision-making models for the planning of CO₂ capture, utilization and storage(CCUS) systems[J]. Sustainable Production and Consumption, 2018,13:1-15. doi: 10.1016/j.spc.2017.10.001
[3]	王志轩, 潘荔, 刘志强, 等. 中国煤电清洁发展现状及展望[J]. 电力科技与环保, 2018,34(1):1-8.
	WANG Zhixuan, PAN Li, LIU Zhiqiang, et al. Review of present situation and prospect for clean development of coal-fired power in China[J]. Electric Power Technology and Environmental Protection, 2018,34(1):1-8.
[4]	张贤. 碳中和目标下中国碳捕集利用与封存技术应用前景[J]. 可持续发展经济导刊, 2020(12):22-24.
	ZHANG Xian. The application prospect of CCUS in China under the target of carbon neutrality[J]. China Sustainability Tribune, 2020(12):22-24.
[5]	IEA. Word energy outlook special report on energy and climate change[R]. 2015.
[6]	FRAGKOS P. Assessing the role of carbon capture and storage in mitigation pathways of developing economies[J]. Energies, 2021,14(7).DOI: 10.3390/en14071879.
[7]	李小春, 张九天, 李琦, 等. 中国碳捕集、利用与封存技术路线图(2011版)实施情况评估分析[J]. 科技导报, 2018,36(4):85-95.
	LI Xiaochun, ZHANG Jiutian, LI Qi, et al. Implementation status and gap analysis of China's carbon dioxide capture,utilization and geological storage technology roadmap[J]. Science & Technology Review, 2018,36(4):85-95.
[8]	秦积舜, 李永亮, 吴德彬, 等. CCUS全球进展与中国对策建议[J]. 油气地质与采收率, 2020,27(1):20-28.
	QIN Jishun, LI Yongliang, WU Debin, et al. CCUS global progress and China's policy suggestions[J]. Petroleum Geology and Recovery Efficiency, 2020,27(1):20-28.
[9]	BATTERHAM R J. Clean power technology[J]. Engineering, 2020,6:1349-1350. doi: 10.1016/j.eng.2020.10.004
[10]	韩学义. 电力行业二氧化碳捕集、利用与封存现状与展望[J]. 中国资源综合利用, 2020,38(2):110-117.
	HAN Xueyi. Current situation and prospect of carbon dioxide capture, utilization and storage in electric power industry[J]. China's Resources Comprehensive Utilization, 2020,38(2):110-117.
[11]	郭军军, 张泰, 李鹏飞, 等. 中国煤粉富氧燃烧的工业示范进展及展望[J]. 中国电机工程学报, 2021,41(4):1197-1208.
	GUO Junjun, ZHANG Tai, LI Pengfei, et al. Industrial demonstration progress and trend in pulverized coal Oxy-fuel combustion in China[J]. Proceedings of the CSEE, 2021,41(4):1197-1208.
[12]	陈旭, 杜涛, 李刚, 等. 吸附工艺在碳捕集中的应用现状[J]. 中国电机工程学报, 2019,39(S1):155-163.
	CHEN Xu, DU Tao, LI Gang, et al. Application of adorption technology on carbon capture[J]. Proceedings of the CSEE, 2019,39(S1):155-163.
[13]	罗双江, 白璐, 单玲珑, 等. 膜法二氧化碳分离技术研究进展及展望[J]. 中国电机工程学报, 2021,41(4):1209-1216.
	LUO Shuangjiang, BAI Lu, SHAN Linglong, et al. Research progress and prospect in membrane-mediated CO₂ separation[J]. Proceedings of the CSEE, 2021,41(4):1209-1216.
[14]	邓帅, 李双俊, 宋春风, 等. 微藻光合固碳效能研究:进展、挑战和解决路径[J]. 化工进展, 2018,37(3):928-937.
	DENG Shuai, LI Shuangjun, SONG Chunfeng, et al. Energy-efficiency research on photochemical-based microalgae carbon capture:Progress,challenge and developing pathway[J]. Chemical Industry and Engineering Progress, 2018,37(3):928-937.
[15]	赵毅, 曾韵洁. 燃煤电厂二氧化碳捕集技术[J]. 山东化工, 2018,47(5):155-157.
	ZHAO Yi, ZENG Yunjie. Carbon dioxide capture technology in coal-fired power plant[J]. Shandong Chemical Industry, 2018,47(5):155-157.
[16]	叶云云, 廖海燕, 王鹏, 等. 我国燃煤发电CCS/CCUS技术发展方向及发展路线图研究[J]. 中国工程科学, 2018,20(3):80-89.
	YE Yunyun, LIAO Haiyan, WANG Peng, et al. Research on technology direction and roadmap of CCS/CCUS for coal-fired power generation in China[J]. Strategic Study of CAE, 2018,20(3):80-89.
[17]	LEE S Y, PARK S J. A review on solid adsorbents for caron dioxide capture[J]. Journal of Industrial and Engineering Chemistry, 2015,23:1-11. doi: 10.1016/j.jiec.2014.09.001
[18]	周旭健, 李清毅, 陈瑶姬, 等. 化学吸收法在燃后区CO₂捕集分离中的研究和应用[J]. 能源工程, 2019(3):58-66.
	ZHOU Xujian, LI Qingyi, CHEN Yaoji, et al. Chemical solvents for post-combustion CO₂ capture:A review[J]. Energy Engineering, 2019(3):58-66.
[19]	吴彬, 黄坤荣, 刘子健. 化学吸收法捕集二氧化碳研究进展[J]. 广州化工, 2017,45(11):11-14.
	WU Bin, HUANG Kunrong, LIU Zijian. Research progress on carbon dioxide capture by chemical absorption[J]. Guangzhou Chemical Industry, 2017,45(11):11-14.
[20]	BAI L, SHANG D W, LI M D, et al. CO₂ absorption with ioni liquids at lelvated temperatures[J]. Journal of Energy Chemistry, 2017,26(5):1001-1006. doi: 10.1016/j.jechem.2017.07.009
[21]	林海周, 杨晖, 罗海中, 等. 烟气二氧化碳捕集胺类吸收剂研究进展[J]. 南方能源建设, 2019,6(1):16-21.
	LIN Haizhou, YANG Hui, LUO Haizhong, et al. Research progress on amine absorbent for CO₂ capture from flue gas[J]. Southern Energy Construction, 2019,6(1):16-21.
[22]	赵毅, 王永斌, 王添颢. 有机胺法吸收二氧化碳的研究进展[J]. 再生资源与循环经济, 2020,13(7):26-29.
	ZHAO Yi, WANG Yongbin, WANG Tianhao. Research progress on the absorption of carbon dioxide by organic amine method[J]. Recyclable Resources and Circular Economy, 2020,13(7):26-29.
[23]	安山龙, 侯天锐, 臧欣怡, 等. 燃煤烟气CO₂化学吸收剂研究进展[J]. 广州化工, 2019,47(3):19-21.
	AN Shanlong, HOU Tianrui, ZANG Xinyi, et al. Research progress on chemical absorbents for coal-fired flue gas CO₂[J]. Guangzhou Chemical Industry, 2019,47(3):19-21.
[24]	周旭萍. 氨基酸盐和混合CO₂吸收剂的综合特性研究[D]. 杭州:浙江大学, 2016.
[25]	郭伟, 唐人虎. 2060碳中和目标下的电力行业[J]. 能源, 2020(11):19-26.
	GUO Wei, TANG Renhu. Power generation industry under the target of 2060 carbon neutrality[J]. Energy, 2020(11):19-26.

组分名称	单位	设计工况	校核工况
组分名称	单位	设计煤种BMCR	设计煤种50%THA
φ（CO₂）	%	13.38	10.40
φ（O₂）	%	3.84	7.20
φ（N₂）	%	69.75	69.10
φ（H₂O）	%	13.02	13.30
ρ（SO₂）	mg/m³	26	35
ρ（SO₃）	mg/m³	10	10
ρ（NO_x）	mg/m³	50	50
烟尘质量浓度	mg/m³	5	5

名称	单位	设计要求	性能试验结果
CO₂生产能力	t/h	≥1.39	1.39
碳捕集效率	%	≥90.00	97.24
CO₂体积分数	%	≥99.90	99.98
产品质量其他指标		满足食品级二氧化碳国家标准	均优于食品级二氧化碳国家标准
电耗量	kW	520.00	431.32
蒸汽耗量	t/h	2.25	2.14

项目	消耗指标	单价	年运行费用/万元	占比/%
蒸汽	2.14 t/h	78.00 元/t	133.54	35.23
电	431.3 kW	0.27 元/(kW·h)	93.16	24.58
循环水	250 t/h	0.20 元/t	40.00	10.55
吸收剂	1.2 kg/t CO₂	4.00 万元/t	48.00	12.67
碱	0.1 kg/t CO₂	0.30 万元/t	0.30	0.08
人工	8	8.00 万元/(人·a)	64.00	16.89
小计			379.00	100.00
